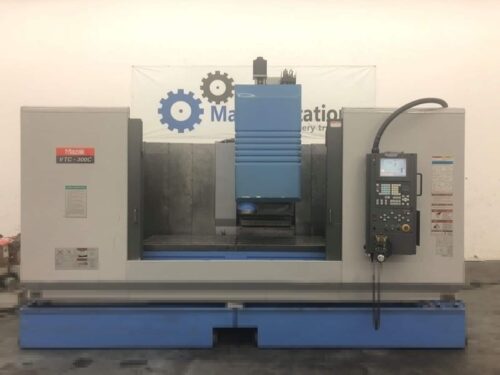

MAZAK VTC 300C VERTICAL MACHINING CENTER | |
---|---|
Make | MAZAK |
Model No. | VTC-300C |
Year | 12/2002 installed in 2004 |
Serial # | 160080 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has low Cutting Hours, Travelling Column Design, 24 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- Mazak VTC 300C Features:

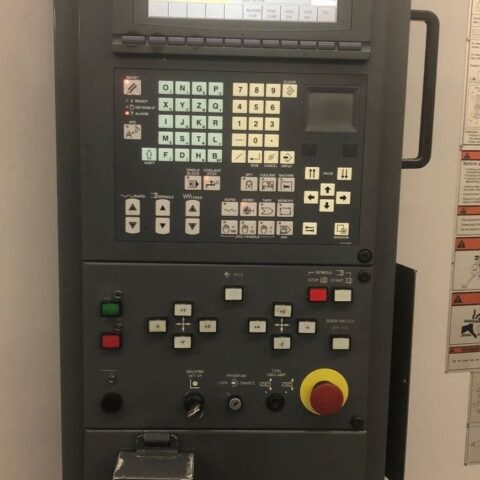

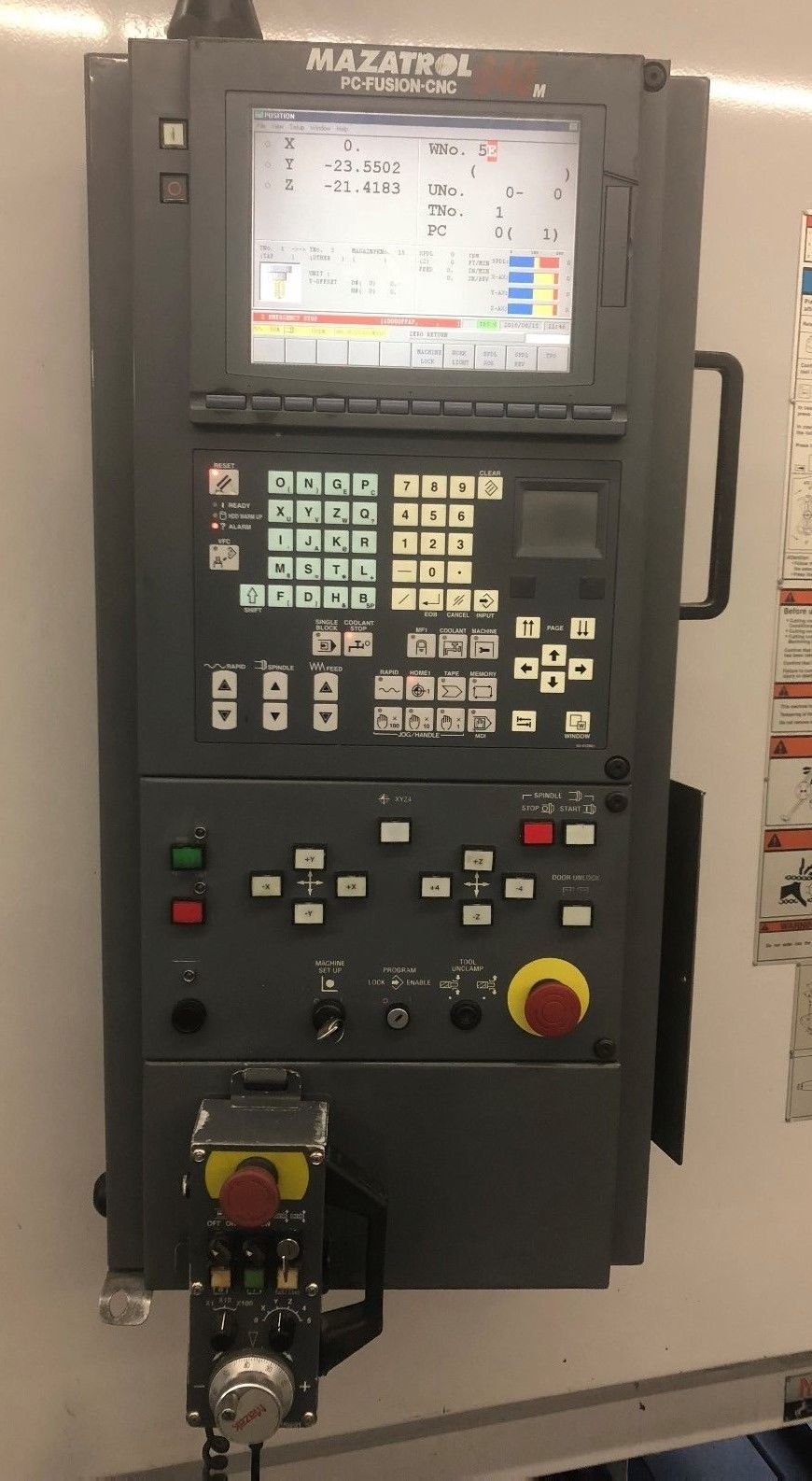

- Mazak PC Fusion 640M CNC Control
- 10,000 RPM Spindle
- 24 Tools Side Mount Bidirectional Tool Changer
- PCMCIA Card Slot
- Powerful 25 hp high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- MPG Controller
- Work light
- Books and Manuals

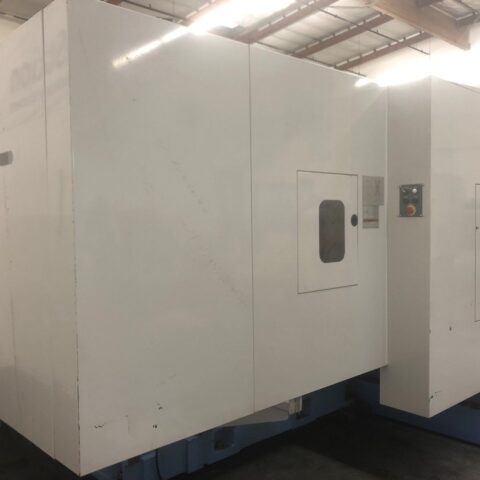

- Full Enclosure
- Mazak VTC 300C Specifications:
- Travels:
- X-Axis: 65.0″
- Y-Axis: 35.0″
- Z-Axis: 36.0″
- Spindle Nose to Table (Min.- Max.): 7.09″ – 33.07″
- Spindle Nose to Column: 33.86″

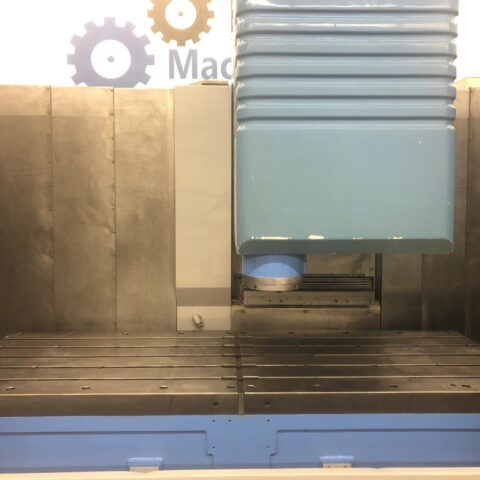

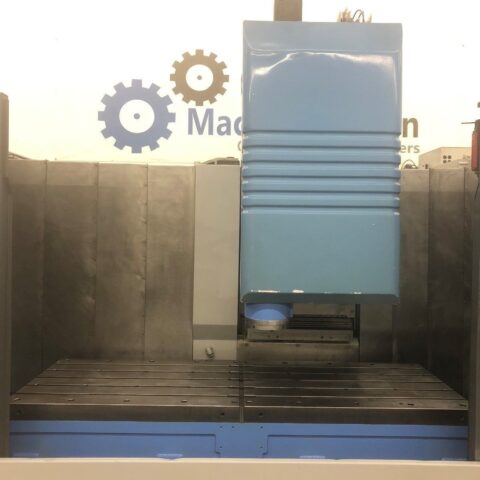

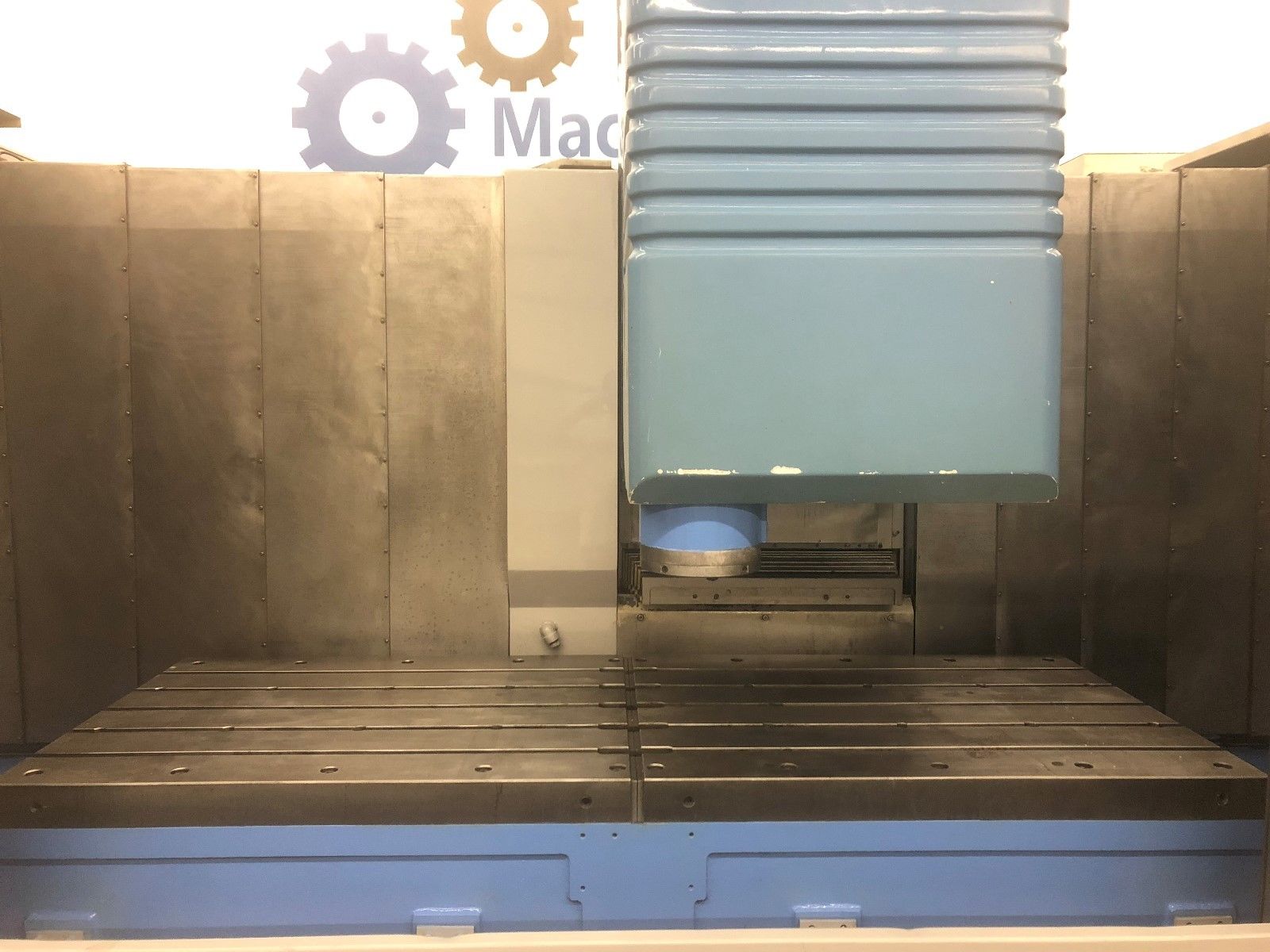

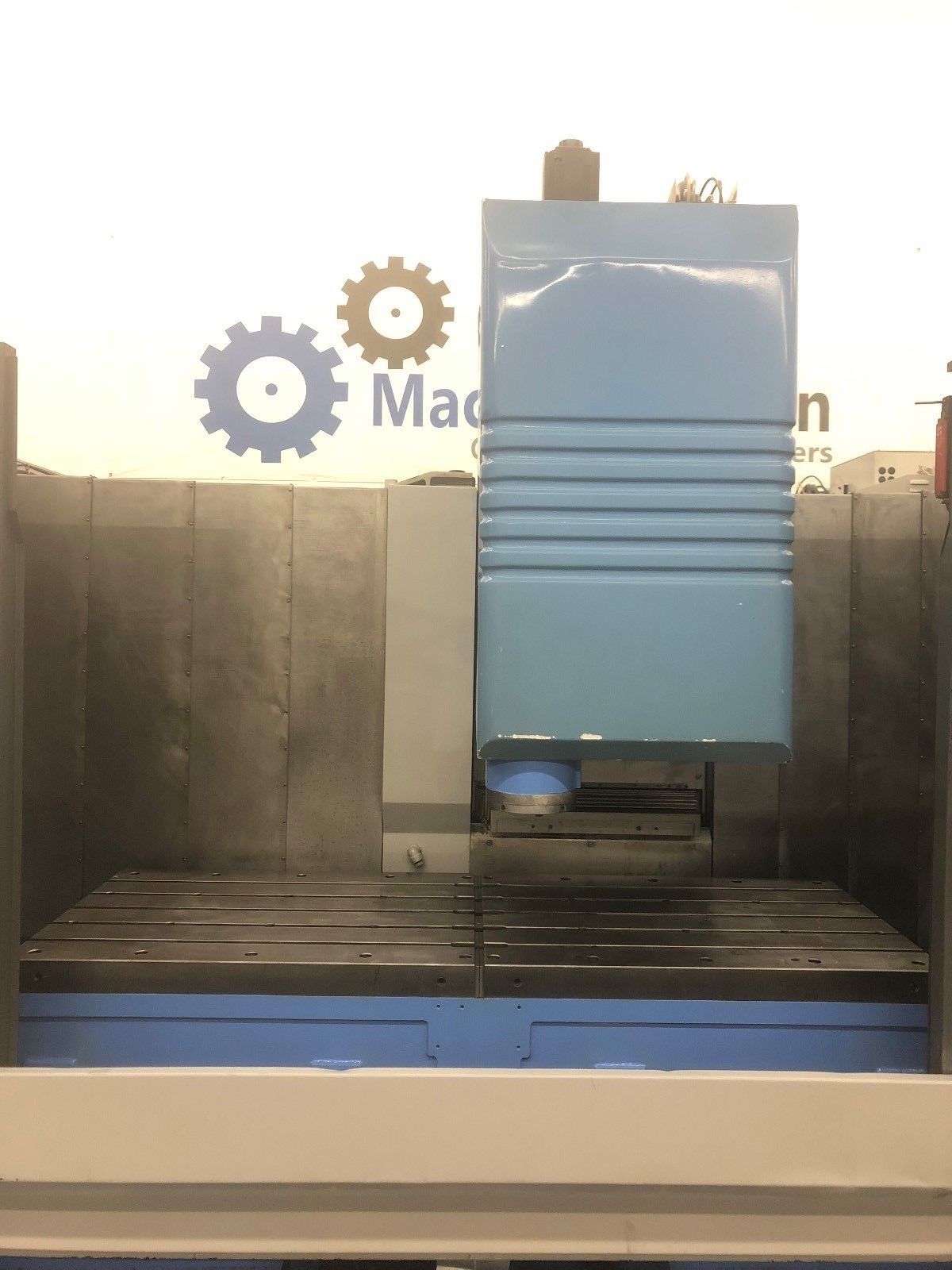

- Table:
- Length: 78″
- Width: 30″
- Max Weight on Table: 3300 lbs
- T-Slot no. & Width: 5 X 0.7″
- Spindle:
- Taper Size: 40
- Speed Range: 60 – 10,000 RPM
- Spindle Acceleration Time: 0-10K RPM in 1.8 Second
- Spindle Power: 25 HP
- Feed rates:
- Rapid X,Y & Z: 1181 inch/P.M
- Cutting Feedrate: 315″ inch/ P.M
- Automatic Tool Changer:
- 40 Taper
- Capacity: 24
- Max Tool Weight: 18 lbs
- Max Tool Length: 13.8″
- Tool Change Time: 1.5 sec
- General:
- Air Required: 90 psi, 4 scfm
- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 211″ x 137″ x 126″ High
- Weight: 25000 lbs

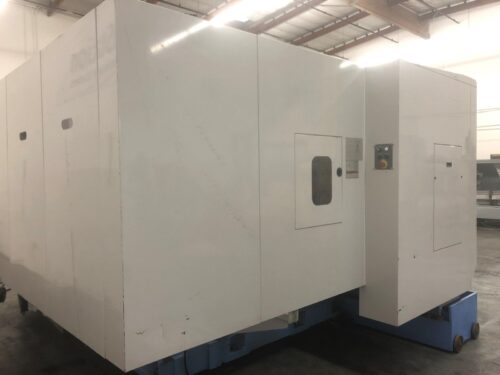

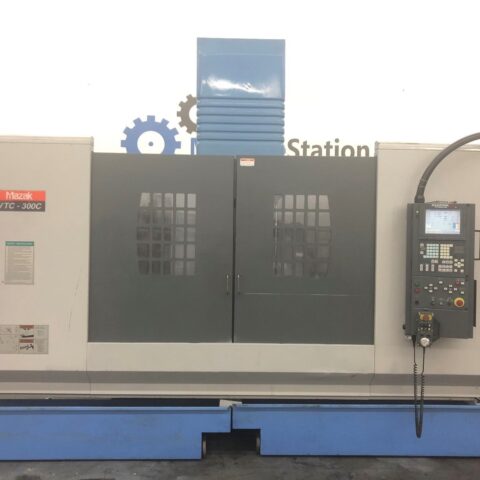

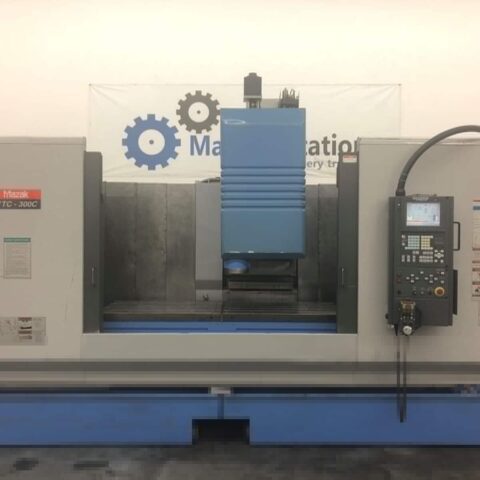

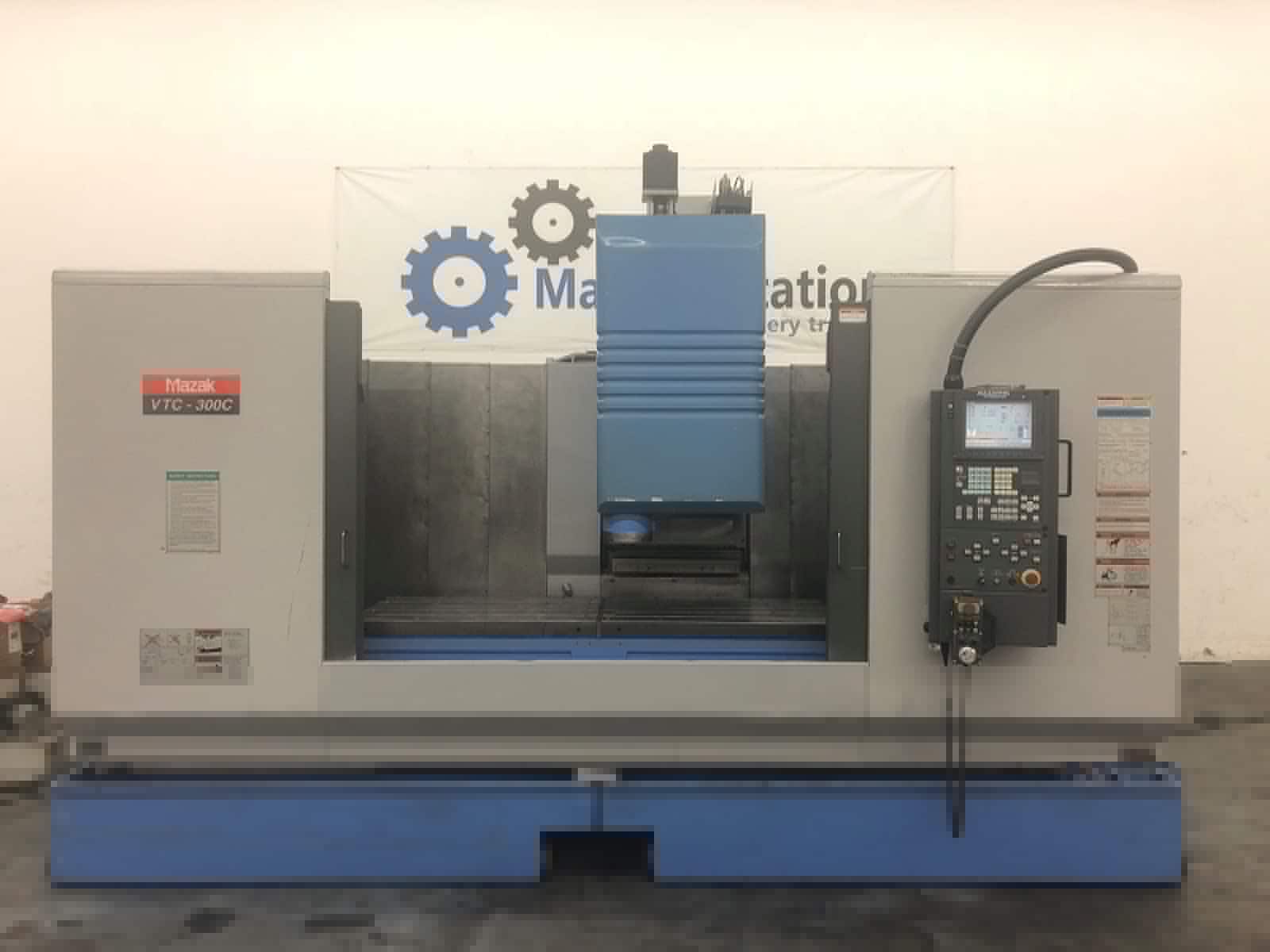

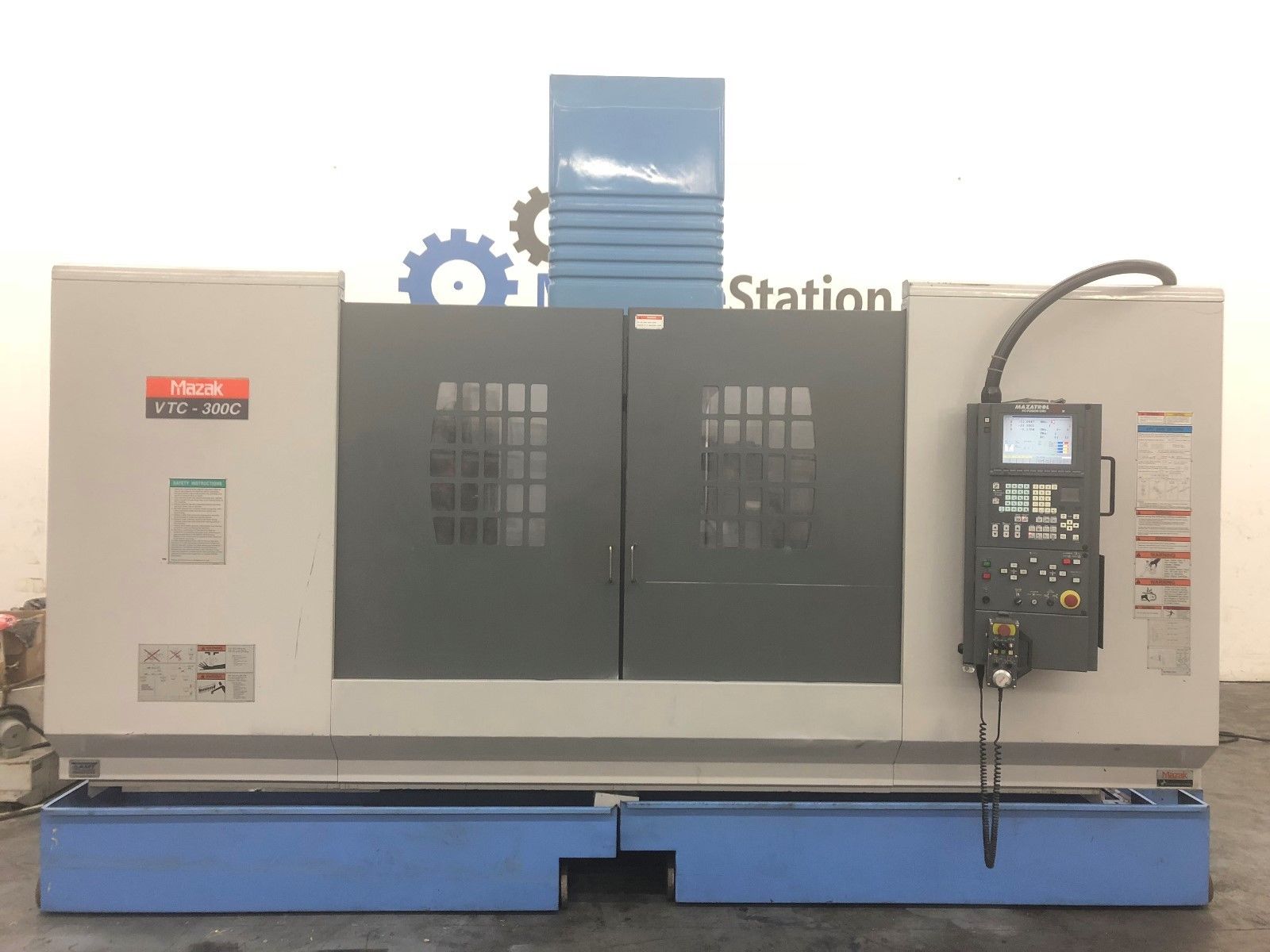

Mazak VTC 300C Comes as shown in pictures.
