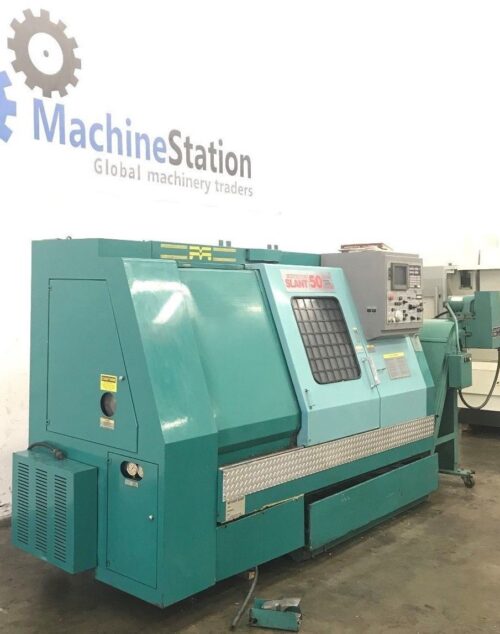

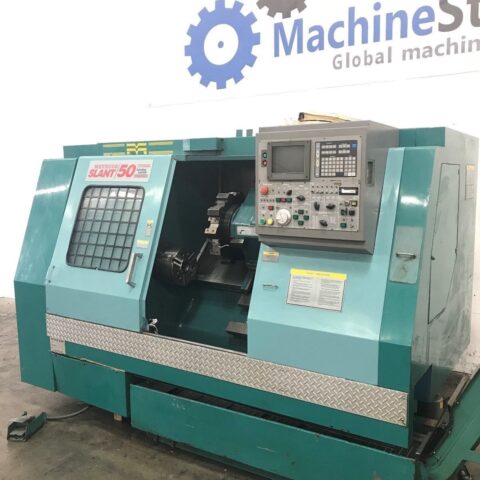

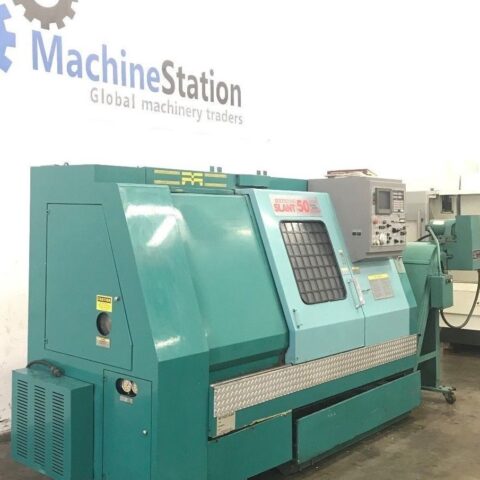

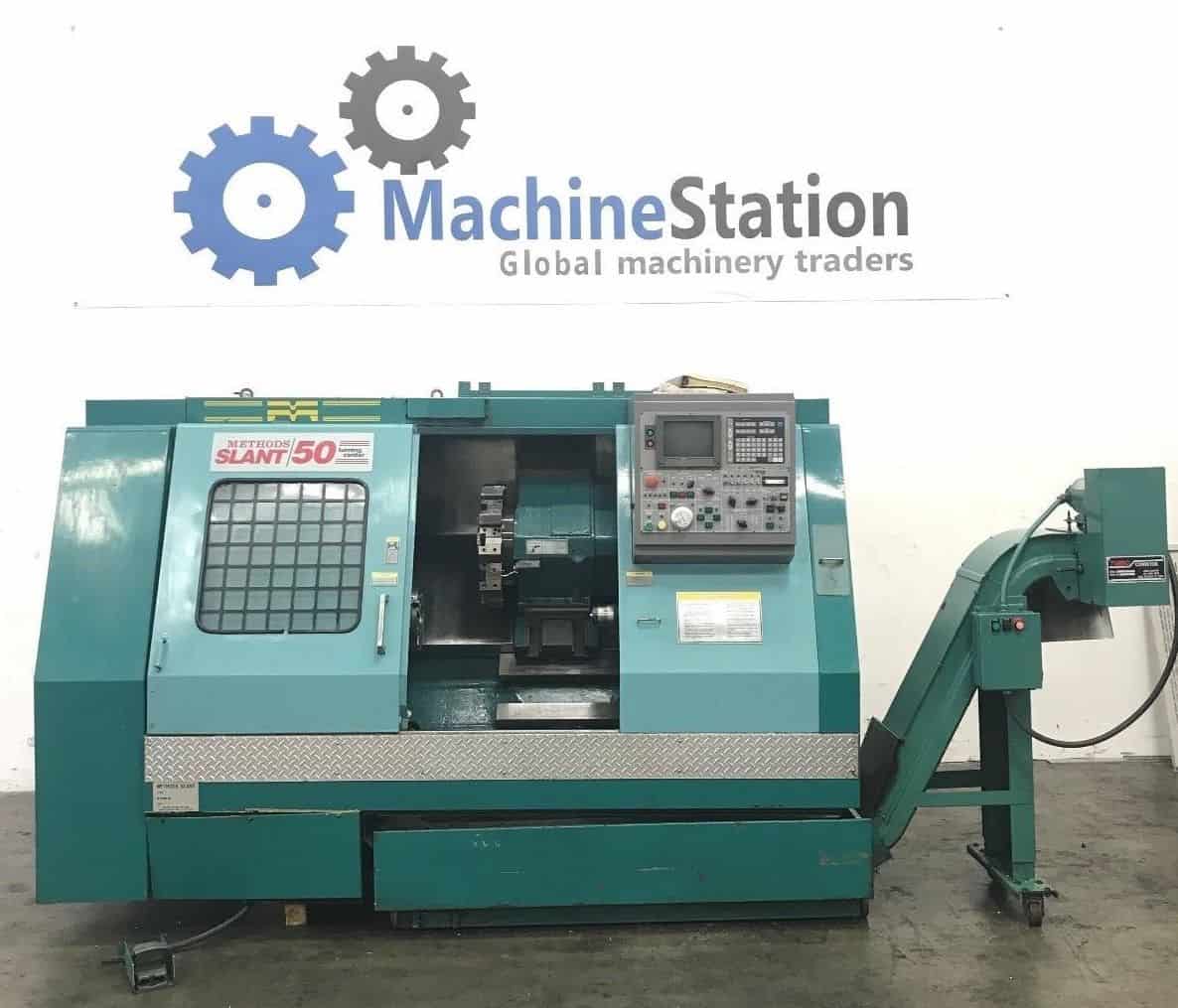

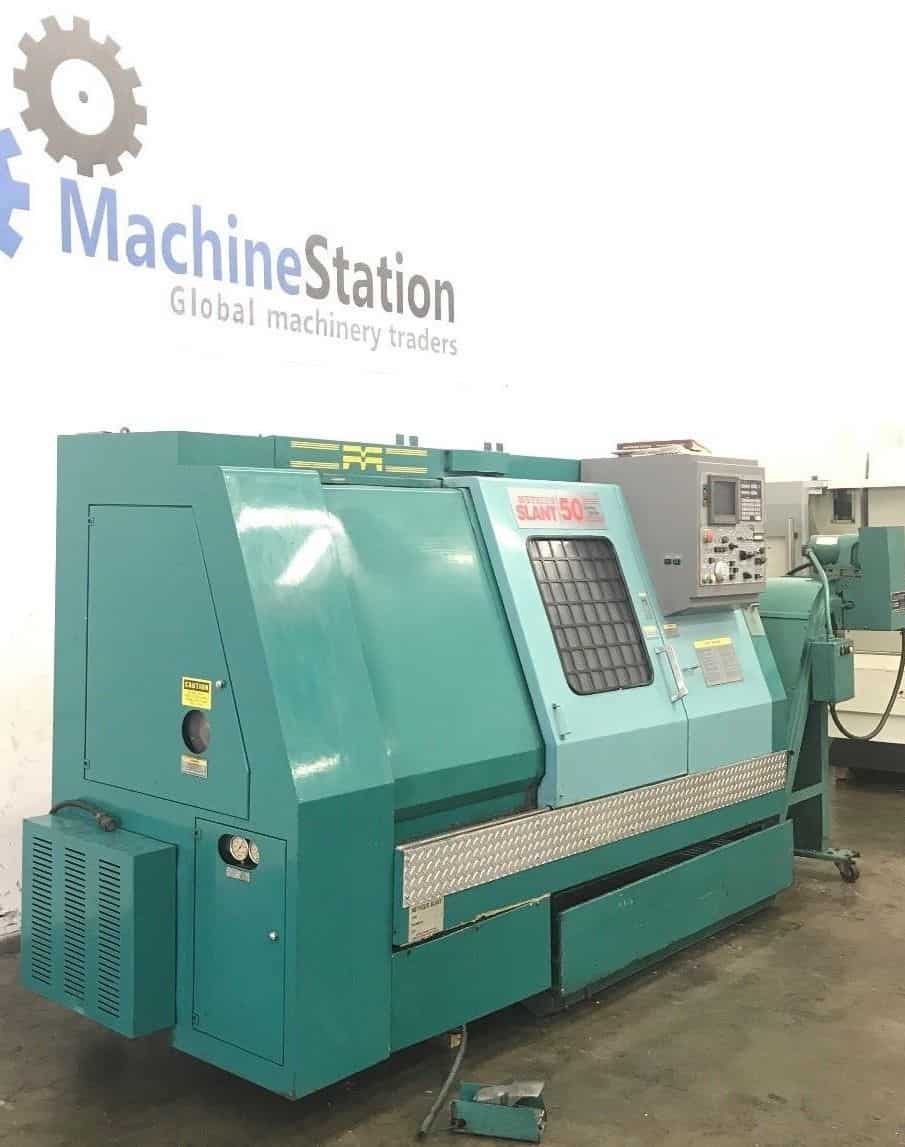

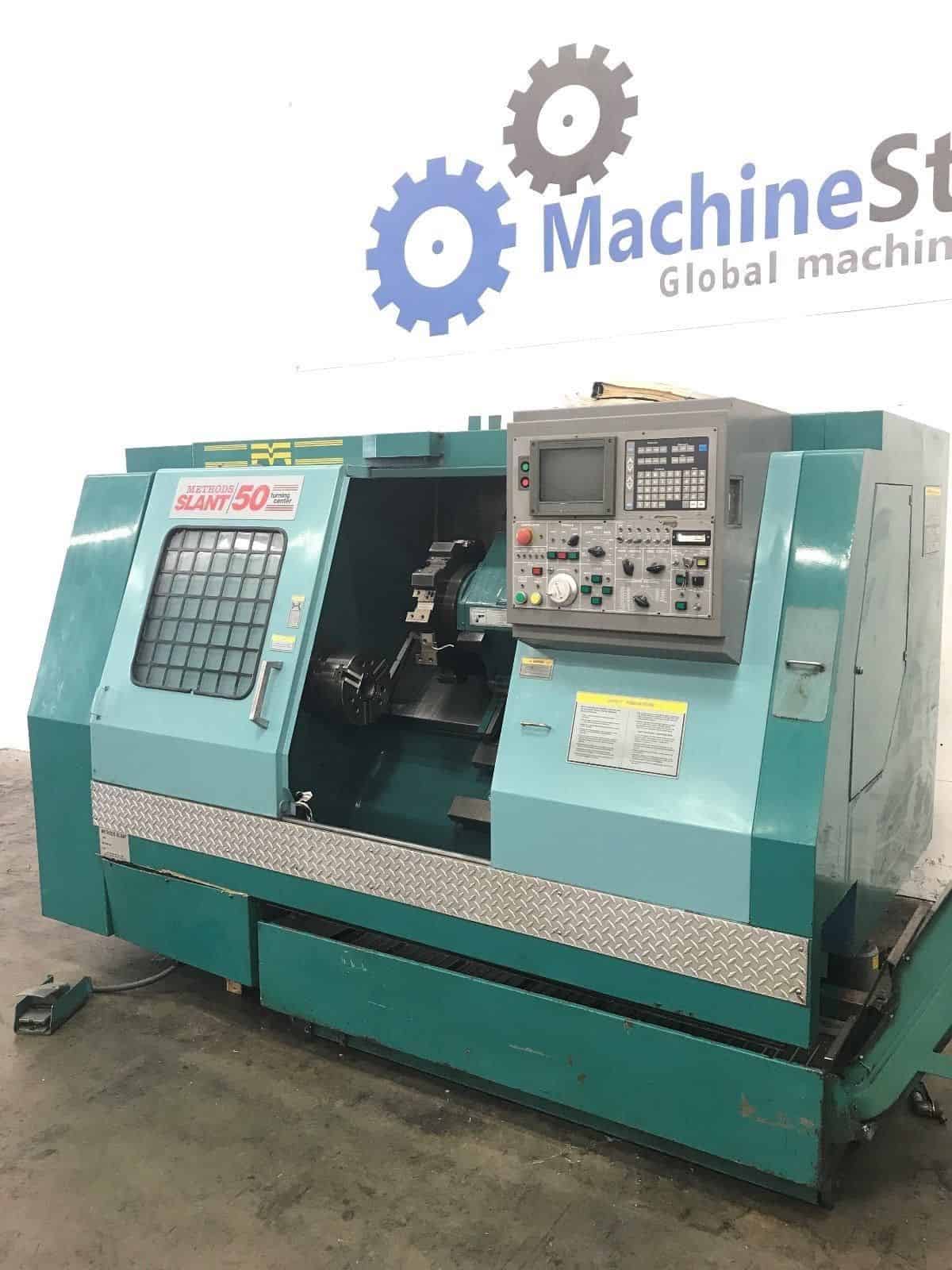

Methods Slant 50 CNC Turning Center

One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Only 7916 hours, Equipped with 10″ Chuck, Tool holders, Chip Conveyor. Comparable to Mori Seiki SL-25 Specs.”

Share

Description

METHODS SLANT 50 CNC TURNING CENTER

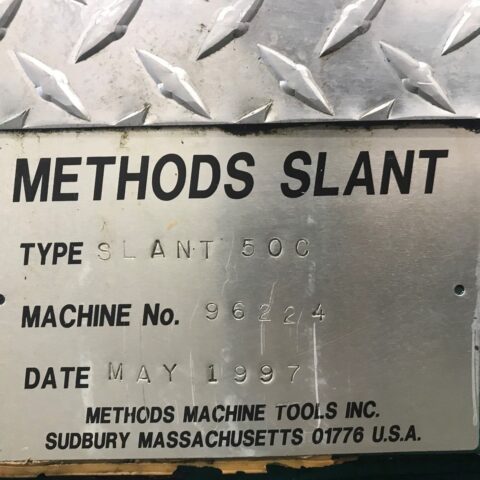

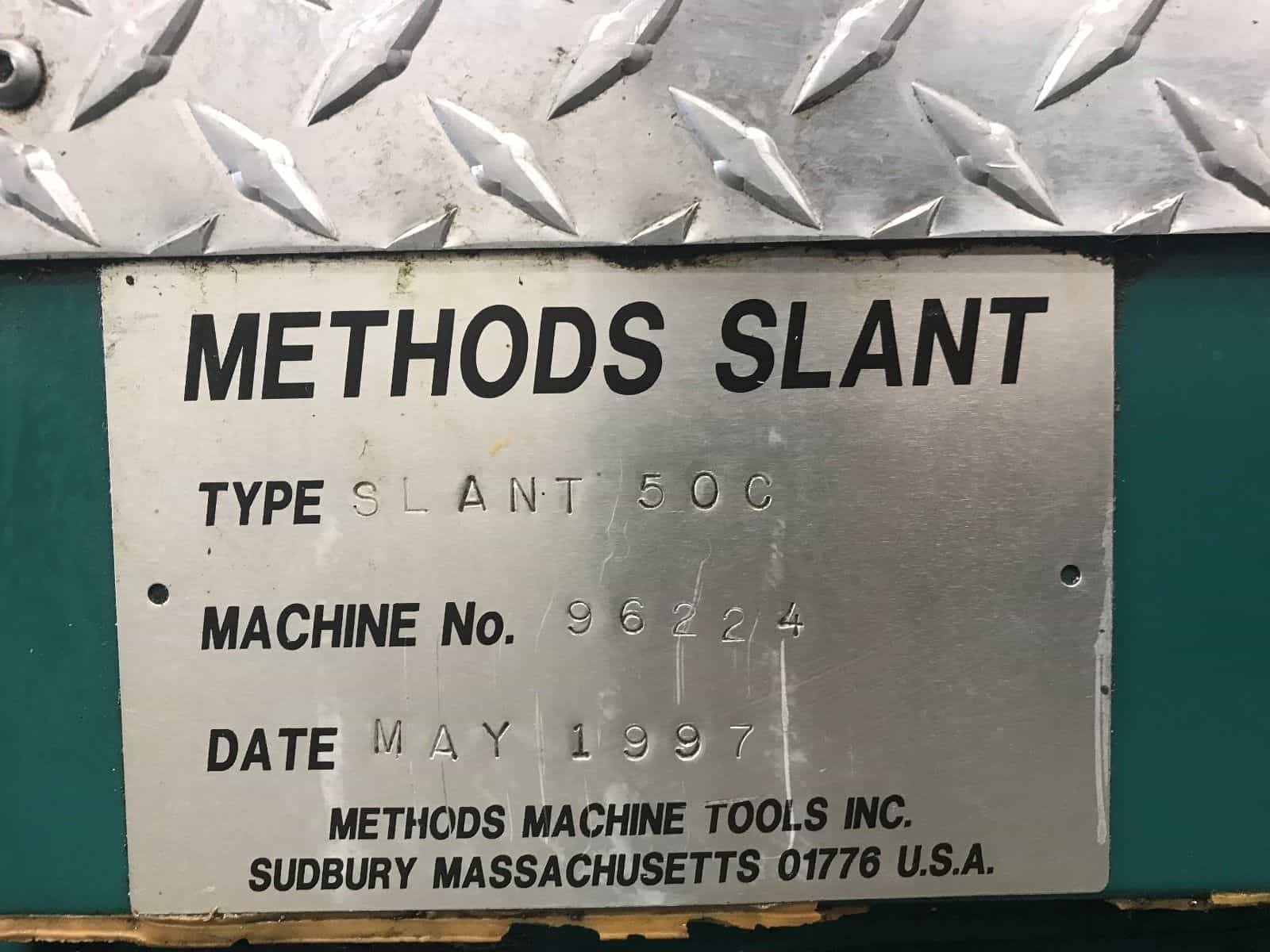

Make Methods
Model No. Slant 50C
Year 1997.05
Serial # 96224
Condition Very Good
Country: USA

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Only 7916 hours, Equipped with 10″ Chuck, Tool holders, Chip Conveyor. Comparable to Mori Seiki SL-25 Specs.”

  • METHODS SLANT 50 Equipped With:

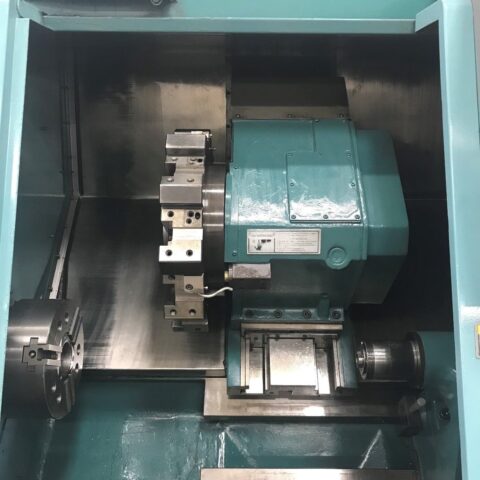

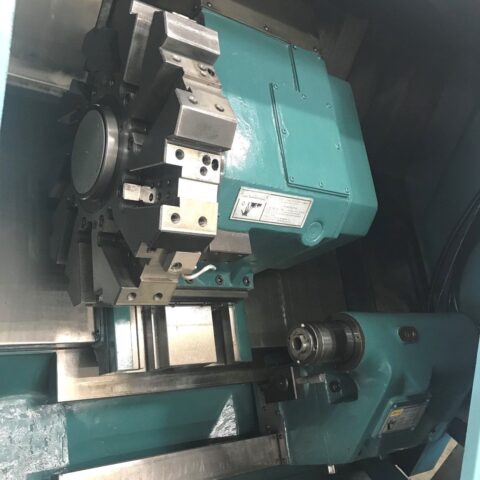

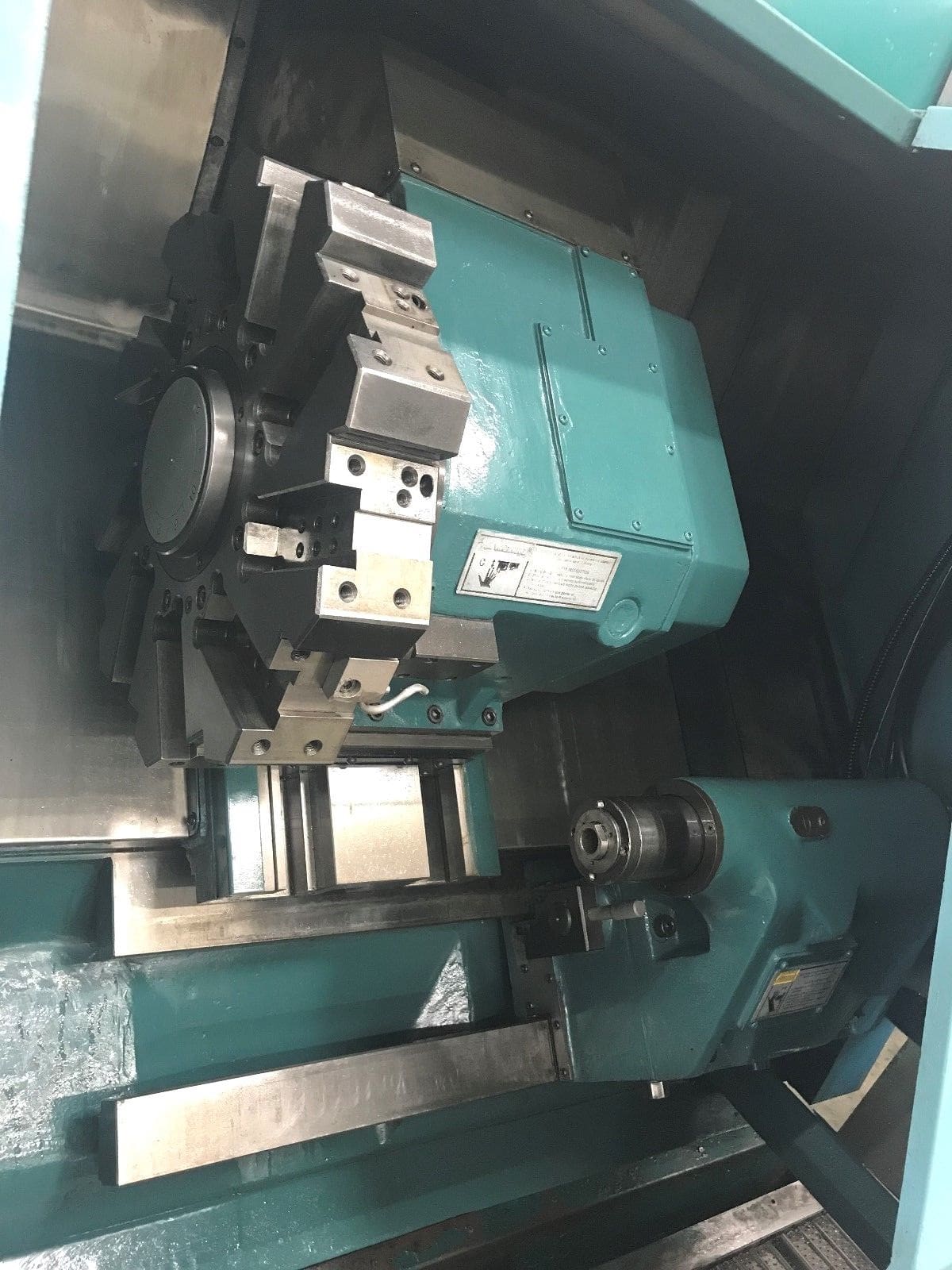

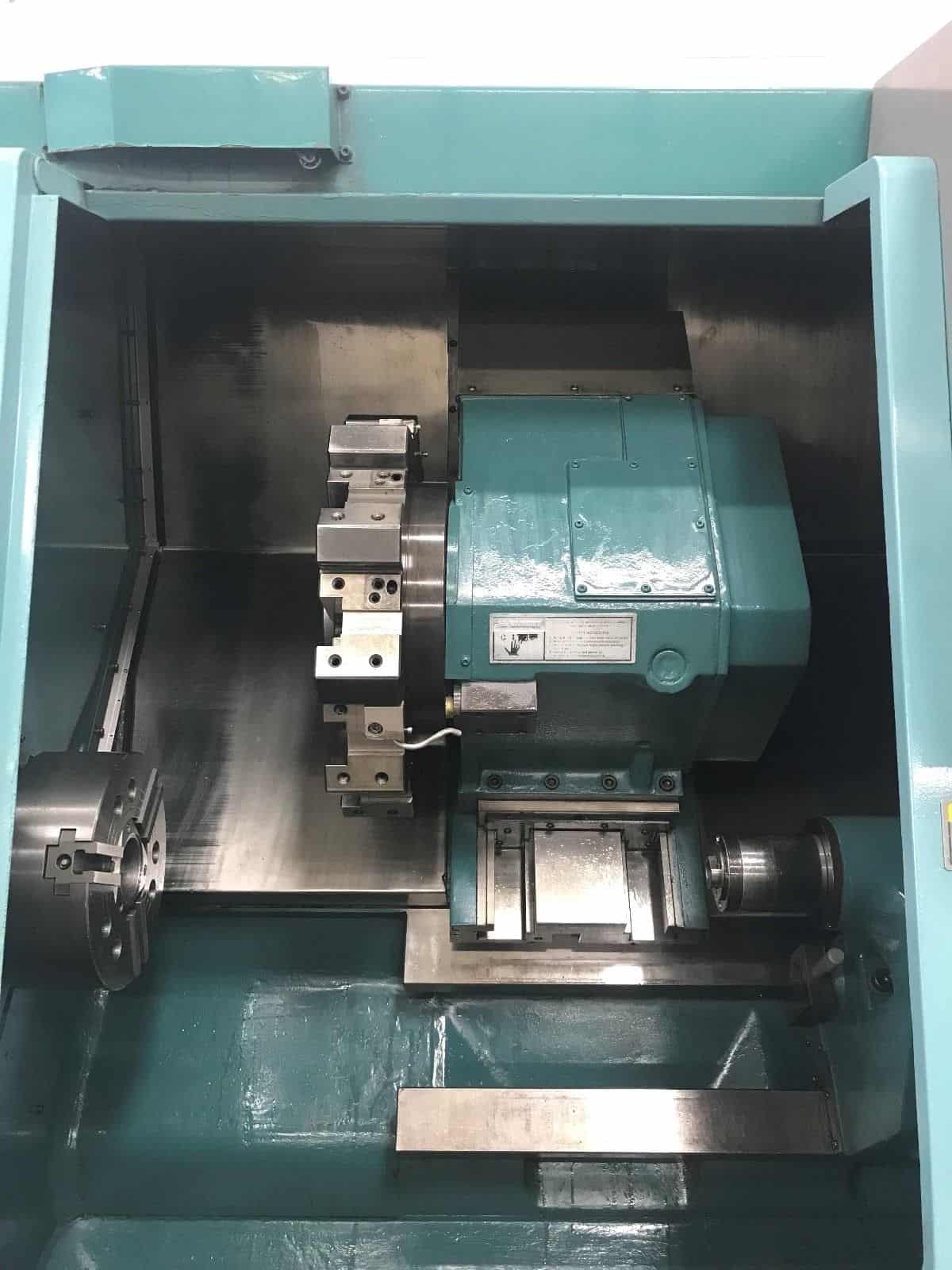

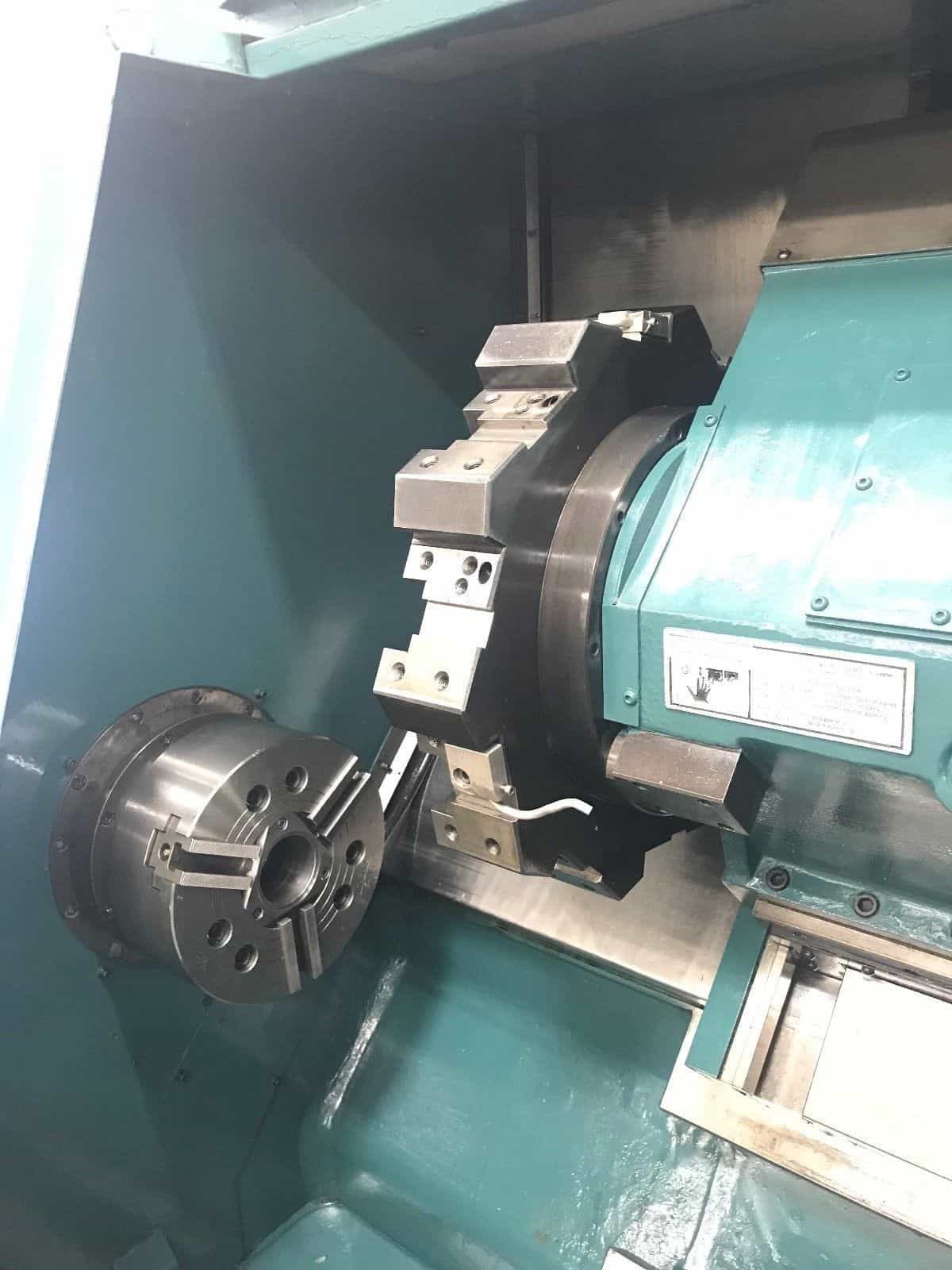

  • 10-Station Turret with Tools

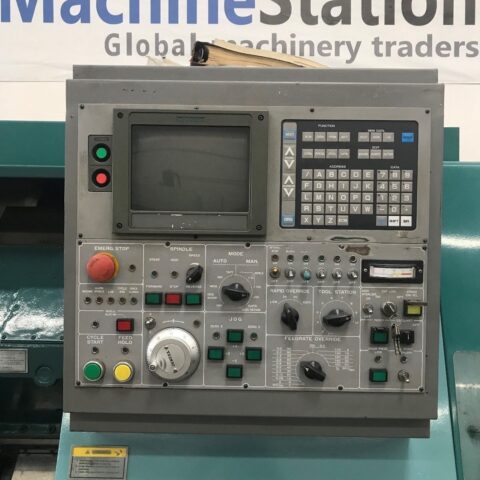

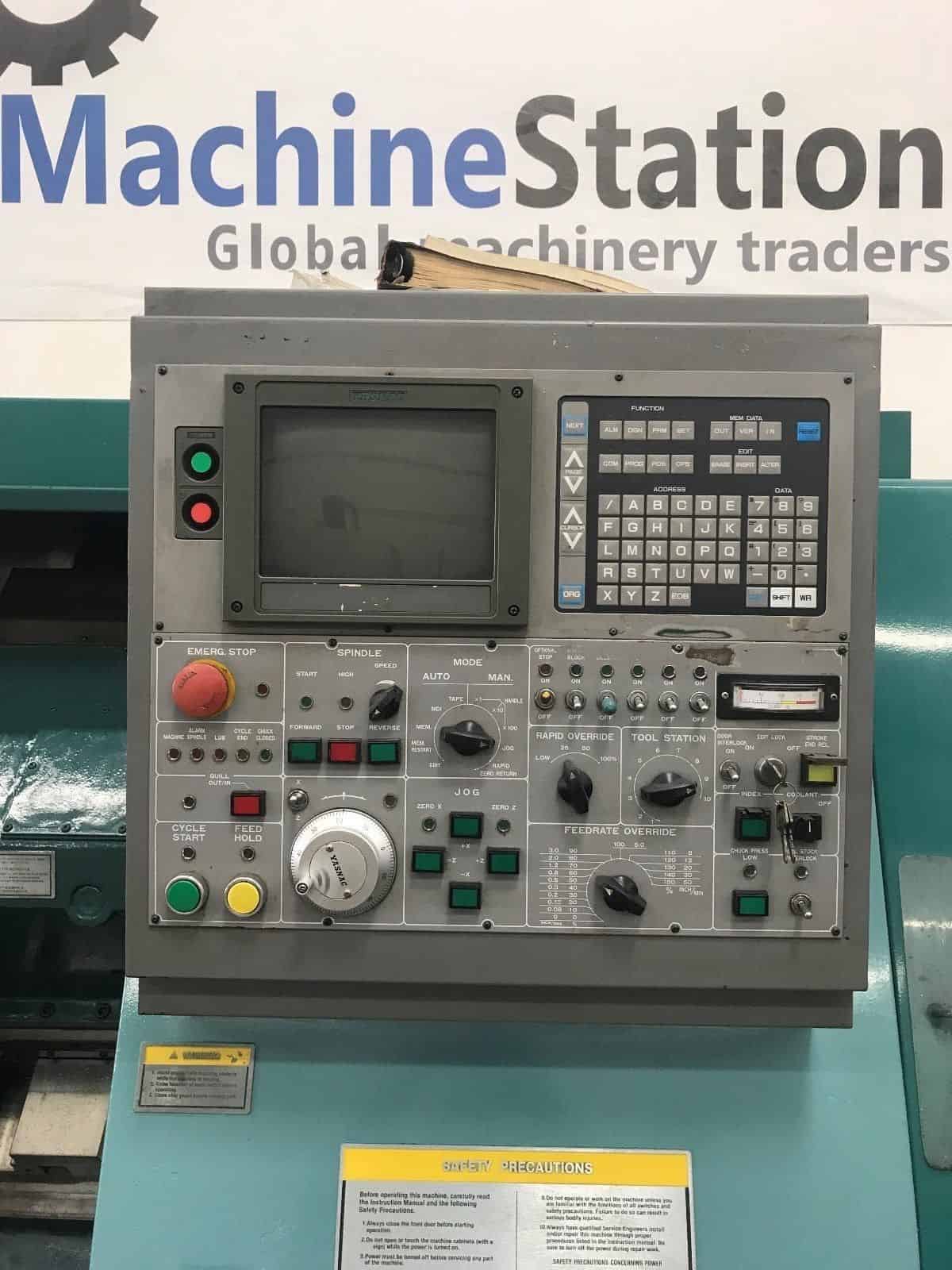

  • Yasnac CNC Control

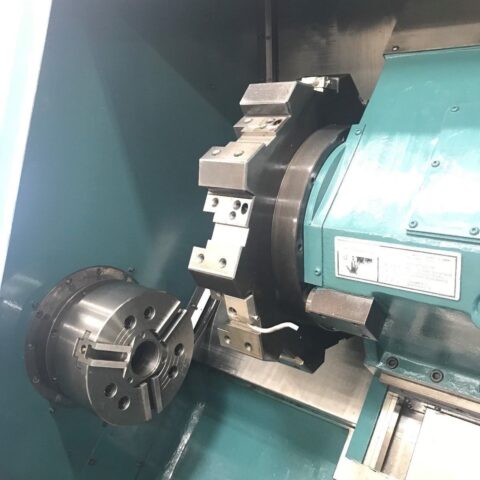

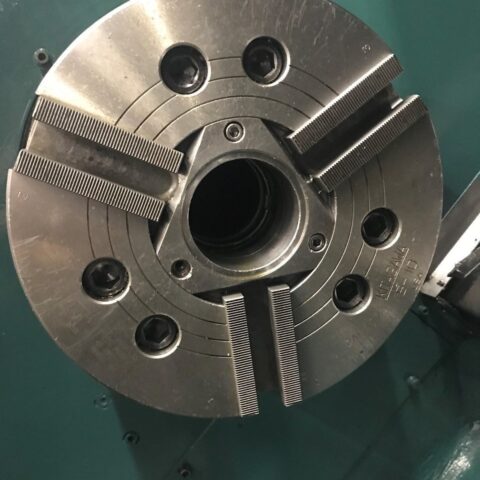

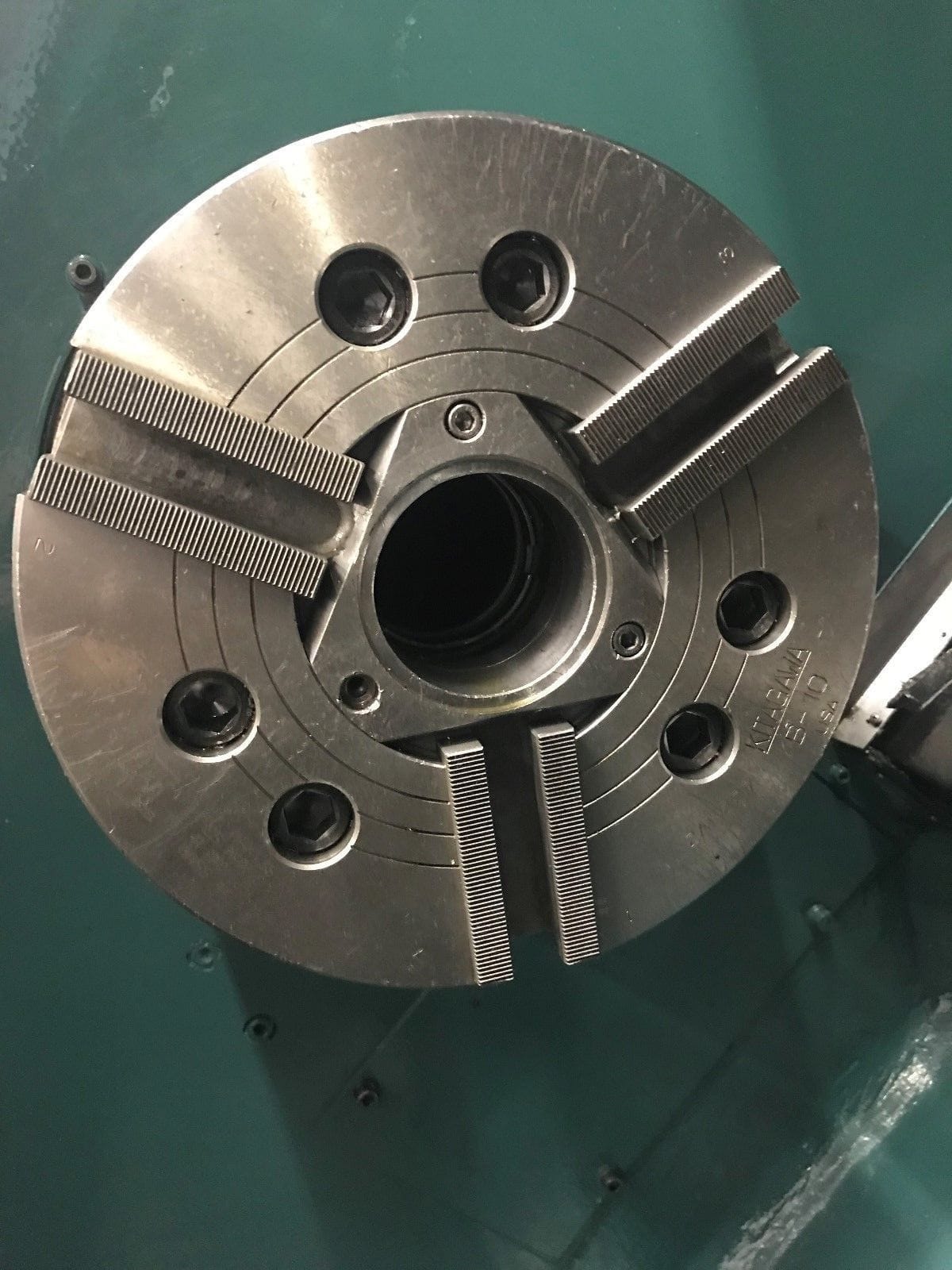

  • 10″ 3-Jaw Kitagawa Hydraulic Chuck
  • 2 Step gear spindle for powerful torque
  • Hydraulic Tailstock with Power Quill
  • RS-232 Port
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck
  • Original Manuals

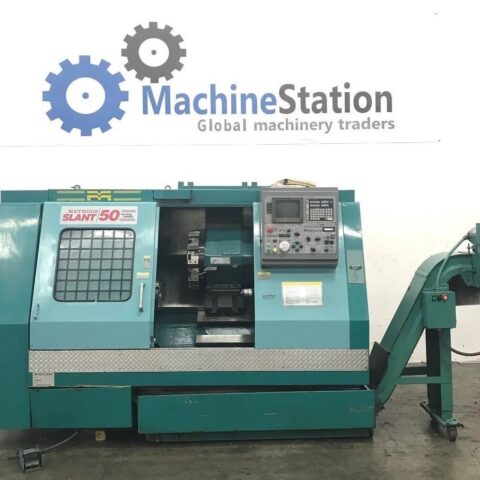

  • Chip Pan and Chip Conveyor
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 68 Amps
  • Overall Dimensions: 117″ x 68″ x 78″ High
  • Overall Dimensions: 140″ x 68″ x 78″ High with Chip Conveyor
  • Weight : 12000 lbs Approx.
  • METHODS SLANT 50 Specifications:
  • Max Turning Diameter: 10.2″
  • Max Turning Length: 20.87″
  • Max Bar Capacity: 2.56″
  • Swing Over Slide: 12.87″
  • Swing Over Bed: 20.47″
  • Distance Between Centers: 27.56″
  • X Axis Travel: 6.3″
  • Z Axis Travel: 23.22″
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.15″
  • Spindle Speed: 35-3500 RPM
  • Spindle Motor: 20 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock Body Travel: 19.3″
  • Tailstock Quill Dia.: 3.34″
  • Tailstock Quill Stroke: 3.5″
  • Tailstock Taper: MT-3

METHODS SLANT 50 Comes as shown in pictures.
