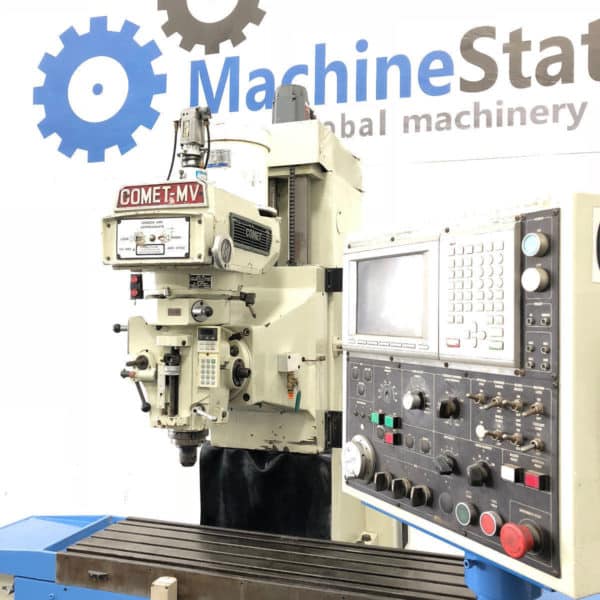

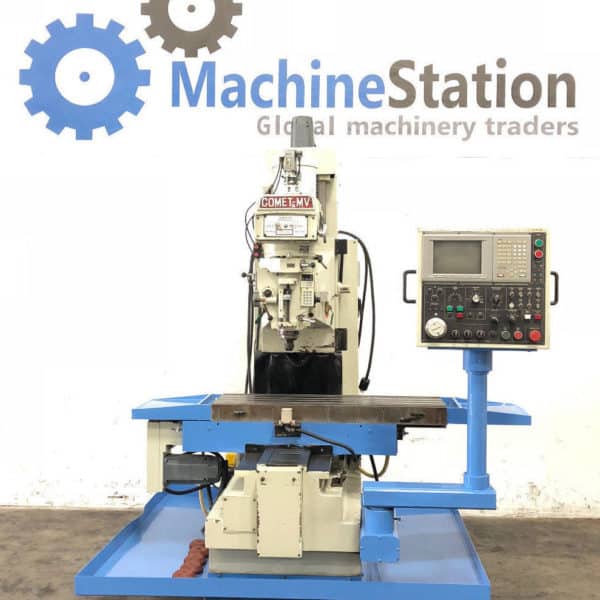

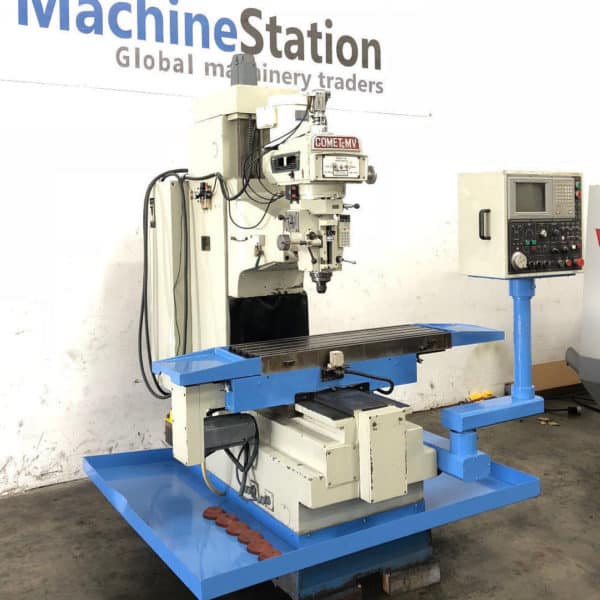

MIGHTY COMET MV-5 CNC HEAVY DUTY VERTICAL MILLING | |
---|---|
Make | MIGHTY |
Model No. | COMET MV-5 |

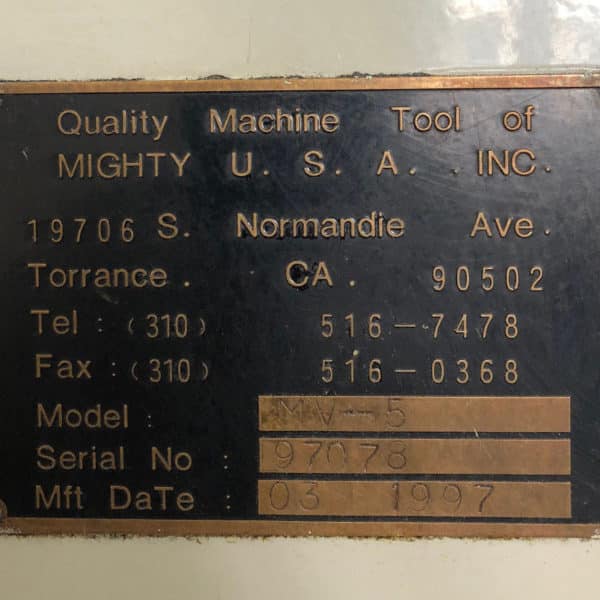

Serial # | 97078 |
Condition | Used |
“This machine is in good running condition. It is equipped with Mitsubishi CNC Control. On Our Floor fully powered / tested & is in Great working condition.”
- Mighty Comet MV-5 Features:

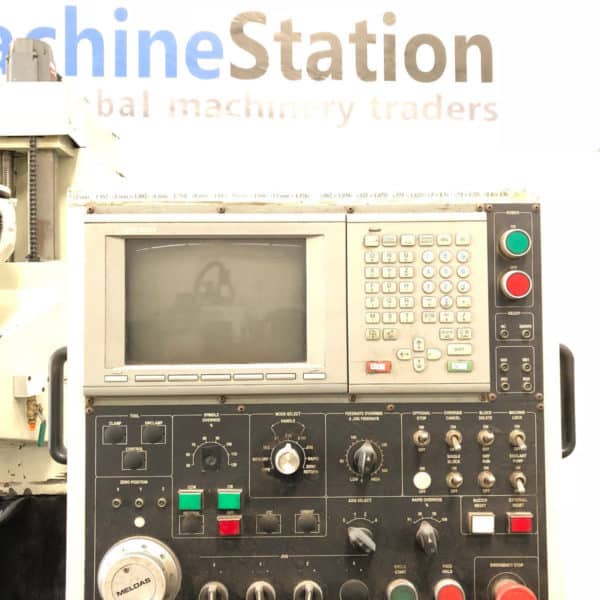

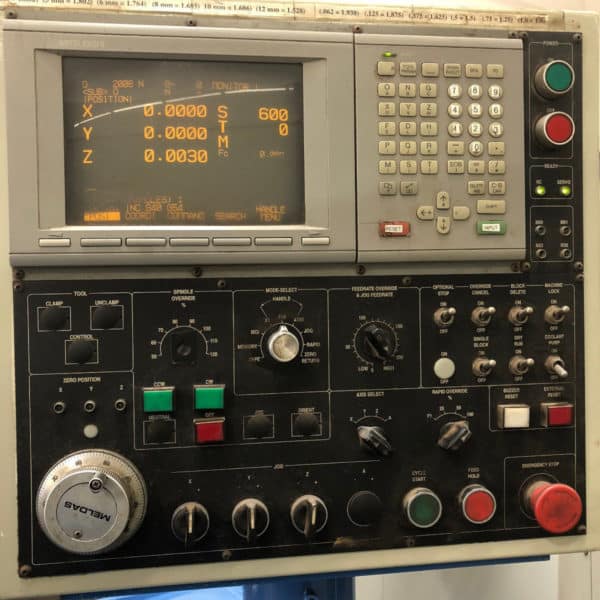

- Mitsubishi 520 CNC Control
- Heavy Duty Box Way Contruction
- Full 3 Axis Mill
- Power Draw Bar
- 3750 RPM Spindle
- Coolant Tray
- Levelling Pads
- Mighty Comet MV-5 Specifications:
- Table:

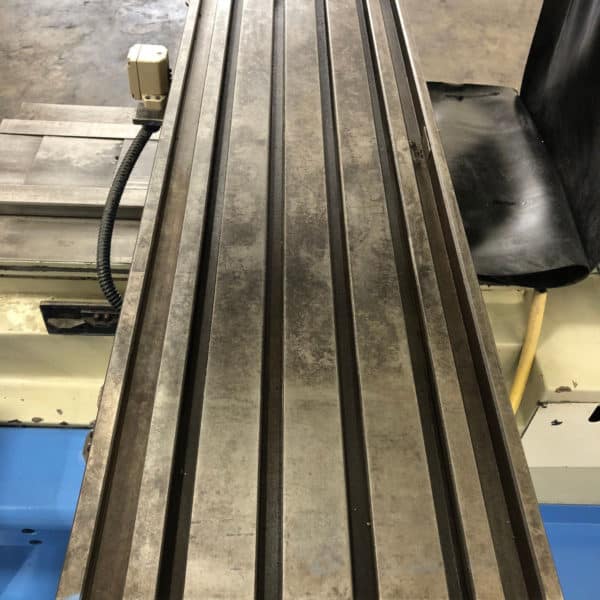

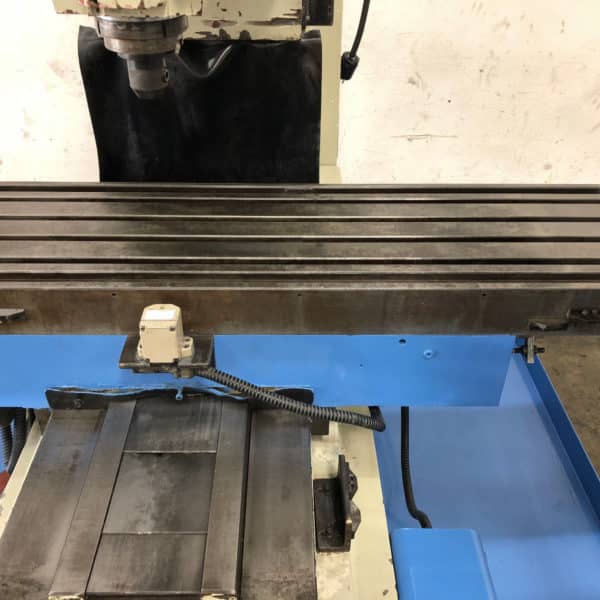

- Working Surface: 13″ x 42″
- Table Load Capacity: 1500 lbs
- T-Slot Number, Size: 4, 5/8″
- Capacity:
- X Travel: 30″
- Y Travel: 20″
- Z Travel: 20″
- Spindle Quill Travel: 5″
- Rapid Traverse: 250″ Per Minute
- Spindle to Column (min-max): 6-3/4″- 20.0″
- Spindle Nose to Table (min-max): 2-1/8″ – 18″
- Spindle:
- Motor: 5 HP
- Wiring Voltage: 220/440V, 3 phase, 60 Hz
- Taper: #40

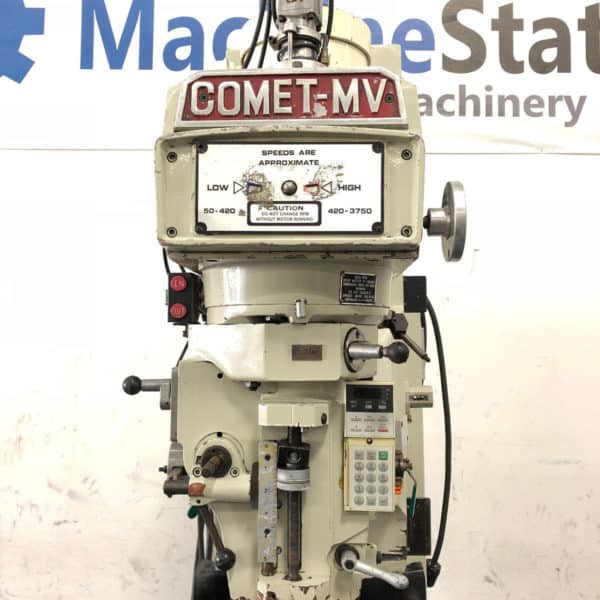

- Speed (Vari-speed): 3750 RPM
- Quill Feed (IPR): 0.0015″, 0.003″, 0.006″
- Head Swivel: 45 Degrees
- Dimensions & Weight:
- Floor Area (WxDxH): 102′ x 72′ x 98″ High
- Net Weight (approx.): 6000 lbs
Mighty Comet MV-5 SOLD AS-IS
