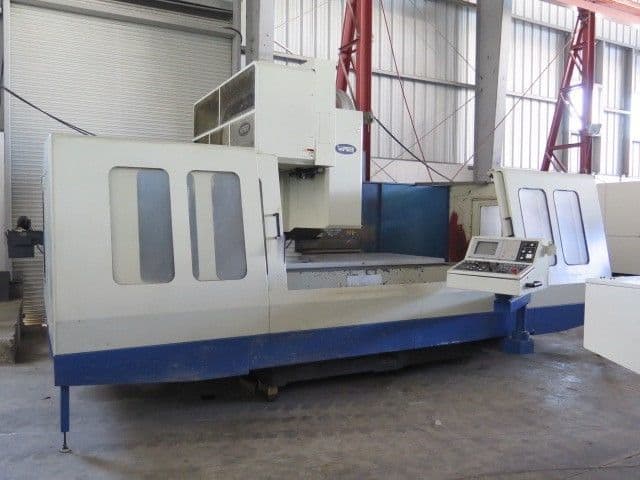

MIGHTY VIPER 2100 VERTICAL MACHINING CENTER | |
---|---|
Make | Mighty Viper |
Model No. | VMC 2100 |
Year of Manufacture: | 2009 |
Serial # | 001176 |
Condition | Very Good |
Replacement Cost is over $230,000.00
All specifications are approximations and are subject to verification.
“This machine has CAT 50 taper, 32 tools side mount tool changer, lots of other options. This Heavy Duty Machine is on our Floor and is in Great working condition. Replacement Cost over 230K.”
- MIGHTY VIPER 2100 is Equipped With:

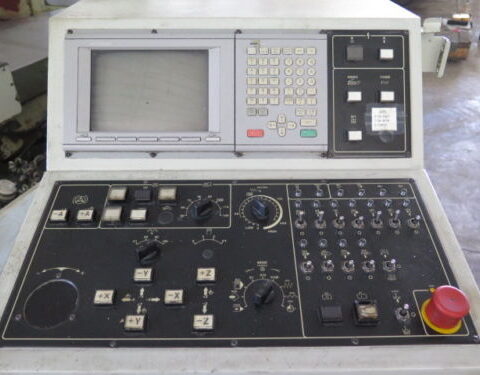

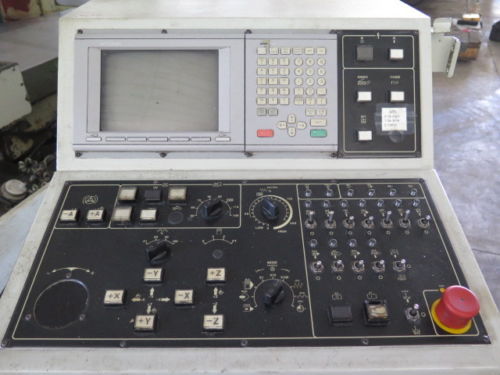

- Mitsubishi 530 CNC Control

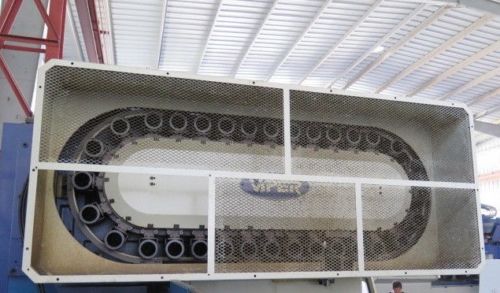

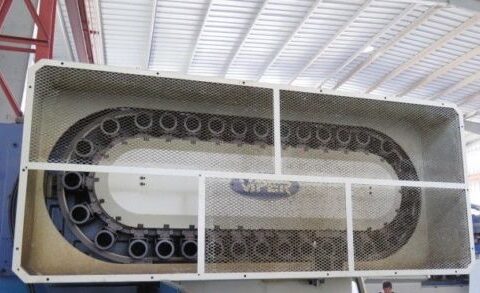

- 32 Station Side Mount ATC
- High precision 6,000 RPM Spindle
- CAT 50 Taper
- Powerful 25hp high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Custom Micro B (User Definable)
- Box Way Construction
- Portable manual pulse generator
- Flood coolant with large separate coolant tank
- Base Flush Chip Disposal
- Comes with All Available Manuals, Parameters.
- MIGHTY VIPER 2100 Specifications:
- MIGHTY VIPER 2100 Travels:
- X-Axis: 81″
- Y-Axis: 40″
- Z-Axis: 32.2″
- Spindle Nose to Table (Min.- Max.): 4.9″ – 36.5″
- Spindle Center to Column: 41″
- Table:
- Length: 83″
- Width: 41.3″
- Max Weight on Table: 6600 lbs
- Spindle:
- Taper Size: 50
- Speed Range: 60 – 6000 RPM
- Spindle Power: 25 HP
- Feed rates:
- Rapid X,Y & Z: 590 inch/P.M
- Cutting Feedrate: .04″ – 276″ inch/ P.M
- Automatic Tool Changer:
- 50 Taper
- Capacity: 32
- Max Tool Weight: 33 lbs
- Max Tool Length: 12″
- Max Tool Dia.: 5″
- General:
- Air Required: 100 psi, 4 scfm
- Power: 205-235v / 66FLA / 3-Phase, 40 Kva
- Overall Dimensions: 220″ x 182″ x 110″ High
- Weight: 53,000 lbs

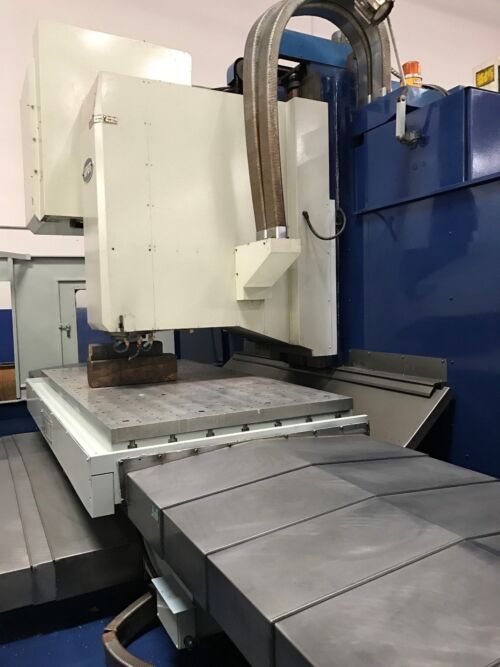

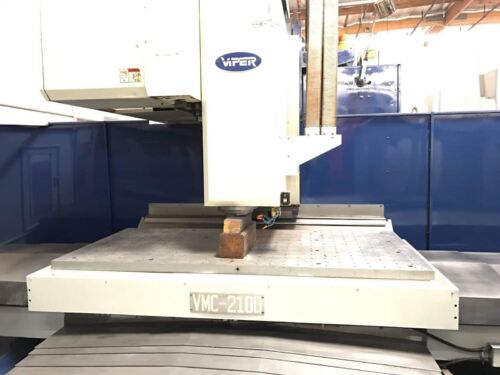

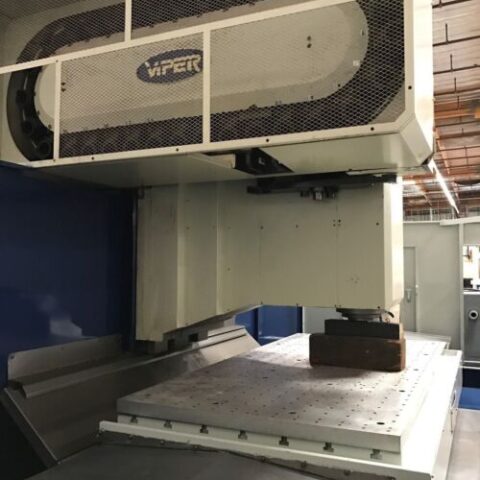

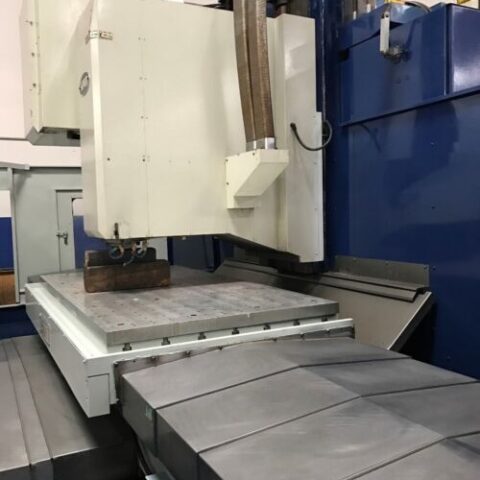

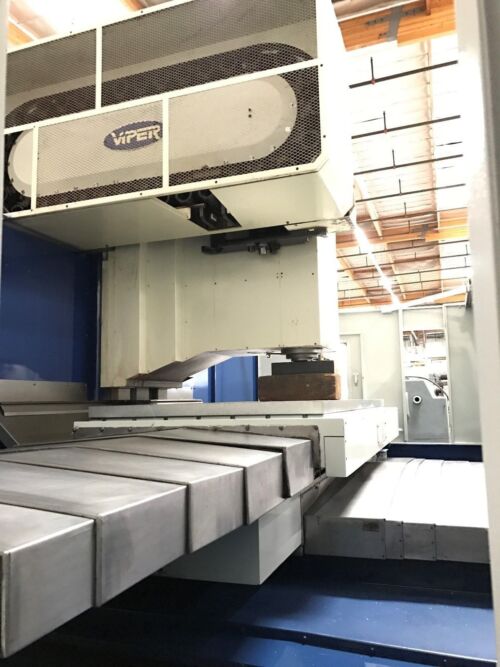

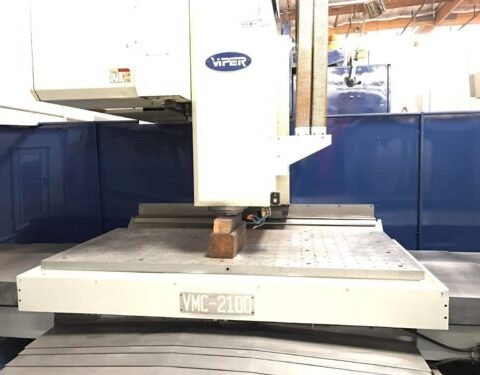

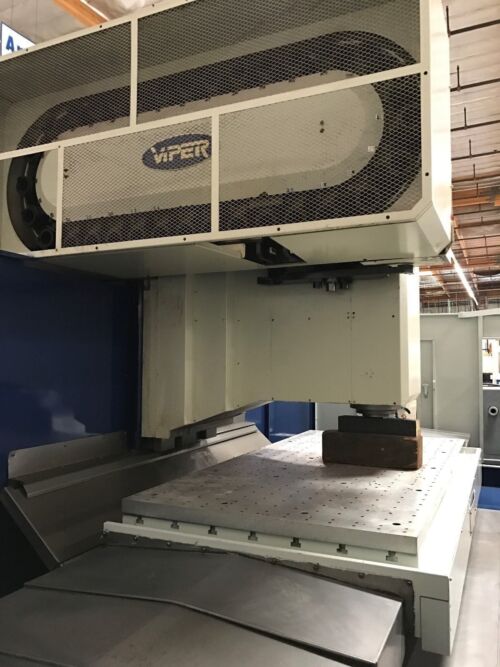

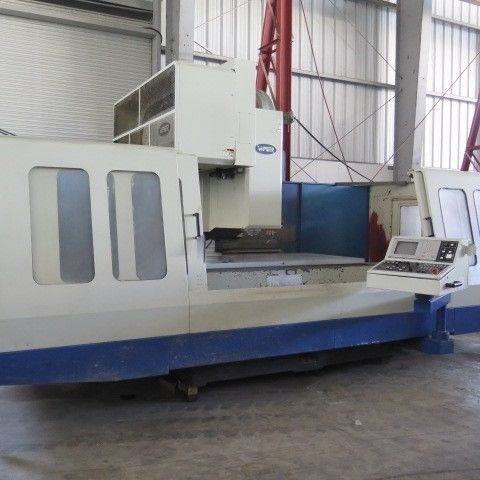

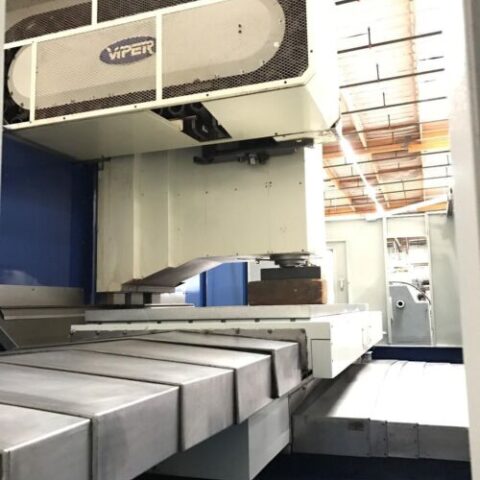

MIGHTY VIPER 2100 Comes as shown in pictures.
