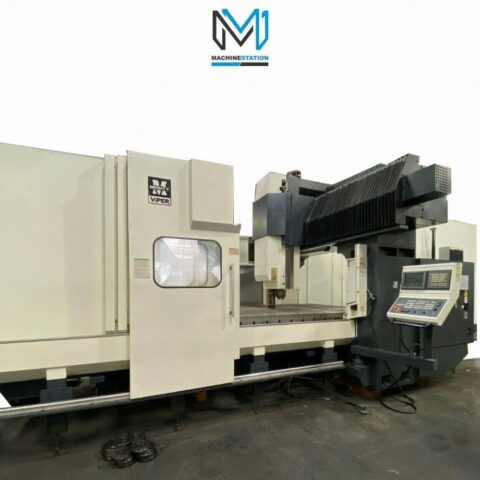

Mighty Viper Pro-3210 CNC Vertical Bridge Mill

$199,800.00

Specification
Share

Description

MIGHTY VIPER PRO-3210 CNC VERTICAL BRIDGE MILL
Make Mighty Viper
Model No. Pro-3210
Year 2008 Installed 2010
Serial # 011788
SKU 1844
Condition Very Good
Cutting Hours: 12453
  • Equipped With:

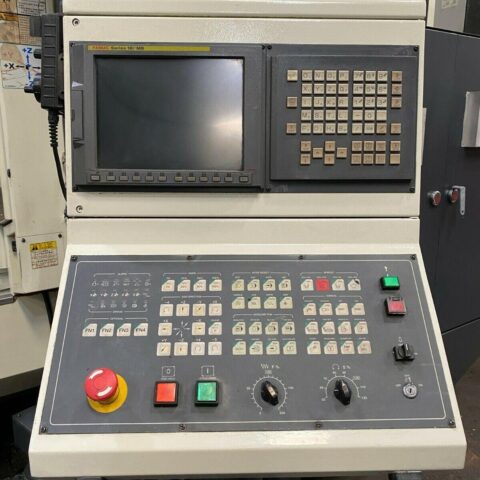

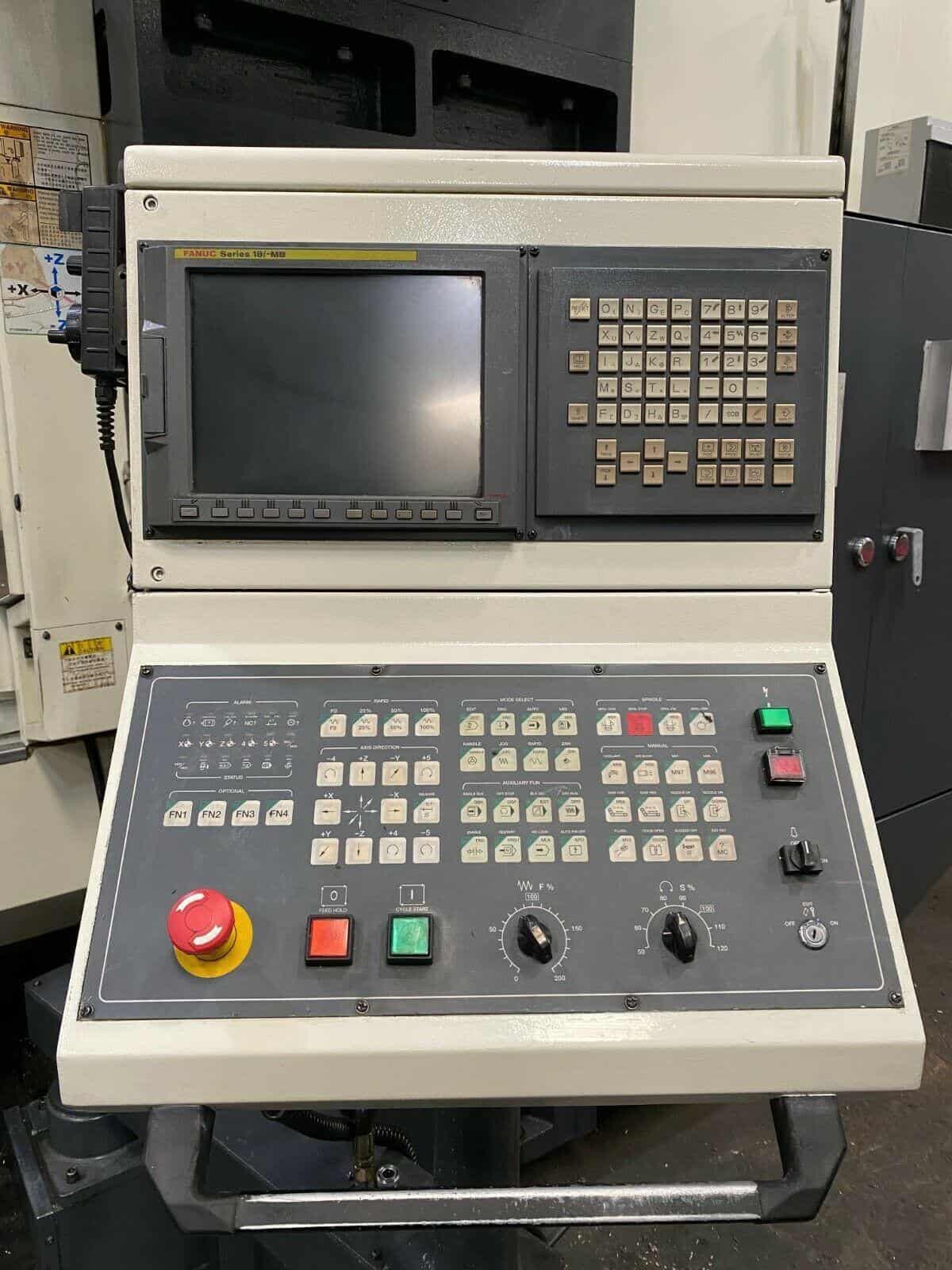

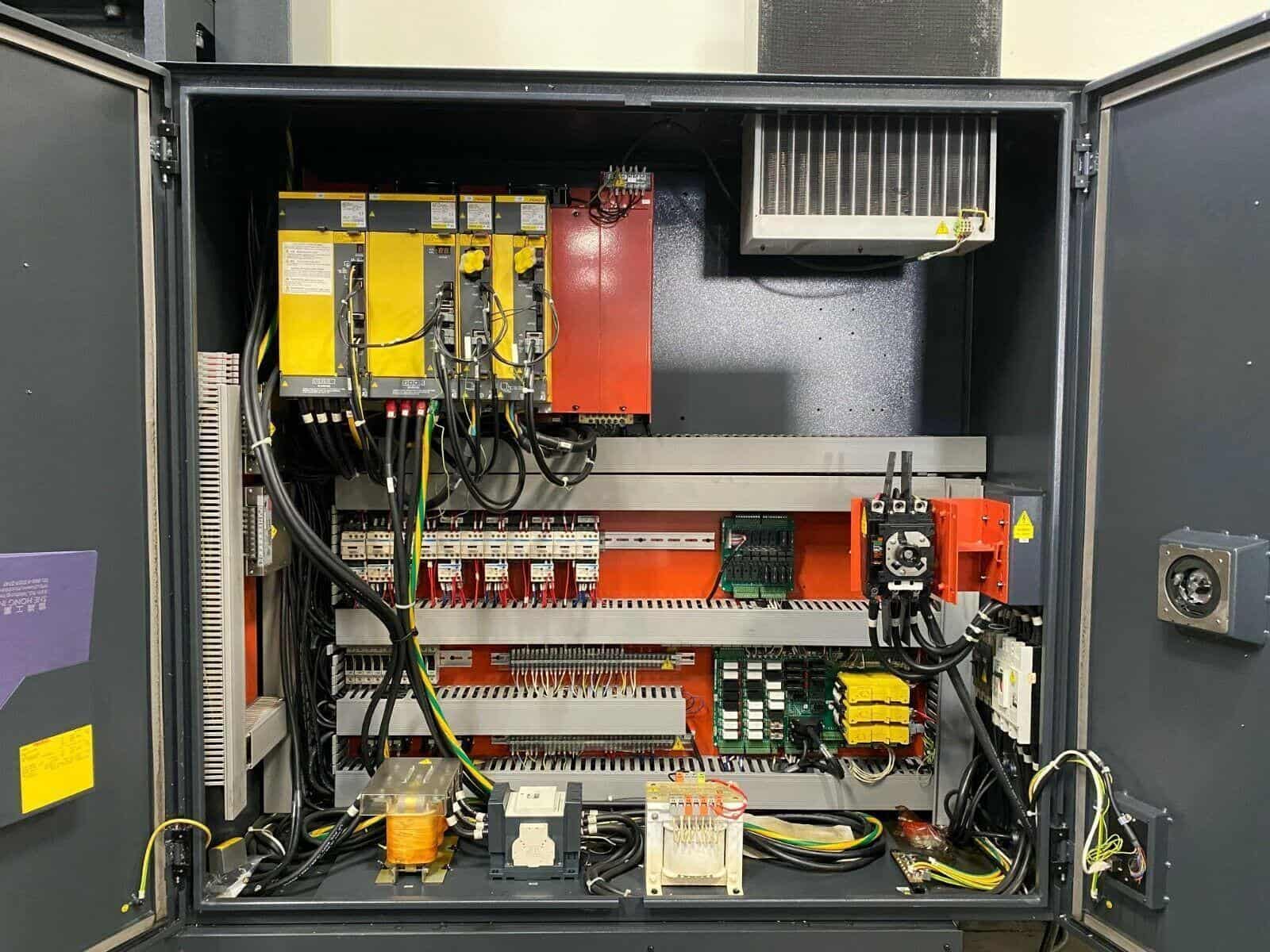

  • Fanuc 18iMB CNC Control

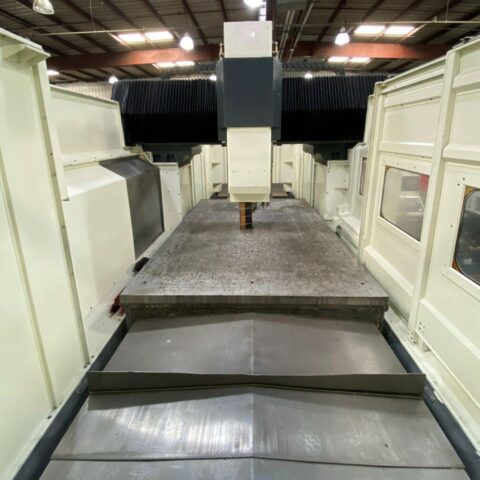

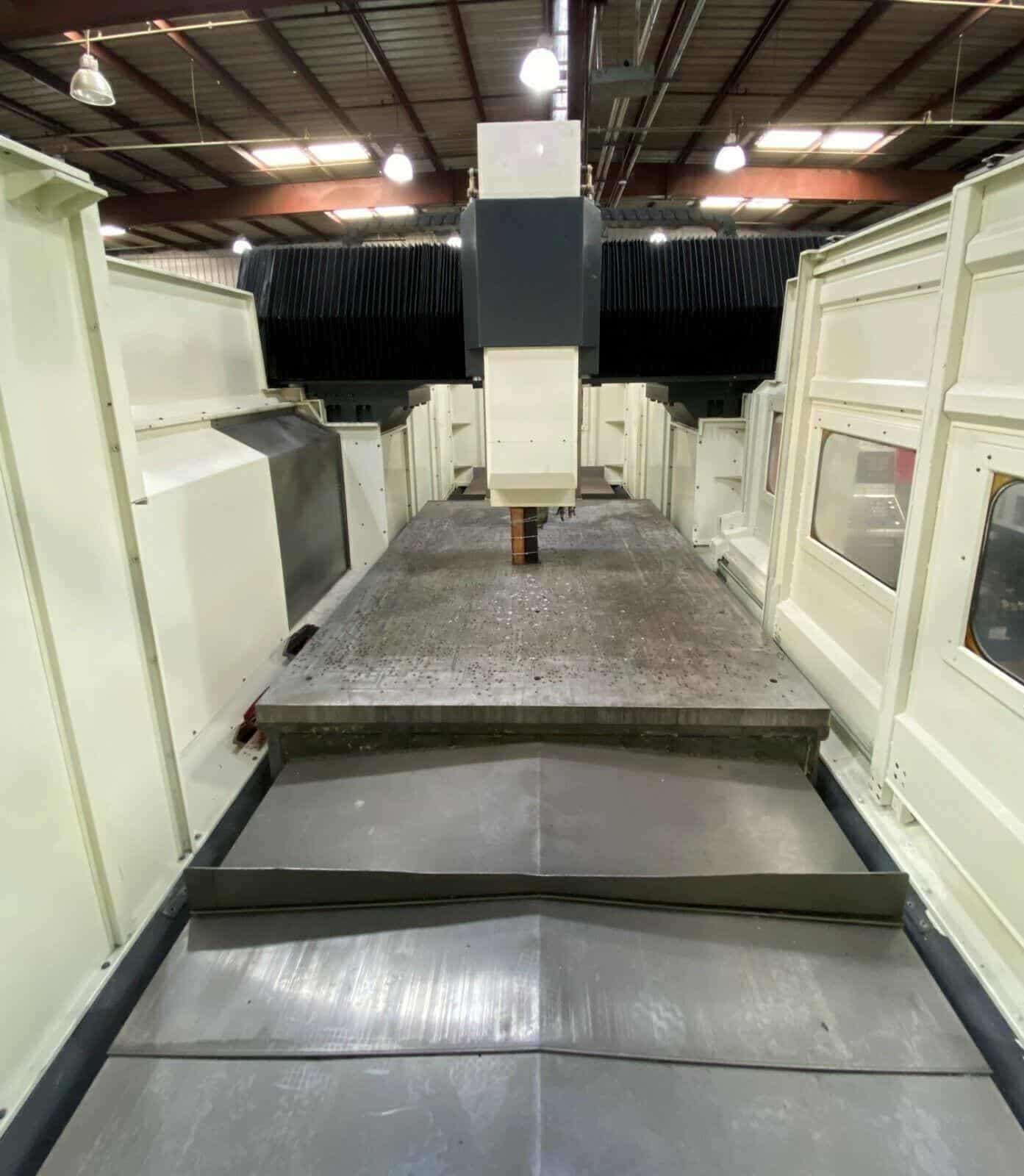

  • 124″ X 81″ Jig Table
  • Coolant thru Spindle
  • 40 Station Side Mount Tool Changer

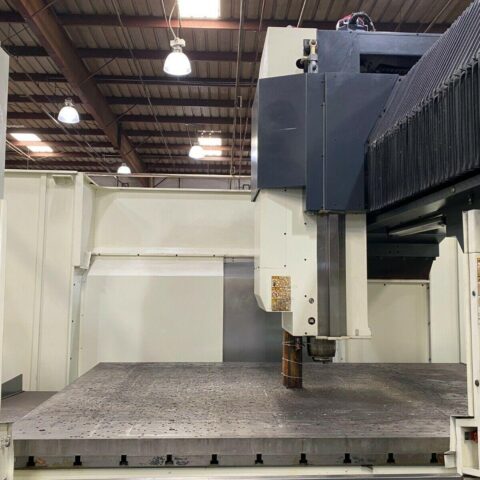

  • 50 Taper Geared Head 6000 RPM Spindle
  • Powerful 35 HP high torque spindle motor
  • PCMCIA Card Slot
  • RS-252 Port
  • Spindle Orientation
  • Box Way Construction
  • Portable manual pulse generator
  • Flood coolant with large separate coolant tank
  • Chip Blaster

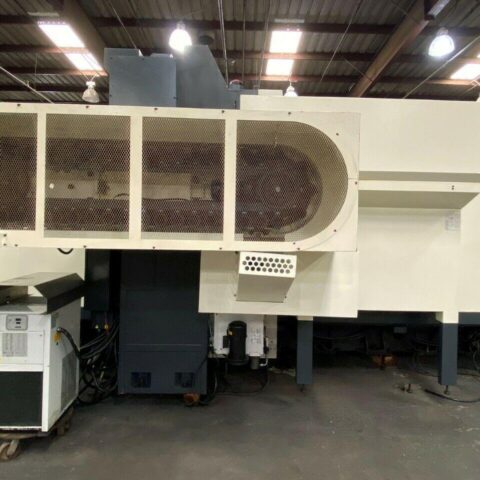

  • Chip Conveyor

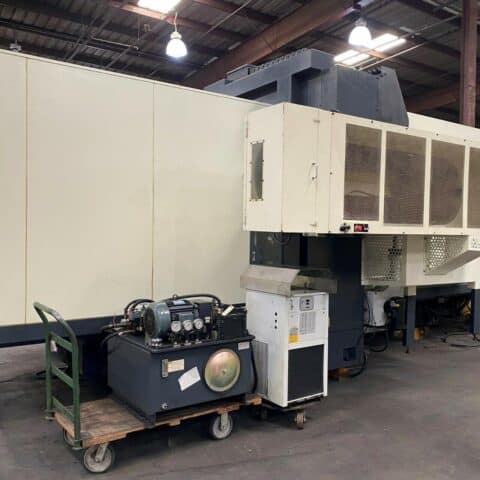

  • Chiller Unit
  • Levelling Pads
  • Replacement Cost over $400,000.00
  • Specifications:
  • Travels:
  • X-Axis: 118.11″
  • Y-Axis: 82.68″
  • Z-Axis: 30.71″
  • Distance Between Columns: 91.0″
  • Spindle Nose to Table (Min.- Max.): 8.86″- 39.57″
  • Rapid feedrate X,Y & Z: 472 inch/P.M
  • Cutting Feedrate: .04″ – 276″ inch/ P.M

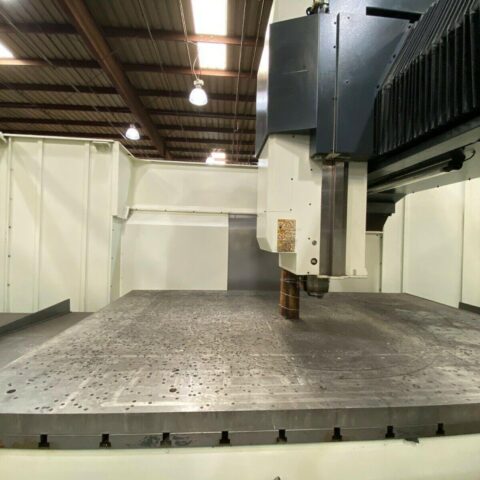

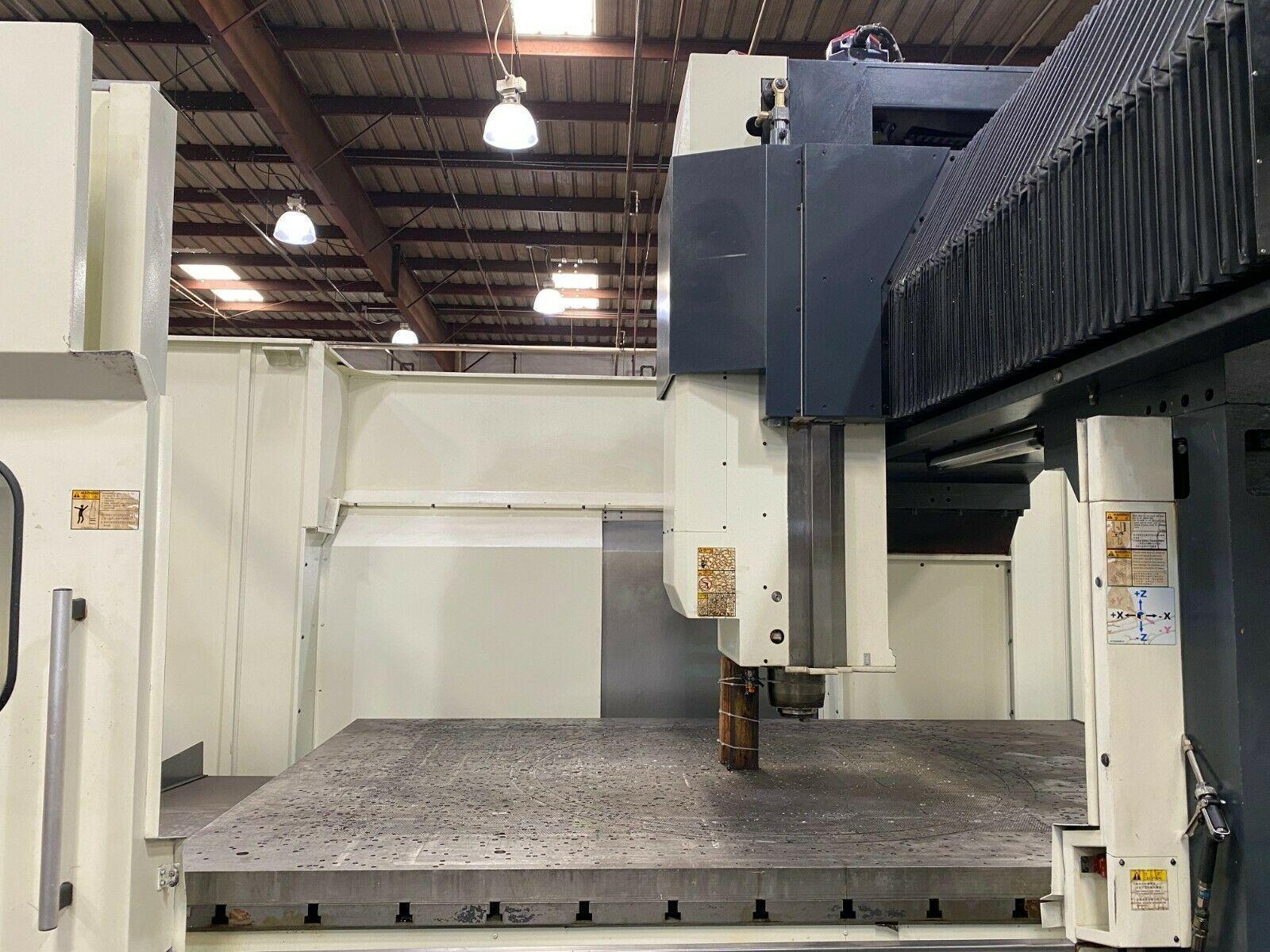

  • Table:
  • Length: 124″
  • Width: 81″
  • T-Slot: 0.87″ Wide X 20 X 7.87″
  • Max Weight on Table: 18,000 lbs
  • Spindle:
  • Taper Size: 50
  • Speed Range: 6000 RPM
  • Spindle Power: 35 HP
  • Automatic Tool Changer:
  • 50 Taper
  • Capacity: 40
  • Max Tool Weight: 33 lbs
  • Max Tool Length: 13.77″
  • Max Tool Dia.: 5″
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 205-235v / 66FLA / 3-Phase, 40 Kva

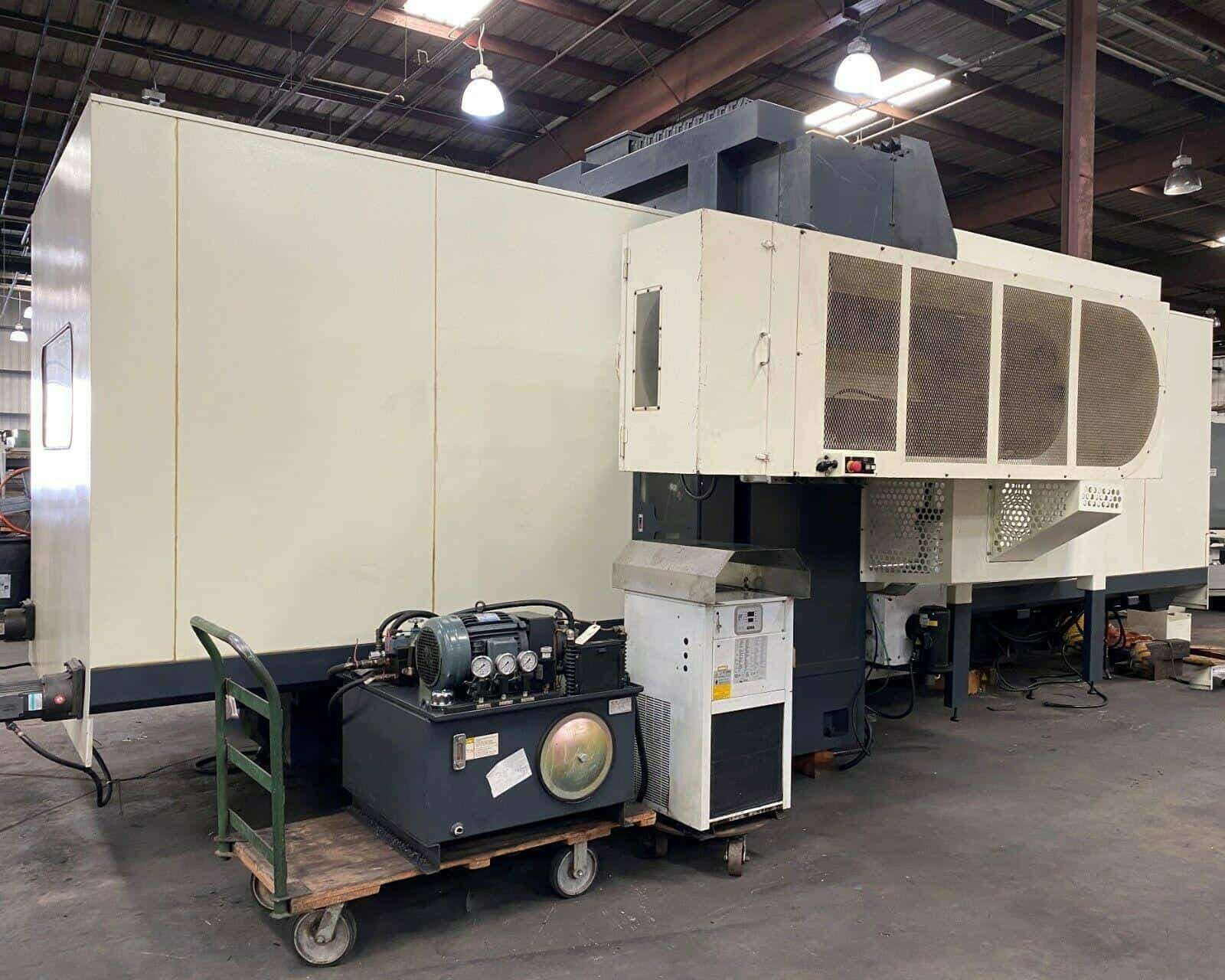

  • Overall Shipping Dimensions: 410″ x 164″ x 130″ High Hydraulic Unit, Chip Conveyor,
  • Chiller unit Extra Weight: 60,600 lbs.

“No Charges for loading at list Price”

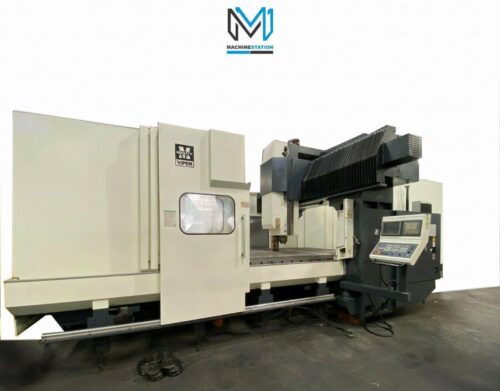

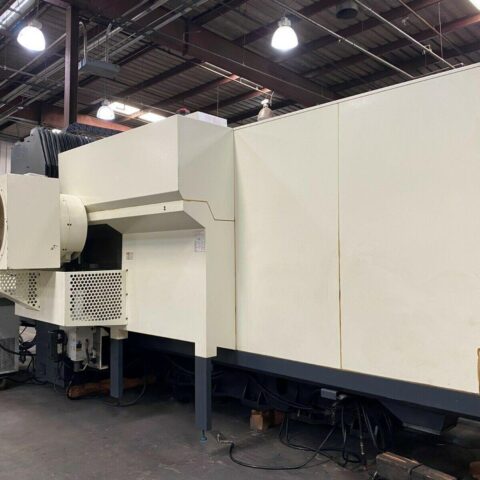

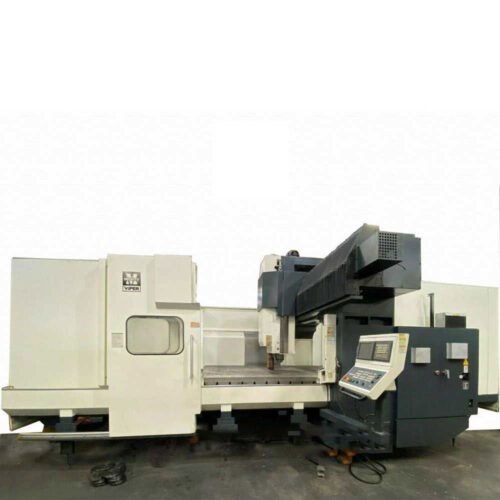

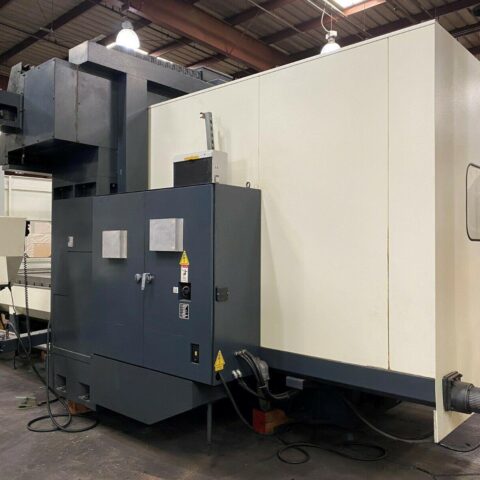

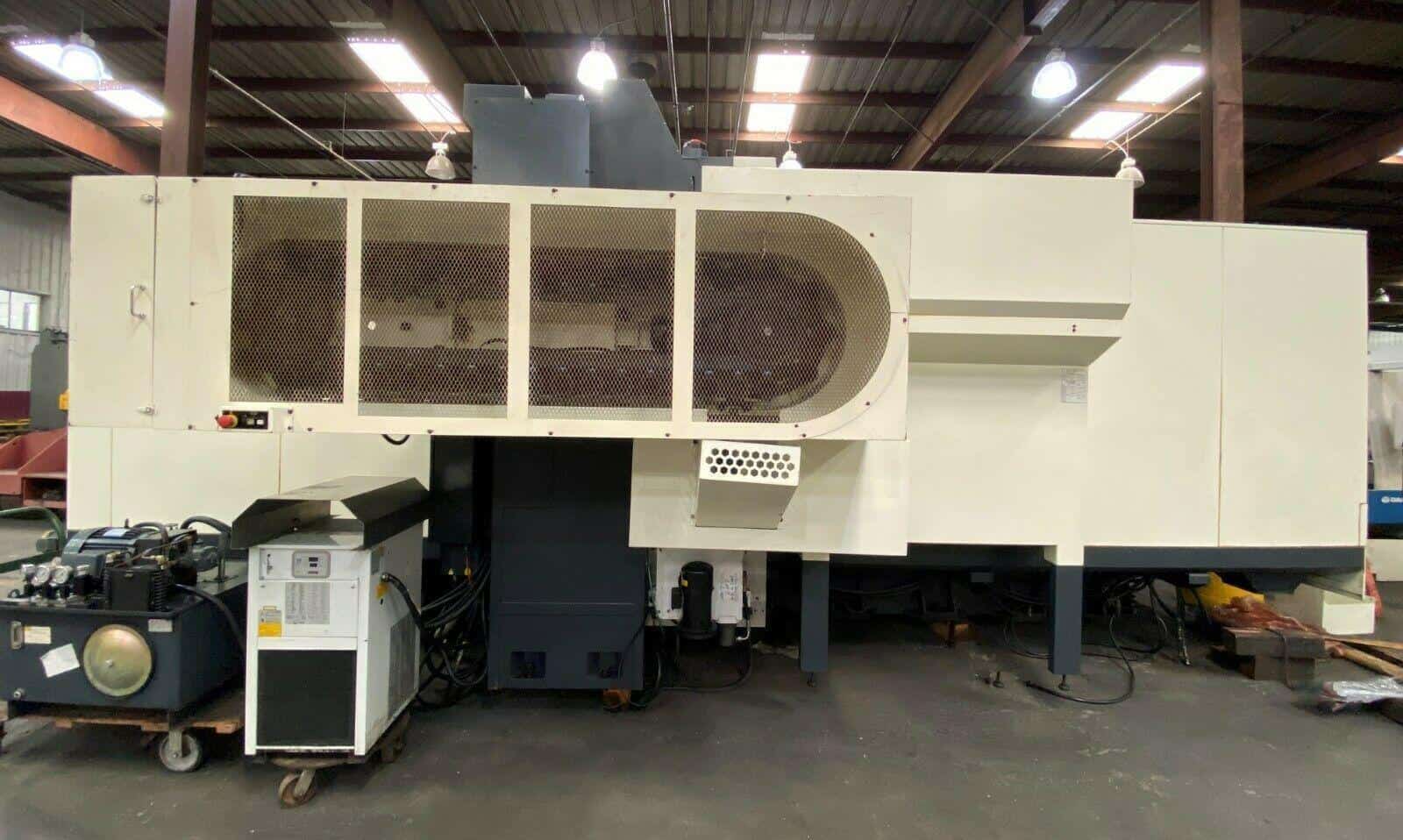

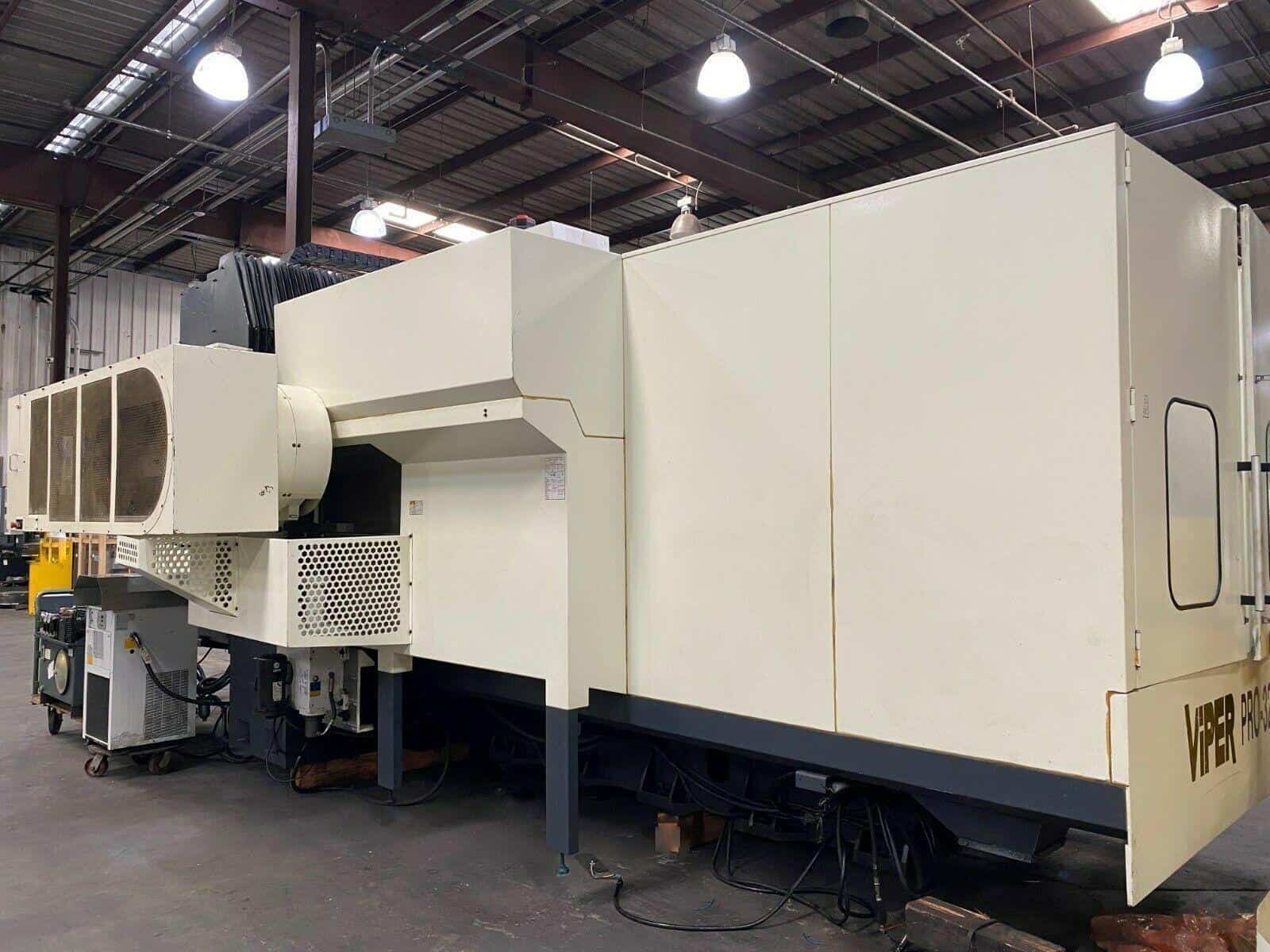

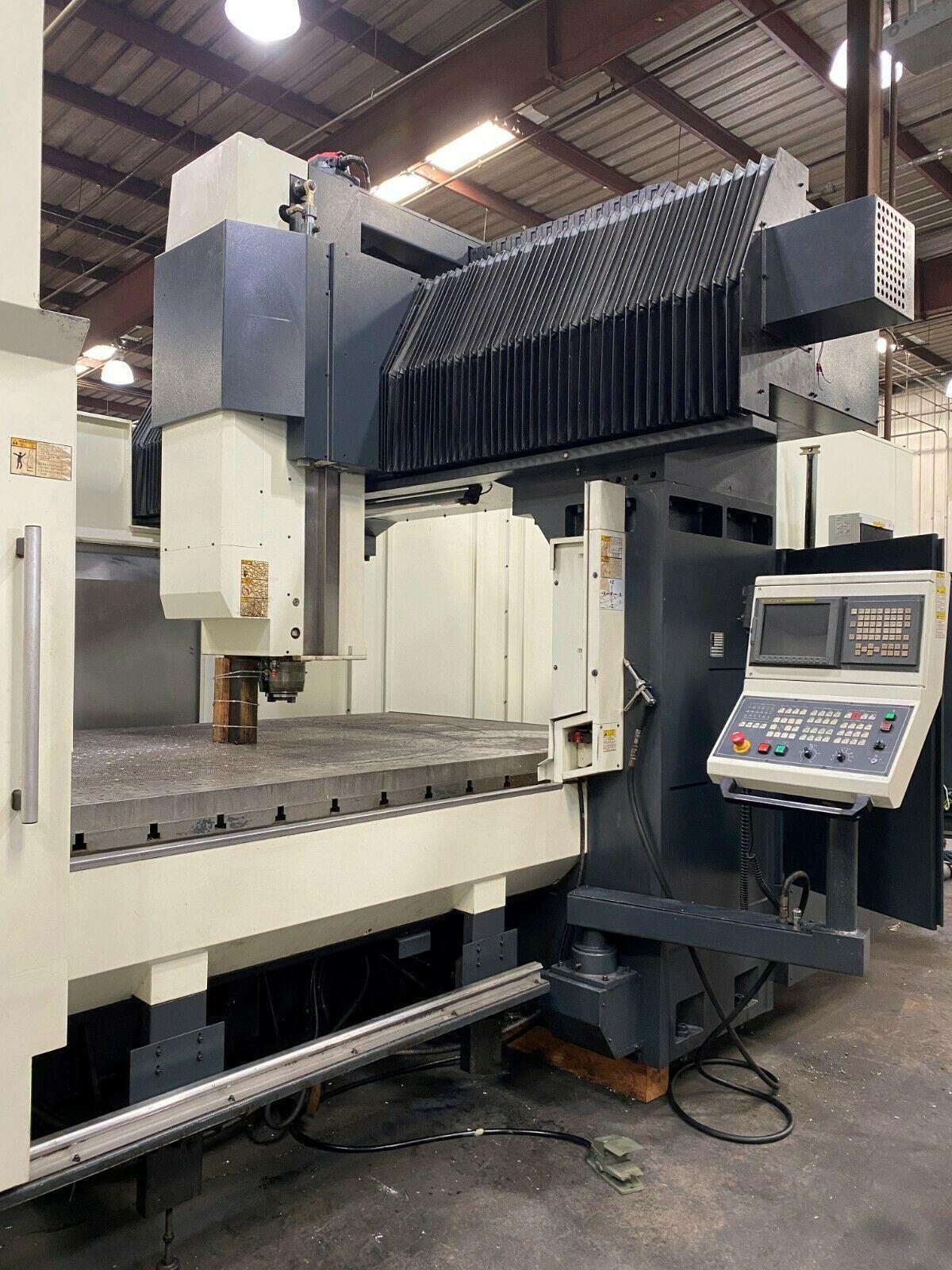

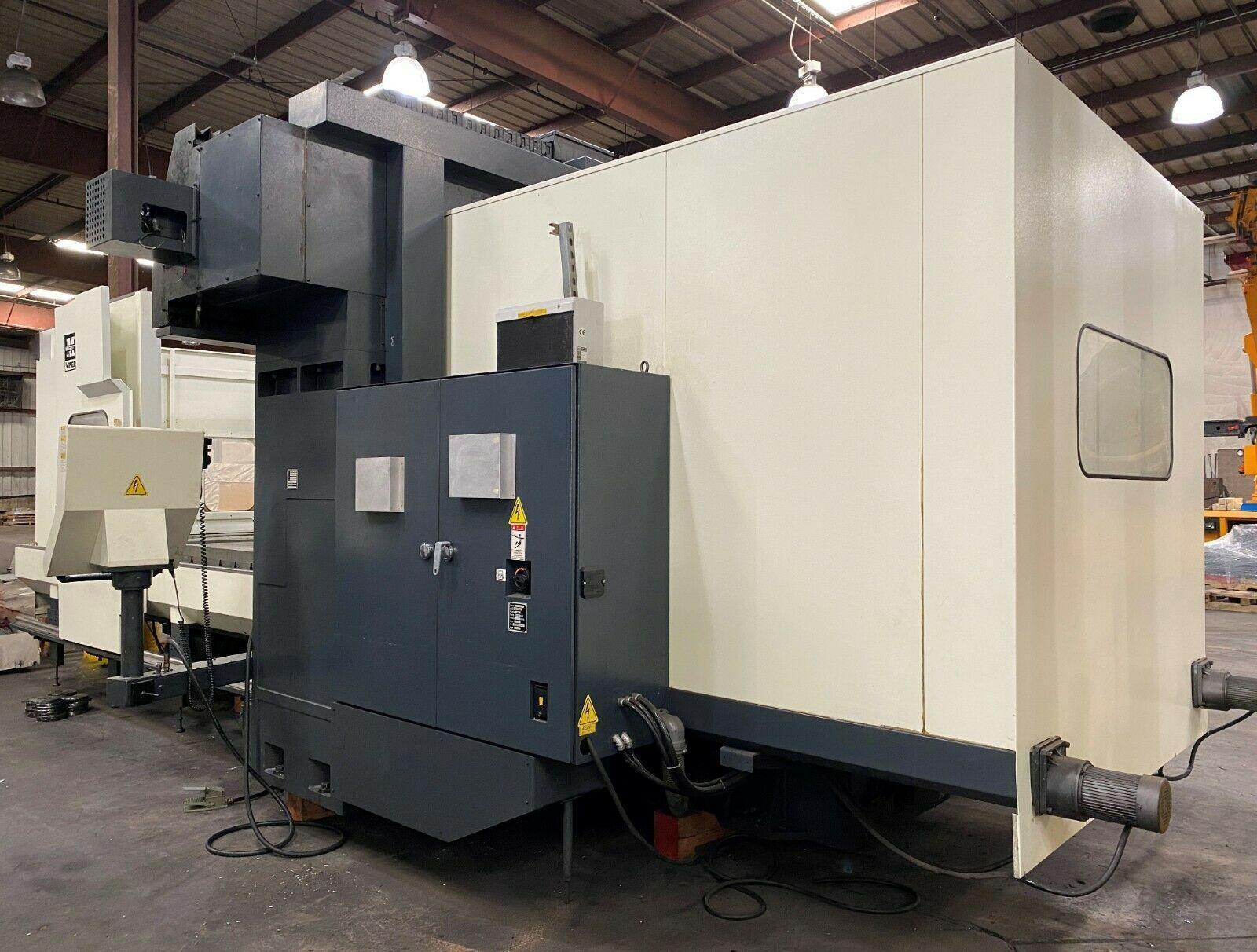

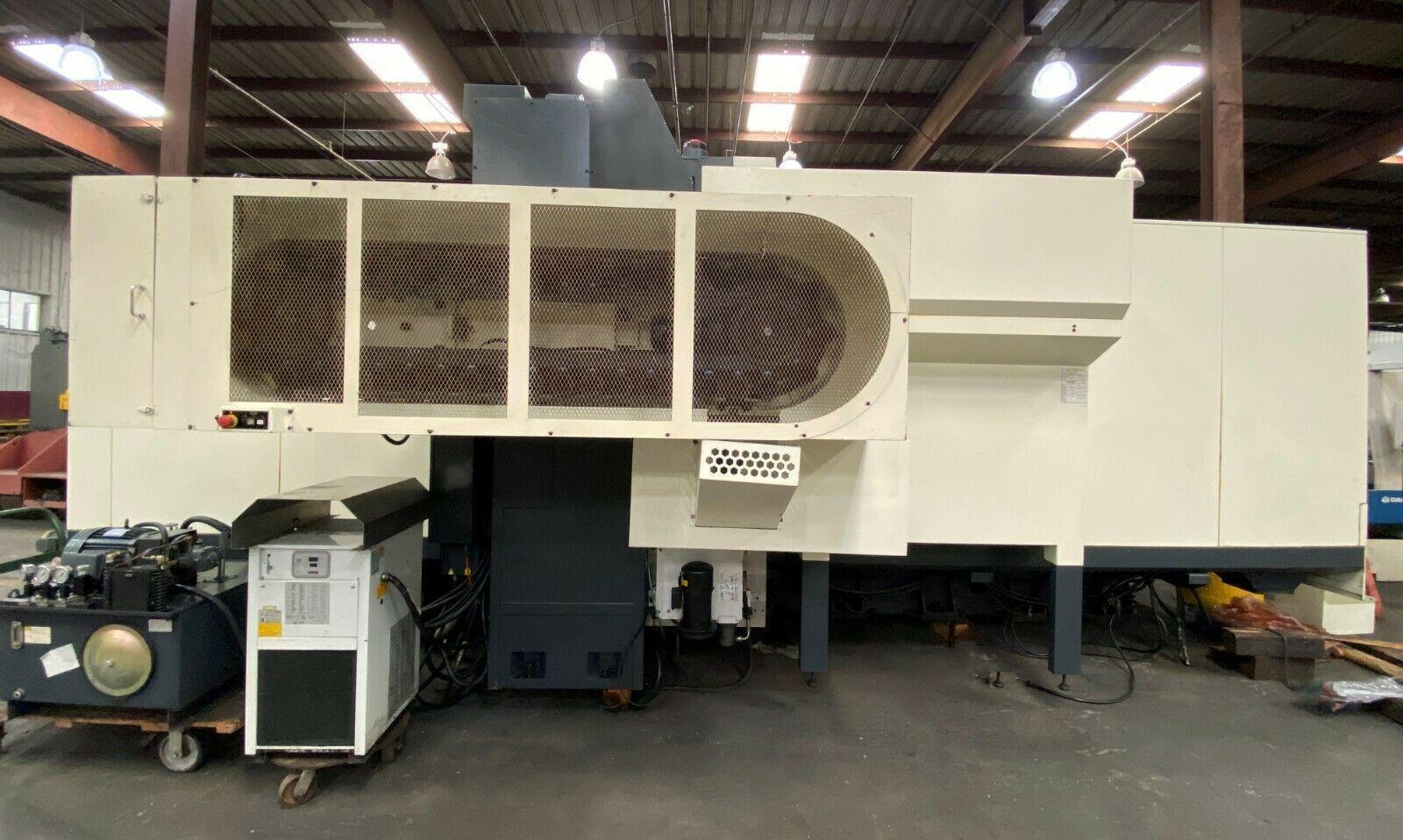

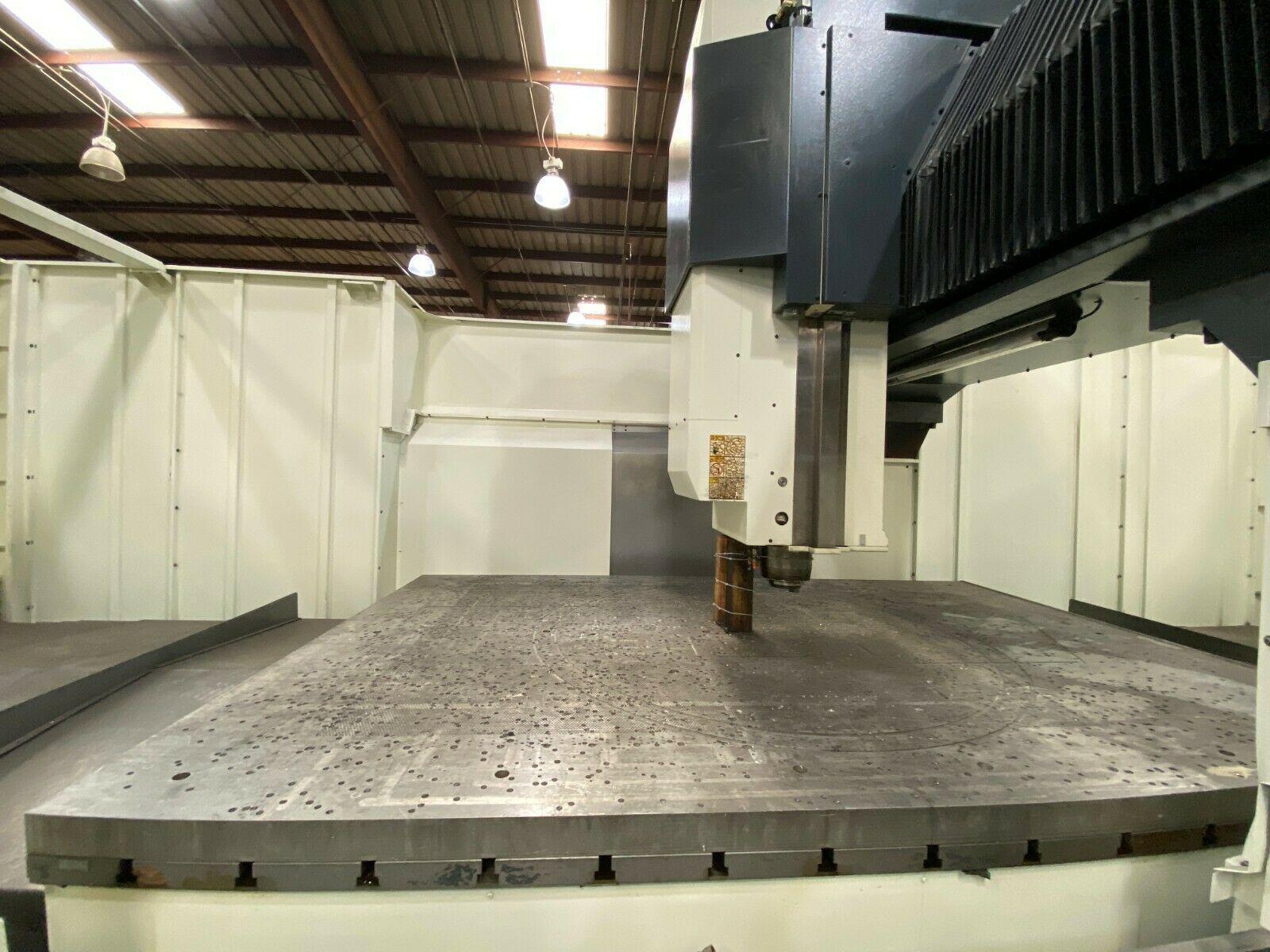

Mighty Viper Pro-3210 CNC Vertical Bridge Mill Comes as shown in pictures…
