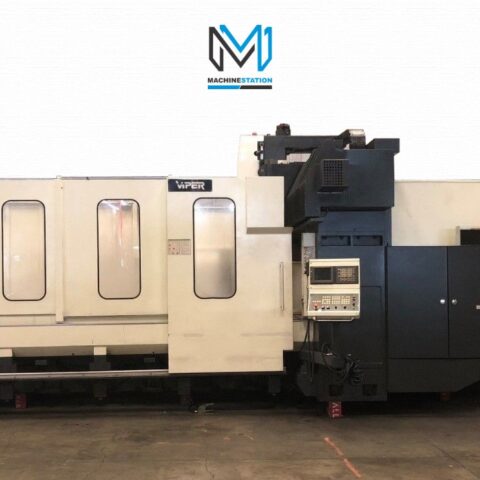

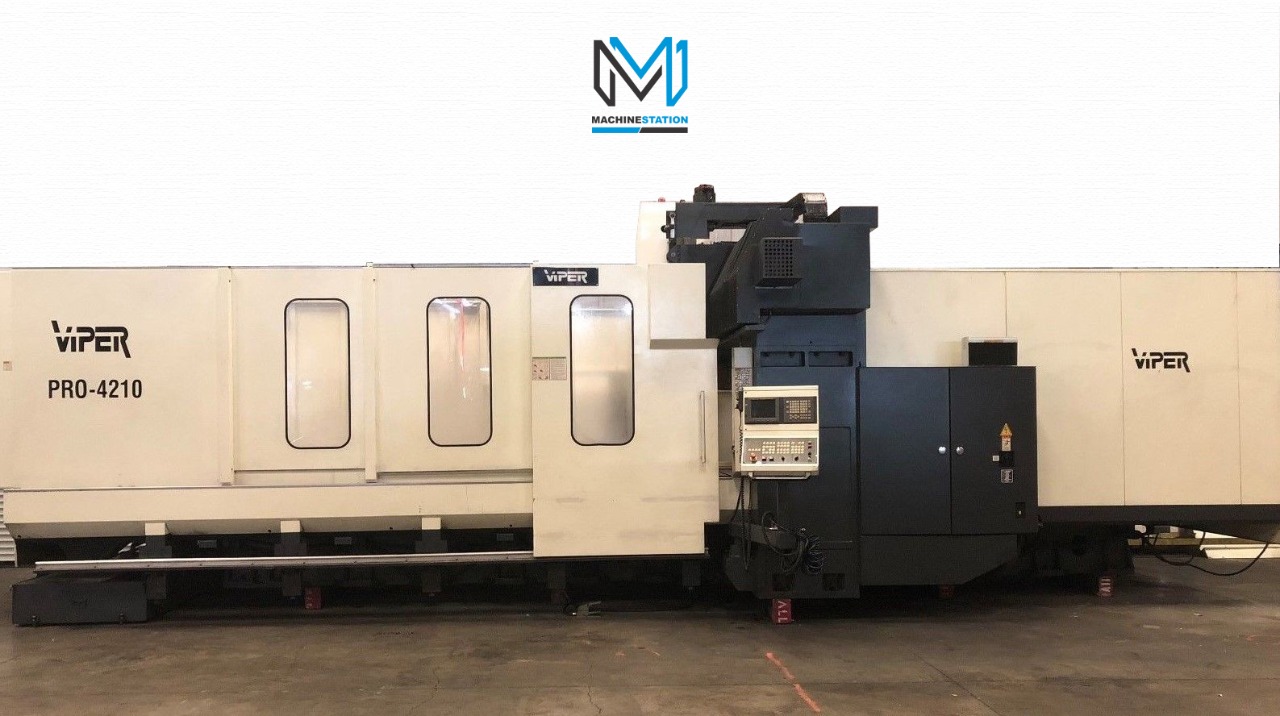

• MIGHTY VIPER PRO-4210 CNC VERTICAL BRIDGE MILLING

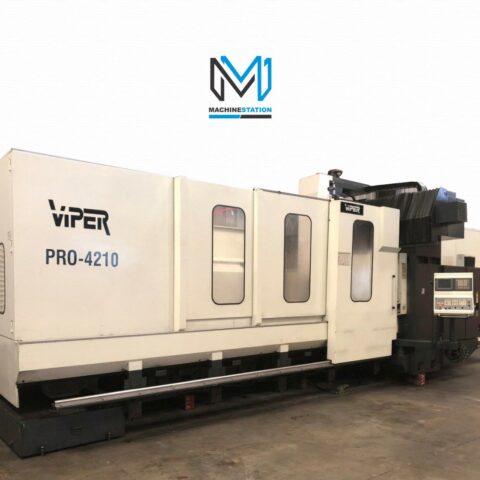

  • MIGHTY VIPER PRO-4210 CNC VERTICAL BRIDGE MILLING(2)

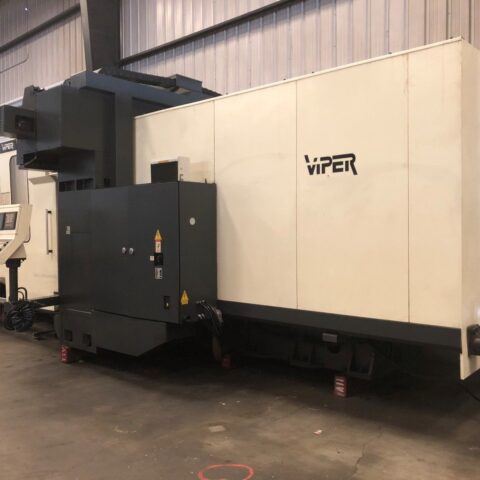

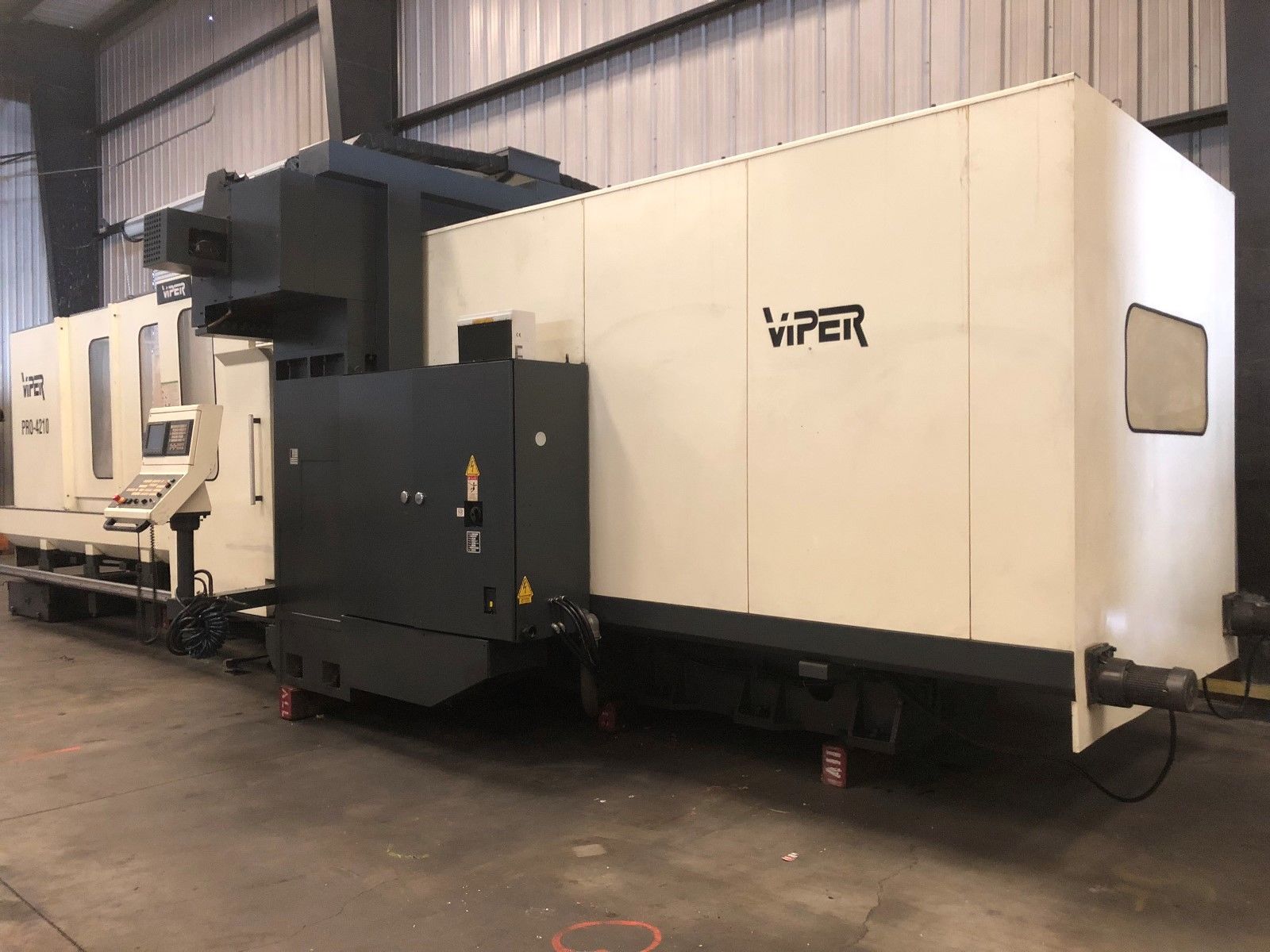

  • Used Mighty Viper PRO-4210 CNC Bridge Type Milling for Sale in California b

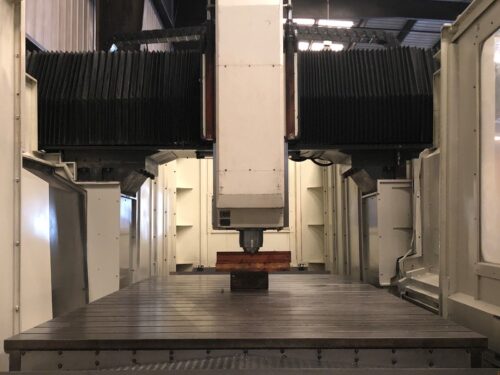

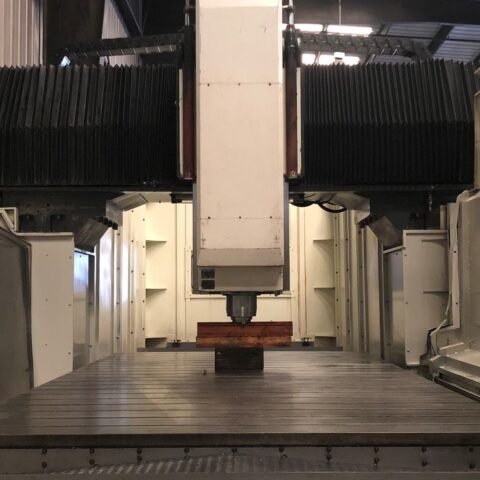

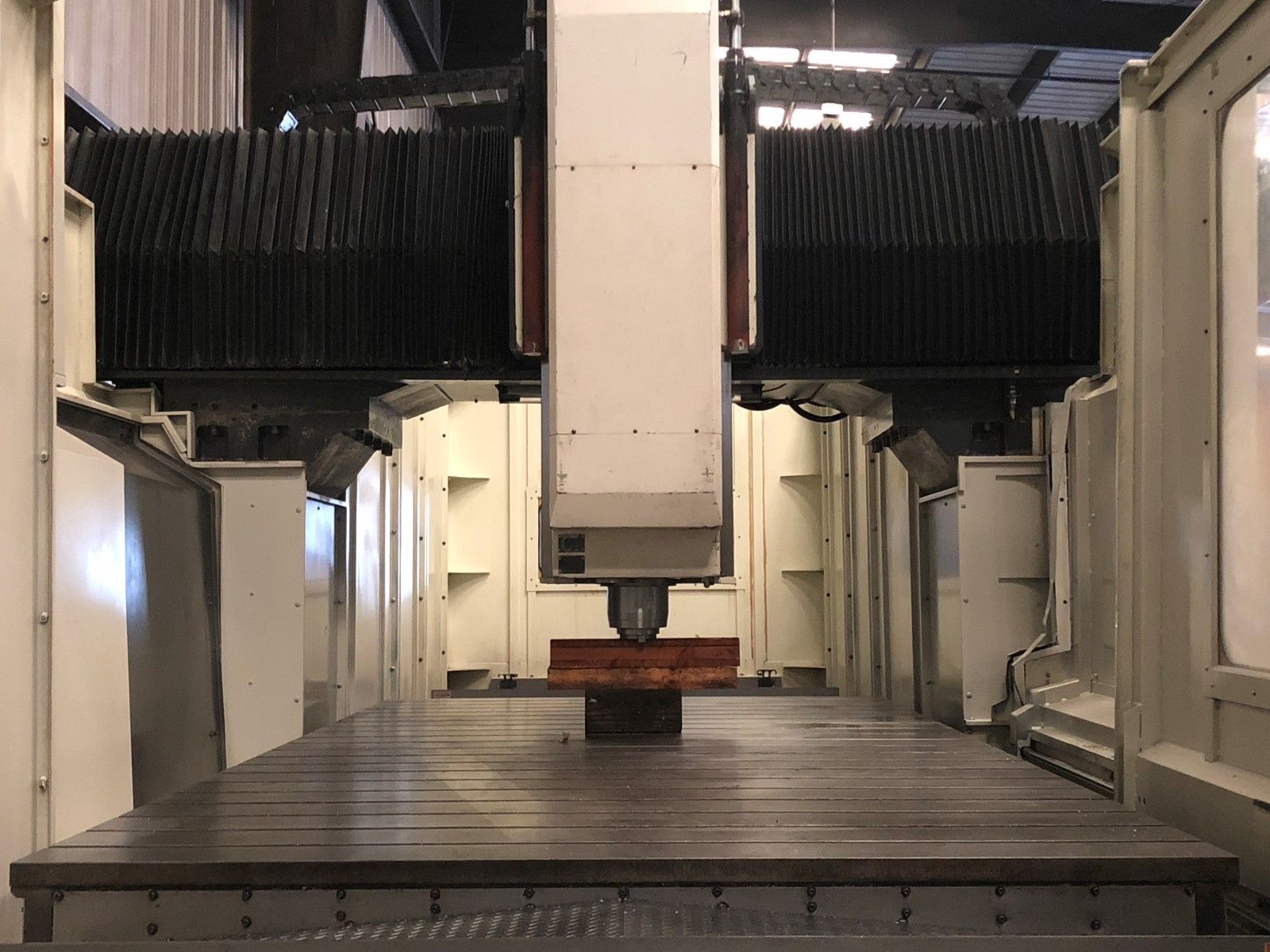

  • Used Mighty Viper PRO-4210 CNC Bridge Type Milling for Sale in California f

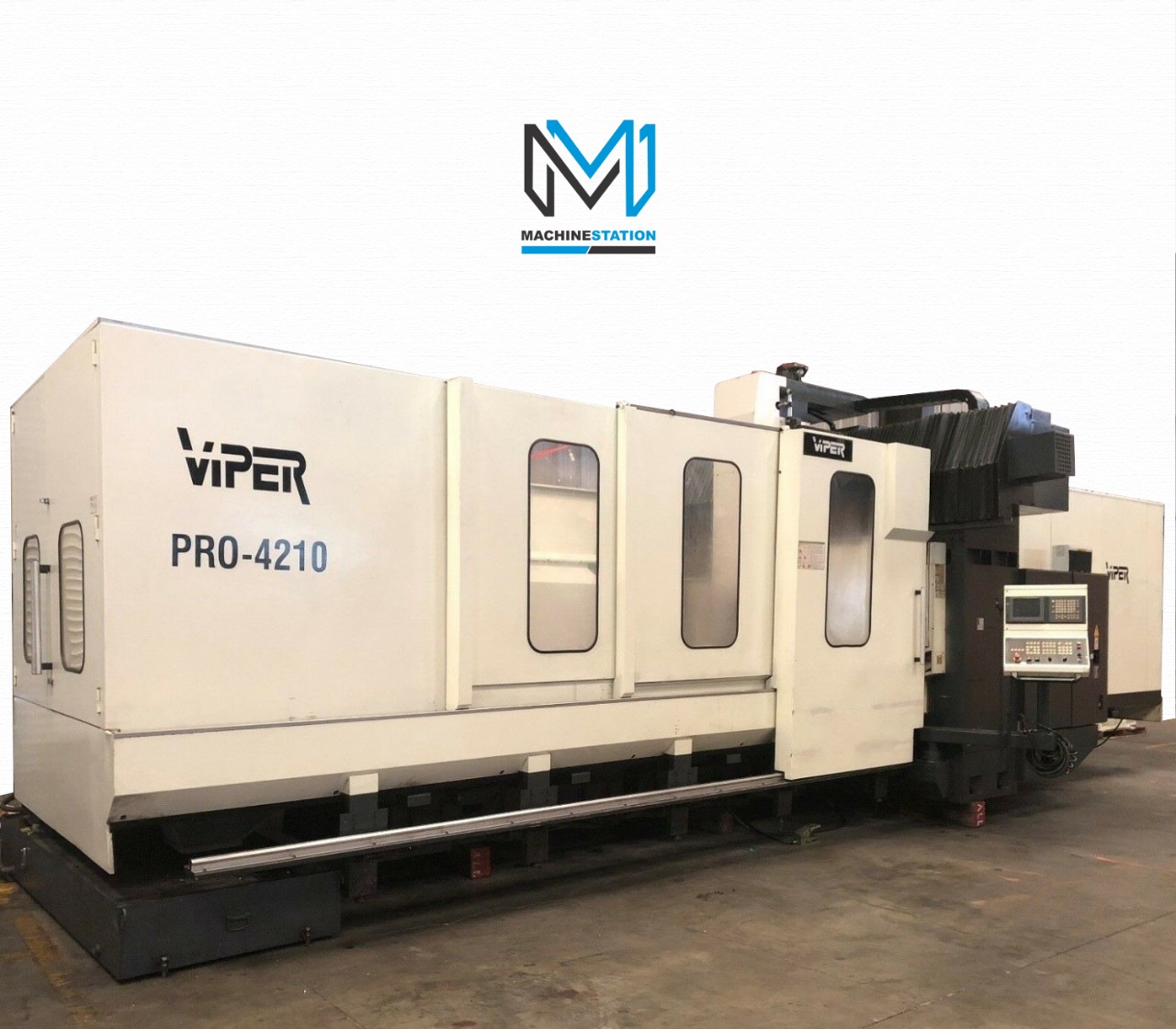

Mighty Viper PRO-4210 CNC Vertical Bridge Milling

$216,999.00

Share

Description

Mighty Viper PRO-4210 CNC Vertical Bridge Milling
Make Mighty Viper
Model No. PRO-4210AG
SKU 1644
Year 2007, Installed 2008
Serial # 010680
Condition Very Good
  • Equipped With:
  • Fanuc 21iMB CNC Control
  • 163″ X 81″ Table
  • 40 Station Side Mount Tool Changer
  • 50 Taper Geared Head 6000 RPM Spindle
  • Powerful 35 HP high torque spindle motor
  • PCMCIA Card Slot
  • RS-252 Port
  • Spindle Orientation
  • Box Way Construction
  • Portable manual pulse generator
  • Flood coolant with large separate coolant tank
  • Base Flush Chip Disposal with Dual Auger
  • Chip Conveyor
  • Chiller Unit
  • Levelling Pads
  • Specifications:
  • Travels:
  • X-Axis: 164.0″
  • Y-Axis: 82.68″
  • Z-Axis: 30.71″
  • Distance Between Columns: 91.0″
  • Spindle Nose to Table (Min.- Max.): 8.86″- 39.57″
  • Table:
  • Length: 164″
  • Width: 81″
  • T-Slot: 0.87″ Wide X 20 X 7.87″
  • Max Weight on Table: 22,000 lbs
  • Spindle:
  • Taper Size: 50
  • Speed Range: 6000 RPM
  • Spindle Power: 35 HP
  • Feed rates:
  • Rapid X,Y & Z: 472 inch/P.M
  • Cutting Feedrate: .04″ – 276″ inch/ P.M
  • Automatic Arm Type Tool Changer:
  •  50 Taper
  • Capacity: 40
  • Max Tool Weight: 33 lbs
  • Max Tool Length: 13.77″
  • Max Tool Dia.: 5″
  • General:
  •  Air Required: 100 psi, 4 scfm
  • Power: 205-235v / 66FLA / 3-Phase, 40 Kva
  • Overall Shipping Dimensions: 410″ x 164″ x 130″ High
  • Hydraulic Unit, Chip Conveyor, Chiller unit Extra.
  • Weight: 77,600 lbs.

Mighty Viper PRO-4210 Comes as shown in pictures.
