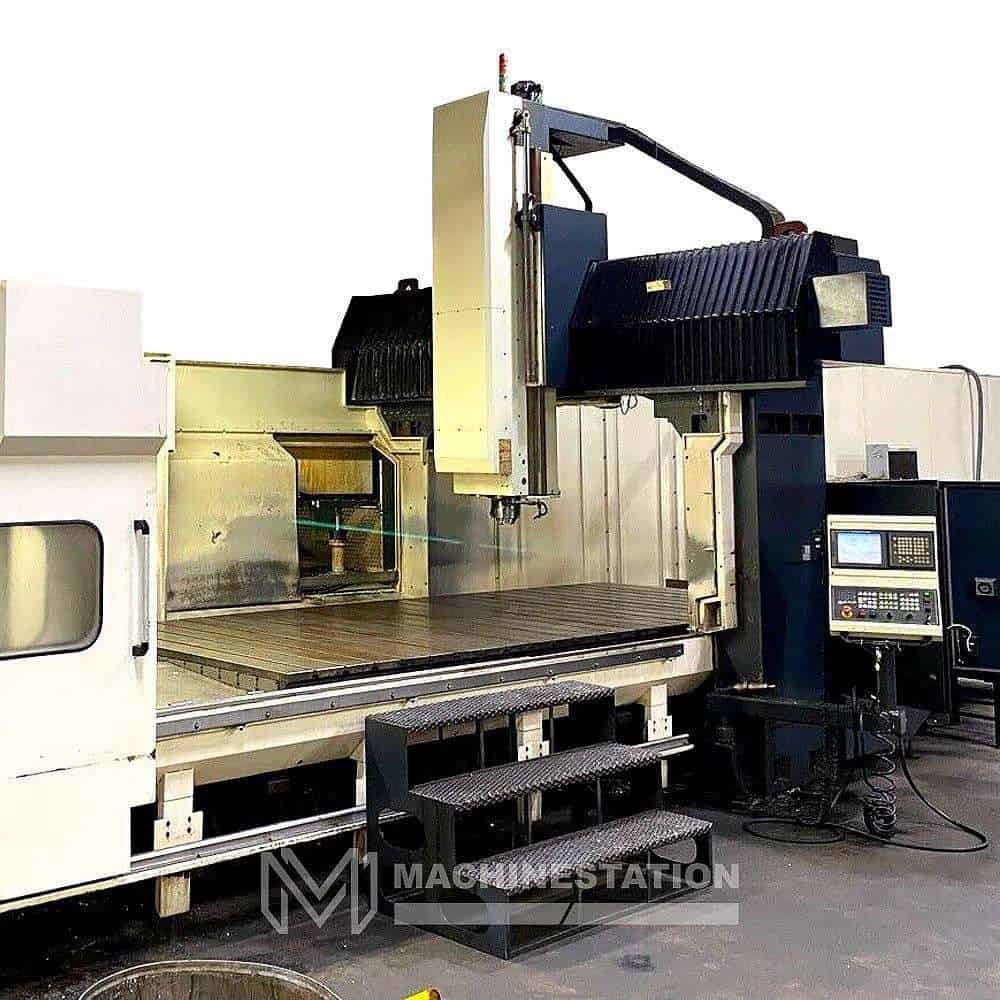

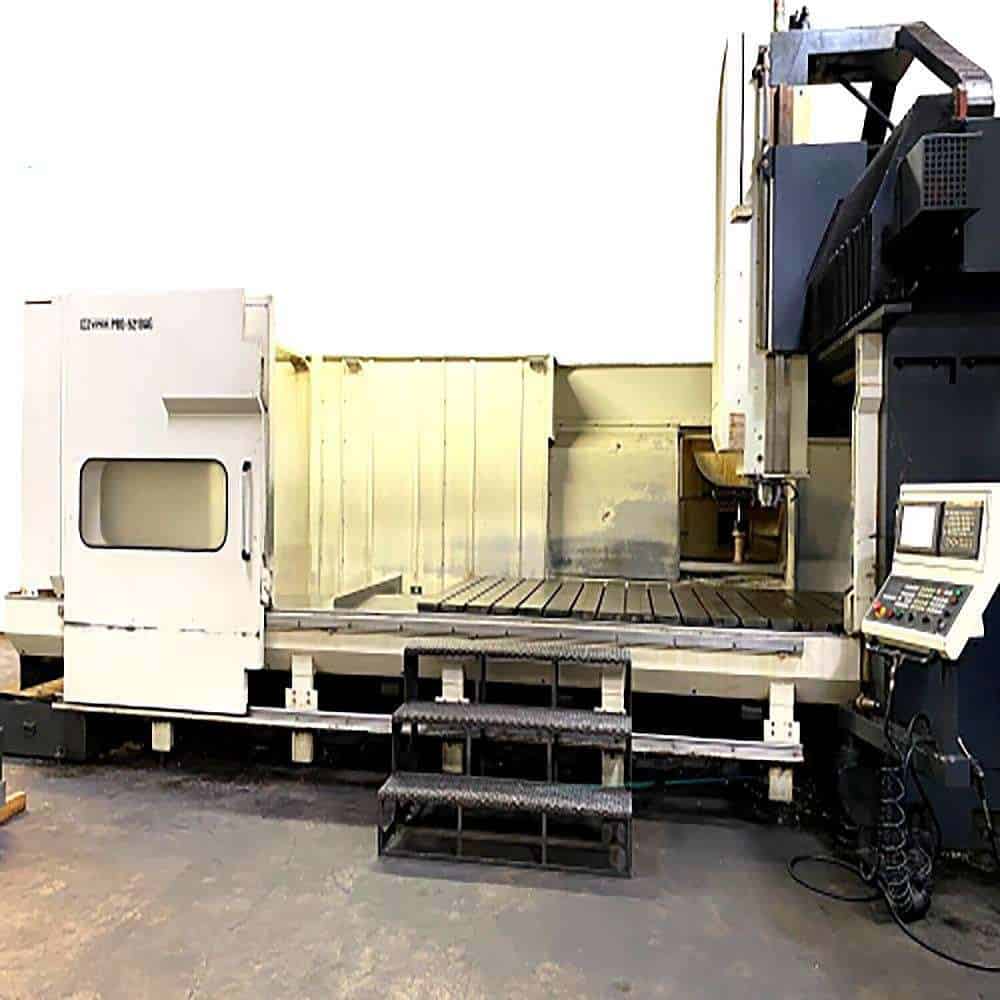

Mighty Viper PRO-5210 CNC Vertical Bridge Mill

Mighty Viper PRO-5210 CNC Vertical Bridge Mill

Out of stock

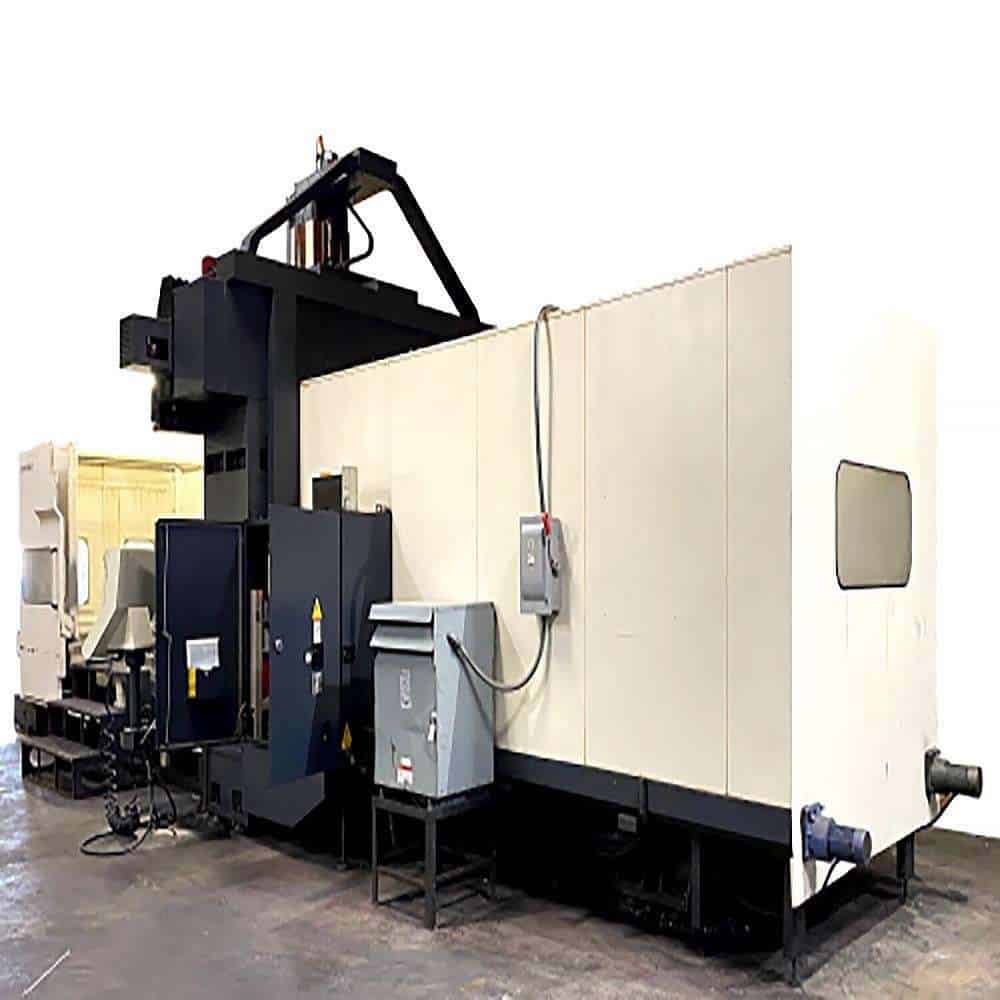

Used Mighty Viper PRO-5210 CNC Vertical Bridge Mill for Sale. This Mighty Viper PRO-5210 has minimal cutting hours and is in almost new condition.

Location: Lake Elsinore, CA
SKU: 2383
Make: Mighty Viper
Model: PRO-5210AG
Video: No Video
SKU: 2383 Category: Tag:

Description

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Mighty Viper
Model:PRO-5210AG
Year:2008/2009

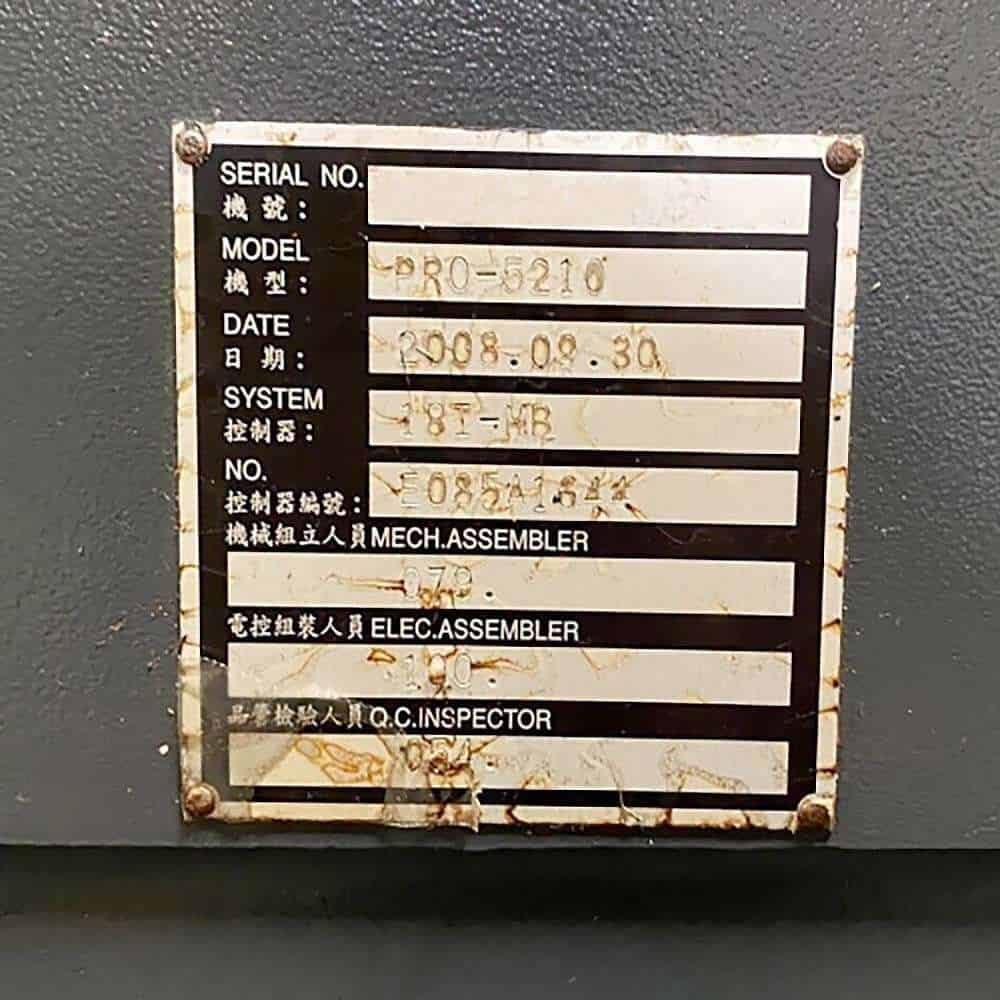

Serial:012169
Condition:Very Good
Cutting Hours:15695



Equipped With:

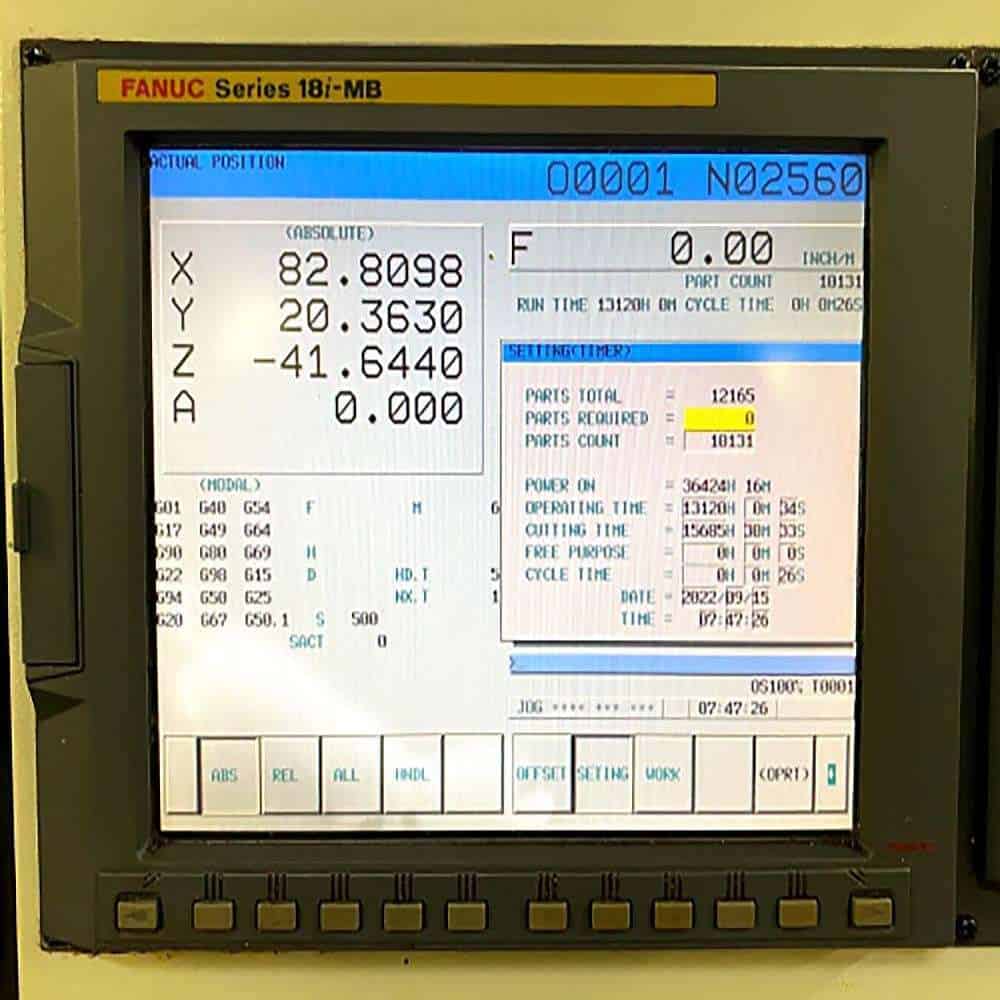

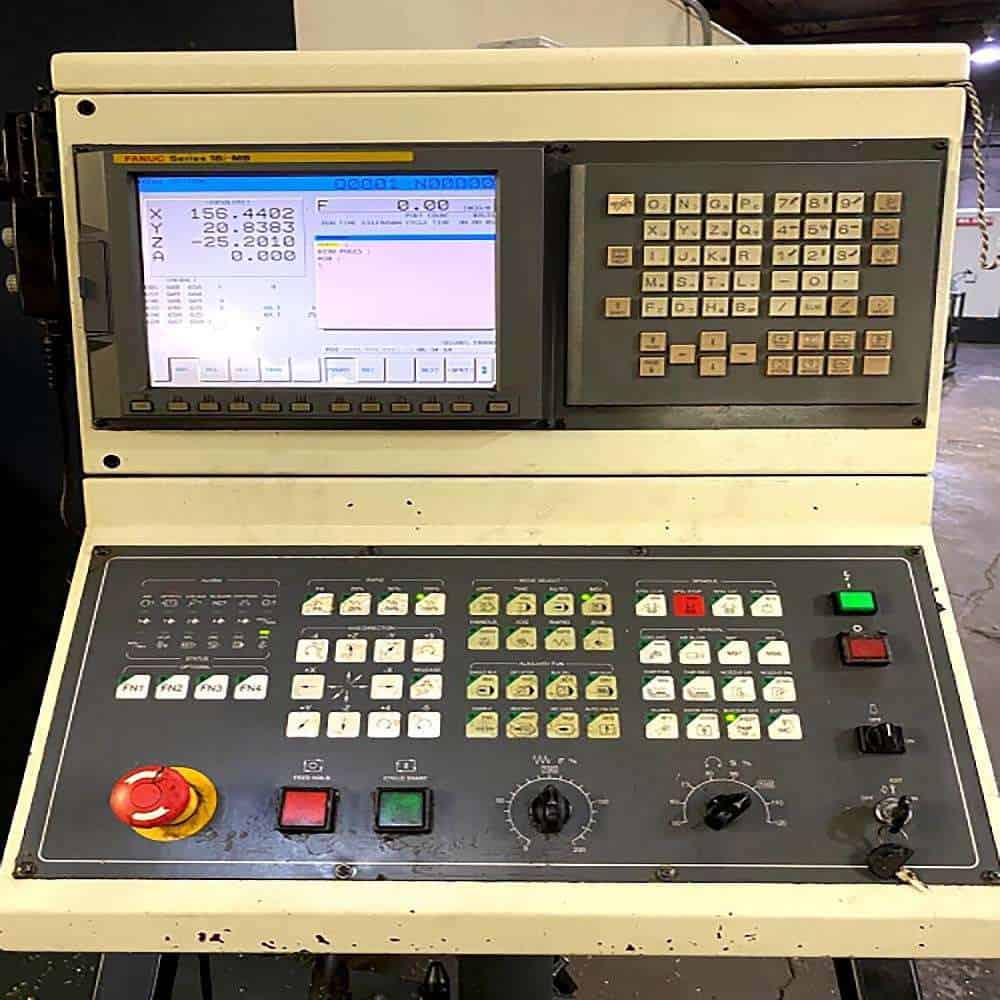

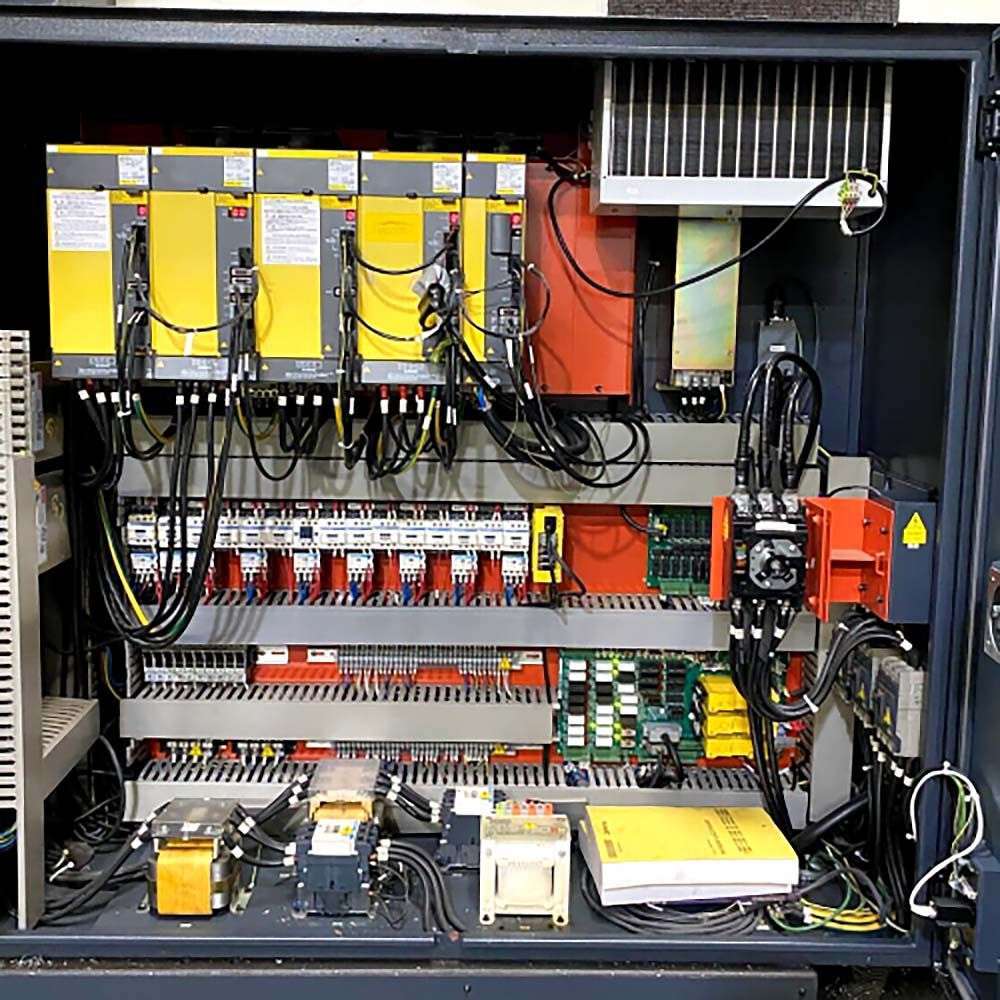

Fanuc 18i-MB CNC Control
197″ X 81″ Table
40 Station Side Mount Tool Changer
50 Taper Gear Head 6000 RPM Spindle
Powerful 35 HP high torque spindle motor
4th Axis Ready
Box Way Construction
PCMCIA Card Slot
RS-232 Port
MPG Handwheel
Spindle Orientation
Portable manual pulse generator
Flood coolant with large separate coolant tank
Transformer

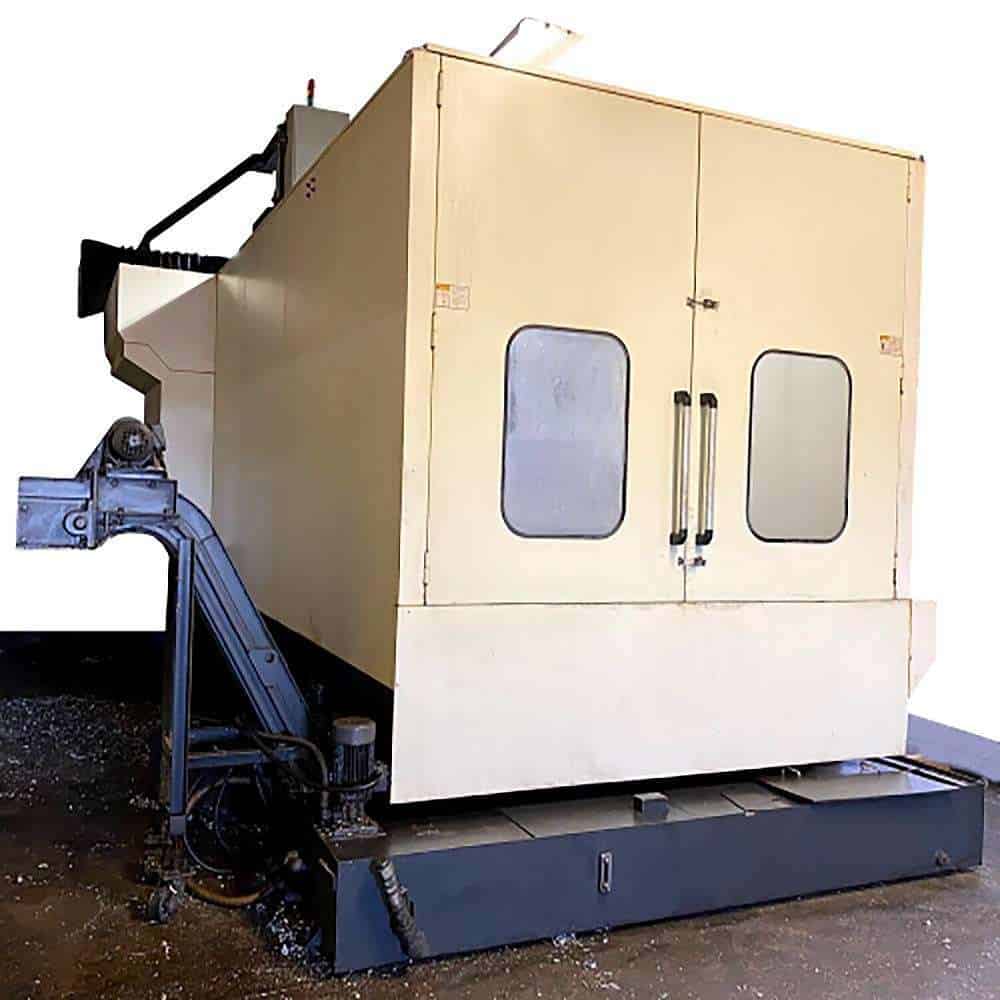

Chip Conveyor
Chiller Unit
Books & Manuals



Travels:
X-Axis: 197.00″
Y-Axis: 82.67″
Z-Axis: 30.71″
Distance Between Columns: 91″
Spindle Nose to Table (Min.- Max.): 8.86″- 39.57″
Rapid feedrate X Y & Z: 472 IPM
Cutting Feedrate: .04″ – 276″ IPM

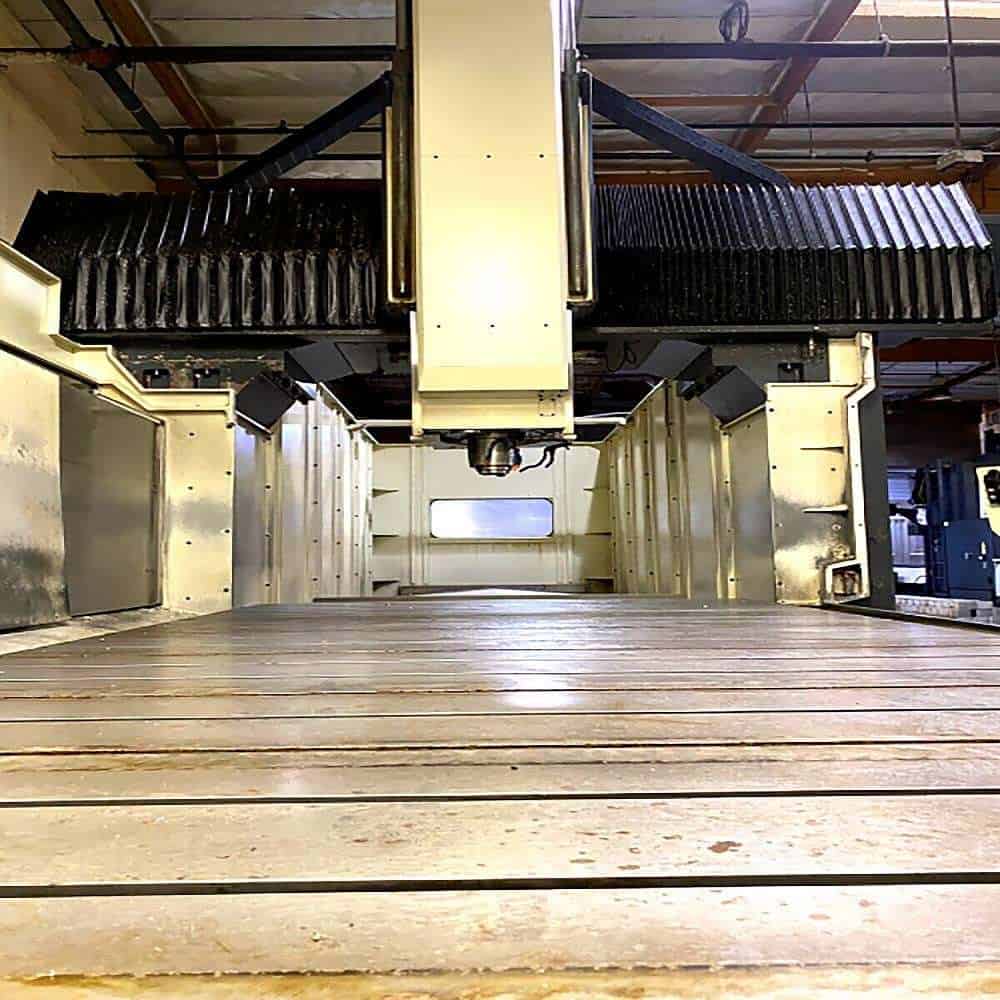

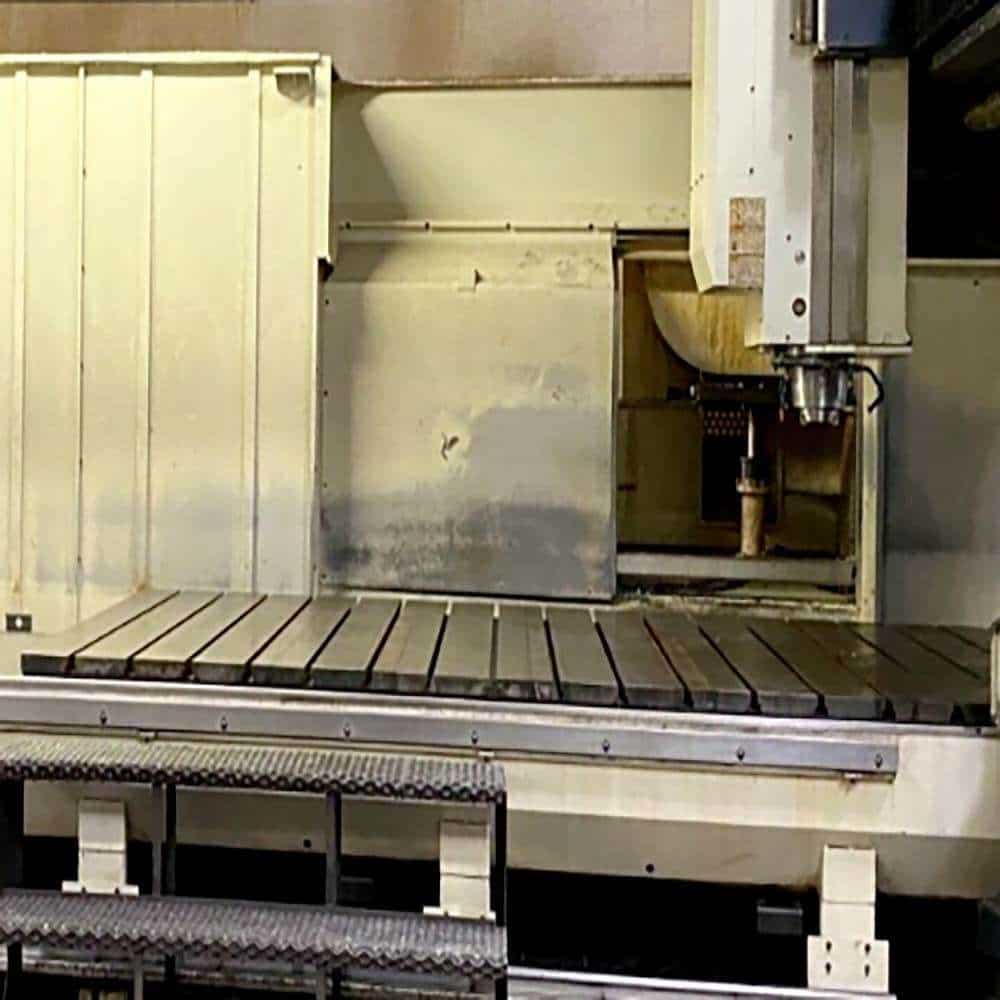

Table:
Length: 197″
Width: 81″
T-Slot: 0.87″ Wide X 16 X 7.87″
Max Weight on Table:

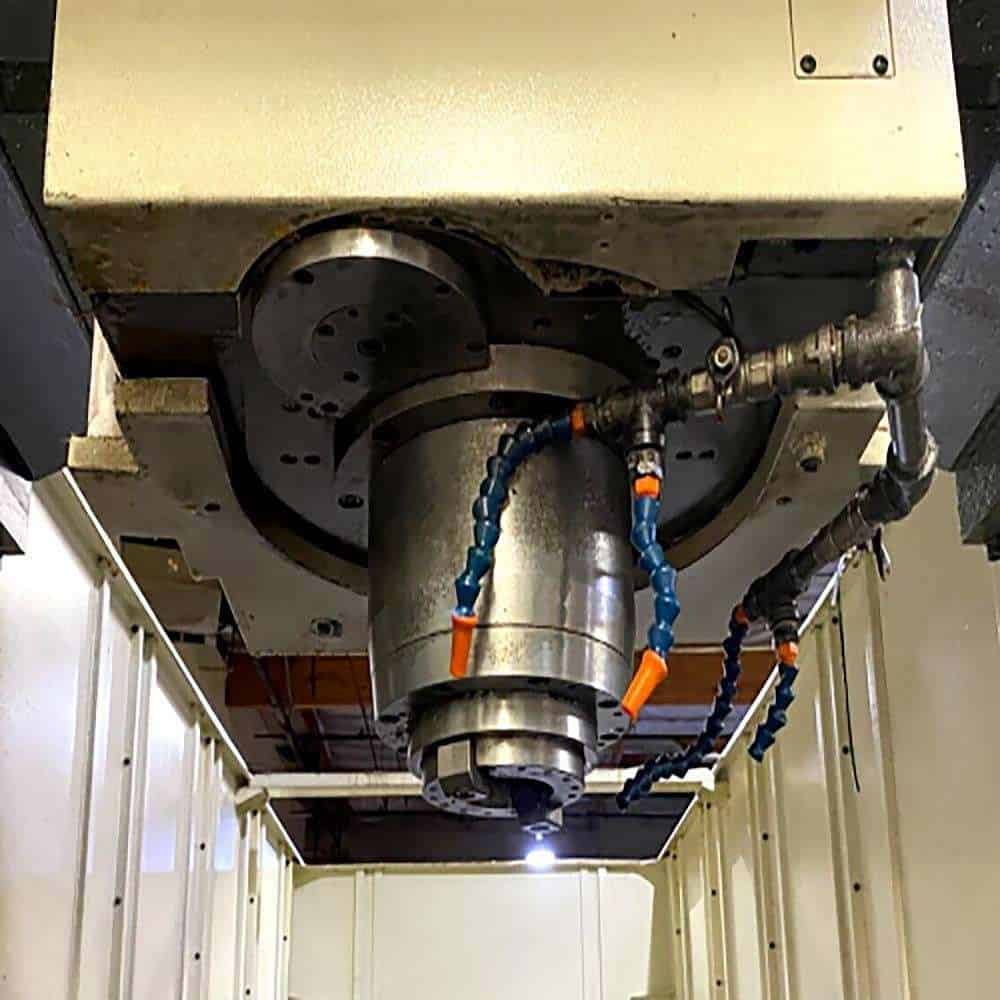

Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP



Automatic Tool Changer:
50 Taper
Capacity: 40
Max Tool Weight: 33 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 5″



General:
Air Required: 100 psi, 4 scfm
Power: 205-235v / 66FLA / 3-Phase, 40 Kva
Overall Shipping Dimensions: ” x ” x ” High ?
Hydraulic Unit, Chip Conveyor, Chiller unit Extra
Weight: lbs.
