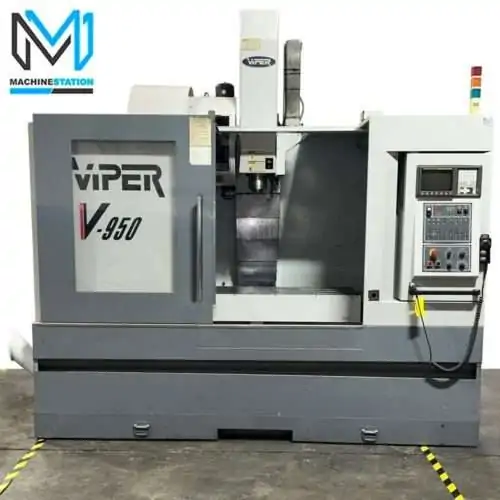

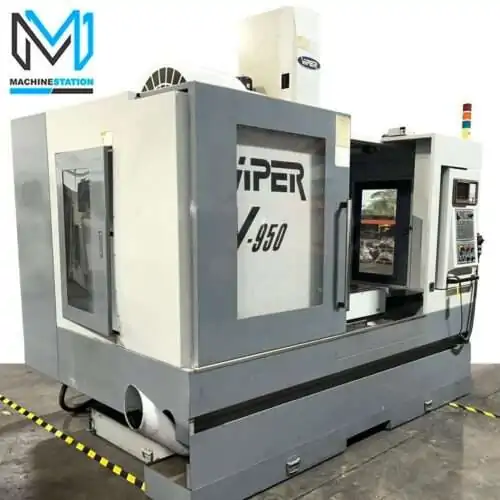

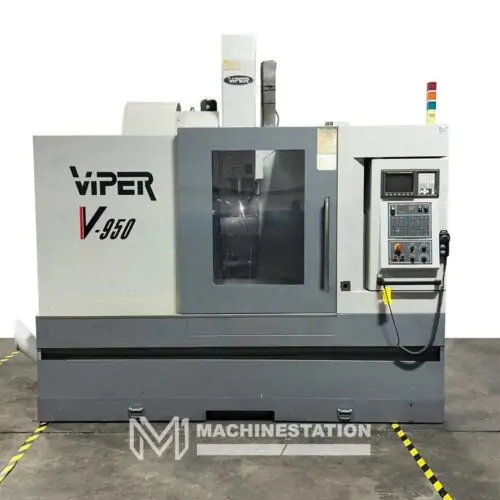

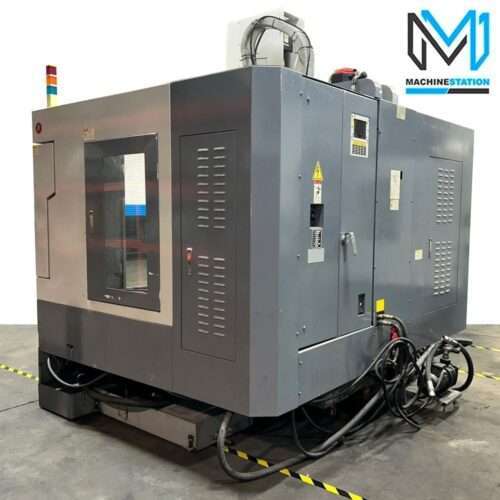

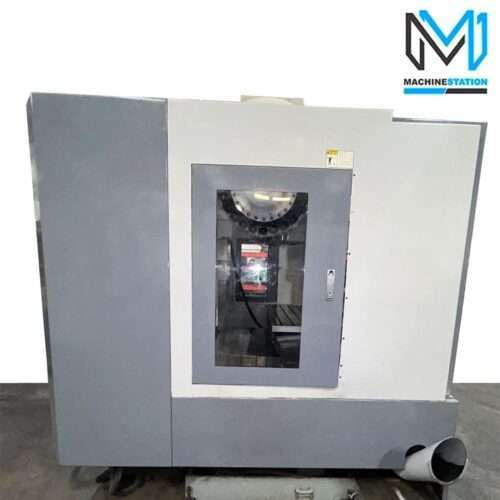

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

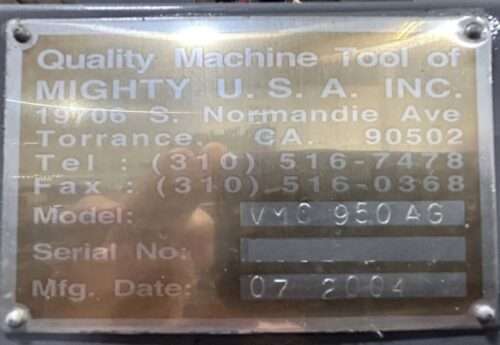

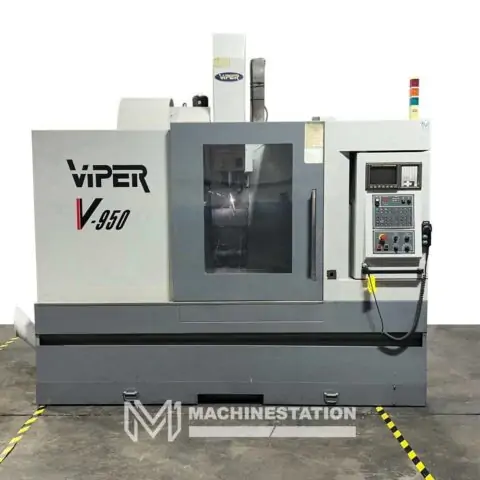

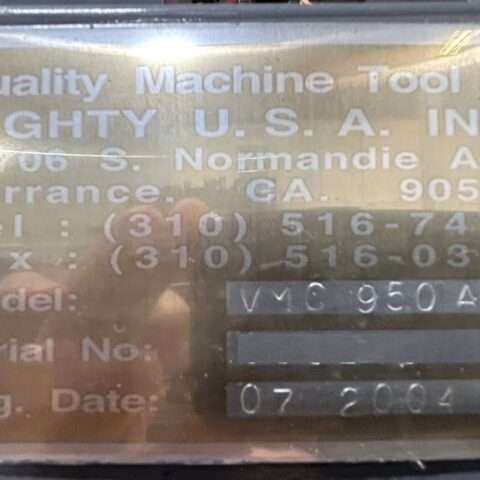

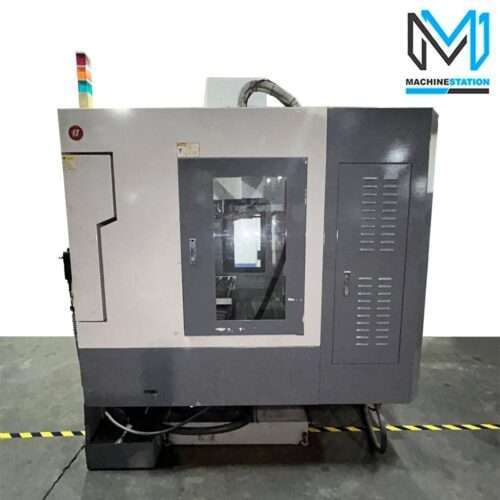

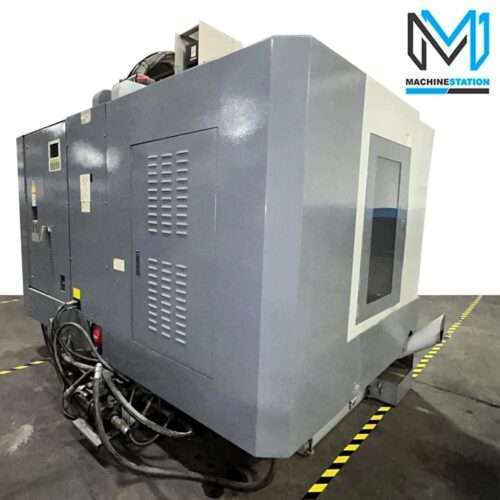

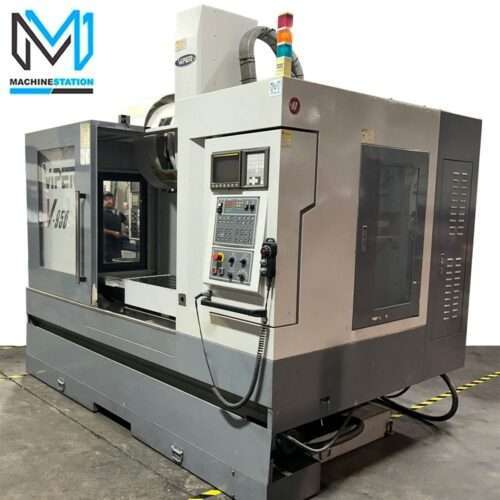

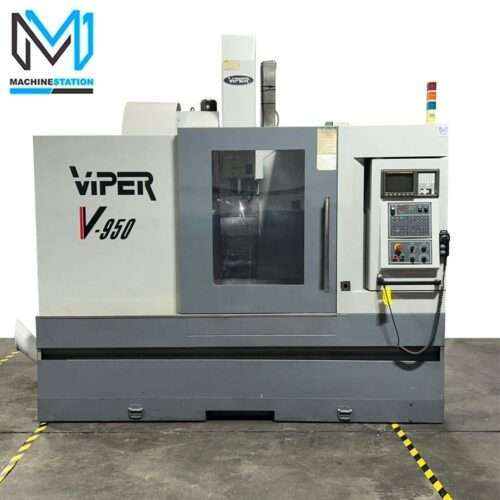

| Make: |
MIGHTY VIPER |
| Model: |
V950 |
| Year: |
2004 |
| Condition: |
Used – Good |
Specifications:
| Features: |
- Box Way construction
- Fanuc Oi-MB series CNC Control
- 24 Station Automatic tool changer
- 8,000 RPM Gear Head Spindle
- PCMCIA Card Slot
- RS-232 Port
- MPG Handwheel Control
- Rigid Tapping
- Telescopic way covers
- Coolant tank
|
| Travels: |
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Spindle Nose to Table (Min.- Max.): 3.94″ – 28.7″
- Rapid Traverse Rates X, Y Axis: 708″ Per Minute
- Rapid Traverse Rates Z Axis: 590″ Per Minute
- Cutting Feed Rates: 400″ Per Minute
|

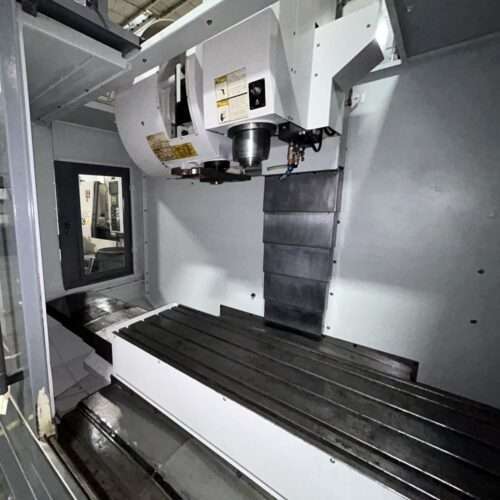

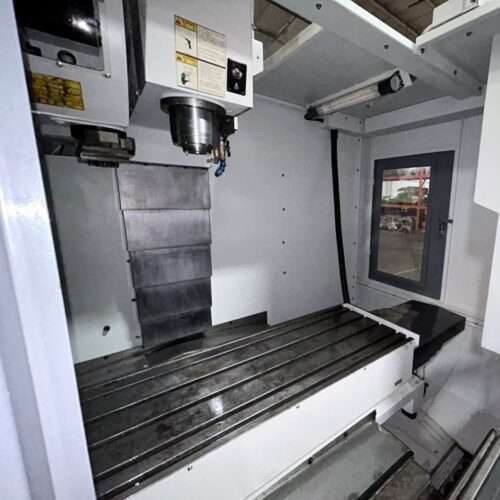

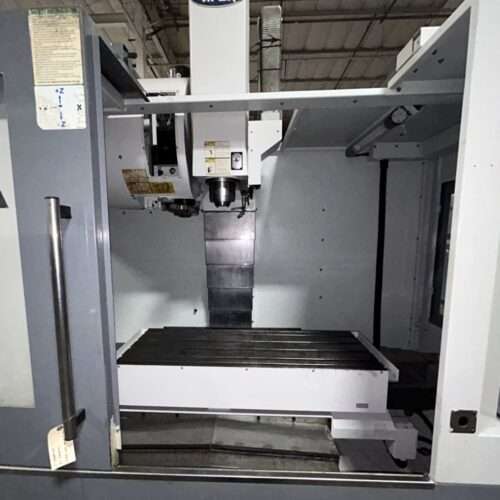

| Table: |
- Length: 50″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1550 lbs
|

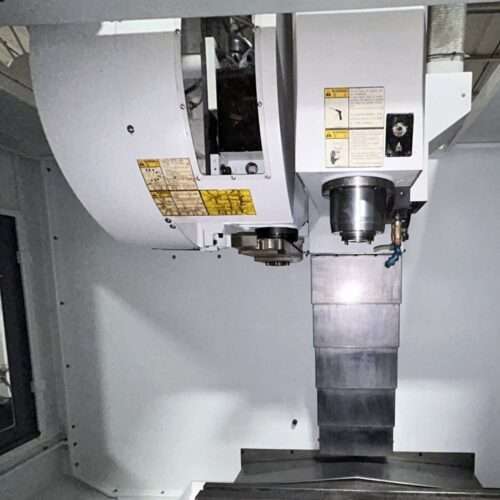

| Spindle: |
- Spindle: Taper Size: 40
- Speed Range: 8,000 RPM
- Spindle Power: 15 HP
|
| Automatic Tool Changer: |
- Capacity: 24 Station
- Tool Weight: 14 lbs
- Max Tool Dia: 3.95″
- Max Tool Length: 9.84″
|
| General: |
- Air Required: 80 psi, 4 scfm
- Power: 220v / 3-Phase / kva
- Overall Dimensions: 152″ x 86″ x 106″ High
- Weight: 15,440 lbs
|
