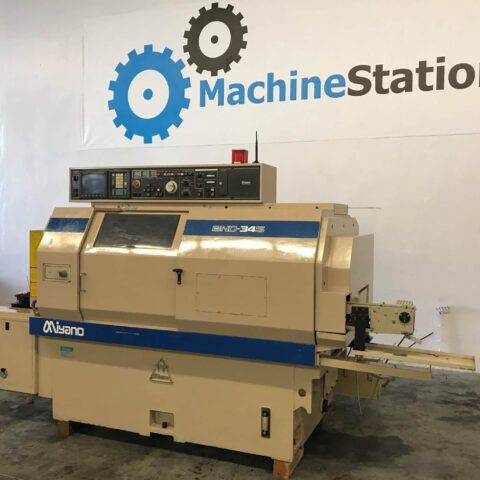

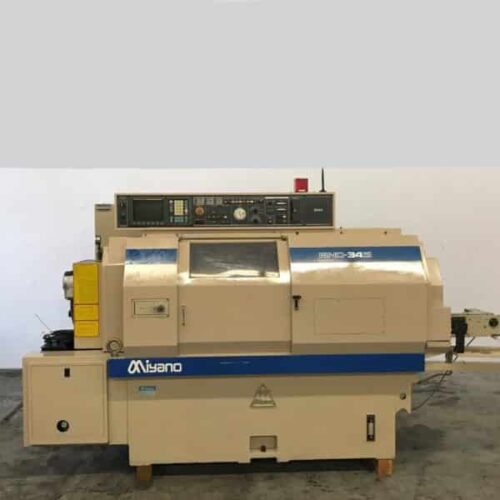

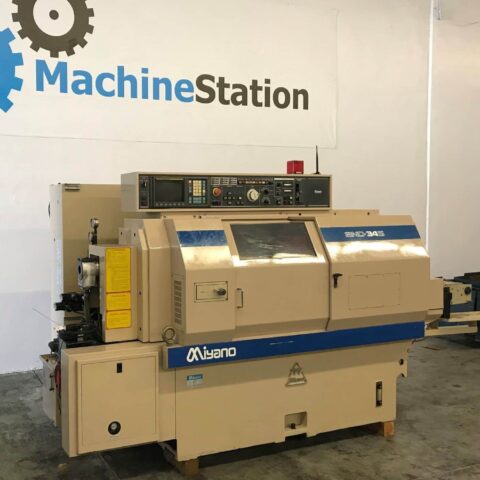

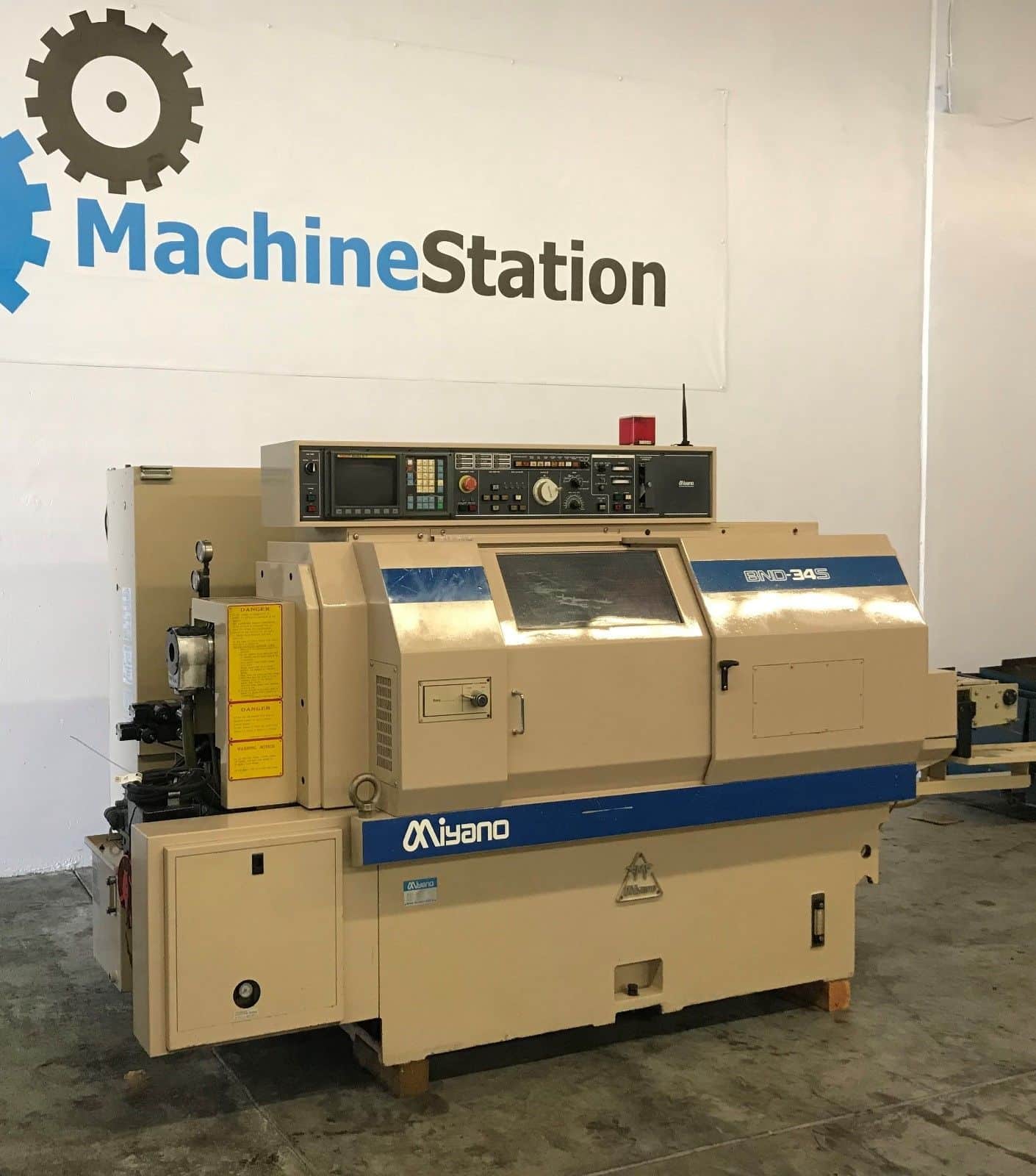

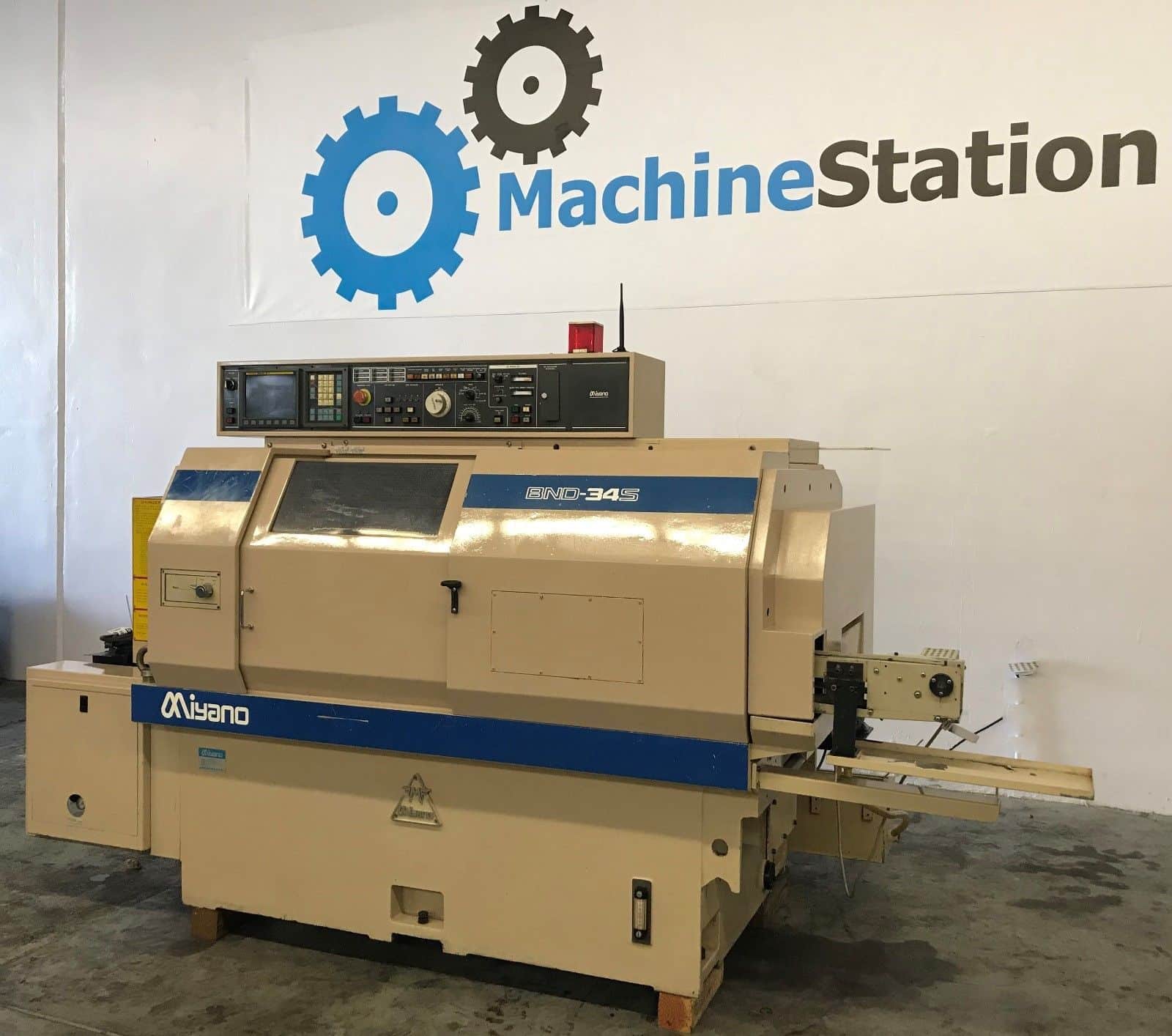

MIYANO BND-34S CNC SUB SPINDLE LIVE TOOL TURNING CENTER LATHE | |
---|---|
Make | Miyano |
Model No. | BND-34S |
Serial # | BD30390S |
Condition | Very Good |
Comes with Collet Chucks, Tool Holders. |
All specifications are approximations and are subject to verification.
“Fully powered / tested & in Good working condition. Equipped with 2 Collet Chucks, Full C Axis, Milling, Sub Spindle. Comes with live tool holders.”

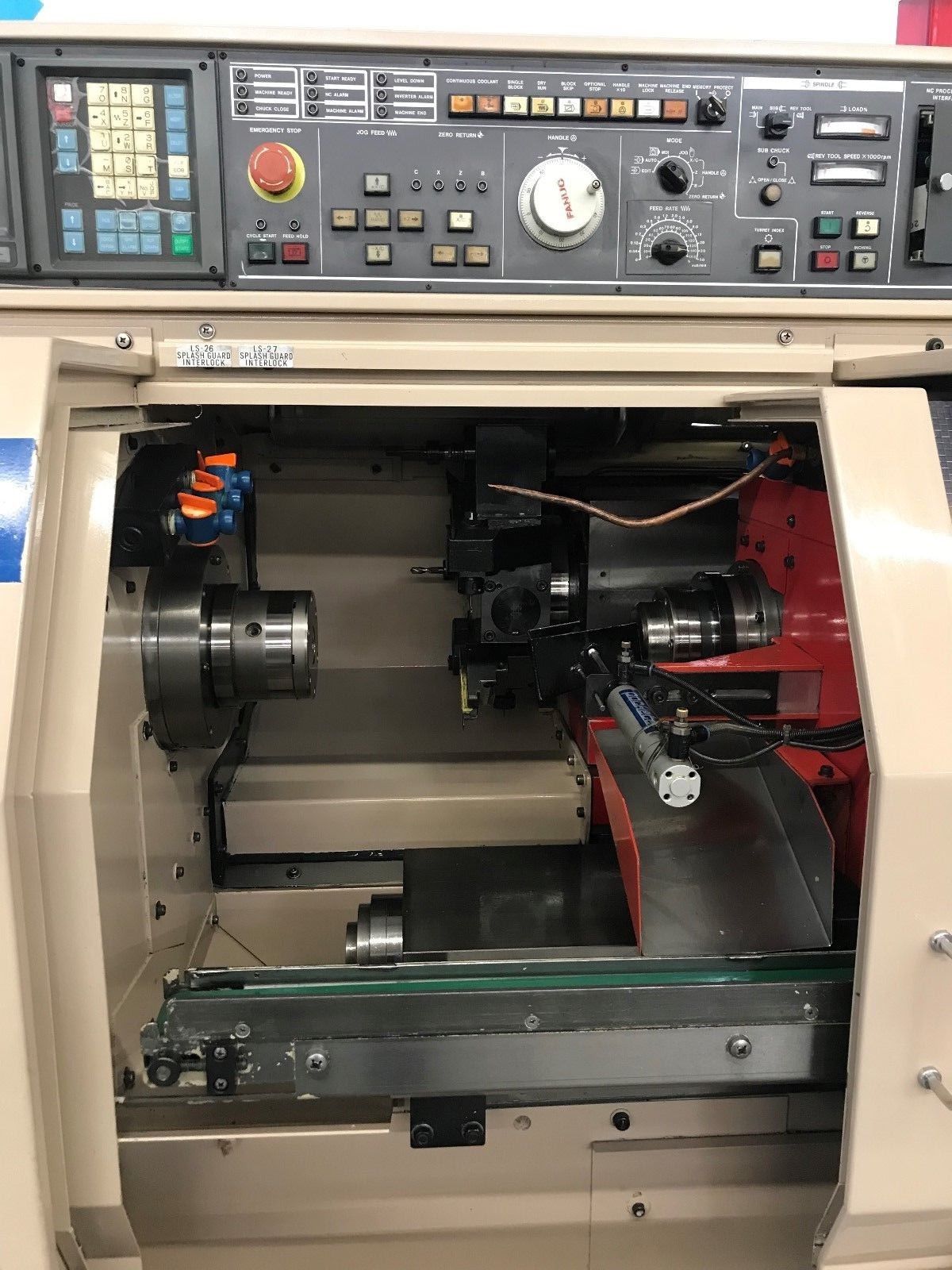

- Miyano BND-34S Equipped With:

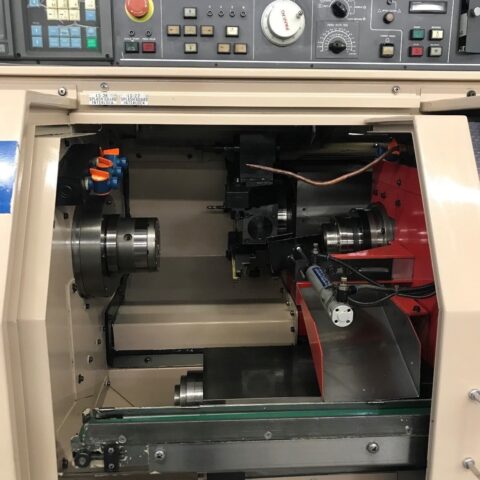

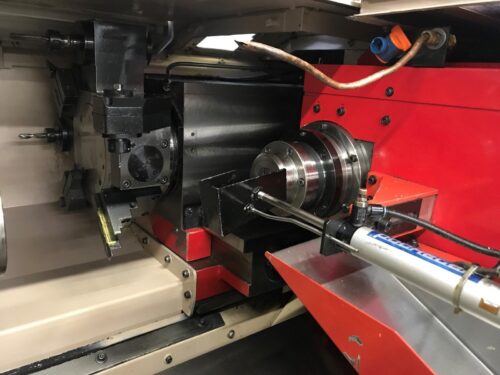

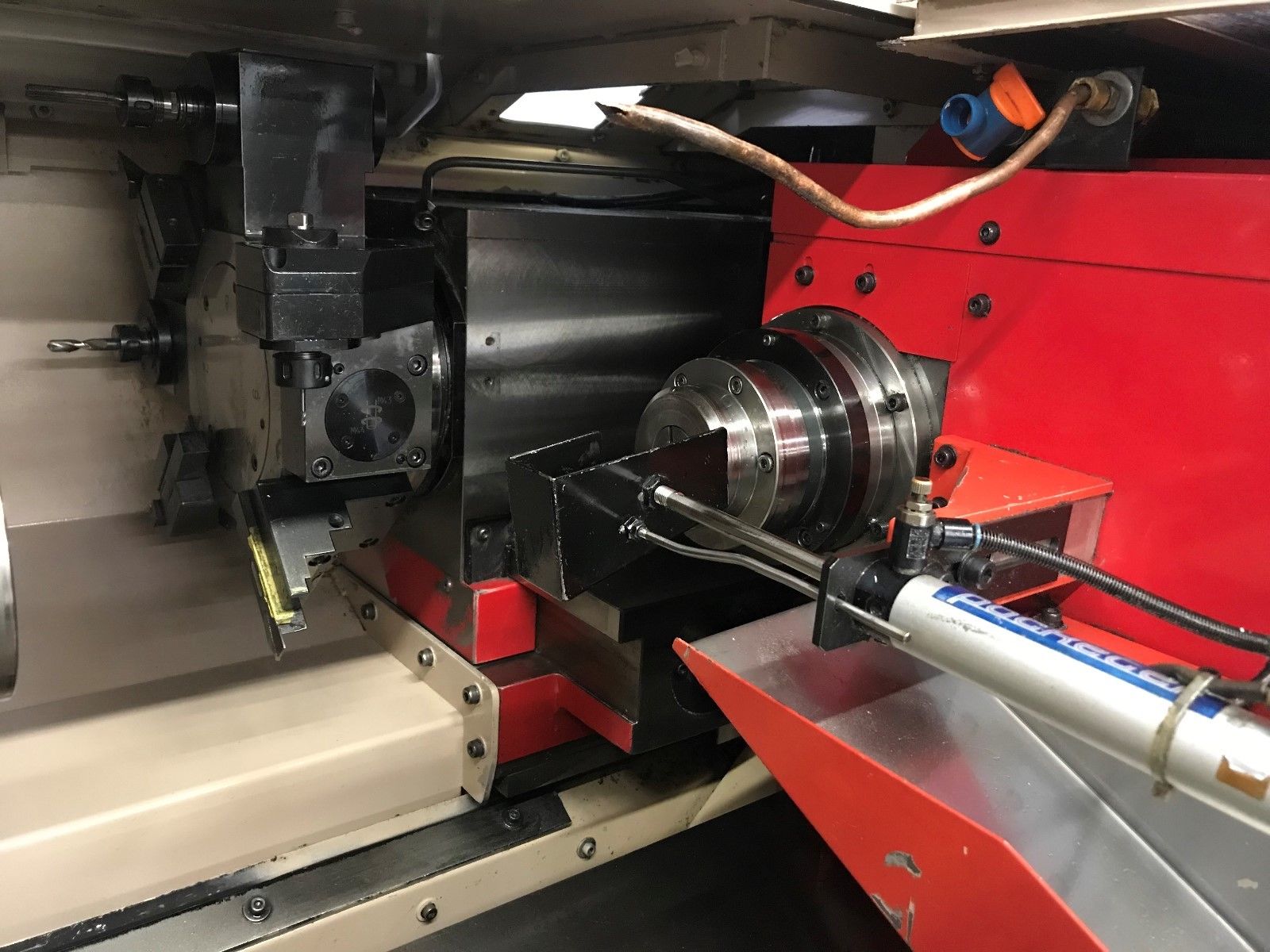

- 8-Station Turret – Live / Rotary Tools
- Servo Controlled Full C-Axis on Both Spindles

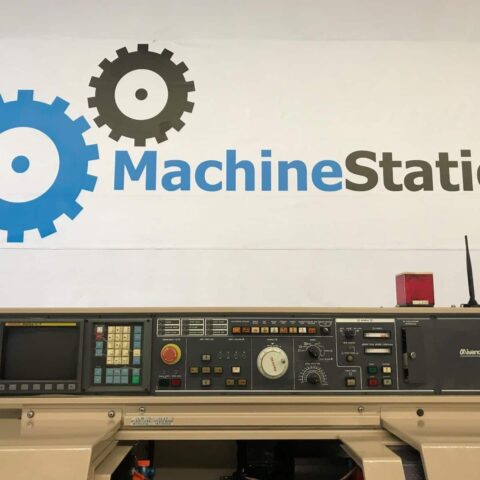

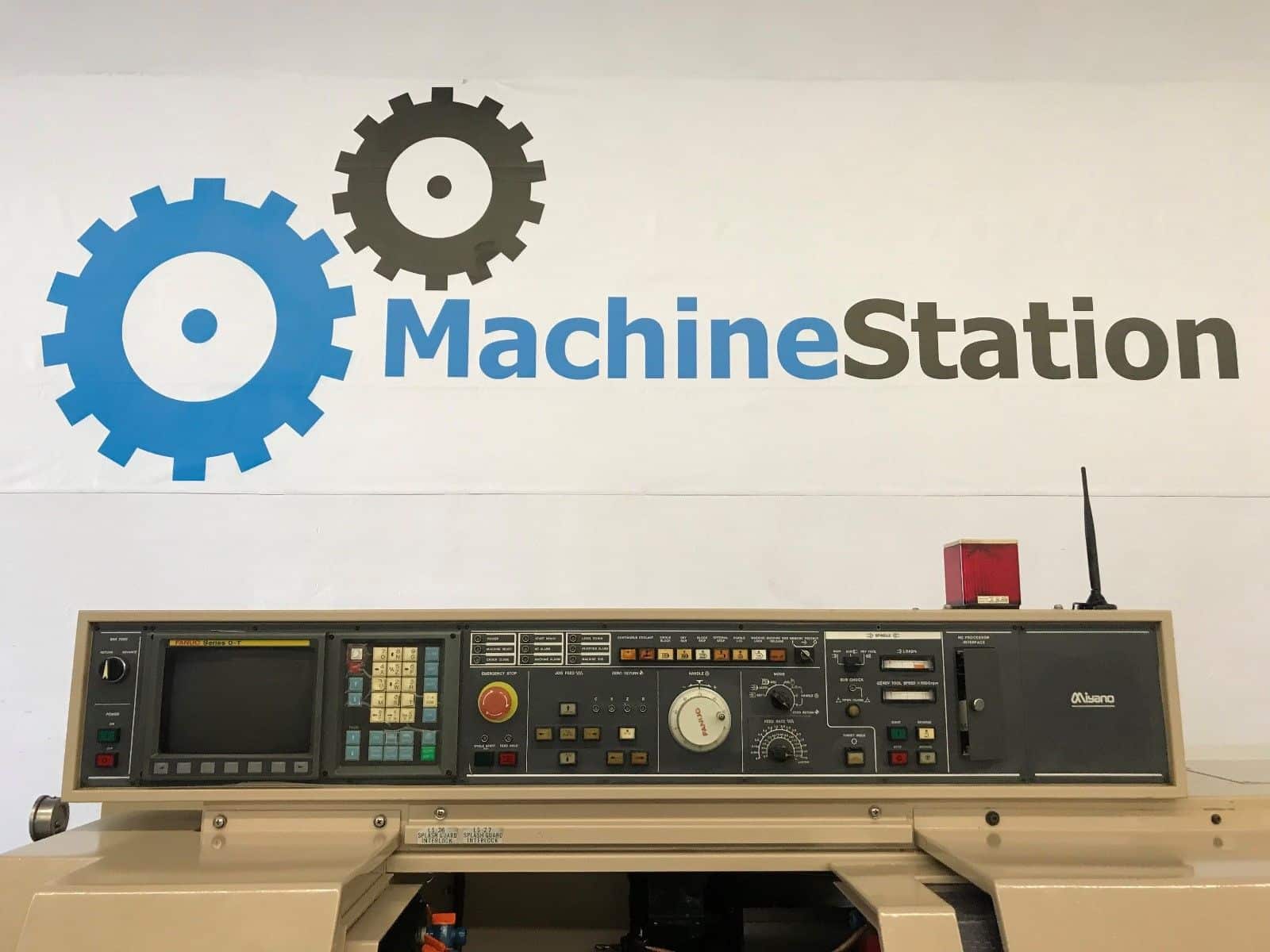

- Fanuc OT-C CNC Control
- Live Tool Holders
- Parts Catcher

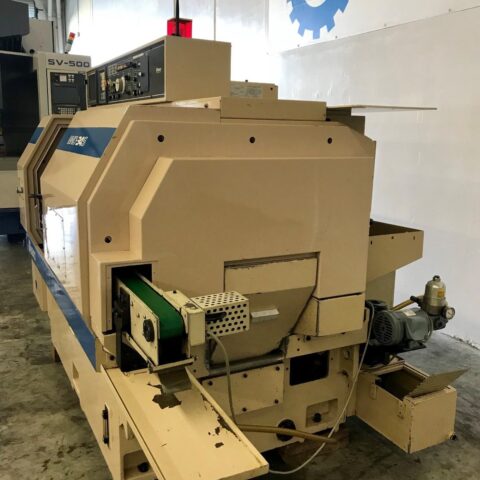

- Parts Conveyor

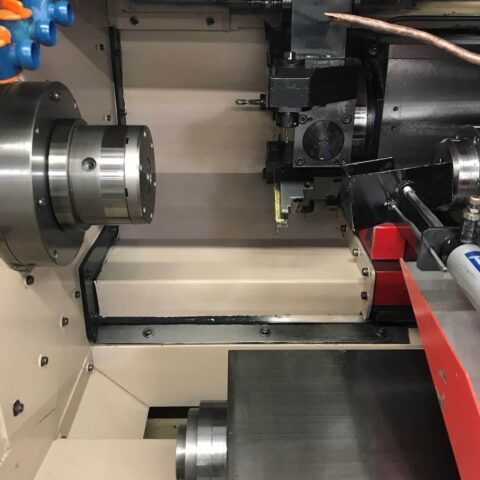

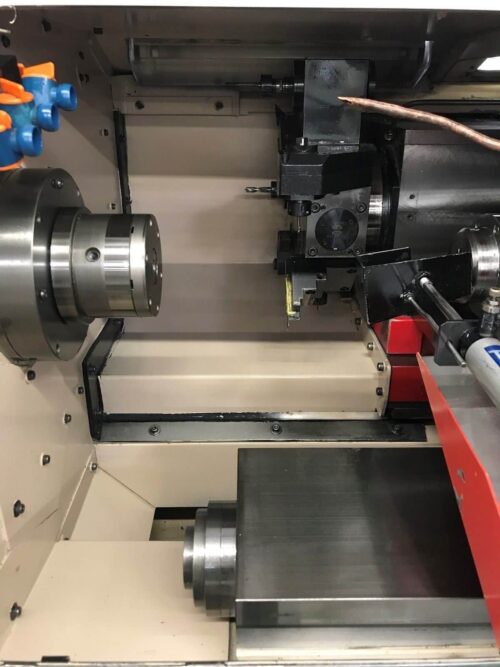

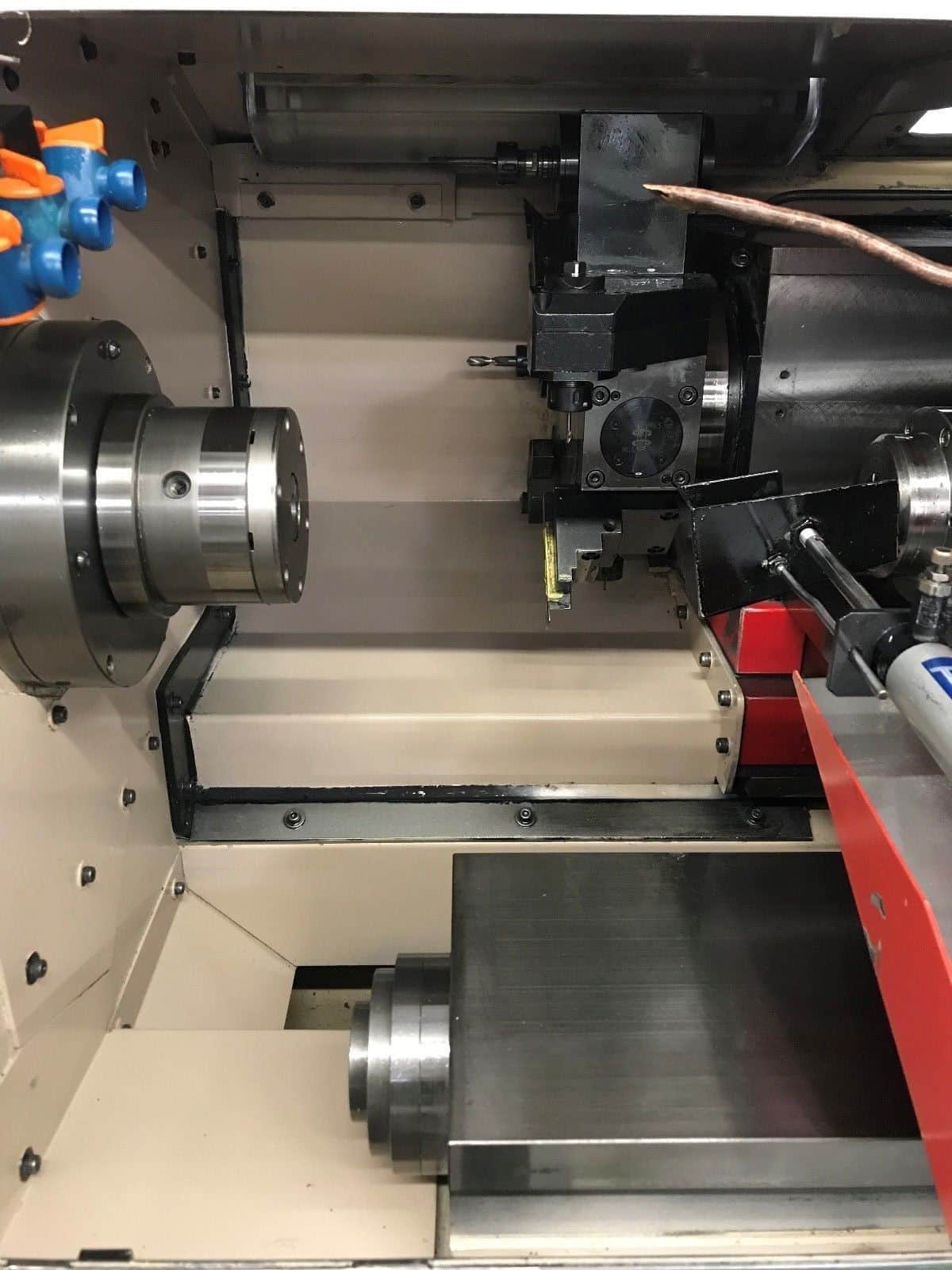

- Collet Chuck on Main Spindle

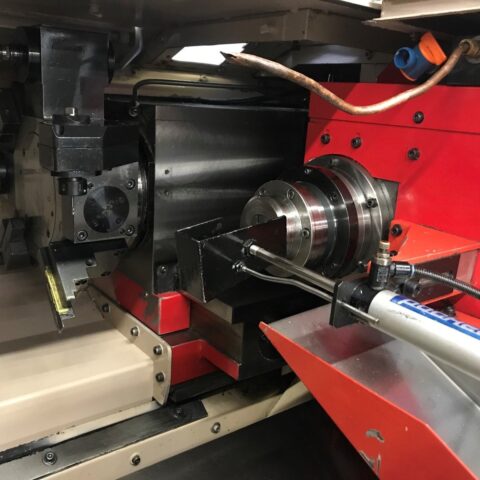

- Collet Chuck on Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck
- RS-232 Port
- General:
- Power: 25 hp, 230v / 3-Phase
- Overall Dimensions: 100″ x 60″ x 70″ High
- Weight: 7500 lbs
- Miyano BND-34S Specifications:
- Capacity:
- Max Turning Diameter: 2.95″
- Max Turning Length: 4.92″
- Main Spindle Max Bar Capacity: 1.34″
- Sub Spindle Max Bar Capacity: 1.34″
- X Axis Travel: 5.5″
- Z Axis Travel: 11.02″
- B Axis Sub Spindle Travel: 12.8″
- C Axis: 360° (0.001°) Both Spindle
- Rapid Traverse X Axis: 472 IPM
- Rapid Traverse Z Axis: 472 IPM
- Main Spindle Speed: 170-5000 RPM
- Sub Spindle Speed: 170-5000 RPM
- Live Tool Speed: 200-4050 RPM
- Main Spindle Power: 10 hp
- Sub Spindle Power: 5 hp
- Turret Capacity: 12 Live Stations
- Turret Index Time: 0.2 Second
Miyano BND-34S Comes as shown in pictures..
