Miyano BND-34S3L CNC C Axis Turning

One Our Floor, Fully powered / tested & in Good working condition. Equipped with 2 Chucks, Full C Axis, Milling, Sub Spindle and SMW Barfeeder. Comes with Parts & chip conveyor.”

Share

Description

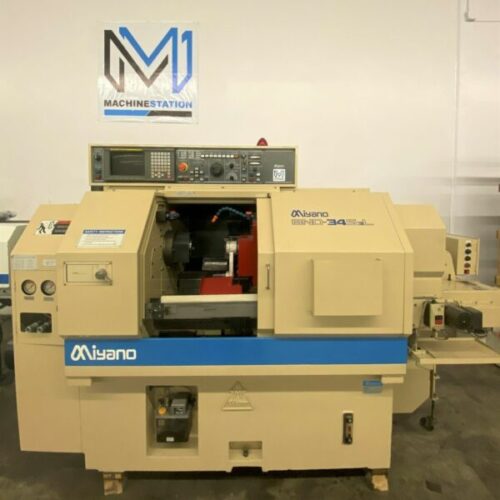

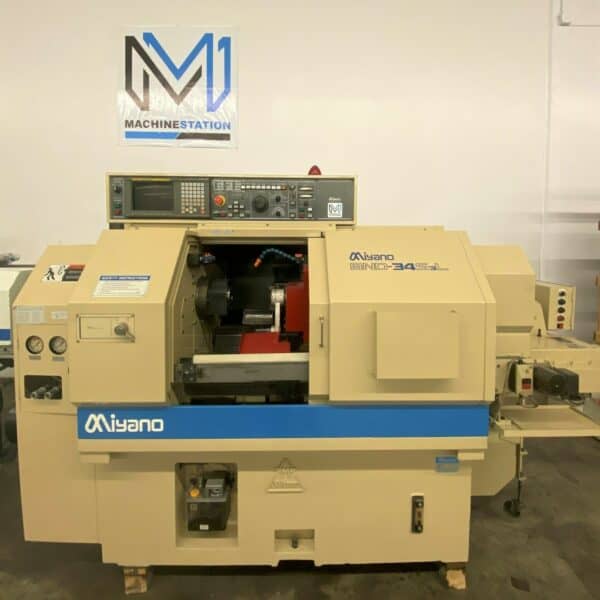

MIYANO BND-34S3L CNC SUB SPINDLE LIVE TOOL C AXIS TURNING LATHE
Make Miyano
Model No. BND-34S3L

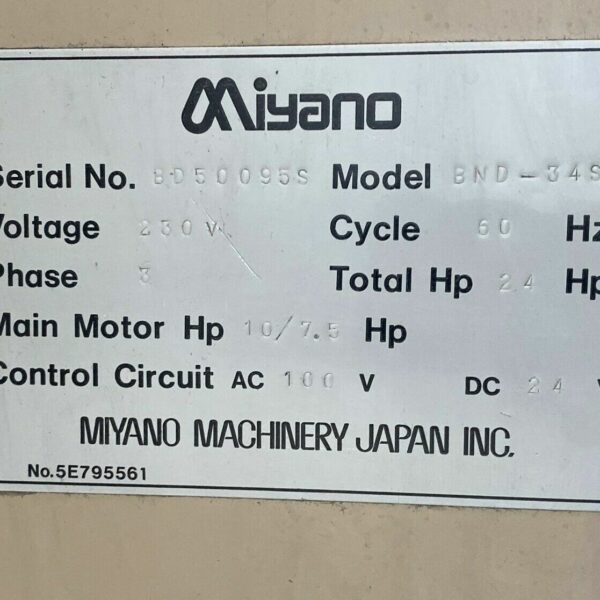

Serial # BD50095S
Condition Very Good

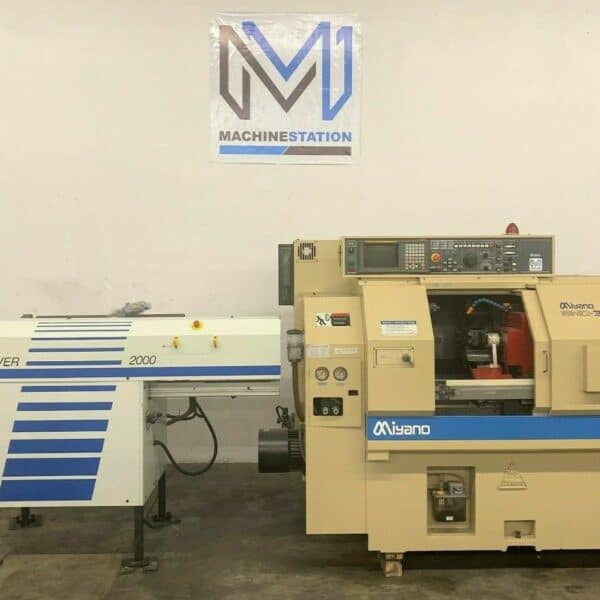

Comes with SMW bar feeder, 2 collet Chucks, Tool Holders, parts & Chip Conveyor

“One Our Floor, Fully powered / tested & in Good working condition. Equipped with 2 Chucks, Full C Axis, Milling, Sub Spindle and SMW Barfeeder. Comes with Parts & chip conveyor.”

  • Miyano BND-34S3L Equipped With:

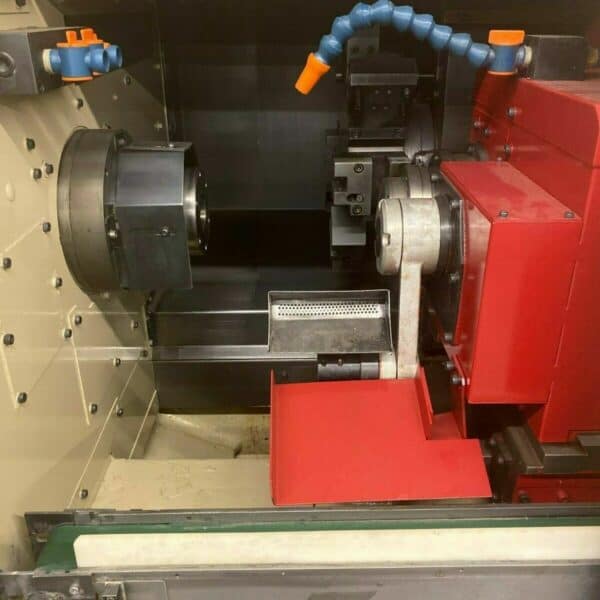

  • 8-Station Turret –  Live / Rotary Tools
  • Servo Controlled Full C-Axis on Both Spindles

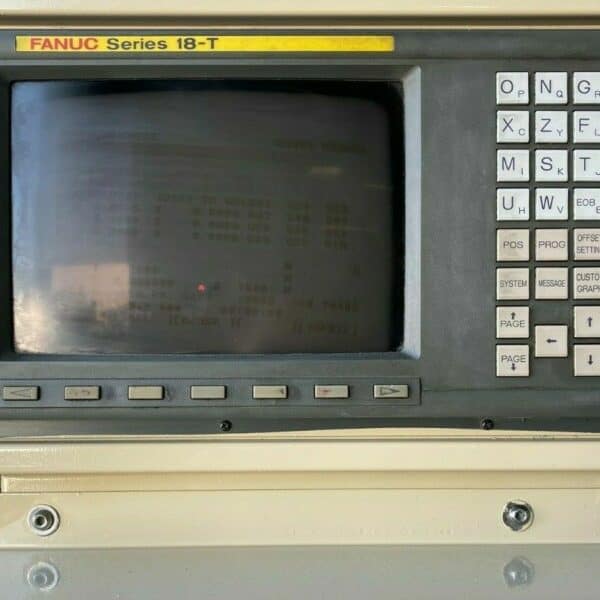

  • Fanuc 18T CNC Control

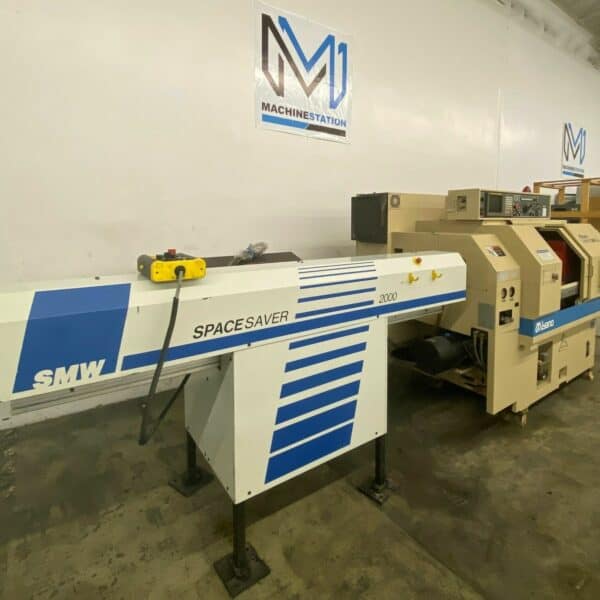

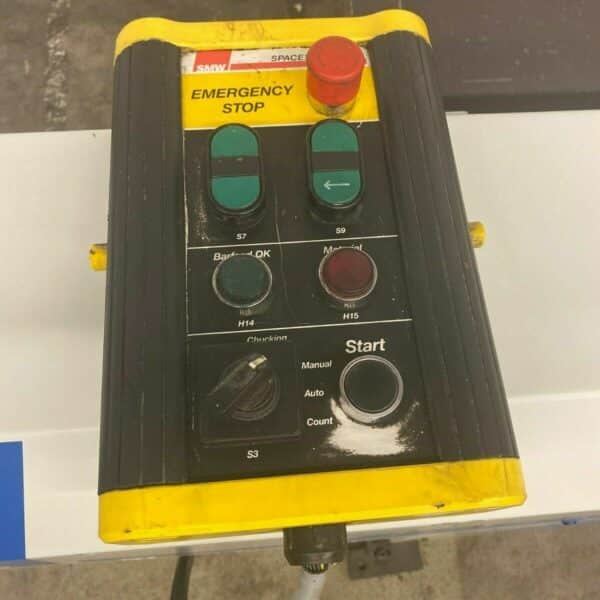

  • SMW servo bar feeder
  • Parts Catcher
  • Parts Conveyor
  • Collet Chuck on Main Spindle
  • Collet Chuck on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck
  • RS-232 Port
  • Miyano BND-34S3L Specifications:
  • Capacity:
  • Max Turning Diameter: 3″
  • Max Turning Length: 5.0″
  • Main Spindle Max Bar Capacity: 1.34″ (34mm)
  • Sub Spindle Max Bar Capacity: 1.04″
  • Travels:
  • X Axis Travel: 5.5″
  • Z Axis Travel: 8.3″
  • B Axis Travel: 12.8″ ( Sub Spindle )
  • C Axis: 360° (0.001°) Both Spindle
  • Feedrate:
  • Rapid Traverse X Axis: 472 IPM
  • Rapid Traverse Z Axis: 472 IPM
  • Spindle:
  • Main Spindle Speed: 170-5000 RPM
  • Main Spindle Bore: 1.41″
  • Main Spindle Power: 7.5 hp
  • Sub Spindle Speed: 170-5000 RPM
  • Sub Spindle Bore: 1.02″
  • Sub Spindle Power: 5 hp
  • Turret:
  • Capacity: 8 Stations
  • Turret Index Time: 0.5 Second
  • Live Tool Speed: 133-4000 RPM
  • General:
  • Power: 26 kva, 220v / 3-Phase Overall
  • Dimensions: 100″ x 63″ x 72″ High
  • Overall Dimensions: 176″ x 67″ x 72″ High with Barfeeder
  • Weight: 7500 lbs

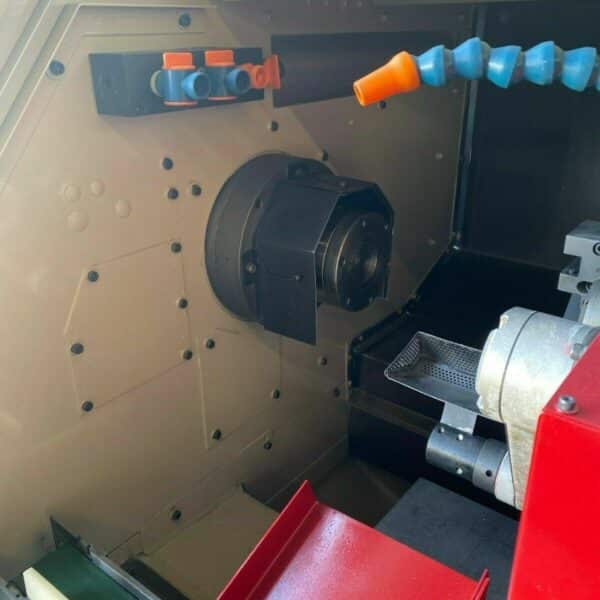

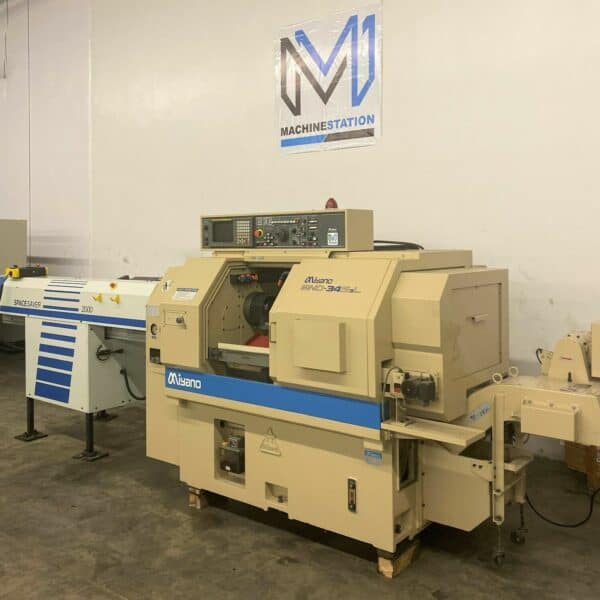

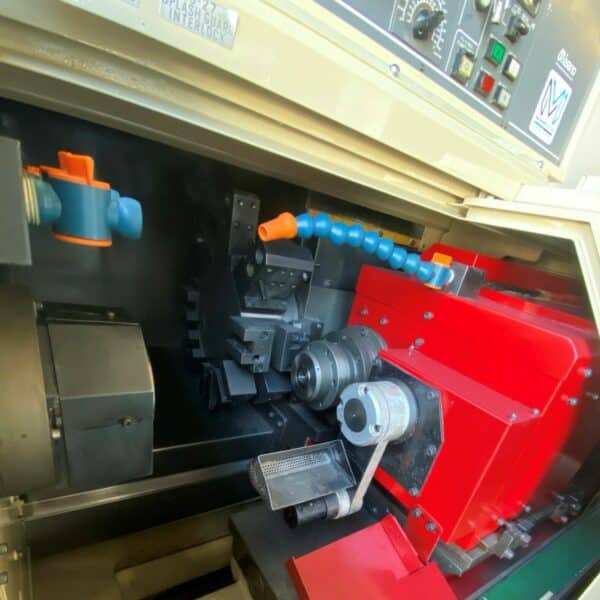

Comes as shown in pictures….
