MIYANO LX 01 CNC HORIZONTAL TURNING CENTER

Out of stock
SKU: 1192
Make/Model: Miyano LX-01
Video: [fusion_button link=”https://www.youtube.com/watch?v=EPmmwwArZy4″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1192

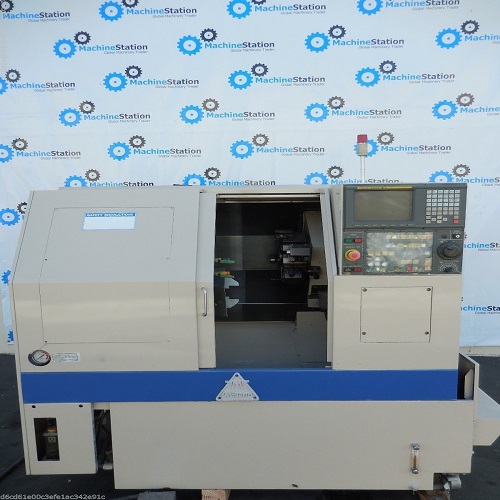

MIYANO LX 01 CNC HORIZONTAL TURNING CENTER

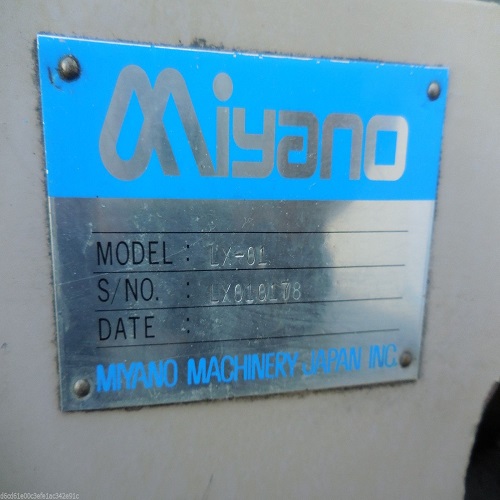

Make Miyano
Model No. LX-01
Serial # LX010178
Condition Very Good
  • MIYANO LX 01 Features:

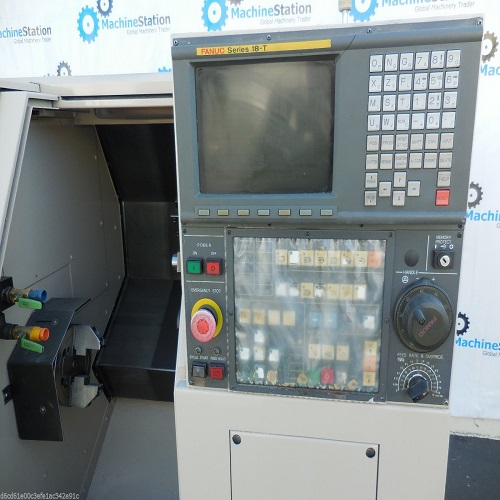

  • Fanuc 18-T Control

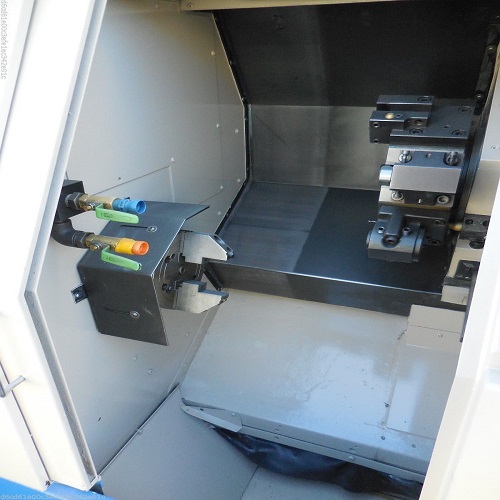

  • 8 Station Turret
  • 6″ Power Chuck
  • Coolant System
  • MIYANO LX 01 Specifications:
  • Work Station:
  • No. of Headstocks: 1
  • Spindle Direction: Horizontal
  • Spindle Power: 7.5 kW
  • Spindle Bore: 1.5″
  • Spindle Speed: 60 – 6000 RPM
  • Chuck Size: 6″
  • Tool Changer:
  • Type: Drum Turret
  • Tool Stations: 8
  • Axis: X (Standard)
  • X Travel: 5.9″
  • Axis: Z (Standard)
  • Z Travel: 10.63″
  •  General:
  • Type: Horizontal
  • CNC Control: Fanuc
  • Number of Axes: 2
  • Swing: 11.00″
  • Turning Length: 9.8″
  • Net Weight: 6200 lbs
  • Overall Dimensions: 60″ x 58″ x 57″ H
