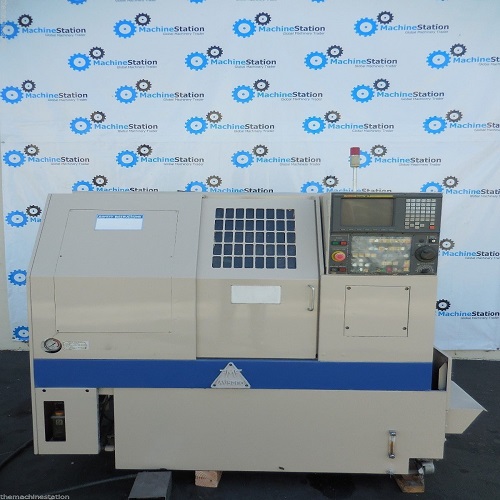

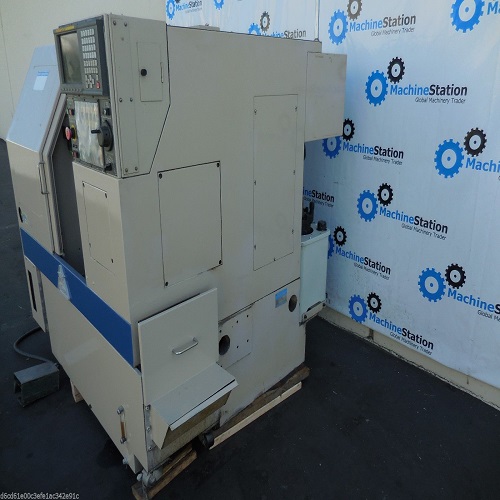

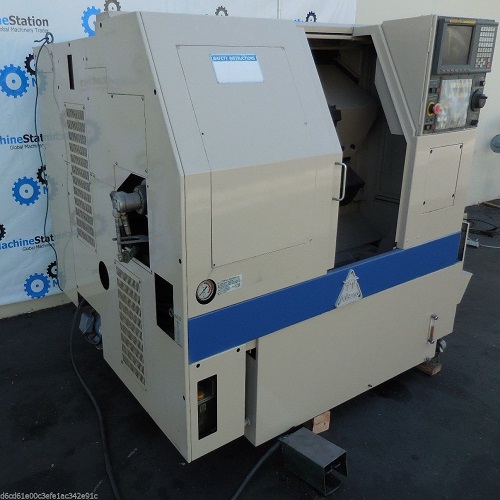

MIYANO LX 01 HORIZONTAL LATHE
Out of stock
| MIYANO LX 01 HORIZONTAL LATHE |
| Make |
Miyano |
| Model No. |
LX-01 |
| Serial # |
LX010123 |
| Condition |
Very Good |
- MIYANO LX 01 HORIZONTAL LATHE Features:

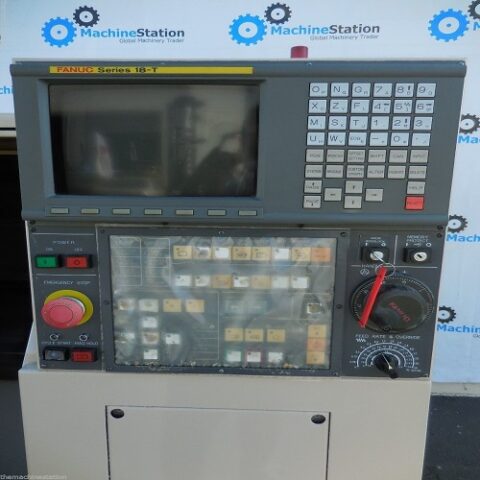

- Fanuc 18-T Control

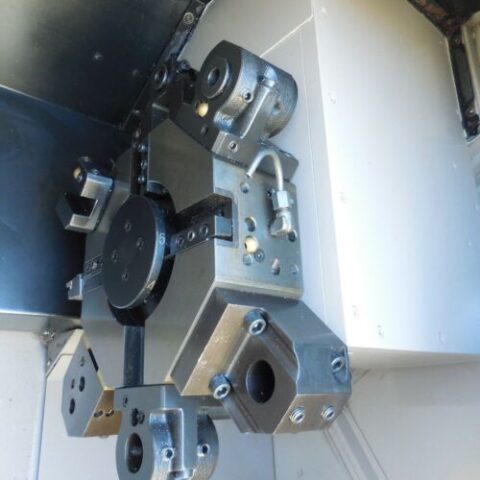

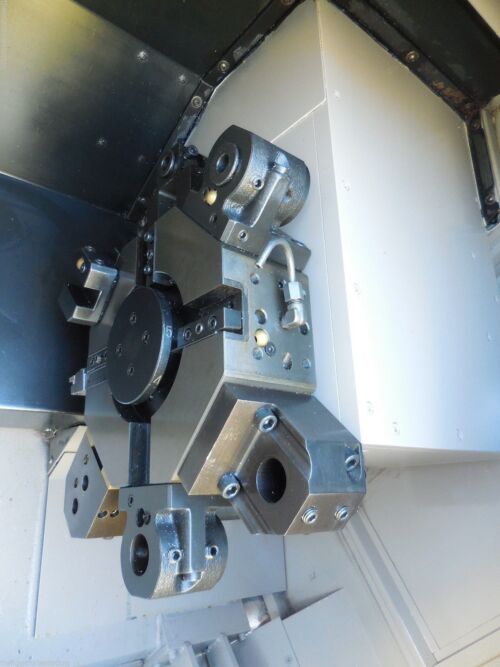

- 8 Station Turret
- 6″ Power Chuck
- Coolant System
- MIYANO LX 01 HORIZONTAL LATHE Specifications:
- Work Station:
- No. of Headstocks: 1
- Spindle Direction: Horizontal
- Spindle Power: 7.5 kW
- Spindle Bore: 1.5″
- Spindle Speed: 60 – 6000 RPM
- Chuck Size: 6″
- Tool Changer:
- Type: Drum Turret
- Tool Stations: 8
- Axis: X (Standard)
- X Travel: 5.9″
- Axis: Z (Standard)
- Z Travel: 10.63″
- General:
- Type: Horizontal
- CNC Control: Fanuc
- Number of Axes: 2
- Swing: 11.00″
- Turning Length: 9.8″
- Net Weight: 6200 lbs
- Overall Dimensions: 60″ x 58″ x 57″ H
