| Mori Seiki CL 15 CNC Turning Center | |
|---|---|
| Make | Mori Seiki |
| Model No. | CL-15 |
| Country of Origin: | Japan |
| Serial # | 189 |
| Condition | Very Good |
- Mori Seiki CL 15 CNC Turning Center Features:
- Fanuc MF-T8 Control.
- Hardinge 5DS Collet Nose Piece.
- 12 Station Turret.
- Coolant System.
- Mori Seiki CL 15 CNC Turning Center Specifications:
- Capacities:
- Swing Over Bed: 18.5″
- Swing Over Cross Slide: 14.9″
- Maximum Turning Diameter: 9.8″
- Maximum Turning Length: 13″
- Bar Work Capacity: 1.3″
- Travels:
- X-Axis: 7.5″
- Z-Axis: 14.6″
- Spindle:
- Spindle Speeds: 45 to 4,500 RPM
- Spindle Nose Mount: A2-5
- Through Spindle Hole Diameter: 1.7″
- Spindle Bearing Inne Diameter: 3.1″
- Motor (continuous / 30 min.): 6 Horsepower / 10 Horsepower (subject to verification)
- Turret:
- Number of Tool Stations: 12
- Shank Capacity for Square Tools: 3/4″
- Shank Capacity for Round Tools: 1.25″ diameter
- Feedrates:
- X-Axis Rapid Traverse: 590.6 IPM
- Z-Axis Rapid Traverse: 787.4 IPM
- Jog Feedrate: o to 50 IPM
- General:
- Coolant Tank: 31.7 gallons
- Lubrication Tank: 4.2 gallons
- Electrical: 220 Volt, Three Phase, 60 Hz
- Overall Dimensions: 72″ x 60″ x 69″ tall

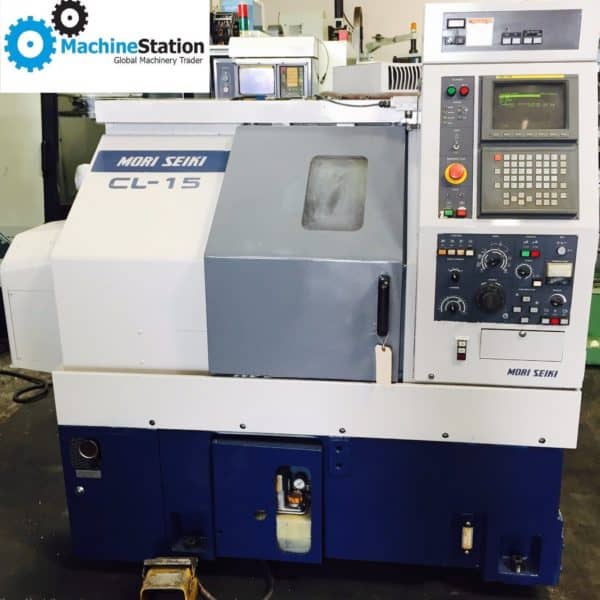

Mori Seiki CL 15 CNC Turning Center Comes as shown in pictures.
