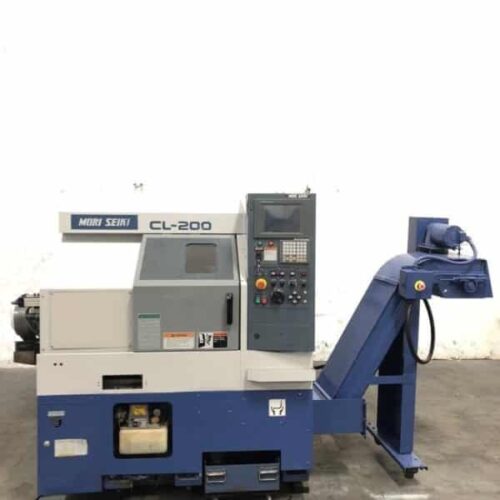

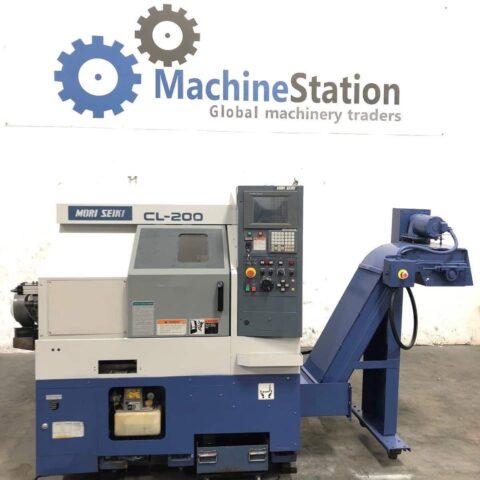

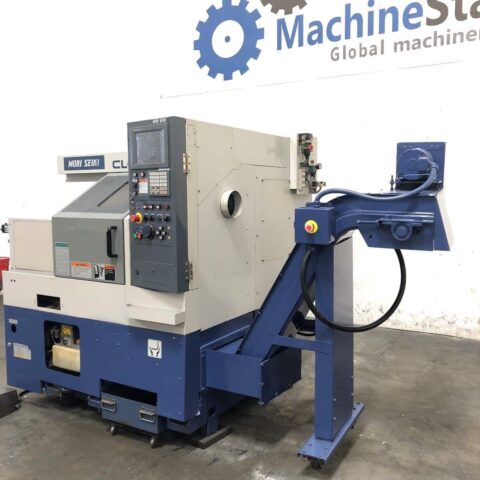

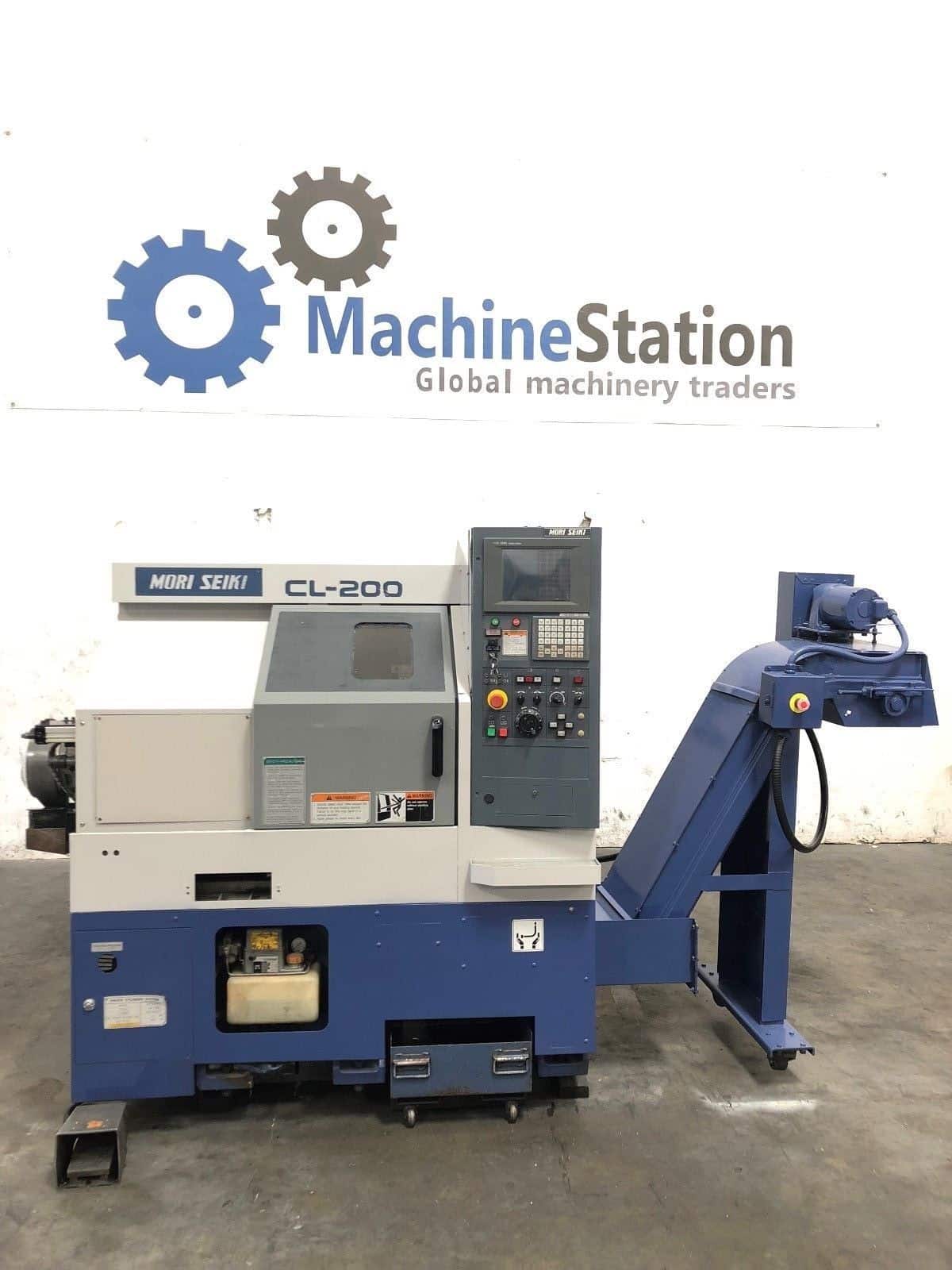

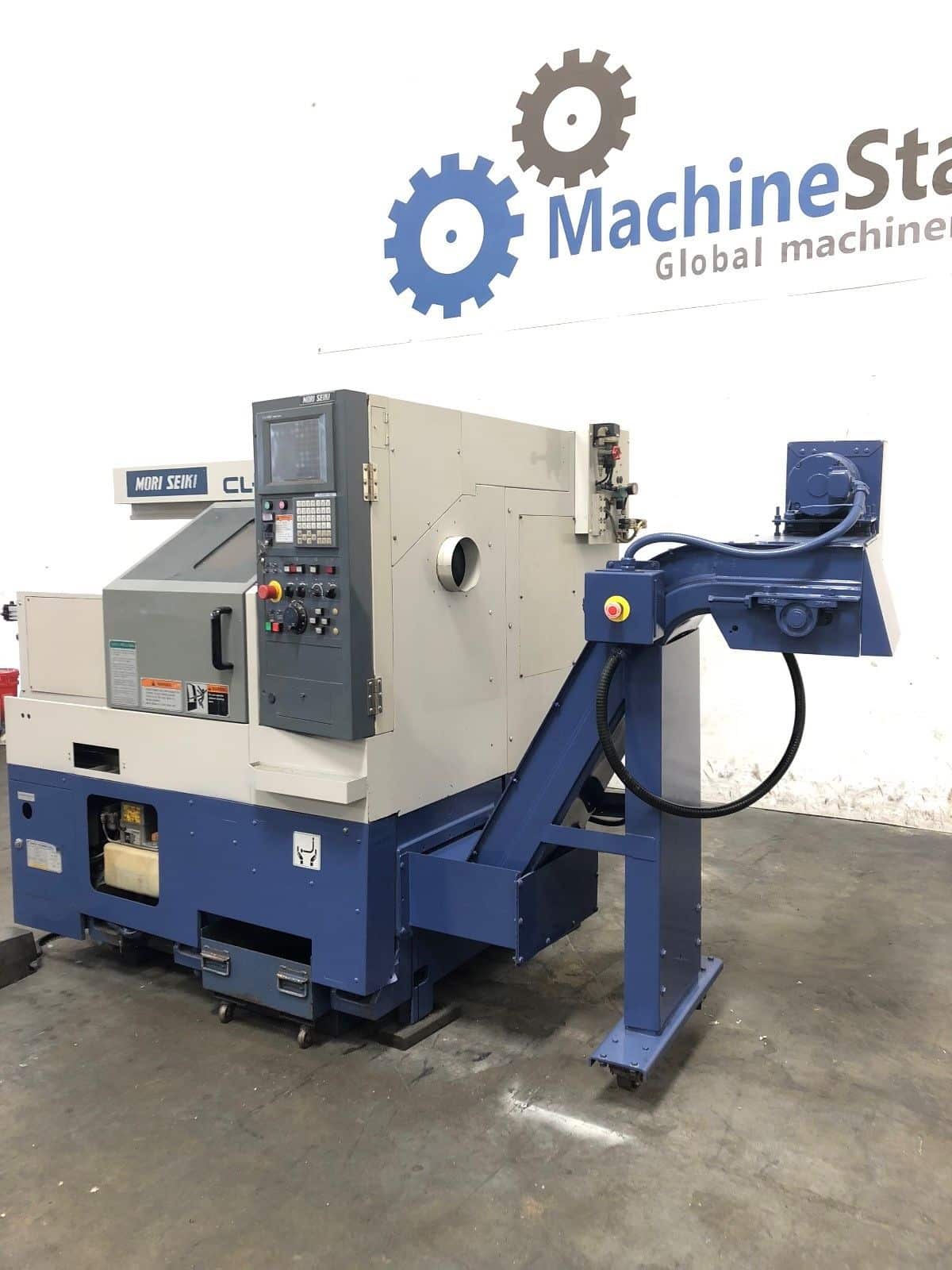

| MORI SEIKI CL-200 CNC TURNING CENTER | |
|---|---|
| Make | Mori Seiki |
| Model No. | CL-200 |
| Serial # | 122 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This machine is in very Good running condition. It is equipped with 8″ Chuck, Touch Screen Control & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”
- MORI SEIKI CL-200 Equipped With:
- 10-Station Turret with Tool Holders
- MSC-803 CNC Touch Screen Control
- 8″ 3 Jaw Hydraulic Chuck
- 2 Step gear spindle for powerful torque
- Chip Pan and Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Work Light
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 82″ x 70″ x 80″ High
- Weight : 7000 lbs Approx.
- MORI SEIKI CL-200 Specifications:
- Capacity:
- Max Turning Diameter: 16.14″
- Max Turning Length: 13.13″
- Max Bar Capacity: 2.2″
- Swing Over Slide: 17.9″
- Swing Over Bed: 20.28″
- X Axis Travel: 9.25″
- Z Axis Travel: 14.60″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.56″
- Spindle Speed: 35-3500 RPM
- Spindle Motor: 15 HP
- Turret Capacity: 10 Stations
- Turret Index Time: 0.5 Second
MORI SEIKI CL-200 Comes as shown in pictures..
