*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2132 |

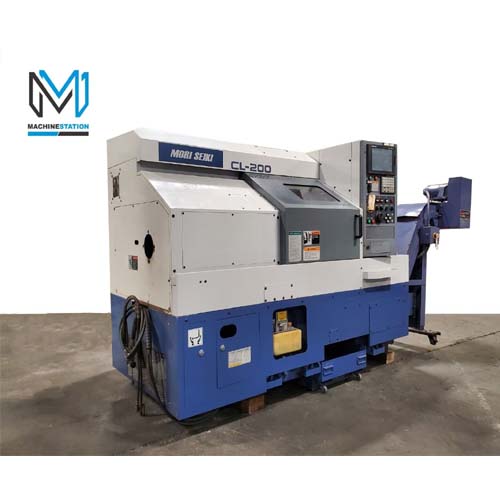

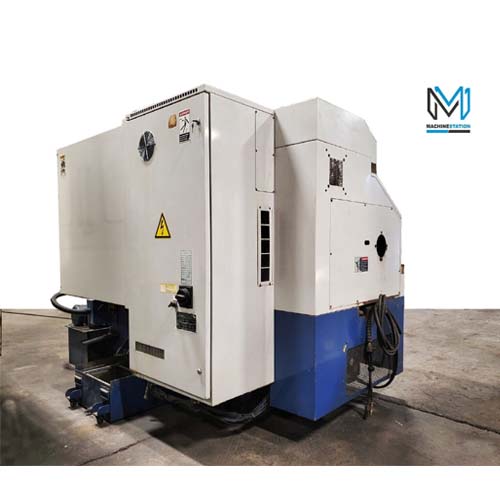

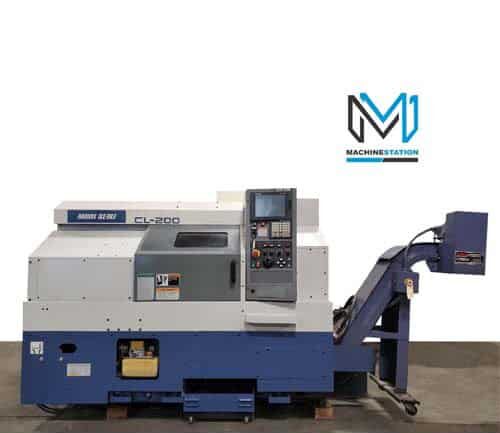

| Make: | Mori Seiki |
| Model: | CL-200B/500 |
| Condition: | Very Good |
| Equipped With: |
|---|

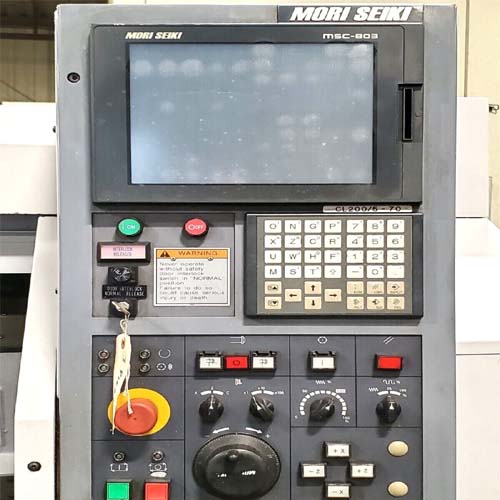

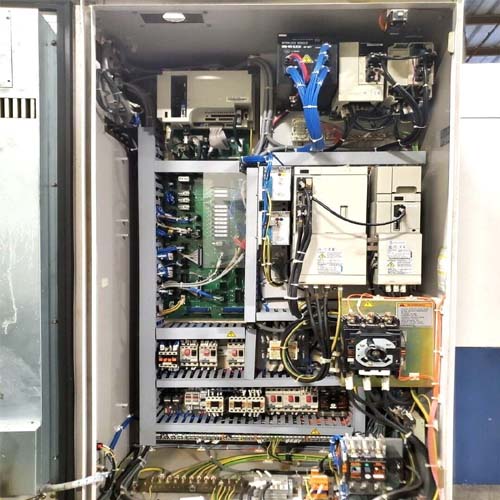

| MSC-803 CNC Control |

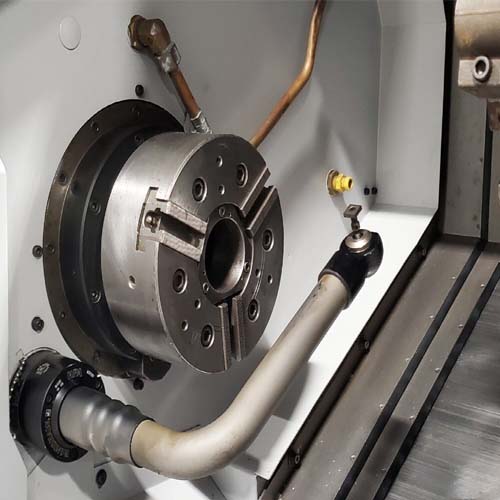

| 8″ Hydraulic chuck (10″ Capable) |

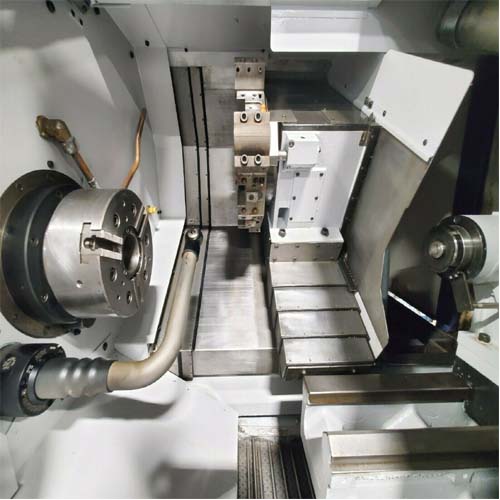

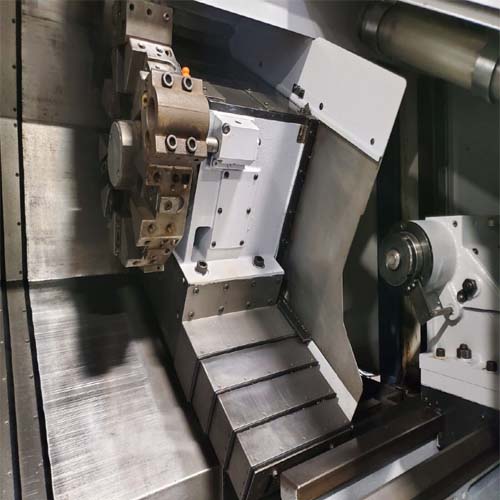

| 10-Station Turret |
| Tool Presetter |
| Slant Bed Construction |
| PCMCIA Card |
| 3500 RPM Spindle |
| Hydraulic Tailstock |

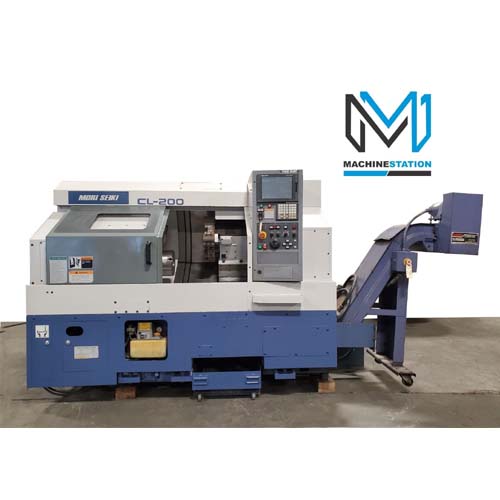

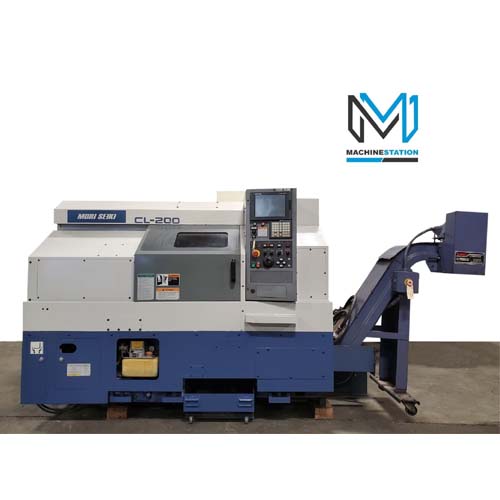

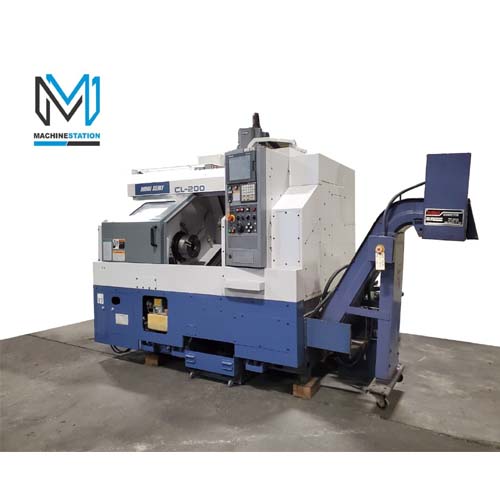

| Chip Pan and Chip Conveyor |
| Coolant System |
| Foot Switch |
| Specifications: |
|---|
| Max Turning Diameter: 16.9″ |
| Max Turning Length: 19.68″ |
| Max Bar Capacity: 2.2″ |
| Swing Over Bed: 20.6″ |
| Distance Between Centers: 24.72″ |
| Travel: |
|---|
| X Axis Travel: 9.25″ |
| Z Axis Travel: 19.59″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.56″ |
| Spindle Speed: 35-3500 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.4 Second |
| OD Tool Size: 1″ |
| ID Tool Size: 1.5″ |
| Tailstock: |
|---|
| Tailstock Body Travel: 16.59″ |
| Tailstock Body Travel: 40.5″ |
| Tailstock Quill Stroke: 3.14″ |
| Tailstock Taper: MT-4 |
| General: |
|---|

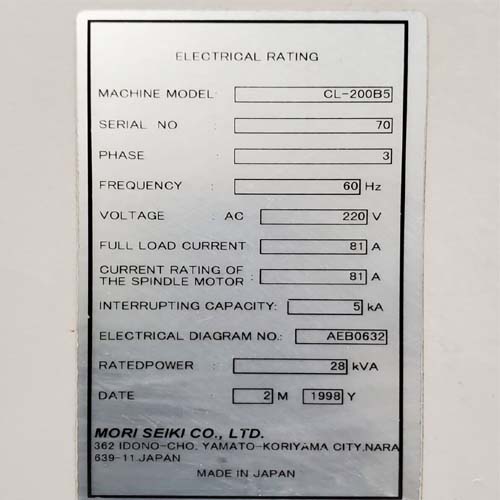

| Power : 220V/ 25KVA |
| Overall Dimensions: 80″ x 80″ x 78″ High |
| Overall Dimensions: 100″ x 80″ x 78″ High with Chip Conveyor |
| Weight : 7500 lbs Approx. |
