Mori Seiki CL-203B CNC Turning Center

Out of stock
SKU: 1880
Make/Model: Mori Seiki/CL-203B/500
Video: [fusion_button link=”https://www.youtube.com/watch?v=MT4mXOa-X4w” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1880

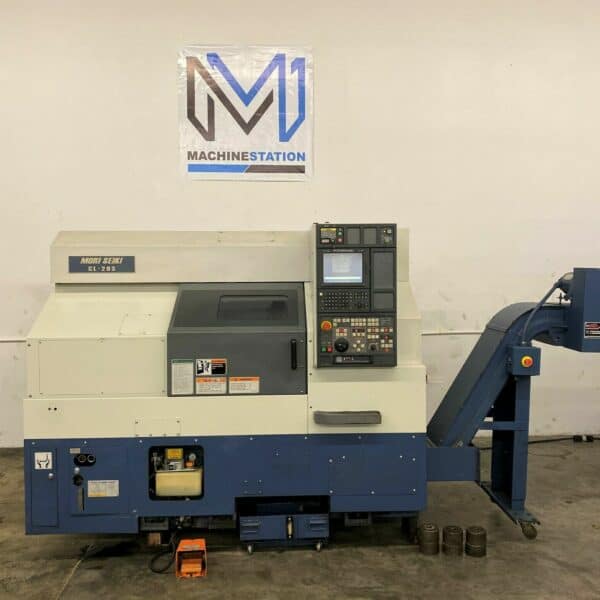

MORI SEIKI CL-203B CNC TURNING CENTER
Make Mori Seiki
Model No. CL-203B/500
Year 11/00
Serial # 684
Condition Very Good
  • Mori Seiki CL-203B Equipped With:
  • 10 -Station Turret with Tool Holders
  • MSG-803 CNC Control
  • MAPPS Conversational Programming
  • PCMCIA Card Slot
  • Kitagawa BB-08 Big Bore Chuck
  • Tool Presetter
  • 2 Step gear spindle for powerful torque
  • Hydraulic Tailstock with Power Quill
  • Foot Switch

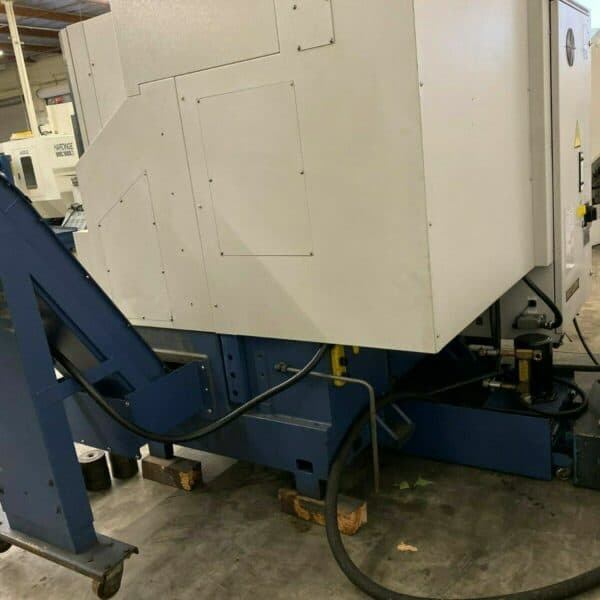

  • Chip Pan and Chip Conveyor
  • Coolant System
  • Automatic Lubrication system
  • Levelling Pads
  • Mori Seiki CL-203B Specifications:
  • Capacity:
  • Max Turning Diameter: 16.9″
  • Max Turning Length: 11.4″
  • Max Bar Capacity: 2.5″
  • Swing Over Slide: 17.9″
  • Swing Over Bed: 20.3″
  • Distance Between Centers: 20.6″
  • Travel:
  • X Axis Travel: 9.2″
  • Z Axis Travel: 12.2″
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle:
  • Spindle Nose: A2-6
  • Spindle Bore: 3.0″
  • Spindle Speed: 3500 RPM
  • Spindle Motor: 20 HP
  • Turret:
  • Turret Capacity: 10 Stations
  • Turret Index Time: 1 Second
  • Tailstock:
  • Tailstock Body Travel: 19.3″
  • Tailstock Quill Dia.: 4.33″
  • Tailstock Quill Stroke: 3.93″
  • Tailstock Taper: MT-4
  • General:

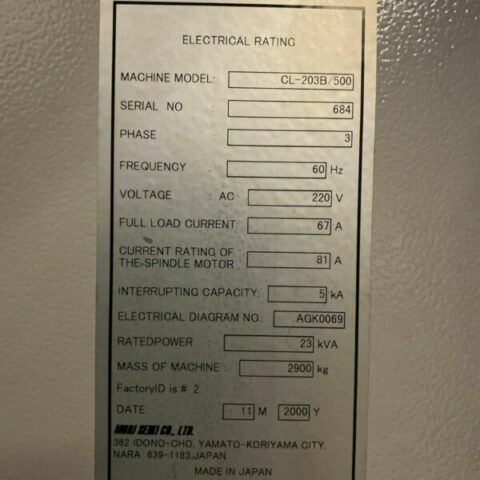

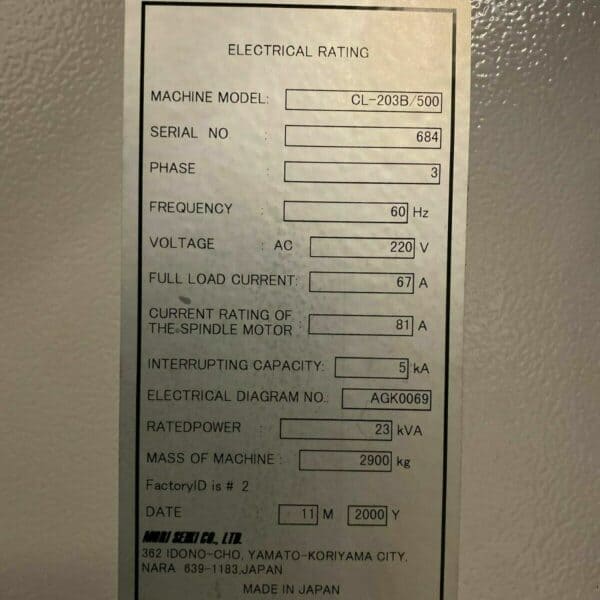

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Overall Dimensions: 80″ x 70″ x 80″ High
  • Overall Dimensions: 120″ x 70″ x 80″ High with Chip Conveyor
  • Weight : 7500 lbs Approx.

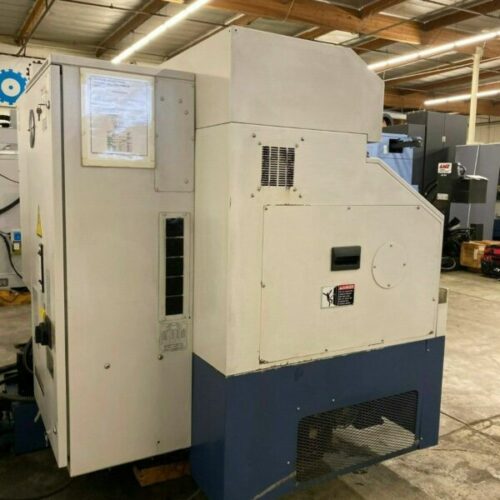

Mori Seiki CL-203B Comes as Shown in Pictures….
