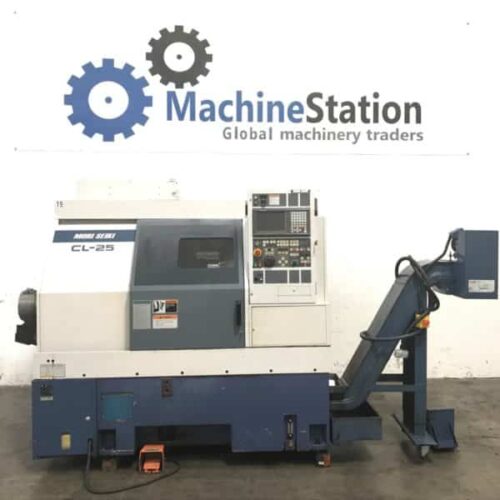

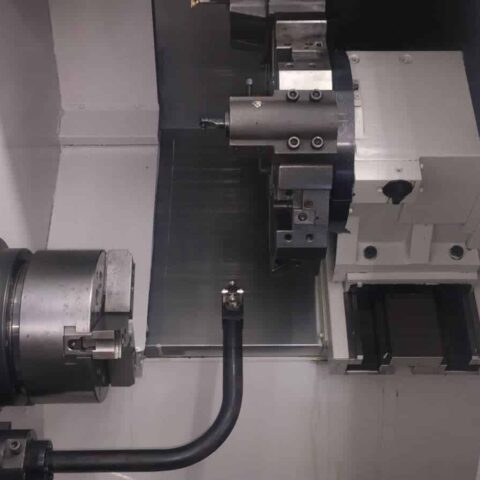

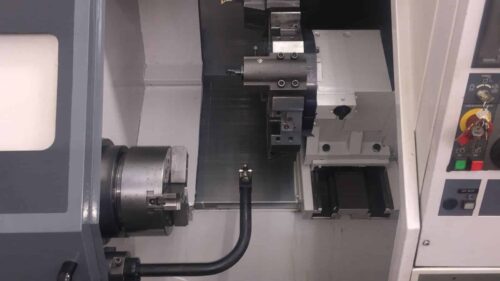

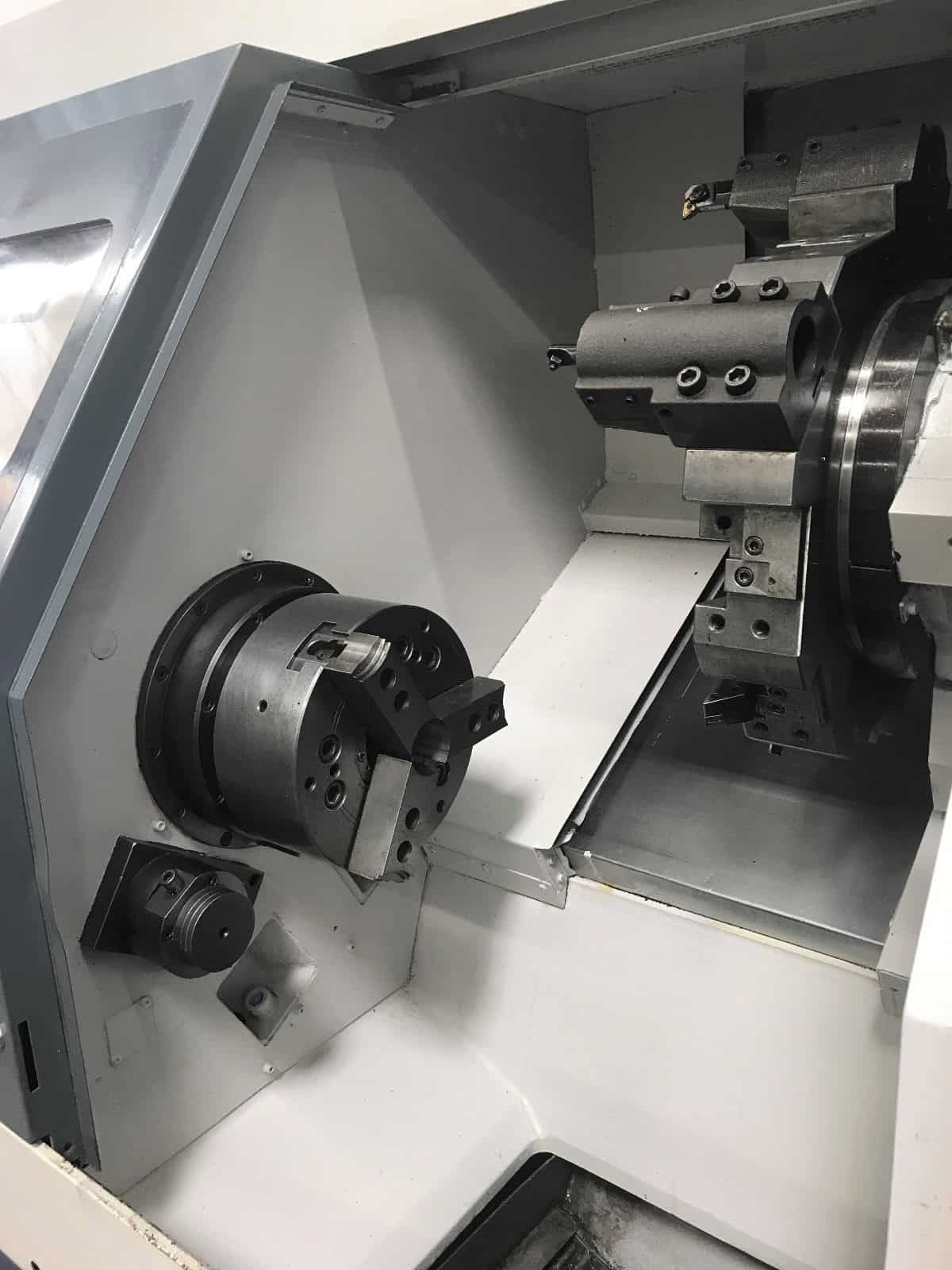

MORI SEIKI CL 25Β CNC TURNINGΒ CENTER LATHE 10β³ CHUCK | |
---|---|
Make | Mori Seiki |
Model No. | CL-25A |
YOM: | 04/1998 |
Serial # | 1775 |
Condition | Very Good |
Country of Origin: | Japan |
All specifications are approximations and are subject to verification.
βOn Our Floor now One Owner Machine, Fully powered / tested & is in Great working condition. 11600 Cutting Hours Only. Equipped with 10β³ Chuck, Tool Presetter, chip conveyor, manuals, Tool holders.β
- MORI SEIKI CL 25 Equipped With:

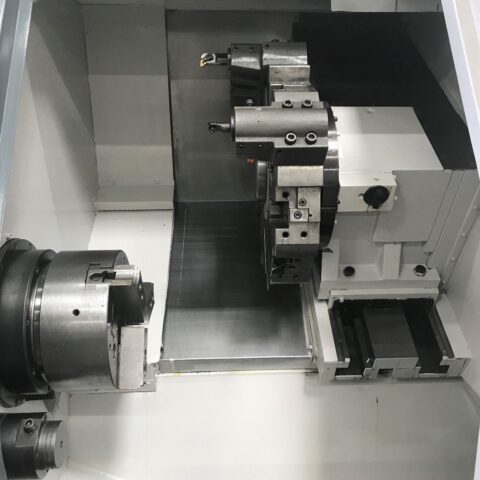

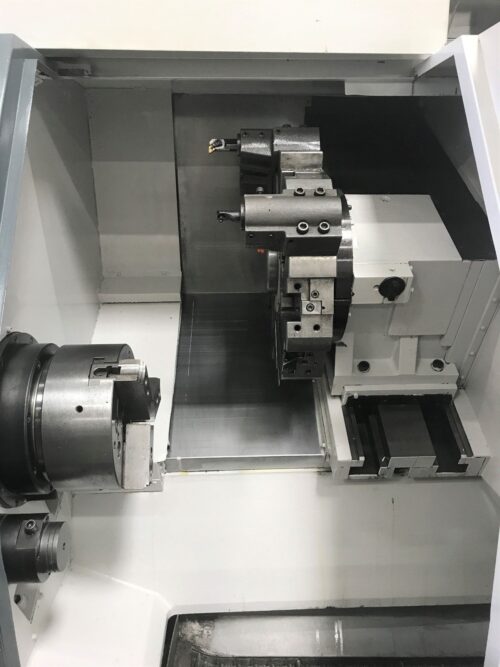

- 10-Station Turret
- Box Ways Design

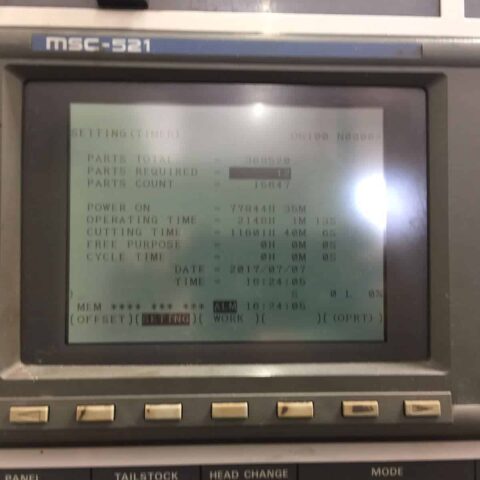

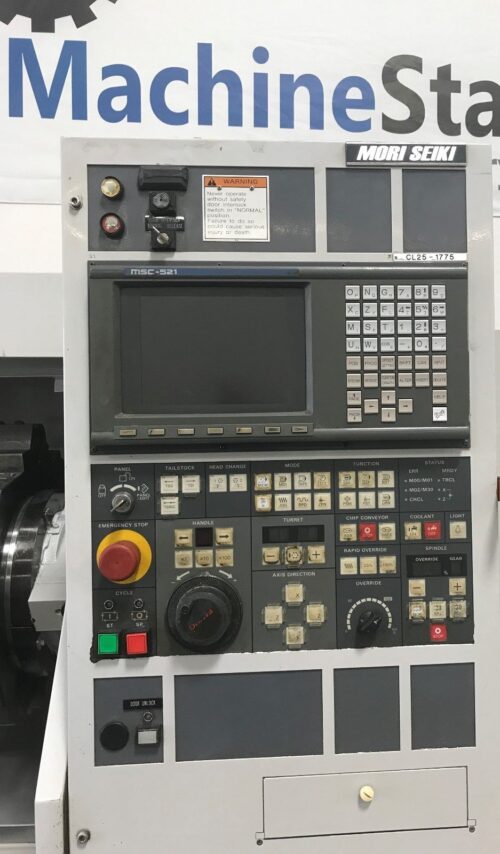

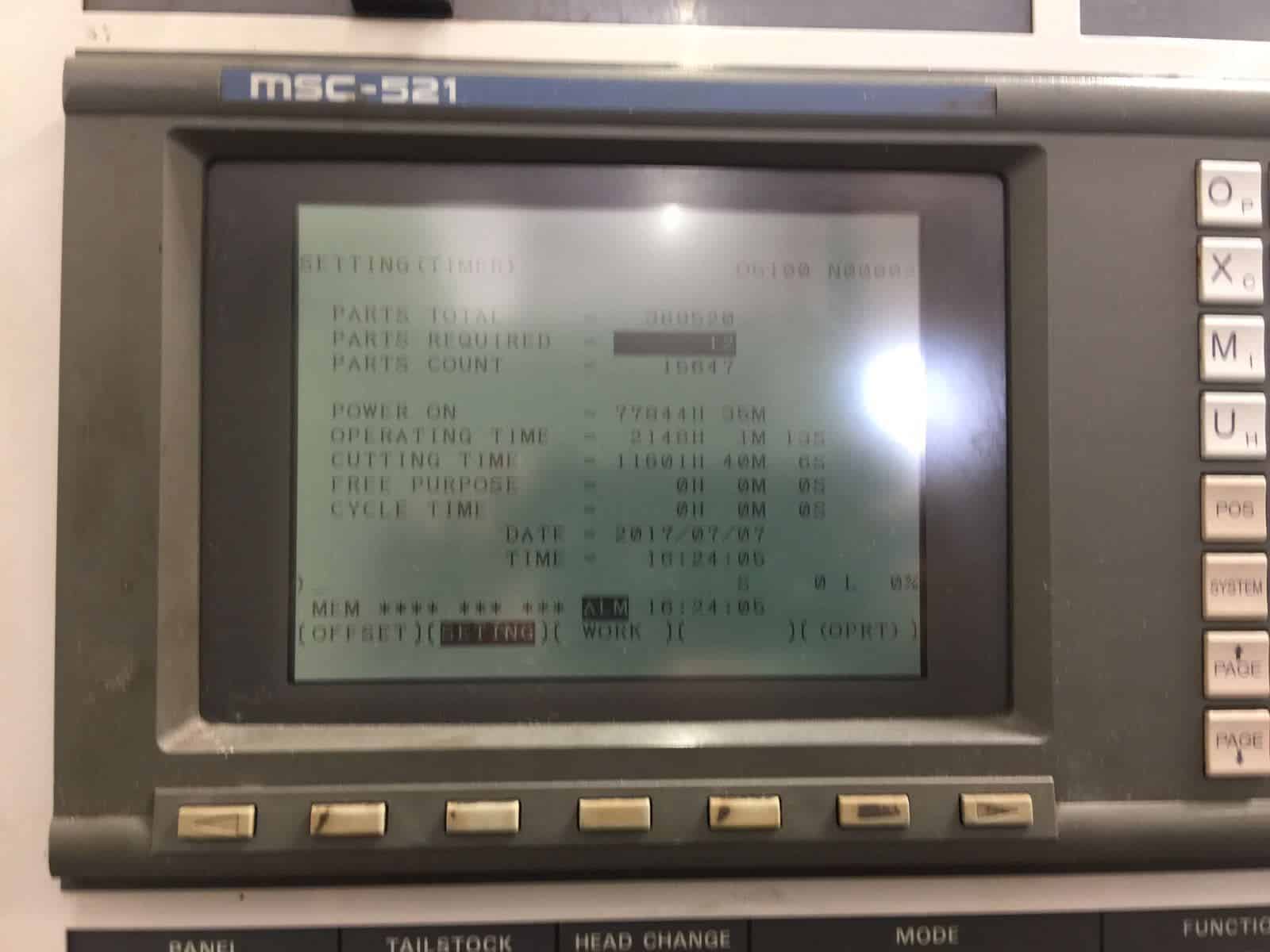

- MSC-521 (FanucΒ 21T) CNC Control

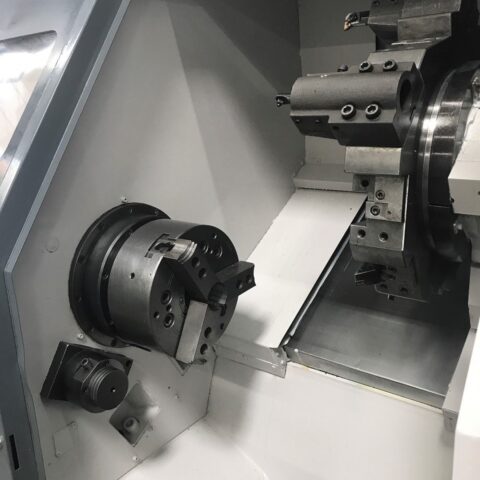

- 10β³Β MMK 3-Jaw Hydraulic Chuck
- 2 Step gear spindle for powerful torque
- Turbo Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Coolant Tank
- Comes with Books, Chip Conveyor &Β Tool Holders.
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 35kva
- Overall Dimensions: 78β³ x 70β³ x 65β³ High
- Overall Dimensions: 105β³ x 70β³ x 65β³ High with Chip Conveyor
- Weight : 8800 lbs Approx.
- MORI SEIKI CL 25 Specifications:
- Max Turning Diameter: 17.7β³
- Max Turning Length: 18.5β³
- Max Bar Capacity: 2.67β³
- Swing Over Bed: 20.5β³
- X Axis Travel: 10.2β³
- Z Axis Travel:Β 19.7β³
- Rapid TraverseΒ X Axis:Β 590 IPM
- Rapid Traverse Z Axis:Β 790 IPM
- Spindle Nose:Β A2-8
- Spindle Bore:Β 3.15β³
- Spindle Speed:Β upto 3000 RPM
- Spindle Motor:Β 20 HP
- Turret Capacity:Β 10 Stations
- Turret Index Time:Β 0.5 Second
MORI SEIKI CL 25 Comes as shown in pictures.
