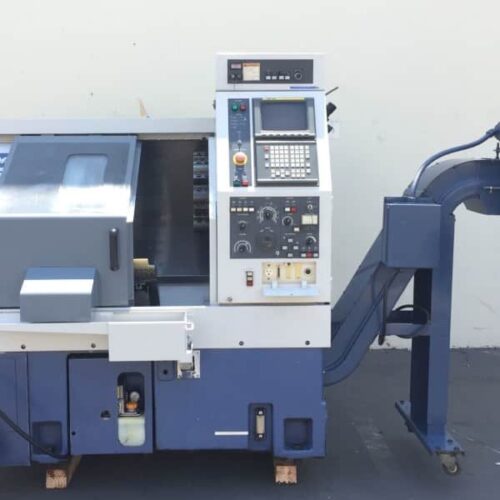

MORI SEIKI CL20 A CNC TURNING CENTER

Out of stock
SKU: 1265
Make/Model: Mori Seiki CL 20A
Video: [fusion_button link=”https://www.youtube.com/watch?v=yisVTYPfxsU” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1265
MORI SEIKI CL20 A CNC TURNING CENTER W/ FANUC
Make Mori Seiki
Model No. CL 20A
Year of Manufacture: 1994
Serial # 1077
Condition Very Good
Comes with All Original Manuals
  • MORI SEIKI CL20 A Features:

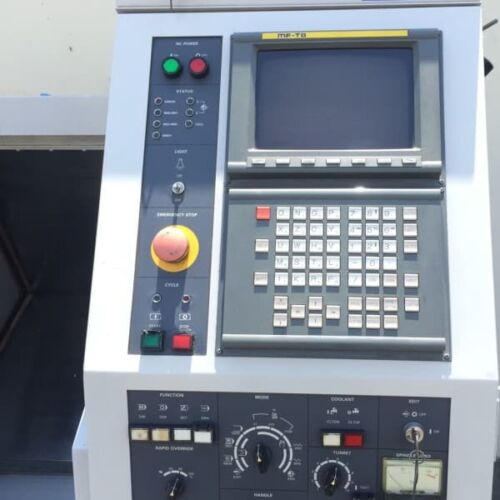

  • MF-T8 (Fanuc 18T) CNC Control
  • Kitagawa 8″ B-208 Hydraulic Chuck
  • Tool Pre-setter
  • Coolant System
  • Spindle Orientation
  • Barfeed Interface
  • Parts Catcher
  • RS-232 ports

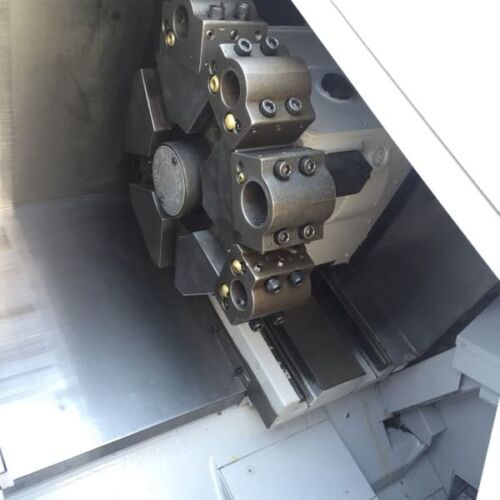

  • 10 Station Automatic Turret
  • Chip Conveyor
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 111″ x 63″ x 68″ High
  • Overall Dimensions: 73″ x 63″ x 68″ High (w/o Chip Conveyor)
  • Weight: 5700 lbs
  • MORI SEIKI CL20 A Specifications:
  • Capacity:
  • Max Turning Diameter: 12.2″
  • Max Turning Length: 13.3″
  • Max Bar Capacity: 2.0″
  • Swing Over Cross Slide: 14.9″
  • Swing Over Bed: 18.5″
  • X Axis Travel: 7.5″
  • Z AXis Travel: 14.60″
  • Rapid Traverse X Axis: 590 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.4″
  • Spindle Speed: 40 – 4,000 RPM
  • Spindle Motor: 7.5kw
  • Turret Capacity: 10 Stations
  • Turret Index Time: 0.6 Second
