*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112720 |

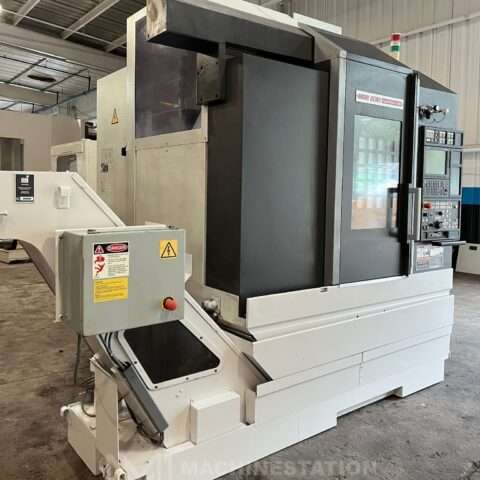

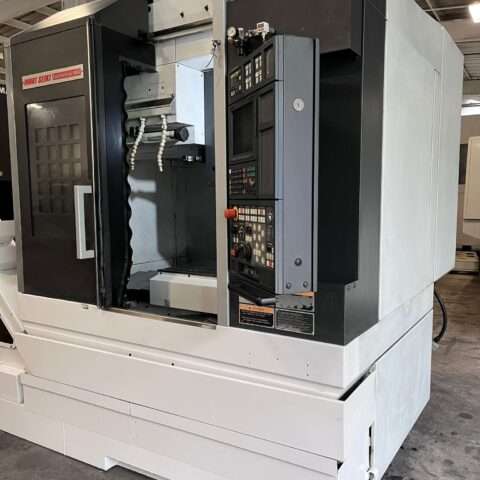

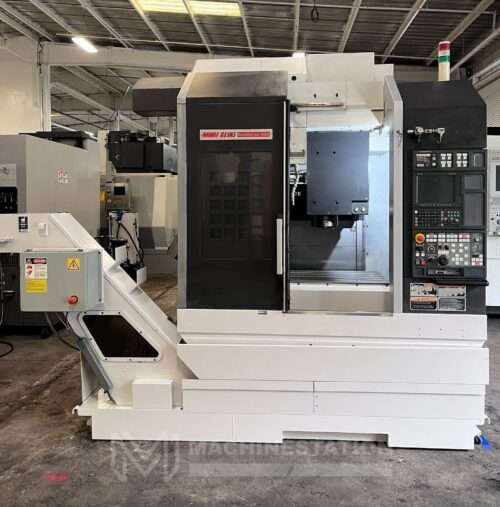

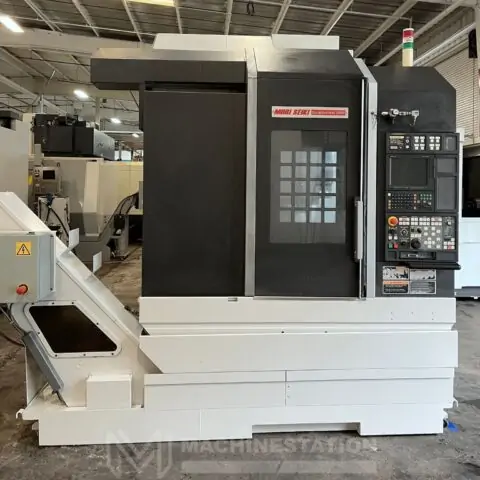

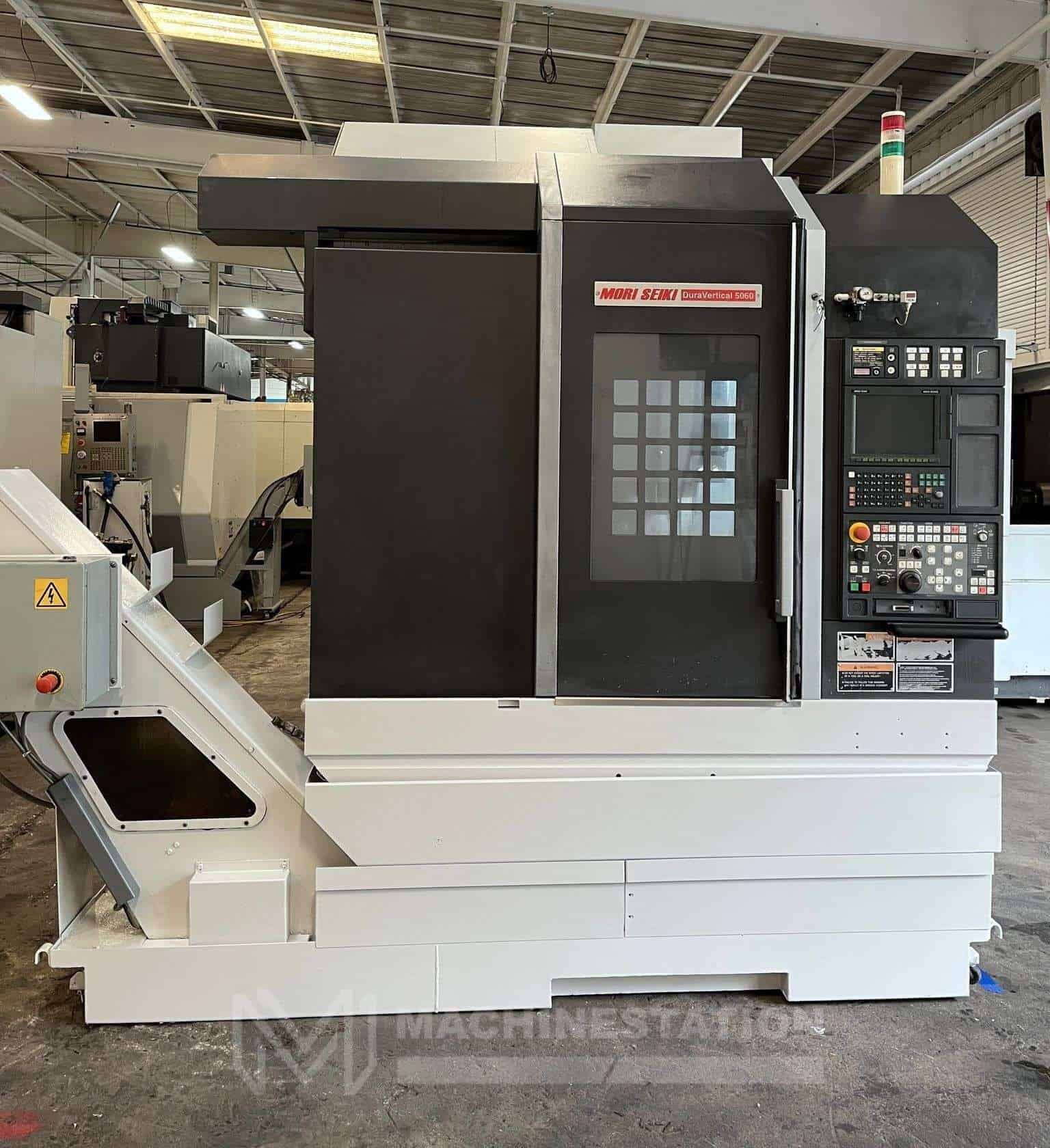

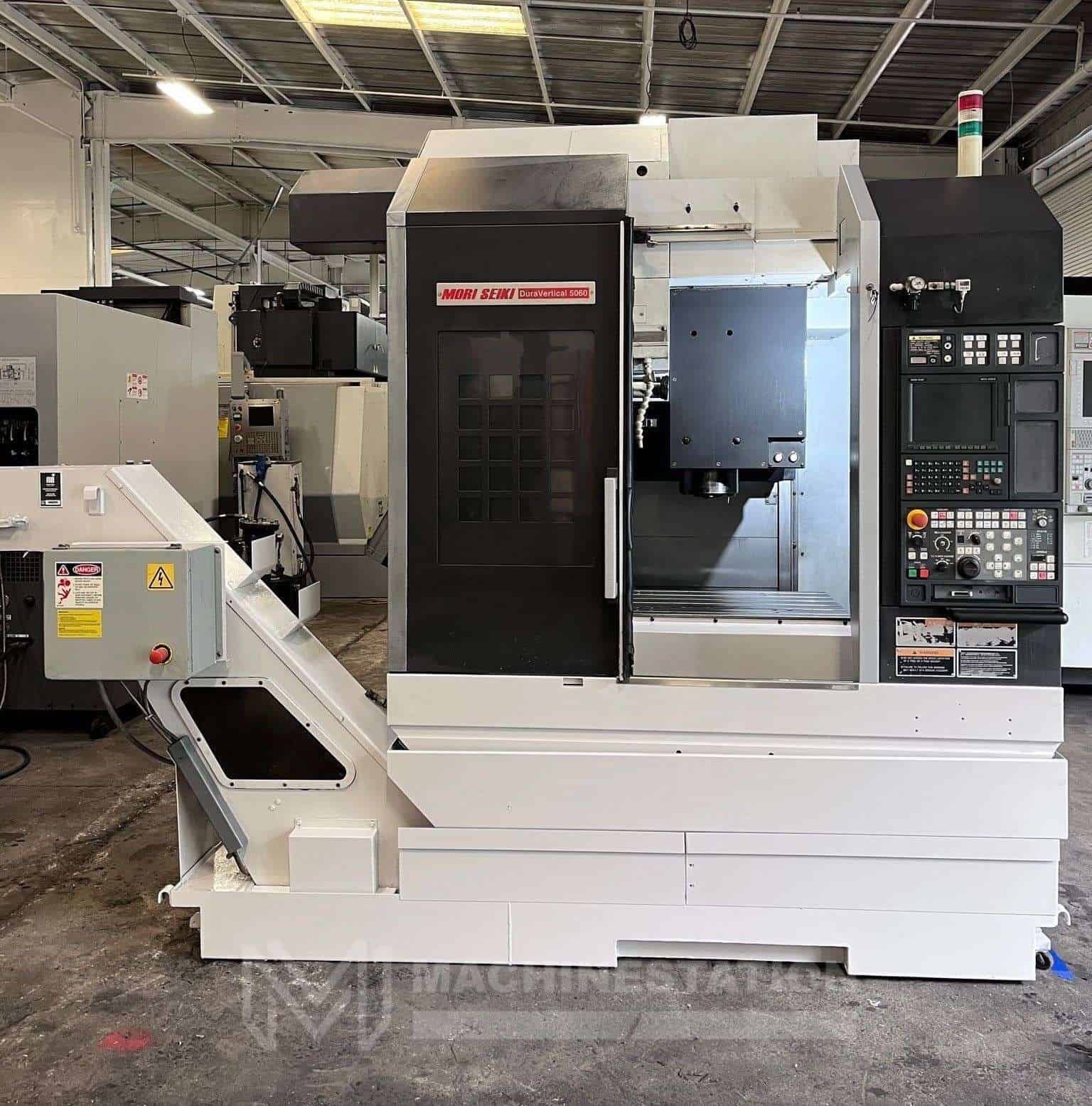

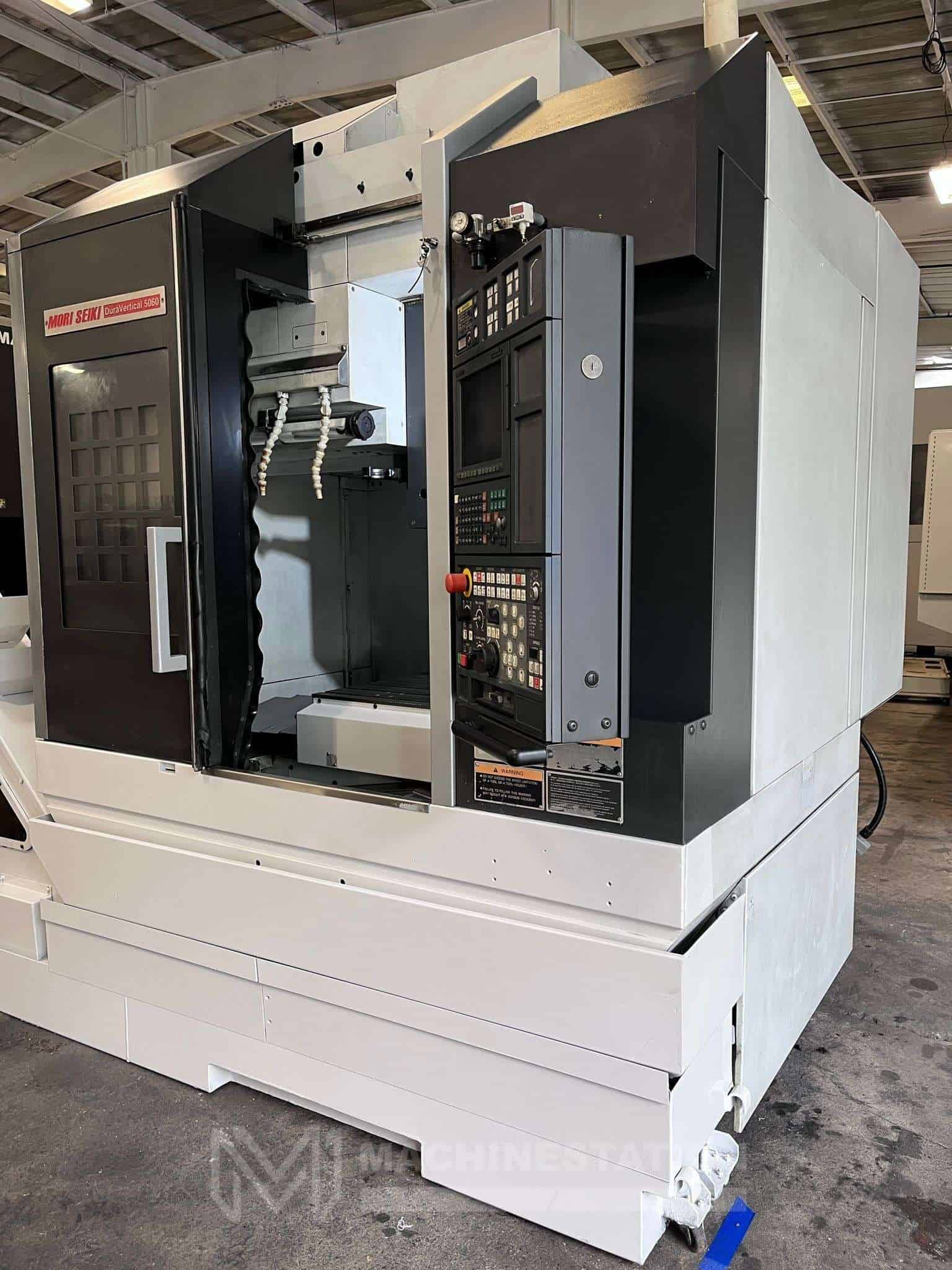

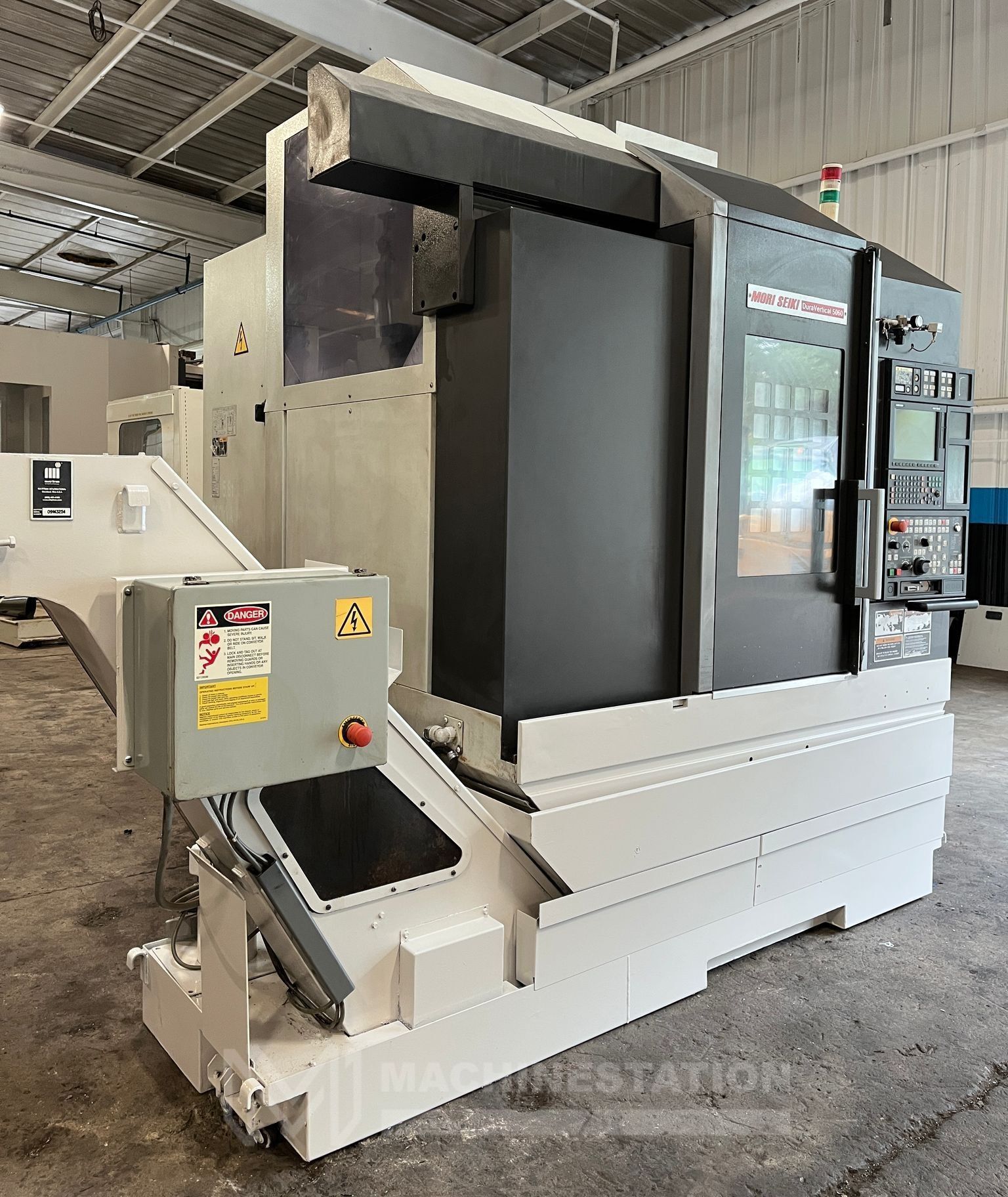

| Make: | Mori Seiki |
| Model: | DuraVertical 5080 |
| Year: | 2009 |
| Features: |
|---|

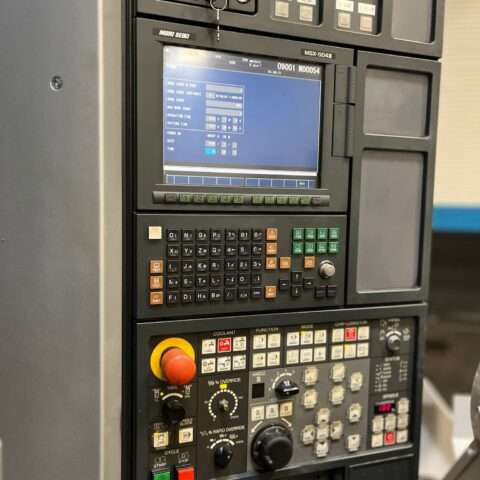

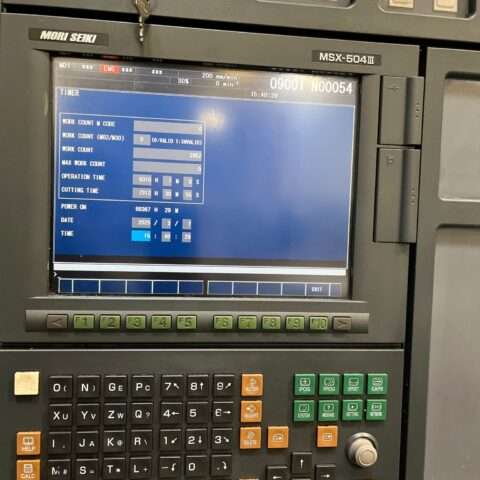

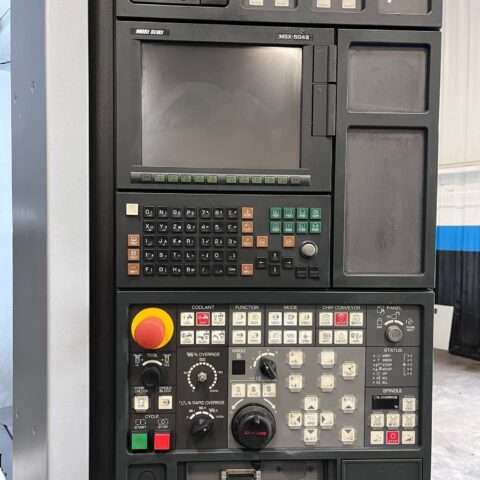

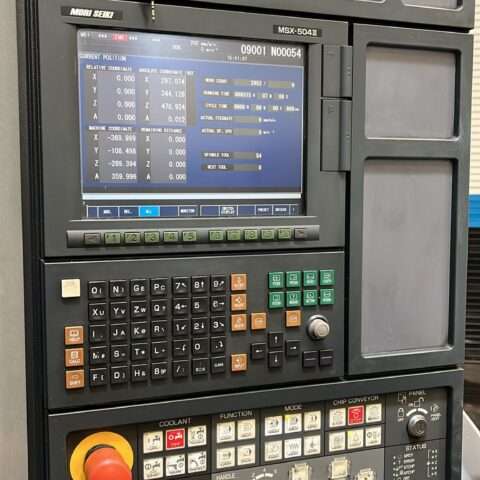

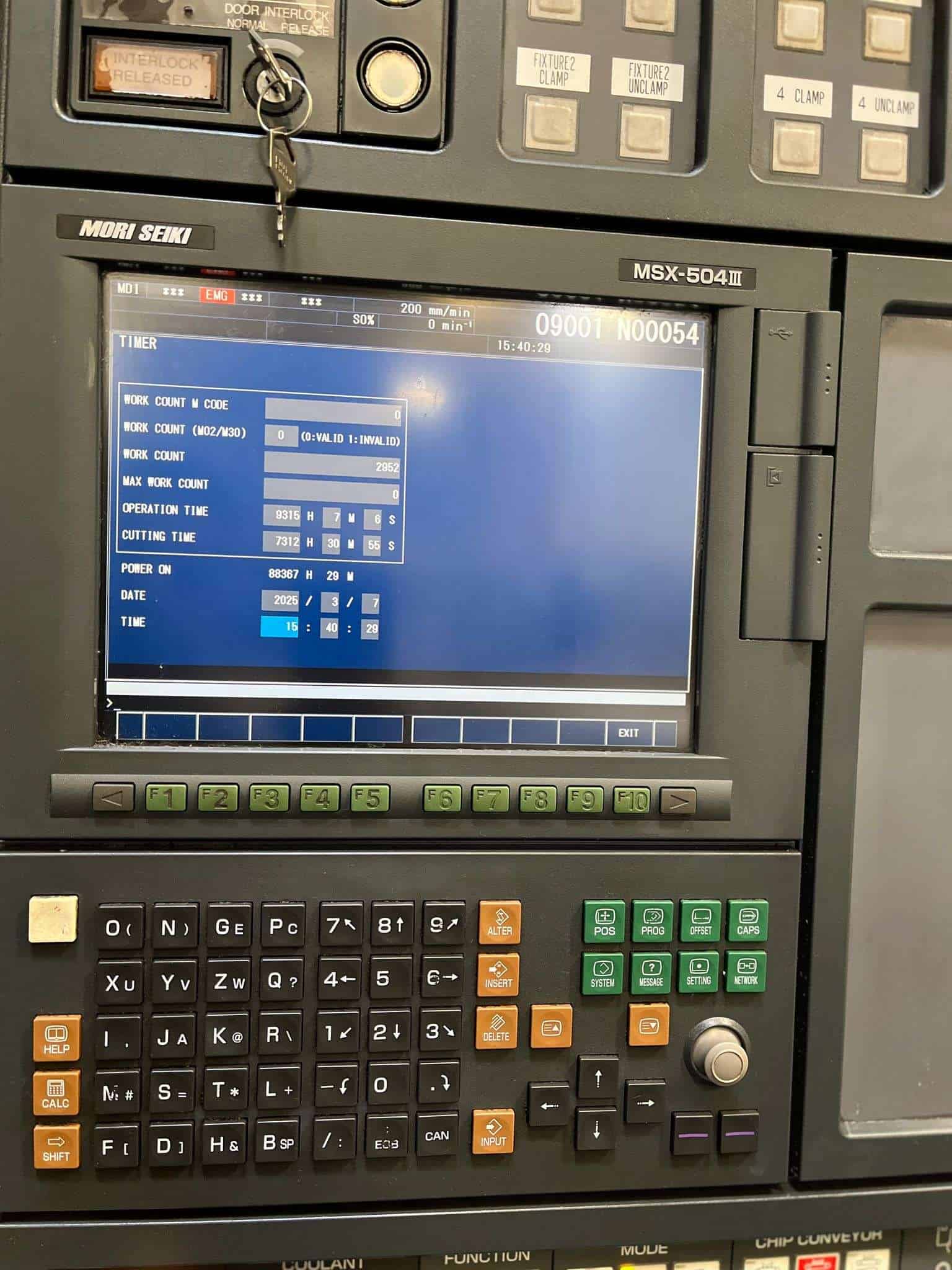

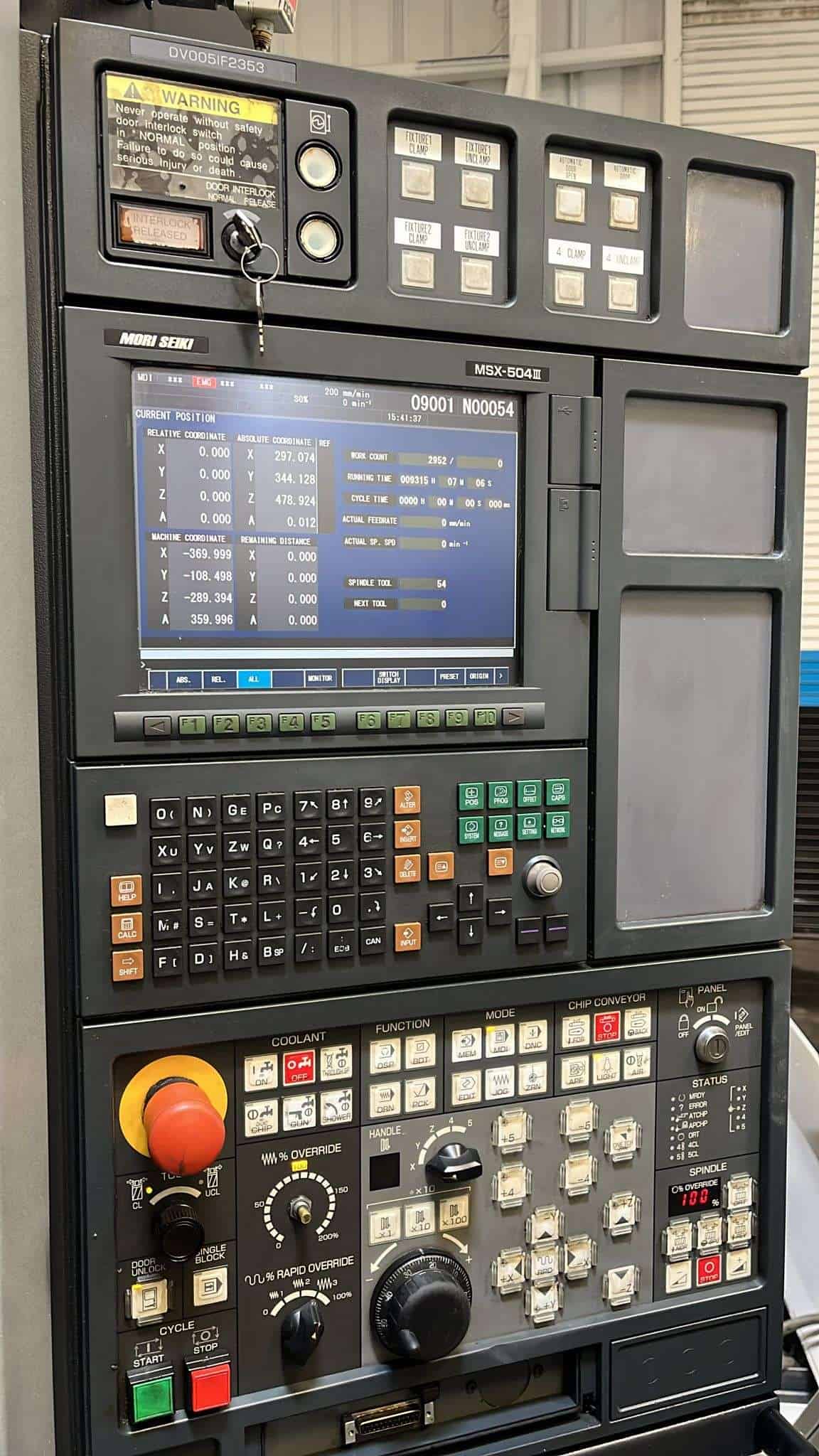

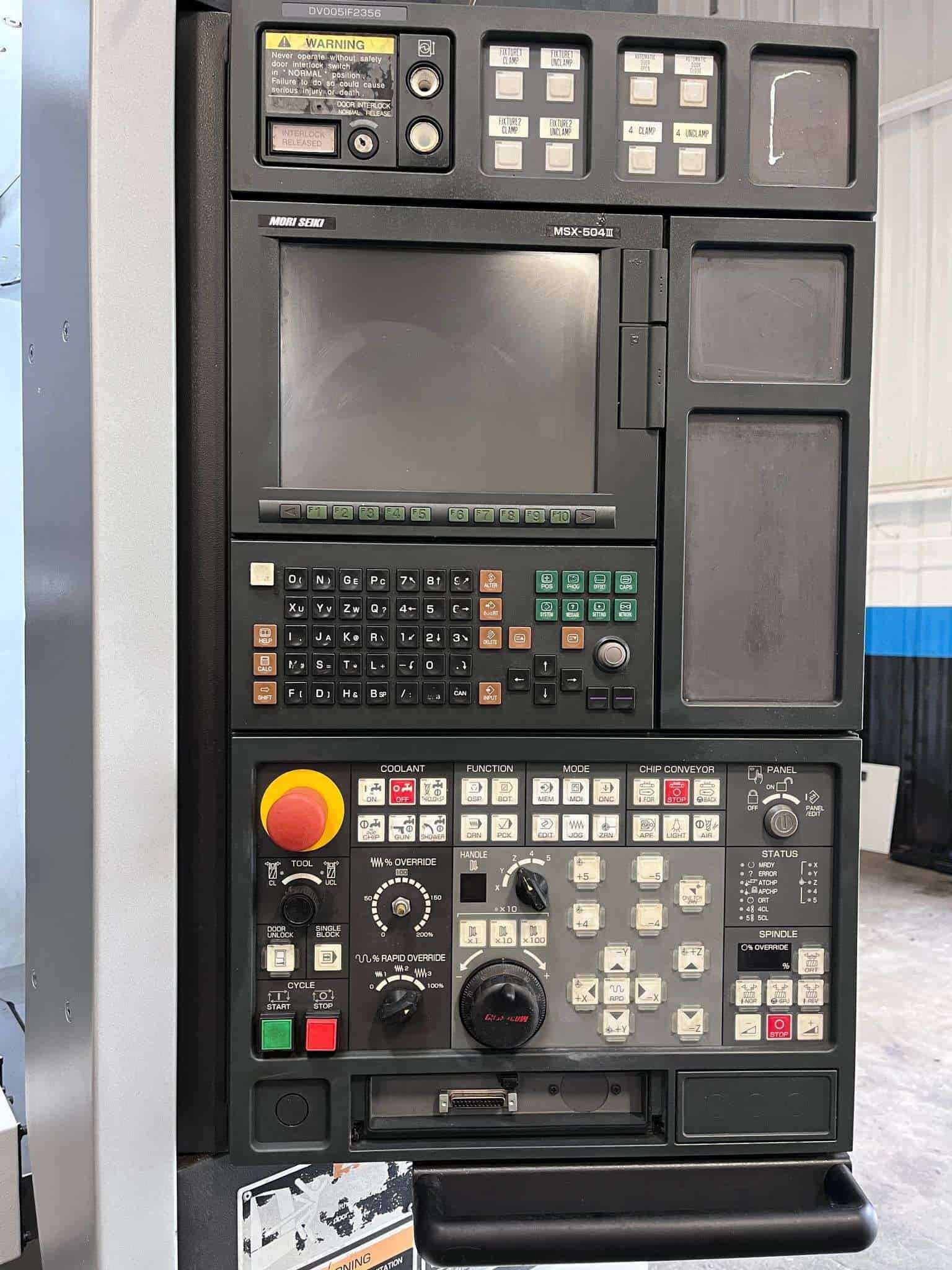

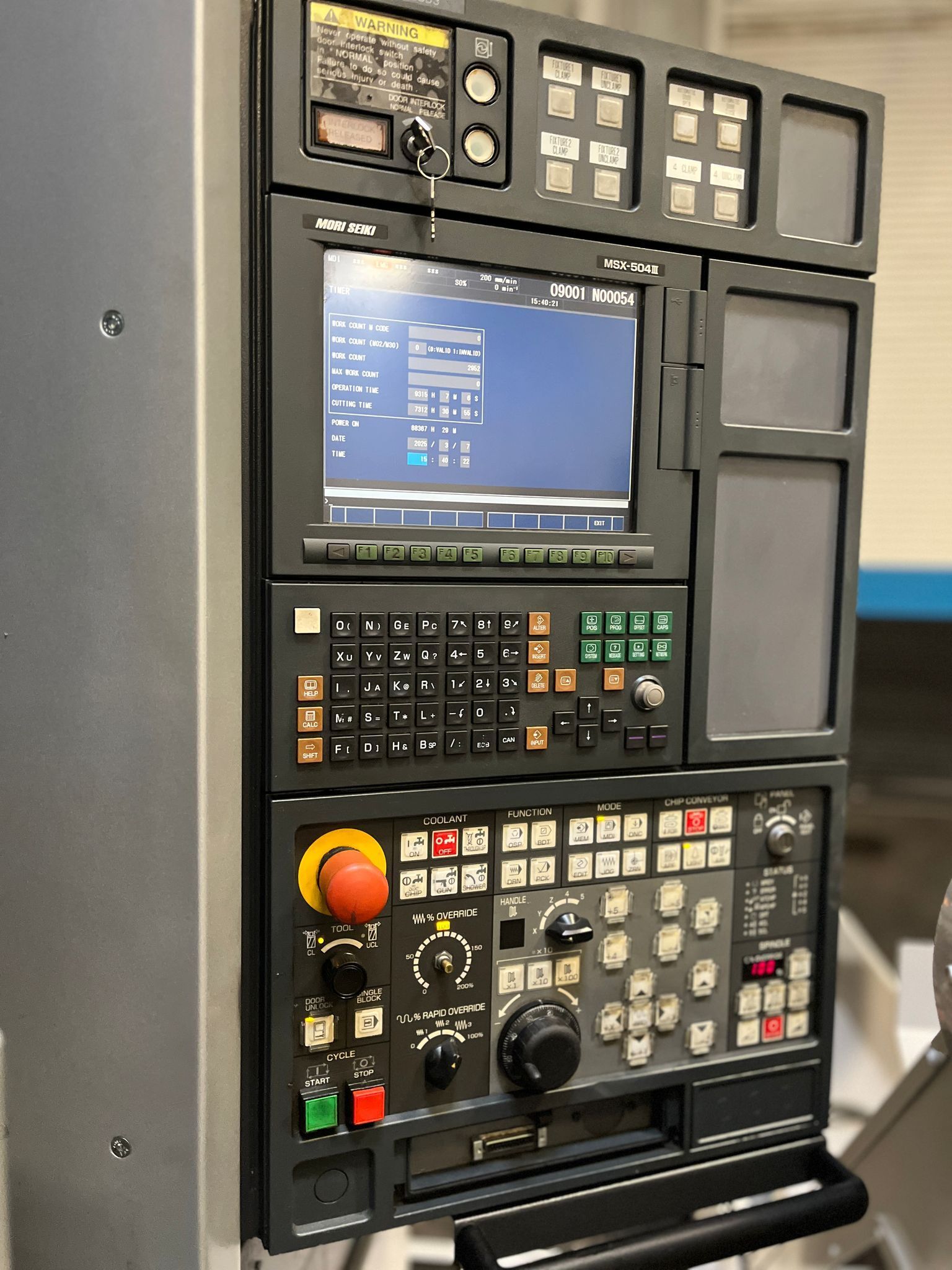

| Mori Seiki MSX-504III Series CNC Control |
| 4th Axis Ready |
| 10,000 RPM Spindle |
| Through Spindle Coolant |

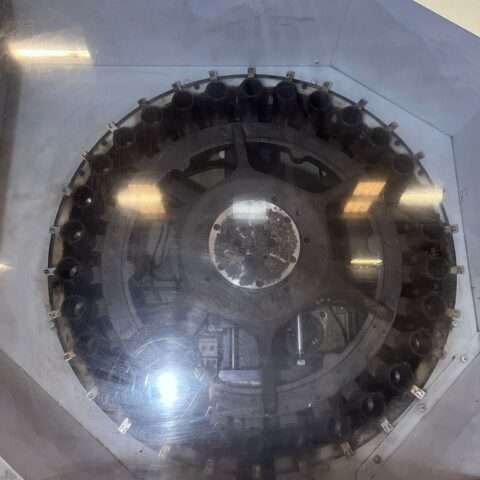

| 30 Station Side Mounted Tool Changer |
| Tool Presetter |
| PCMCIA Card Slot |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Levelling Pads |
| Travels: |
|---|
| X-Axis: 23.6″ |
| Y-Axis: 20.9″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X, Y Axis: 1417″ Per Minute |
| Rapid Traverse Rates Z Axis: 787″ Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″ |

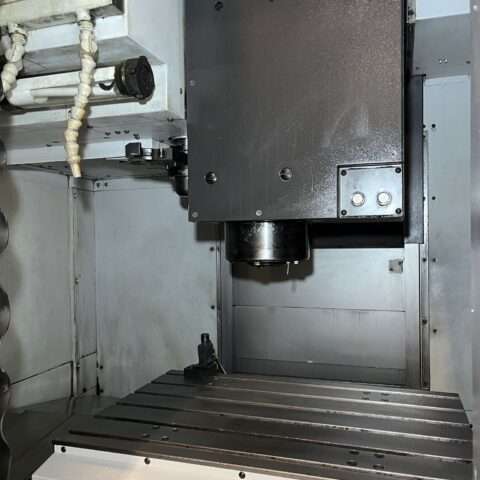

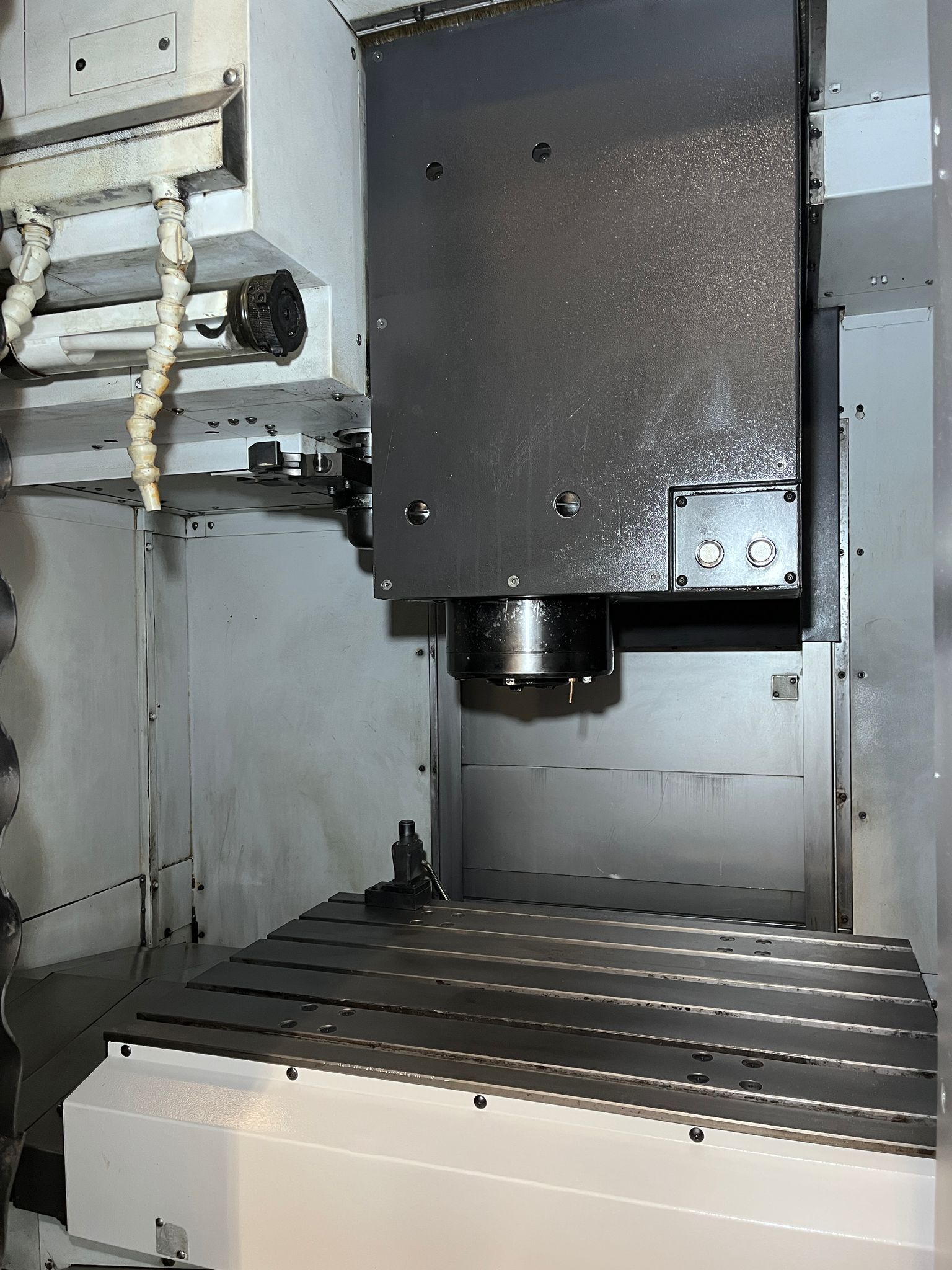

| Table: |
|---|
| Length: 35.4″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1102 lbs |

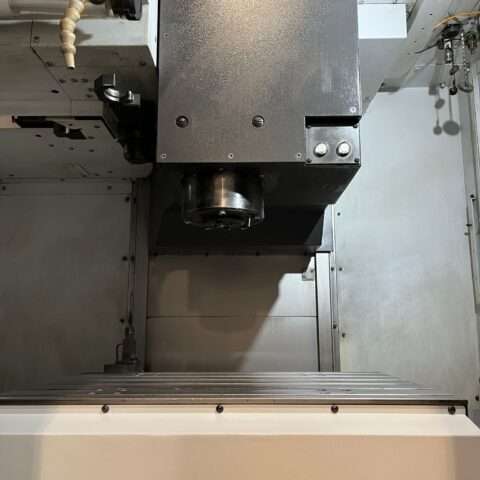

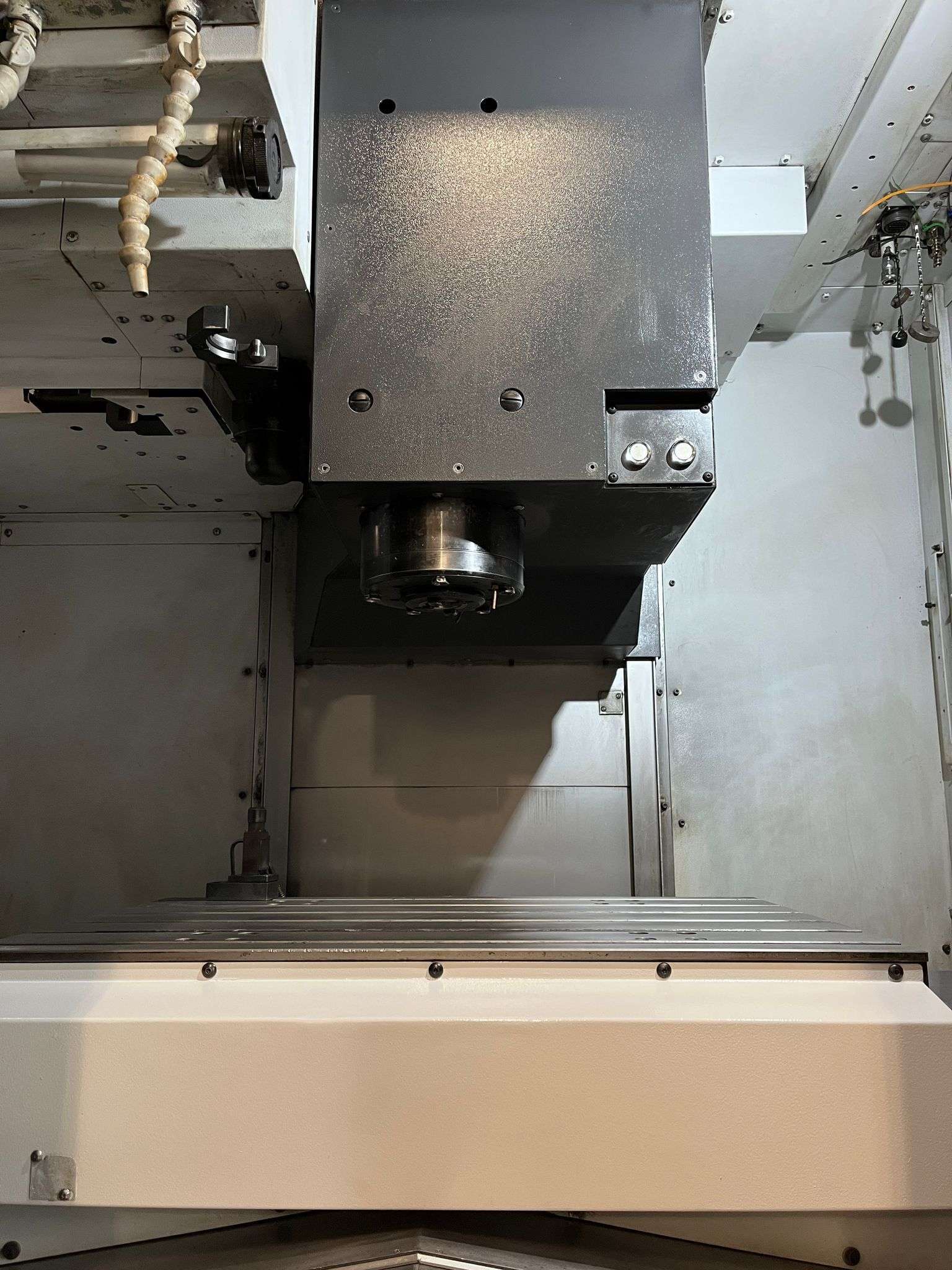

| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |

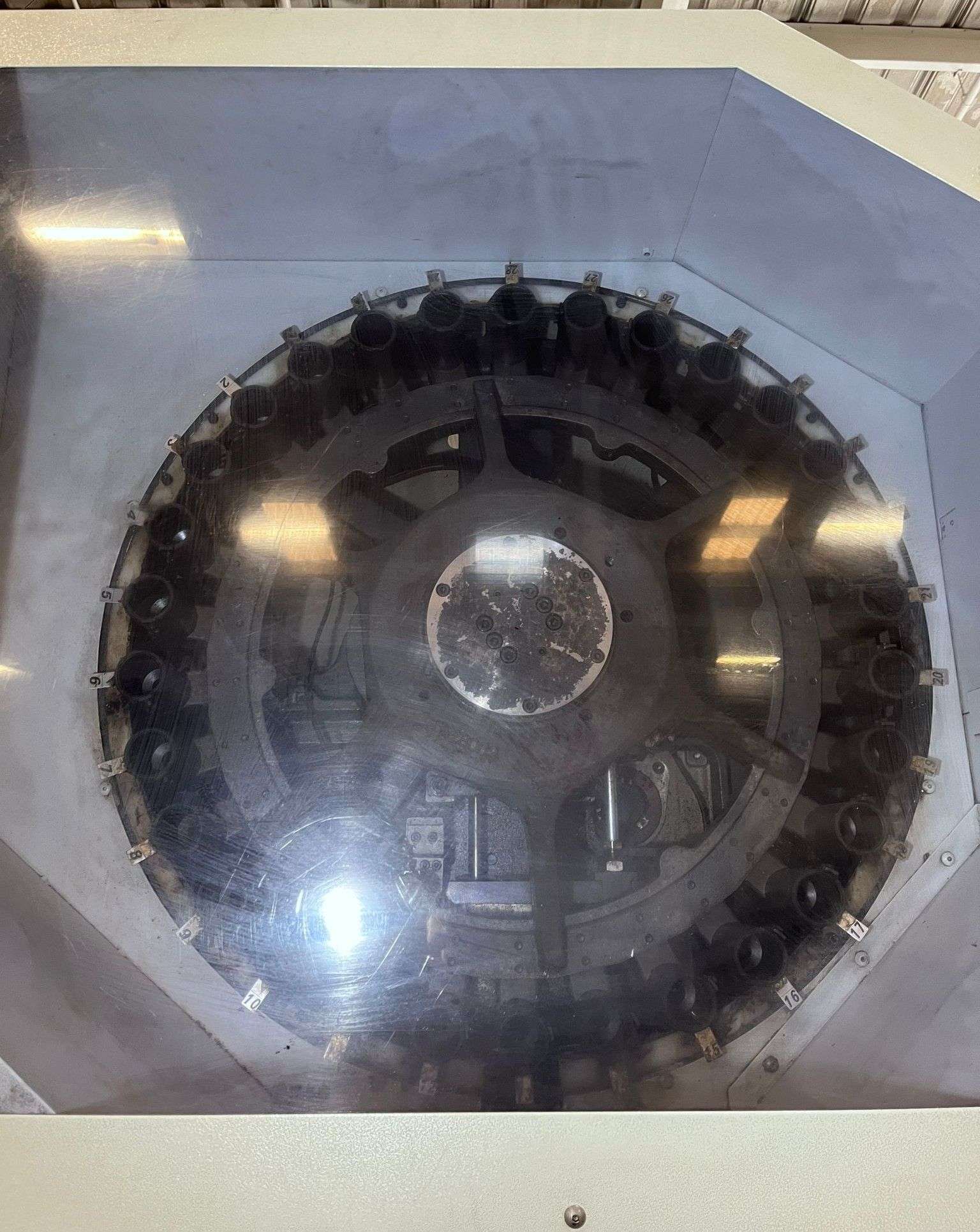

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station |
| Tool Weight: 17.63 lbs |
| Max Tool Dia: 3.14″ – 4.92″ |
| Max Tool Length: 11.81″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

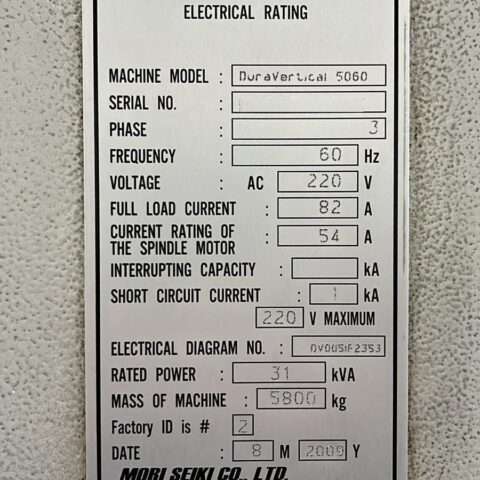

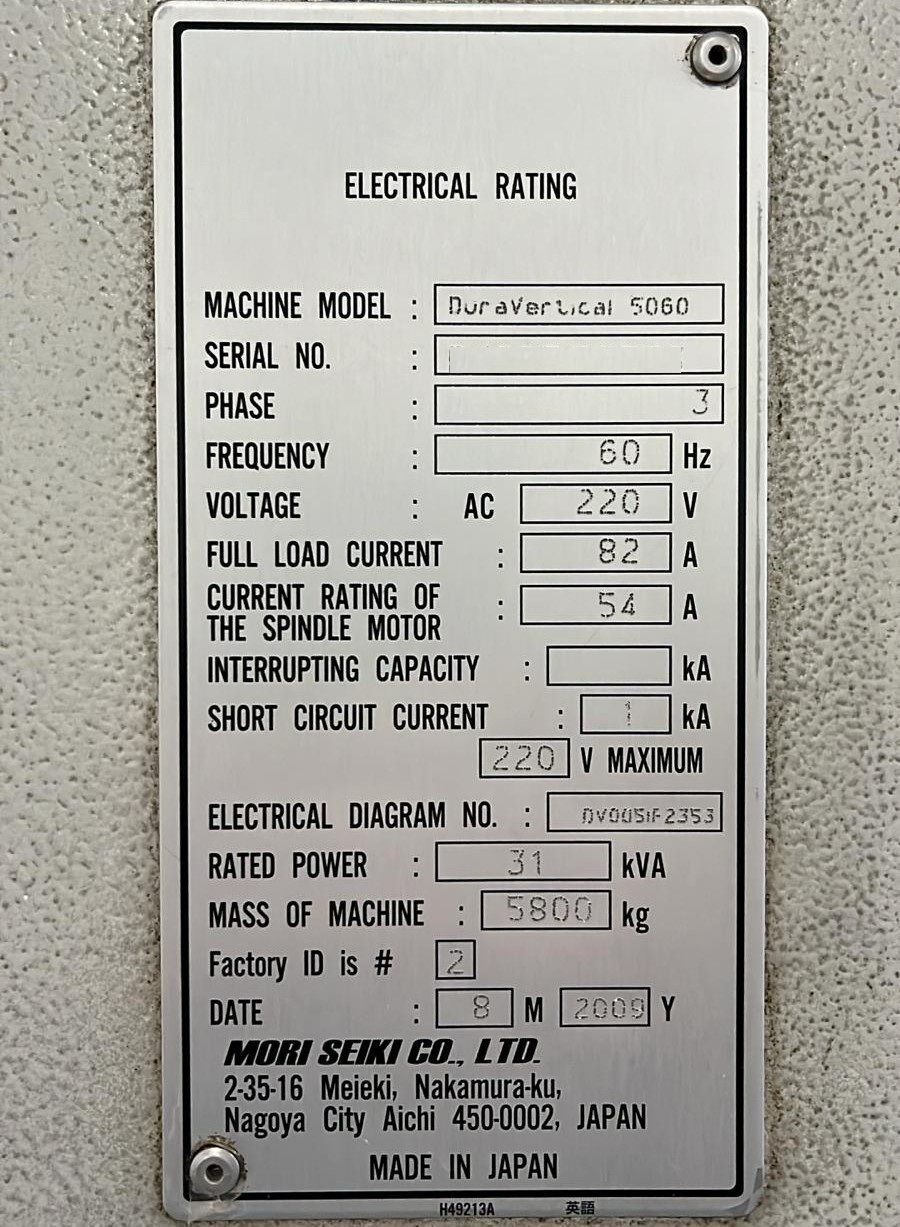

| Power: 220v / 31 kva / 3-Phase |
| Overall Dimensions: 91″ x 85″ x 105″ High |
| Overall Dimensions: 132″ x 85″ x 105″ High (With Chip Conveyor) |
| Weight: 12,786 lbs |
