*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2500 |

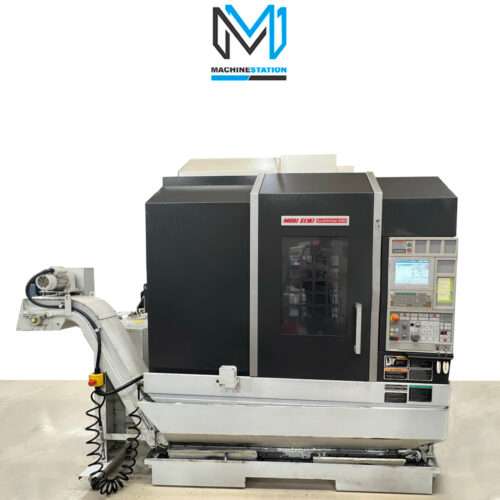

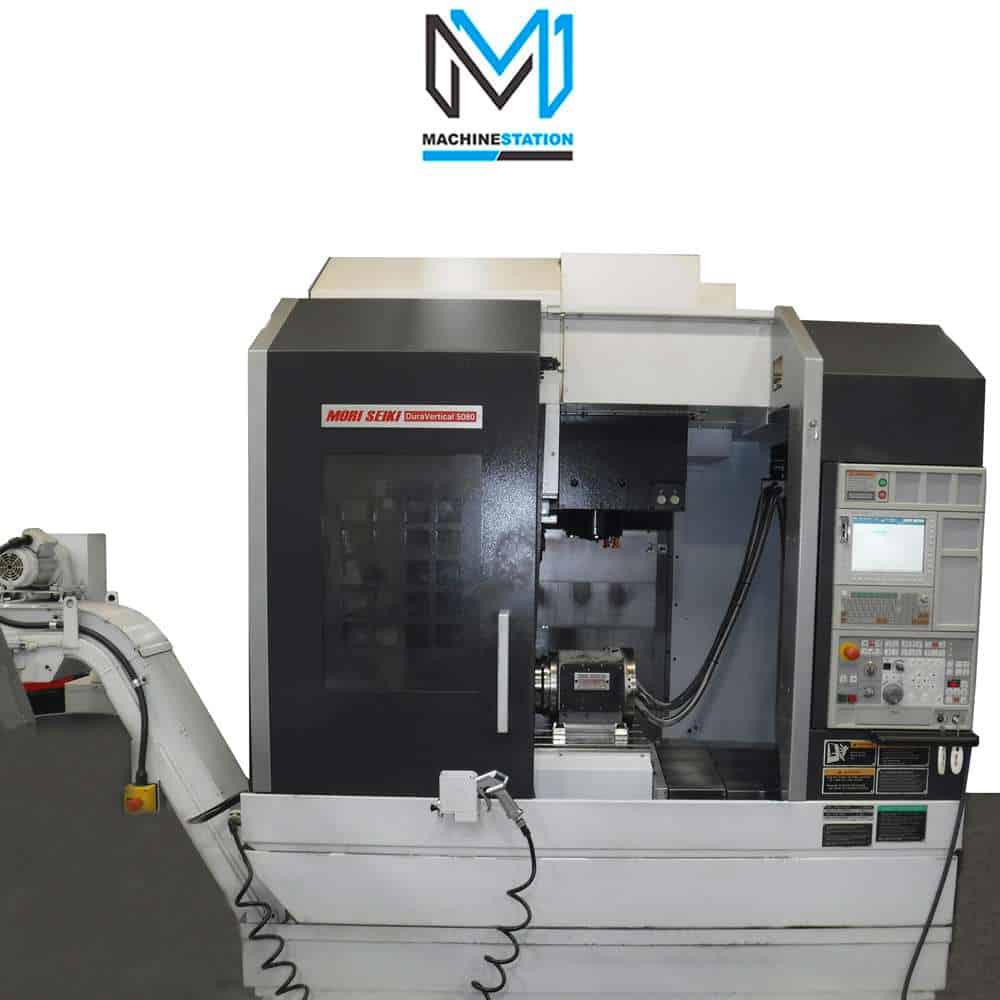

| Make: | Mori Seiki |
| Model: | DuraVertical 5080 |
| Year: | 2011 |

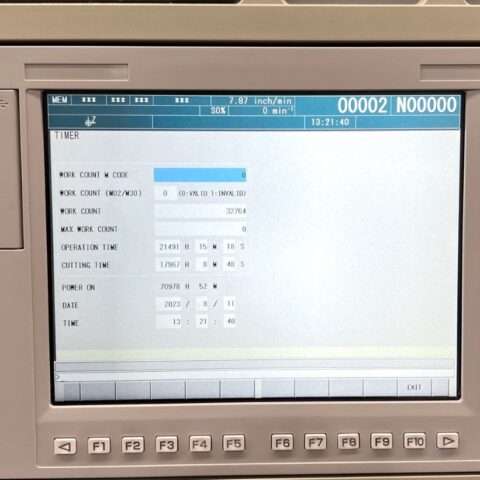

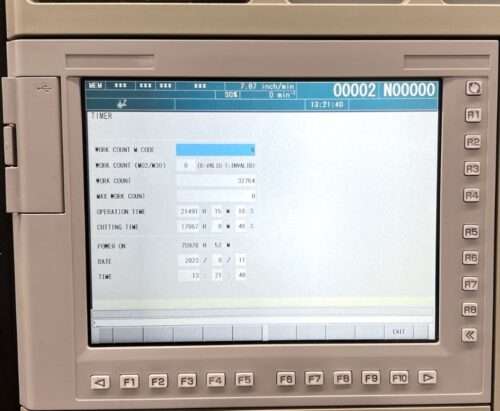

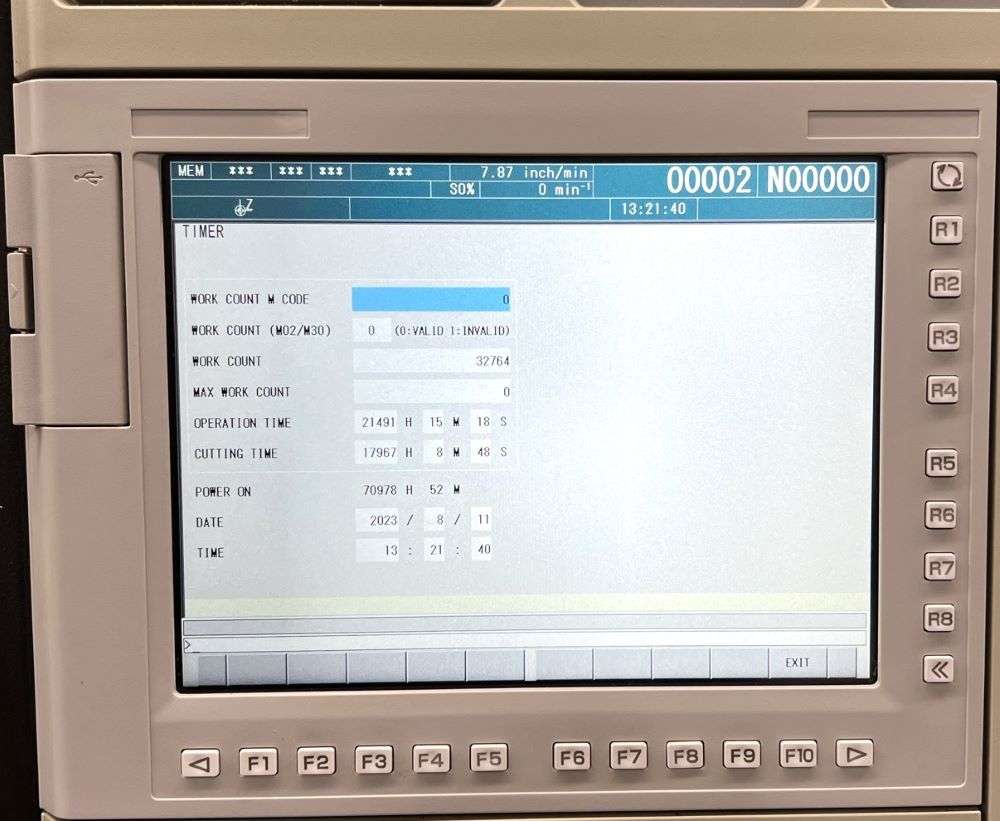

| Cutting Time: | 17,967 Hours |
| Features: |
|---|

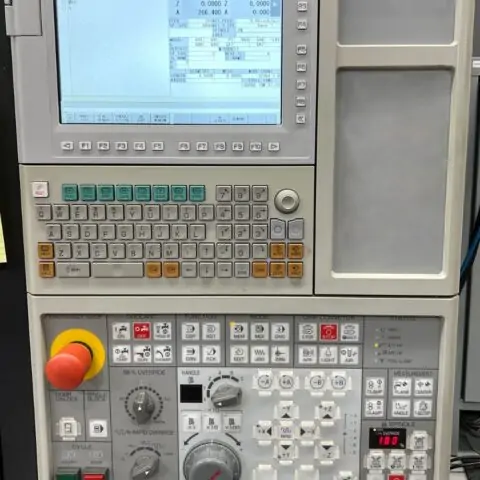

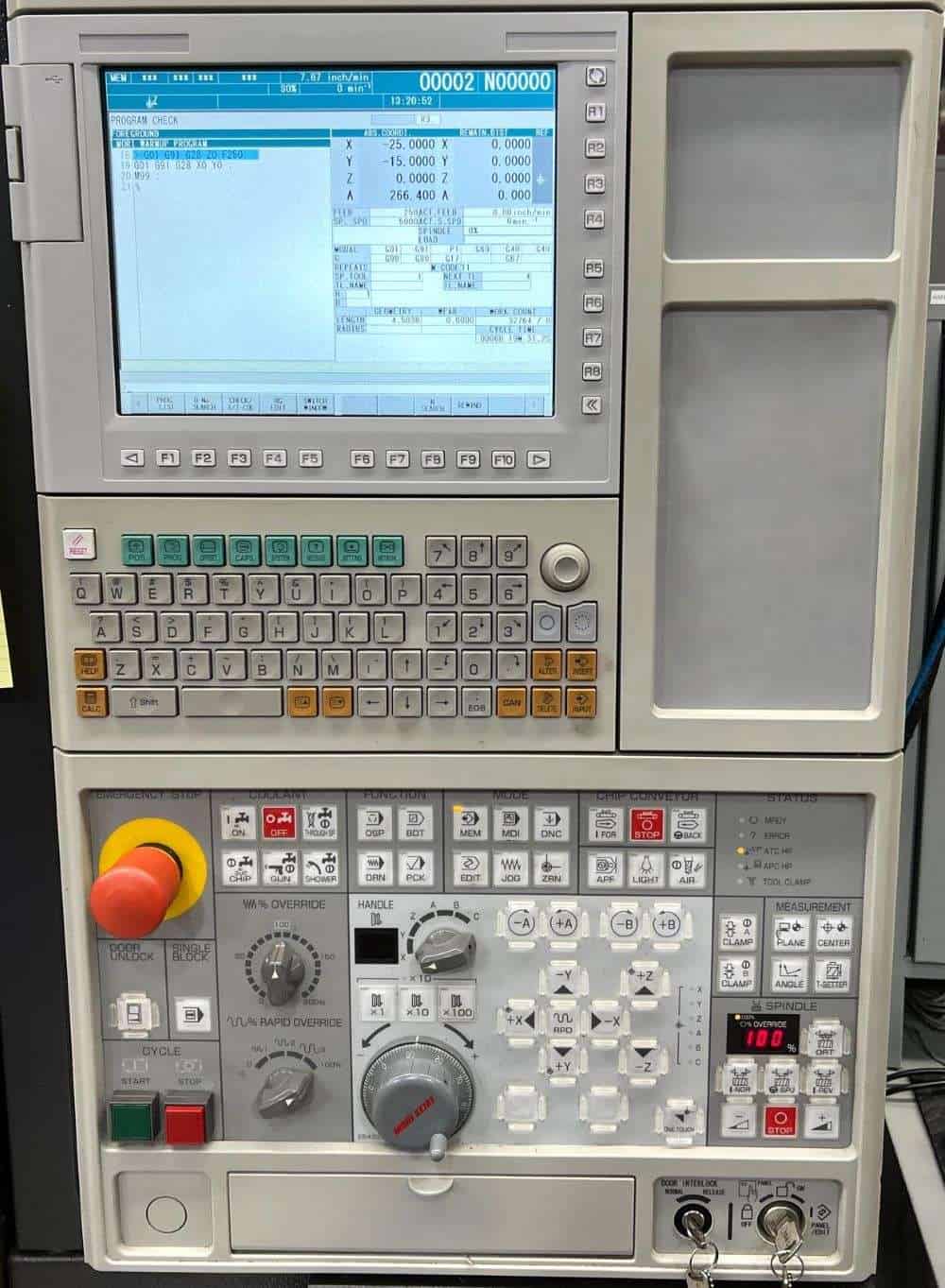

| Mori Seiki MSX-504IV Series CNC Control |

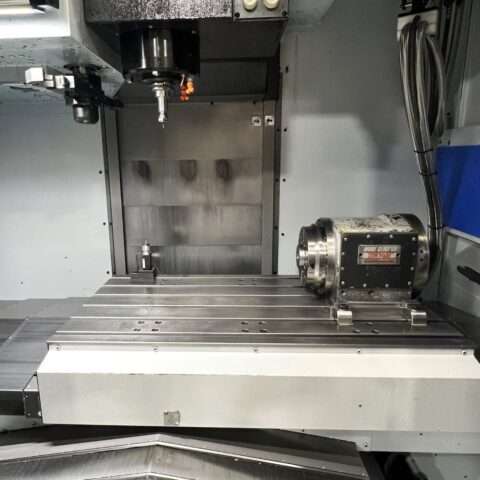

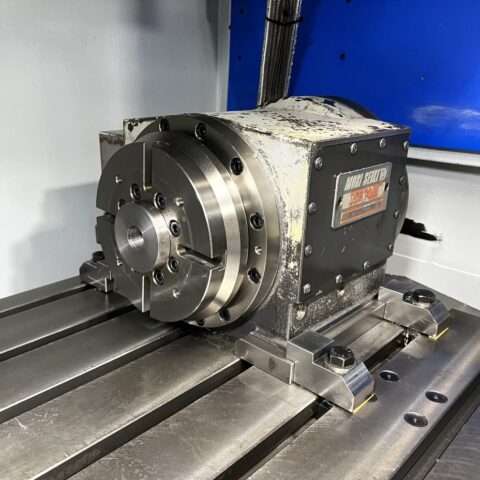

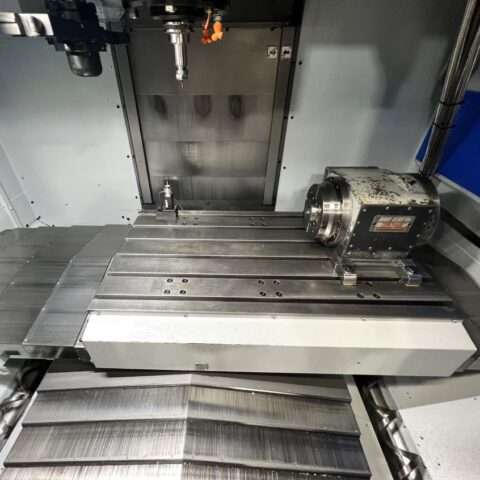

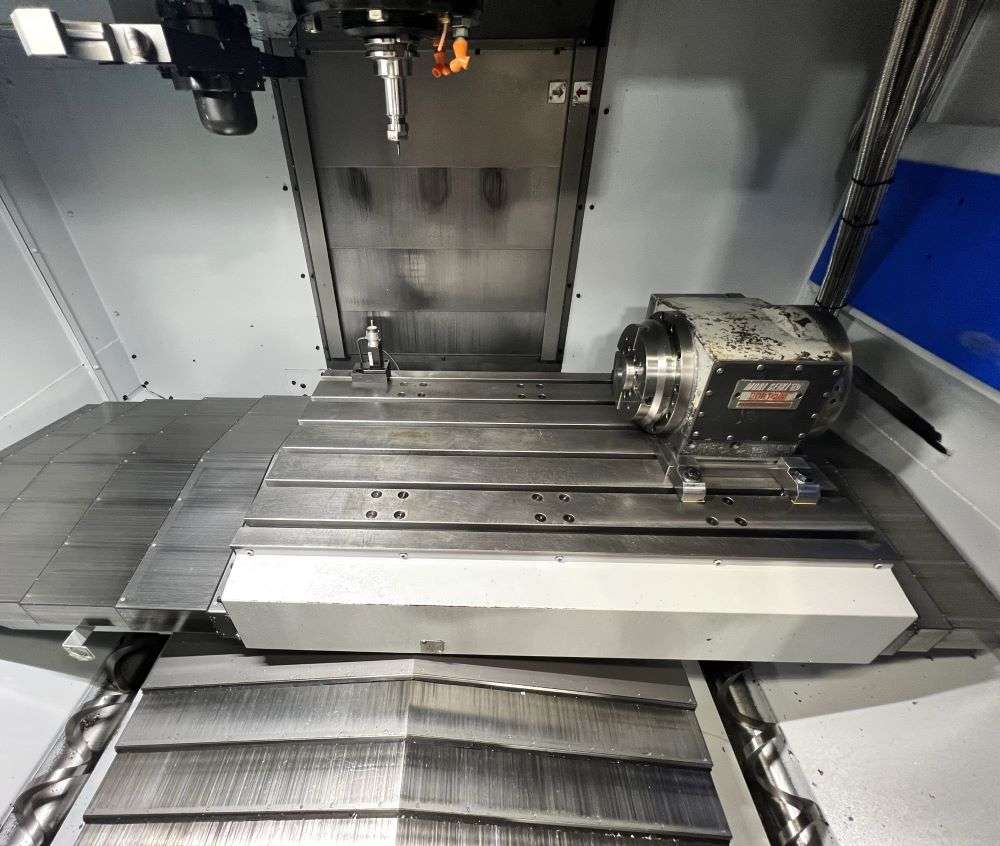

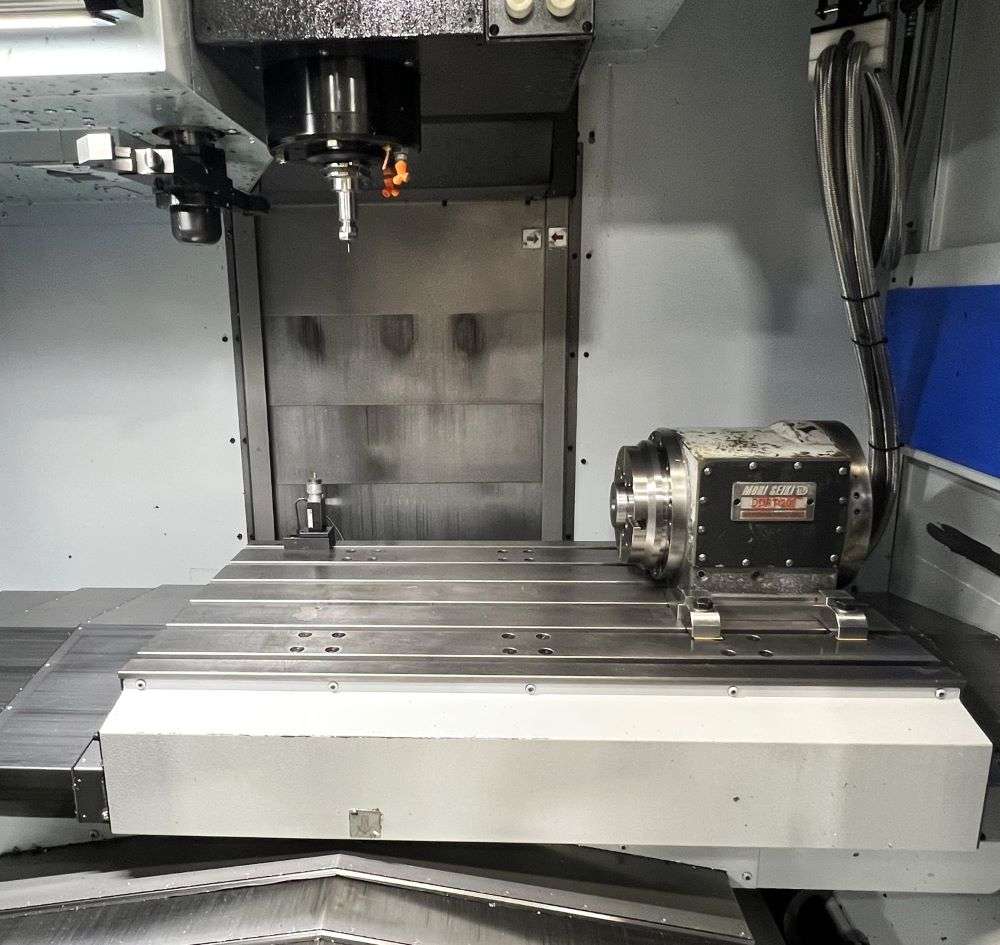

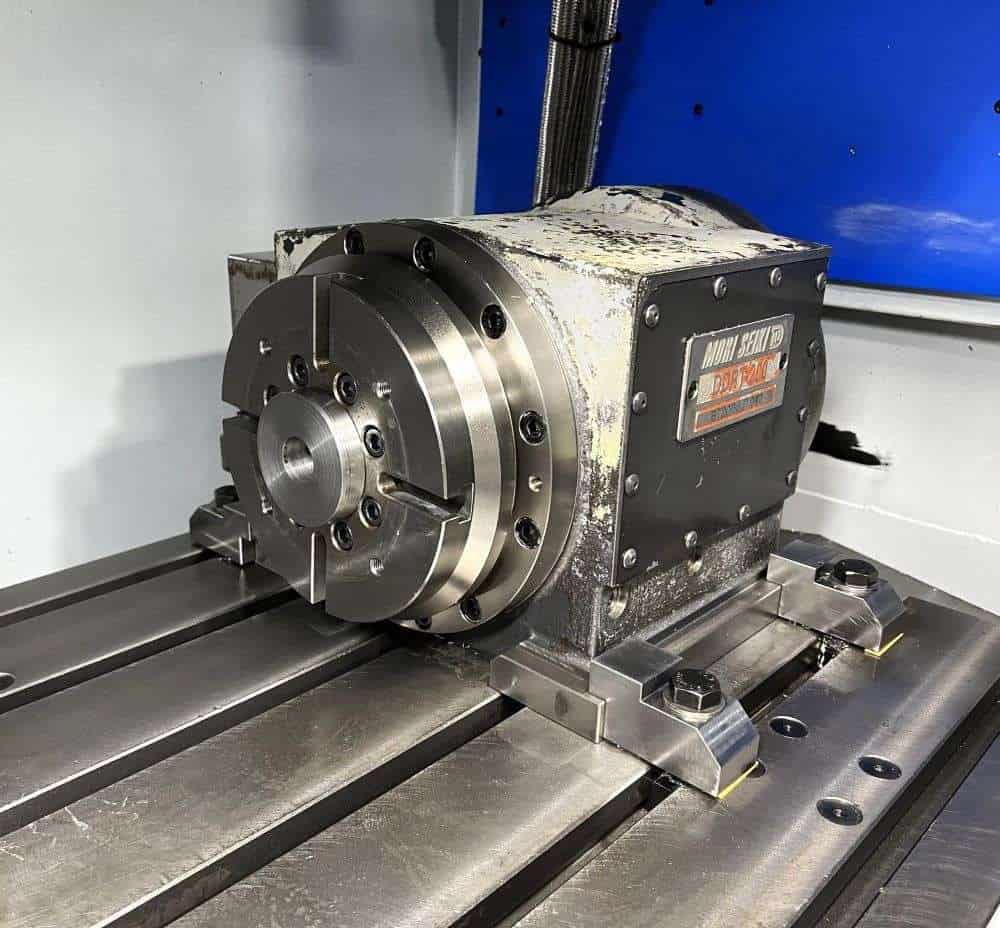

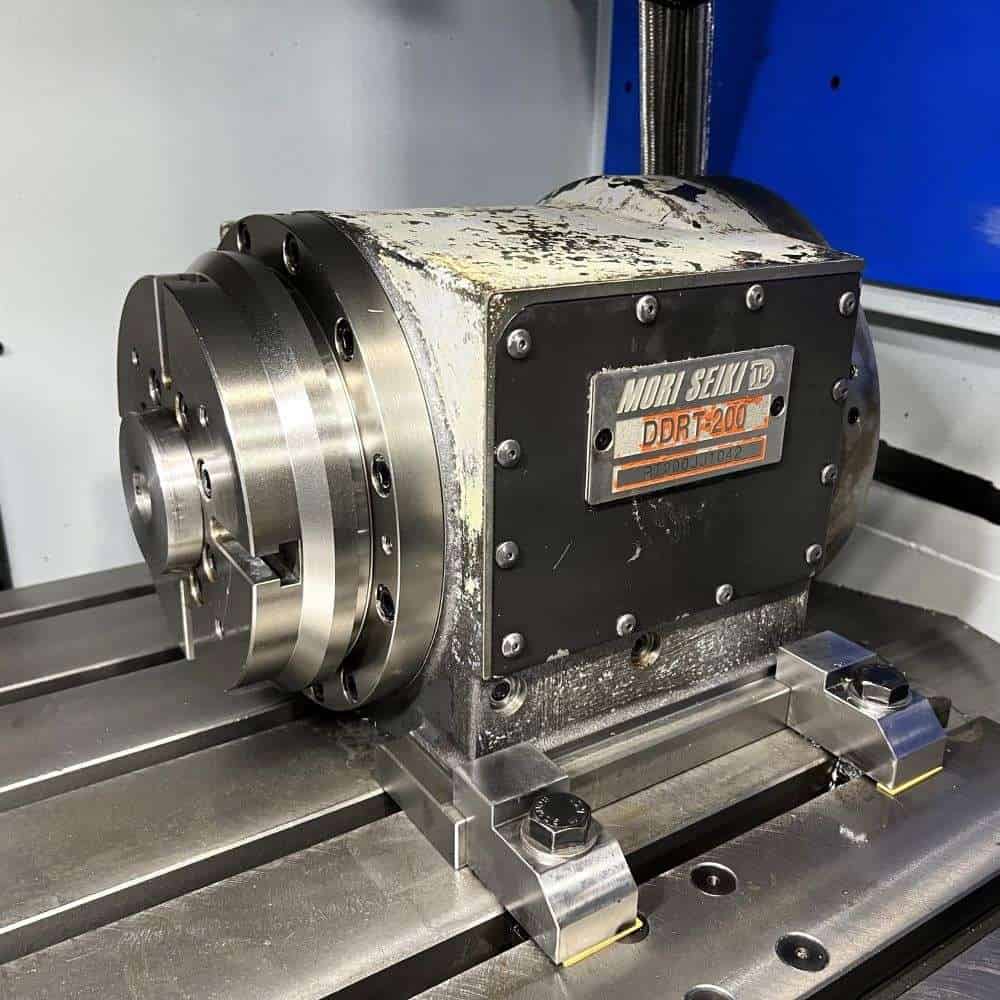

| Mori Seiki DDRT-200 4th Axis Rotary Table |

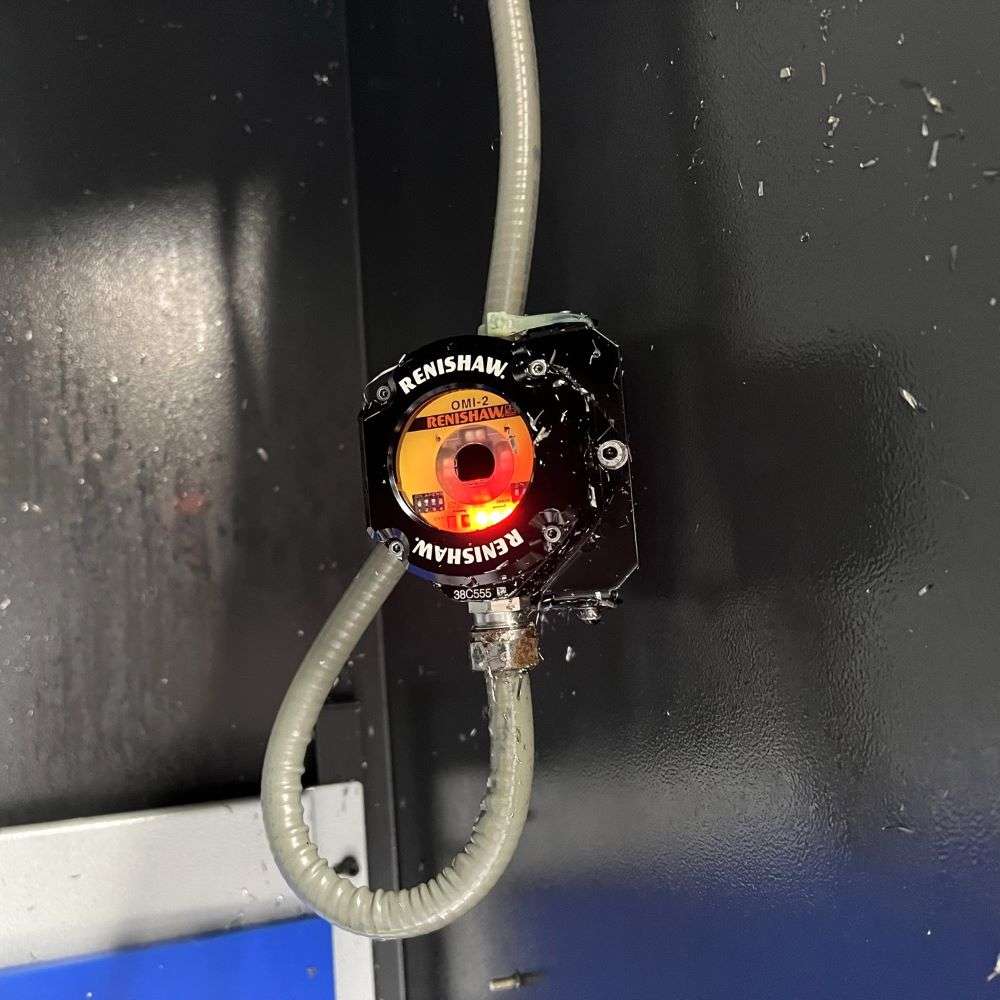

| Renishaw Probing System |
| 40 Taper 10000 RPM Spindle |
| Through Spindle Coolant |

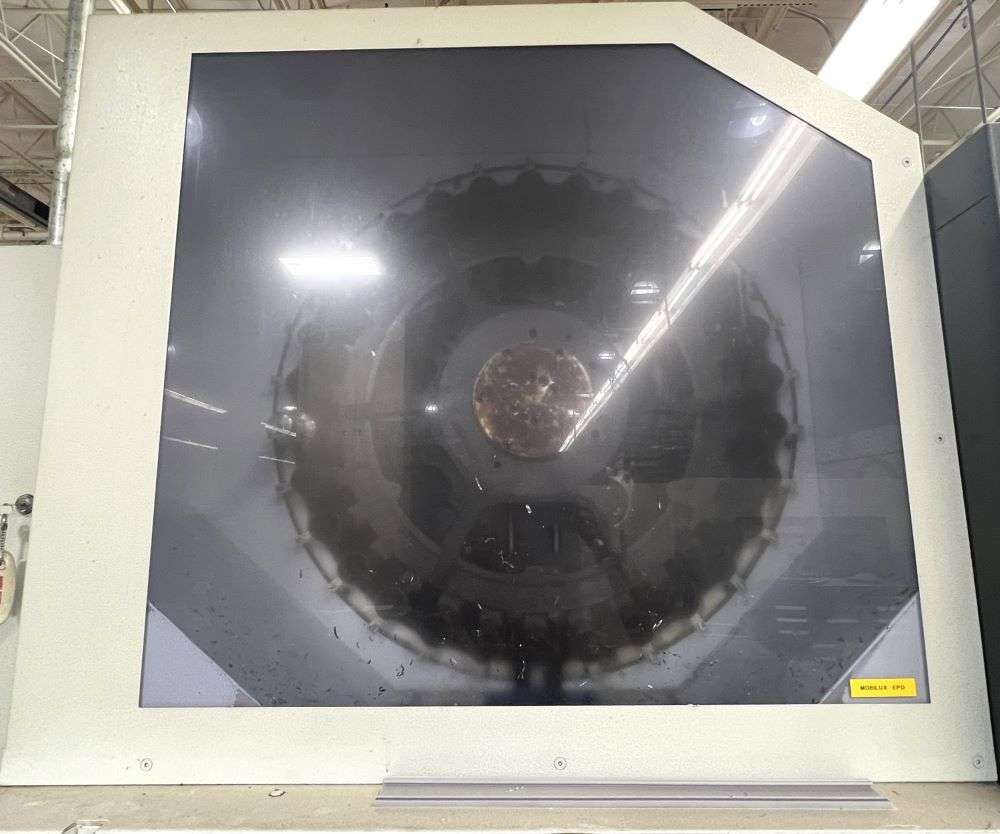

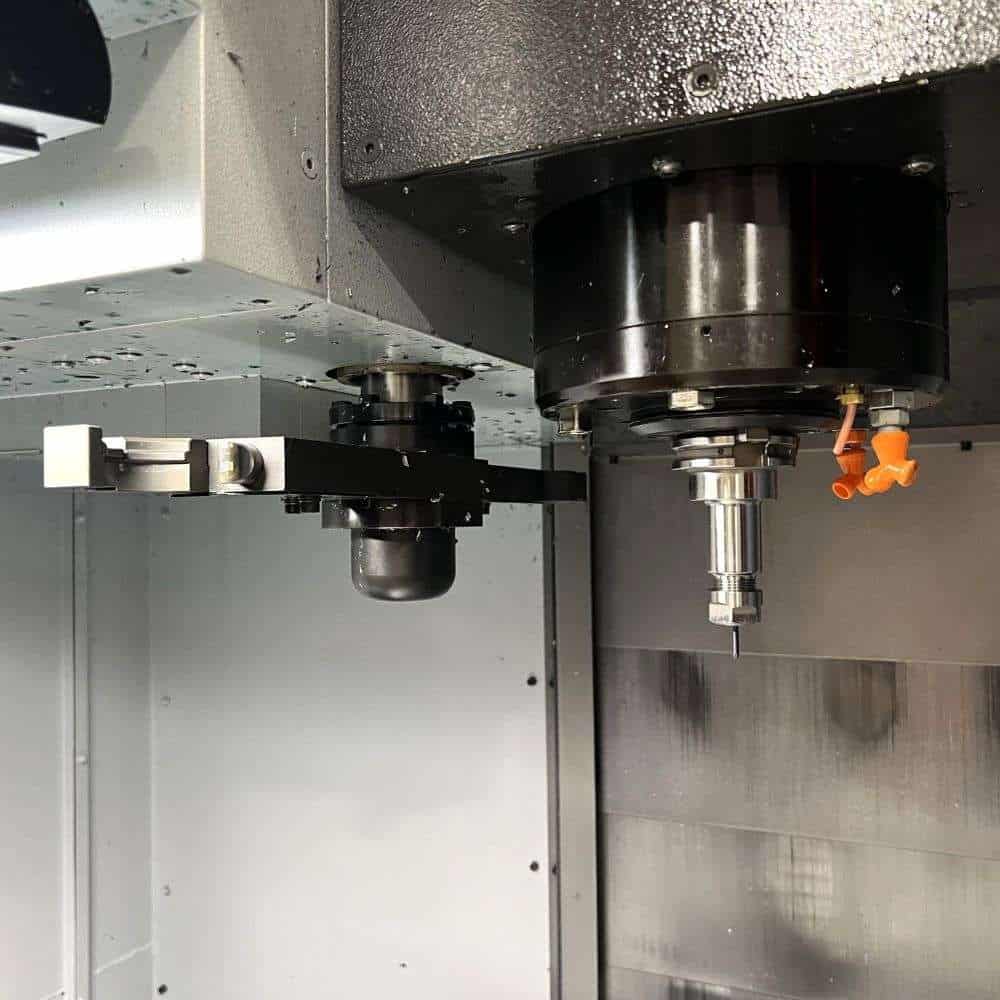

| 30 Station Side Mounted Tool Changer |
| PCMCIA Card Slot |
| Spindle Orientation |
| Rigid Tapping |

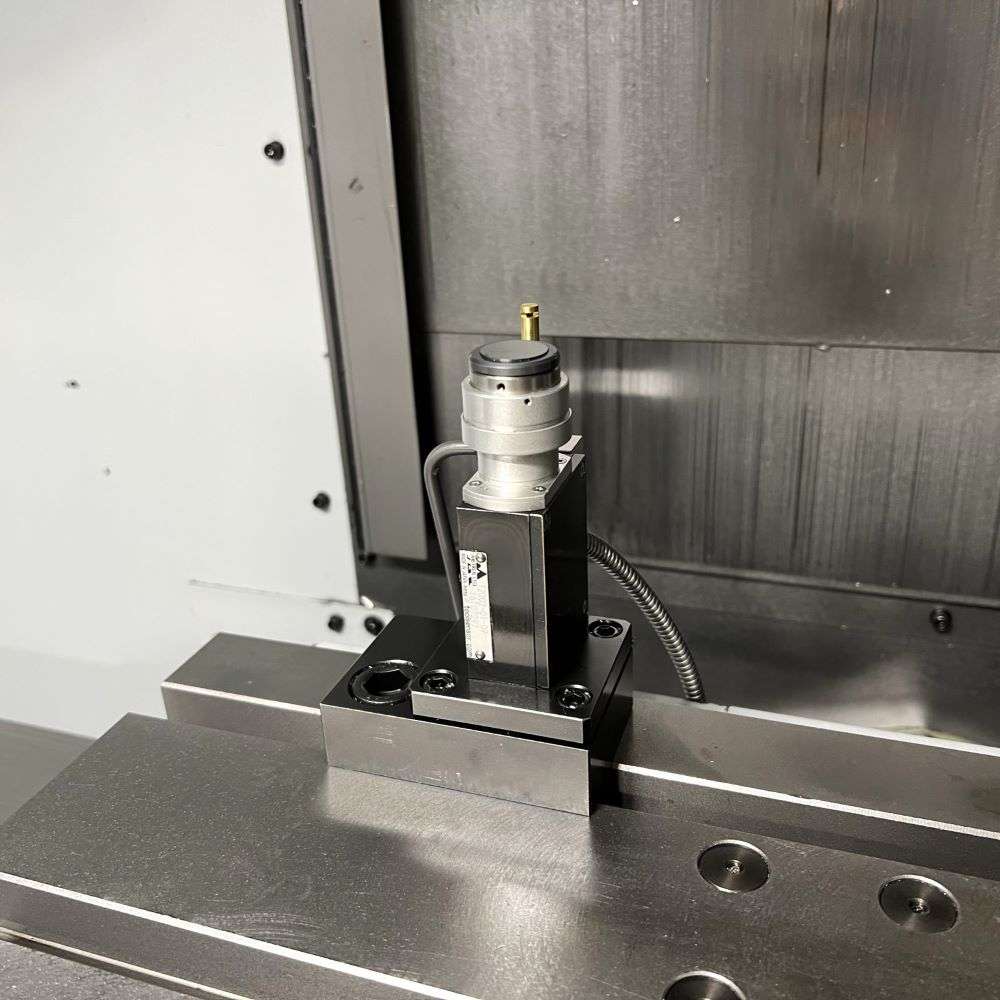

| Tool Presetter |
| Coolant tank |

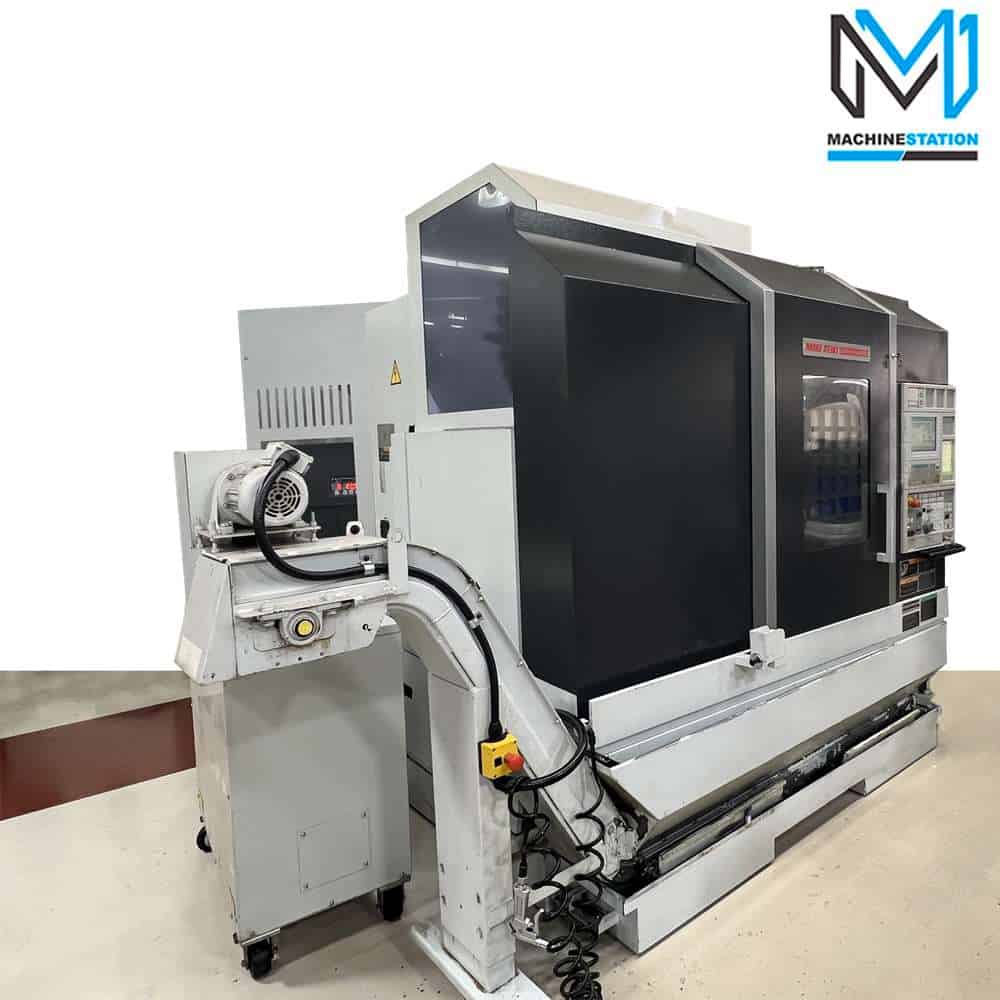

| Chip Conveyor |

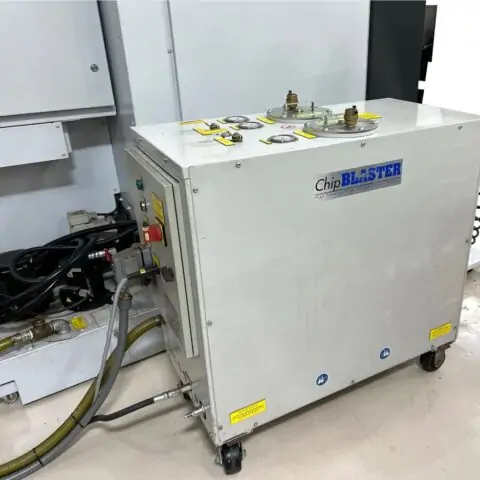

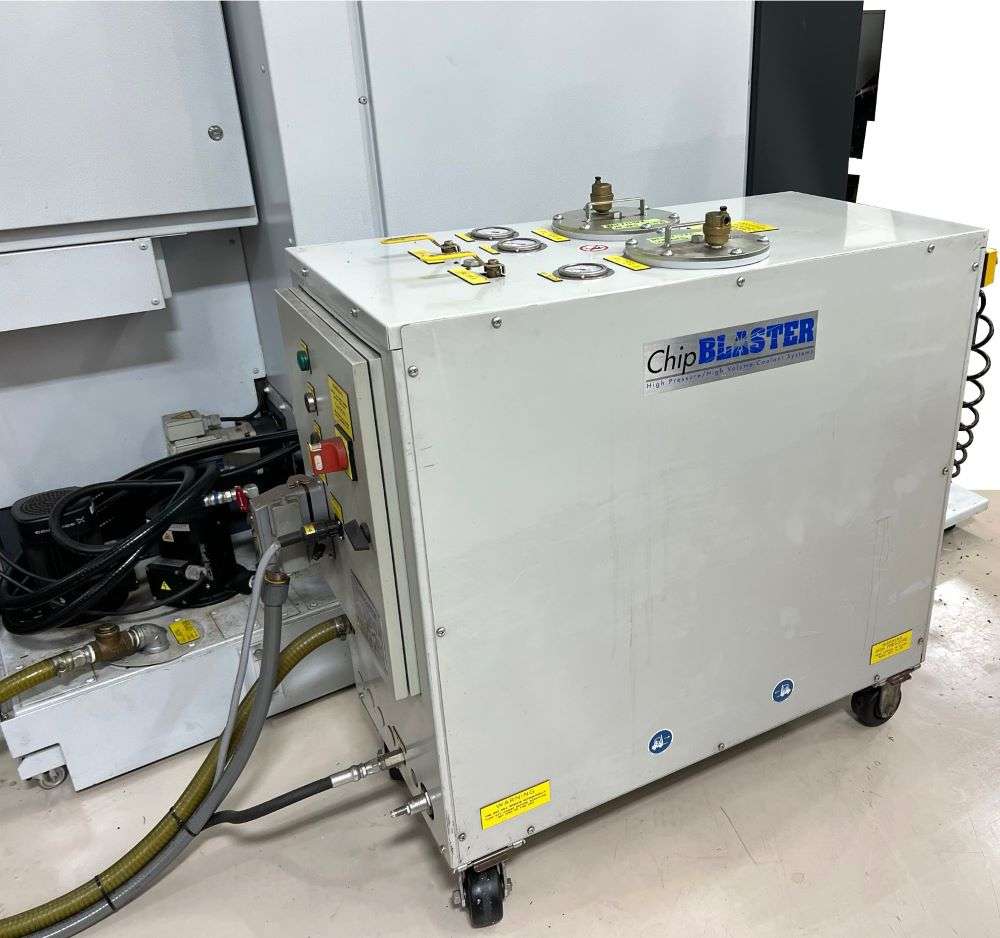

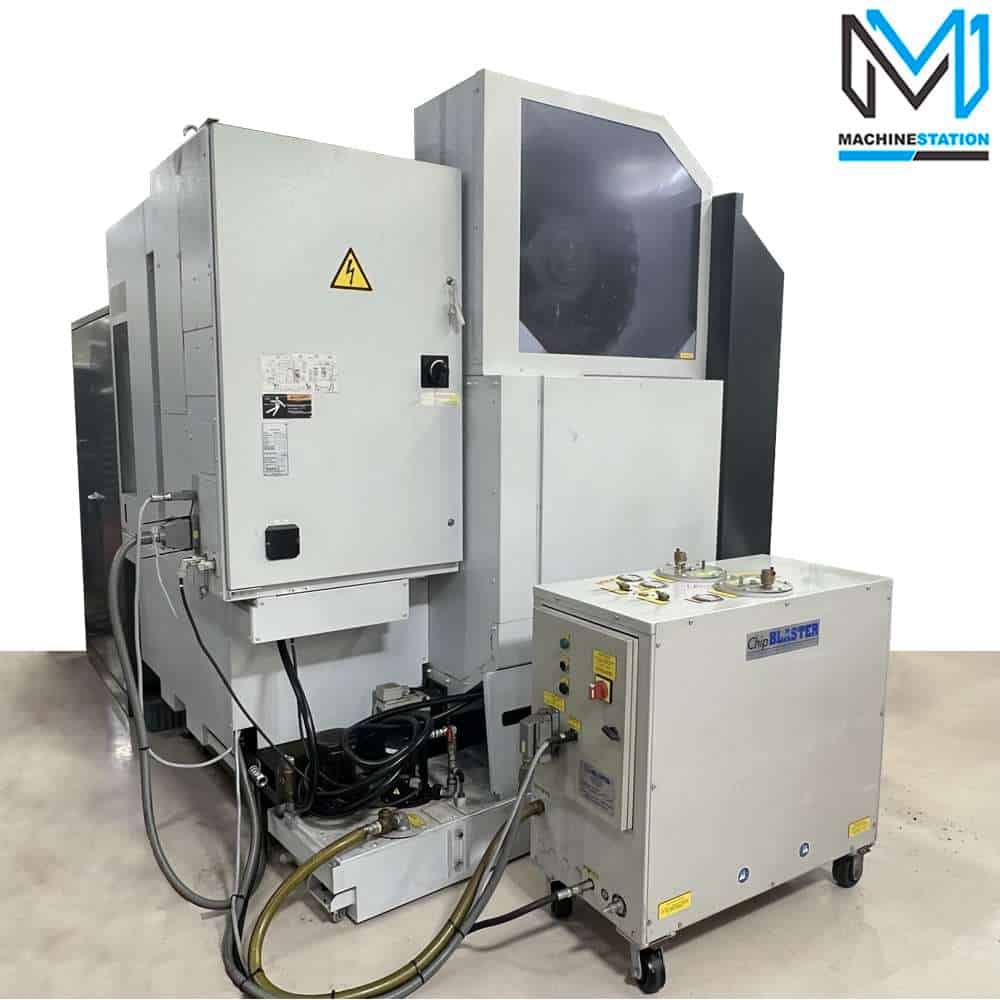

| Chip Blaster |
| Work Light |
| Travels: |
|---|
| X-Axis: 31.5″ |
| Y-Axis: 20.9″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X, Y Axis: 1417″ Per Minute |
| Rapid Traverse Rates Z Axis: 787″ Per Minute |
| Cutting Feed Rates: ″ Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″ |
| Table: |
|---|
| Length: 44.3″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1760 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station |
| Tool Weight: 17.63 lbs |
| Max Tool Dia: 4.9″ |
| Max Tool Length: 11.8″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

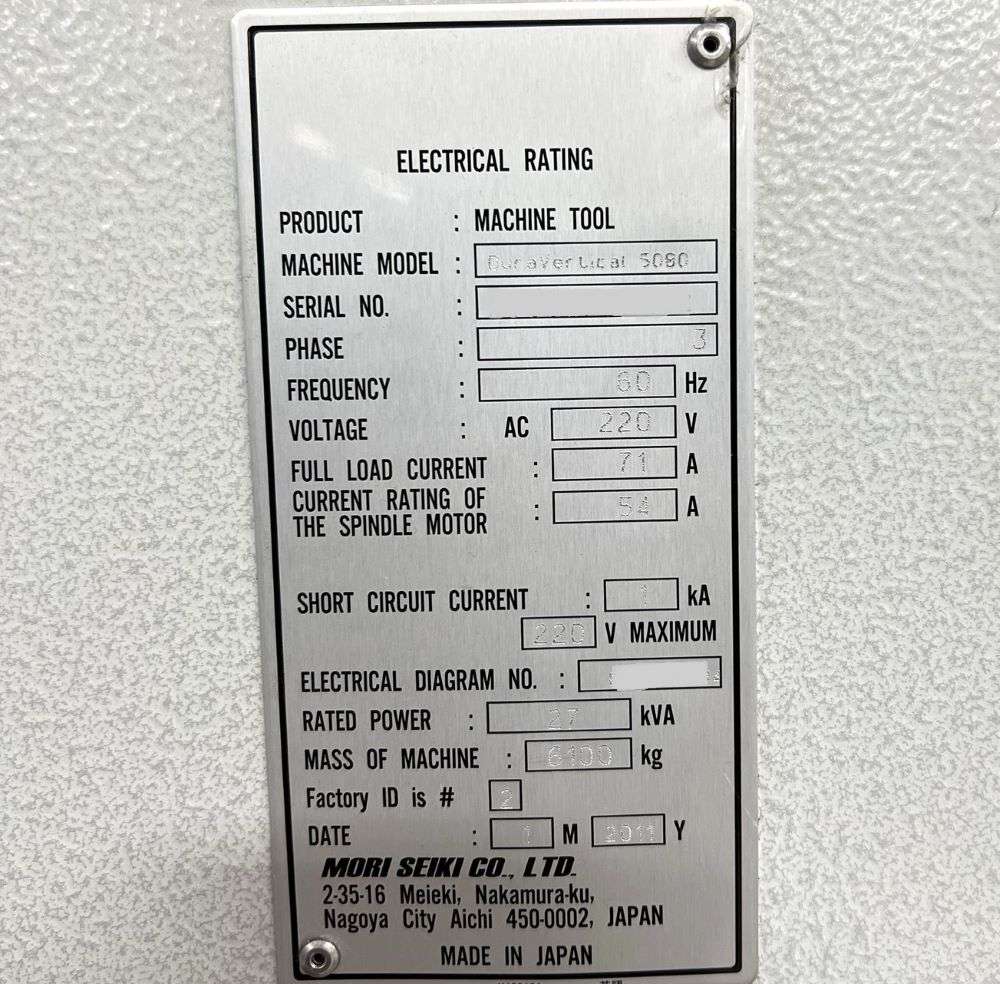

| Power: 220v / 27 kva / 3-Phase |
| Overall Dimensions: 85″ x 95″ x 105″ High |
| Weight: 14,110 lbs |
