Mori Seiki Frontier L-II CNC Turning Center

Out of stock

One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 10″ Chuck, Tool holders, Tailstock, Chuck.”

SKU: 1556
Make/Model: Mori Seiki Frontier L-II
Video: [fusion_button link=”https://www.youtube.com/watch?v=h-G0NuJKmw8″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1556

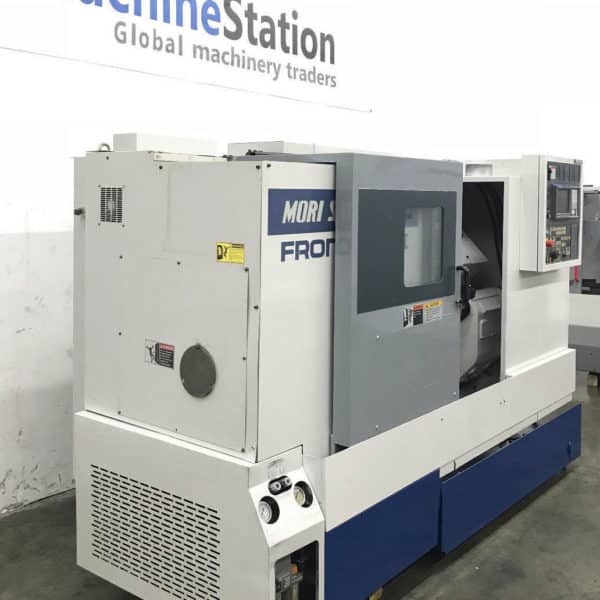

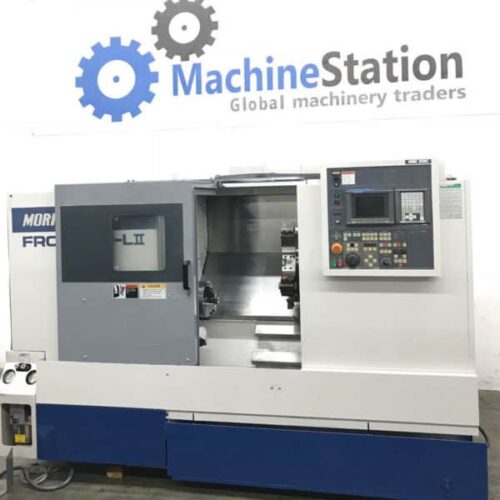

MORI SEIKI FRONTIER L-II CNC TURNING CENTER
Make Mori Seiki
Model No. Frontier L-II
Country of Origin: Japan
Serial # 7749
Condition Very Good

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 10″ Chuck, Tool holders, Tailstock, Chuck.”

  • MORI SEIKI FRONTIER L-II Equipped With:

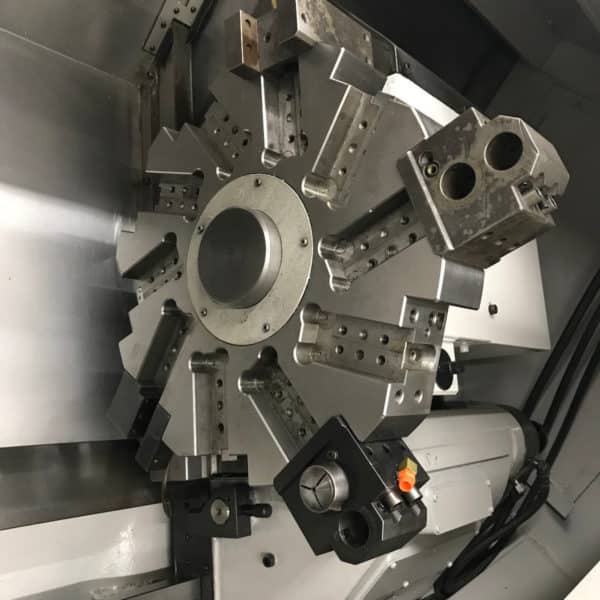

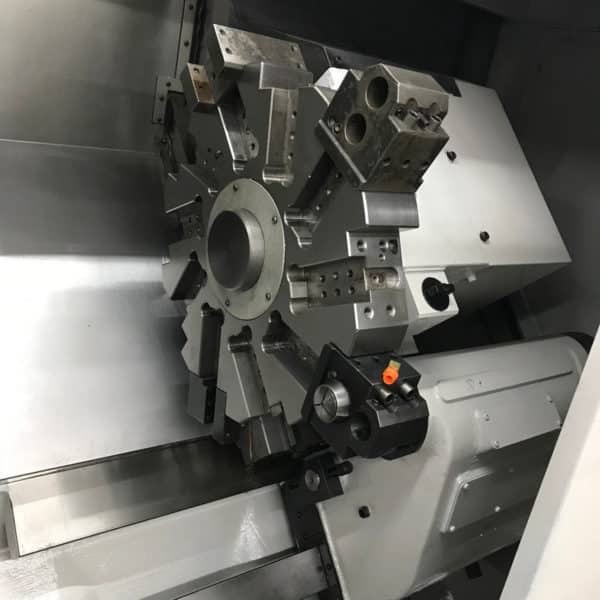

  • 10-Station Turret with Tools

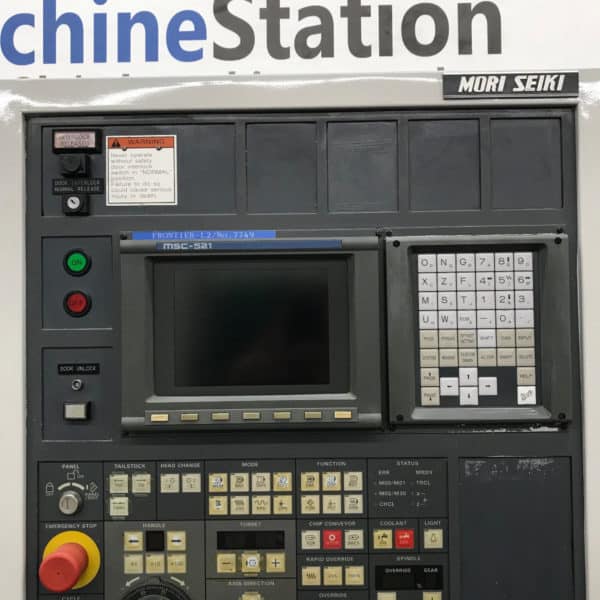

  • MSC-521 (Fanuc 21T) CNC Control
  • Tool Presetter

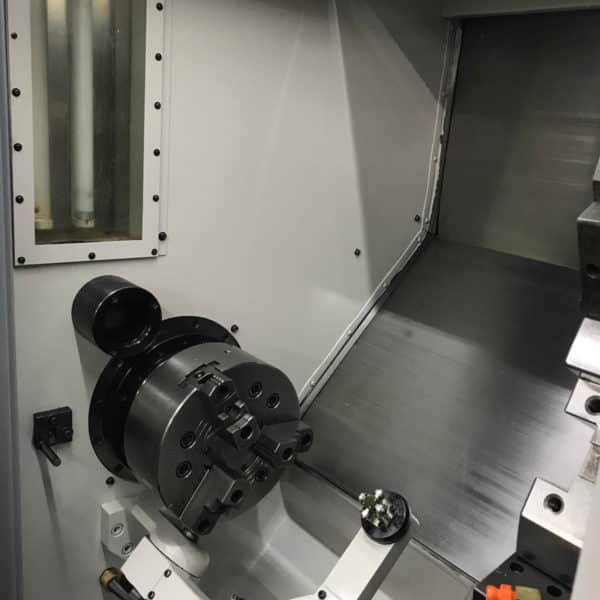

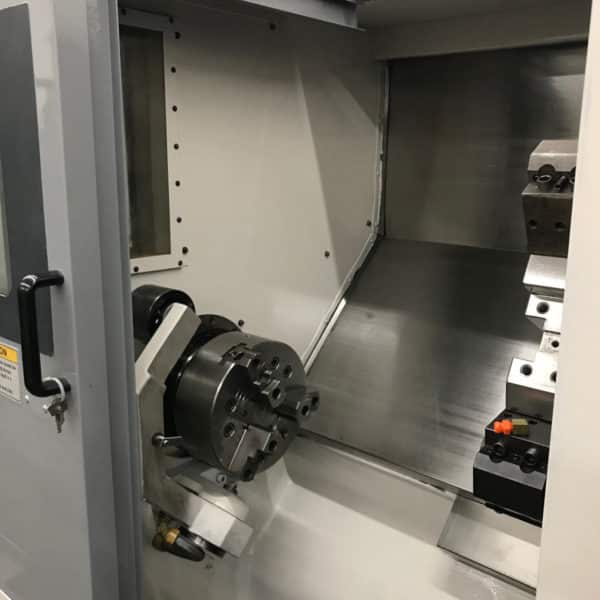

  • 10″ 3-Jaw Kitagawa Hydraulic Chuck
  • 2 Step gear spindle for powerful torque
  • Hydraulic Tailstock with Power Quill
  • Chip Pan
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck
  • General:

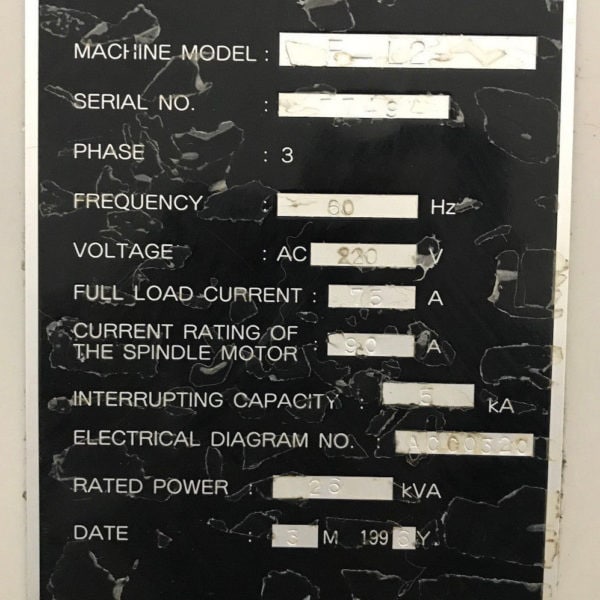

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 68 Amps
  • verall Dimensions: 110″ x 68″ x 80″ High
  • Weight : 12000 lbs Approx.
  • MORI SEIKI FRONTIER L-II Specifications:
  • Max Turning Diameter: 10.2″
  • Max Turning Length: 20.9″
  • Max Bar Capacity: 2.65″
  • Swing Over Slide: 13.8″
  • Swing Over Bed: 22.4″
  • Distance Between Centers: 24.6″
  • X Axis Travel: 14.9″
  • Z Axis Travel: 23.2″
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.1″
  • Spindle Speed: 3500 RPM
  • Spindle Motor: 20 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock Body Travel: 19.3″
  • Tailstock Quill Dia.: 4.33″
  • Tailstock Quill Stroke: 3.93″
  • Tailstock Taper: MT-4

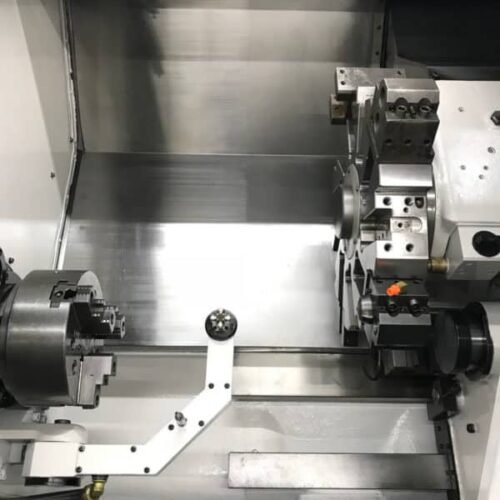

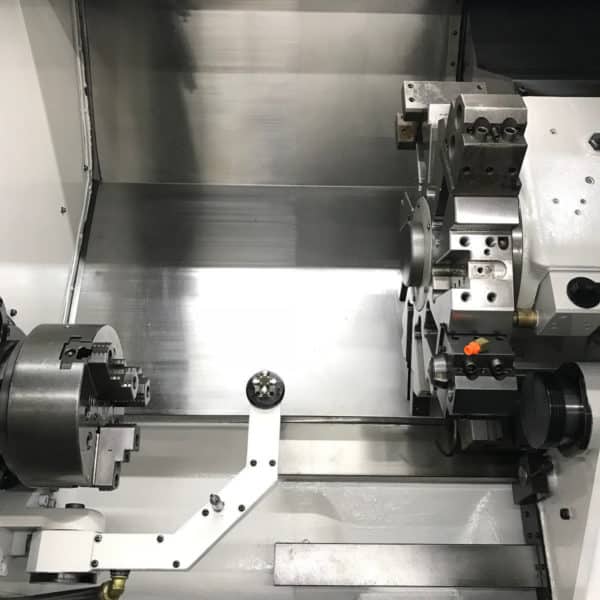

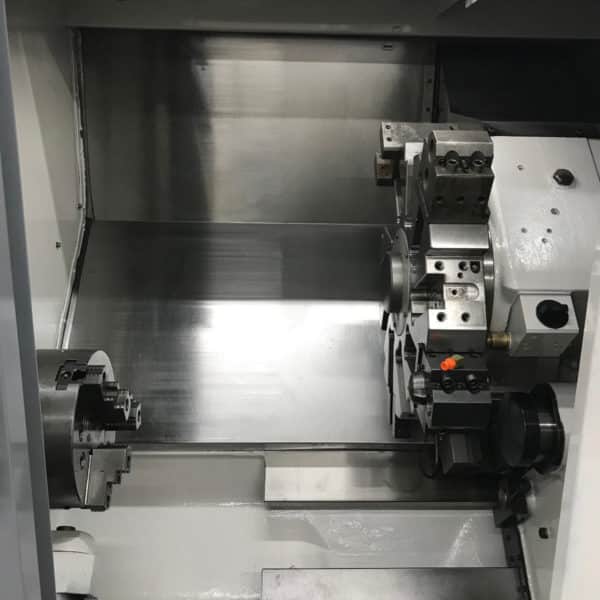

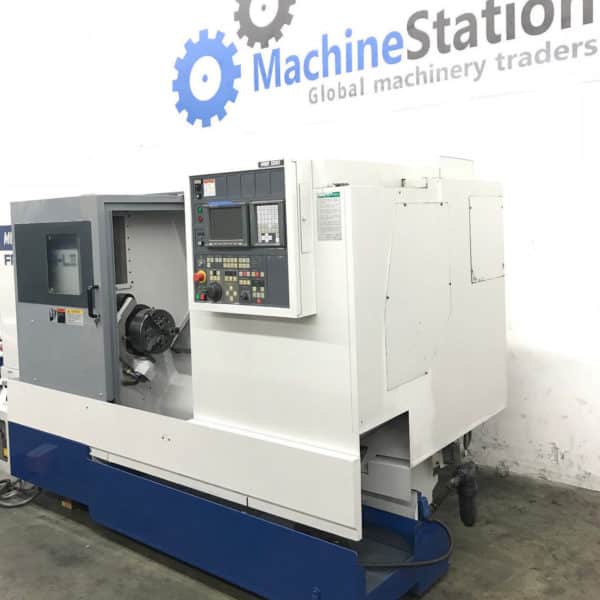

MORI SEIKI FRONTIER L-II Comes as shown in pictures.
