*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

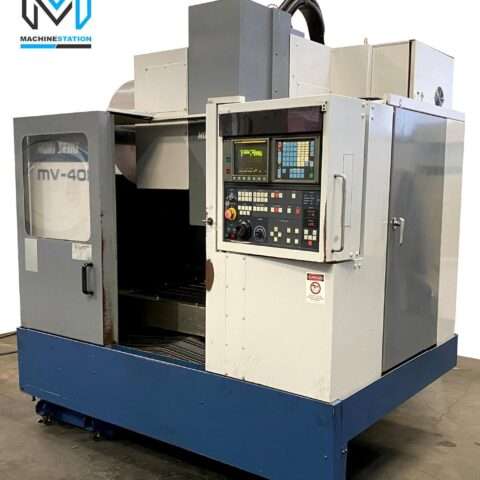

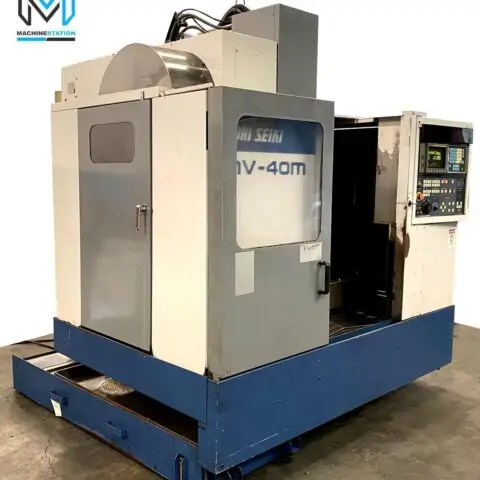

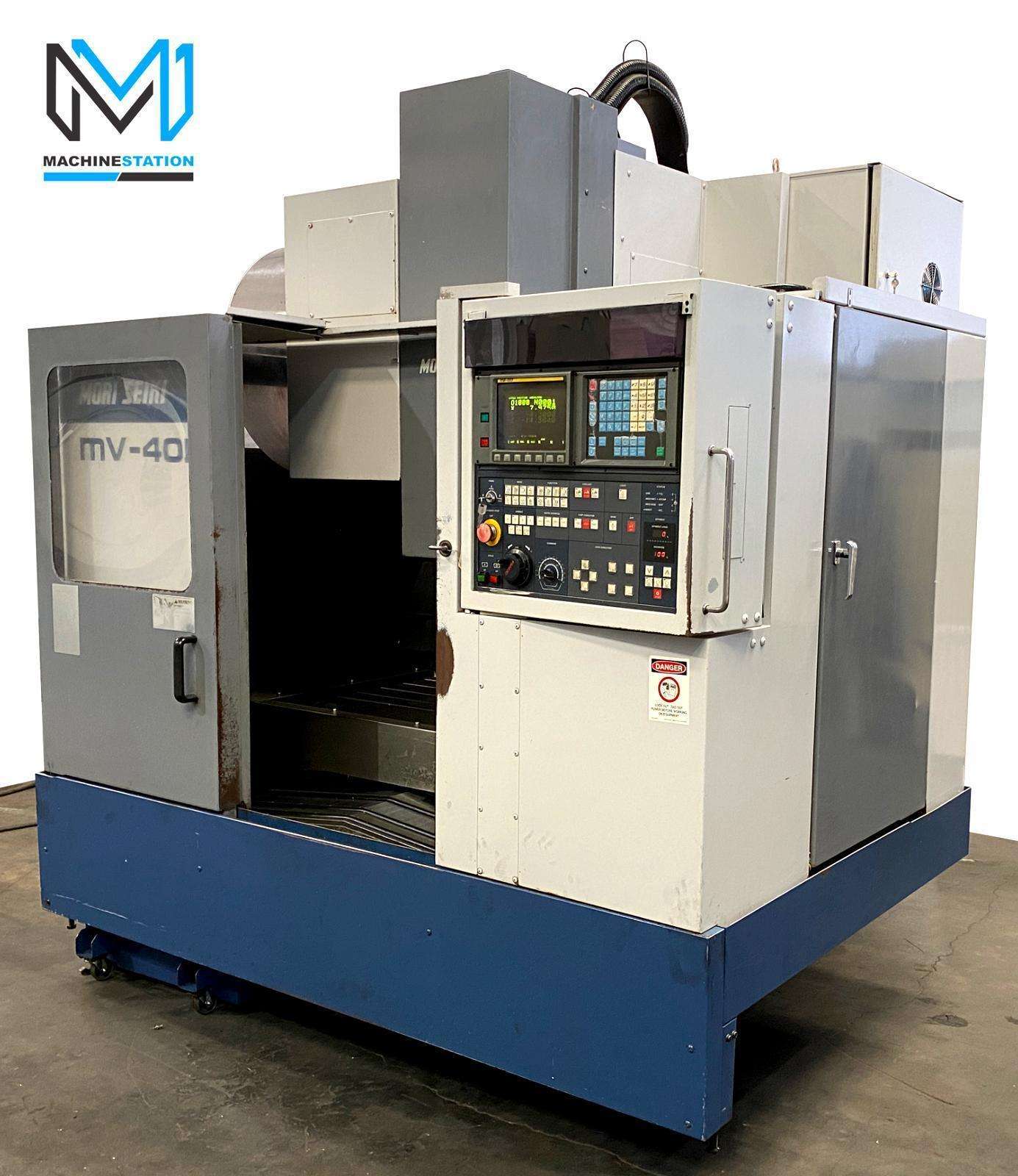

| Make: | MORI SEIKI |
| Model: | MV-40M |
| Year: | 1993 |
| Condition: | Used – Good |
| Features: |
|---|

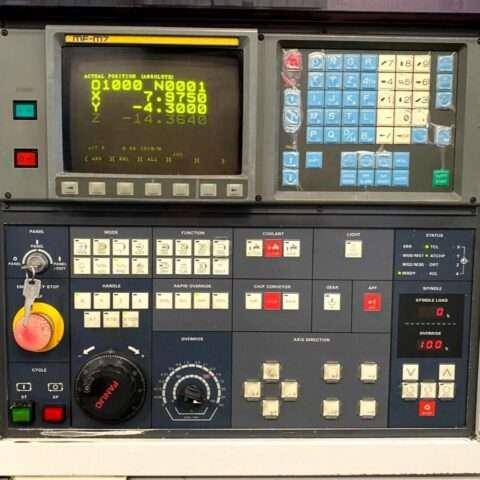

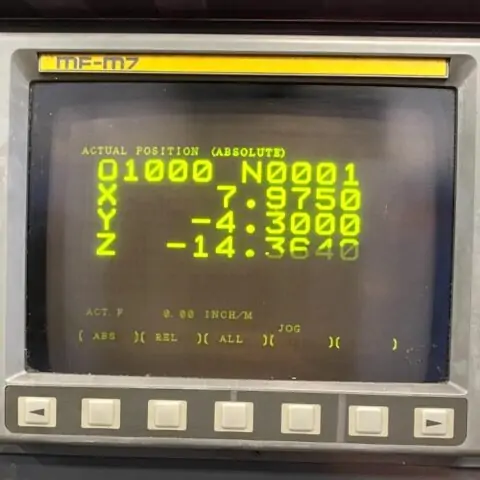

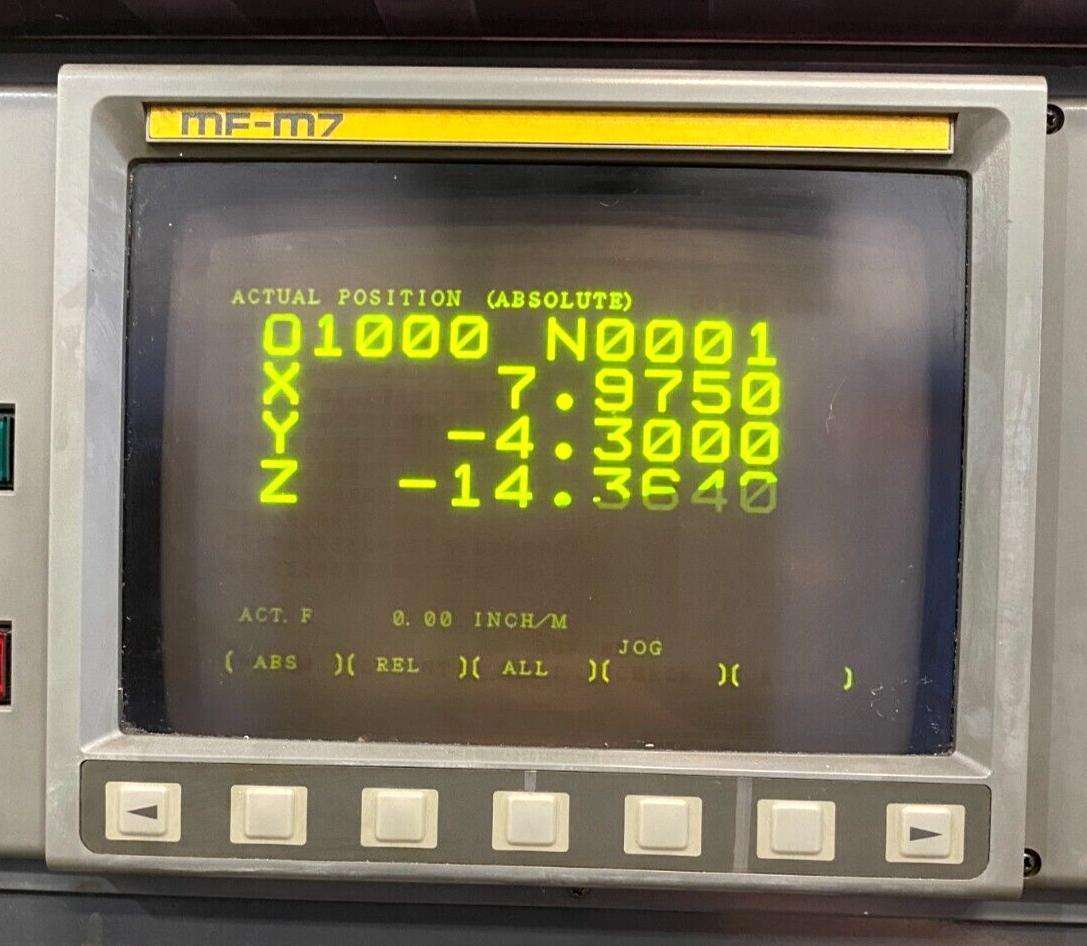

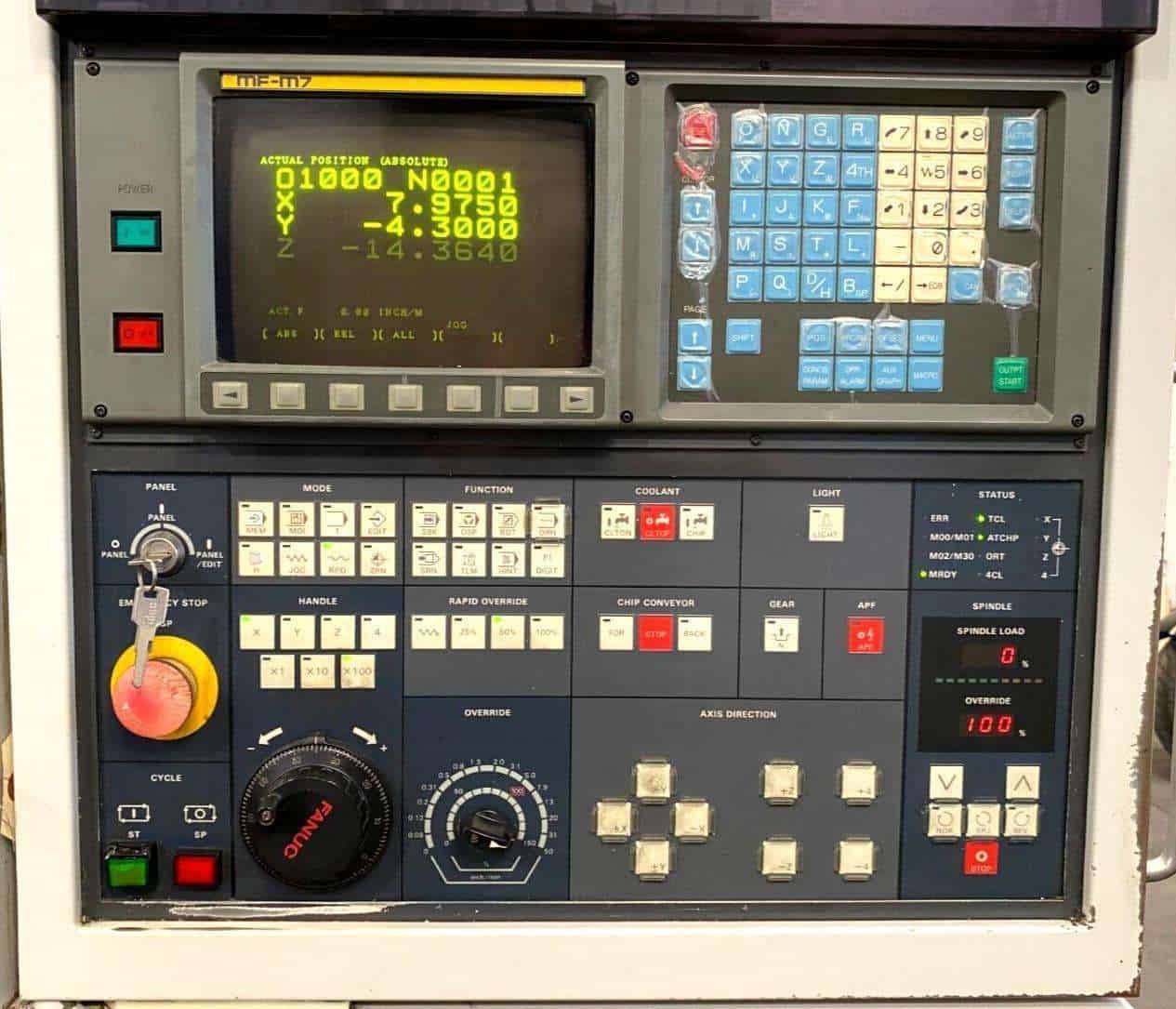

| MF-M7 ( FANUC ) CNC Control |
| 40 Taper 8000 RPM Spindle |

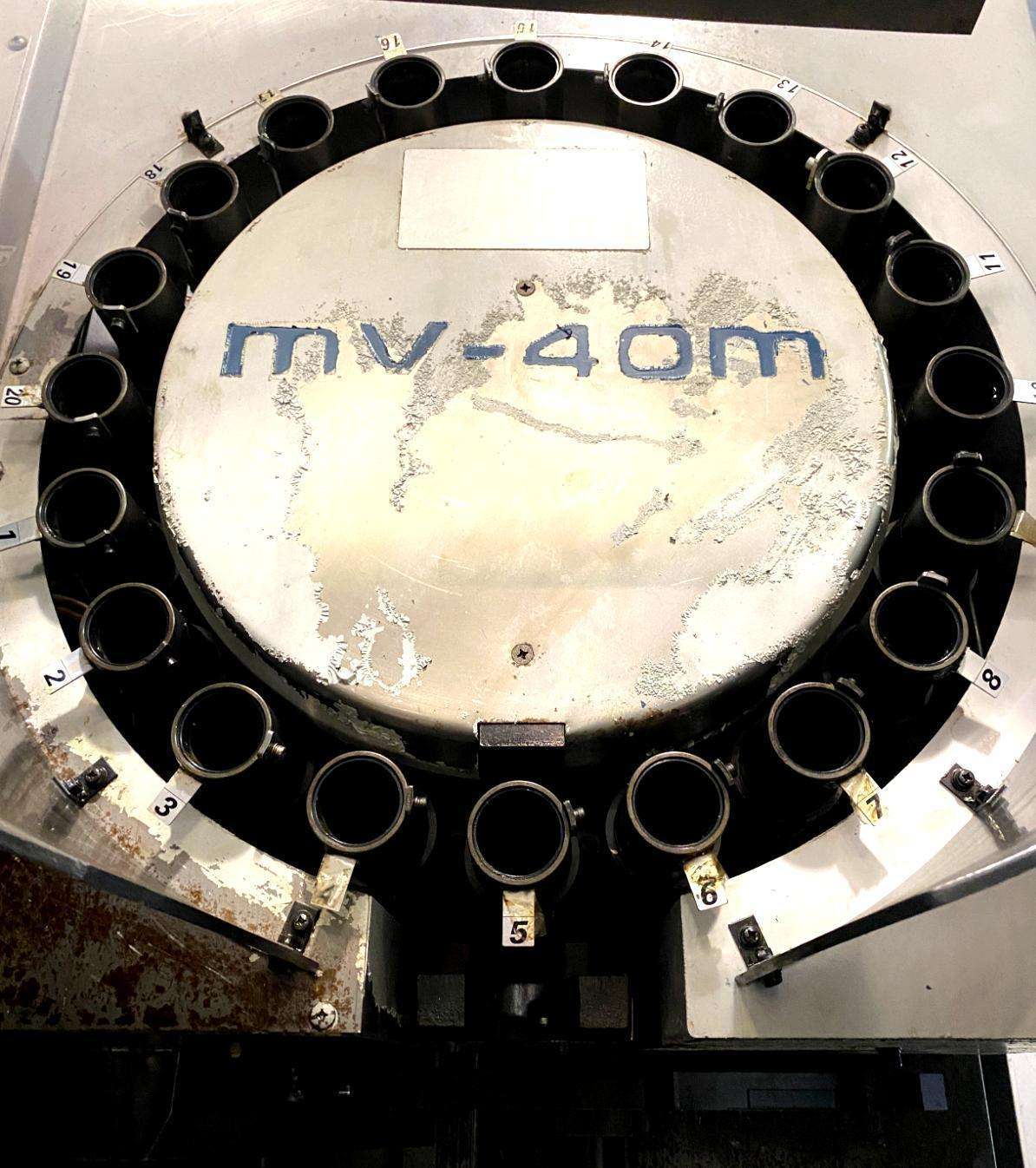

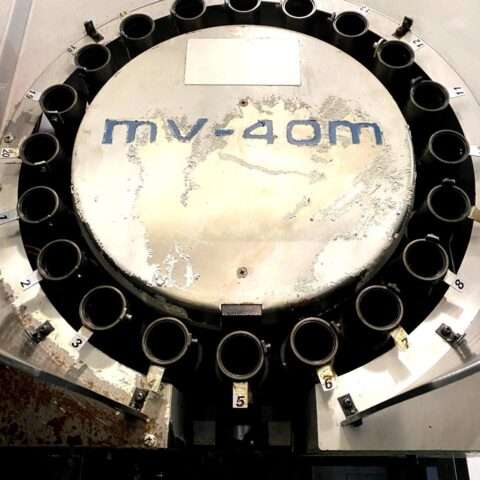

| 20 Station Side Mounted Tool Changer |
| Box Ways Construction |
| MPG Control |
| RS-232 Port |
| Spindle Orientation |
| Rigid Tapping |
| Coolant System with tank |
| Work Light |
| Books & Manuals |
| Travels: |
|---|
| X-Axis: 22.0″ |
| Y-Axis: 16.1″ |
| Z-Axis: 18.1″ |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 24.0″ |

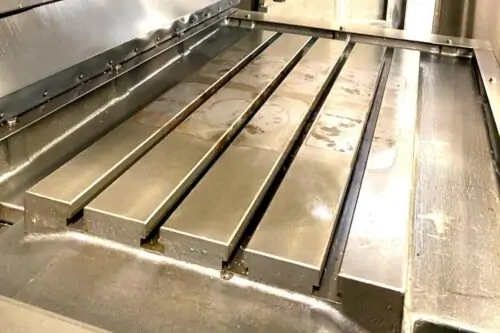

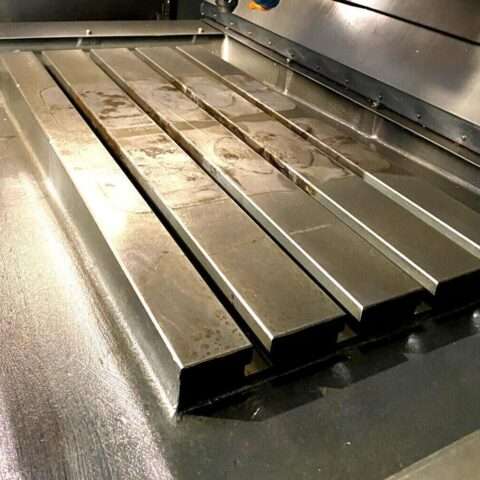

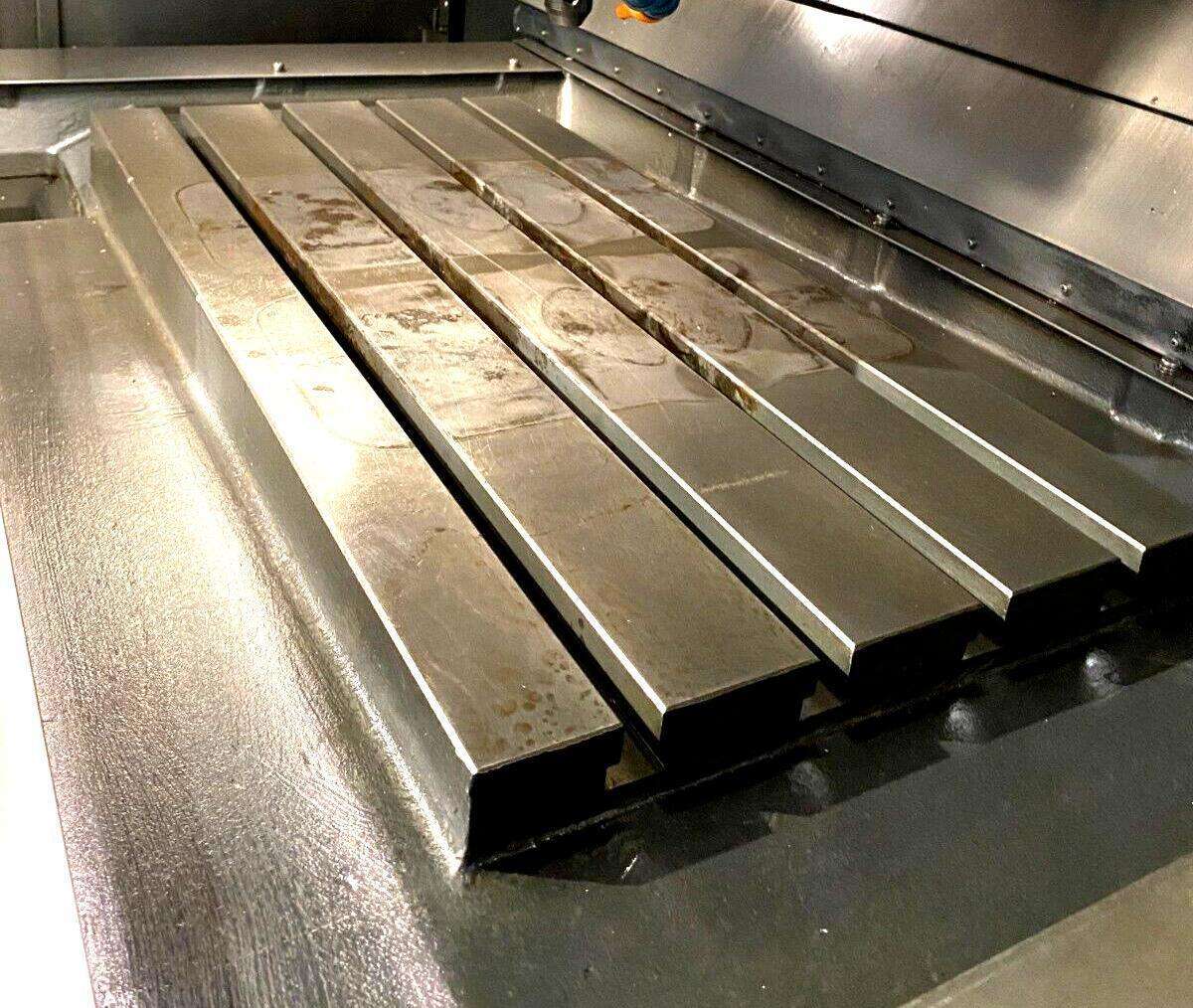

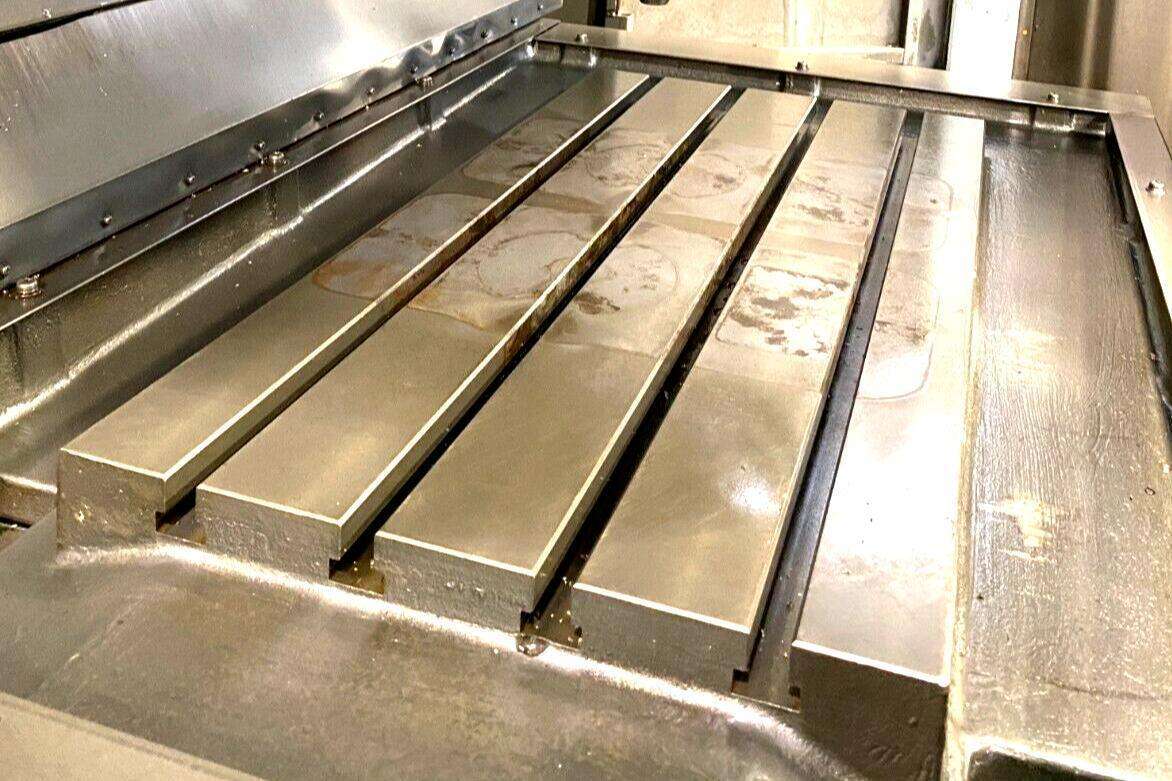

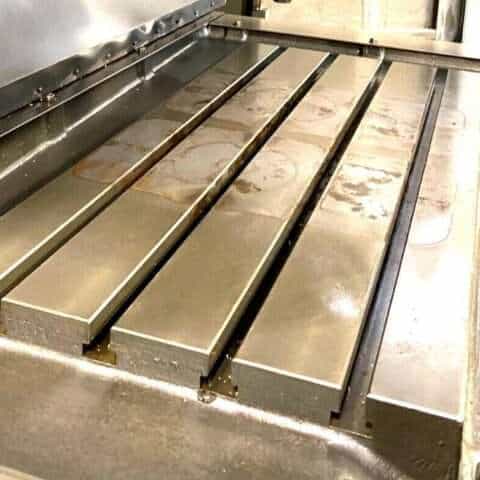

| Table: |
|---|
| Length: 35.4″ |
| Width: 17.7″ |
| Max Weight on Table: 1543 lbs |

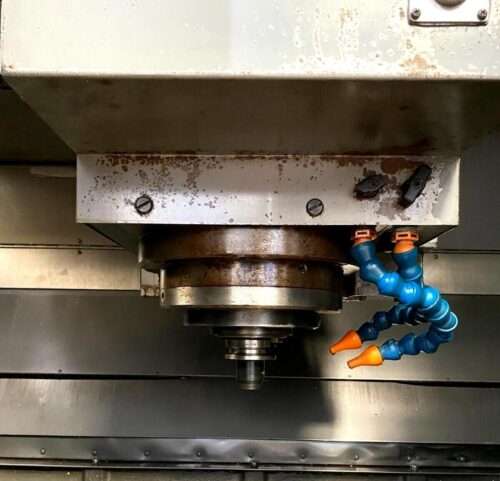

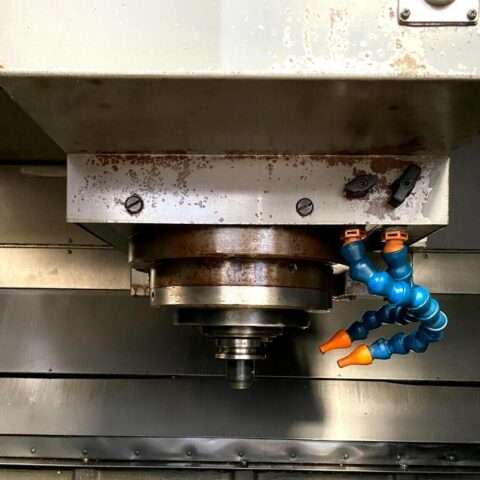

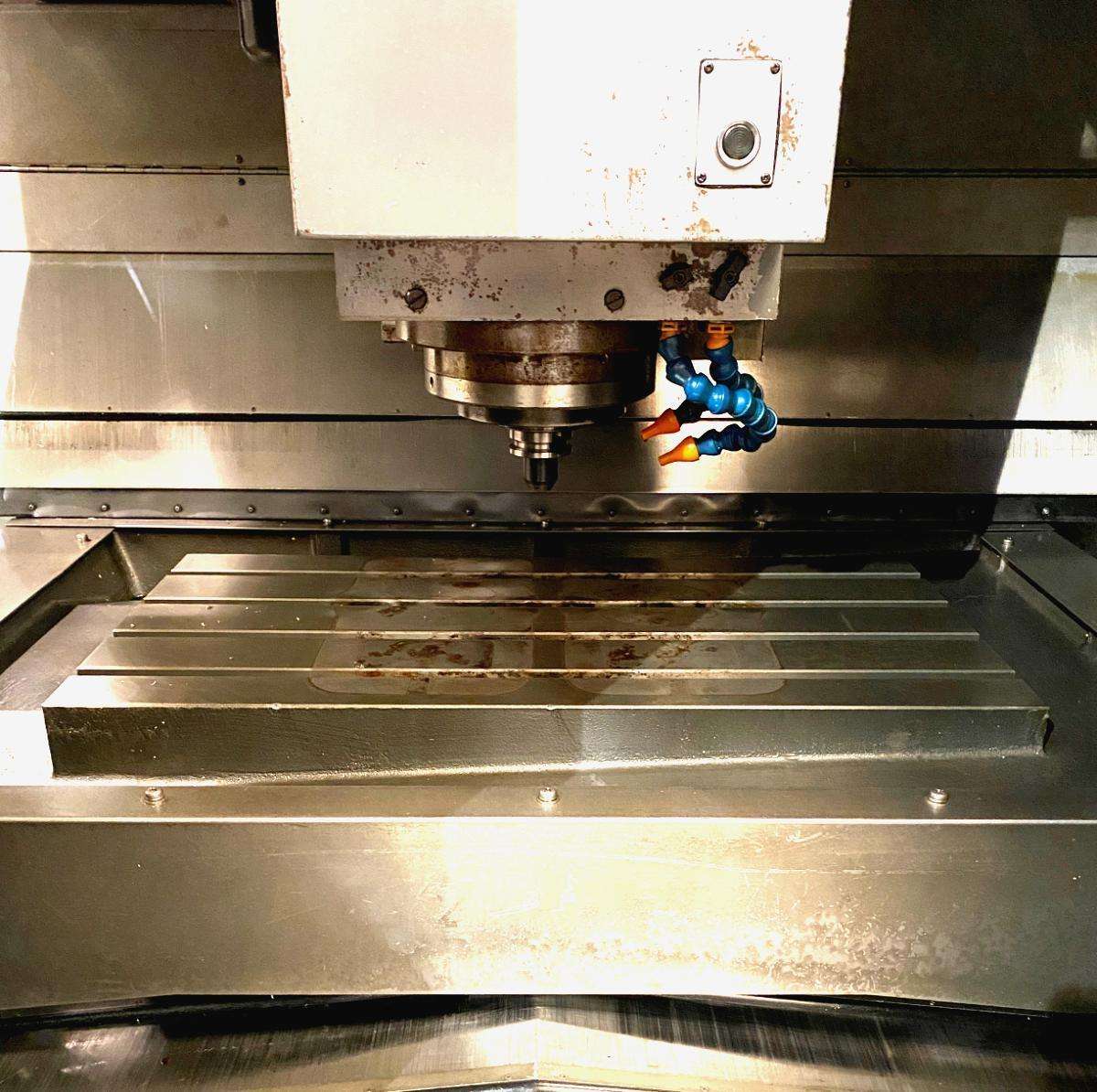

| Spindle: |
|---|
| Taper Size: BT-40 |
| Speed Range: 8000 RPM |
| Spindle Power: 15 HP |
| Feed Rate: |
|---|
| Rapid X Y & Z: 787 IPM |
| Cutting Feed rate: 393 IPM |
| Automatic Tool Changer: |
|---|
| 40 Taper |
| Capacity: 20 |
| Max Tool Weight: 15 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 4.9″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 205-220v / 66FLA / 3-Phase |
| Overall Dimensions: 87″ L X 90″ W X 108″ High |
| Weight: 8580 lbs |
| “No Charges for loading at list Price” |
