*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

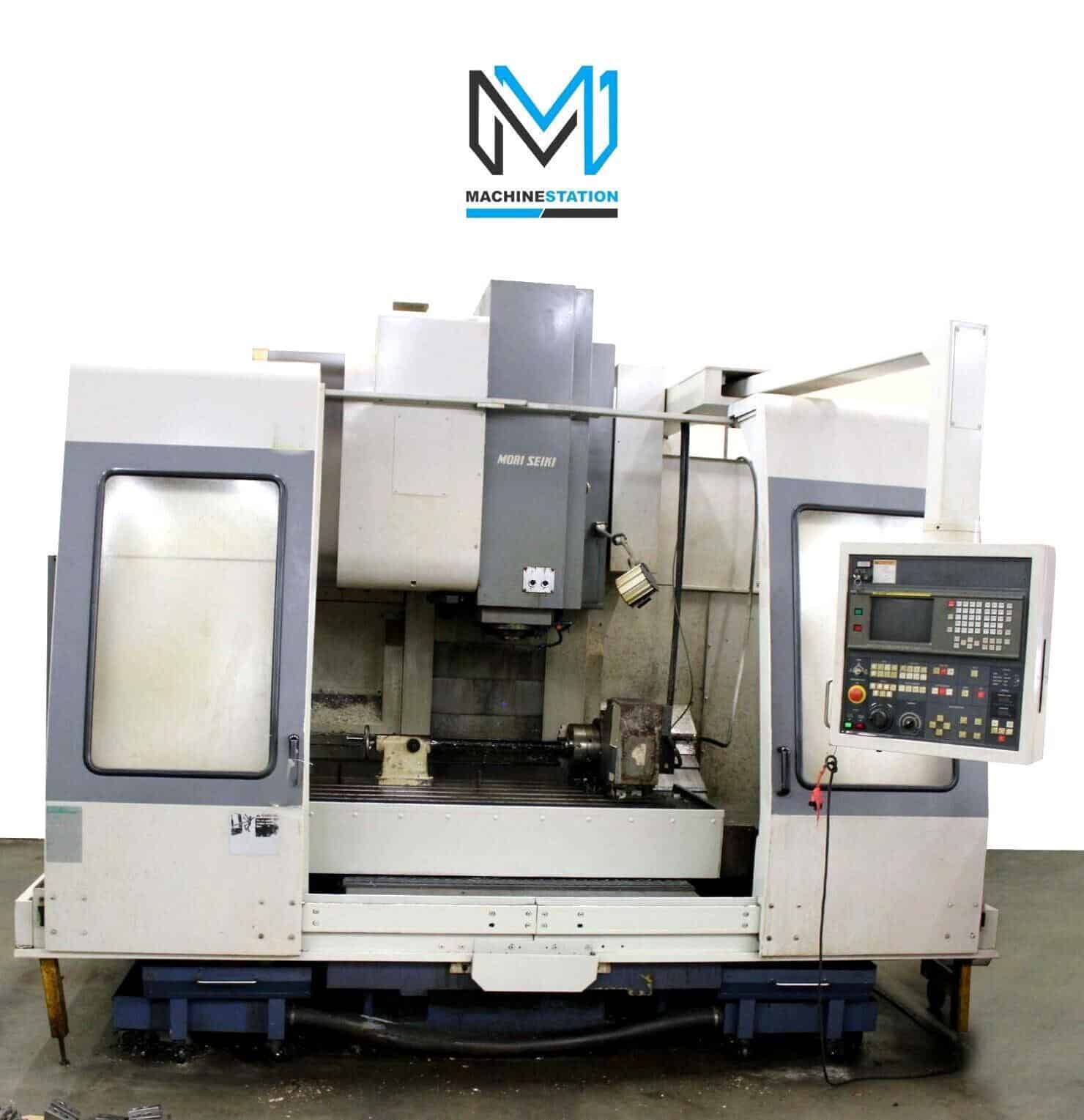

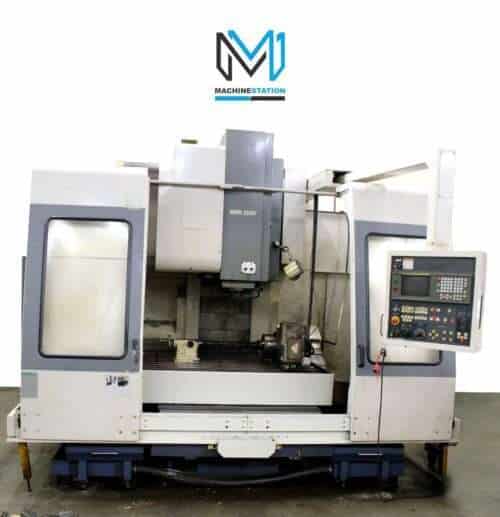

| Make: | MORI SEIKI |
| Model: | MV-55/50 |
| Year: | |
| Condition: | Used – Good |
| Features: |
|---|

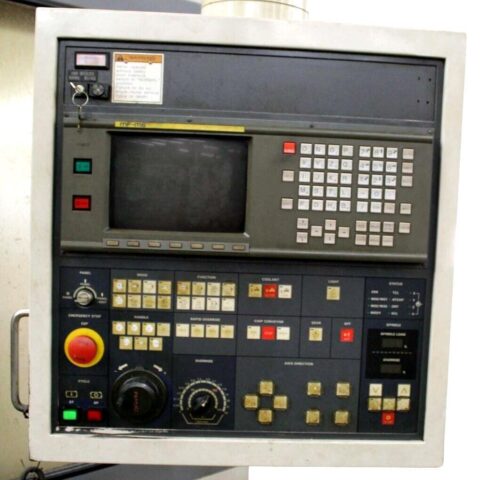

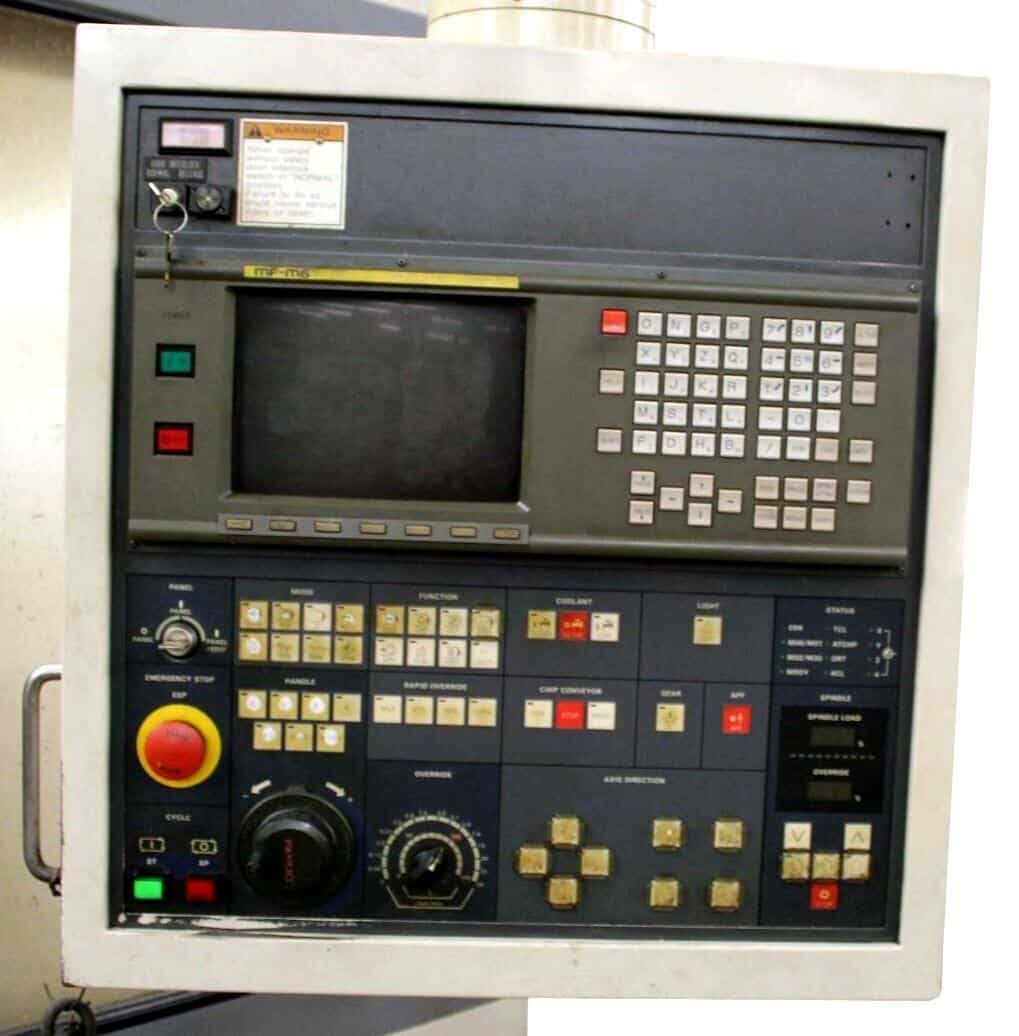

| MF-M6 (Fanuc 16M) CNC Control |

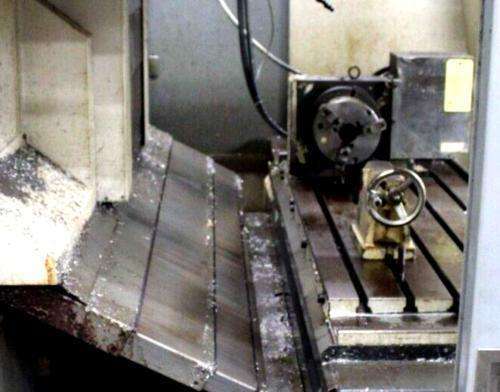

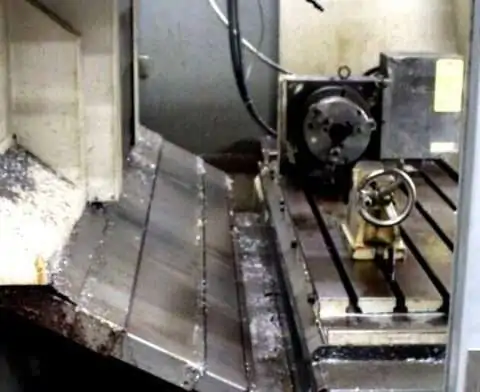

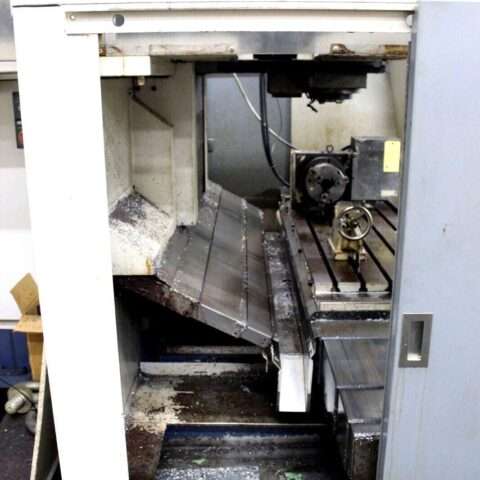

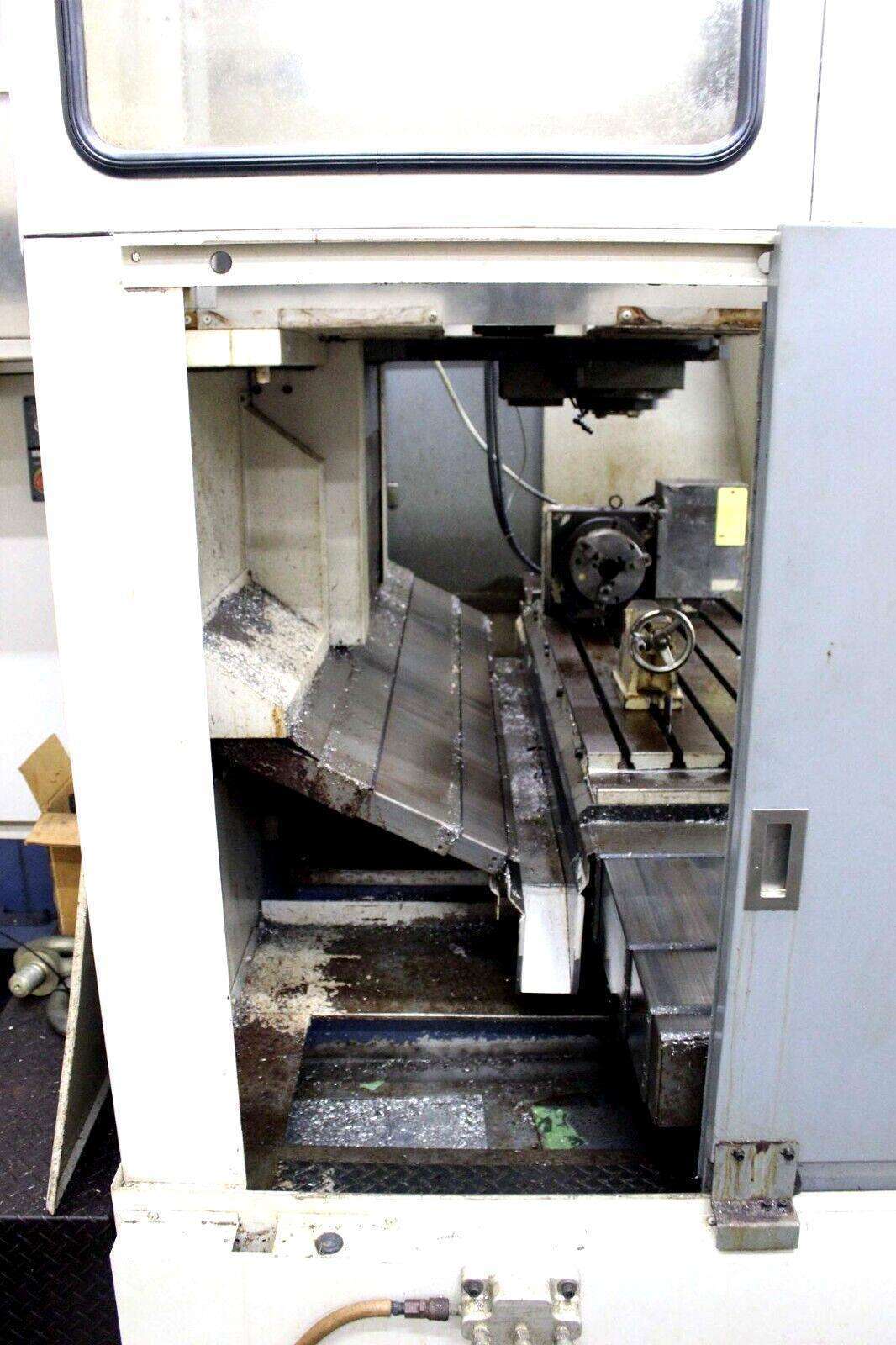

| 4th Axis Rotary Table with Tailstock |
| 30 Stations Side Mount Tool Changer |
| Box Way Design |
| AC Servo Motors on All Axis |
| 50 Spindle Taper |
| Coolant System |
| Working Light |
| Travels: |
|---|
| X-Axis: 41.3″ |
| Y-Axis: 21.7″ |
| Z-Axis: 22″ |
| Spindle Nose to Table (Min.- Max.): 7.9″ – 29.9″ |
| Spindle Center to Column: 23.6″ |
| Table: |
|---|
| Length: 55.1″ |
| Width: 21.7″ |
| Max Weight on Table: 3300 lbs |
| Spindle: |
|---|
| Taper Size: BT 50 |
| Speed Range: 60 – 6000 RPM |
| Spindle Power: 15 HP |
| Feed Rate: |
|---|
| Rapid X & Y: 591 inch/P.M |
| Rapid Z: 472 inch/P.M |
| Cutting Feed rate: .0001″ – 197″ inch/ P.M |
| Automatic Tool Changer: |
|---|
| 50 Taper |
| Capacity: 30 |
| Max Tool Weight: 44 lbs. |
| Max Tool Length: 13.78″ |
| Max Tool Dia.: 9.4″ |
| Tool Change Time: 3 seconds |
| General: |
|---|
| Air Required: 70 psi 5 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 135″ x 120″ x 115″ High |
| Weight: 22000 lbs |
| “No Charges for loading at list Price” |
