*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

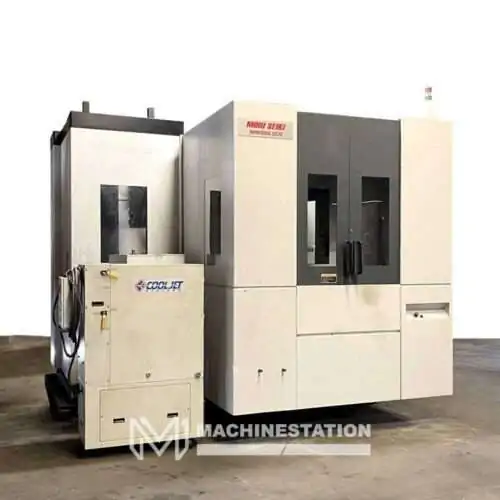

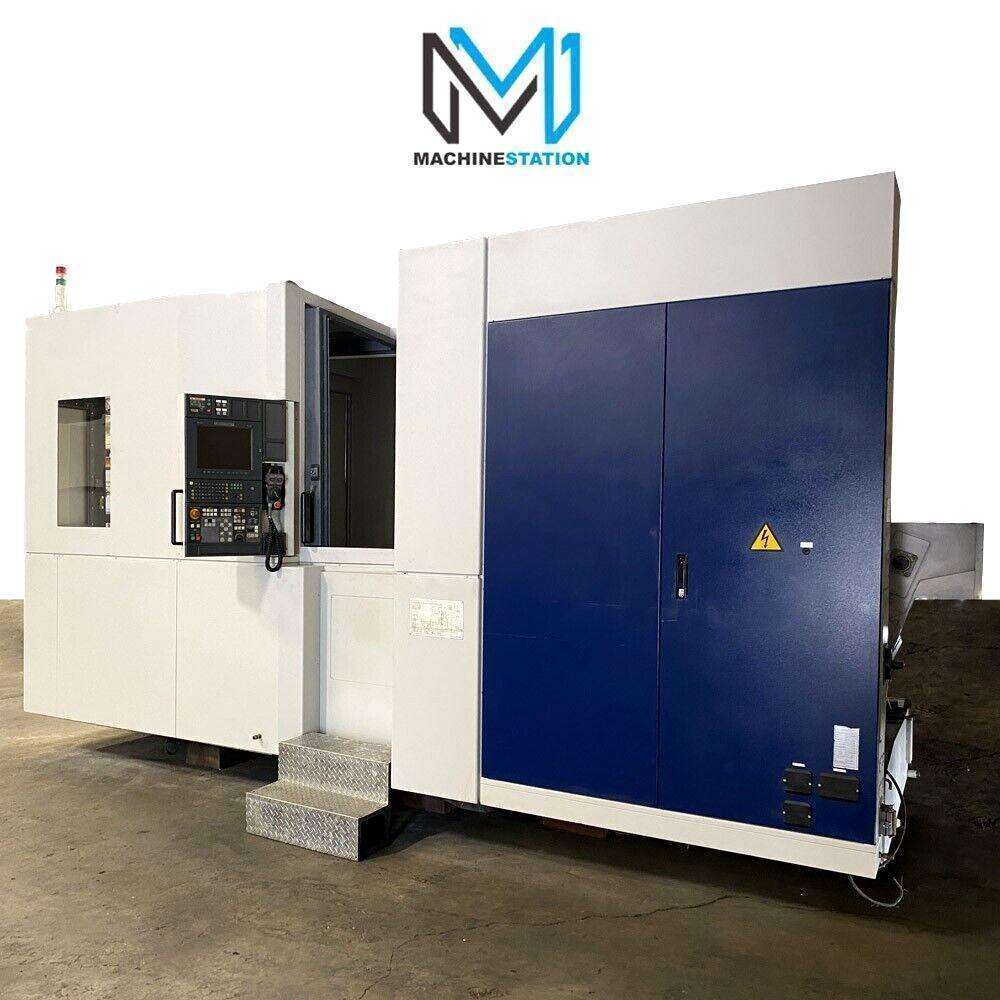

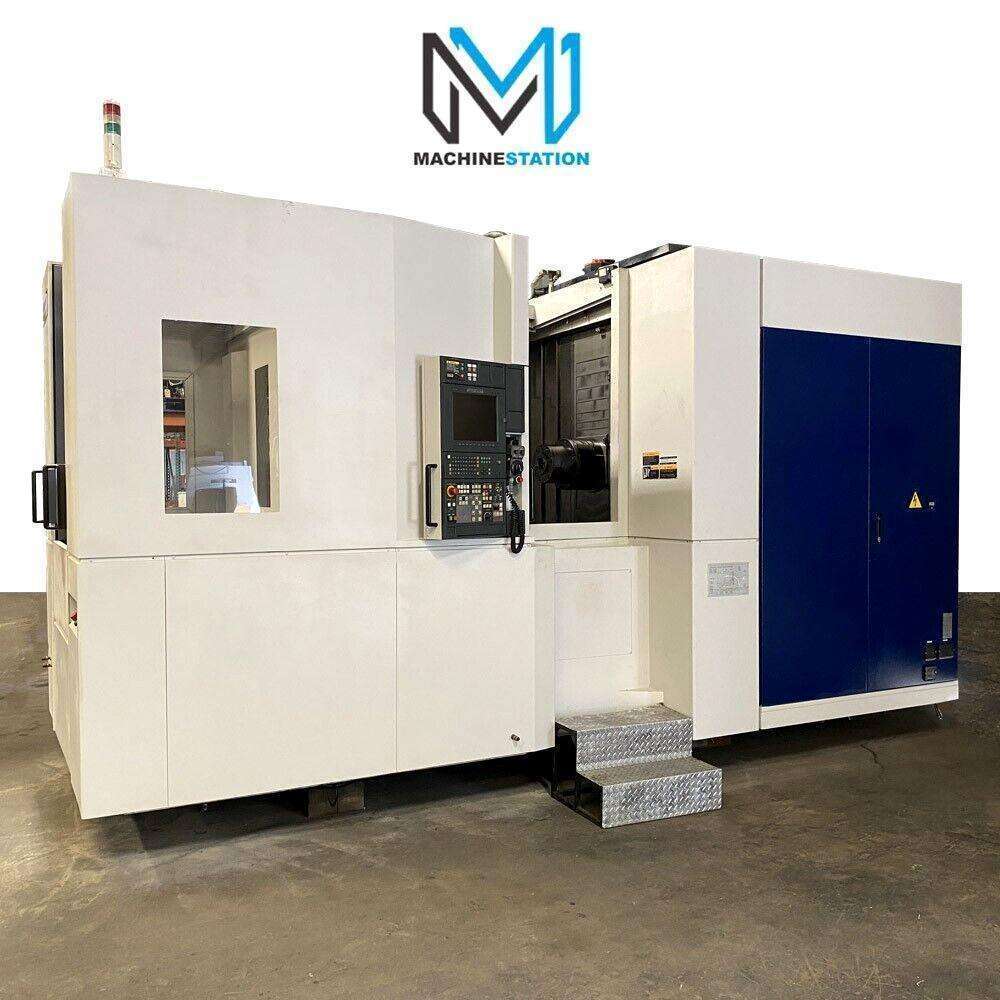

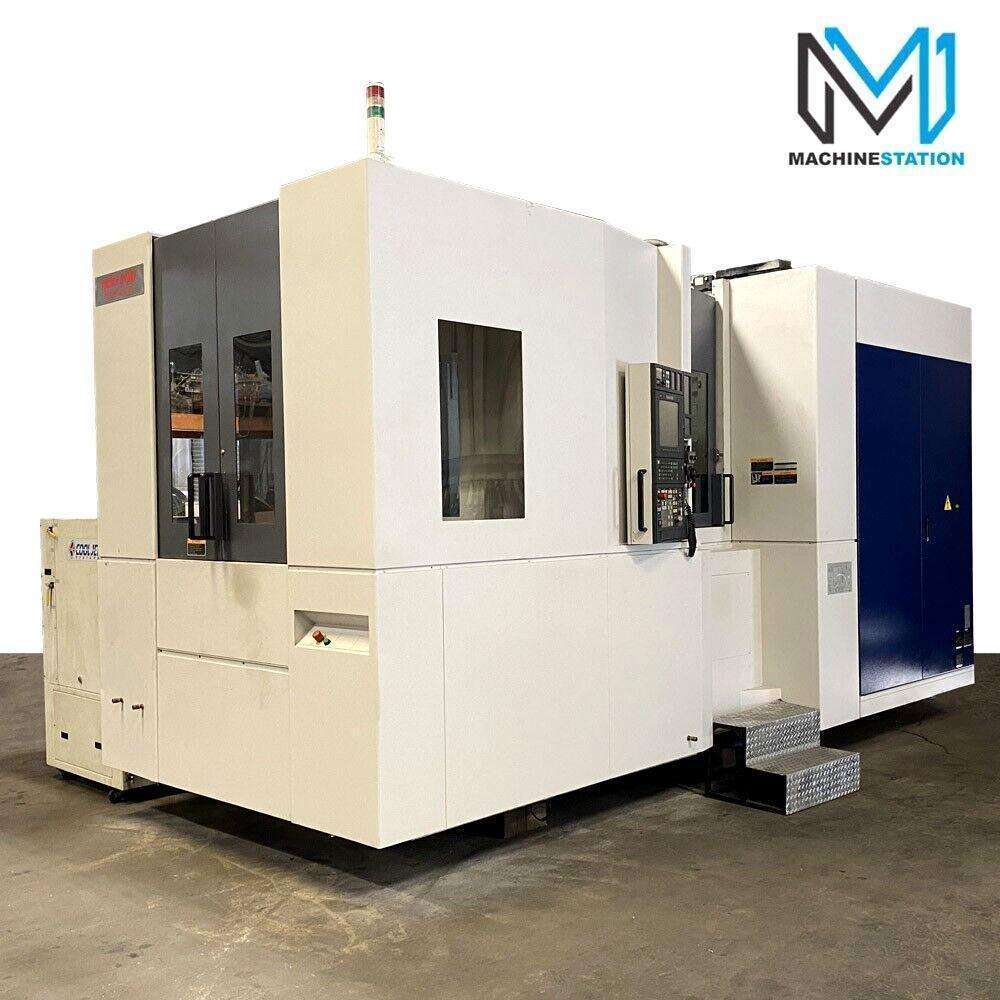

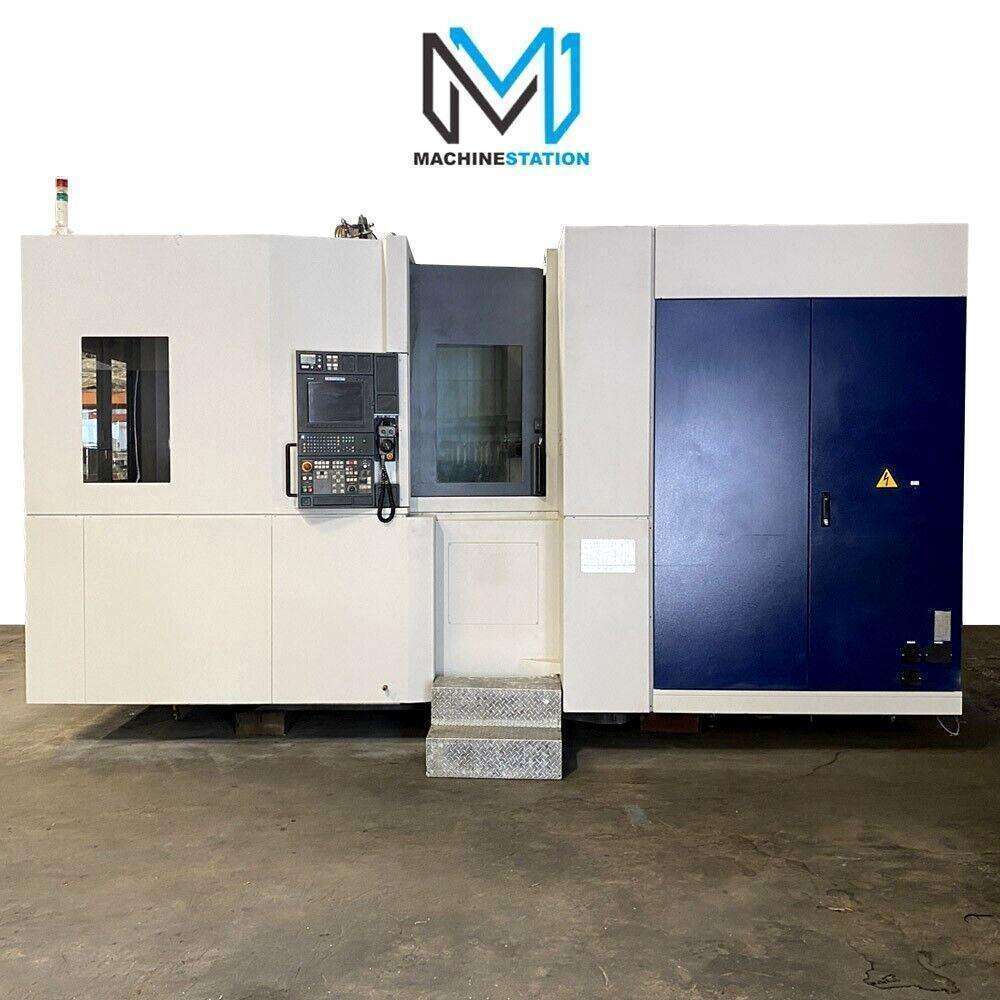

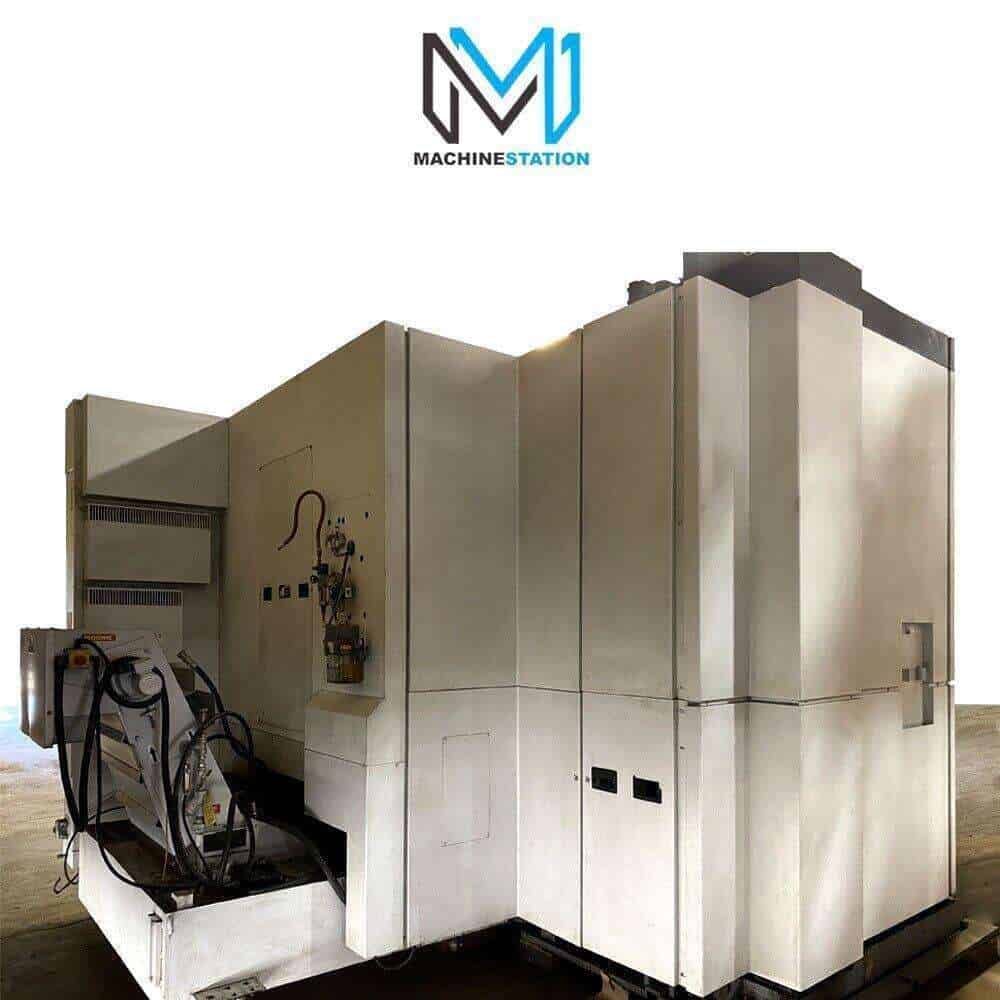

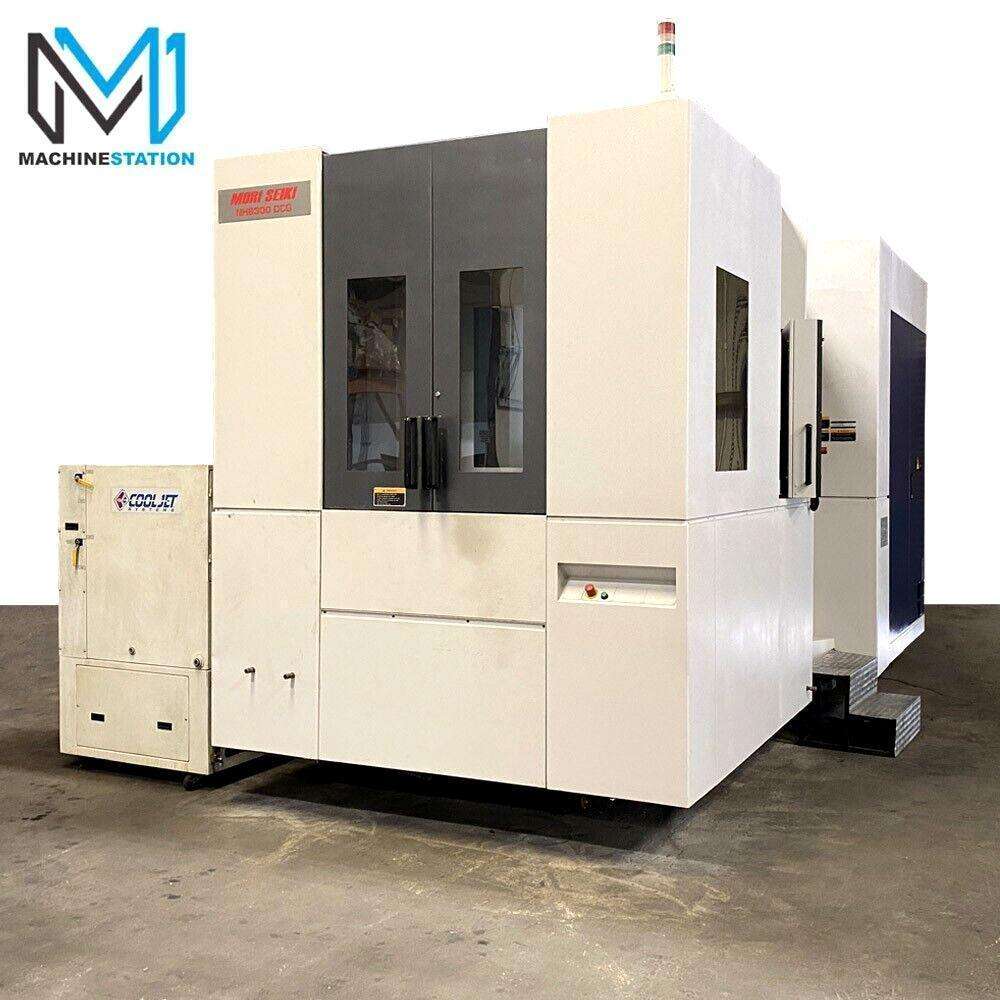

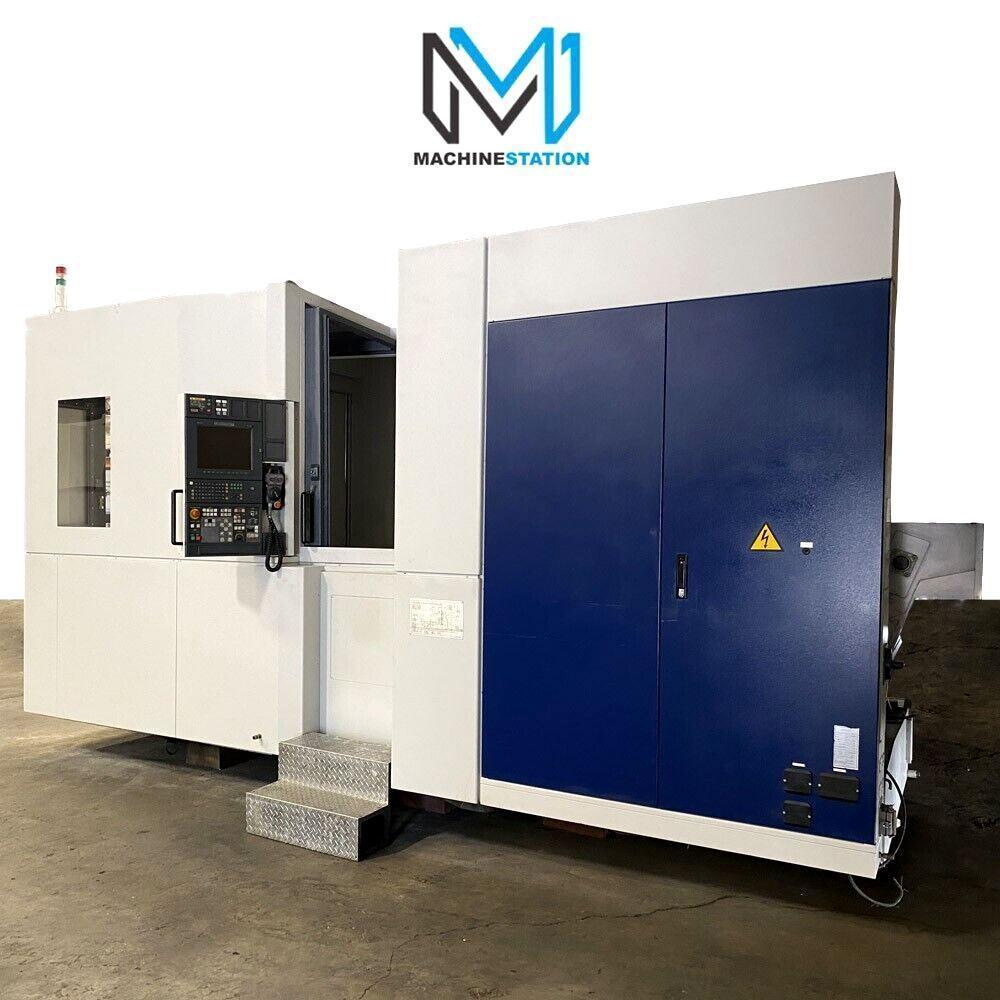

| Make: | MORI SEIKI |
| Model: | NH6300/50 DCG |
| Year: | 2004 |
| Condition: | Used – Good |
| Equipped With: |
|---|

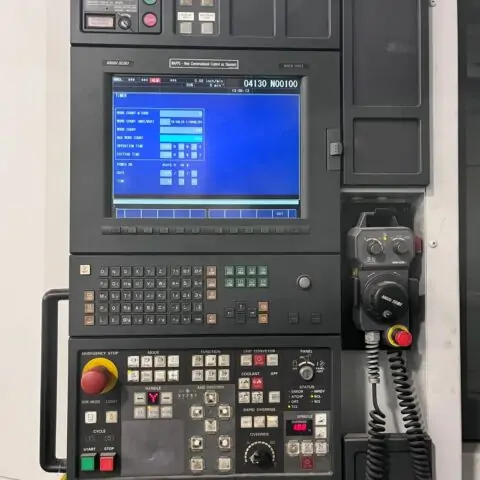

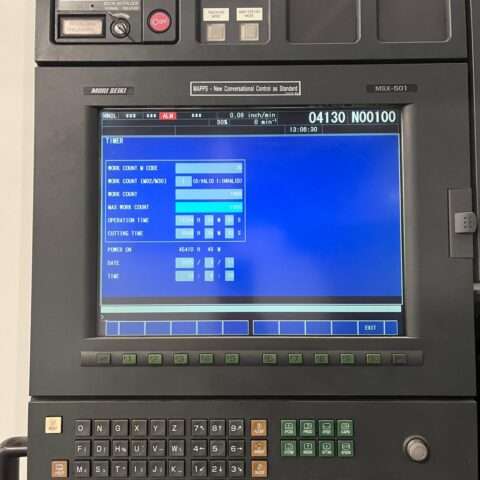

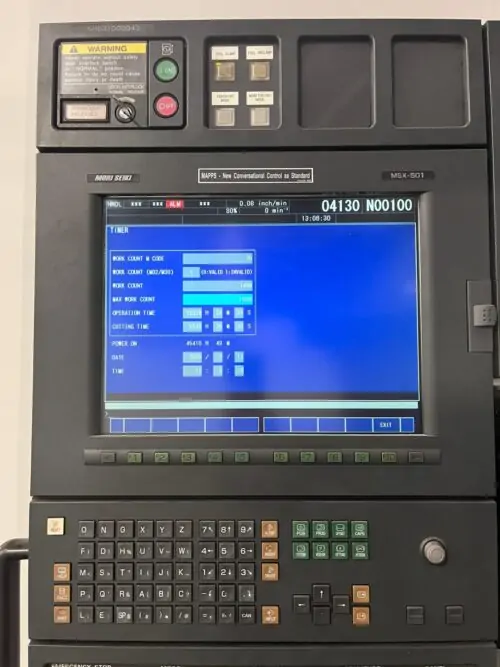

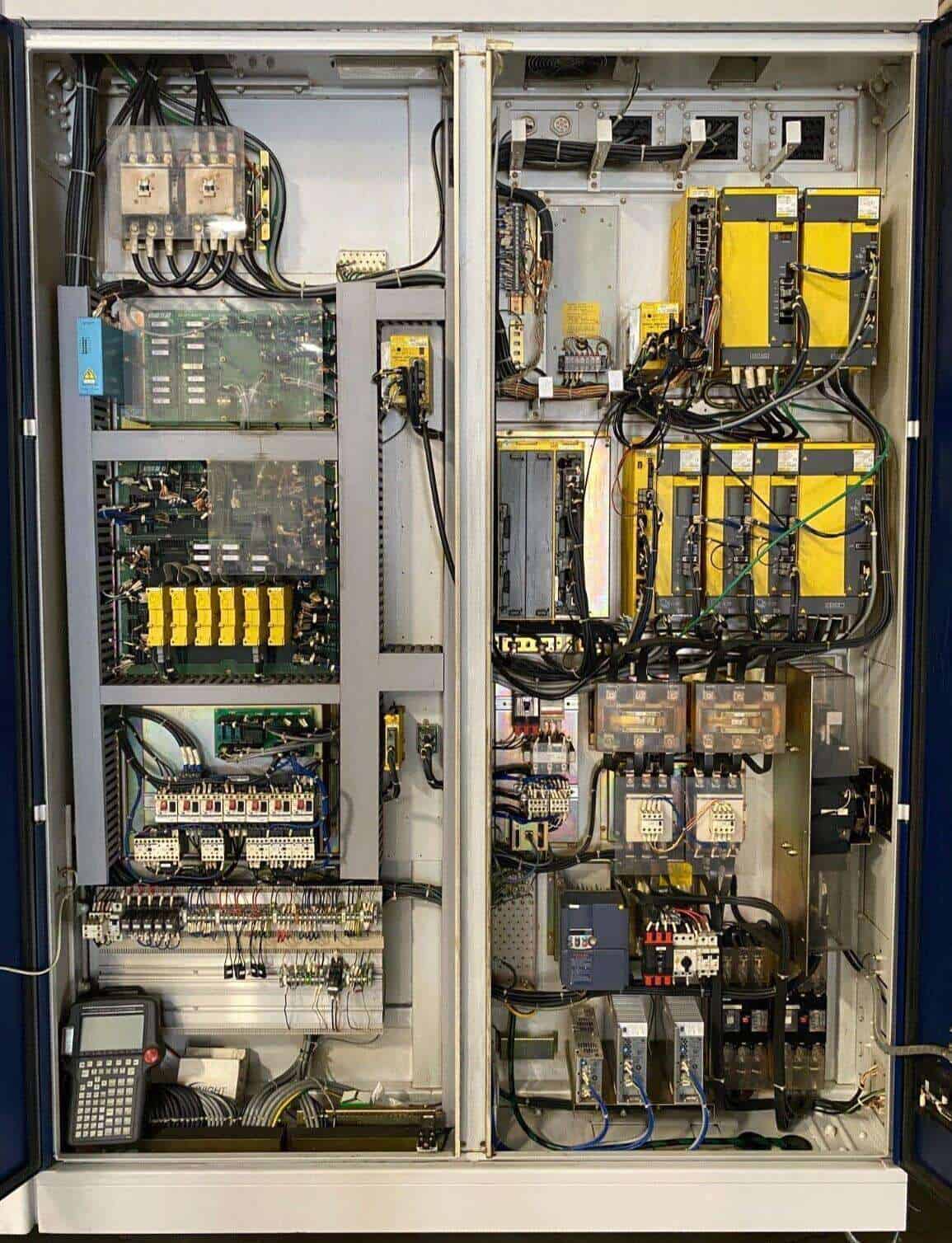

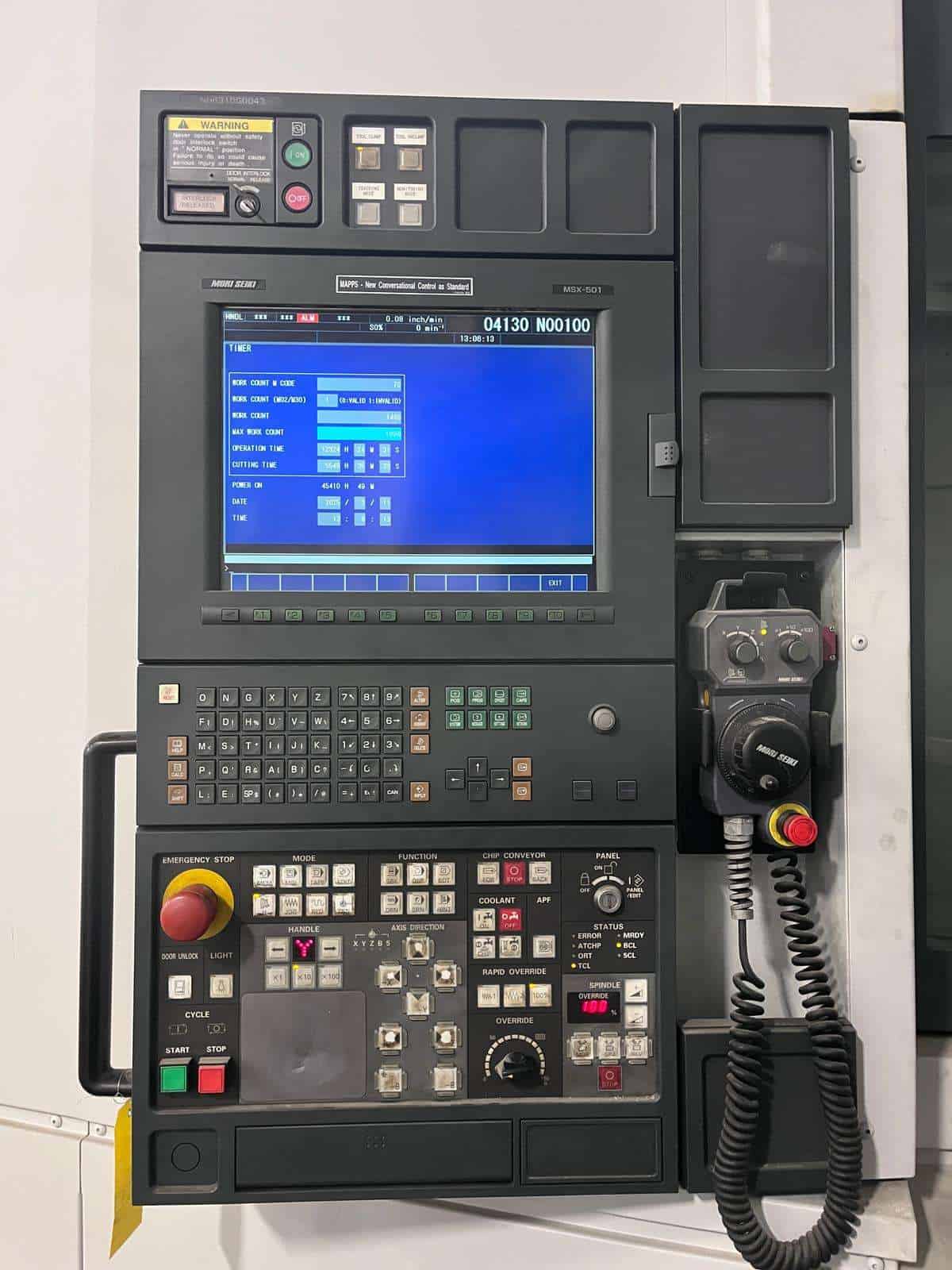

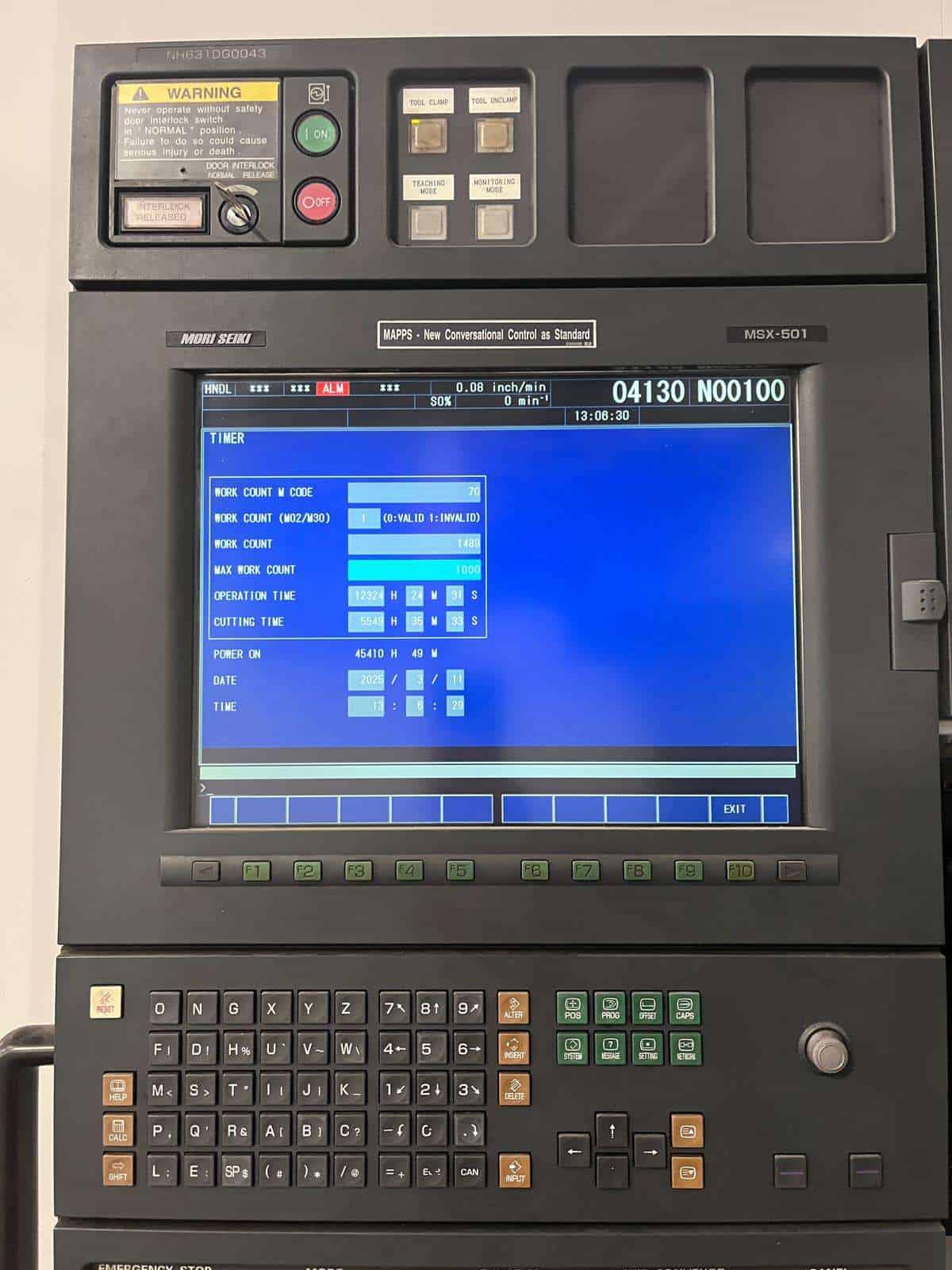

| MSX-501 CNC Control with MAPPS |
| Full 4th Axis |

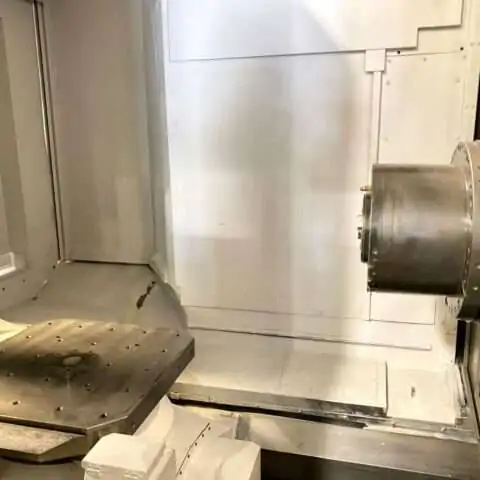

| 10000 RPM High Precision Spindle |

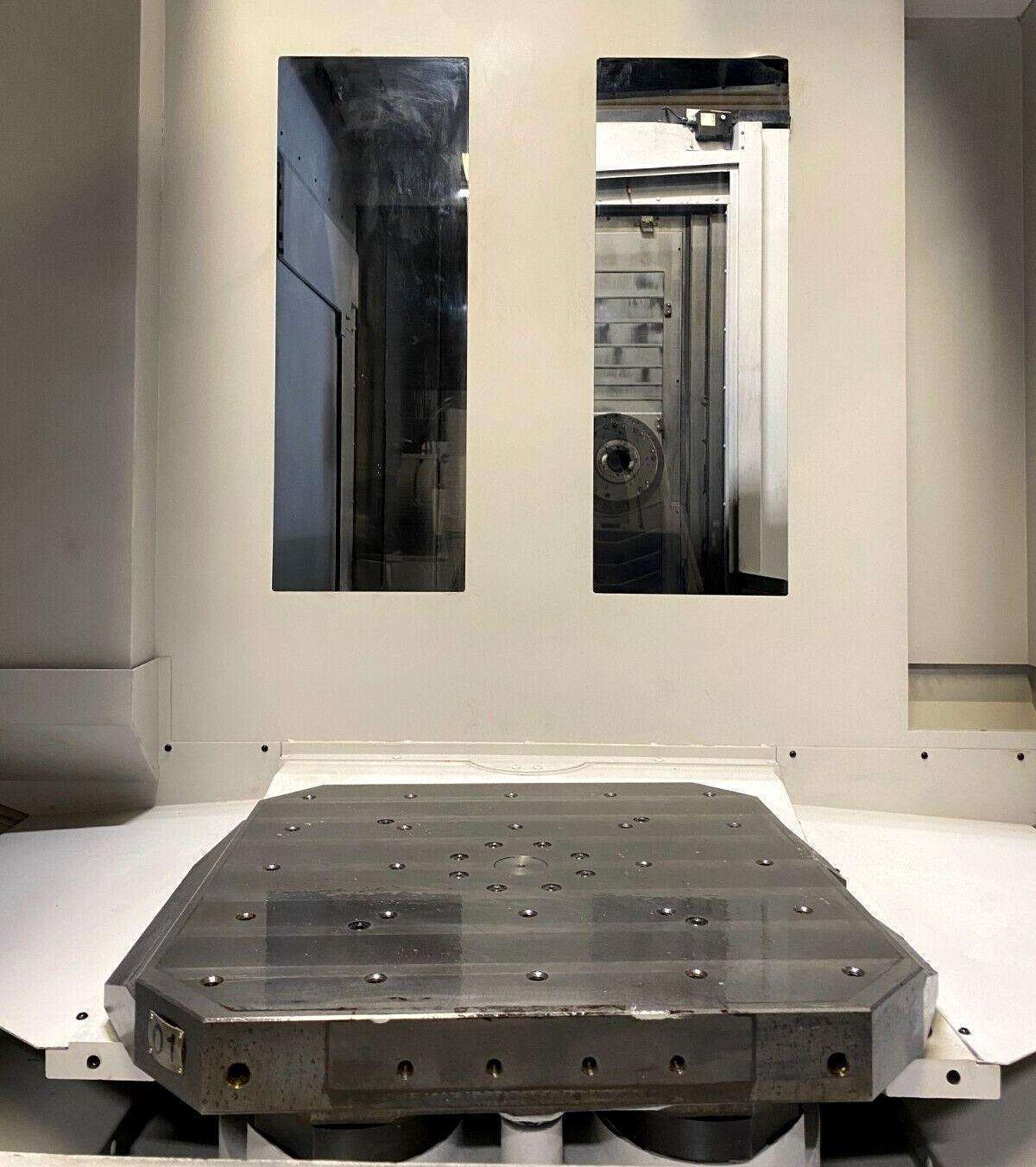

| Twin Pallet Changer |
| Through Spindle Coolant |
| 60 Station Automatic Tool Changer |

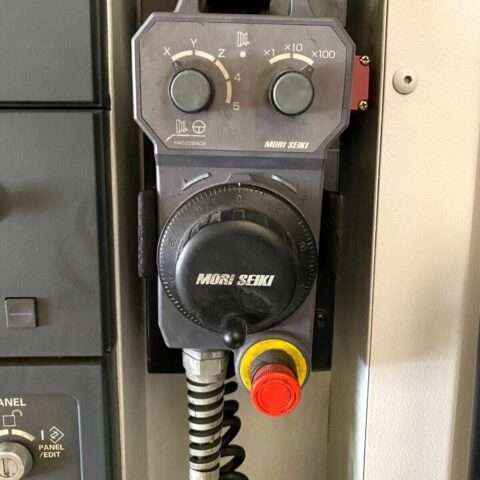

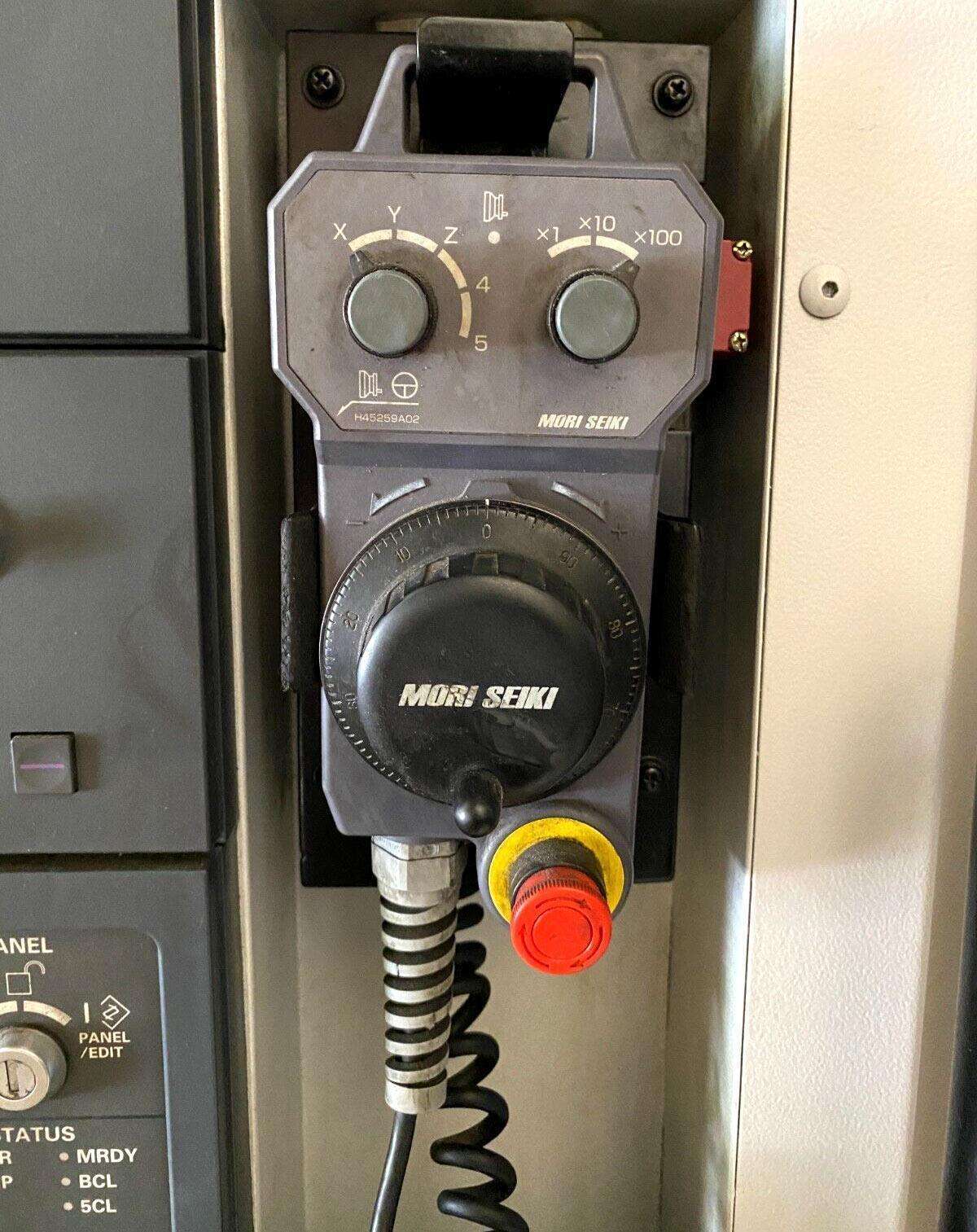

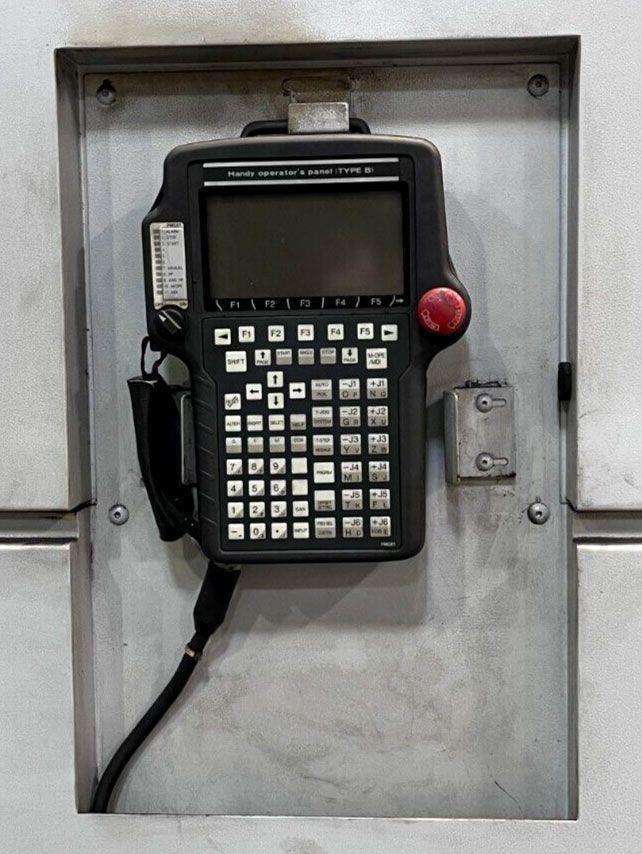

| Remote Jog Pendant |
| USB Ports |
| Spindle Orientation |
| Rigid Tapping |

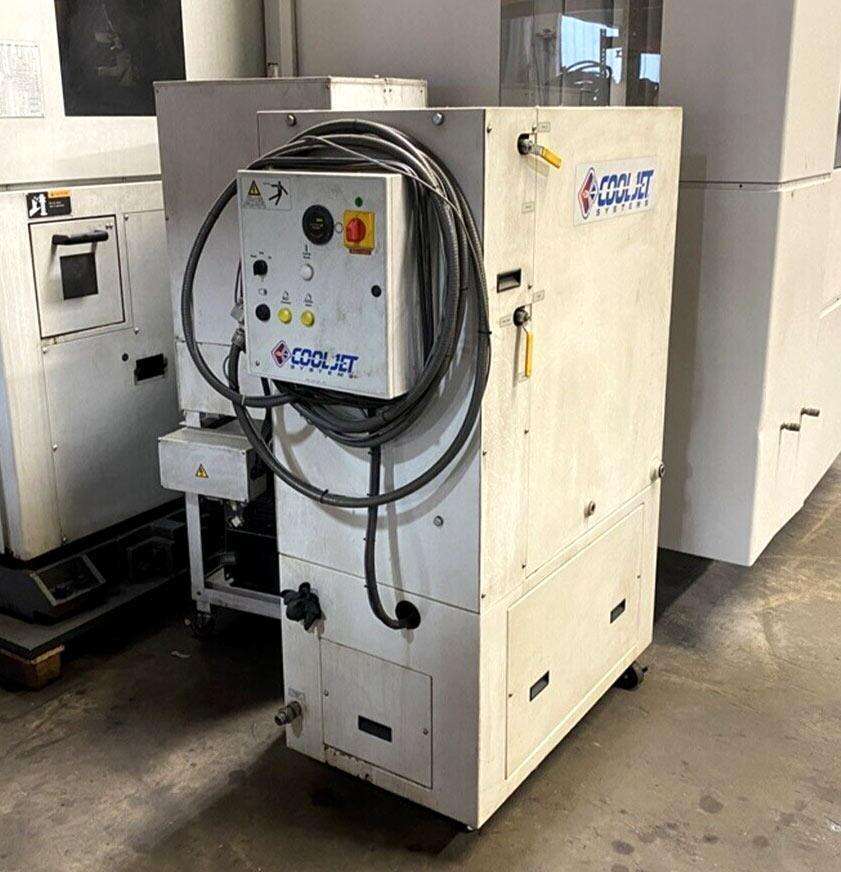

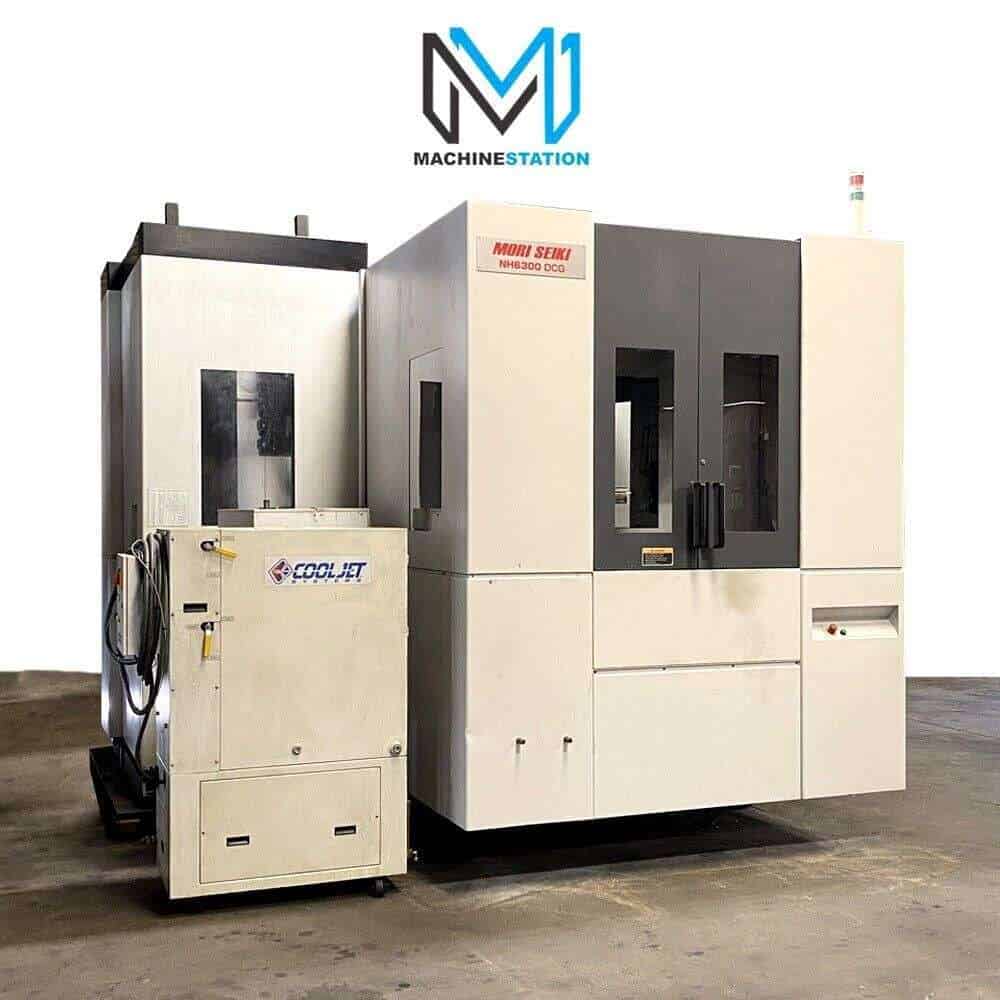

| Cool Jet High Pressure Coolant System |
| Coolant Filtration System |

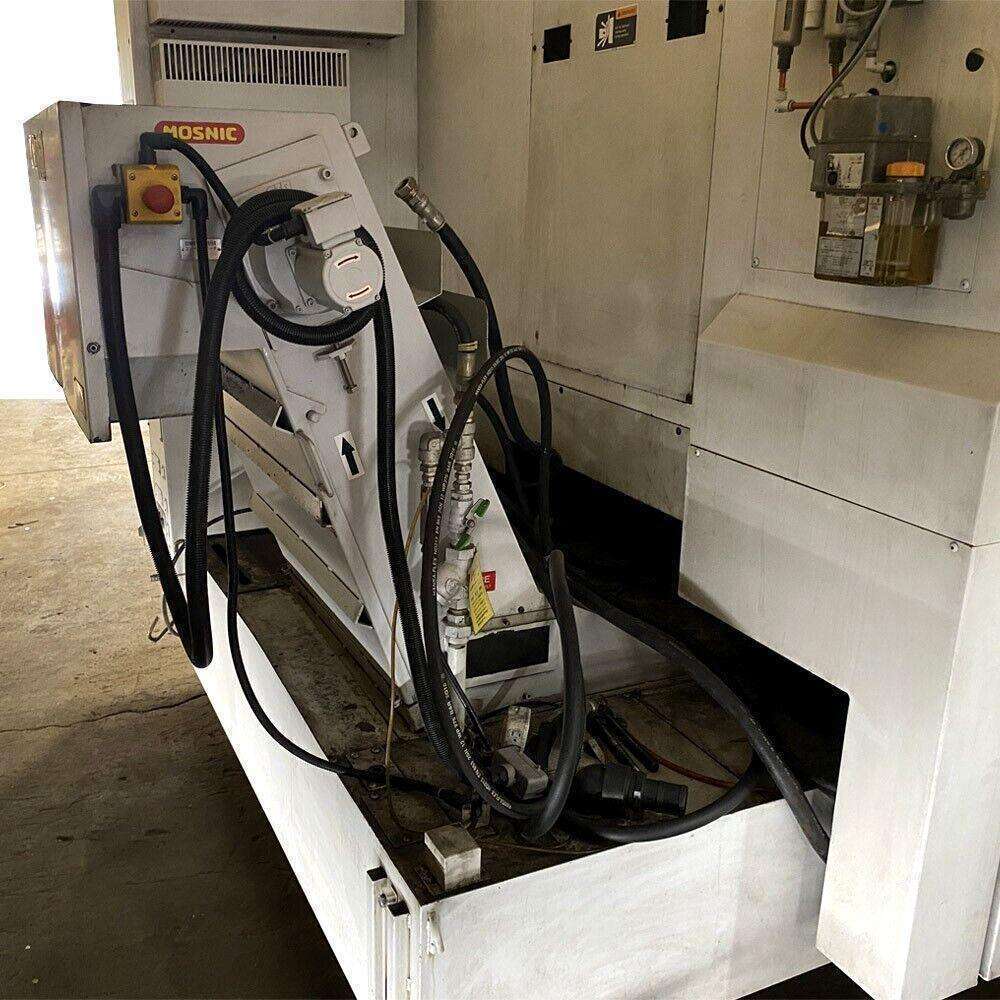

| Chip Conveyor |
| Travels: |
|---|
| X Axis: 41.3″ |
| Y Axis: 35.4″ |
| Z Axis: 38.6″ |

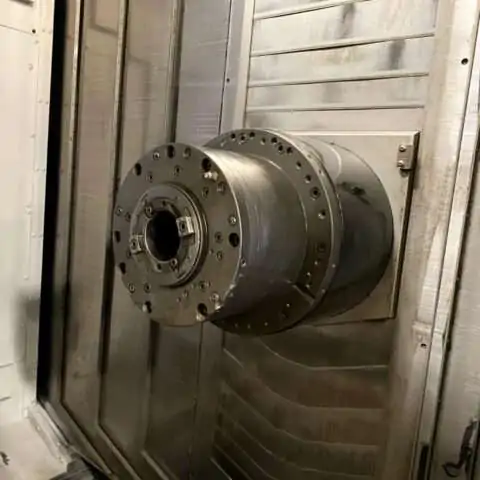

| B Axis: 0.001° Indexing (Full 4th) |

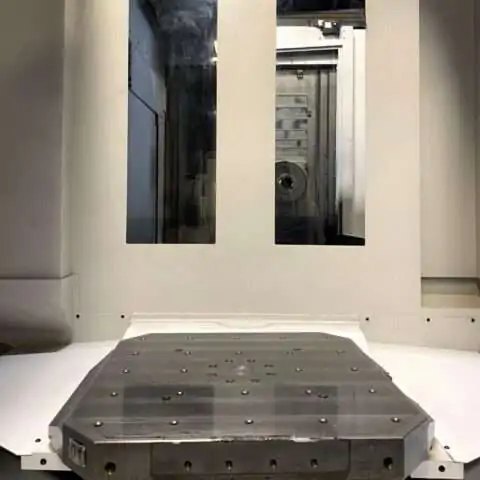

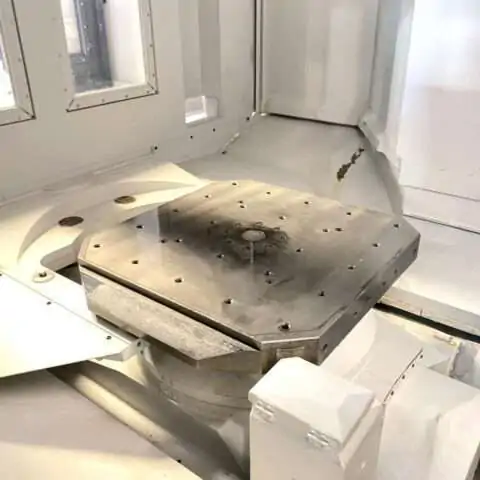

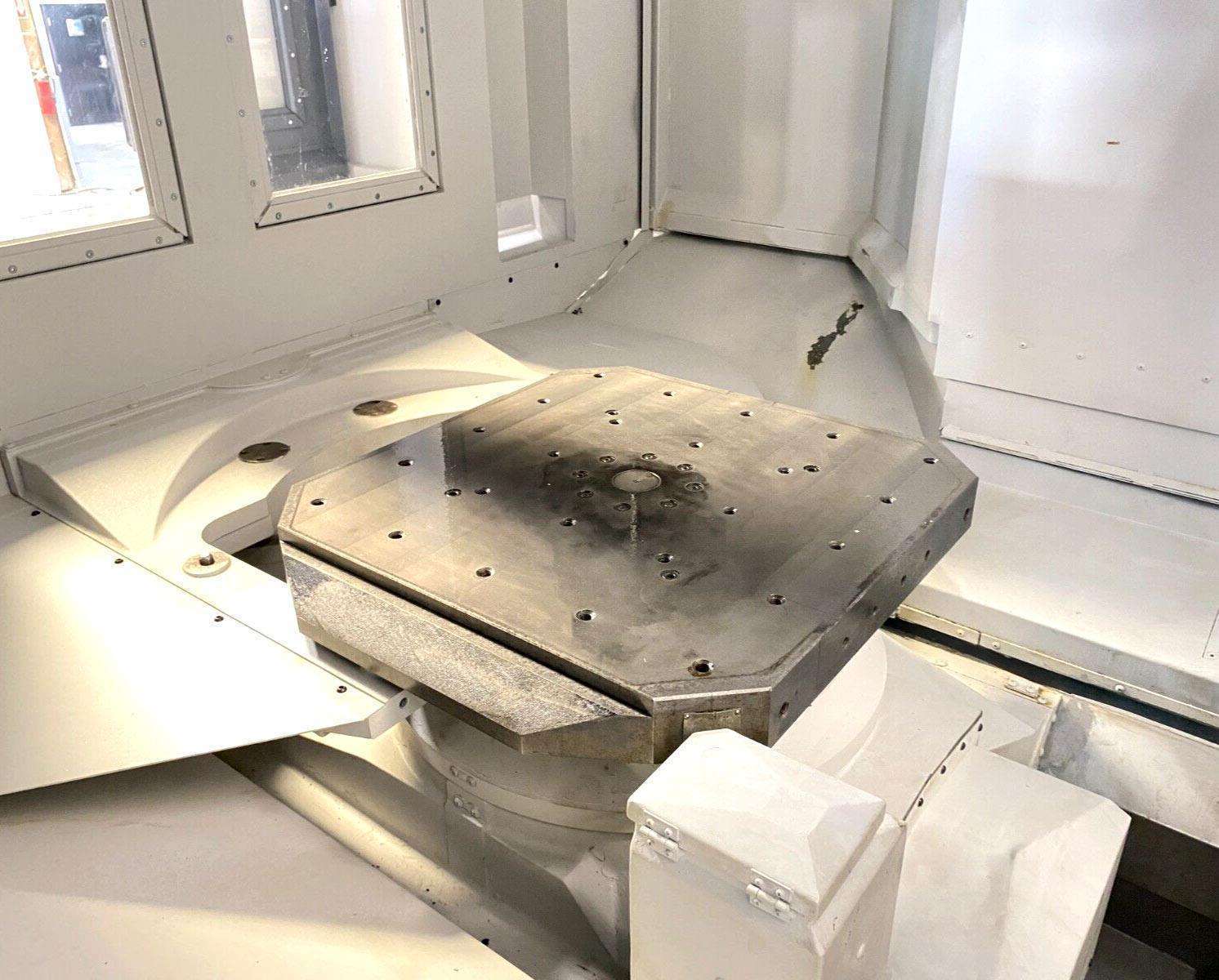

| Table: |
|---|
| Length: 24.8″ |
| Width: 24.8″ |
| Max Weight on Table: 2645 lbs |
| Max Workpiece Height: 51.18″ |
| Index Time: seconds |

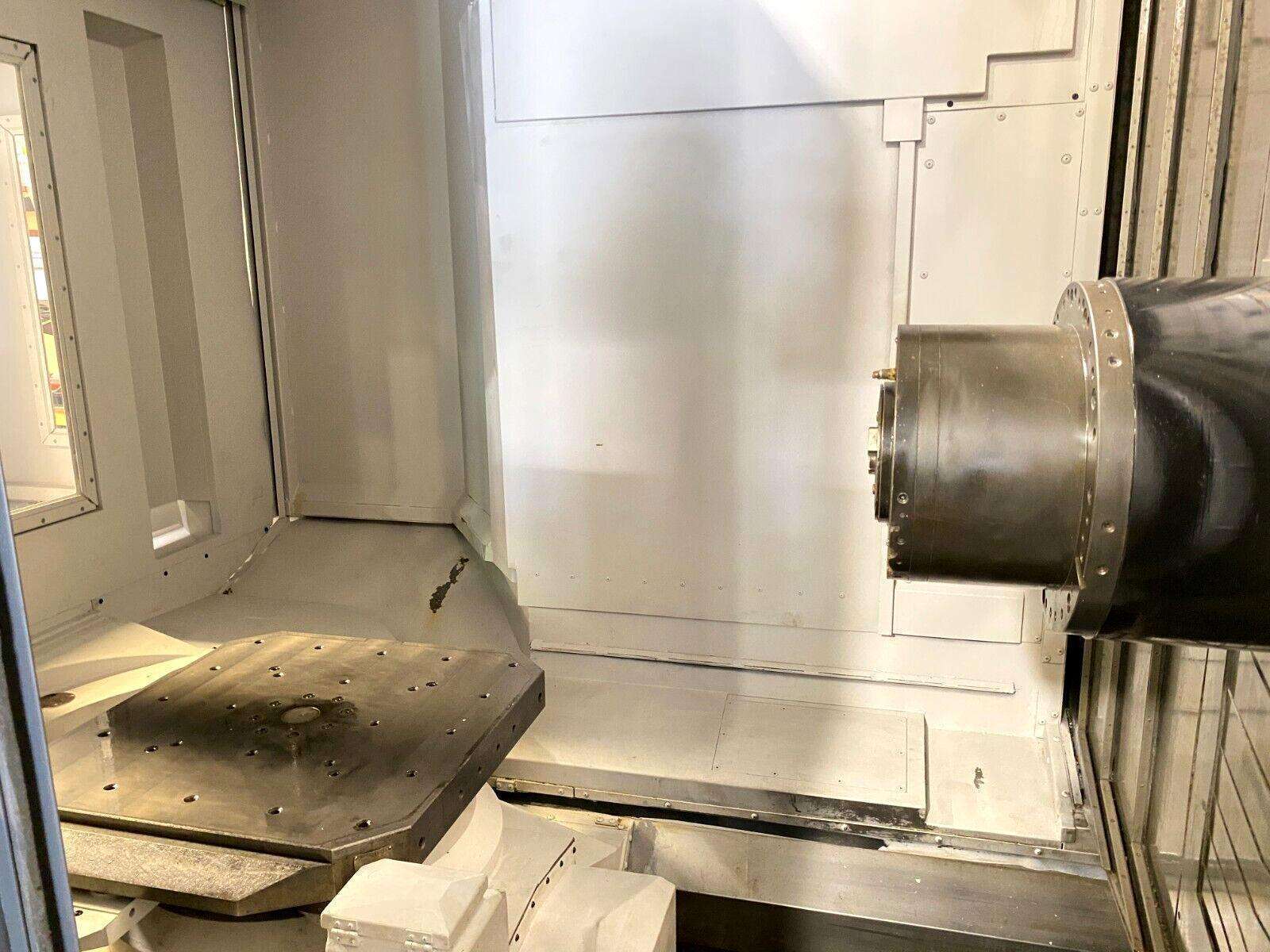

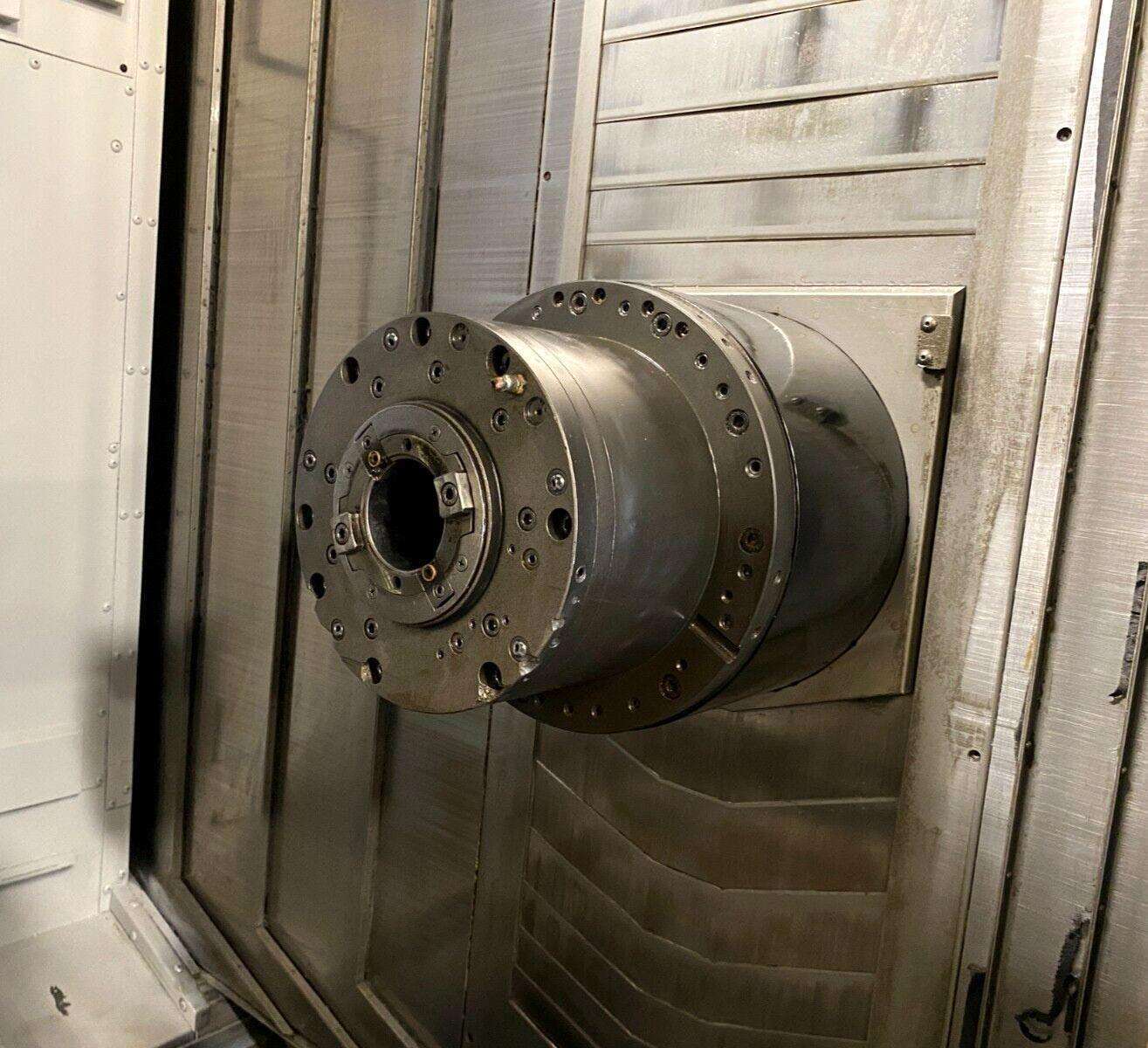

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Max. Speed: 10000 RPM |
| Power: 40 HP |
| Feed rates: |
|---|
| Rapid X Y & Z : 1968 Inch Per Minute |
| Cutting Feedrate: 630 Inch Per Minute |
| Automatic Tool changer: |
|---|
| Capacity: 60 Tools |
| Taper: CAT-50 |
| Max Tool Size: 4.7″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 86 lbs. |
| Tool Change Time: 0.9 Second ? |
| General: |
|---|
| Air Required: 90 psi 4 scfm |

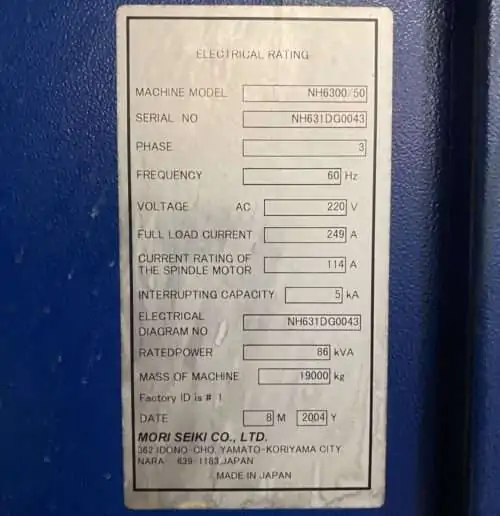

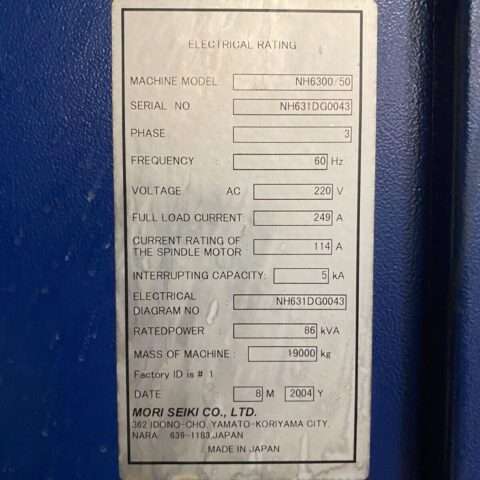

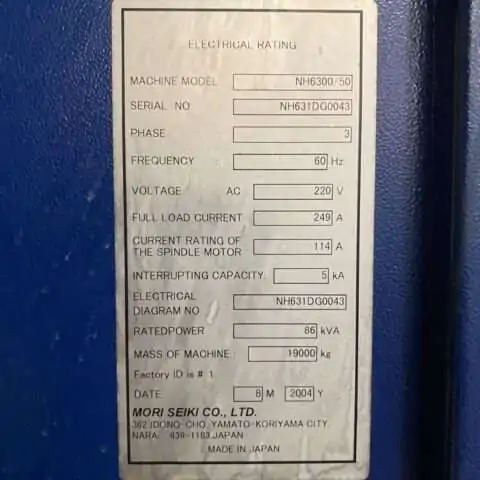

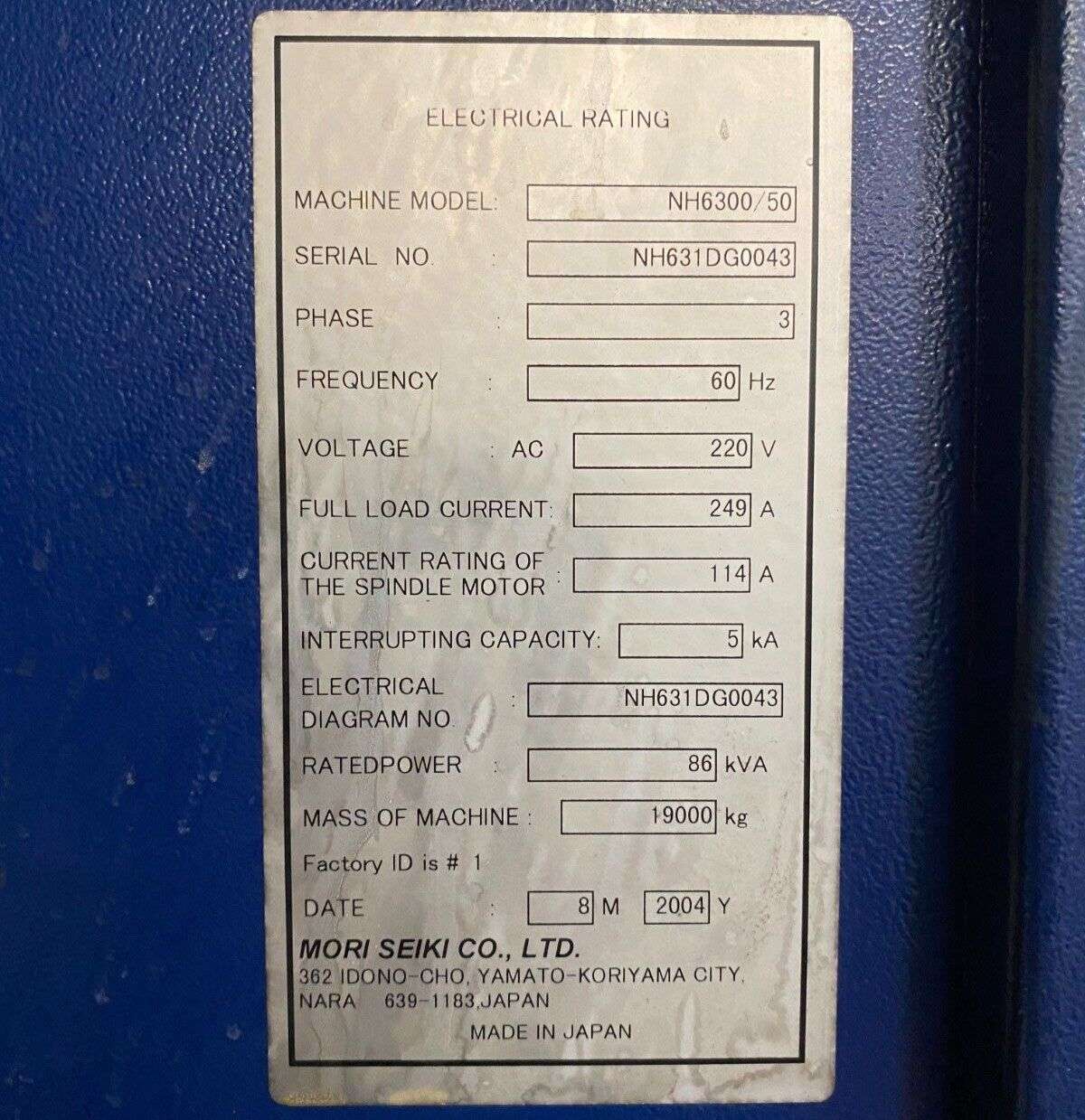

| Power: 86kva / 205-220v / 3-Phase |
| Overall Dimensions: 238″ X 134″ x 128″ High |
| Weight: 41887 lbs |
| “No Charges for loading at list Price” |
