PENDING SALE
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

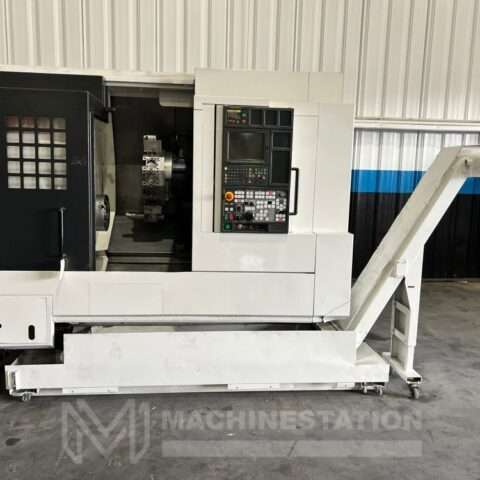

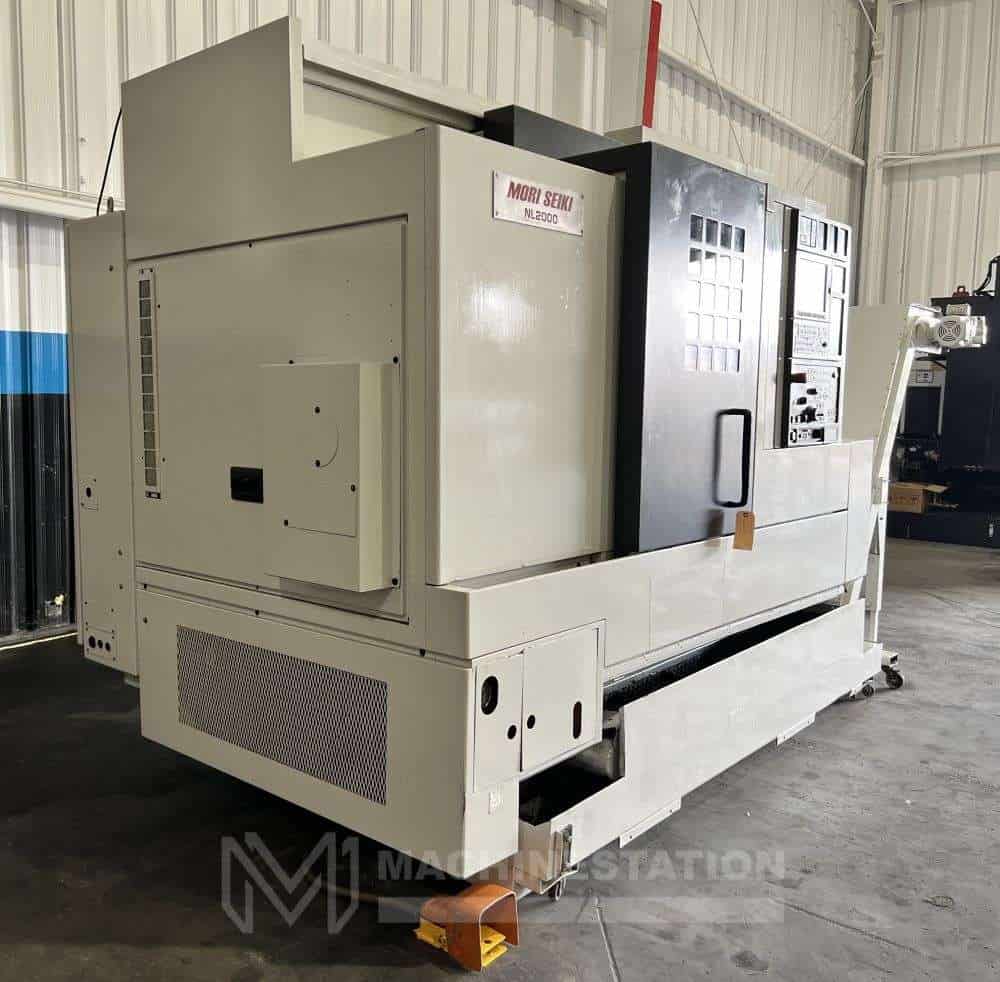

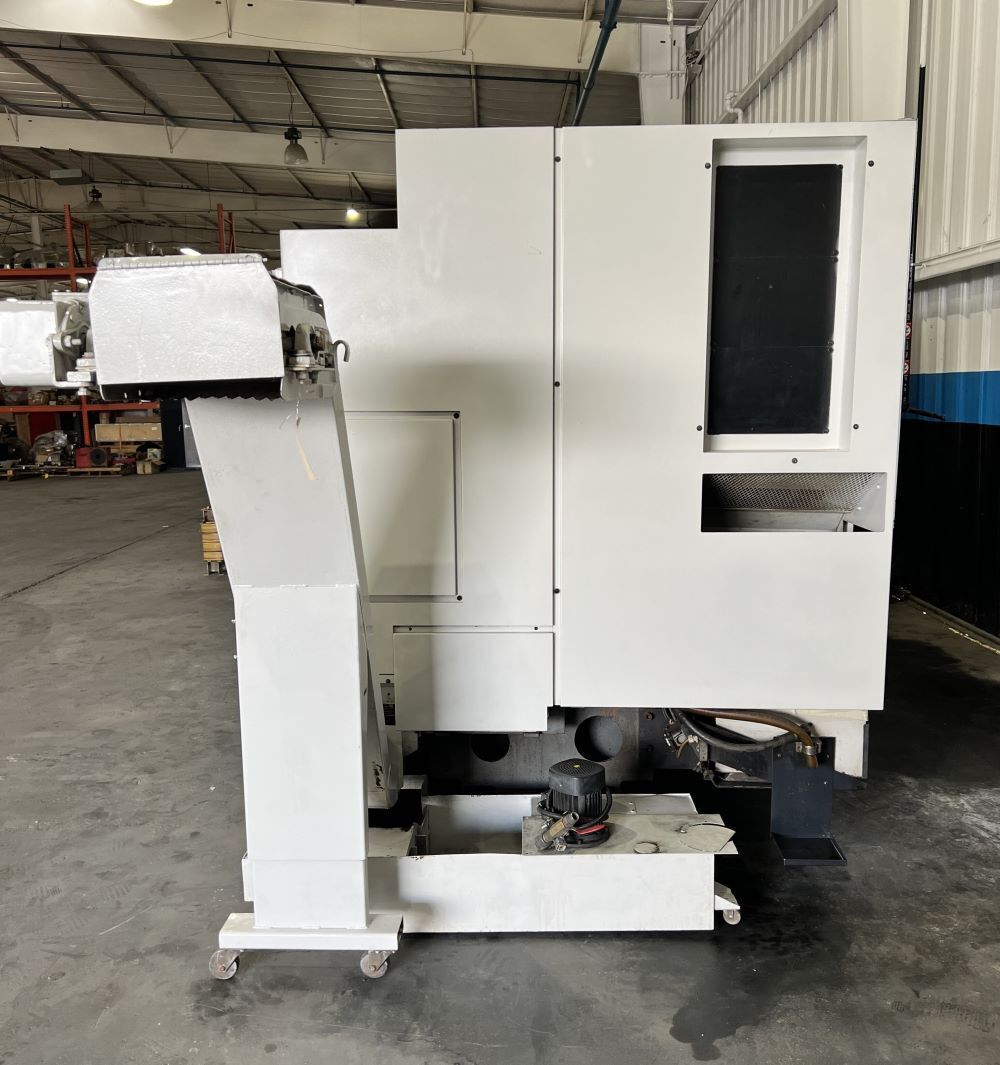

| Make: | Mori Seiki |
| Model: | NL-2000/500 |
| Year: | 11/2005 (Installed in 2006) |
| Condition: | Used – Good |
| Equipped With: |
|---|

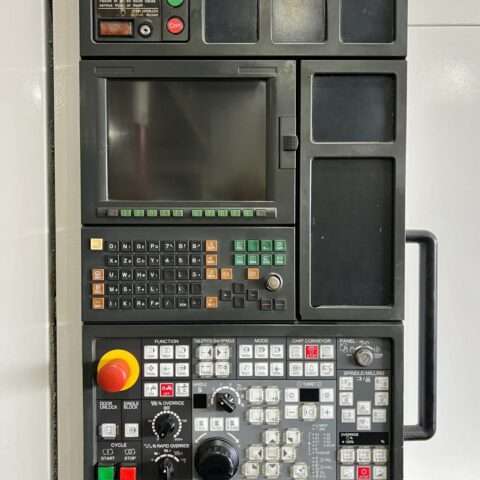

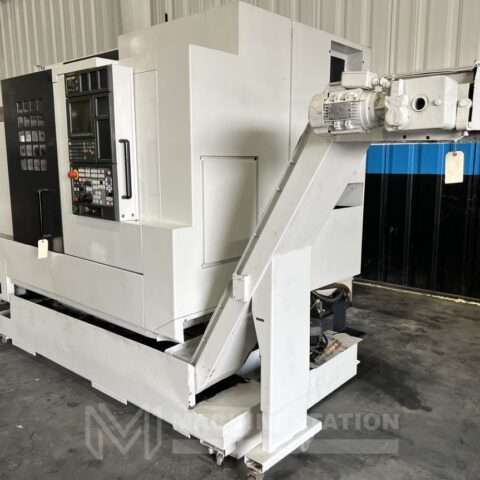

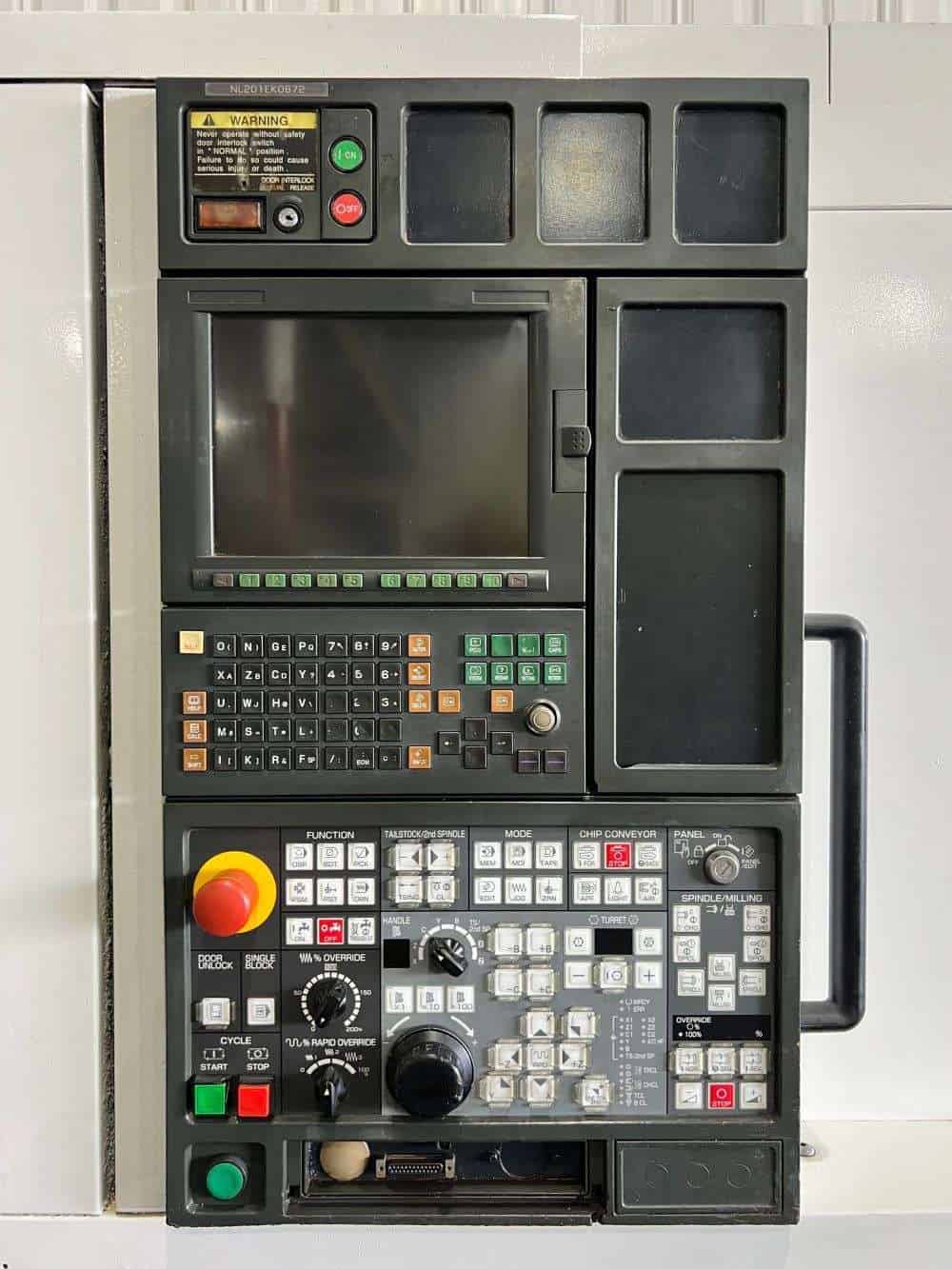

| Mori Seiki MSX-850III CNC Control |

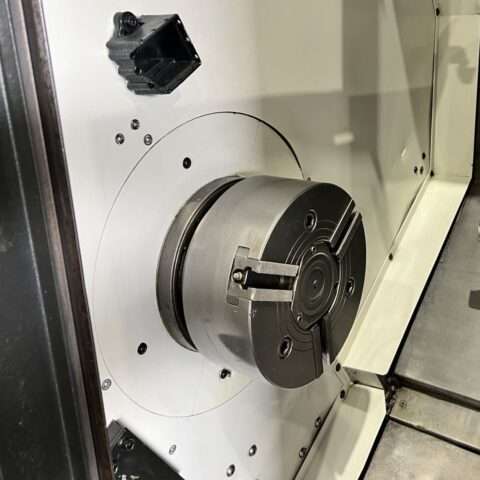

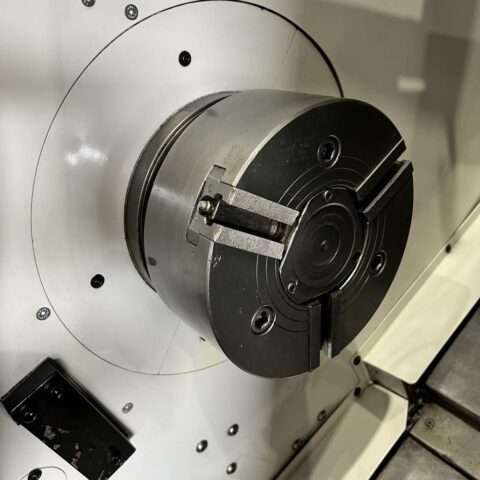

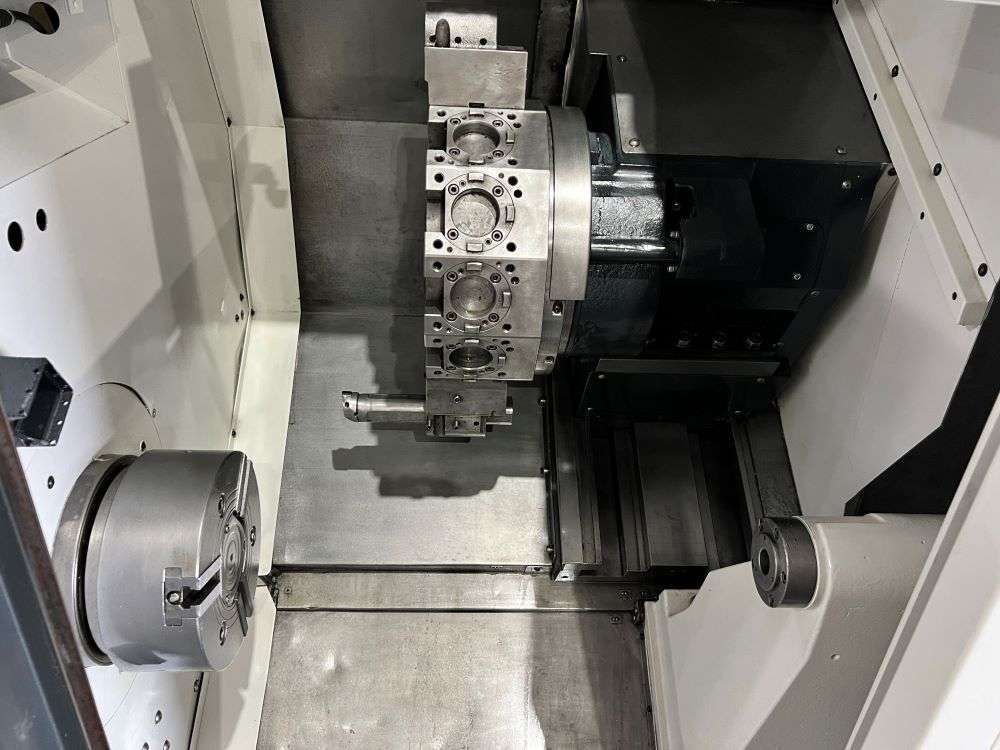

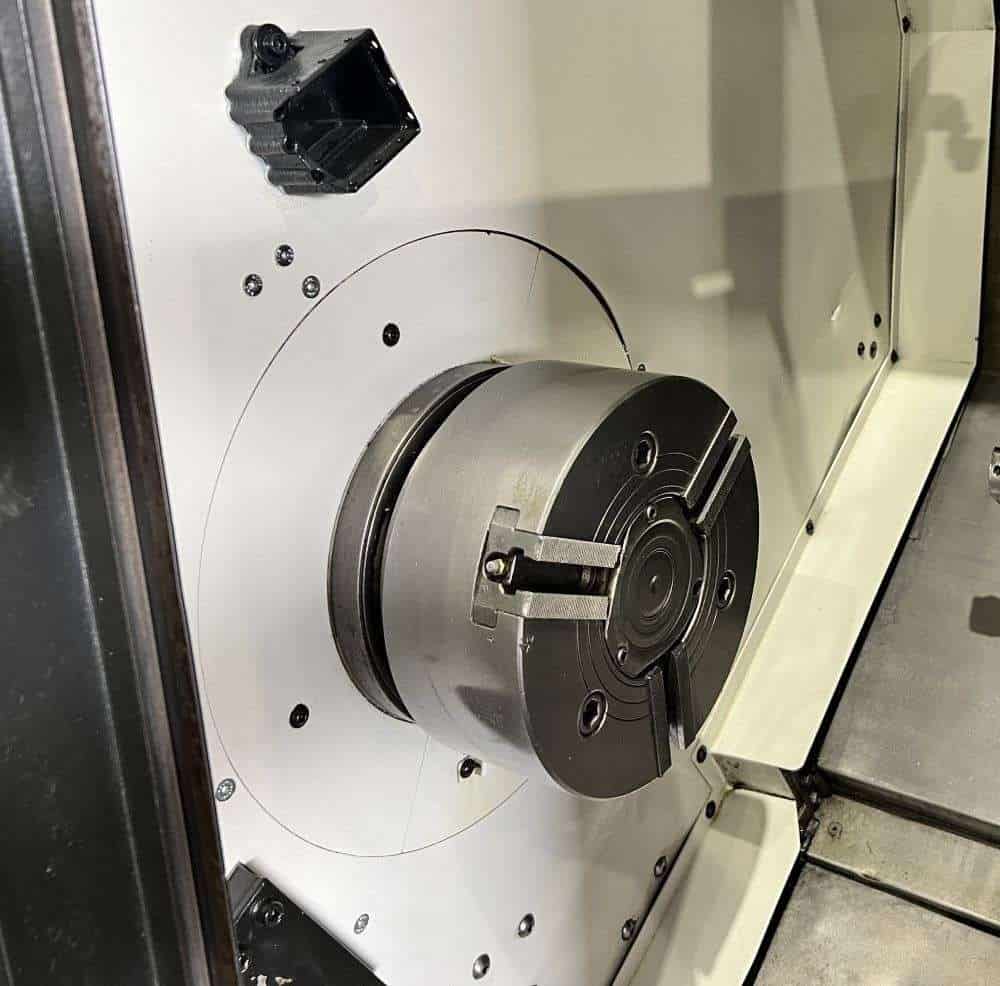

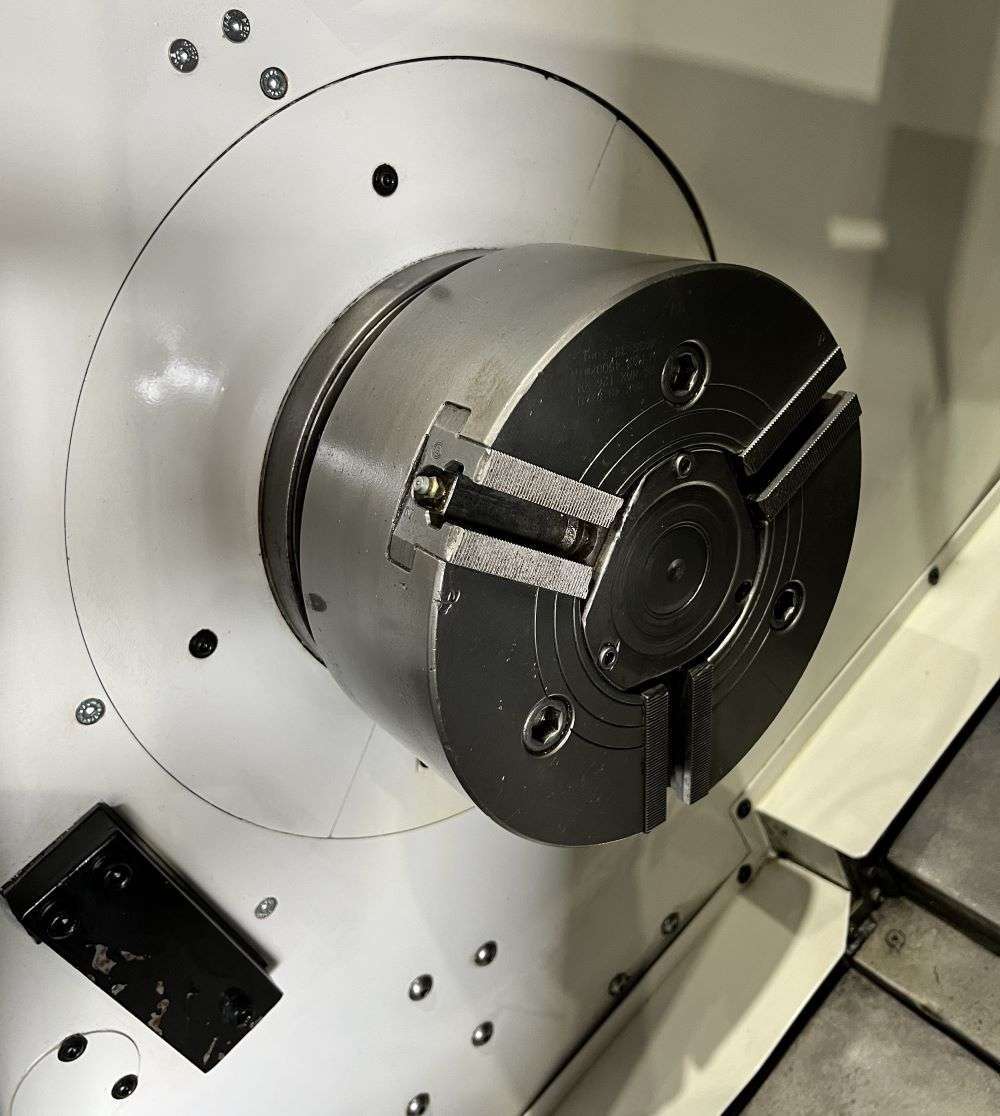

| 10″ 3-Jaw Hydraulic Chuck |

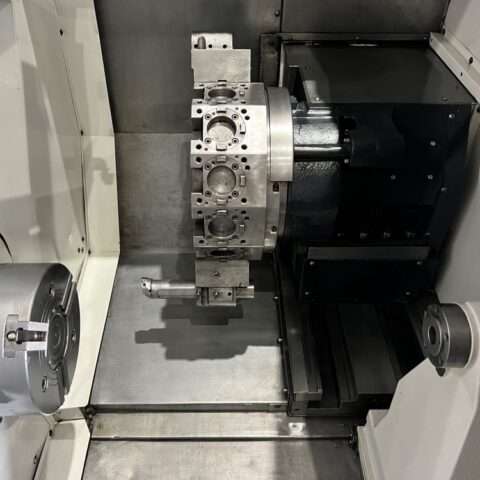

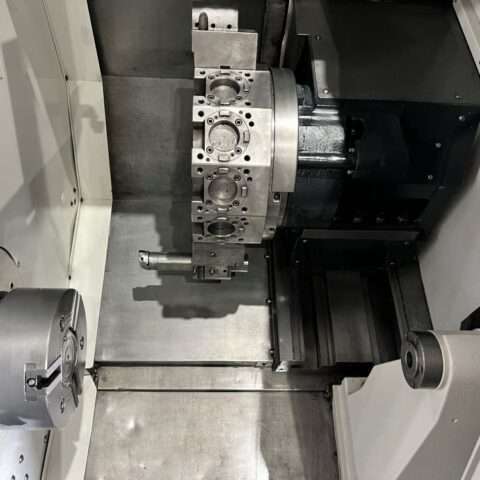

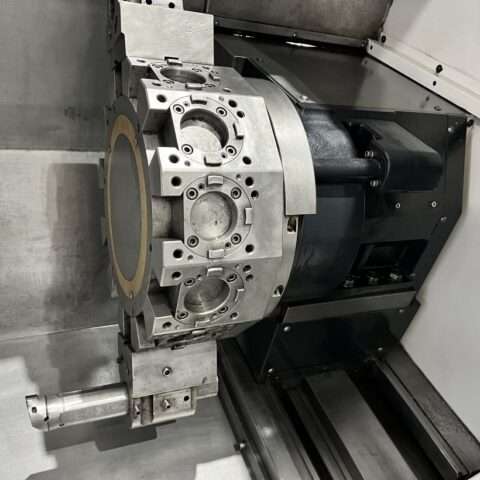

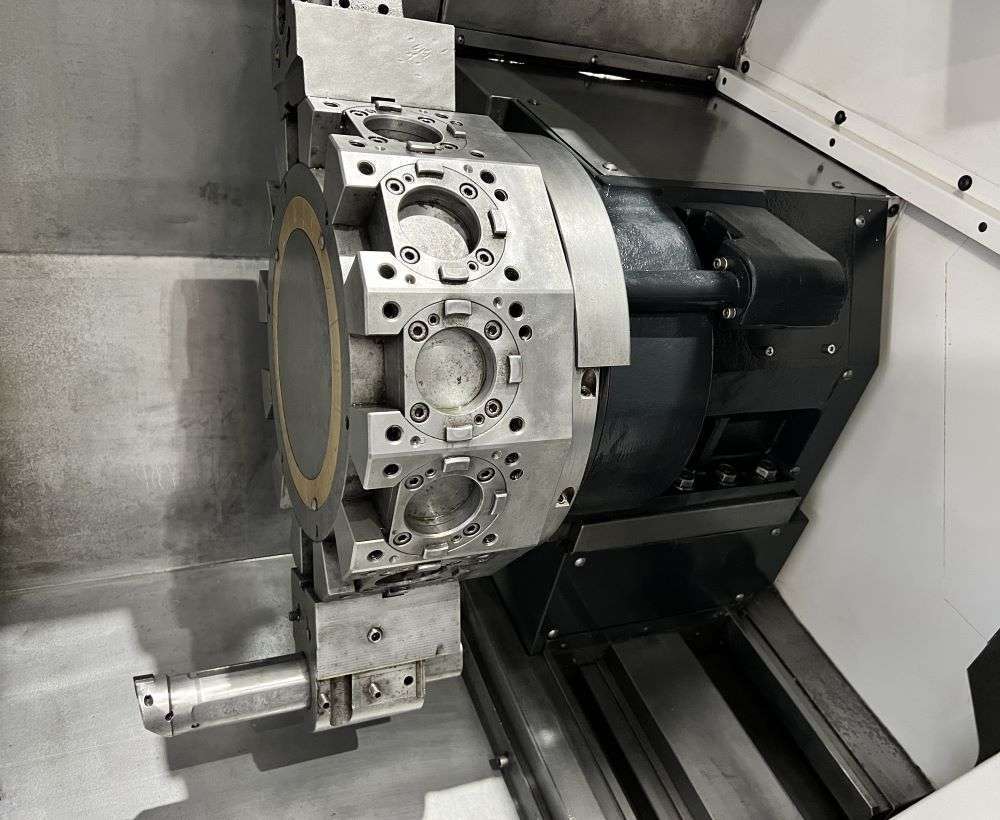

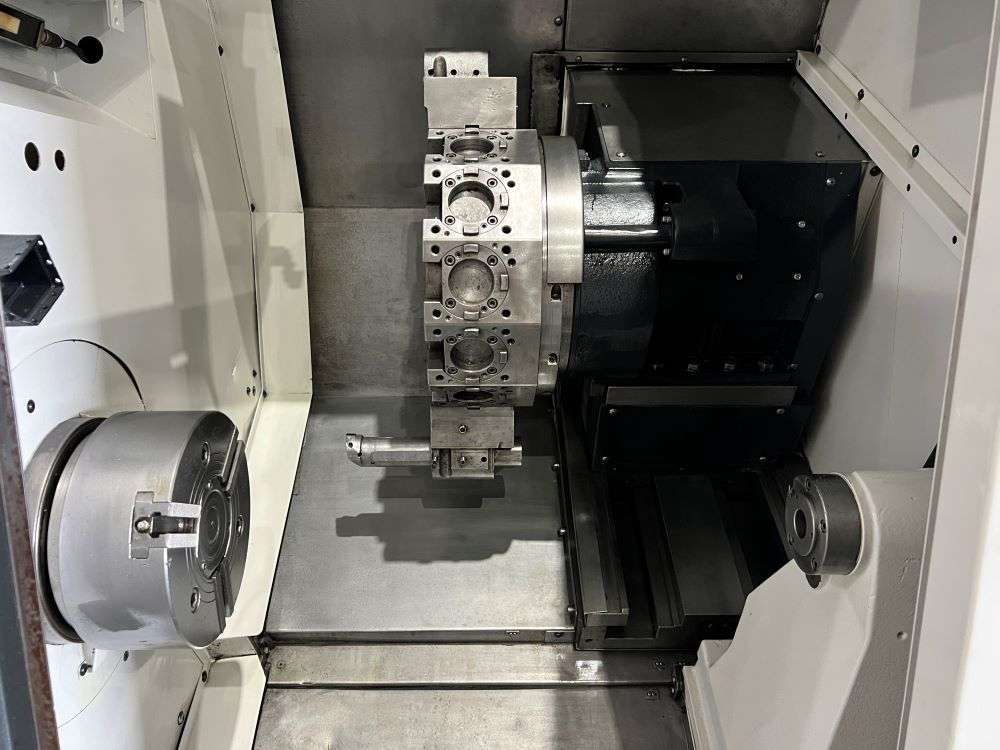

| 12 Station High Speed Turret |
| 20 HP Gearbox Spindle |
| PCMCIA Card Slot |
| RS-232 |

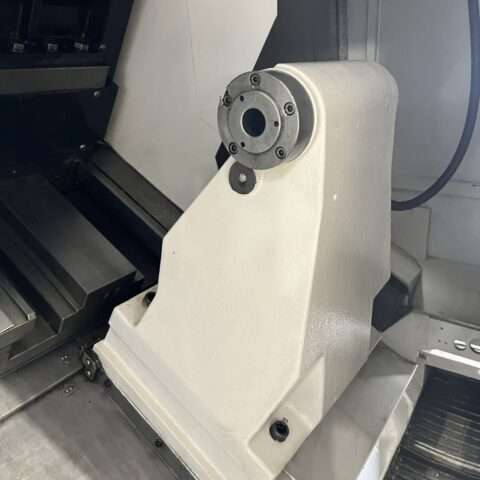

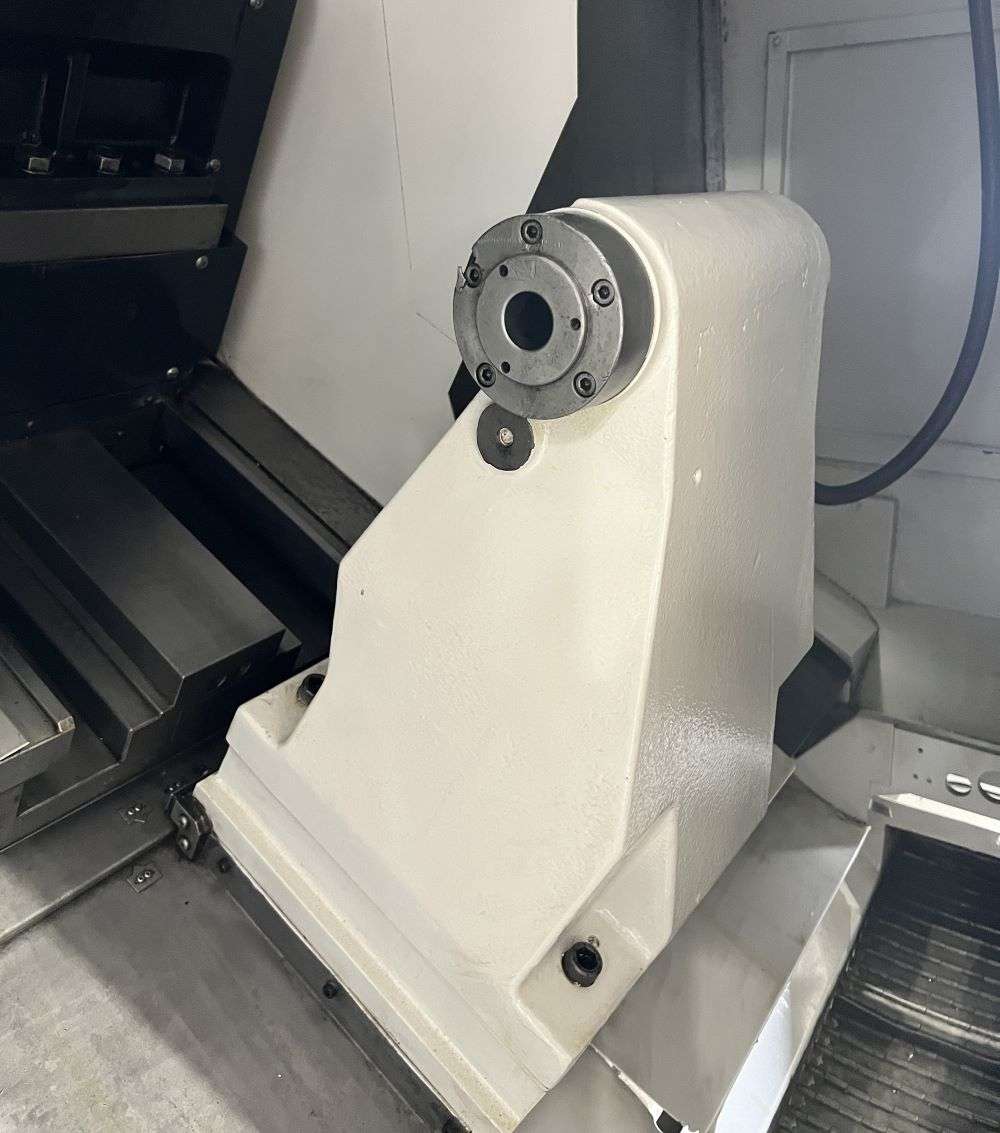

| Programmable Tailstock |
| Rigid Tapping |
| Coolant System |

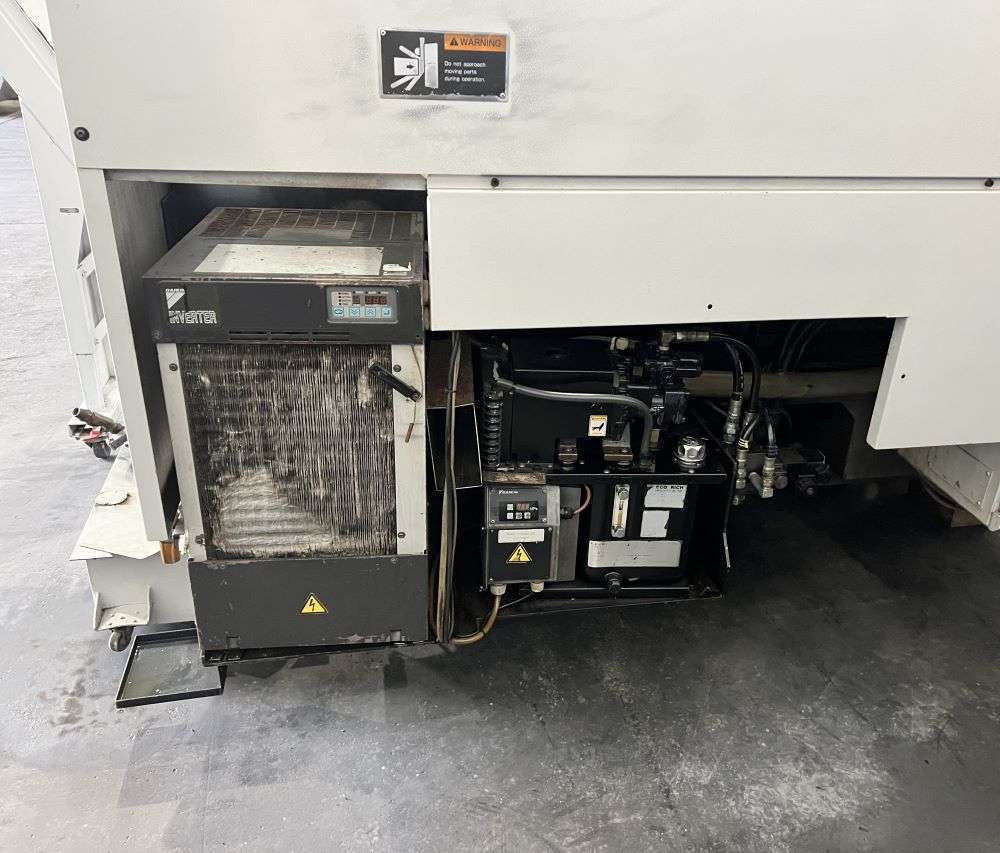

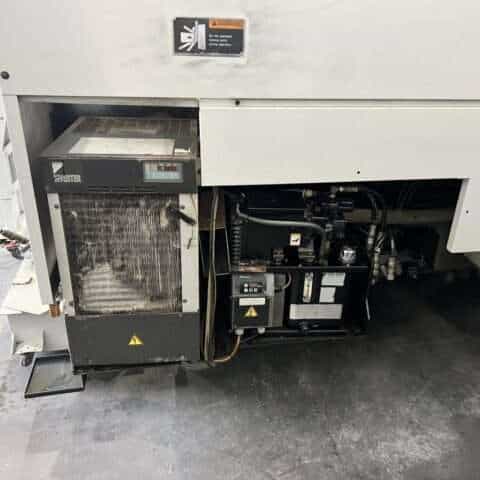

| Chiller Unit |
| Foot Switch |

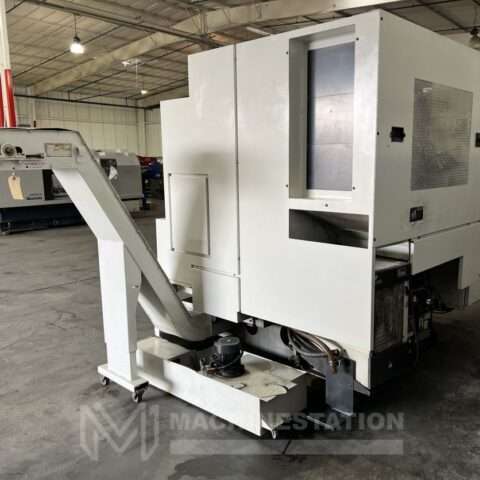

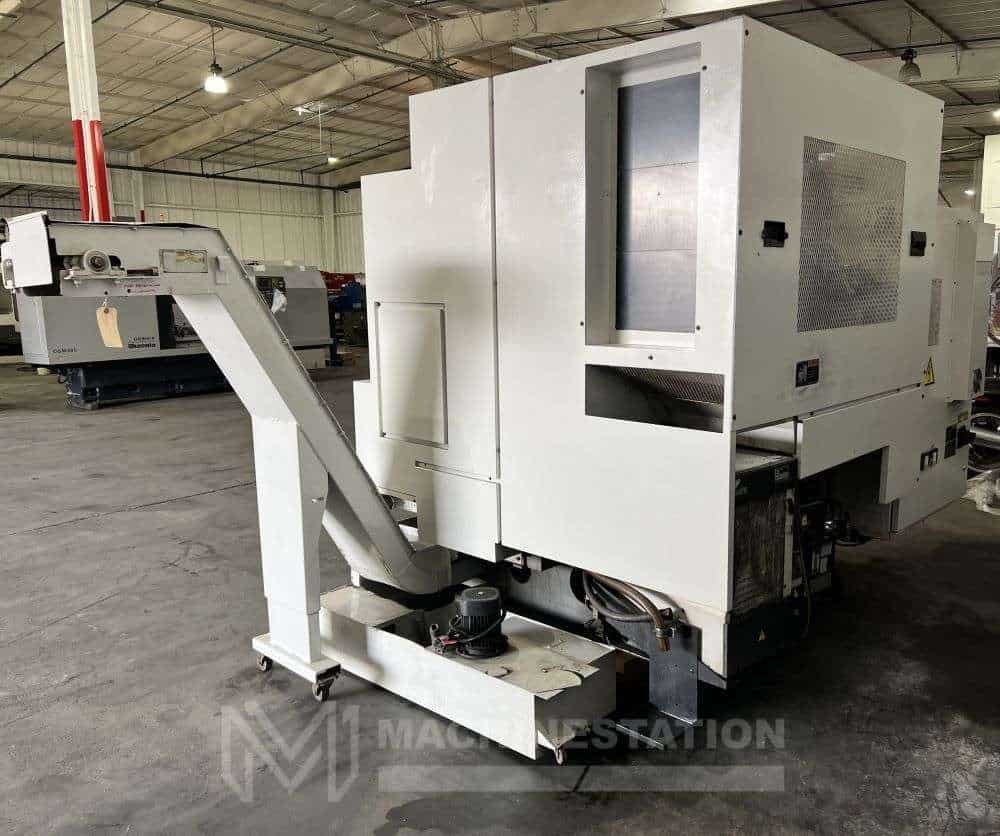

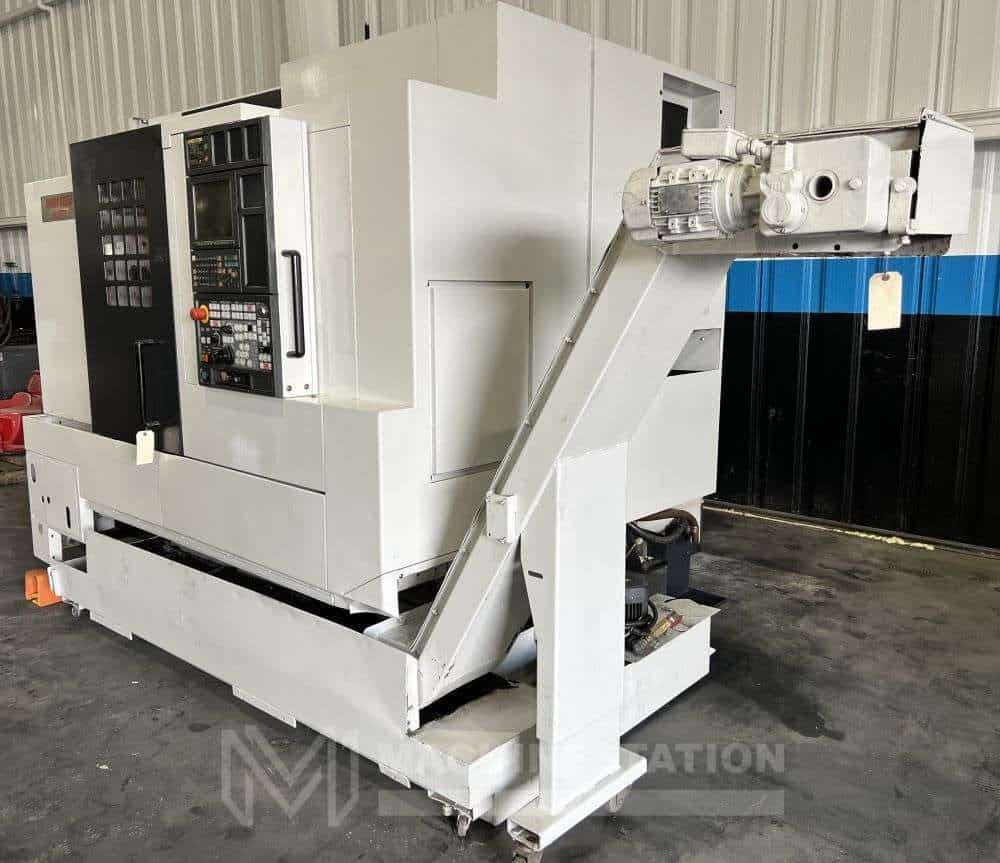

| Chip Conveyor |
| (2) Tool Holders |
| Capacity: |
|---|
| Max Turning Diameter: 14″ |
| Max Turning Length: 20.1″ |
| Max Bar Capacity: 2.56″ |
| Swing Over Bed: 22.8″ |
| Distance Between Centers: 23.2″ |
| Travel: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 23.2″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.9″ |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 22.2″ |
| Tailstock Quill Dia.: 3.1″ |
| Tailstock Quill Stroke: 3.14″ |
| Tailstock Taper: MT-4 |
| General: |
|---|

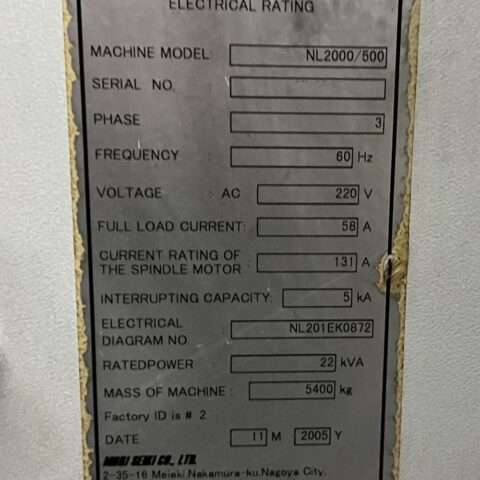

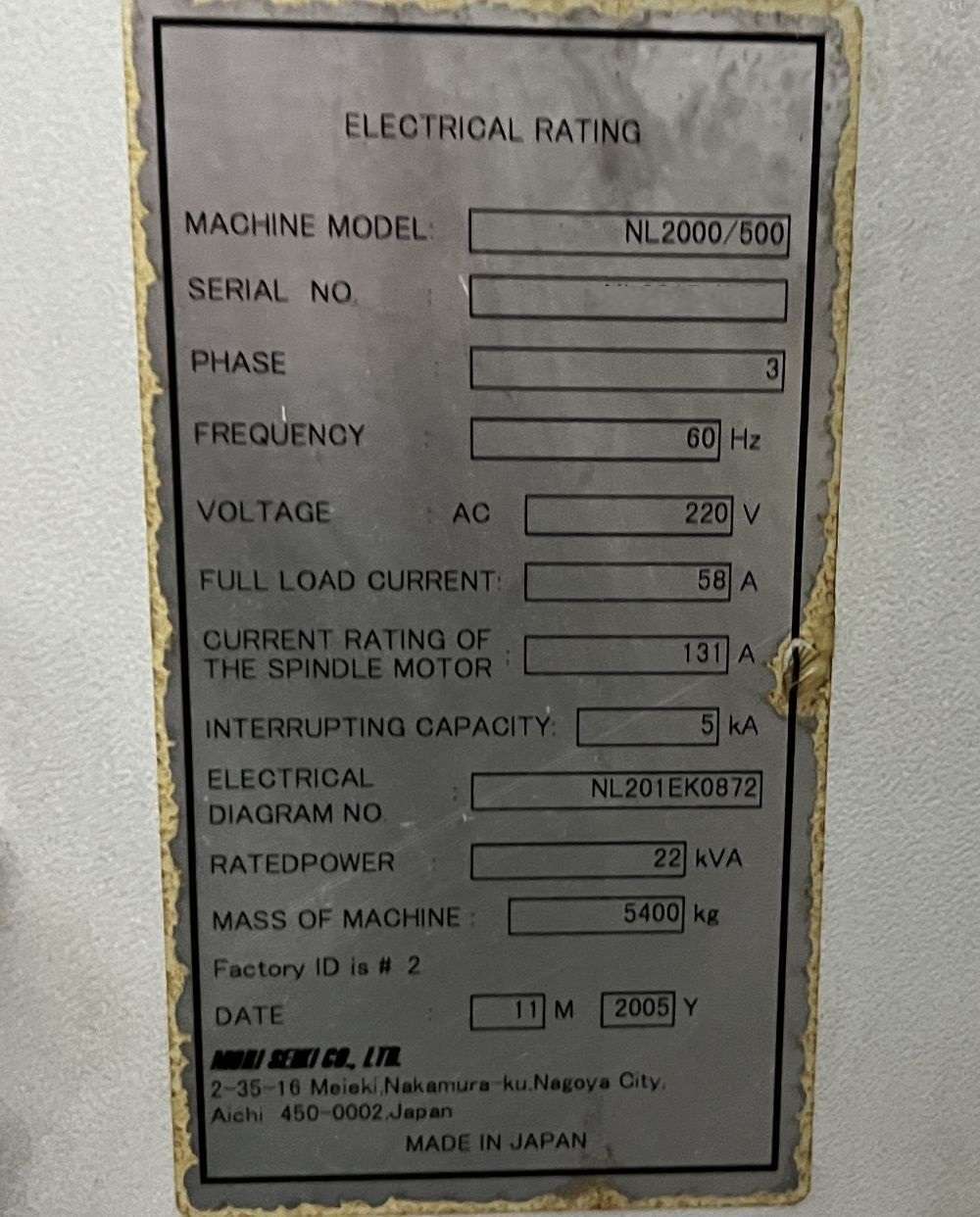

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 22 kva |
| Overall Dimensions: 107″ X 76″ X 84″ High |
| Weight : 11900 lbs. Approx. |
