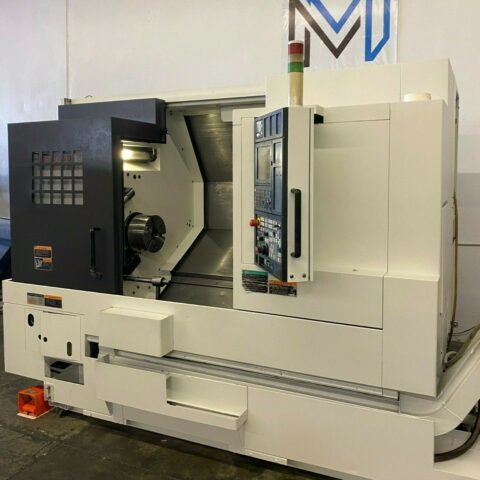

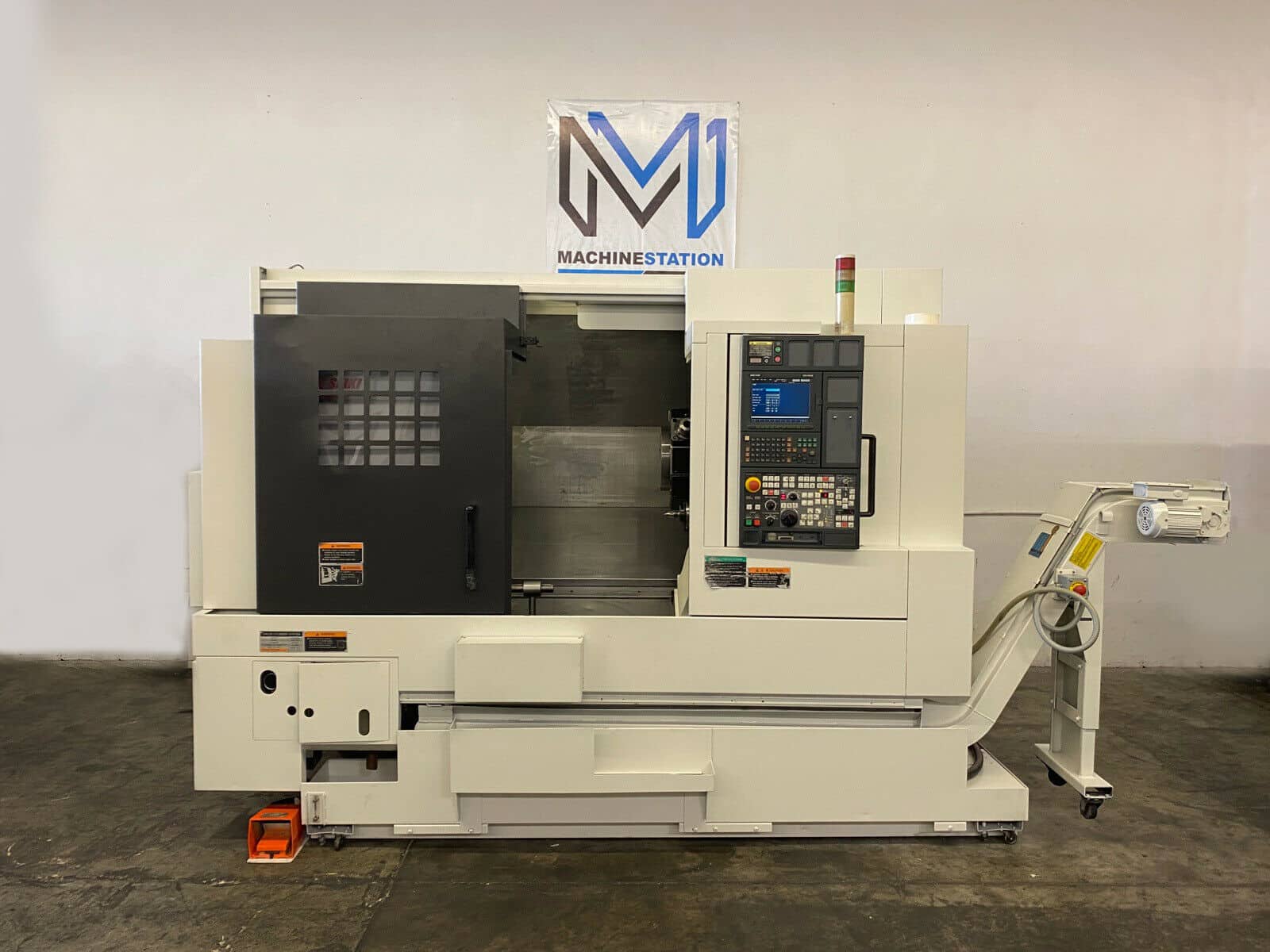

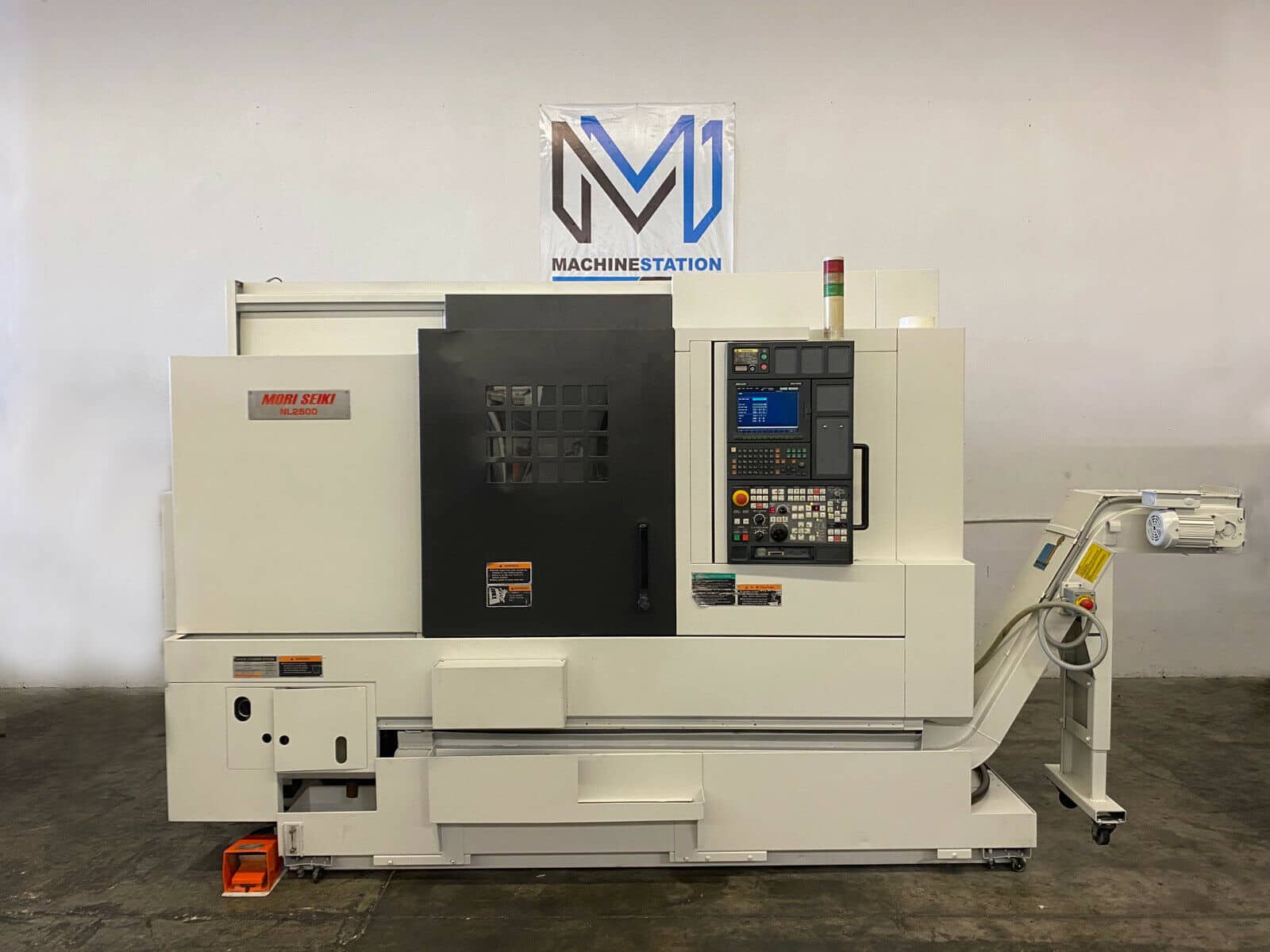

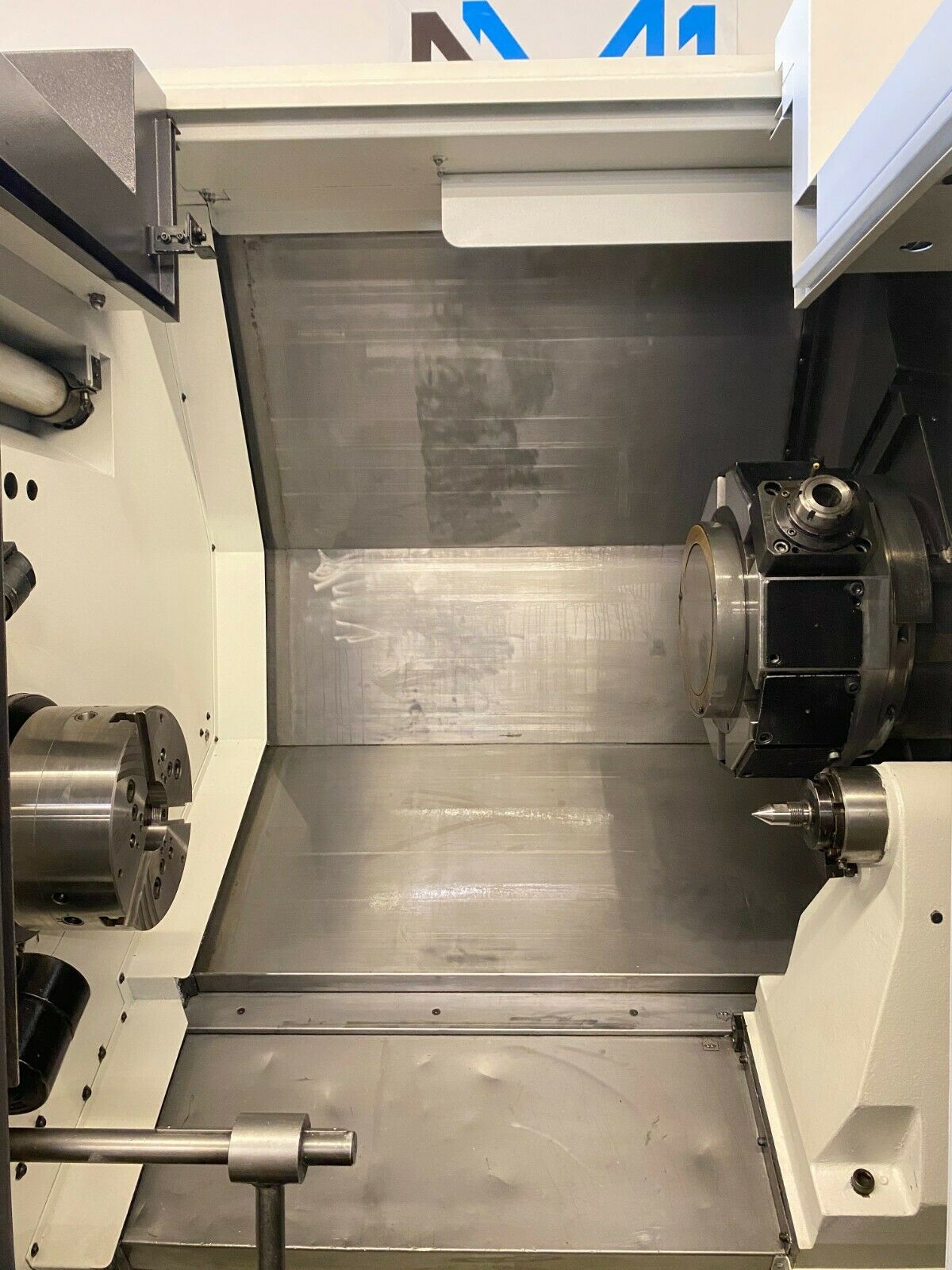

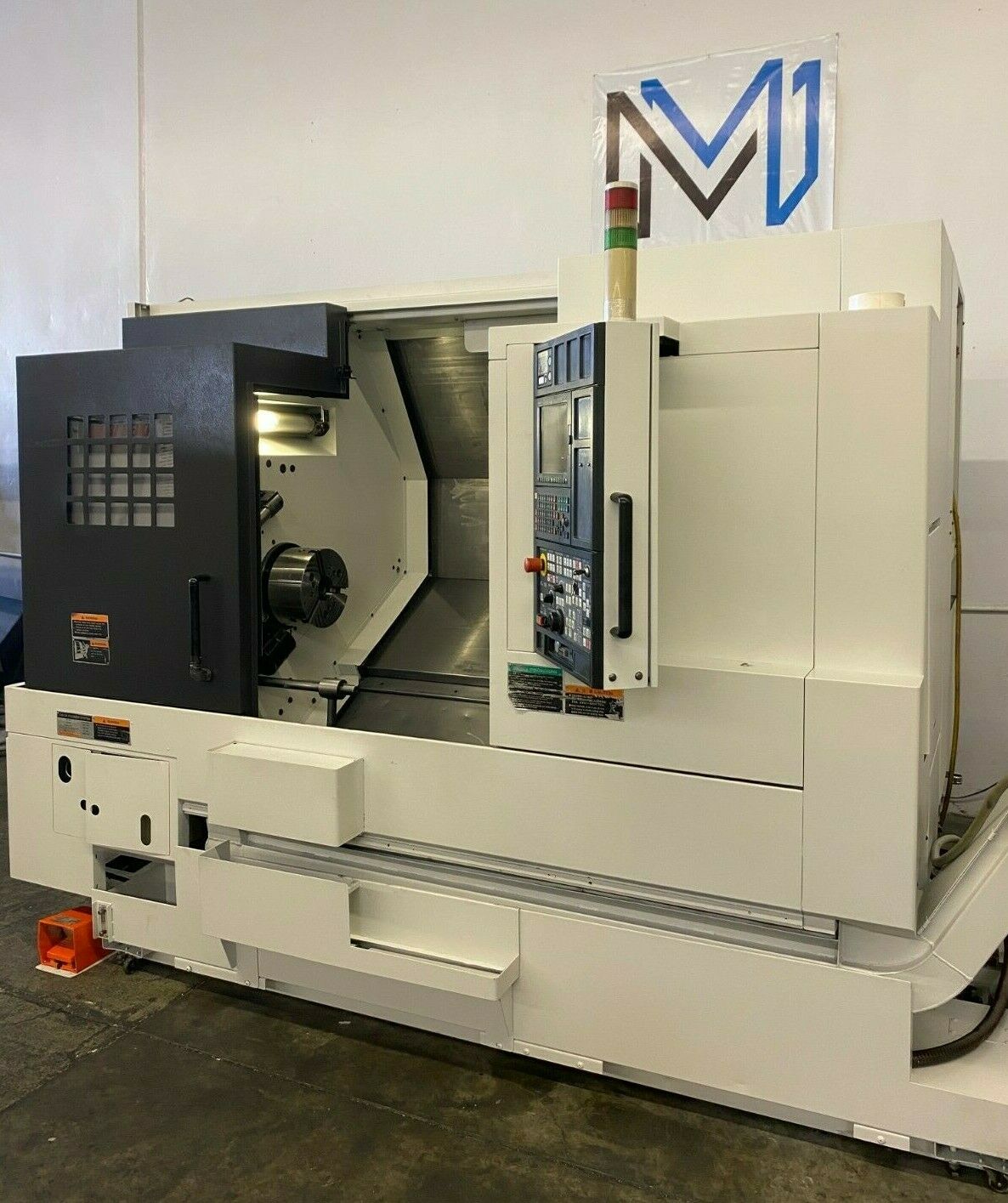

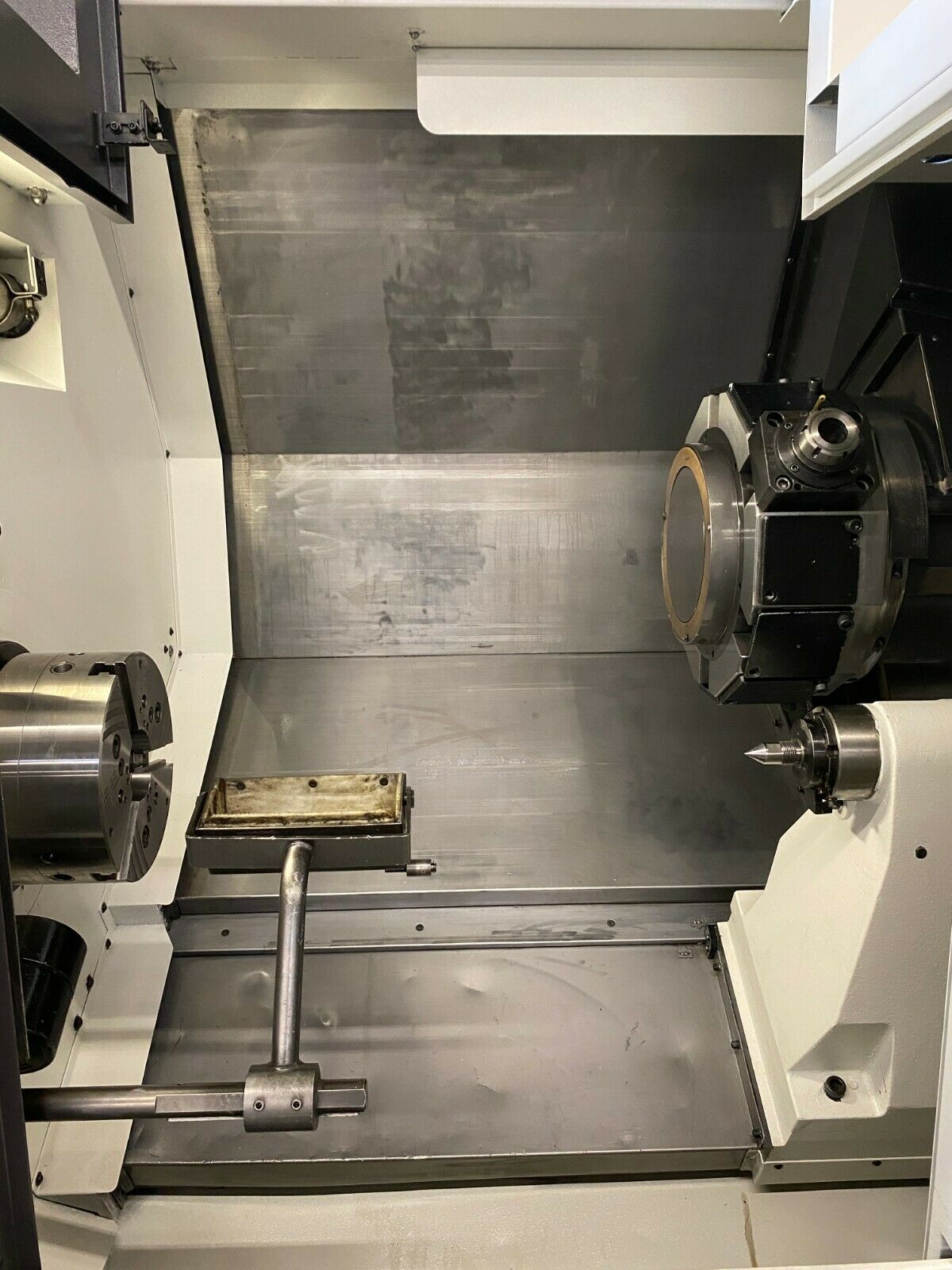

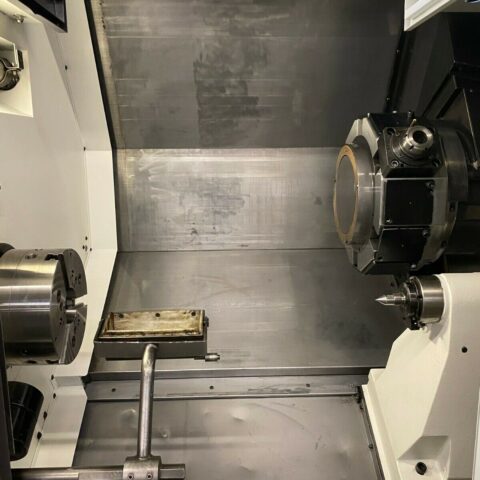

MORI SEIKI NL2500Y/700 CNC Turning Center

Out of stock

SKU:	2012
Make/Model:	MORI SEIKI/NL2500Y/700
Video:	[fusion_button link=”https://www.youtube.com/watch?v=xODDcRl9hgo” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 2012

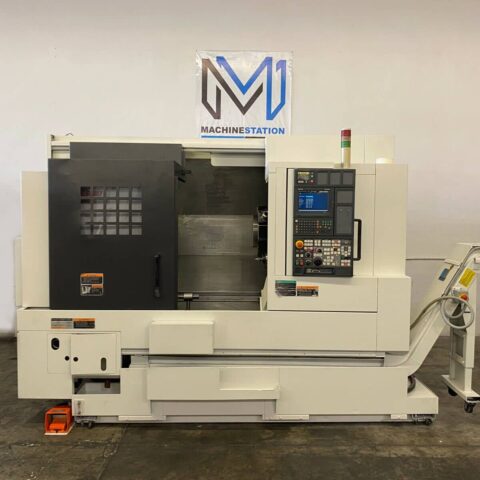

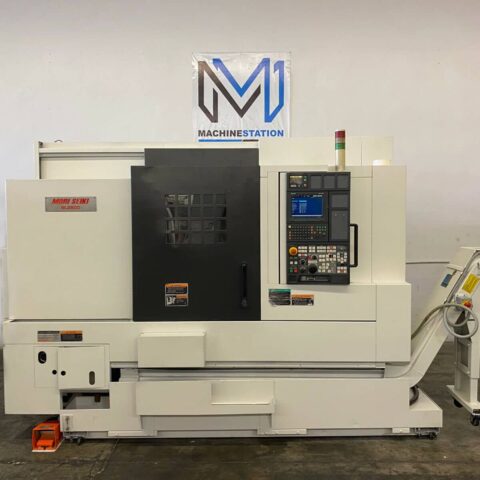

MORI SEIKI NL2500Y/700 CNC TURNING CENTER
SKU	2012
Make	MORI SEIKI
Model No.	NL2500Y/700
Serial #	NL251FG2276
Condition	Very Good
Comes With 10″ Chuck, Live Tool holder, Tailstock & Chip conveyor.

All specifications are approximations and are subject to verification.

MORI SEIKI NL2500Y/700 Equipped With:

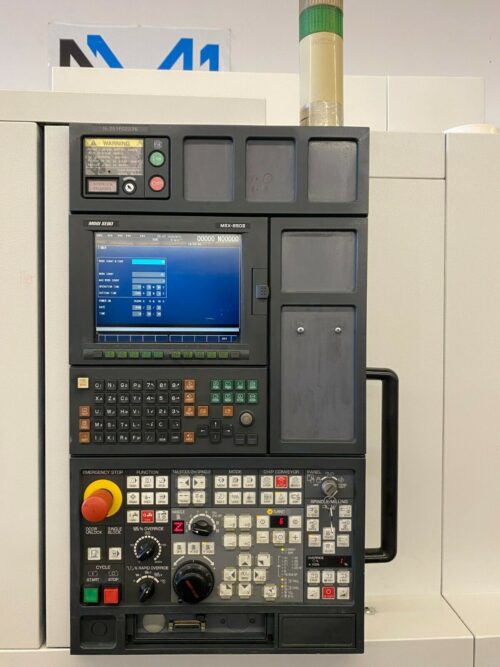

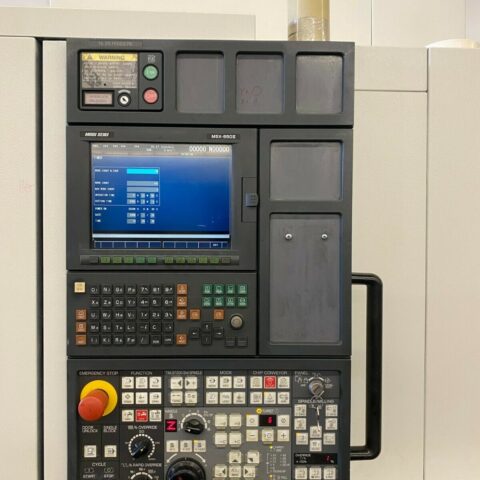

MSX-850 III CNC Control
A2-8 Spindle with 3.1″ Bore

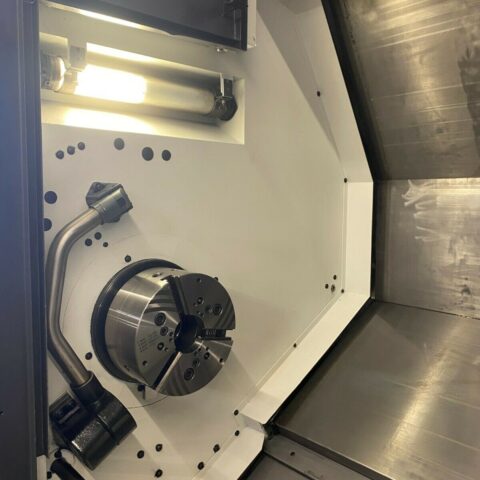

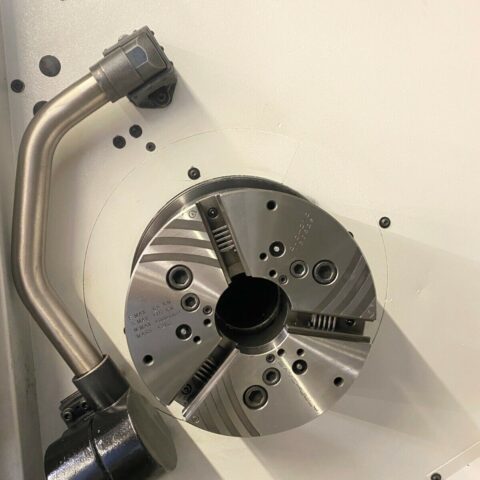

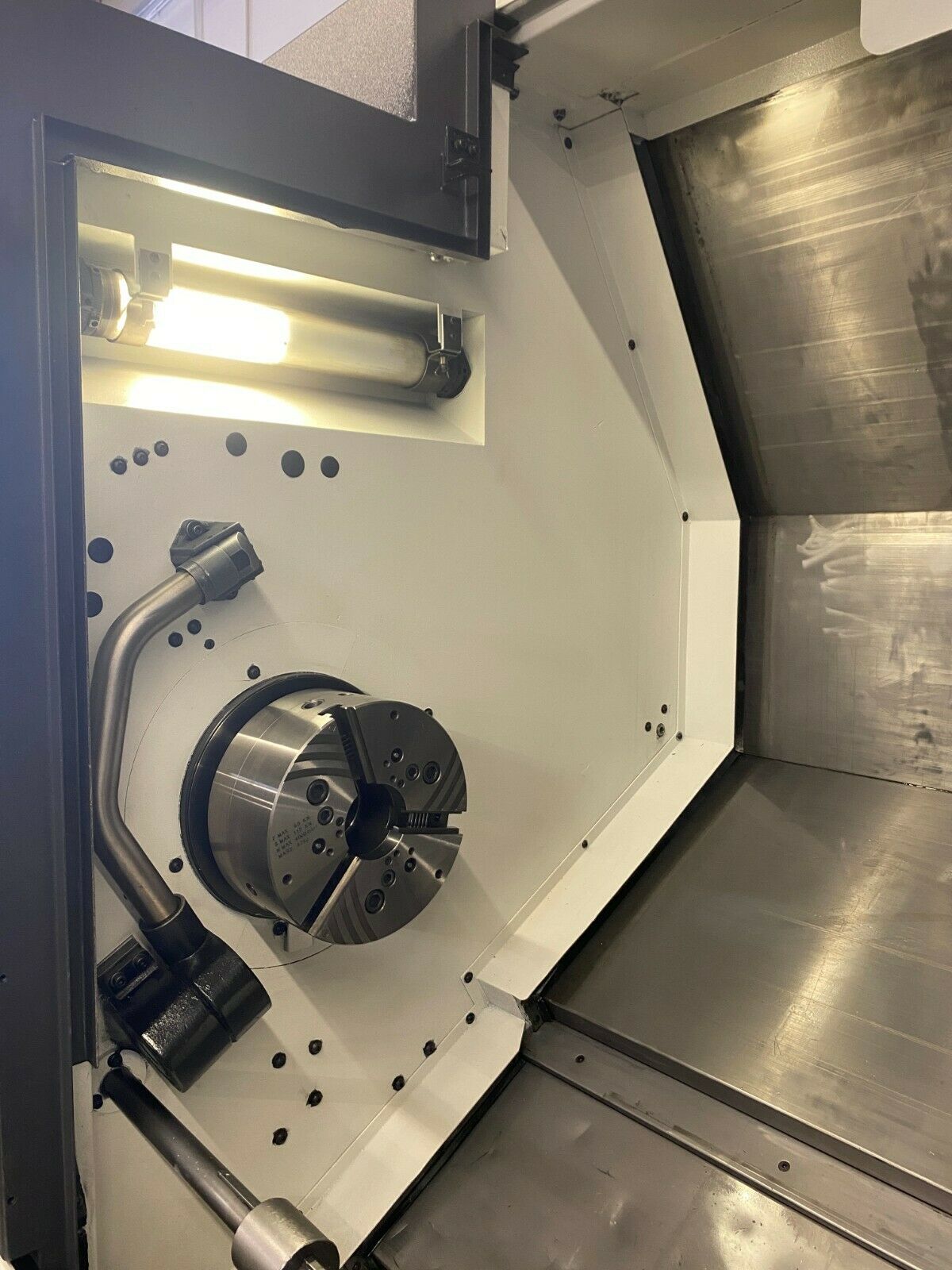

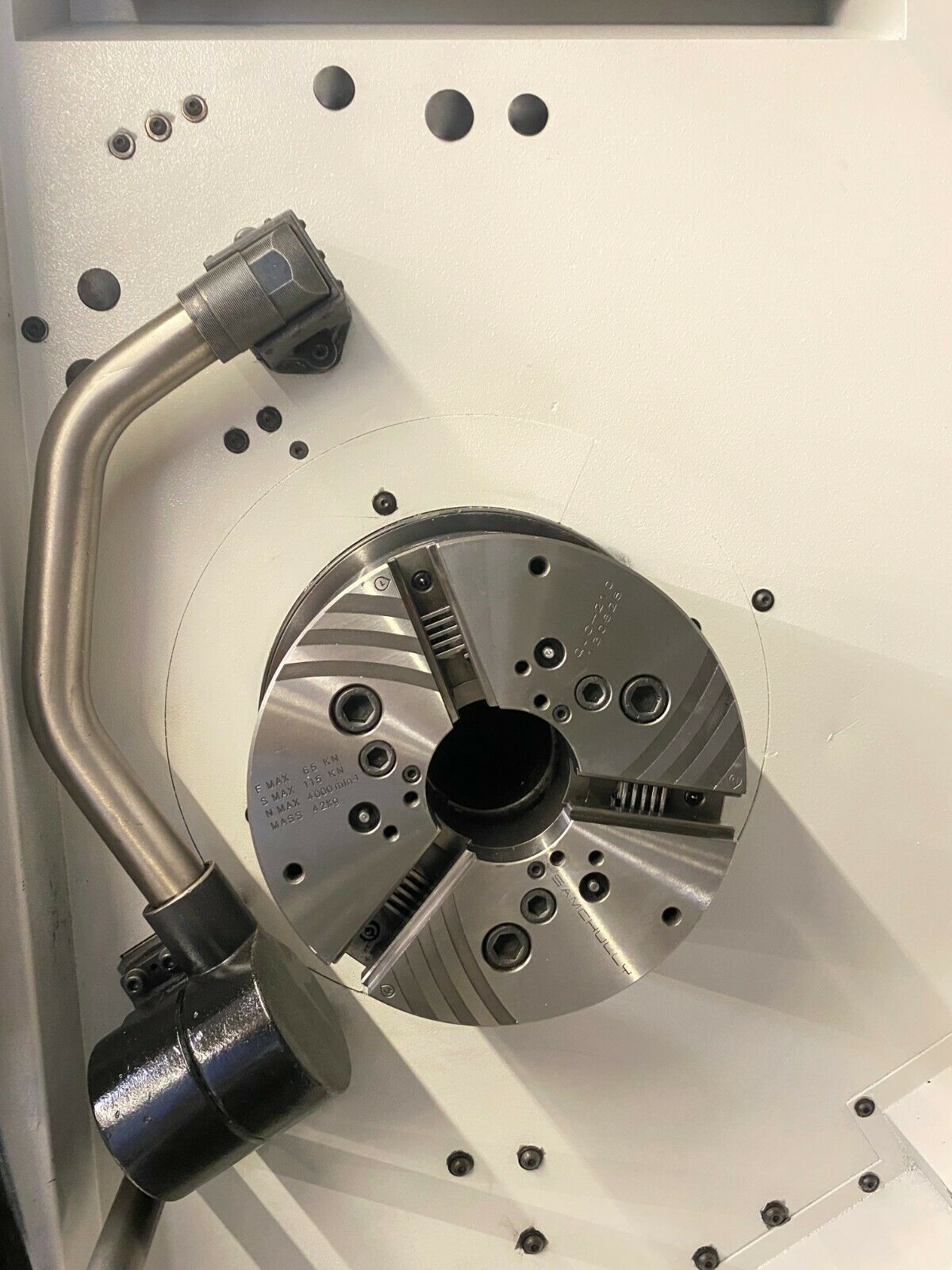

10″ Samchully 3 Jaw Chuck (12″ Capable )
C & Y Axis Capability
Tool Presetter
Parts Catcher
PCMCIA Card Slot
USB Port
Programmable Hydraulic Tailstock
Coolant System
Foot Switch
Chip Conveyor

MORI SEIKI NL2500Y/700 Specifications:
Capacity:
Max Turning Diameter: 14.5″
Max Turning Length: 27.55″
Max Bar Capacity: 3.1″
Swing Over Bed: 36.4″
Distance Between Centers: 34.6″

Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.3 “
Y Axis Travel: 3.9″
C Axis Travel: 0.001°
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.1″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

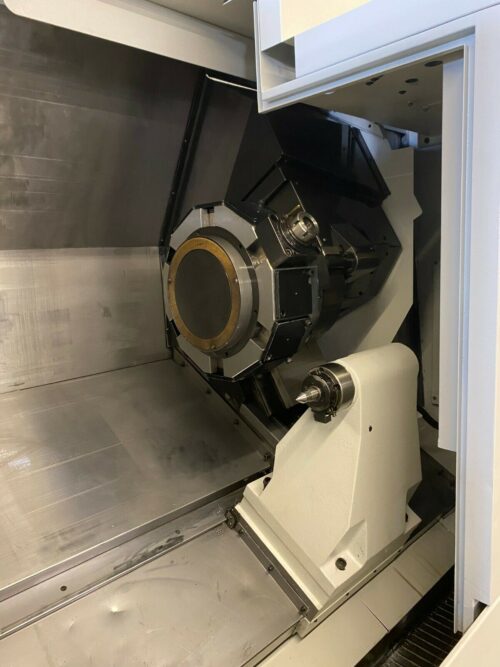

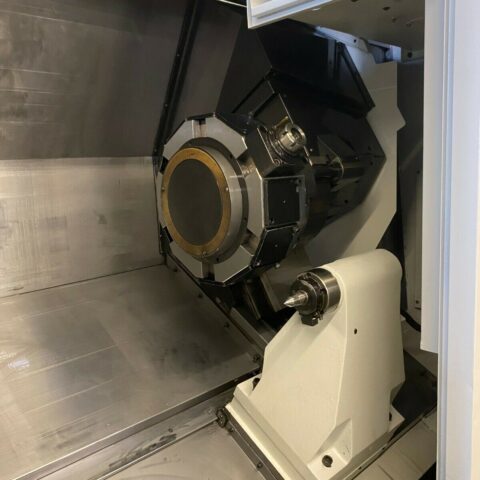

Turret:

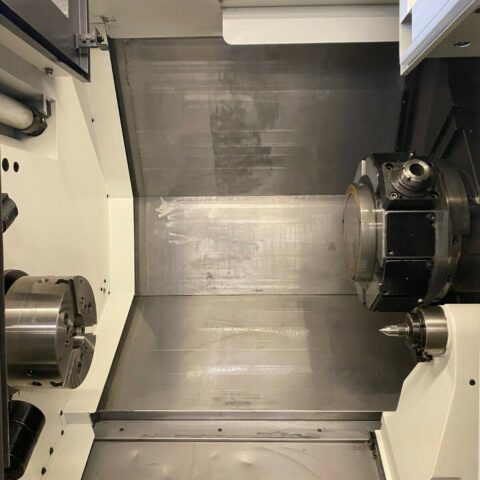

Turret Capacity: 12 Stations
Turret Index Time: 0.1 Second
Live Tool Speed: 6,000 RPM
Live Tool Motor: 7.5 HP

Tailstock:
Tailstock Taper: MT-4
Quill Diameter: “
Quill Travel: “
Tailstock Body Travel: ″

General:
Power: 50kva, 220v / 3-Phase Overall
Dimensions: 122 x 80 x 90” High (Machine w/ Conveyor)
Weight: 13,500 lbs

“No Charges for loading at list Price”
