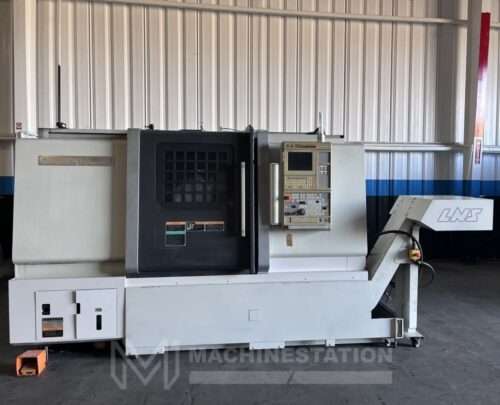

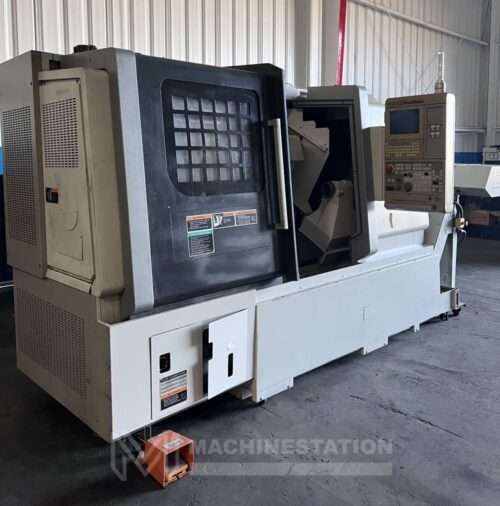

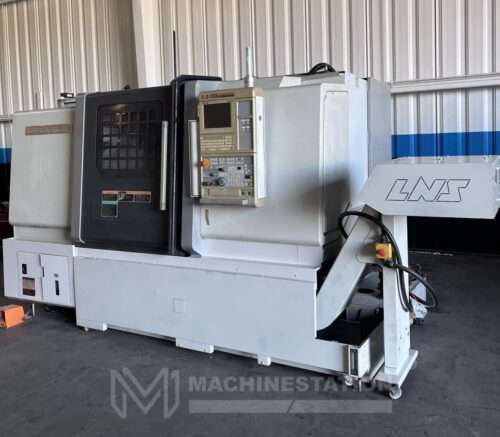

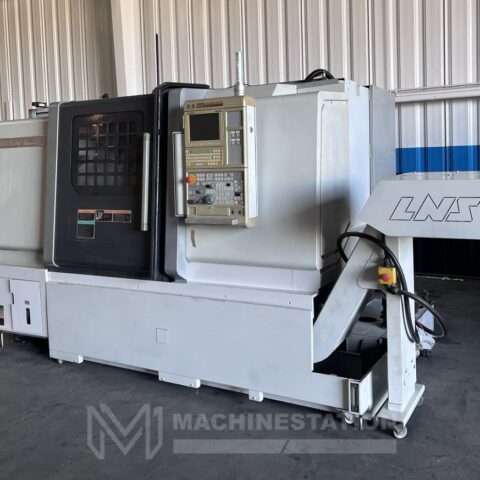

Mori Seiki NLX 2500MC/700 CNC Turn Mill Center – 2012
$1,146.00
1 in stock
Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

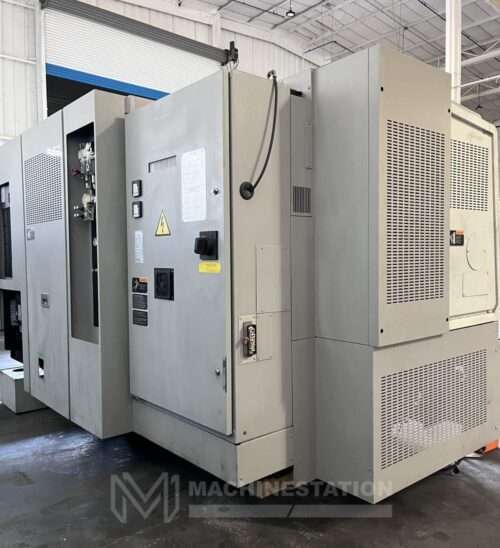

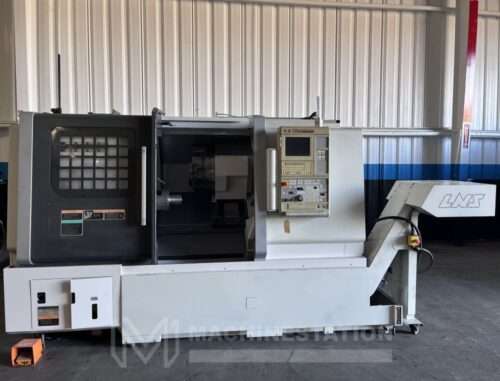

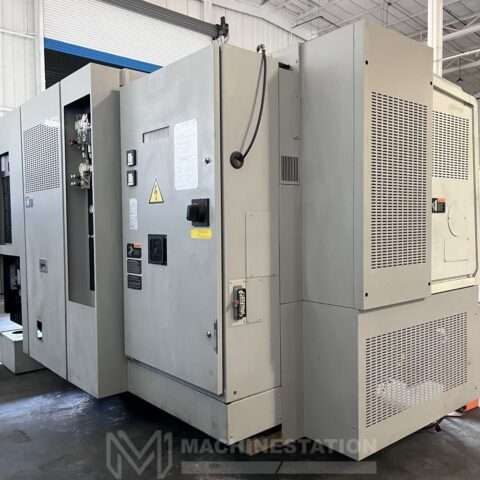

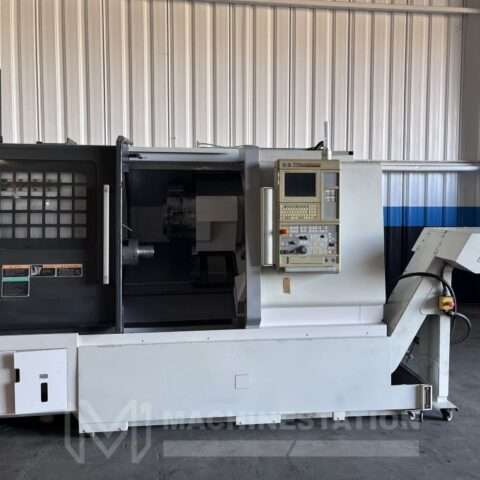

Used Mori Seiki NLX 2500MC/700 CNC Turn Mill Center For Sale
| Location: | Lake Elsinore, CA |
| SKU: | 2389 |
| Make/Model:: | Mori Seiki NLX2500MC/700 |
| Video: | No Video |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NLX2500MC/700 |
| Year: | 2012 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

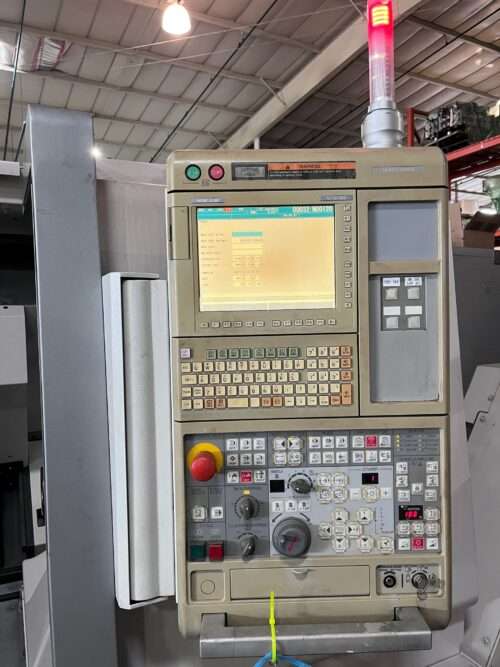

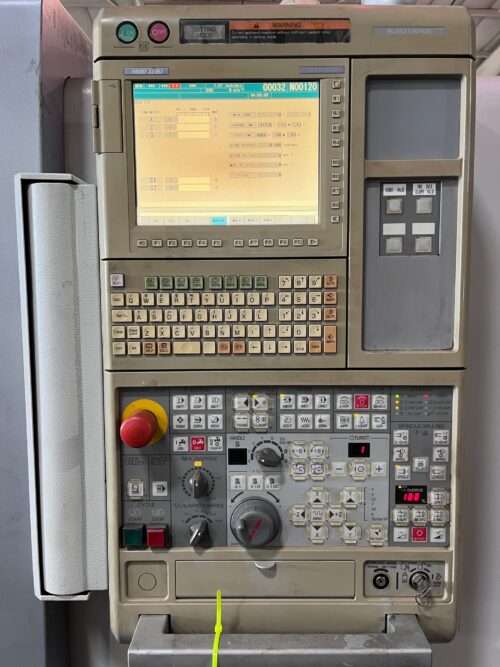

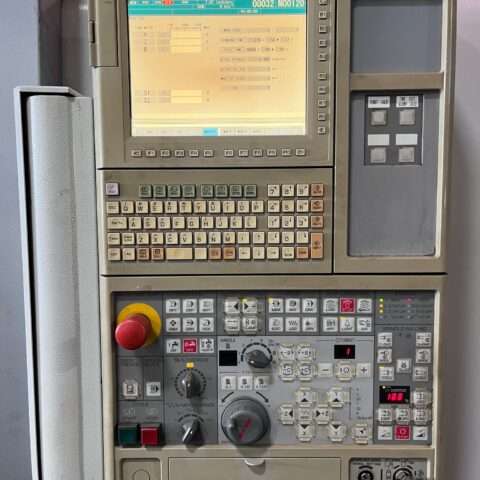

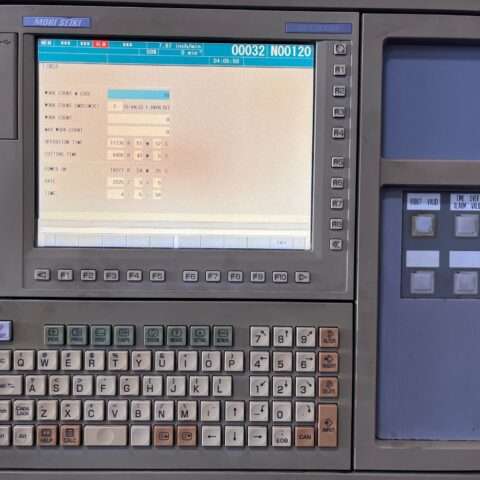

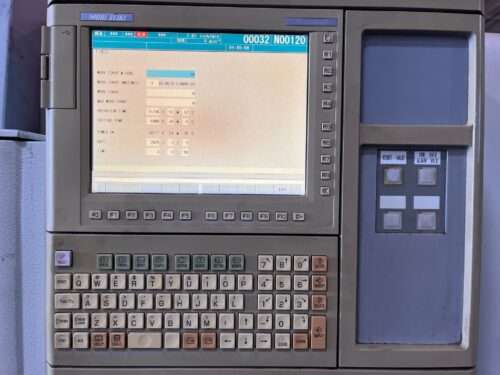

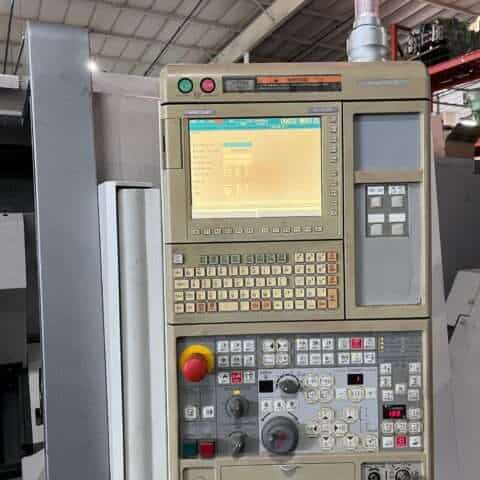

| Mori Seiki MSX-853IV CNC Control |

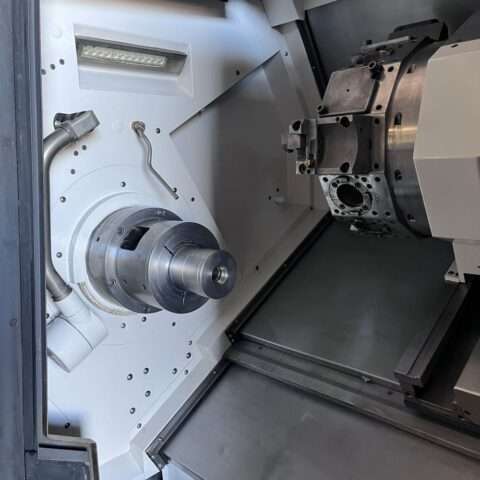

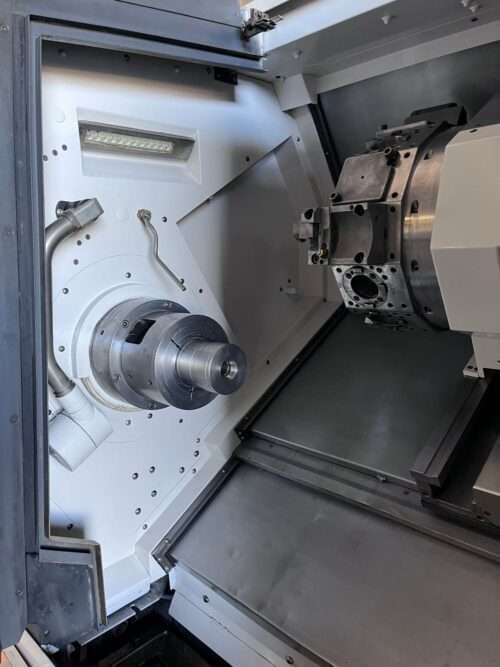

| Collet Chuck (Capable 10″ Chuck) |
| C Axis Capable |

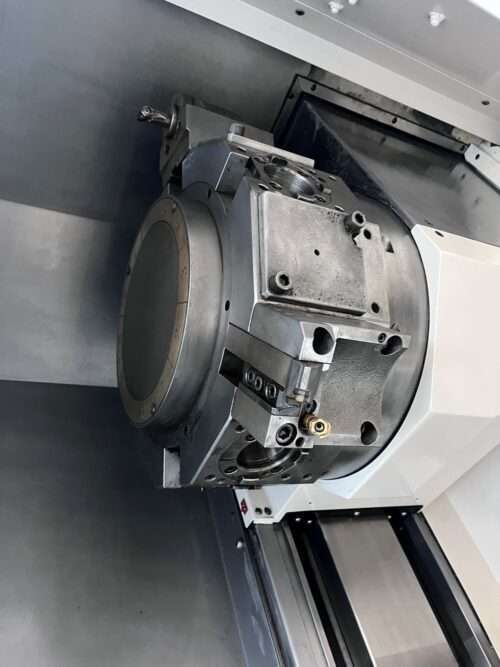

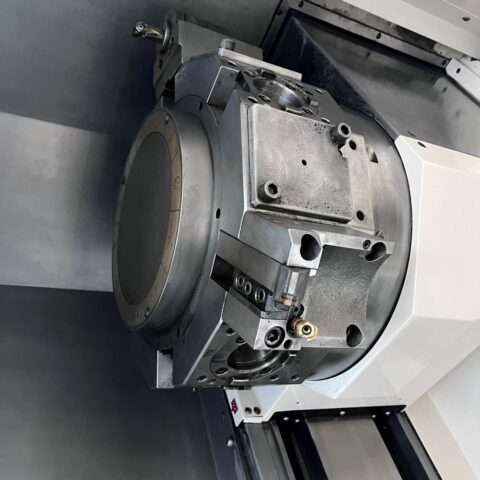

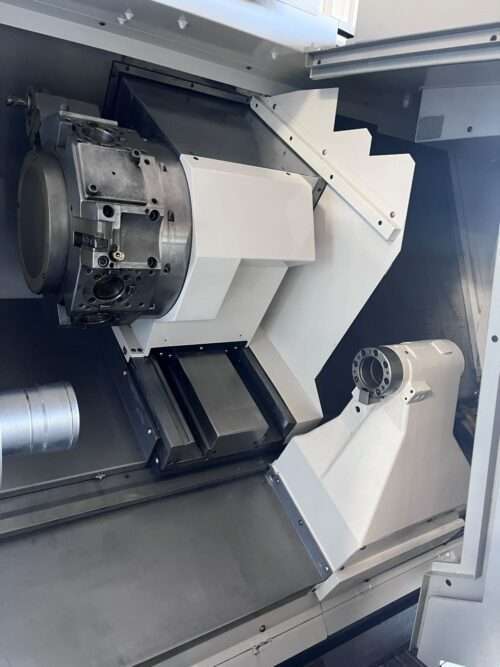

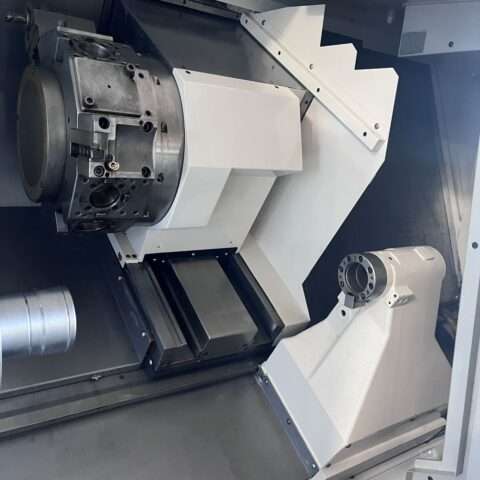

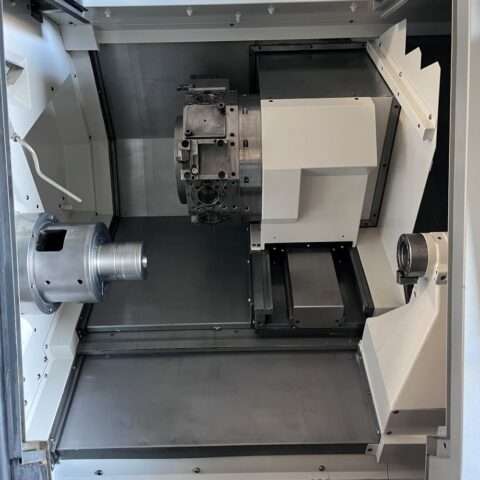

| 12 Station High Speed Live Tool Turret |
| 25 HP Spindle Power |
| Tool Presetter |
| PCMCIA Card Slot |
| Programmable Tailstock |
| Rigid Tapping |

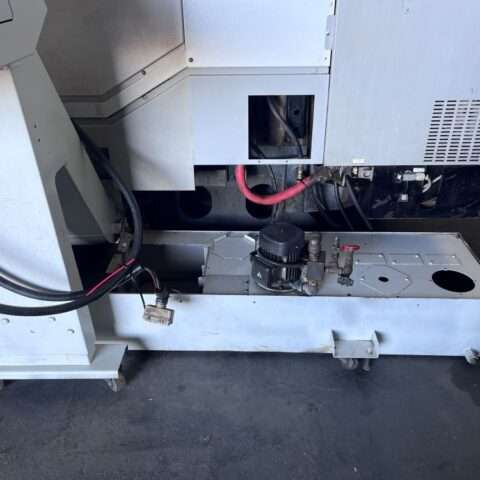

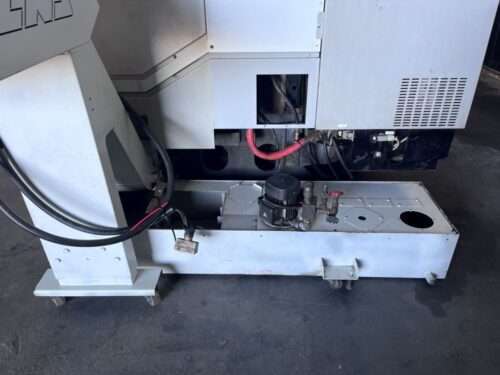

| Coolant System |

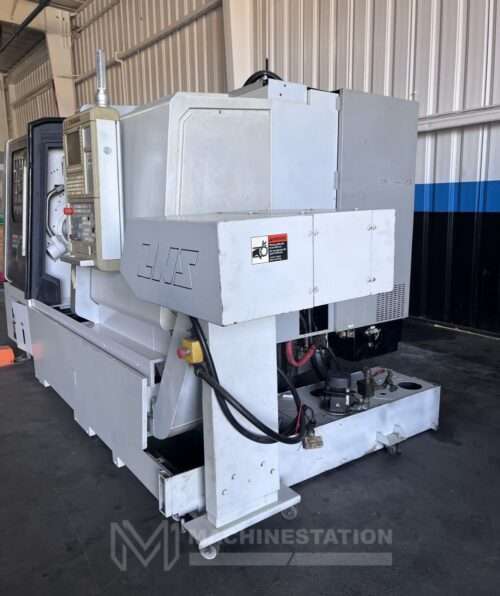

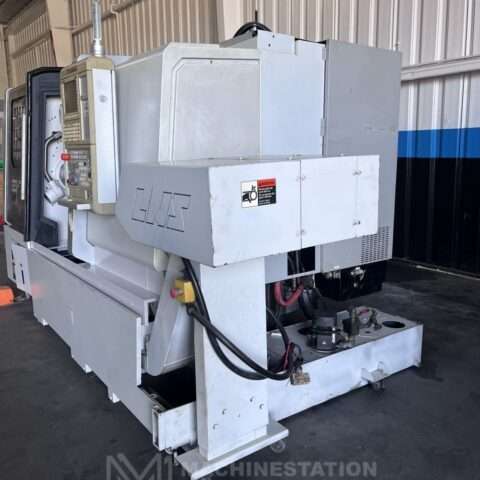

| LNS Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 14.4″ |
| Max Turning Length: 27.7″ |
| Max Bar Capacity: 3.1″ |
| Swing Over Bed: 23.2″ |
| Distance Between Centers: 31.5″ |
| Travels: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 31.2″ |
| C Axis Travel: 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.6″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Rotary Tool Speed: 6000 RPM |
| Rotary Tool Motor: 7.5 HP |
| Tailstock: |
|---|
| Tailstock Body Travel: 28.8″ |
| Tailstock Quill Dia.: 3.34″ |
| Tailstock Quill Stroke: 3.1″ |
| Tailstock Taper: MT-4 |
| General: |
|---|

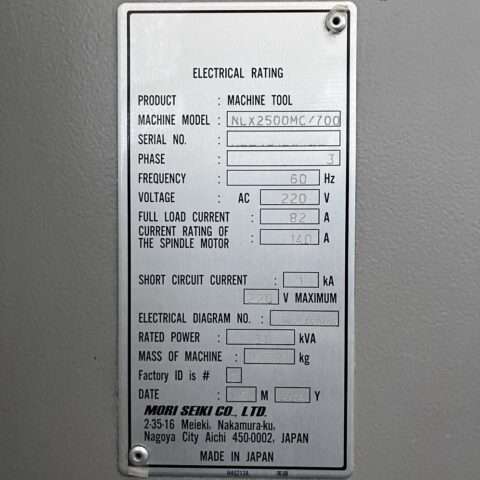

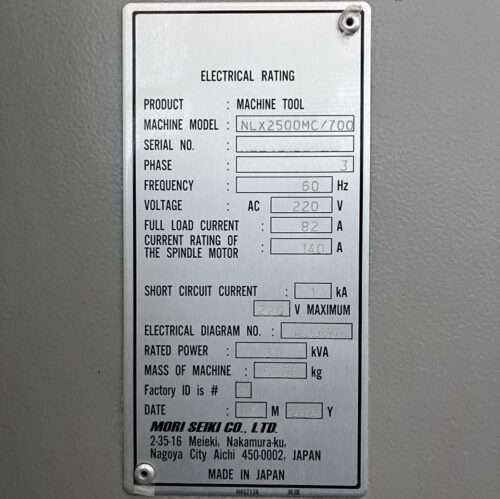

| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 31 kva |
| Overall Dimensions: 156.7″ x82.9 ″ x 86.6″ High With Chip Conveyor |
| Weight : 12125 lbs Approx. |
| Make | |
|---|---|
| Model | NLX2500MC |
| Categories | CNC Lathes & Turning Centers |
