MORI SEIKI NV-5000 CNC VERTICAL MACHINING CENTER | |
---|---|
Make | MORI SEIKI |
Model No. | NV-5000A/40 |
Year | 02/2002 |
Serial # | NV501BB0011 |
Condition | Very Good |
Cutting Hours: | 14830 |
All specifications are approximations and are subject to verification.
“This One Owner Machine has 12,000 RPM, 30 Tool changer, MAPPS MSC-501 Control, expanded Memory and many more features. Original Paint, ran mostly on Aluminium. On our Floor now fully powered / tested & is in Great working condition.”
- Mori Seiki NV-5000 Features:

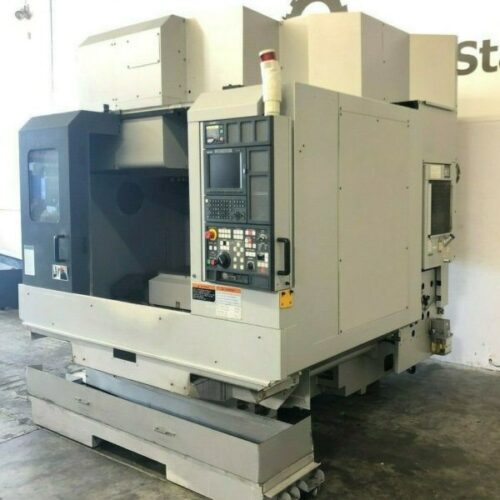

- MSC-501 (Fanuc 18i) series CNC Control
- 12,000 RPM High Precision Spindle
- CAT-40 Spindle
- 30 Tools Bidirectional Tool Changer
- MAPPS Conversational Programming
- Tool Load Monitoring
- PCMCIA Card Slot
- RS-232 & Ethernet Connectivity
- Spindle Chiller Unit
- Wide Spaced Linear Guides Way Construction
- Powerful 30HP high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Helical Interpolation
- Fast Rapid Traverse Rate
- High Flow coolant with large separate coolant tank
- Work light

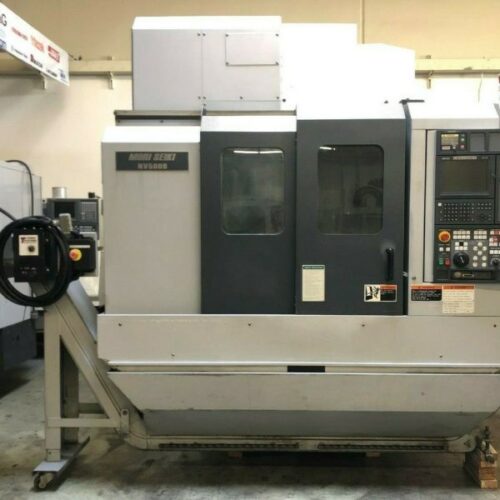

- Chip Conveyor
- Original Books and Manuals
- Mori Seiki NV-5000 Specifications:
- Travels:
- X-Axis: 31.50″
- Y-Axis: 20.10″
- Z-Axis: 20.10″
- Spindle Nose to Table (Min.- Max.): 5.91″ – 30.5″
- Table:
- Length: 43.30″
- Width: 23.60″
- Max Weight on Table: 2200 lbs
- T-Slot no. & Width: 45X 0.7″
- Spindle:
- Taper Size: CAT-40 Big Plus
- Speed Range: 60 – 12,000 RPM
- Spindle Power: 15 kw
- Feed rates:
- Rapid X,Y & Z: 1654 inch/Per Minute
- Cutting Feedrate: 630″ inch/ Per Minute
- Automatic Tool Changer:
- CAT-40 Taper
- Capacity: 30
- Max Tool Weight: 17.6 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 5.9″
- Tool Change Time: 0.9 second
- General:
- Air Required: 90 psi, 4 scfm

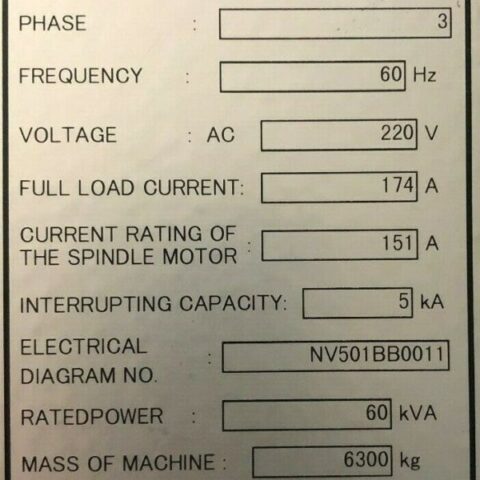

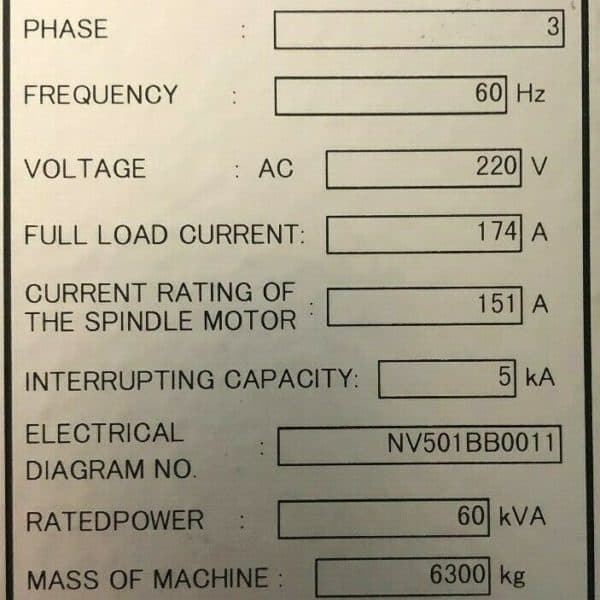

- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 142″ x 101″ x 110″ High
- Weight: 14000 lbs

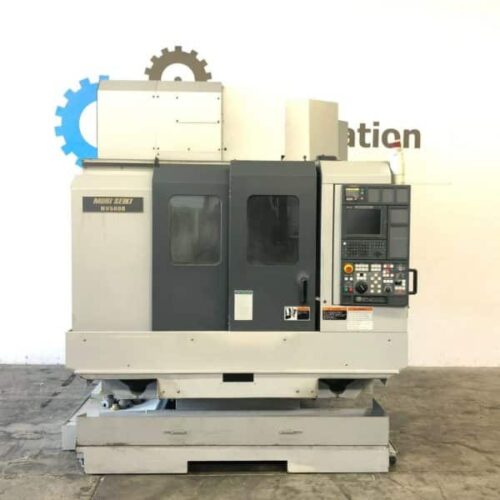

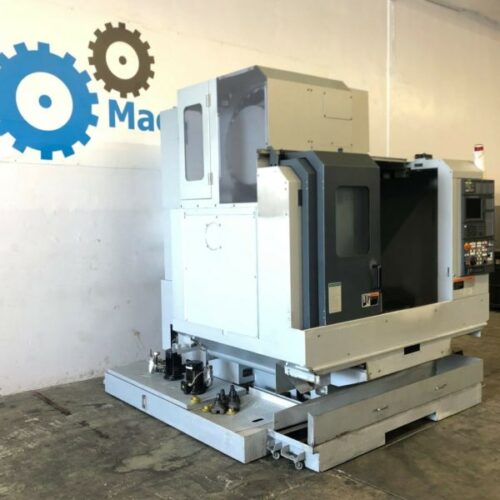

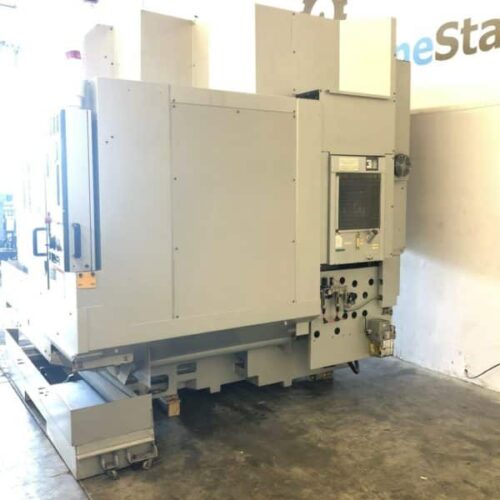

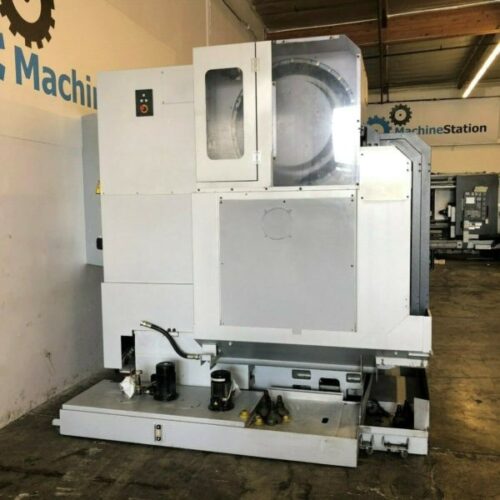

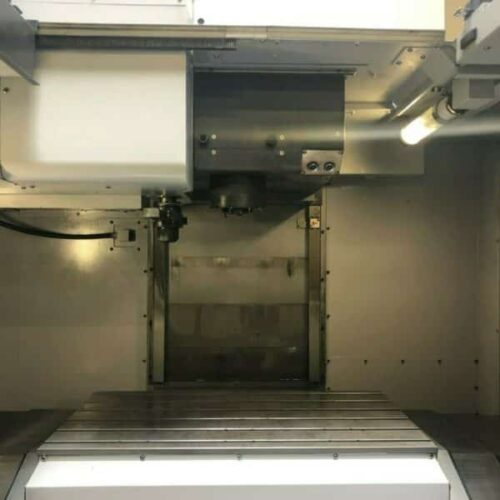

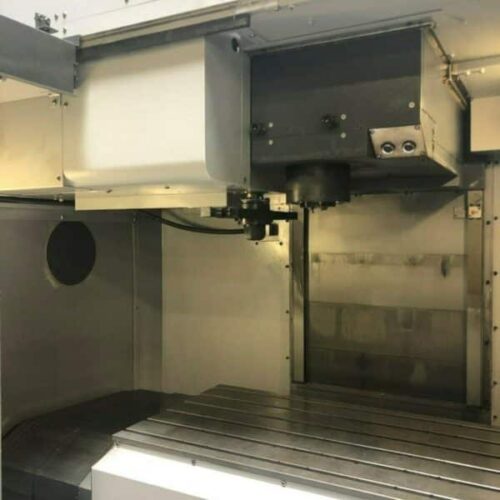

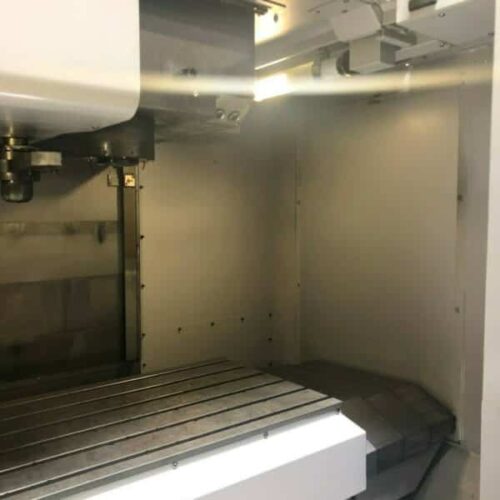

Mori Seiki NV-5000 Comes as shown in pictures.
