*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2570 |

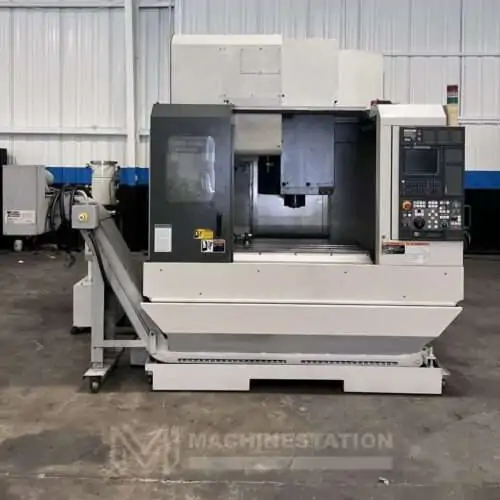

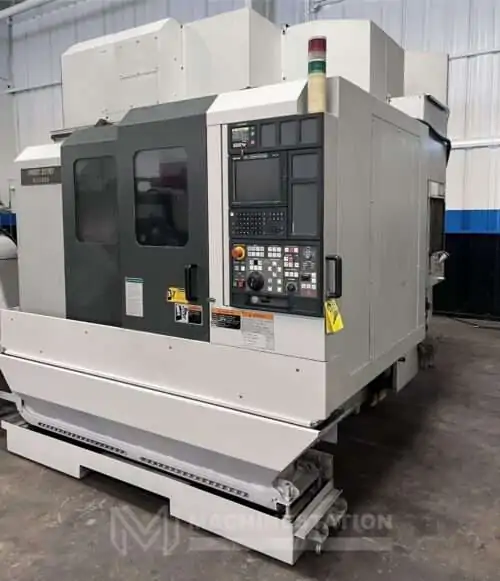

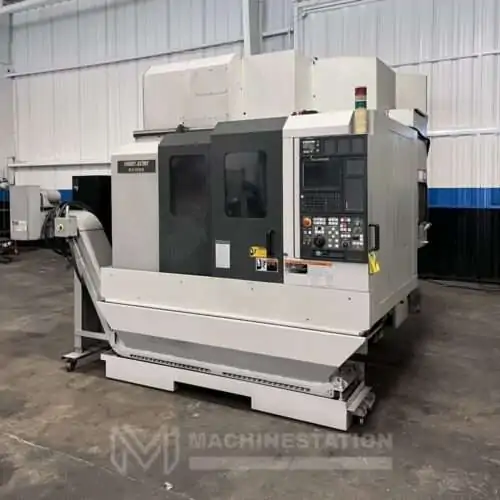

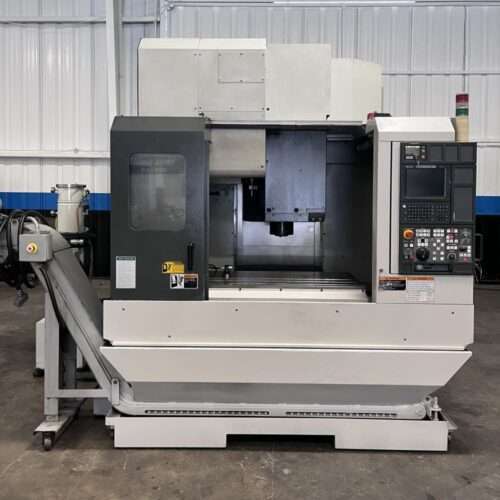

| Make: | Mori Seiki |
| Model No.: | NV5000A/40 |
| Year of Manufacture: | 2002 |
| Condition: | Used – Good |
| Equipped With: |
|---|

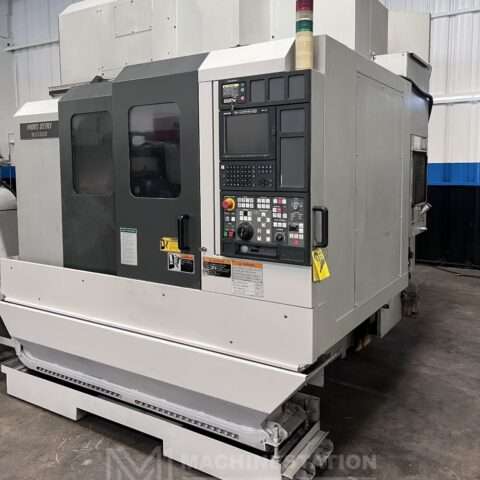

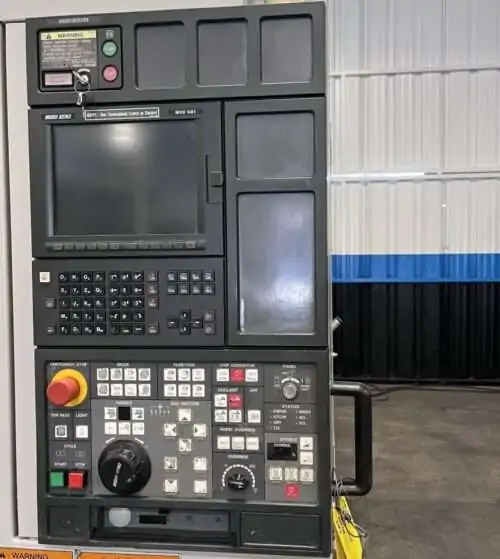

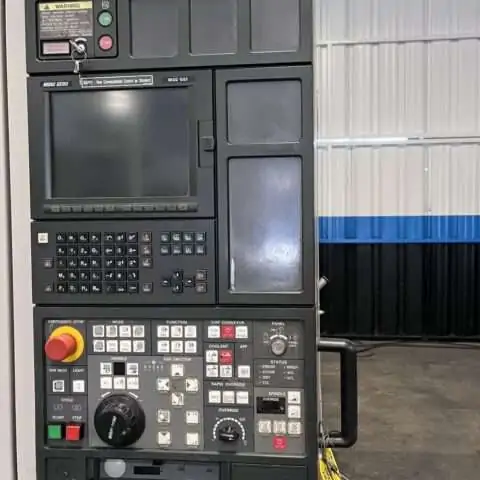

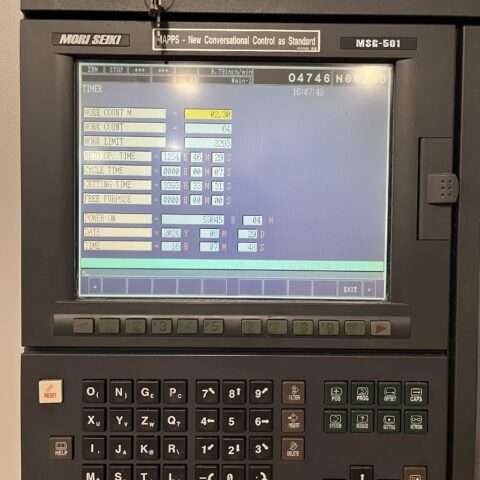

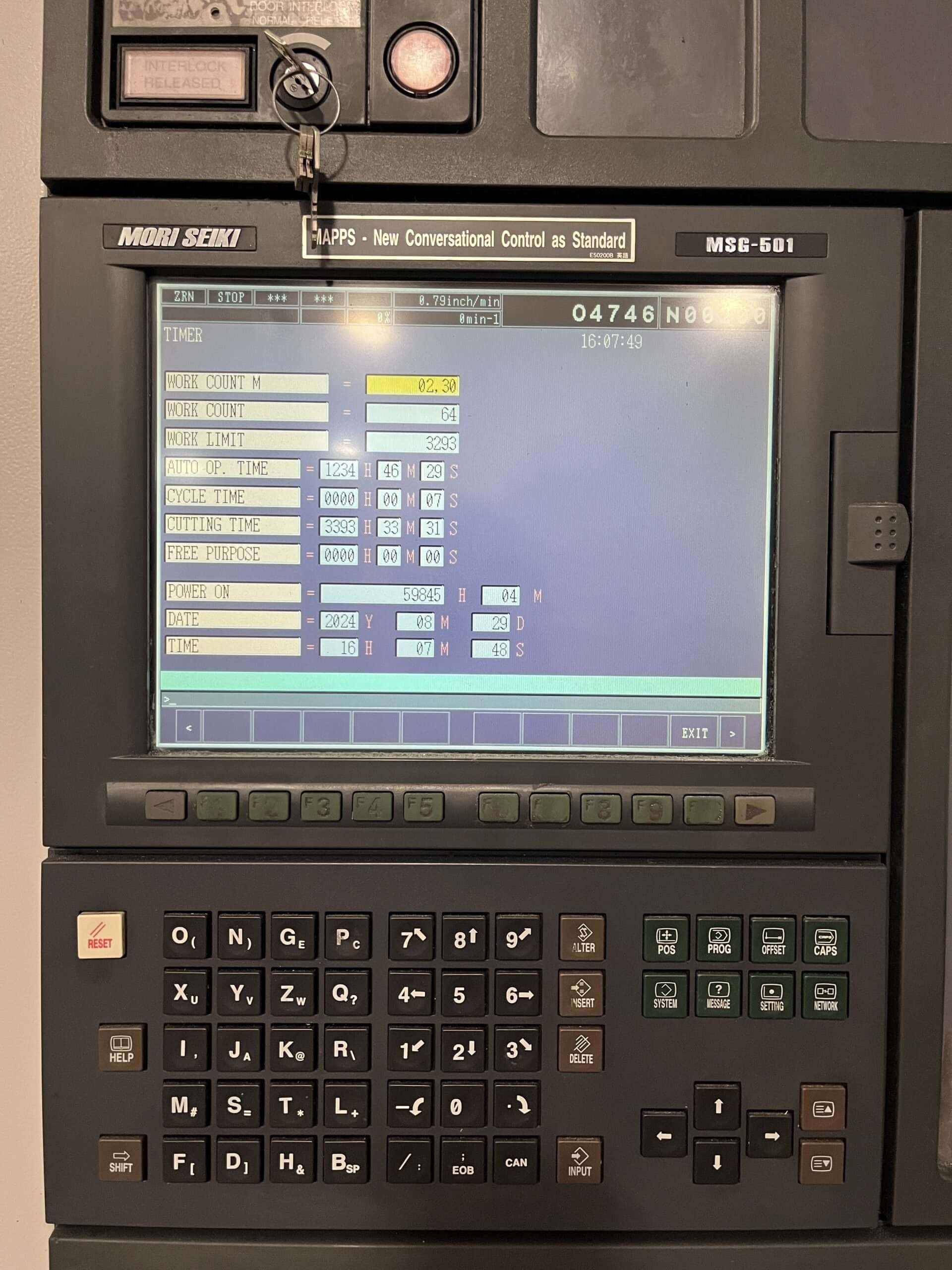

| MSC-501 (Fanuc 18i) series CNC Control |
| 12,000 RPM High Precision Spindle |
| 40 Taper Spindle |
| 30 Station Automatic Tool Changer |
| 30 HP high torque spindle motor |
| Renishaw Probing System |

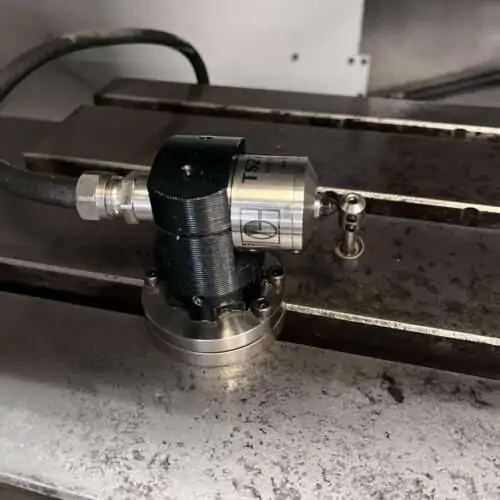

| Tool Pre-setter |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |

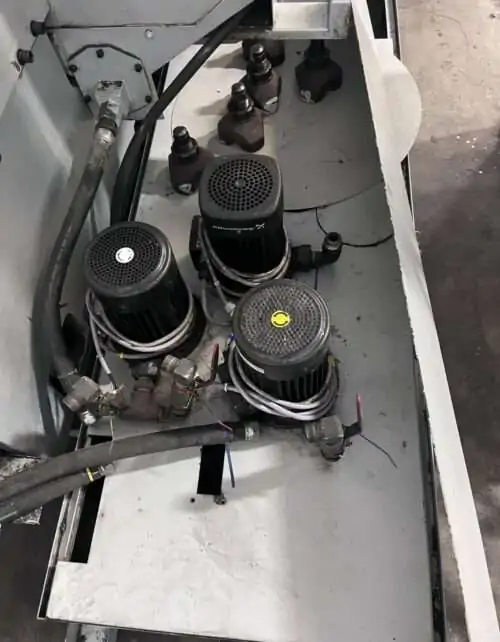

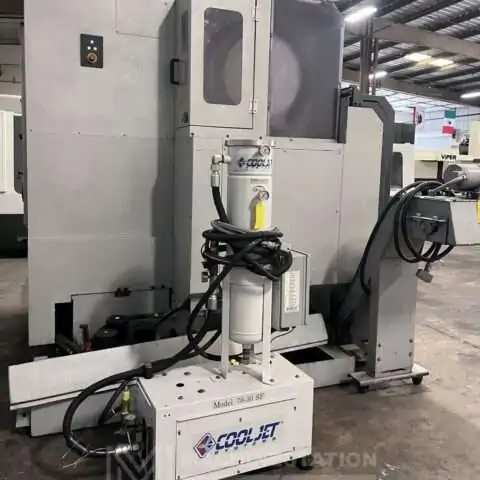

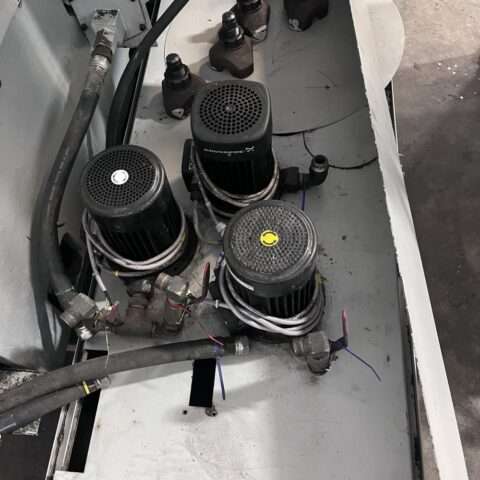

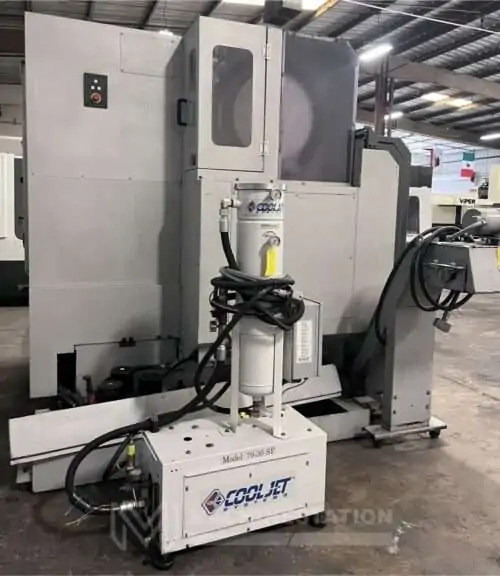

| High Flow coolant with large separate coolant tank |
| Chip Conveyor |
| Travel: |
|---|
| X-Axis: 31.50″ |
| Y-Axis: 20.10″ |
| Z-Axis: 20.10″ |
| Rapid Traverse Rates: 1654 Inch Per Minute |
| Cutting Feed Rates: 630 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″ |

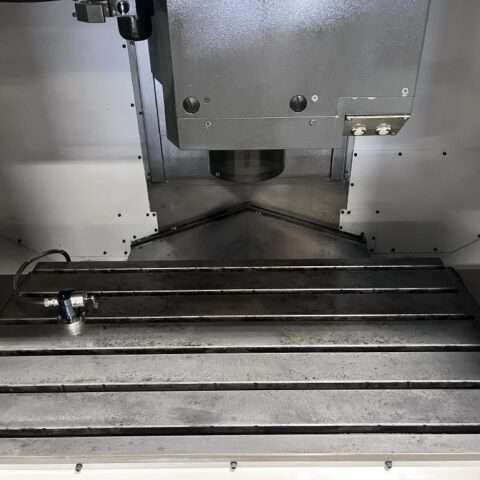

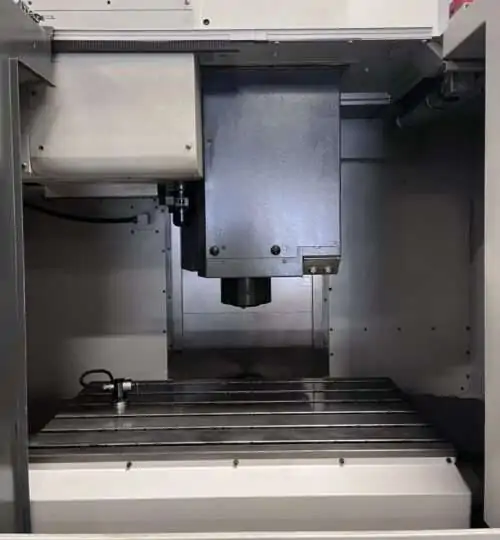

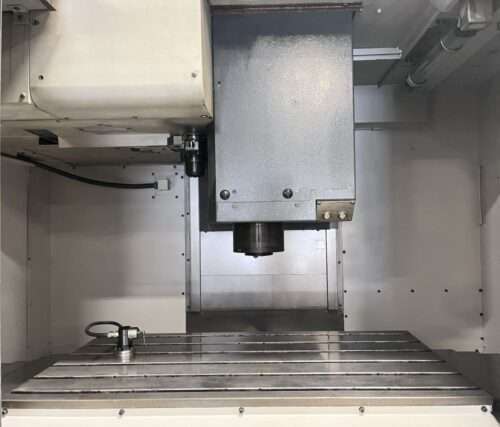

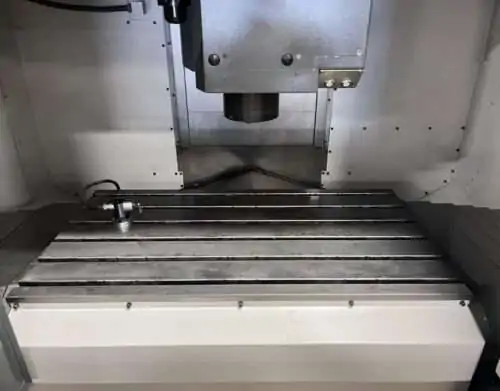

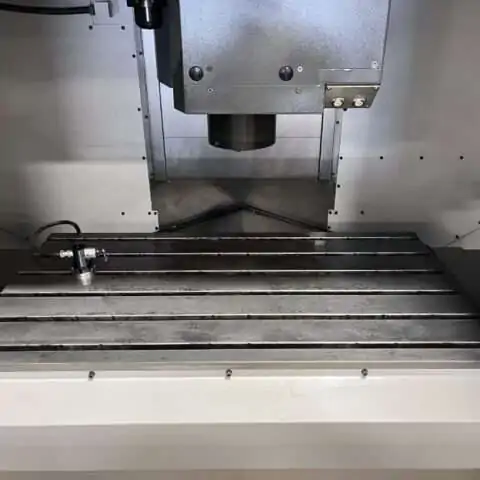

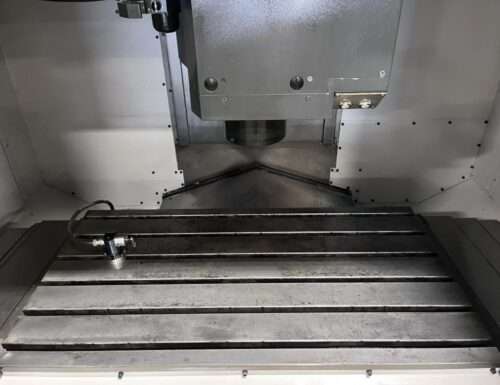

| Table: |
|---|
| Length: 43.30″ |
| Width: 23.60″ |
| Number of Std T-Slots: 6 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2640 lbs |

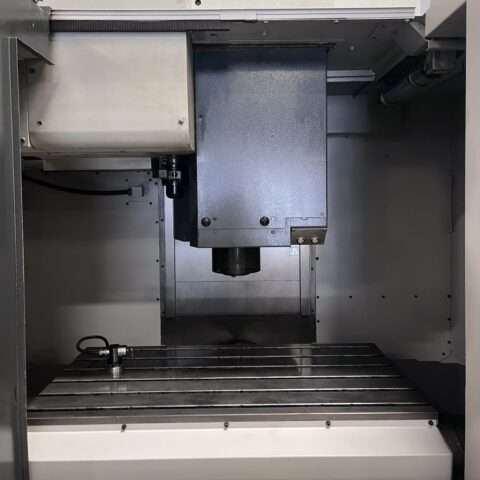

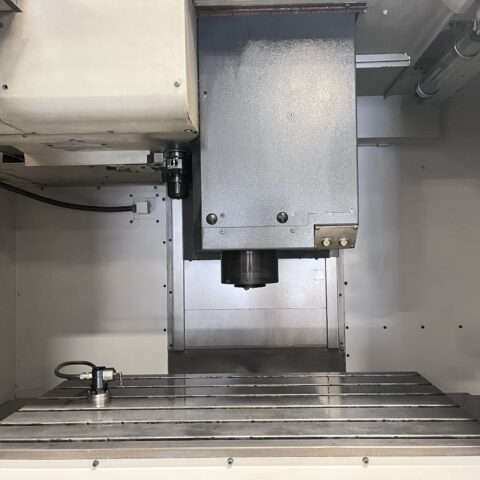

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 5.90″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 0.9 Seconds |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

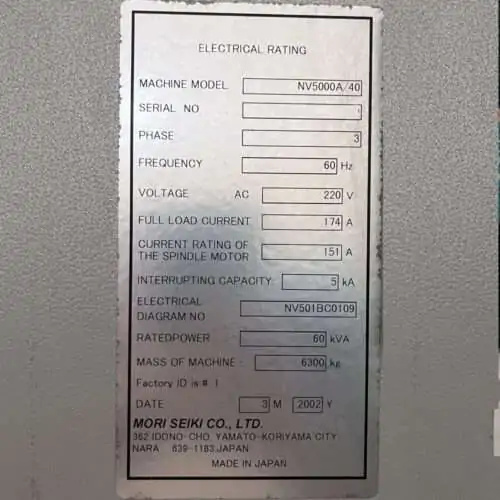

| Power: 220v / 60 KVA / 3-Phase |
| Overall Dimensions: 142″ x 101″ x 110″ High |
| Weight: 13,889 lbs |
