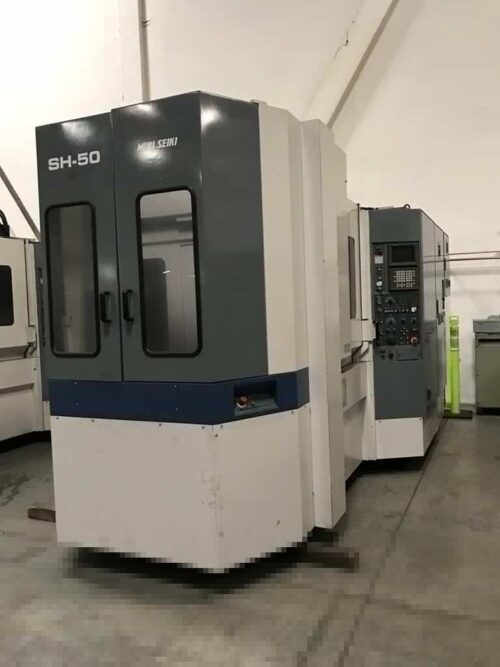

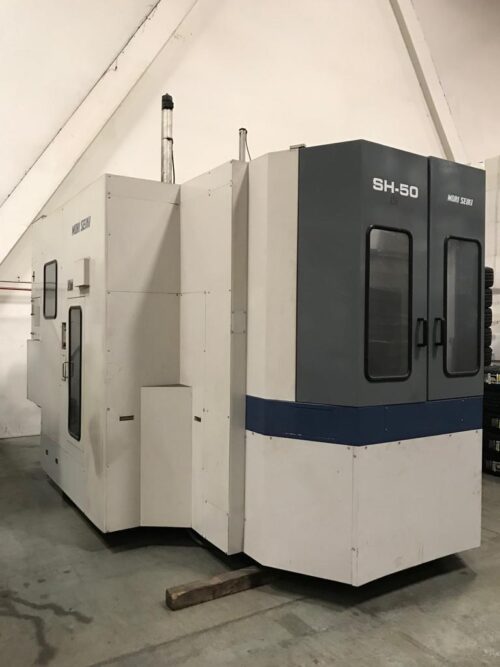

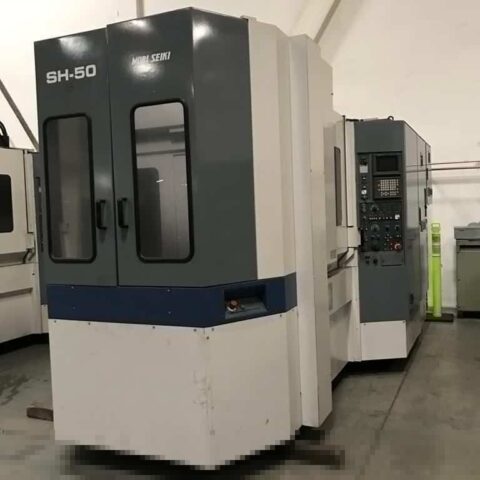

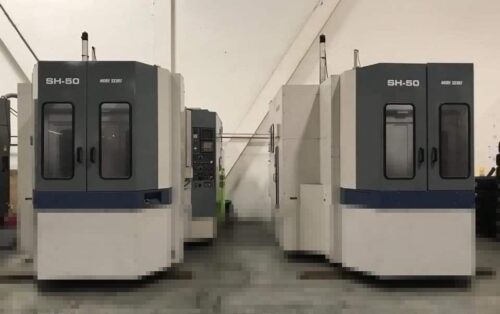

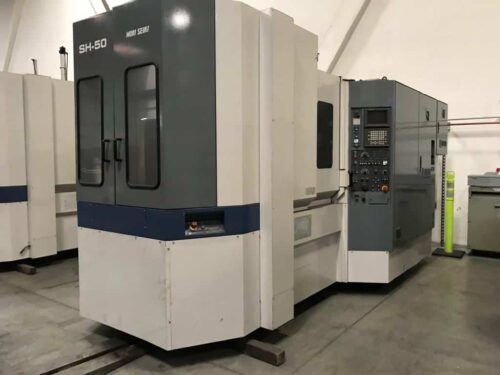

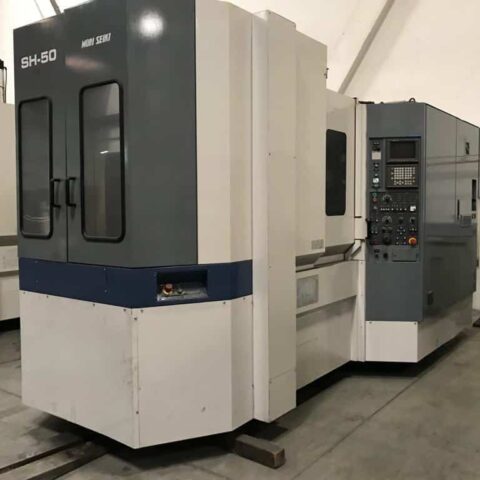

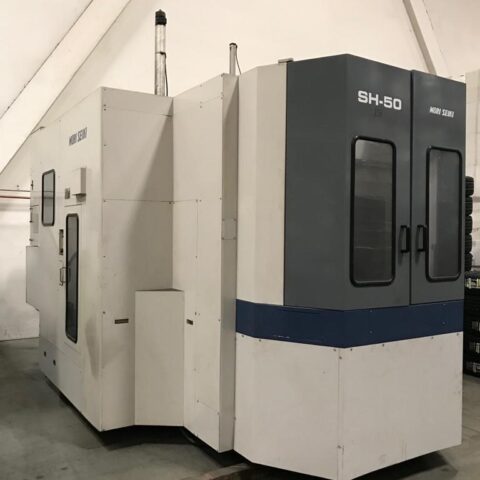

Mori Seiki SH-50 Horizontal Machining Center
Out of stock
SKU: |
1698 |
Make/Model: |
Mori Seiki SH-50 |
Video: |
[fusion_button link=”https://www.youtube.com/watch?v=s2vM-5BZd_I” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
MORI SEIKI SH-50 HORIZONTAL MACHINING CENTER |
Make |
Mori Seiki |
Model No. |
SH-50 |
Year of Manufacture: |
1995 |
Serial # |
118 |
Condition |
Very Good |
- Mori Seiki SH-50 Features:
- 12000 RPM Spindle

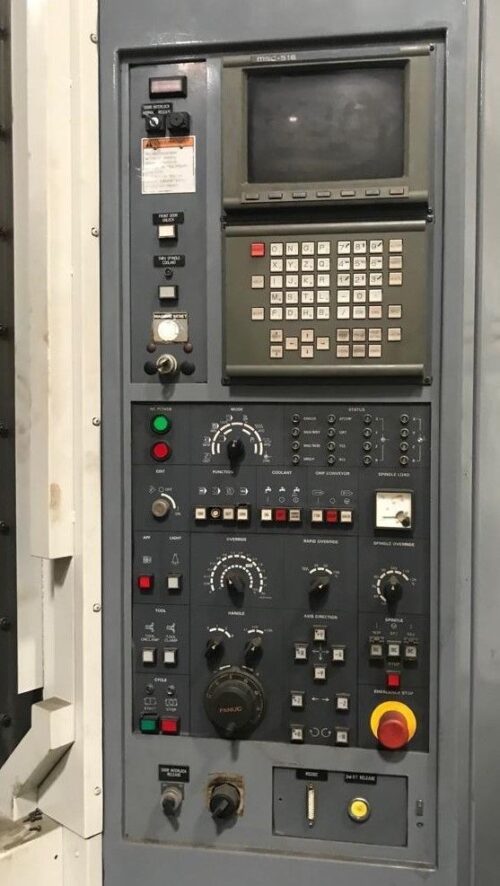

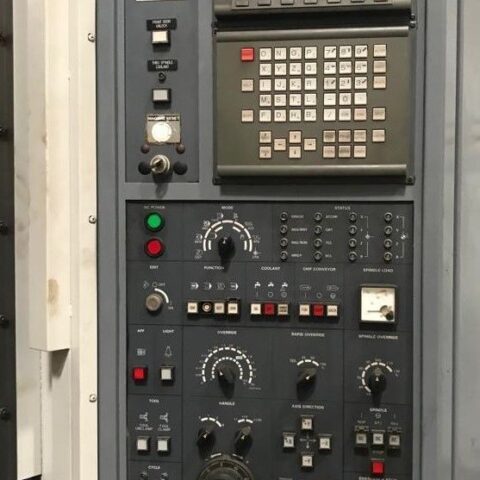

- MSC-516 ( Fanuc ) Control
- 1 Degree Index Dual Pallet Changer
- 40 Tools Side Mount Tool Changer
- Expanded Program Memory
- Helical Interpolation
- Rigid Tapping
- Advanced Tool Management
- Coolant Tank
- Telescopic way covers
- Chip Conveyor
- RS-232
- High Pressure Coolant system
- Mori Seiki SH-50 Specifications:
- Travels:
- X-Axis: 24.8″
- Y-Axis: 23.6″
- Z-Axis: 25.6″
- Rapid Traverse Rates: 1259 Inch Per Minute
- Cutting Feed Rates: 710 Inch Per Minute
- Table Surface to Spindle Center: 2.0″ – 25.6″
- Pallet:
- Dual Pallet Changer
- Pallet Size: 19.75″ X 19.75″
- Pallet Change Time: 6 Seconds
- Weight on Table: 2200 lbs
- Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 12000 RPM
- Spindle Power: 30 HP
- Max Torque: 90ft-lb @ 2000RPM
- Automatic Tool Changer:
- Capacity: 40 + 1
- Max Tool Weight: 22 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 1.3 – 3.7 Seconds

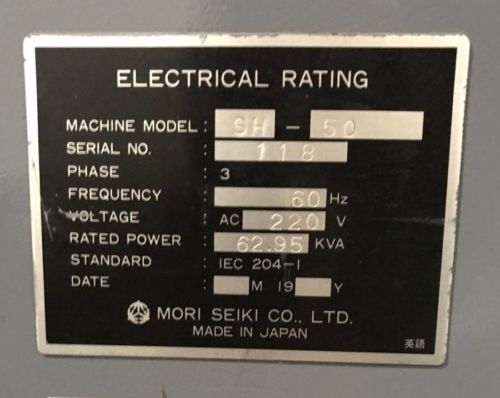

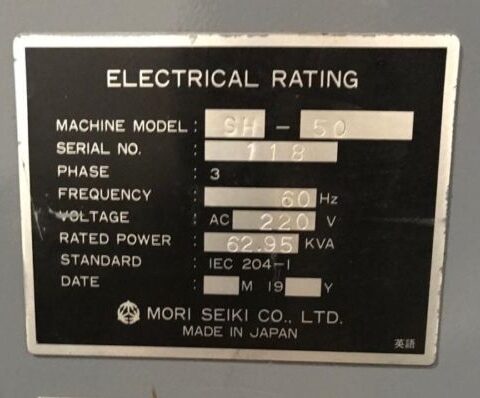

- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 3-Phase
- Overall Shipping Dimensions: 178″ x 110″ x 130″ High
- Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
- Weight: 28,000 lbs
