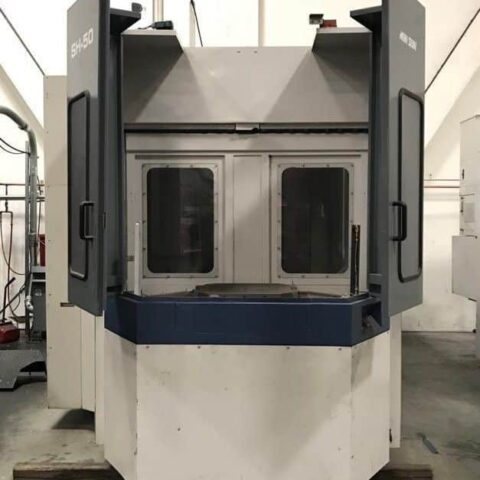

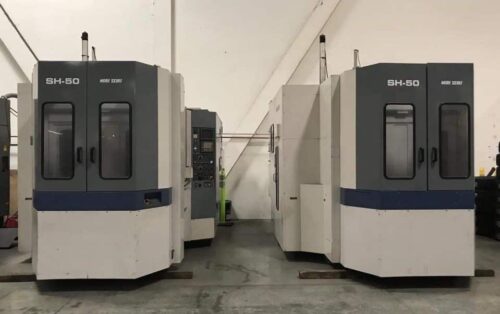

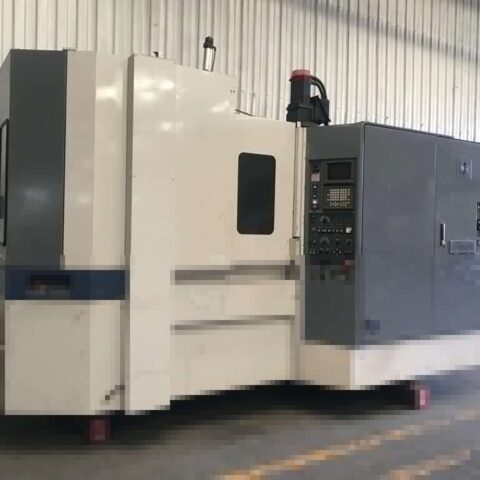

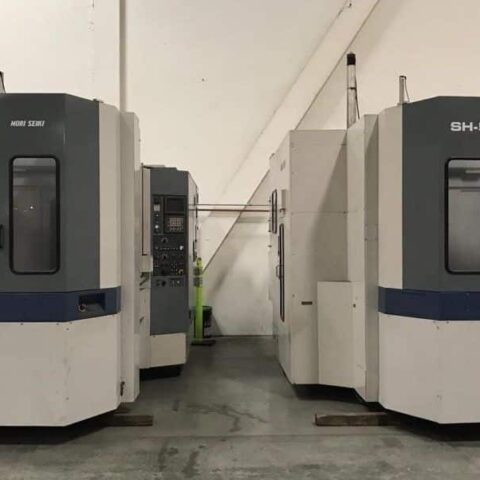

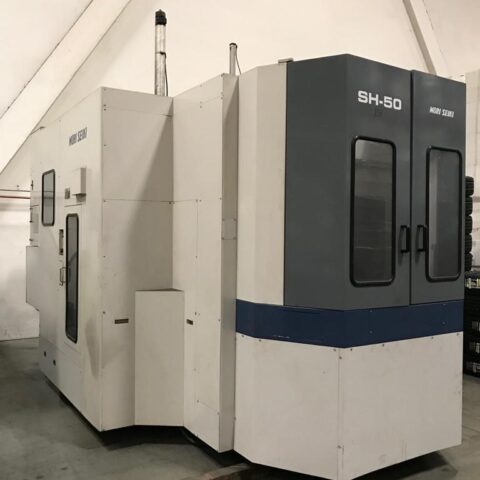

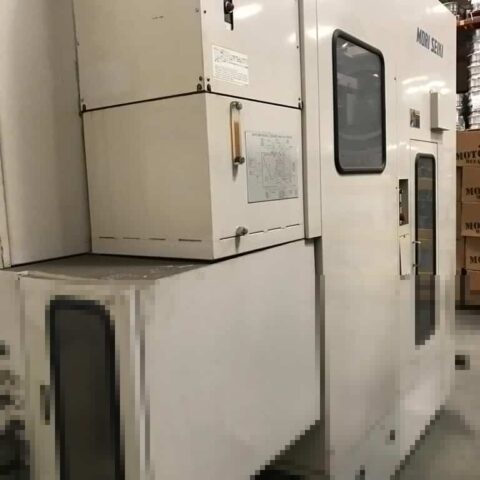

Mori Seiki SH-50 Horizontal Machining Center

Out of stock
SKU: 1699
Make/Model: Mori Seiki SH-50
Video: [fusion_button link=”https://www.youtube.com/watch?v=Kp9DUE0nk8U” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1699

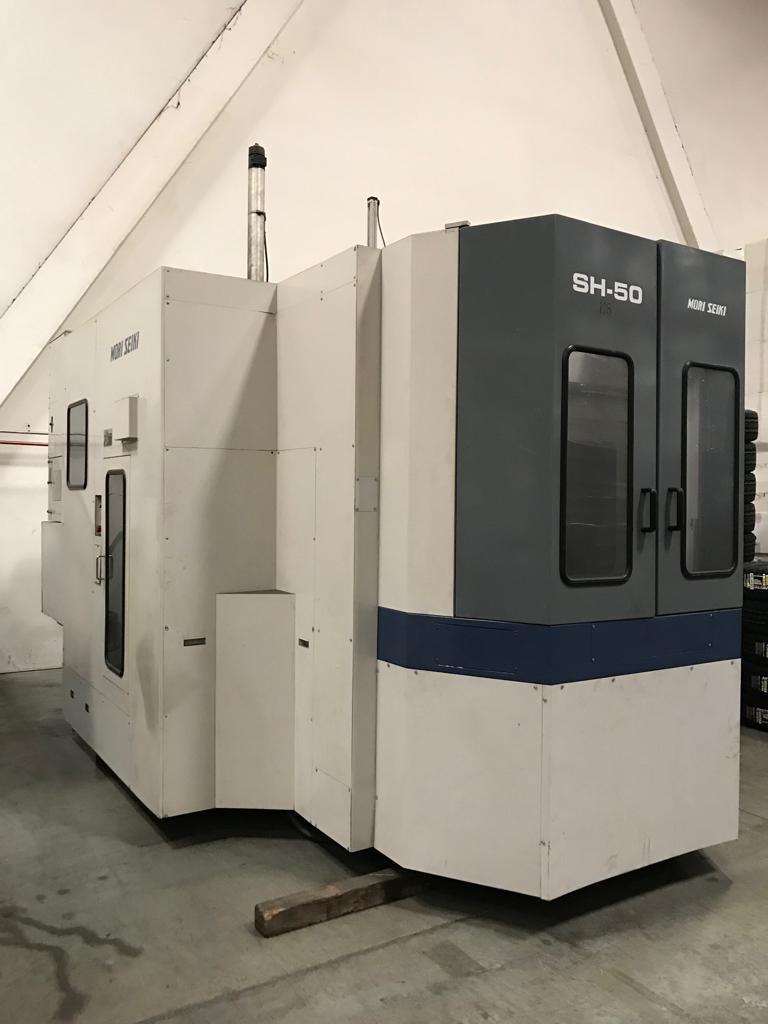

MORI SEIKI SH-50 HORIZONTAL MACHINING CENTER

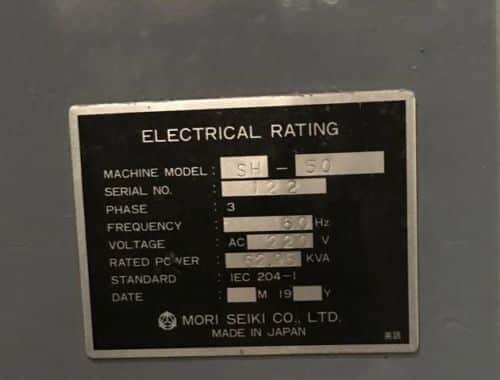

Make Mori Seiki
Model No. SH-50
Year of Manufacture: 1995
Serial # 122
Condition Very Good
  • Mori Seiki SH-50 Features:
  • 12000 RPM Spindle

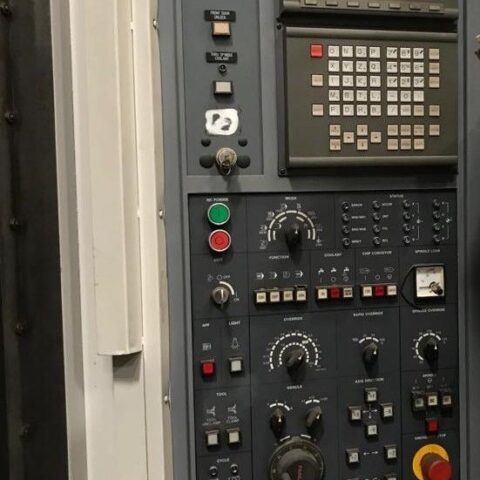

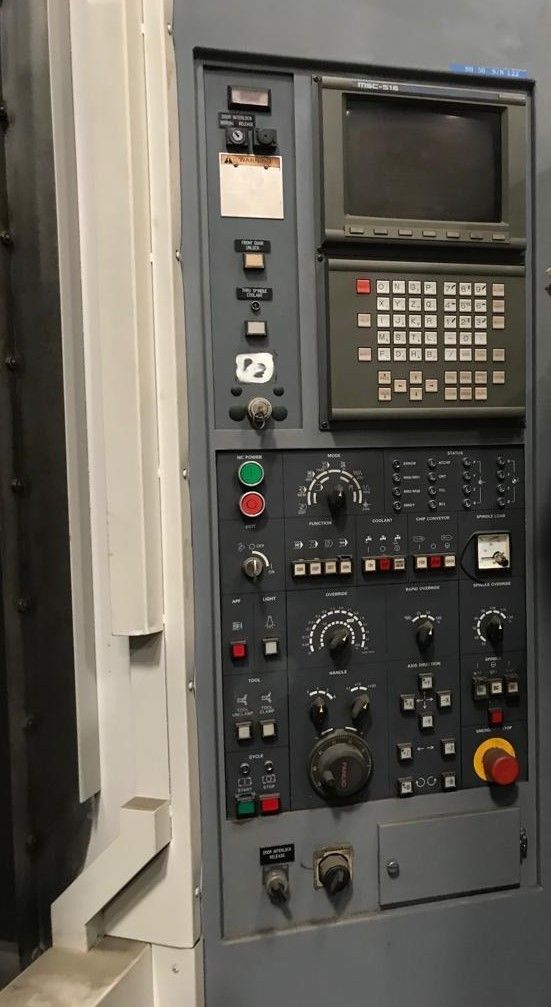

  • MSC-516 ( Fanuc ) Control
  • 1 Degree Index Dual Pallet Changer
  • 40 Tools Side Mount Tool Changer
  • Expanded Program Memory
  • Helical Interpolation
  • Rigid Tapping
  • High Speed Machining
  • Advanced Tool Management
  • Coolant Tank
  • Telescopic way covers
  • Chip Conveyor
  • RS-232
  • High Pressure Coolant system
  • Mori Seiki SH-50 Specifications:
  • Travels:
  • X-Axis: 24.8″
  • Y-Axis: 23.6″
  • Z-Axis: 25.6″
  • Rapid Traverse Rates: 1259 Inch Per Minute
  • Cutting Feed Rates: 710 Inch Per Minute
  • Table Surface to Spindle Center: 2.0″ – 25.6″
  • Pallet:

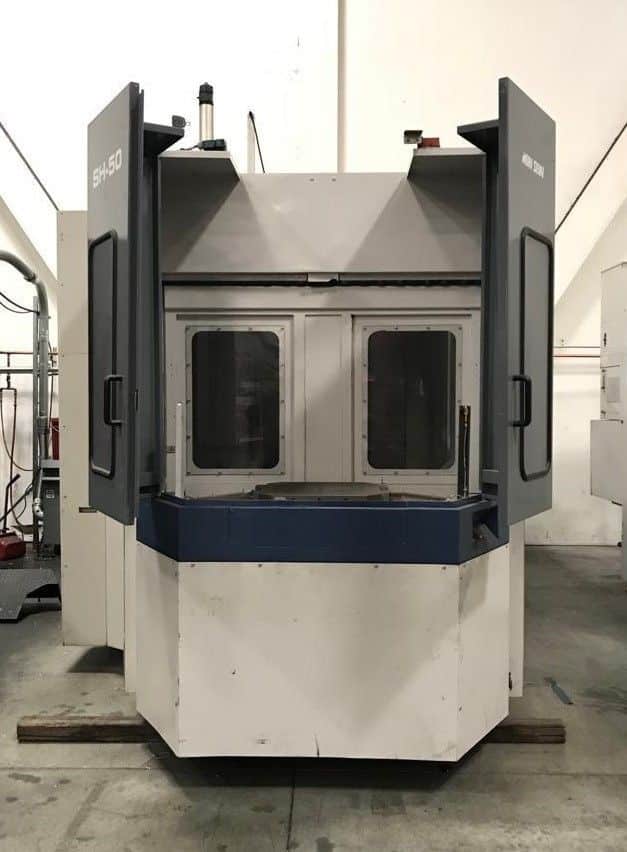

  • Dual Pallet Changer
  • Pallet Size: 19.75″ X 19.75″
  • Pallet Change Time: 6 Seconds
  • Weight on Table: 2200 lbs
  • Spindle:
  • Taper Size: CAT 40
  • Speed Range: 0 – 12000 RPM
  • Spindle Power: 30 HP
  • Max Torque: 90ft-lb @ 2000RPM
  • Automatic Tool Changer:
  • Capacity: 40 + 1
  • Max Tool Weight: 22 lbs
  • Max Tool Dia: 6″
  • Max Tool Length: 16″
  • Tool Changing Time: 1.3 – 3.7 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v  / 3-Phase
  • Overall Shipping Dimensions: 178″ x 110″ x 130″ High
  • Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
  • Weight: 28,000 lbs
