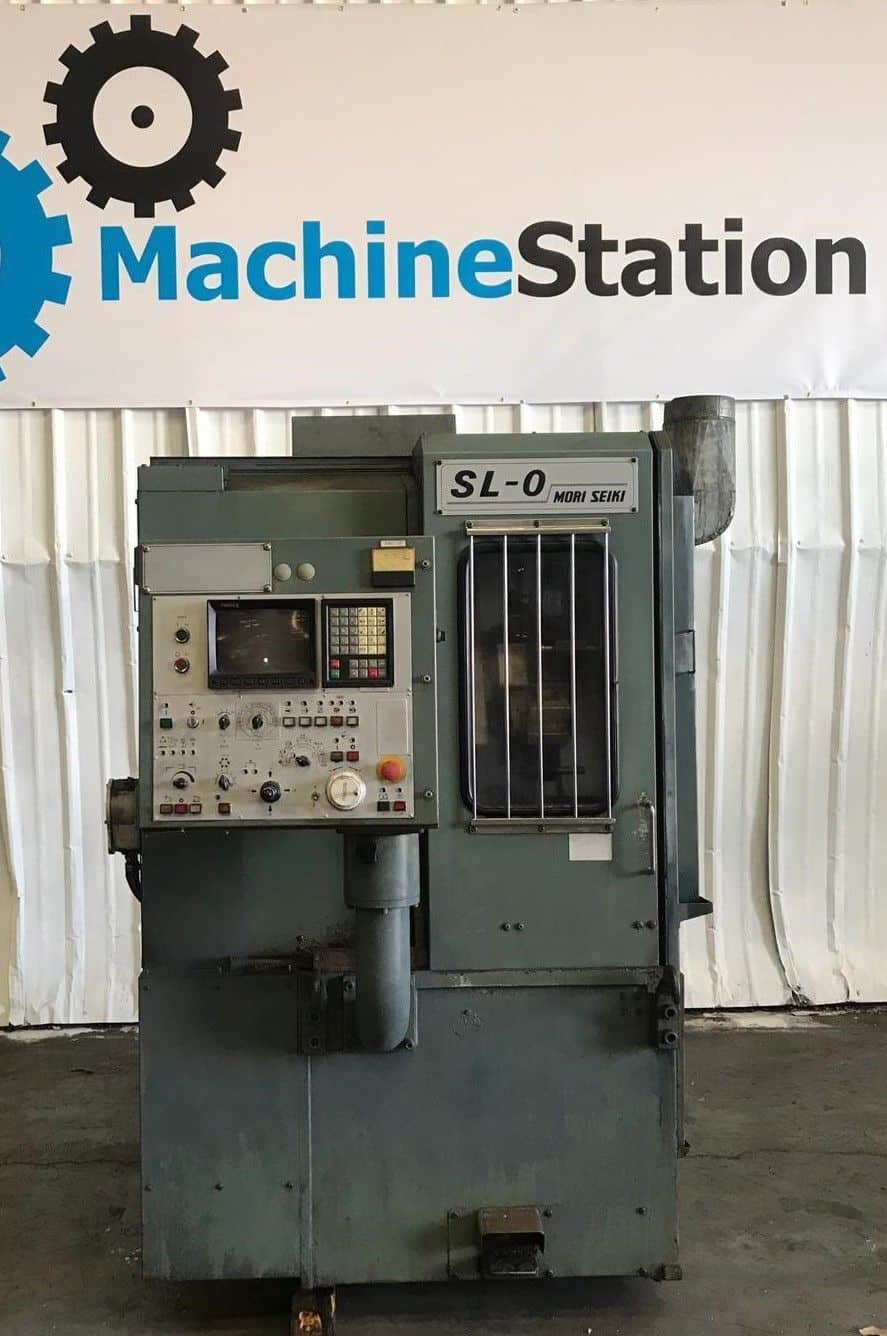

| MORI SEIKI SL-0H CNC TURNING CENTER | |
|---|---|
| Make | Mori Seiki |
| Model No. | SL-0H |

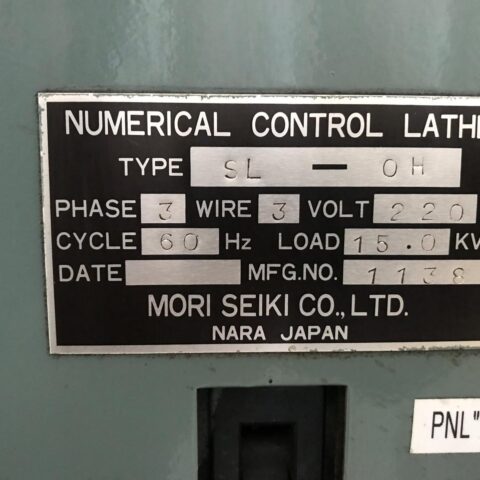

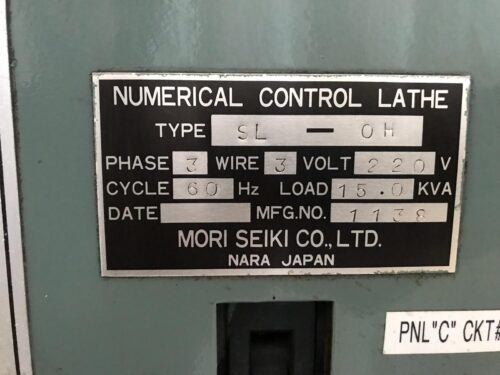

| Serial # | 1138 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
- Mori Seiki SL-0H Equipped With:

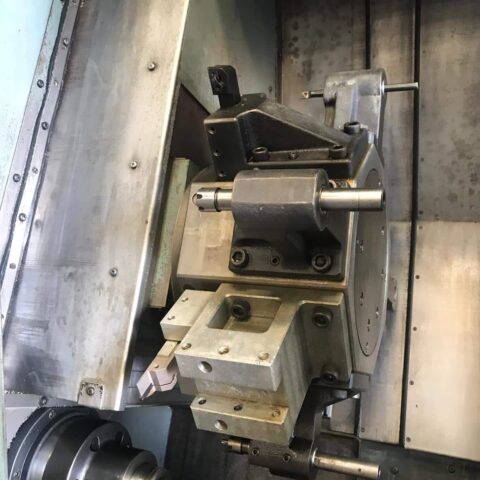

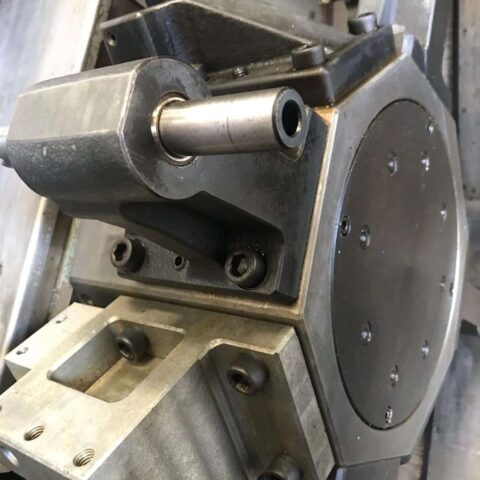

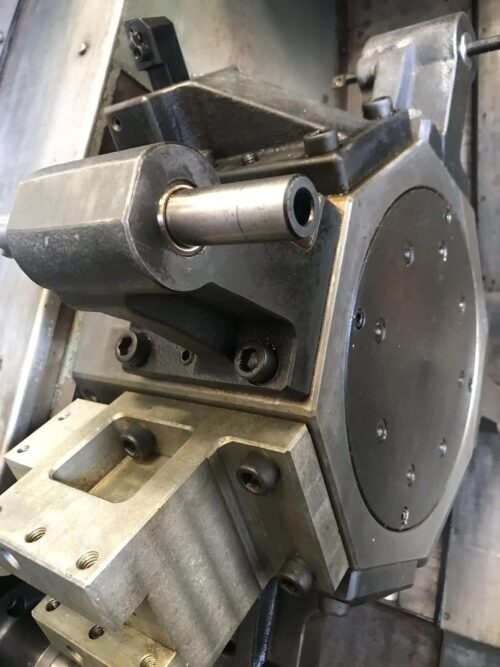

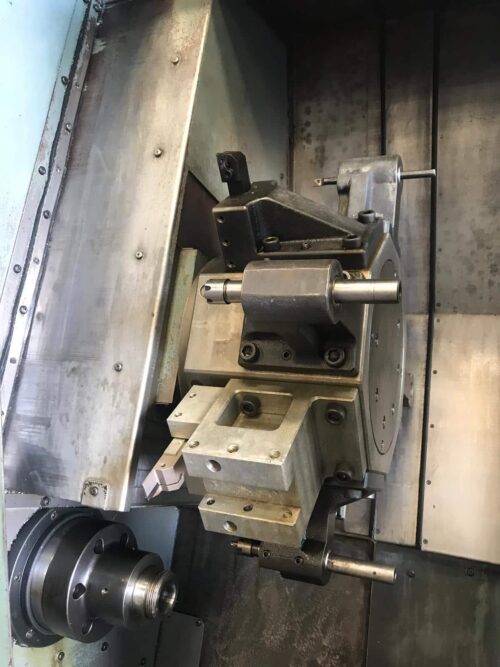

- 8-Station Turret with Tool Holders

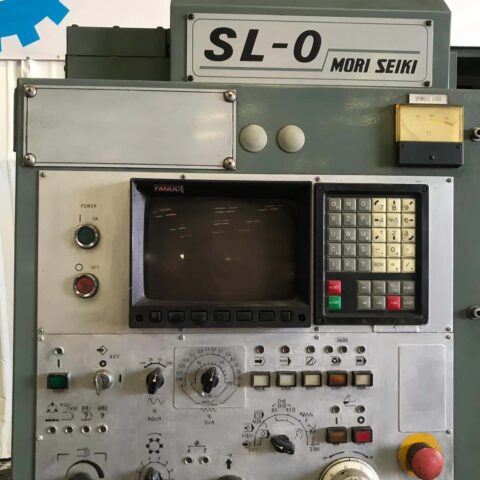

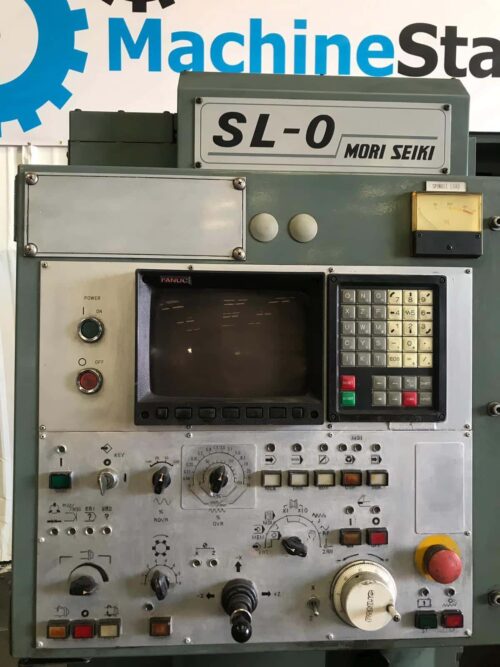

- Fanuc CNC Control
- Collet Chuck
- 2 Step gear spindle for powerful torque
- Chip Pan
- Coolant System.

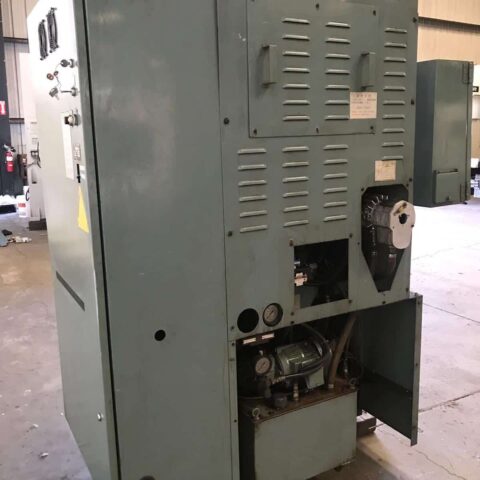

- Automatic Lubrication system
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 82″ x 70″ x 80″ High
- Weight : 5000 lbs Approx.
- Mori Seiki SL-0H Specifications:
- Capacity:
- Max Turning Diameter: 7.5″
- Max Turning Length: 8.3″
- Max Bar Capacity: 1.375″
- Swing Over Slide: 7.9″
- Swing Over Bed: 7.5″
- X Axis Travel: 4.92″
- Z Axis Travel: 7.68″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-5
- Spindle Bore: 1.7″
- Spindle Speed: 60-6000 RPM
- Spindle Motor: 10 HP
- Turret Capacity: 8 Stations
- Turret Index Time: 0.5 Second

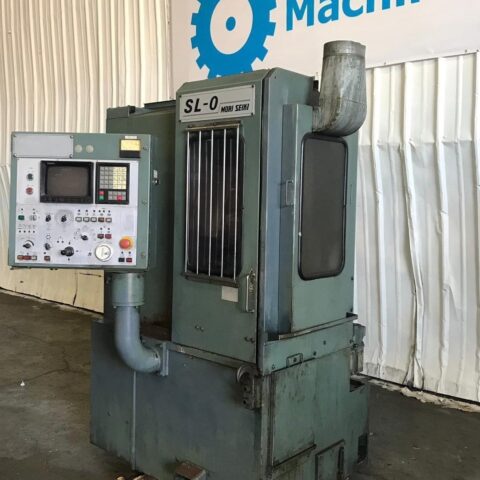

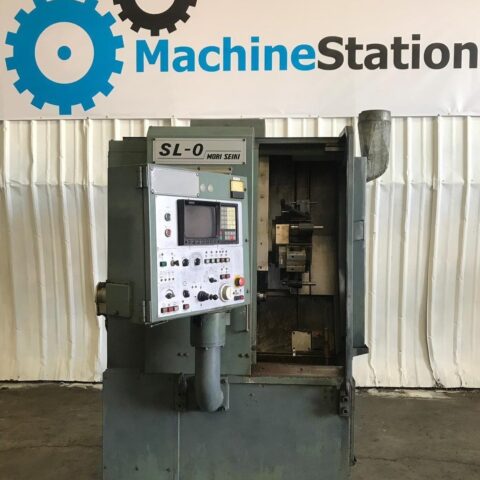

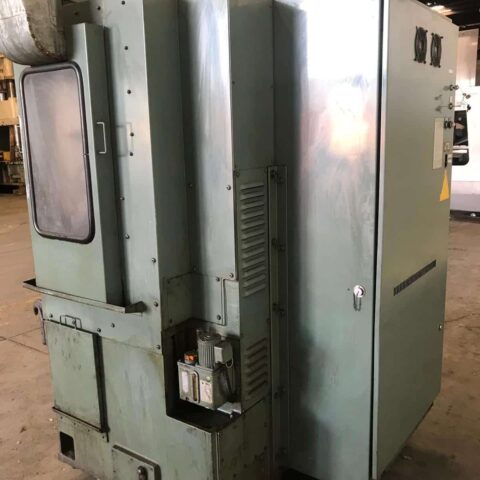

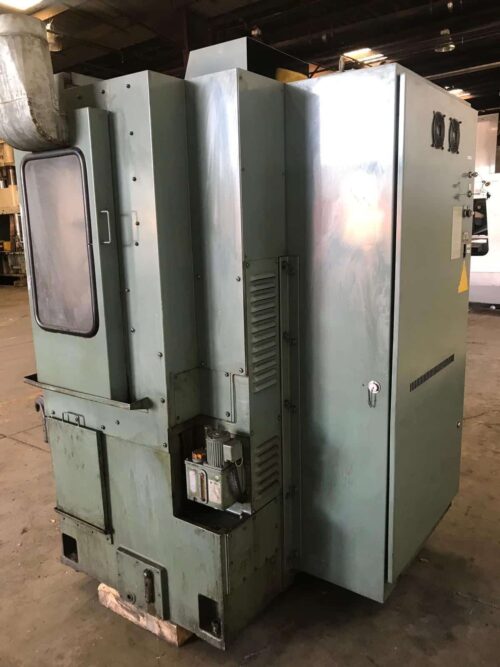

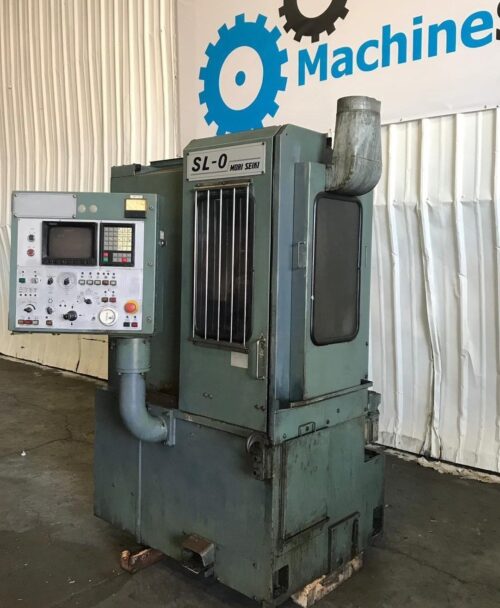

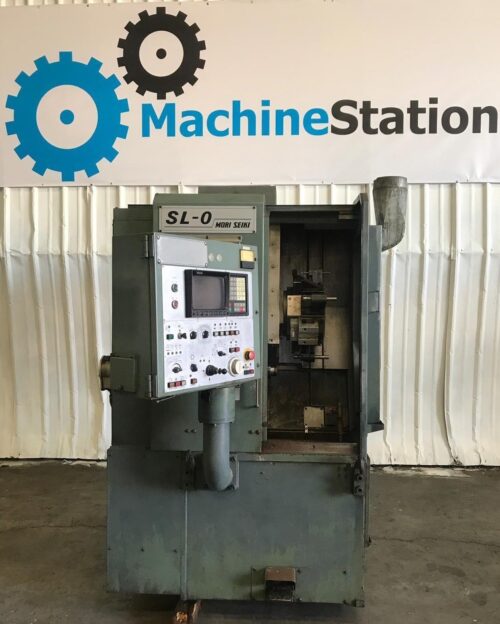

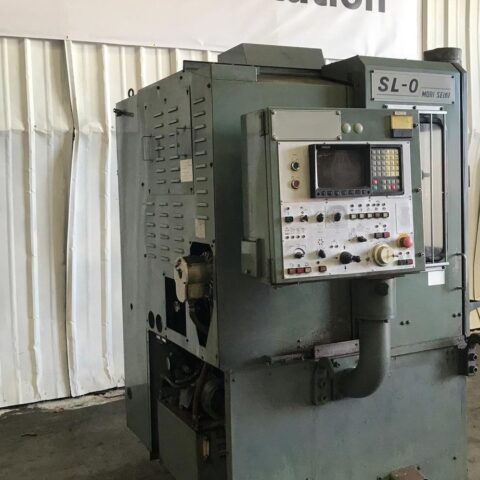

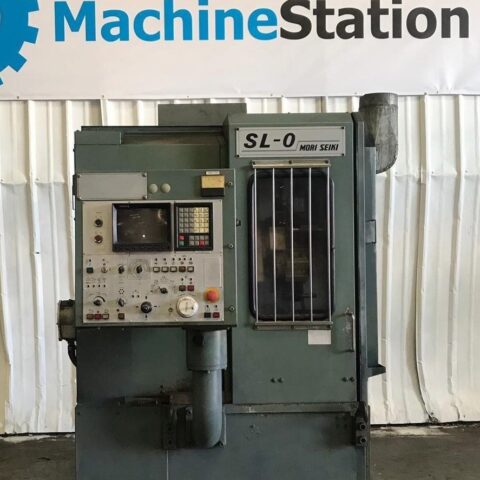

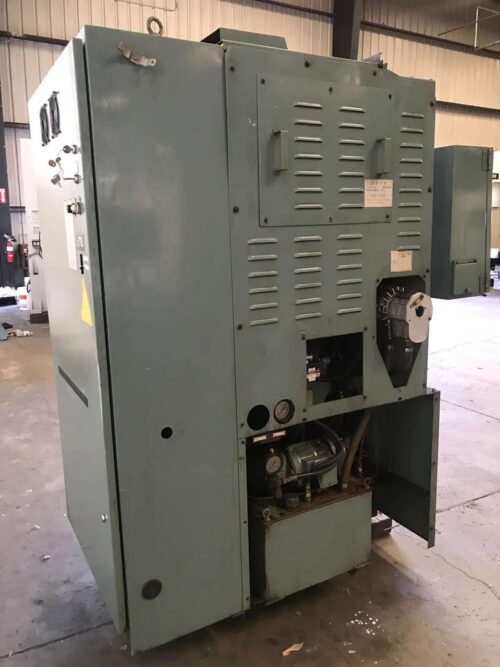

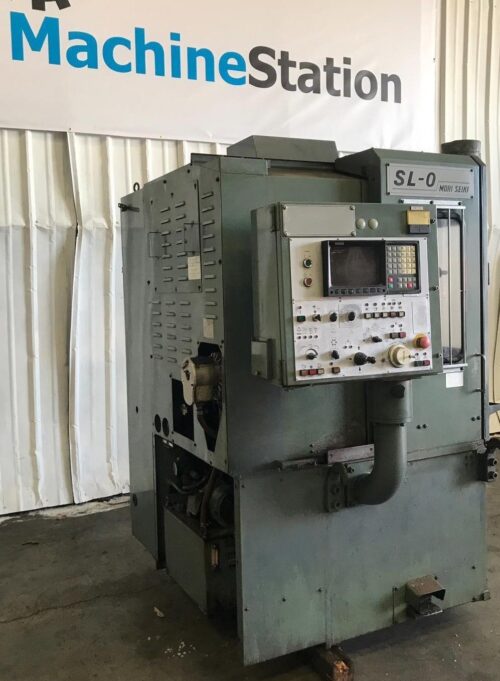

Mori Seiki SL-0H Comes as shown in pictures..
