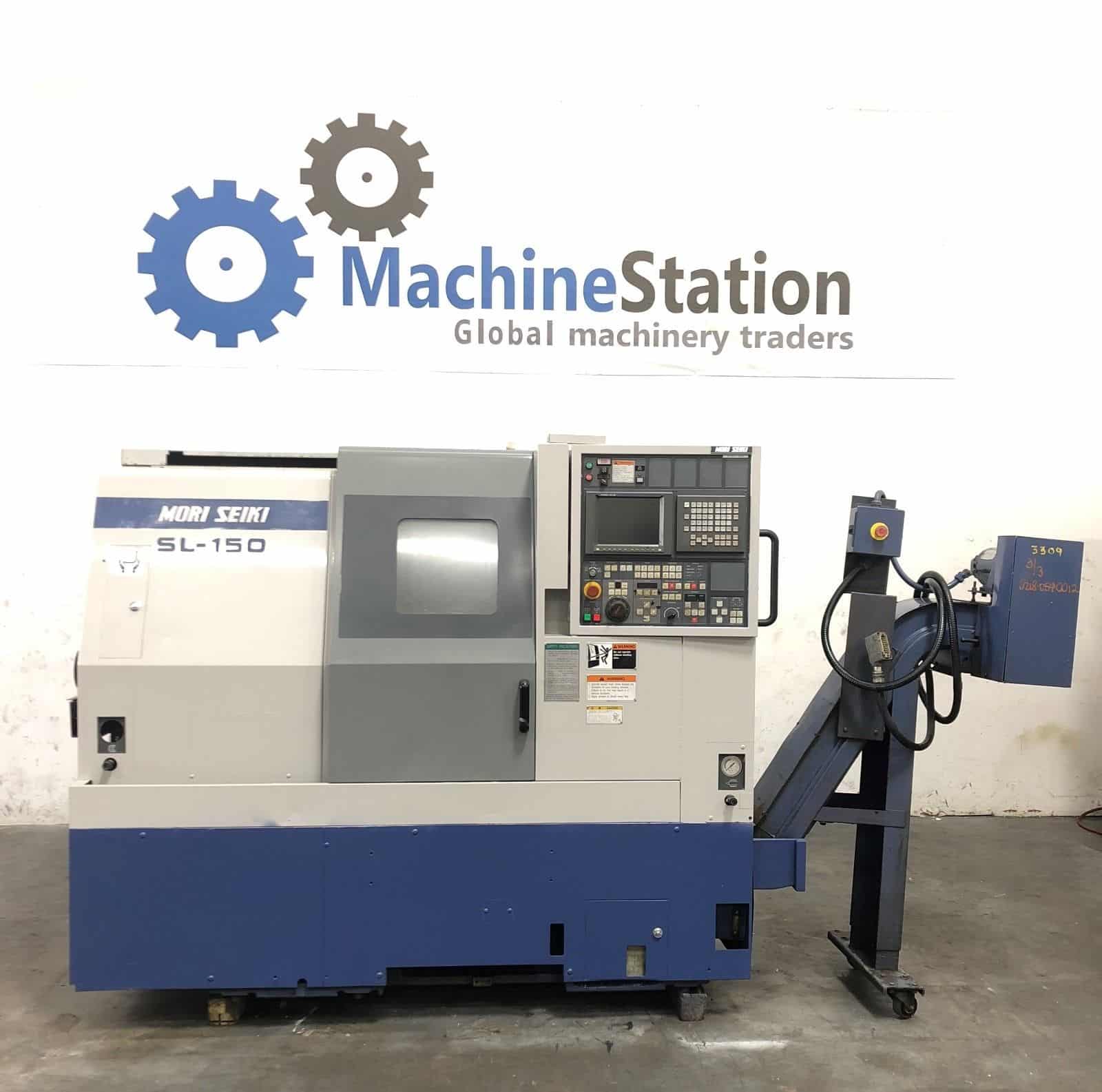

| MORI SEIKI SL-150 CNC TURNING CENTER | |
|---|---|
| Make | Mori Seiki |
| Model No. | SL-150 |
| Serial # | 342 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.

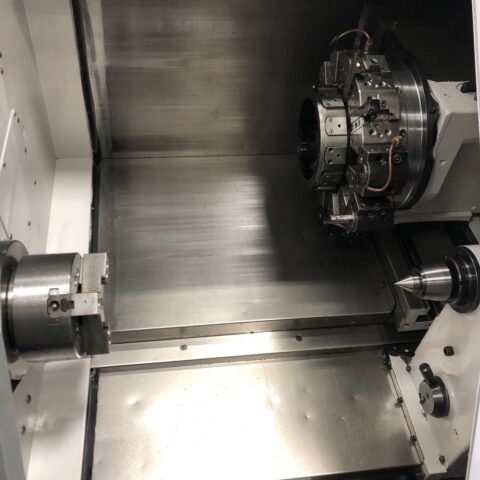

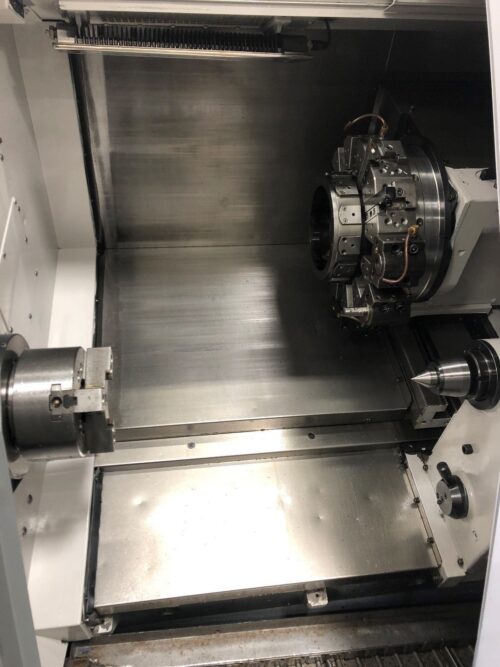

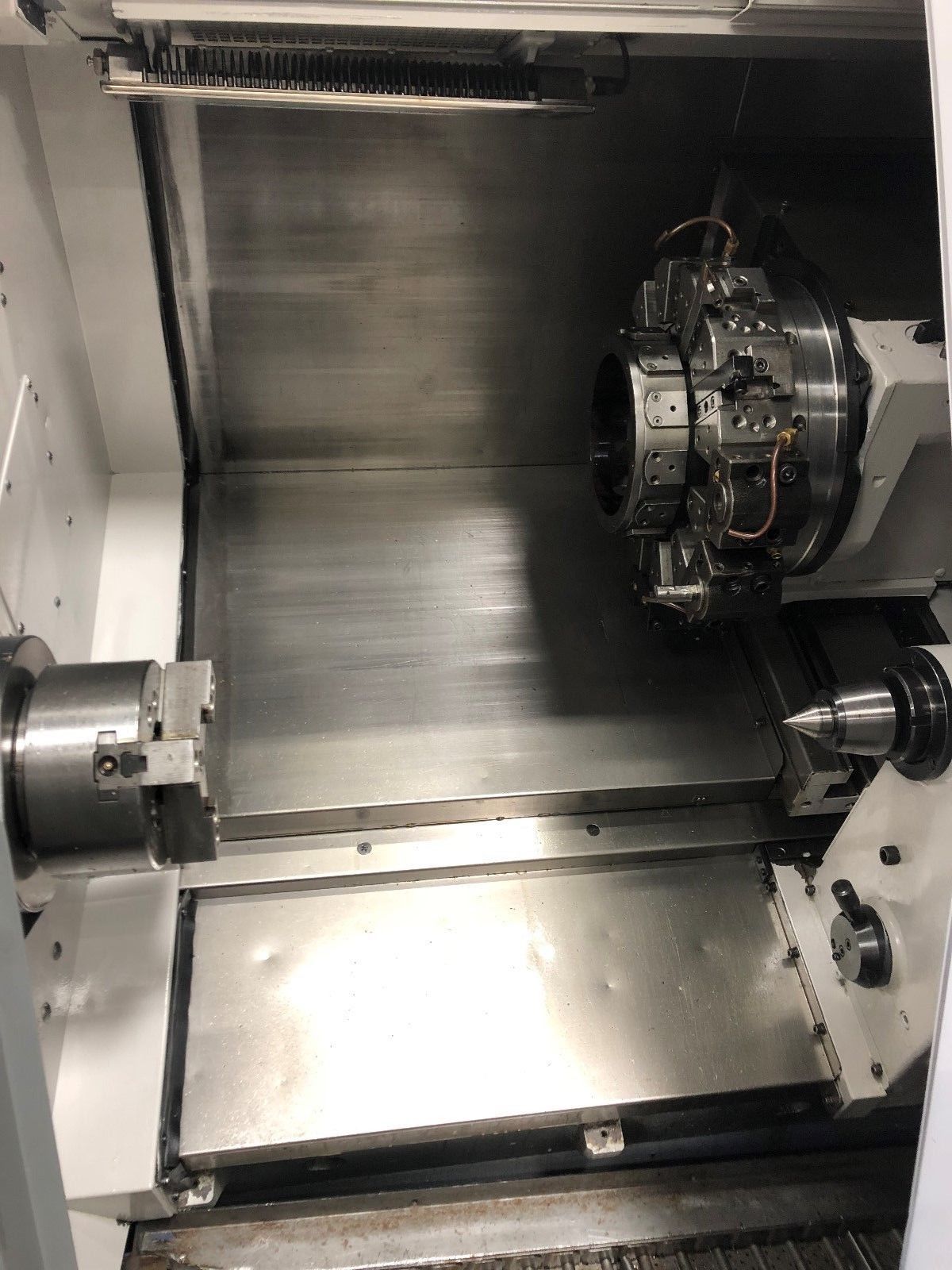

“This machine is in very Good running condition. It is equipped with Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”
- MORI SEIKI SL-150 Equipped With:
- 12-Station Turret with Tool Holders

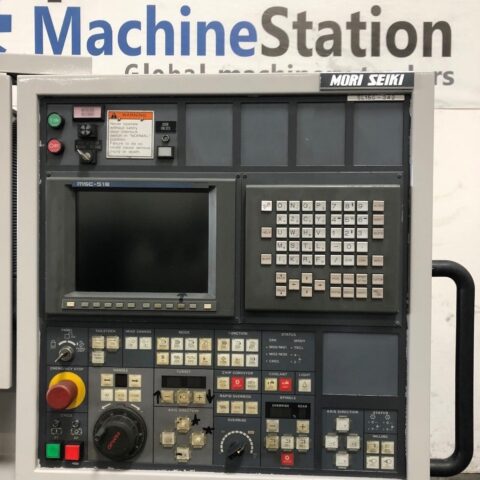

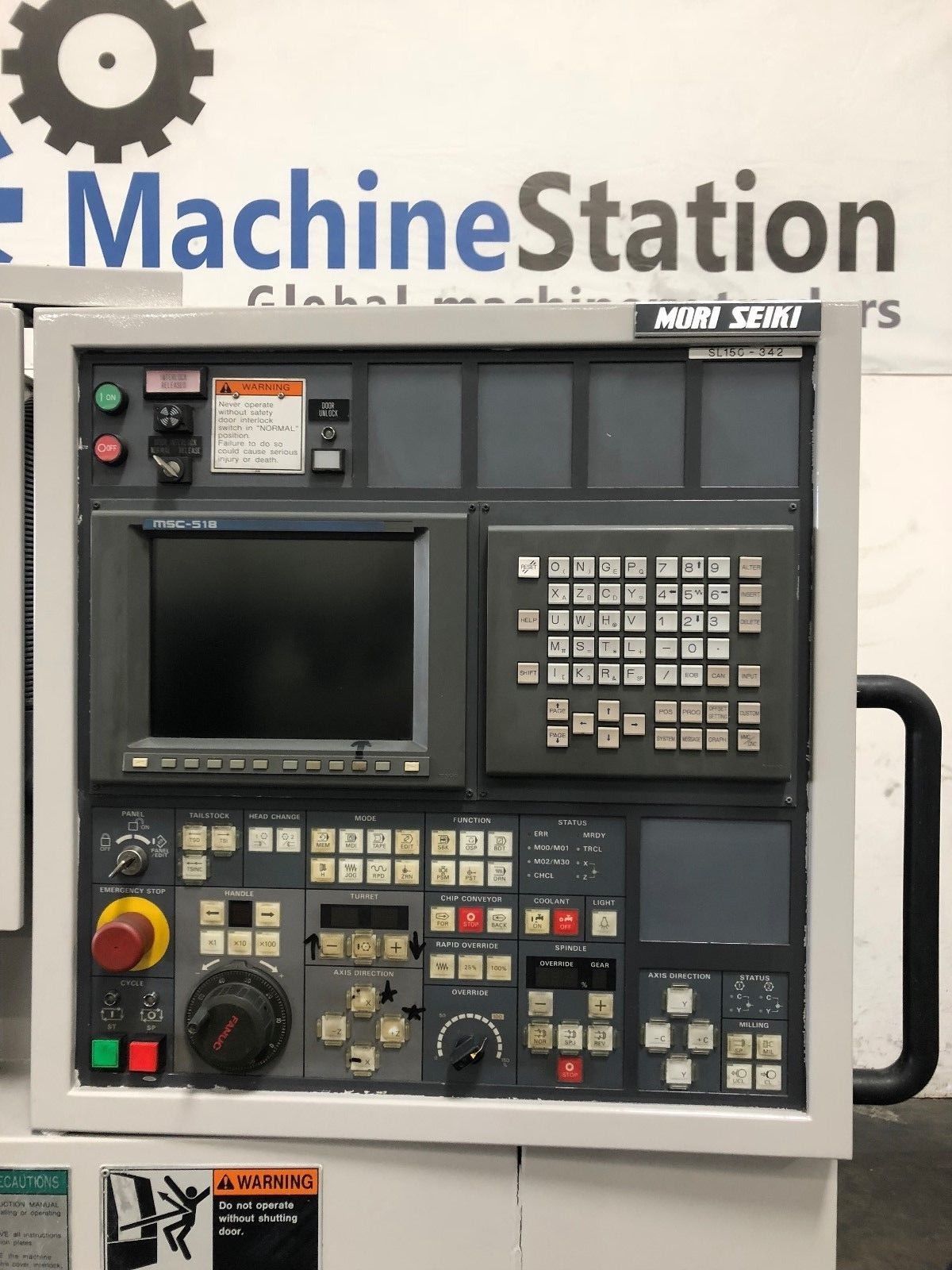

- MSC-518 (Fanuc ) CNC Control
- 8″ Hydraulic Chuck
- 2 Step gear spindle for powerful torque
- Hydraulic Tailstock with Power Quill
- Chip Pan and Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Work Light
- General:

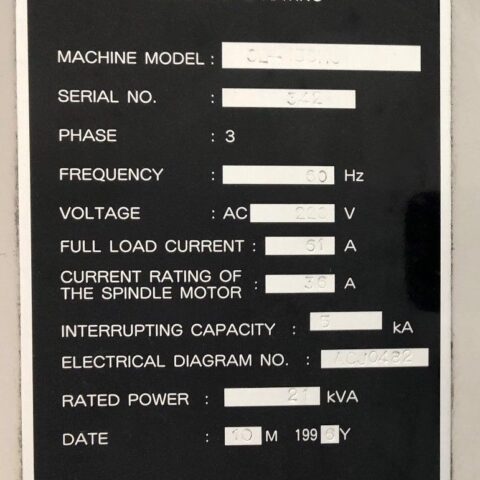

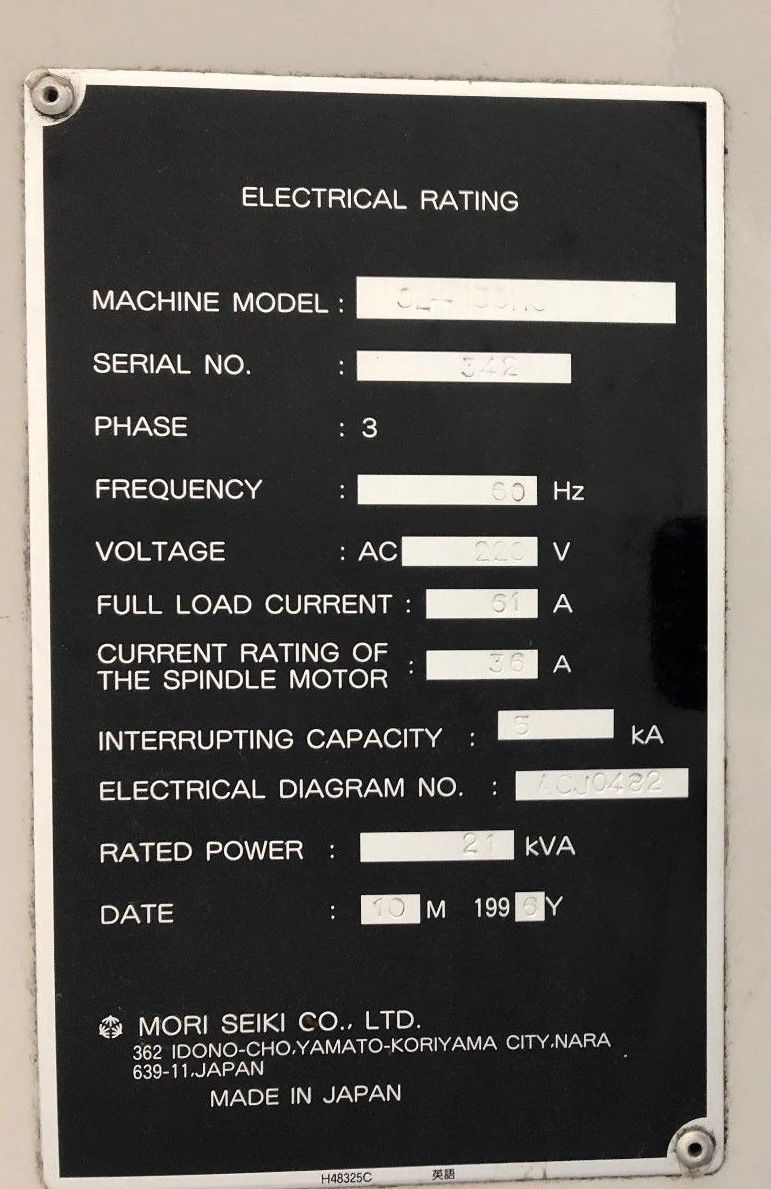

- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 90″ x 70″ x 80″ High
- Overall Dimensions: 120″ x 70″ x 80″ High with Chip Conveyor
- Weight : 9500 lbs Approx.
- MORI SEIKI SL-150 Specifications:
- Capacity:
- Max Turning Diameter: 16.9″
- Max Turning Length: 20.9″
- Max Bar Capacity: 2.2″
- Swing Over Slide: 17.9″
- Swing Over Bed: 24.4″
- Distance Between Centers: 24.6″
- X Axis Travel: 9.1″
- Z Axis Travel: 20.5″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.65″
- Spindle Speed: 5000 RPM
- Spindle Motor: 20 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
- Tailstock Body Travel: 19.3″
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-4

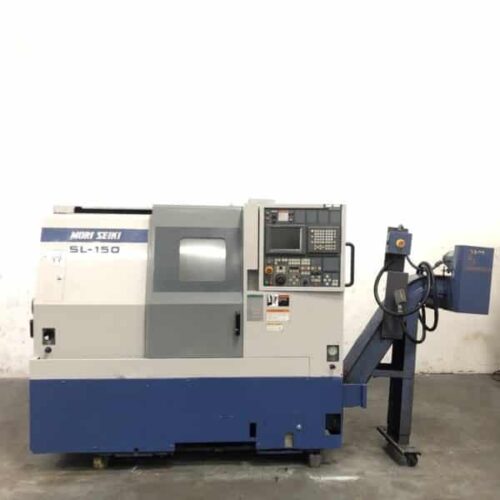

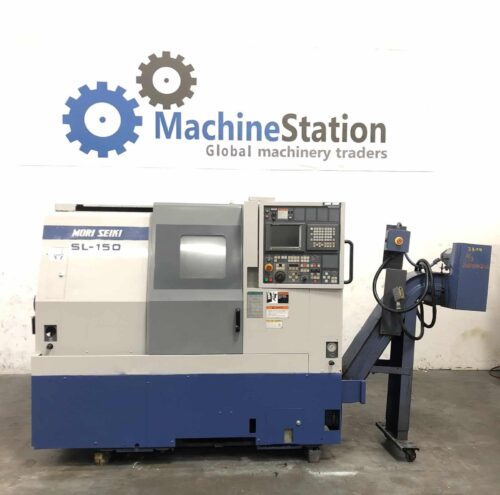

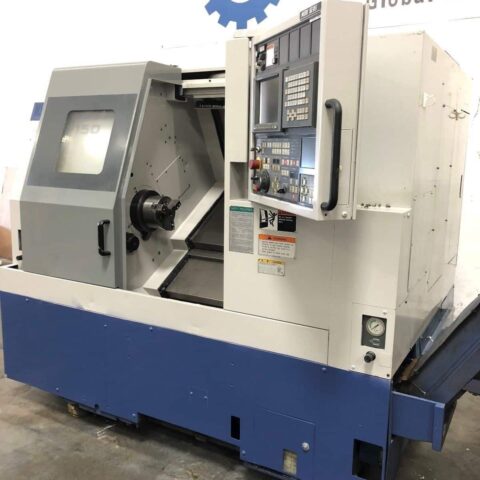

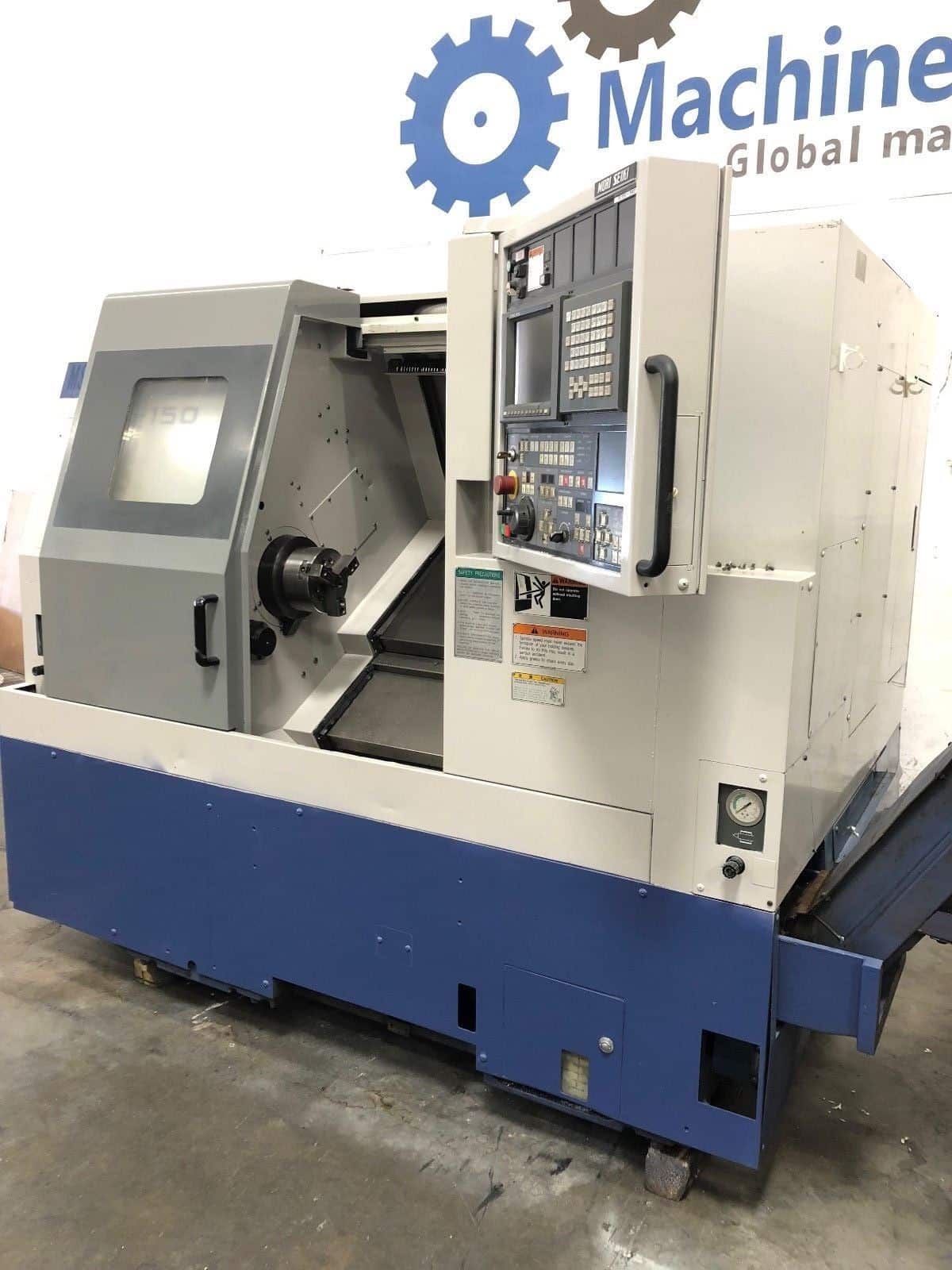

MORI SEIKI SL-150 Comes as shown in pictures..
