SOLD OUT!

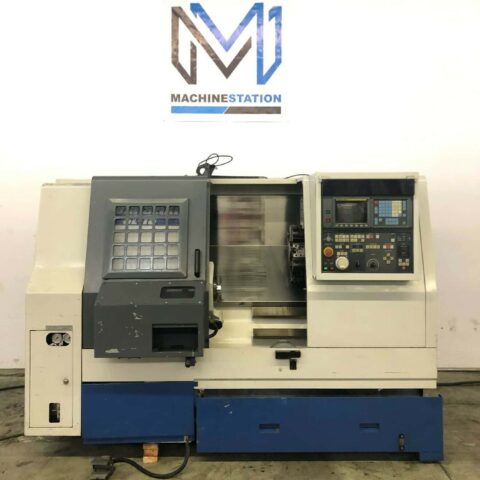

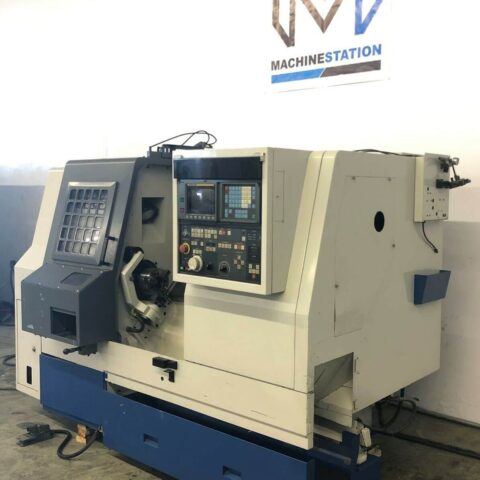

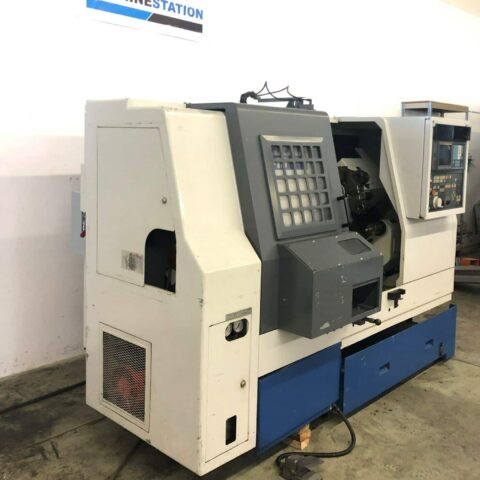

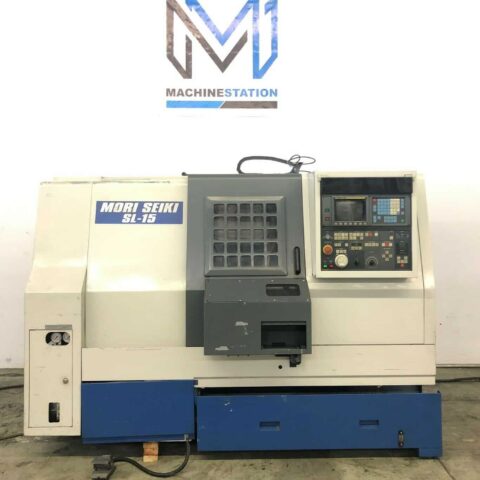

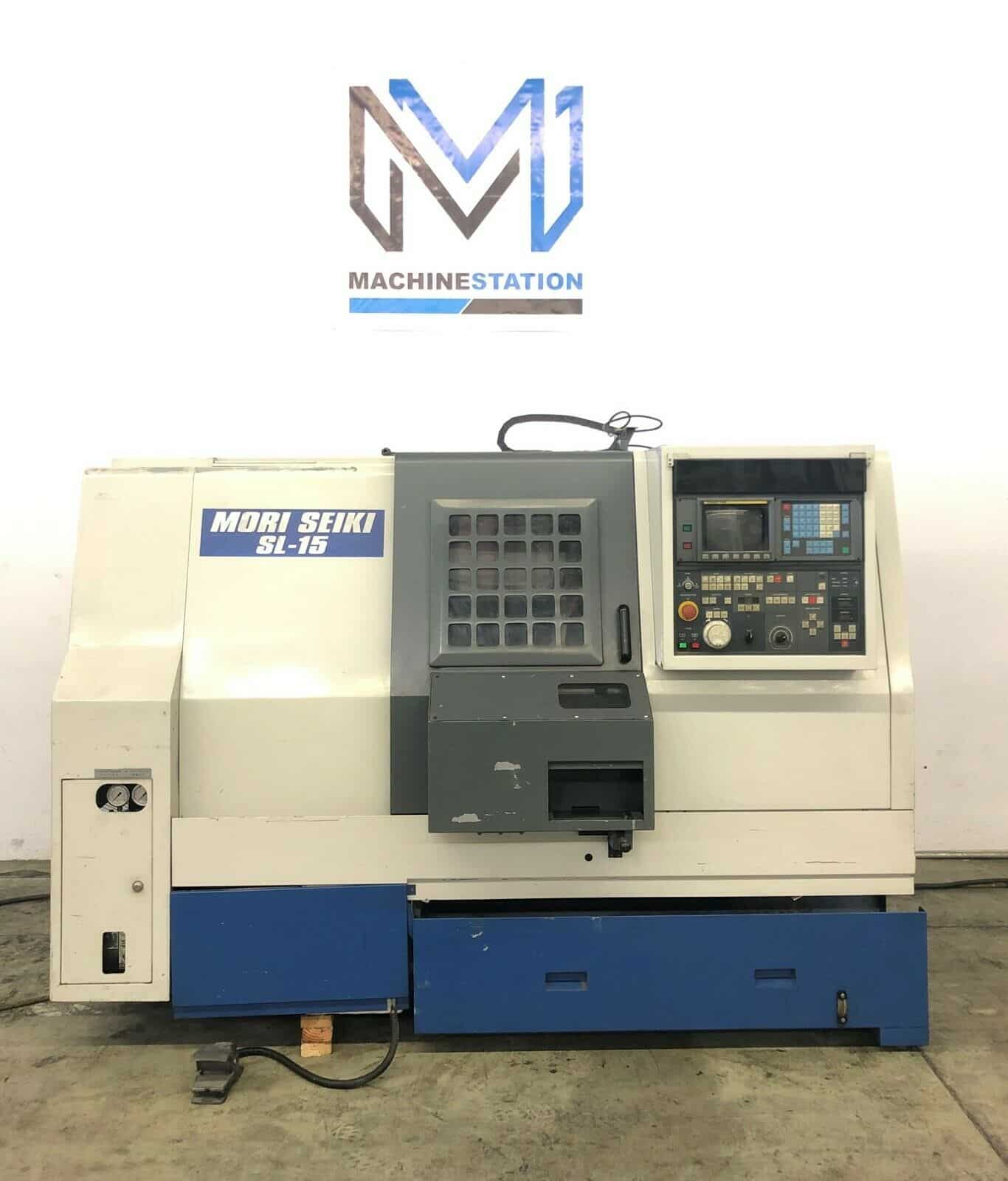

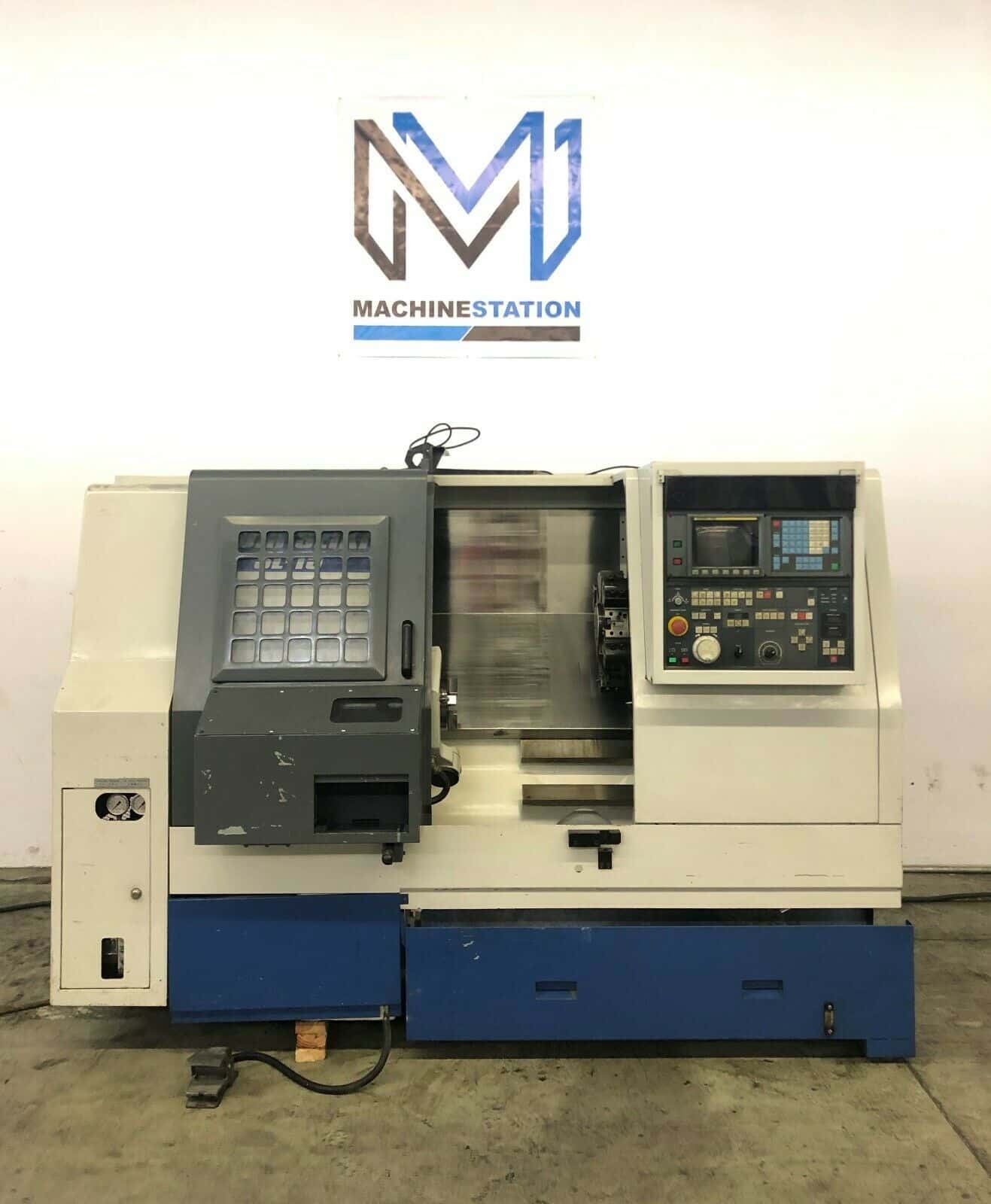

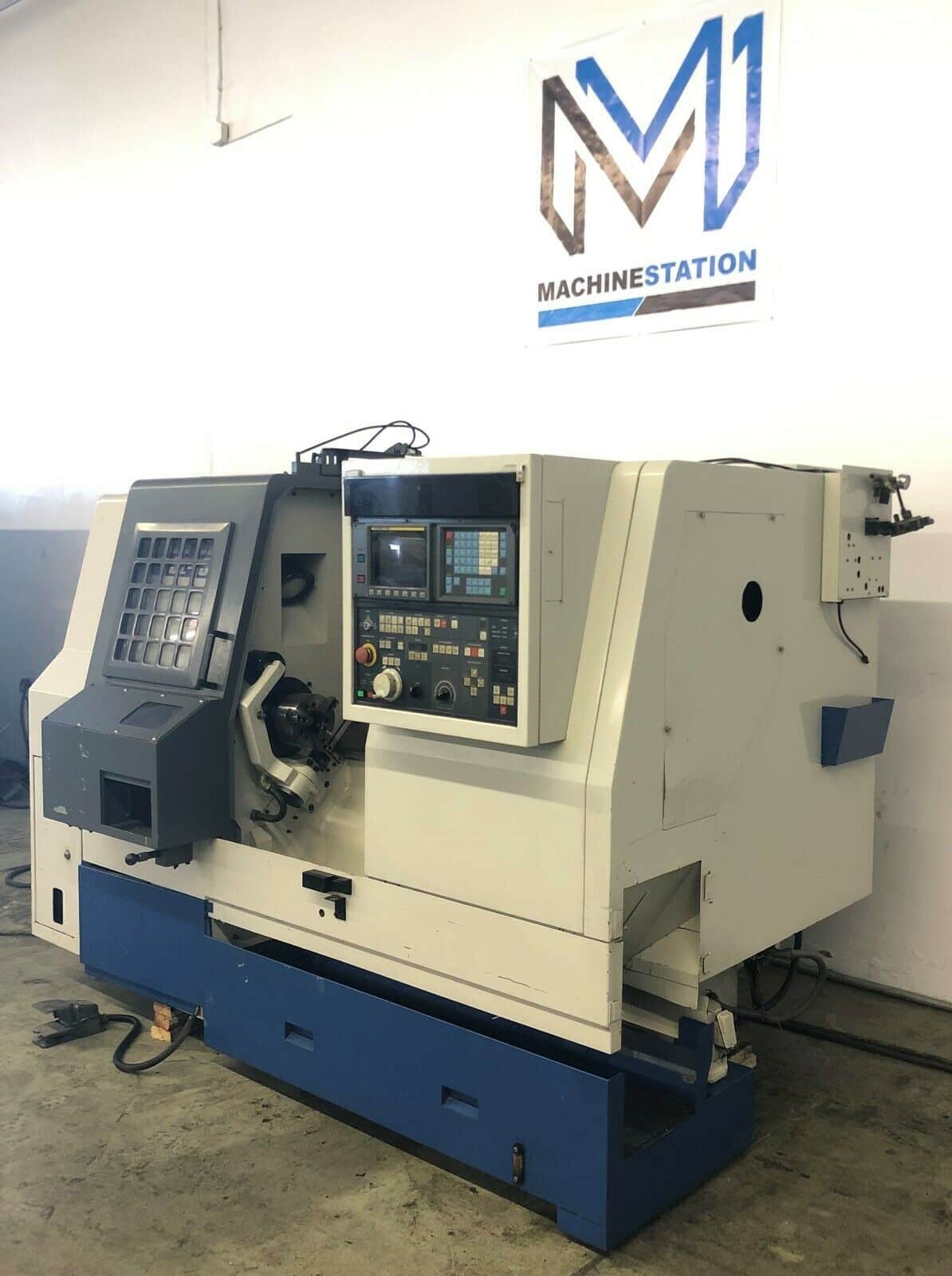

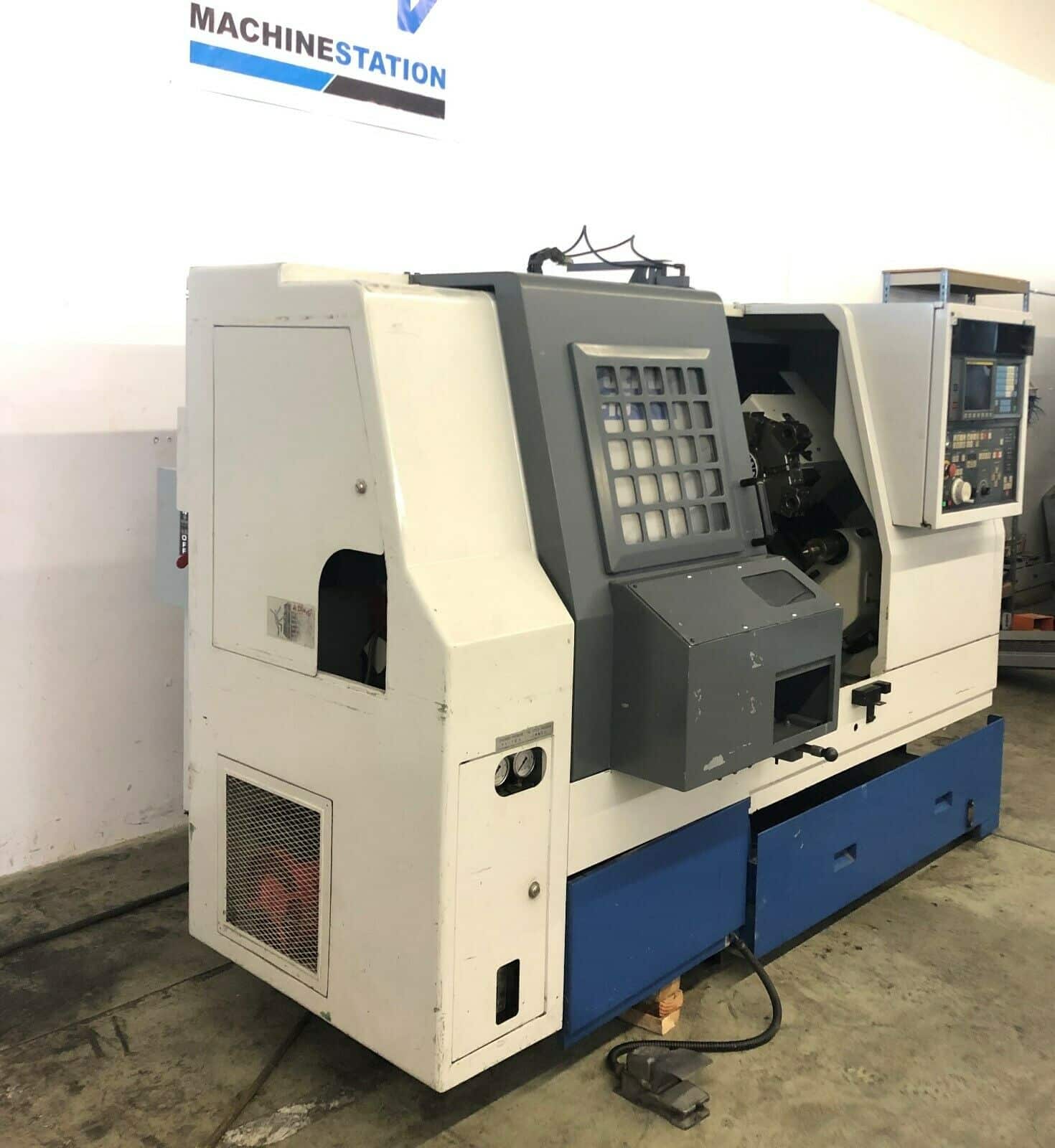

Mori Seiki SL-15B CNC Lathe Turning Center

This machine is in very Good running condition. It is equipped with 6″ Chuck, Tool Presetter, Tailstock & Turret. On Our Floor fully powered / tested & is in Great working condition.”

Share

Description

MORI SEIKI SL-15B CNC LATHE TURNING CENTER
Make Mori Seiki
Model No. SL-15B

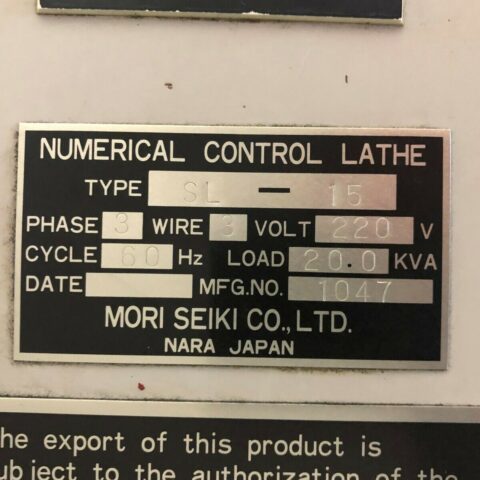

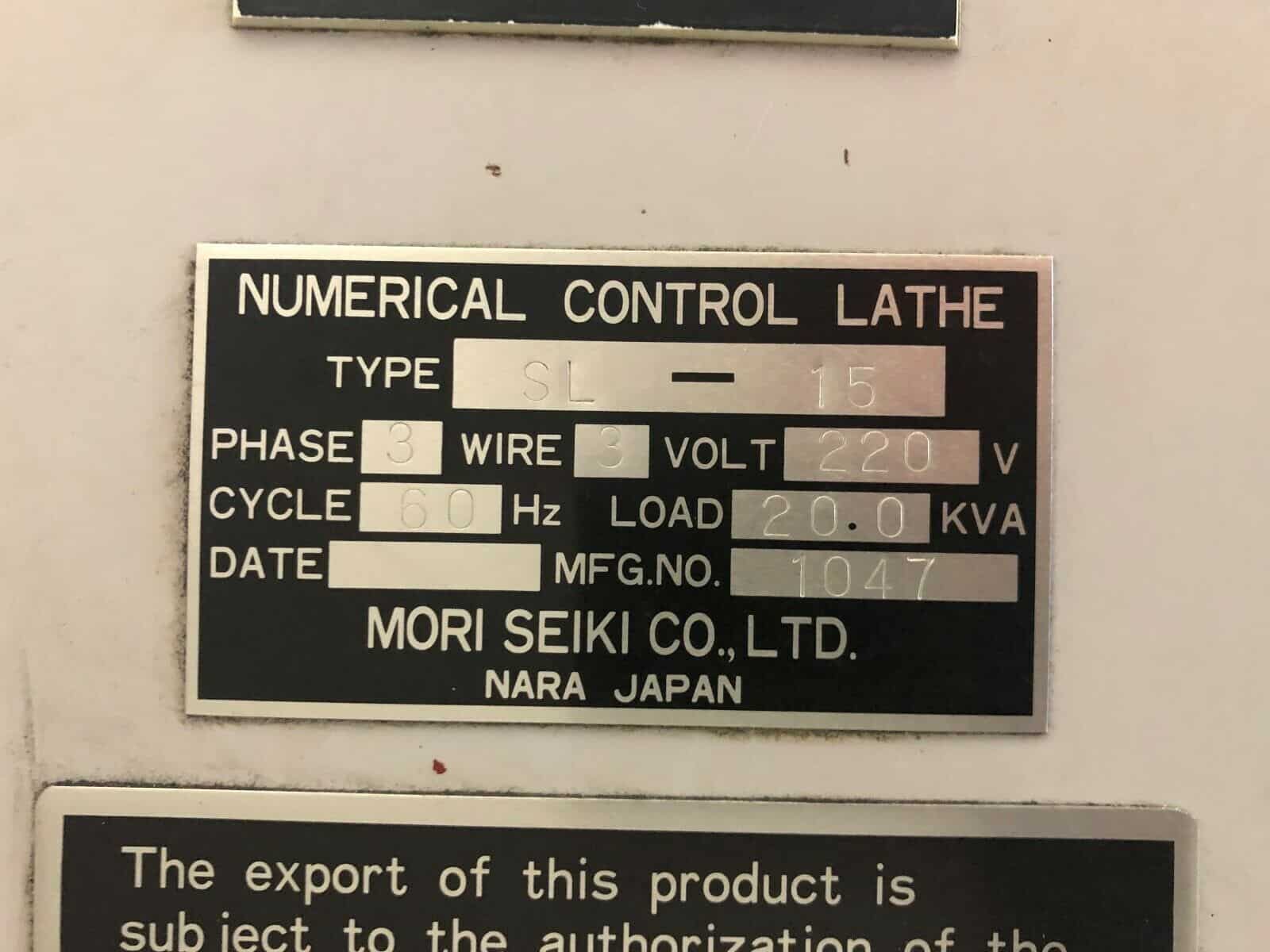

Serial # 1047
Condition Very Good

“This machine is in very Good running condition. It is equipped with 6″ Chuck, Tool Presetter, Tailstock & Turret. On Our Floor fully powered / tested & is in Great working condition.”

  • MORI SEIKI SL-15B Equipped With:

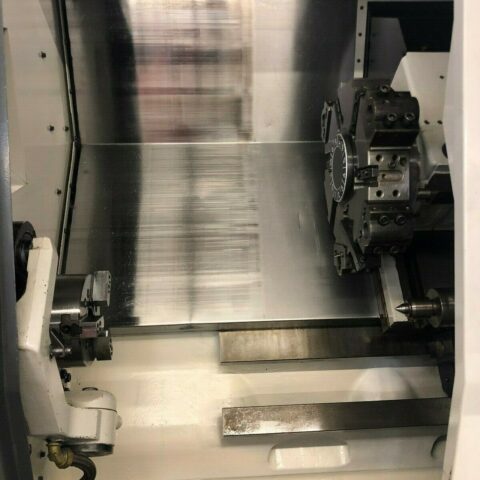

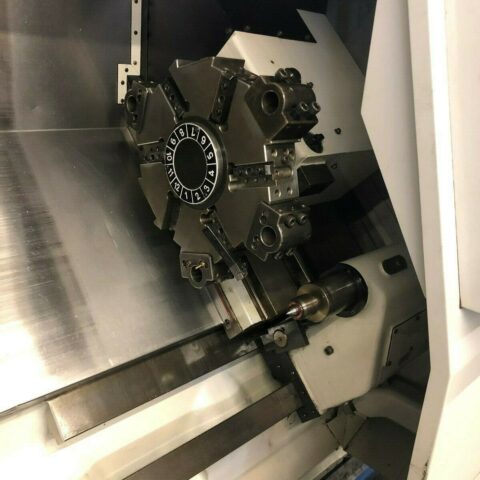

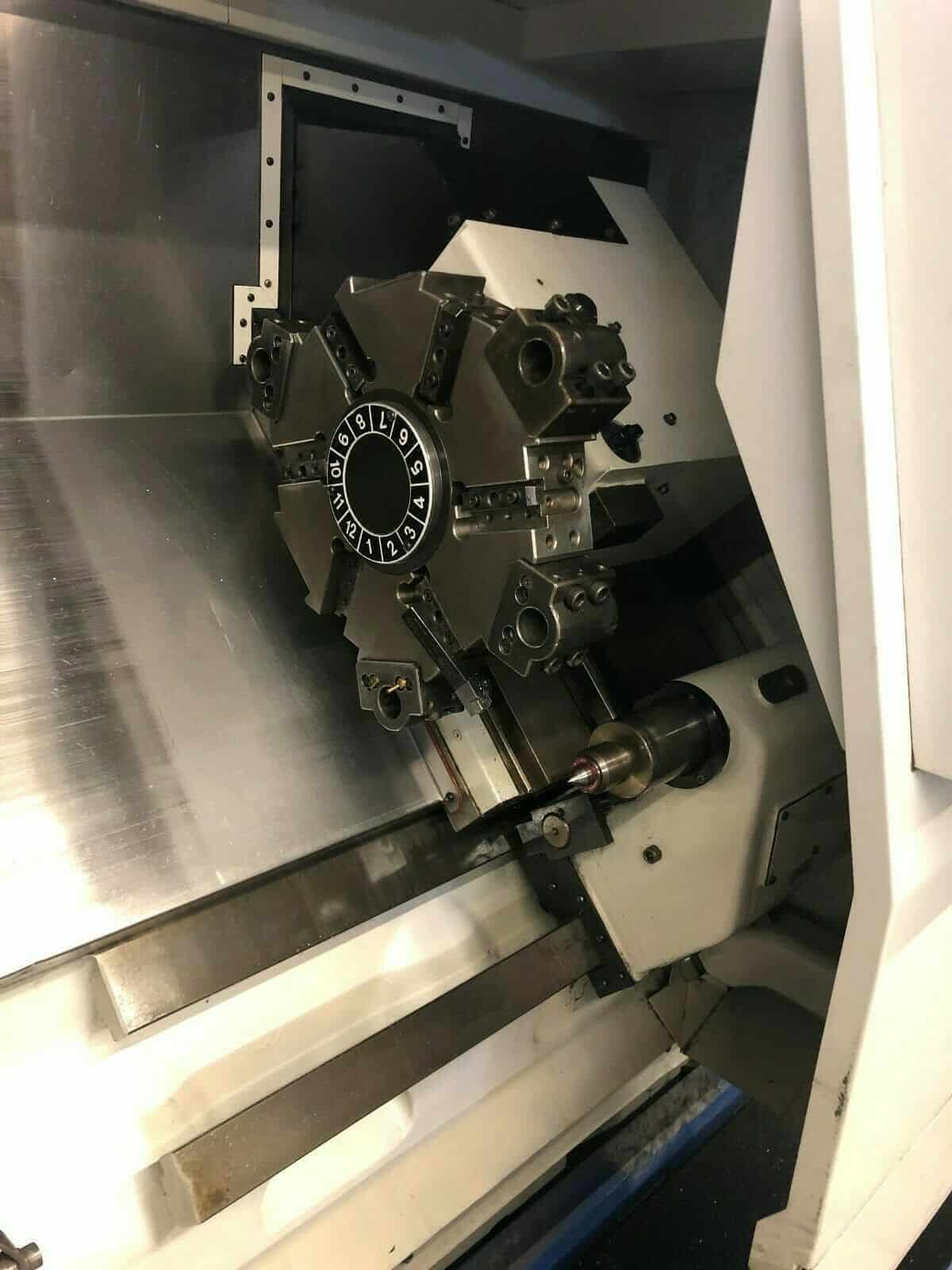

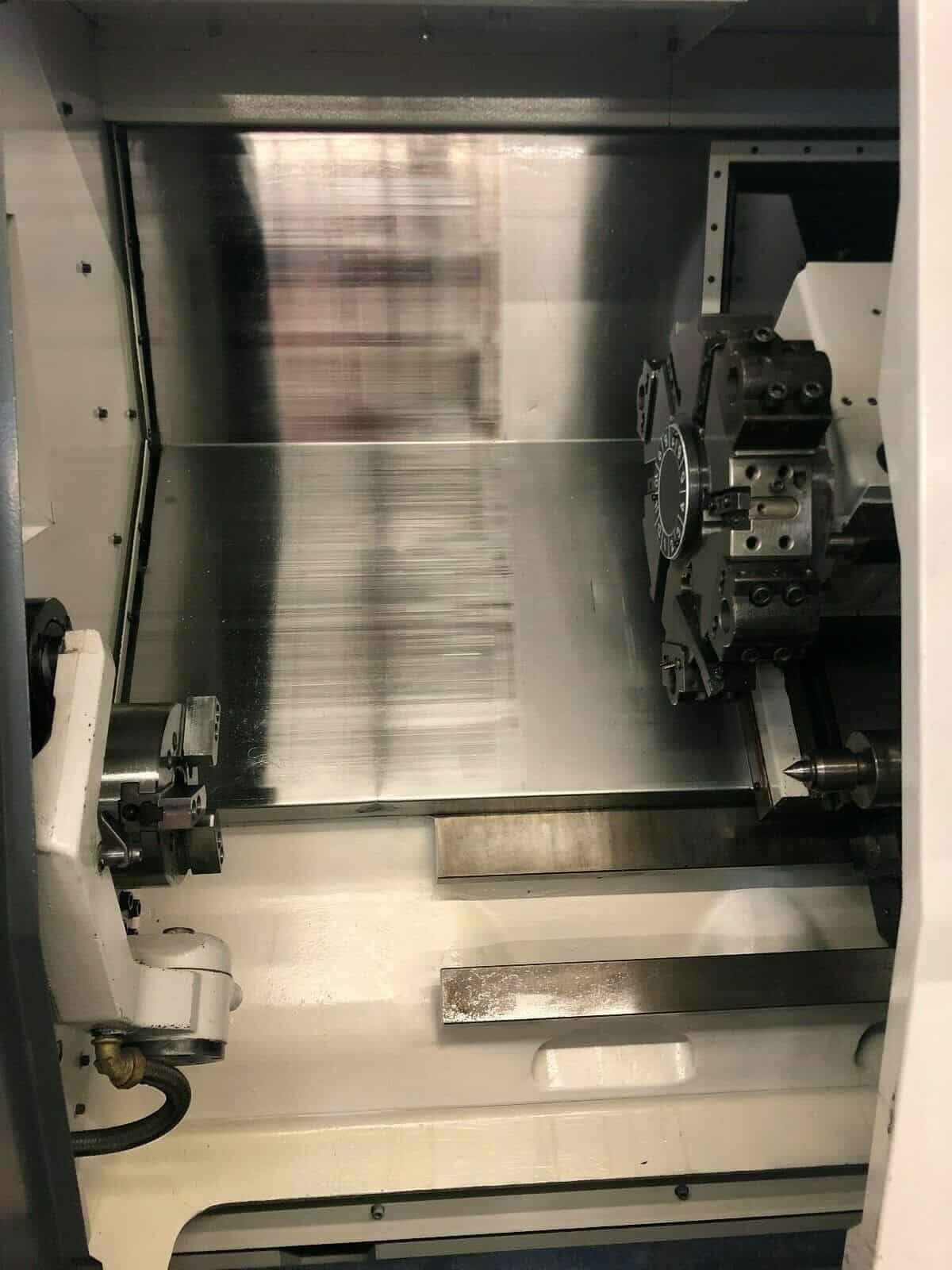

  • 12-Station Turret

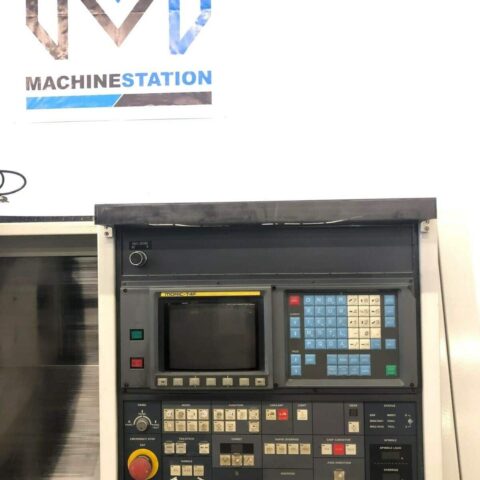

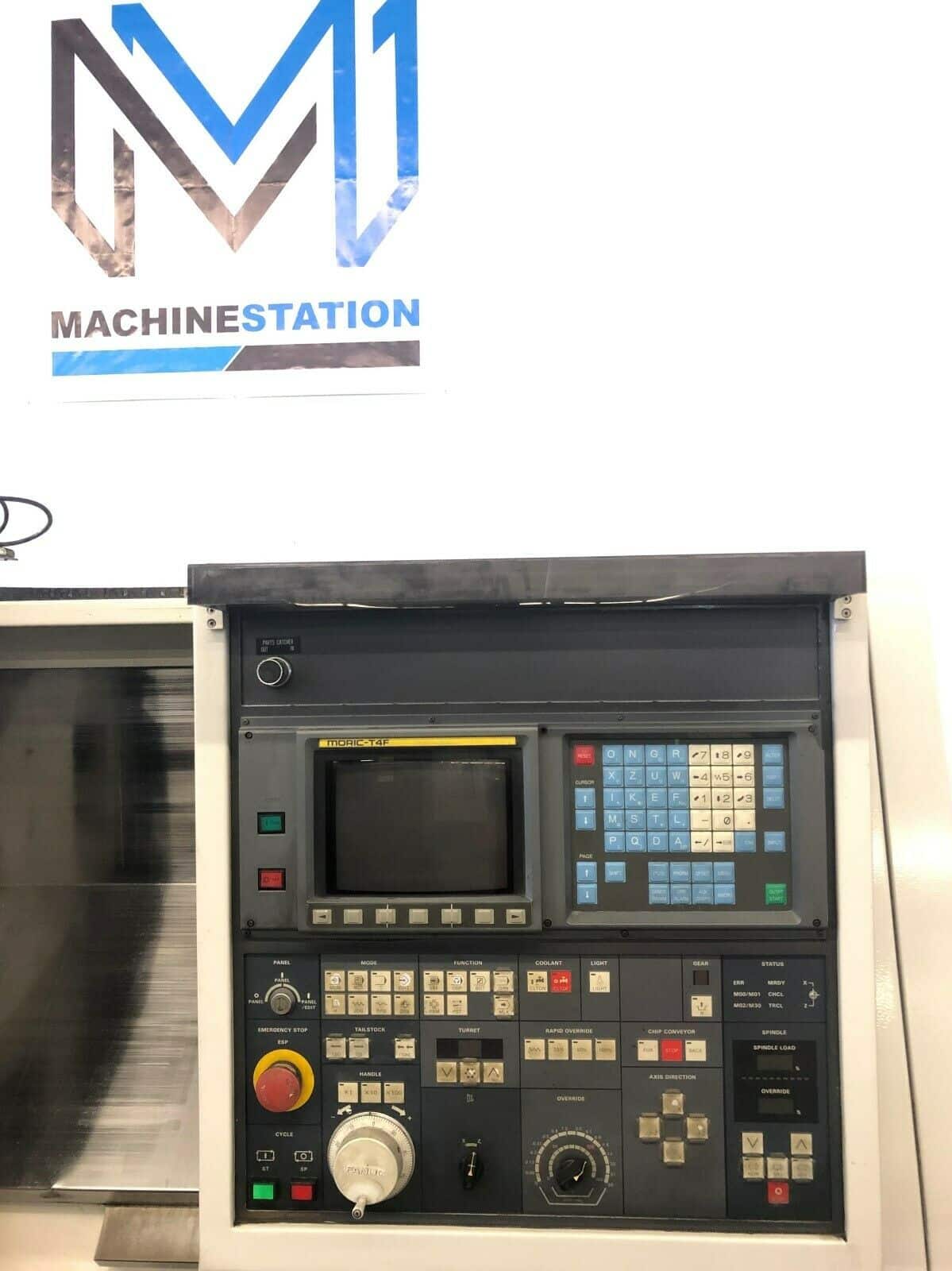

  • Fanuc 0T CNC Control

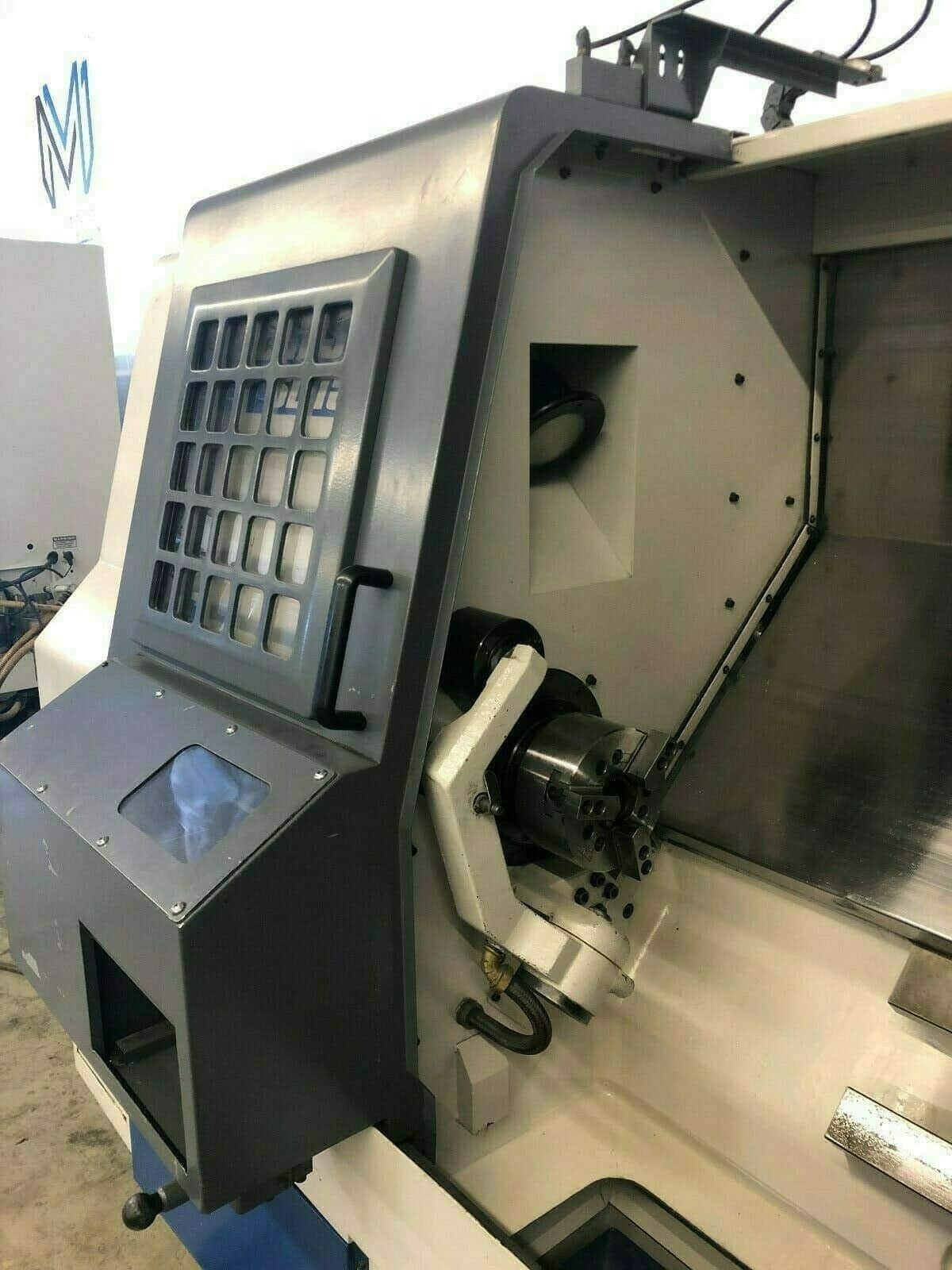

  • 6″ 3-Jaw Kitagawa Hydraulic Chuck ( 8″ Capable )
  • Tool Presetter
  • Parts Catcher
  • 2 Step gear spindle for powerful torque
  • Hydraulic Tailstock with Power Quill
  • Chip Pan
  • Coolant System
  • Automatic Lubrication system
  • Foot Operated Control for Chuck
  • Mori Seiki SL-15B Specifications:
  • Max Turning Diameter: 8.3″
  • Max Turning Length: 20.7″
  • Max Bar Capacity: 1.65″
  • Swing Over Slide: 11.8″
  • Swing Over Bed: 17.7″
  • Distance Between Centers: 23.4″
  • Travel:
  • X Axis Travel: 5.3″
  • Z Axis Travel: 22.2″
  • Rapid Traverse X Axis: 475 IPM
  • Rapid Traverse Z Axis: 590 IPM
  • Spindle:
  • Spindle Nose: A2-5
  • Spindle Bore: 2.0″
  • Spindle Speed: 6000 RPM
  • Spindle Motor: 15 HP
  • Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.7 Second
  • Tailstock:
  • Tailstock Body Travel: 17.7″
  • Tailstock Quill Dia.: 3.0″
  • Tailstock Quill Stroke: 3.1″
  • Tailstock Taper: MT-4
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 68 Amps
  • Overall Dimensions: 100″ x 60″ x 80″ High
  • Weight : 7000 lbs Approx.

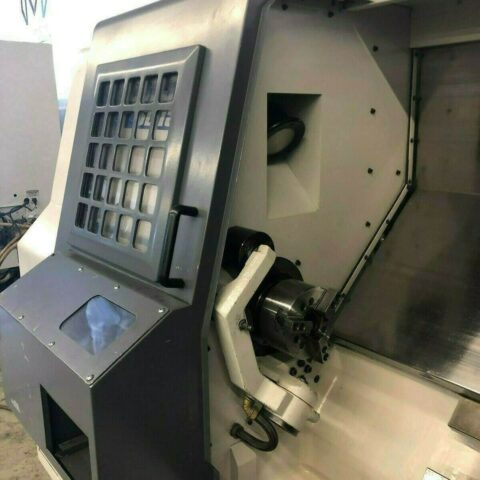

Mori Seiki SL-15B Comes as shown in Pictures….
