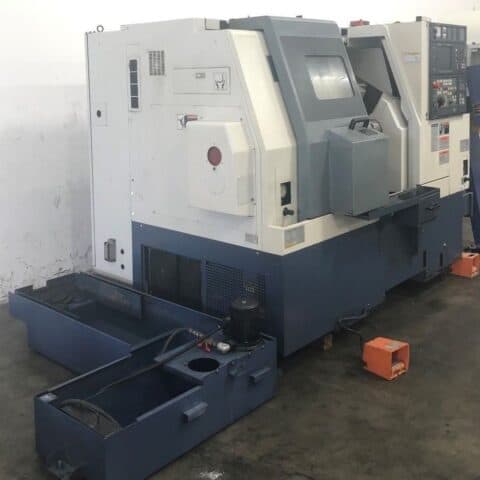

MORI SEIKI SL-200SMC CNC TURN MILL CENTER | |
---|---|
Make | Mori Seiki |
Model No. | SL-200SMC |
Year Of Manufacture: | 11.1999 |
Serial # | 1025 |
Condition | Very Good |
Country of Origin: | Japan |
All specifications are approximations and are subject to verification.
“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 2 Hydraulic Chucks, Full C Axis, Milling. Comes with 2 Live Tool holders, Books, Chip Conveyor.”
- MORI SEIKI SL-200SMC Equipped With:

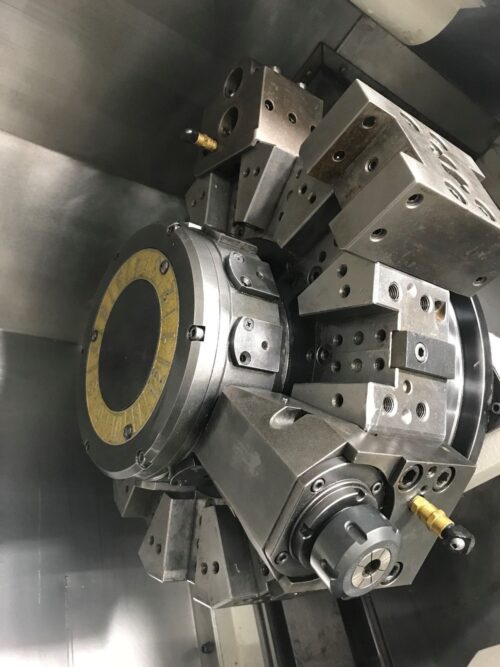

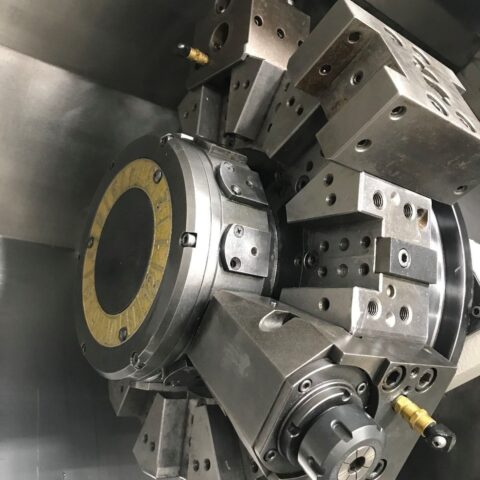

- 12-Station Turret with Live Tools/ Milling
- Renishaw Tool Presetter

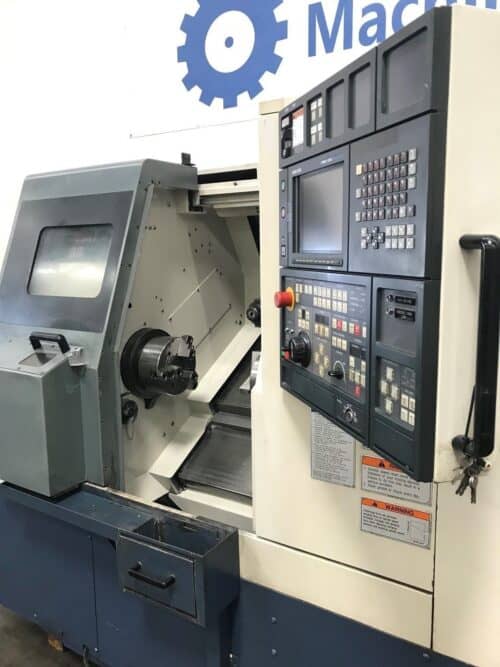

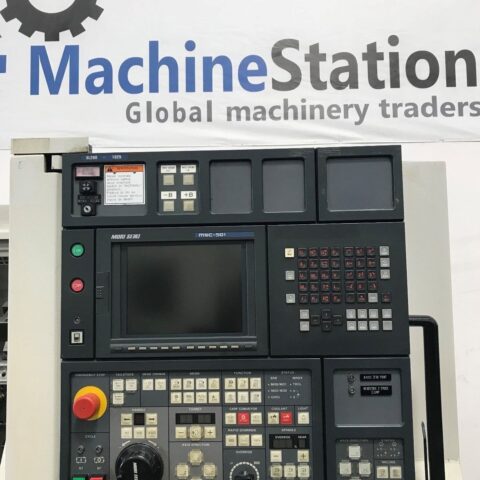

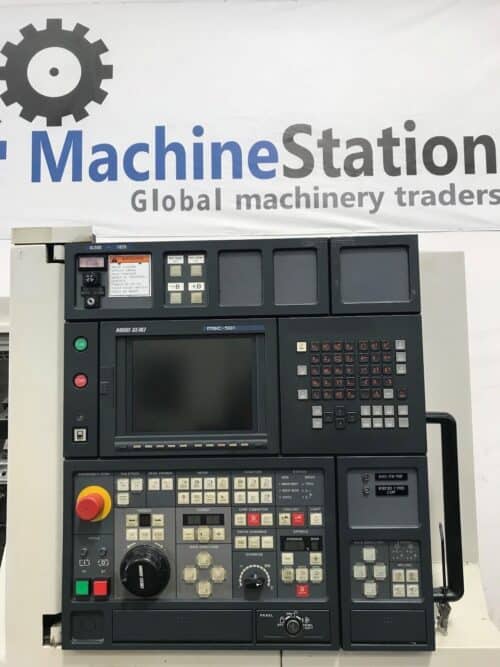

- MSC-501 ( Fanuc) CNC Control with Color LCD

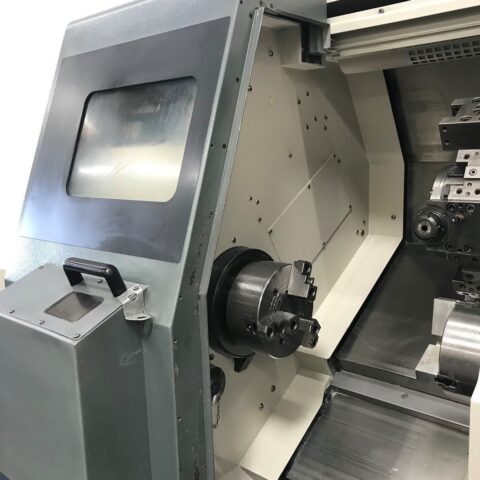

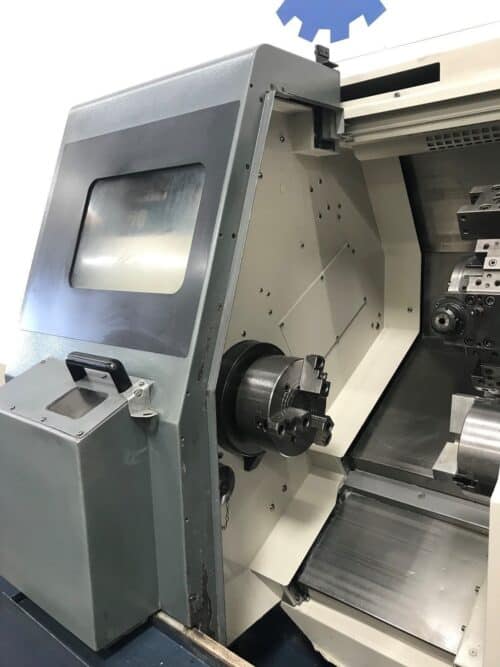

- 8″ 3-Jaw Hydraulic Chuck on Main Spindle
- 6″ 3-Jaw Hydraulic Chuck on Sub Spindle
- PCMCIA Card Slot

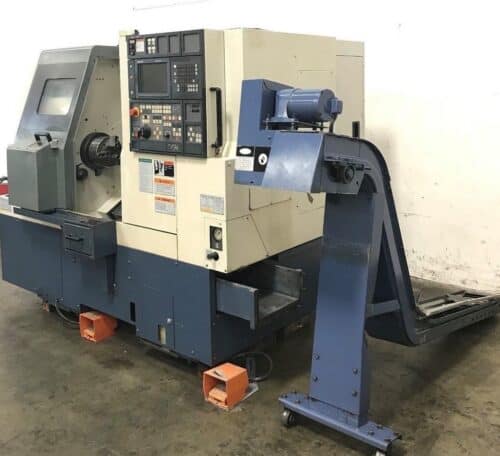

- Chip Pan and Chip Conveyor
- Coolant System
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Live Tool Holders
- Static Tool Holders
- Books and Manuals
- General:

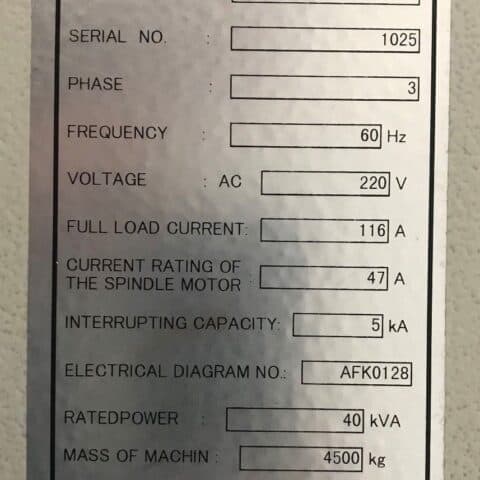

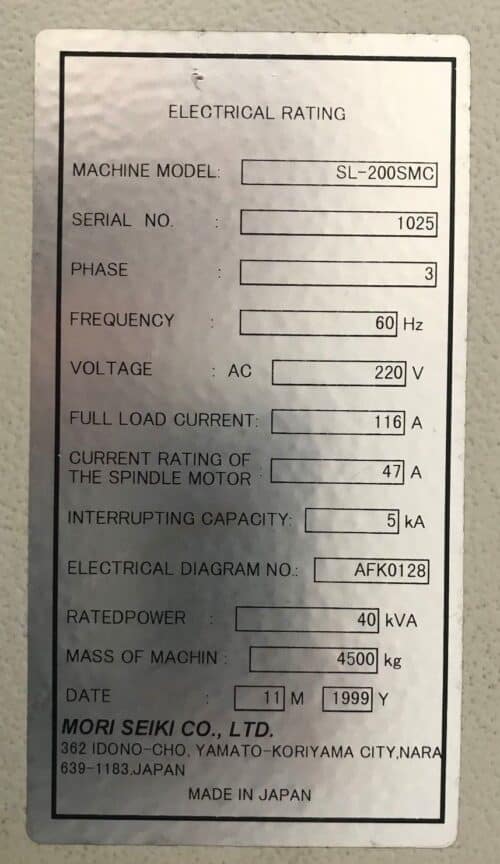

- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 37.9 kva
- Overall Dimensions: 100″ x 68″ x 72″ High
- Overall Dimensions: 130″ x 68″ x 72″ High with Chip Conveyor
- Weight : 9900 lbs Approx.
- MORI SEIKI SL-200SMC Specifications:
- Max Turning Diameter: 15.35″
- Max Turning Length: 12.76″
- Max Bar Capacity: 2.56″
- Swing Over Carriage: 20.08″
- Swing Over Bed: 26.77″
- X Axis Travel: 9.25″
- Z Axis Travel: 19.49″
- B Axis Travel: 19.88″ ( Sub Spindle )
- C Axis: 0.001°
- Rapid Traverse X Axis: 709 IPM
- Rapid Traverse Z Axis: 945 IPM
- Rapid Traverse B Axis: 945 IPM
- Main Spindle Nose: A2-6
- Spindle Bore: 2.87″
- Spindle Speed: 40-4000 RPM
- Spindle Motor: 15 HP
- Sub Spindle Nose: A2-5
- Spindle Bore: 1.69″
- Spindle Speed: 40-4000 RPM
- Spindle Motor: 10 HP
- Live Tooling Motor: 8 HP
- Live Tool Speed: 3,000 RPM
- Turret Capacity: 12 Stations All Live
- Turret Index Time: 0.5 Second
- Turret Tools: 1″ Square

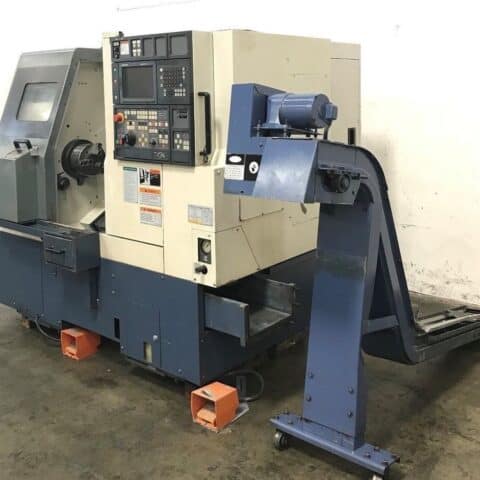

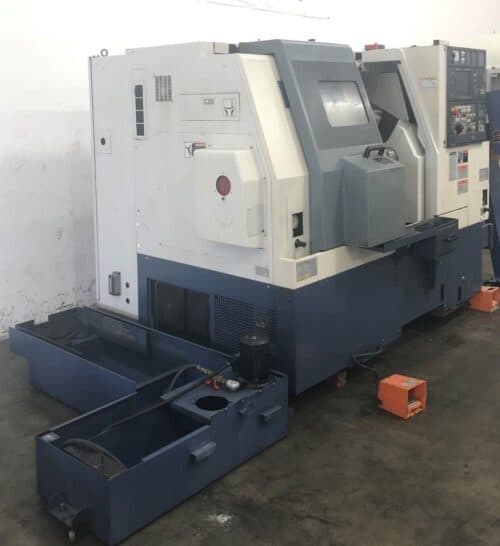

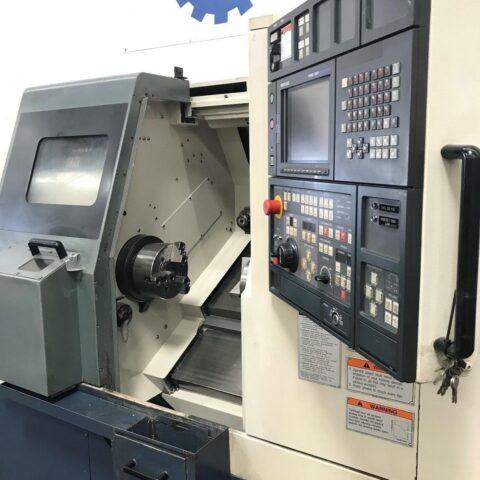

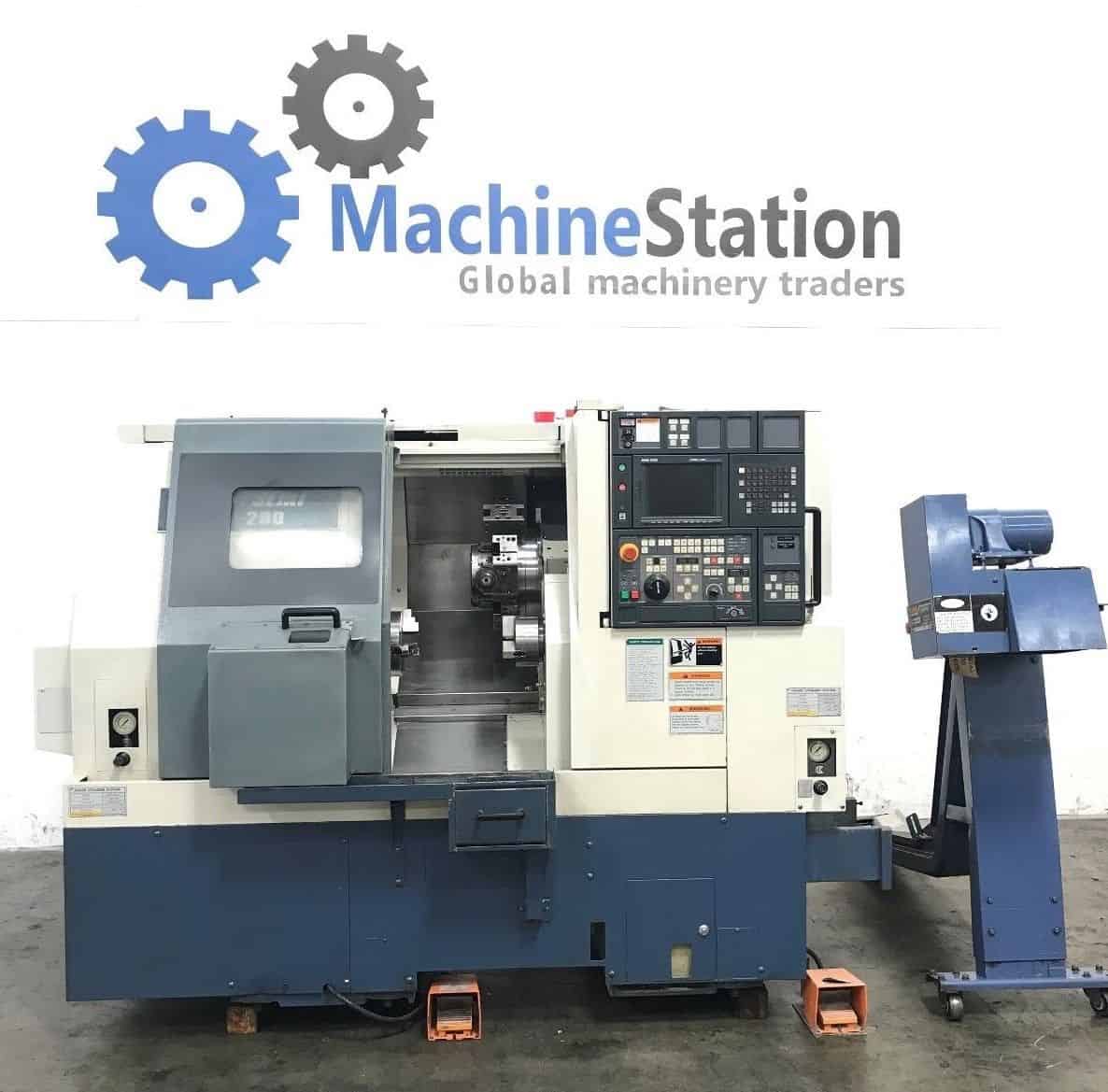

MORI SEIKI SL-200SMC Comes as shown in pictures.
