*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

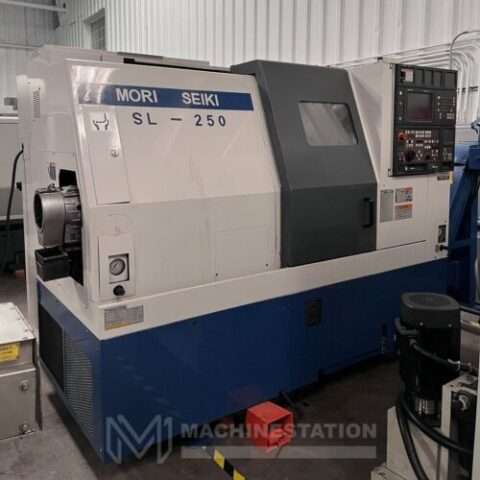

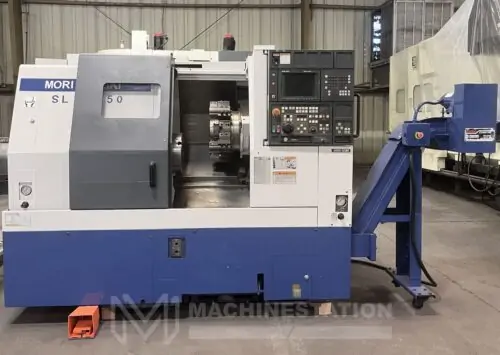

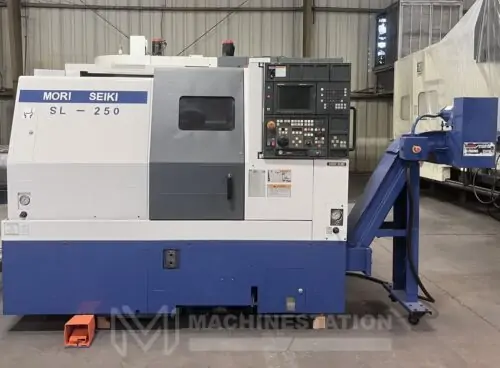

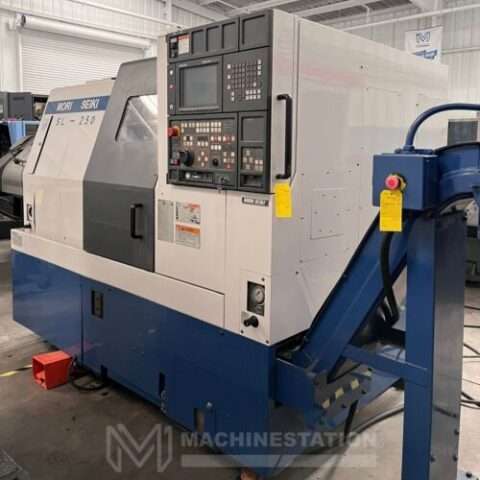

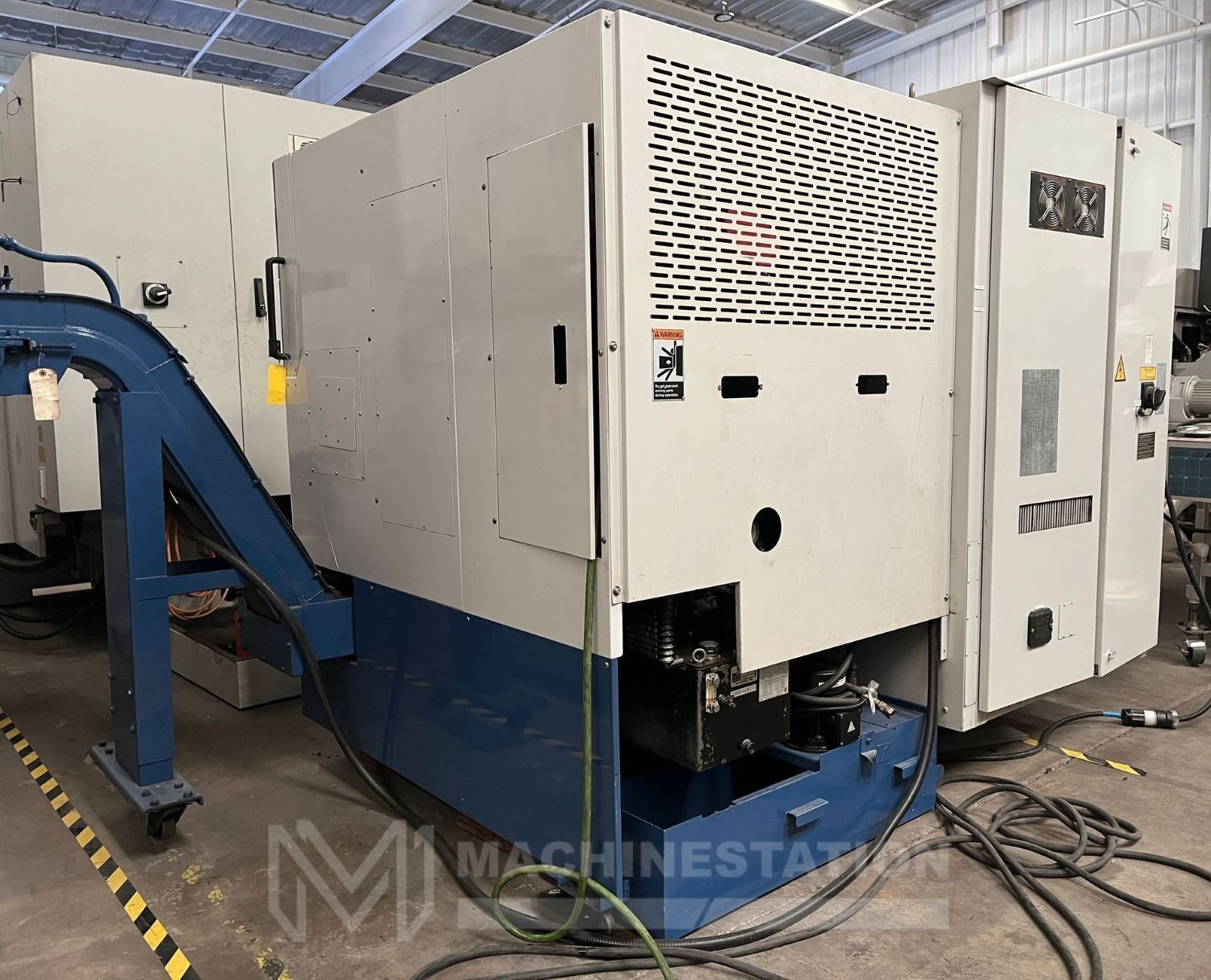

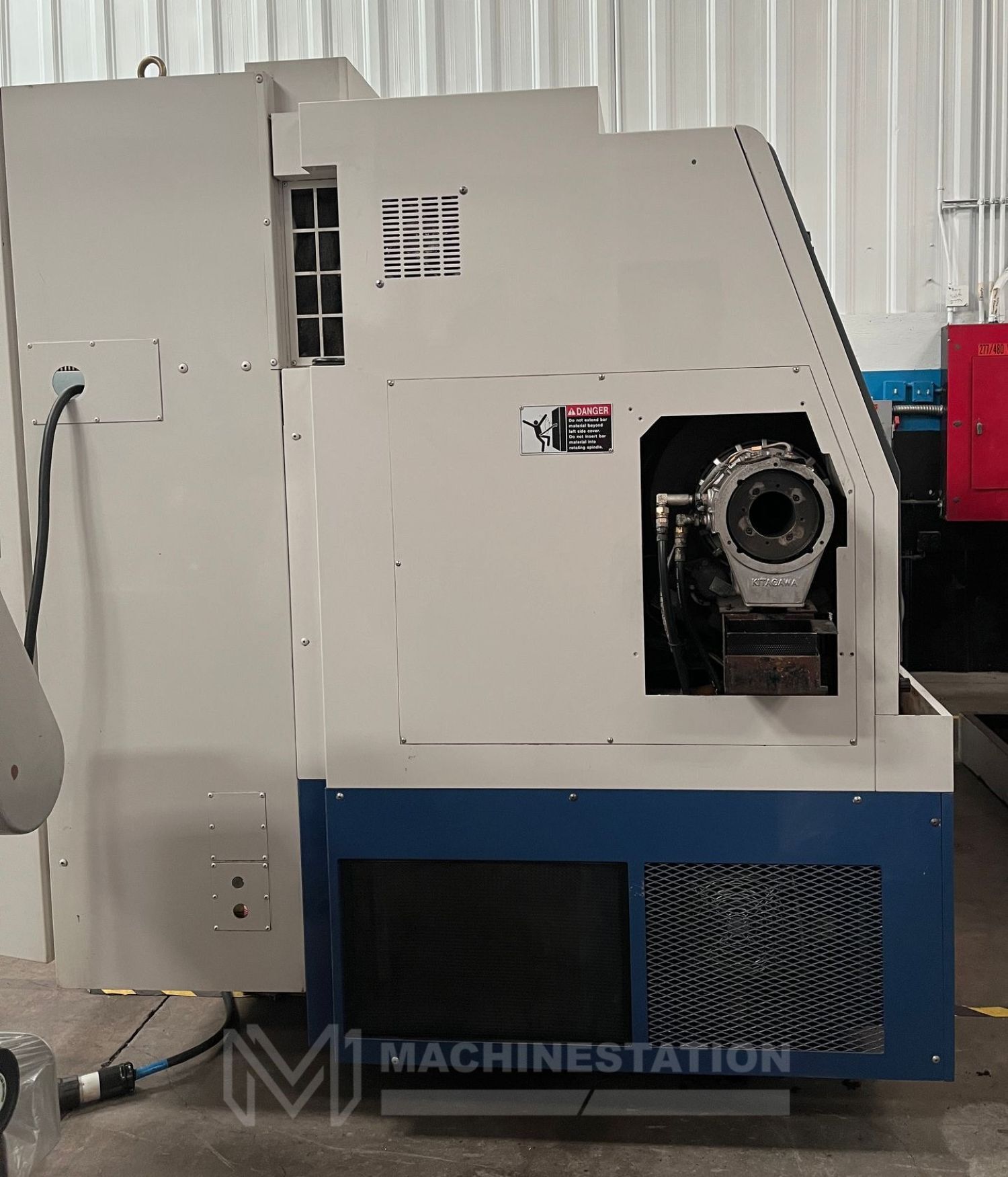

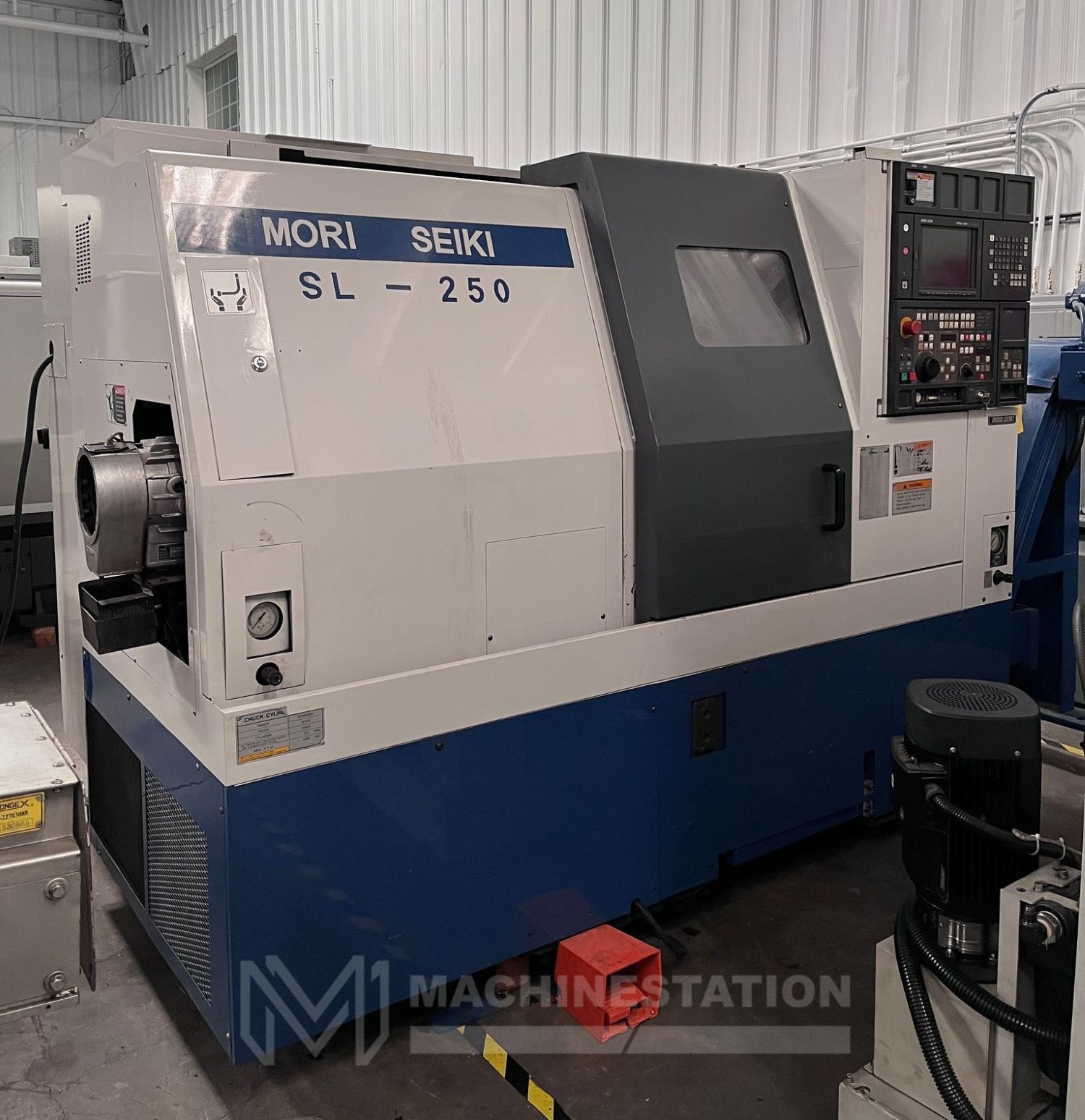

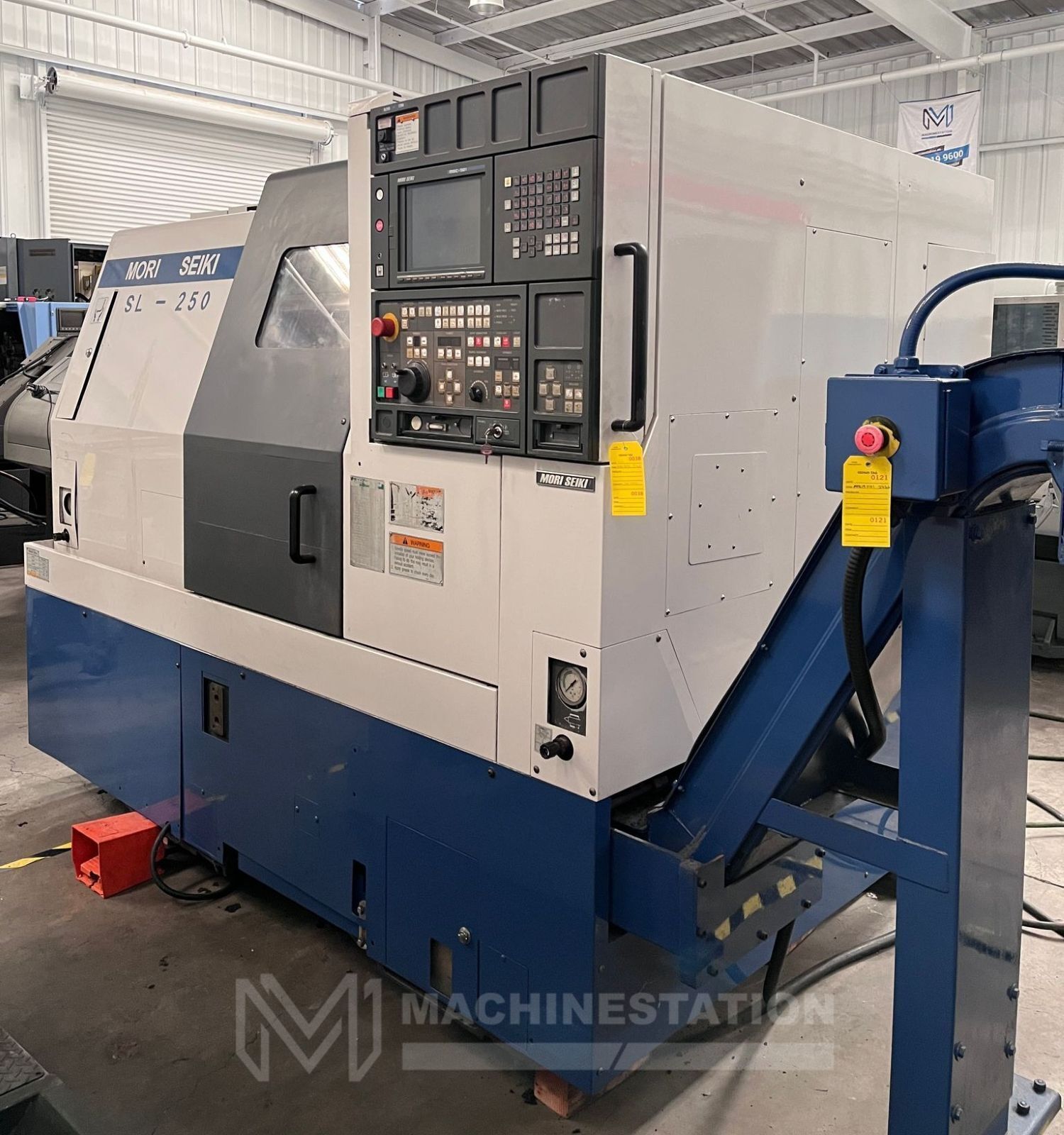

| Make: | MORI SEIKI |
| Model: | SL-250BMC/500 |
| Year: | 1998 |
| Condition: | Used – Good |
| Equipped With: |
|---|

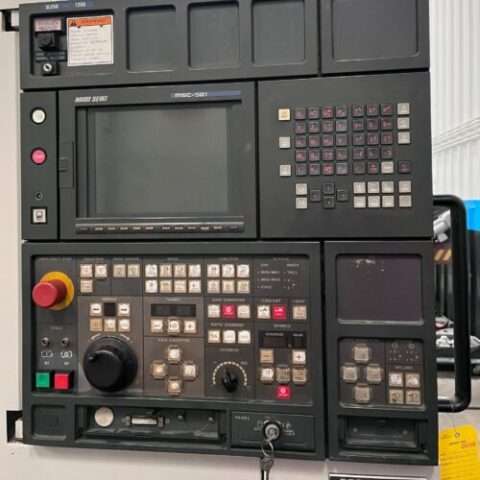

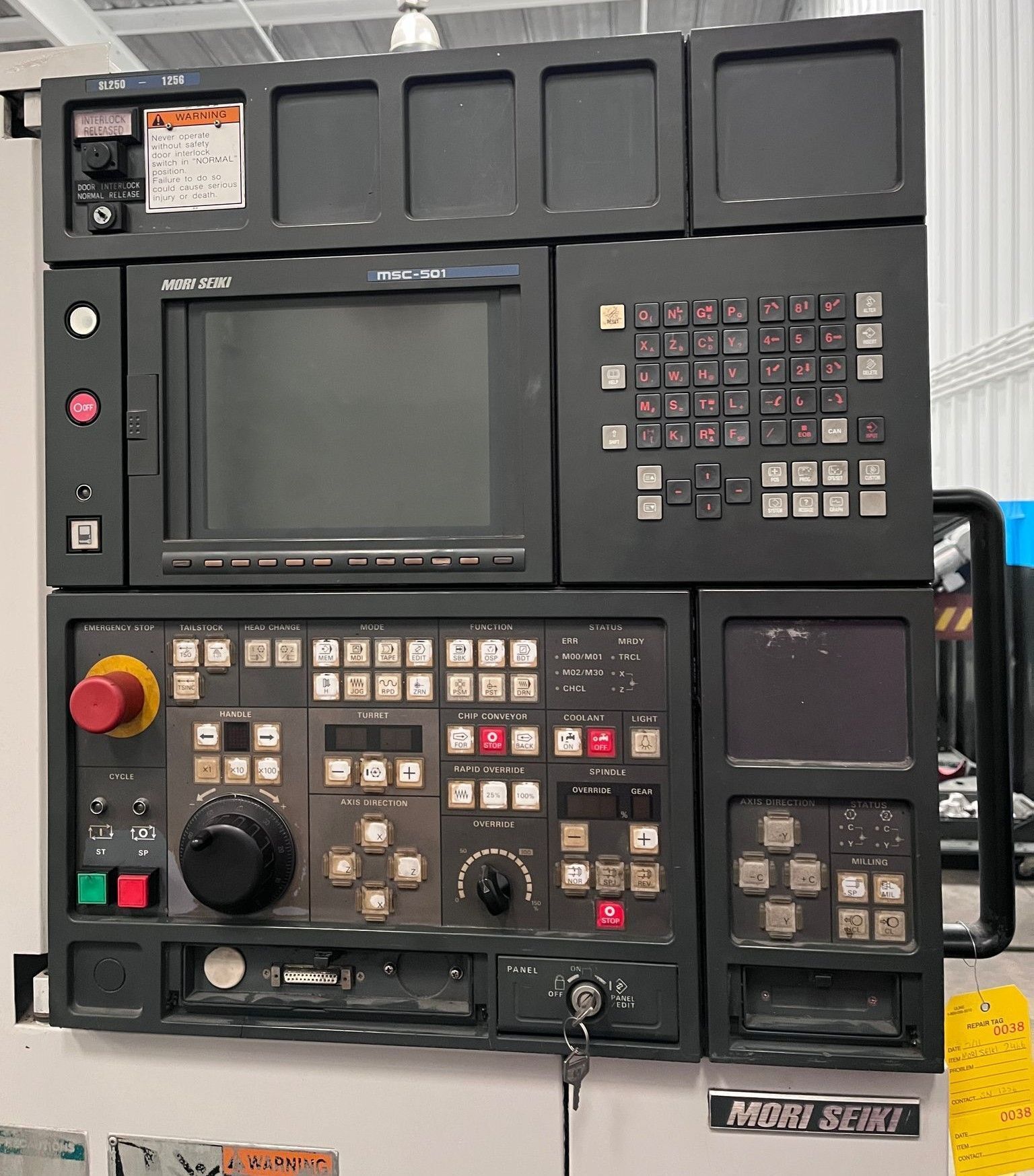

| Fanuc MSC-501 (Fanuc) CNC Control |
| Box Way Construction |

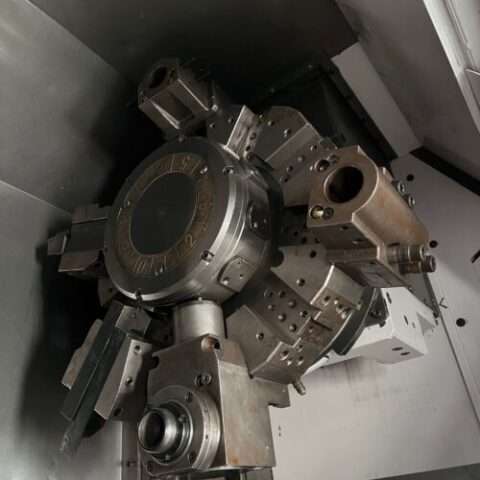

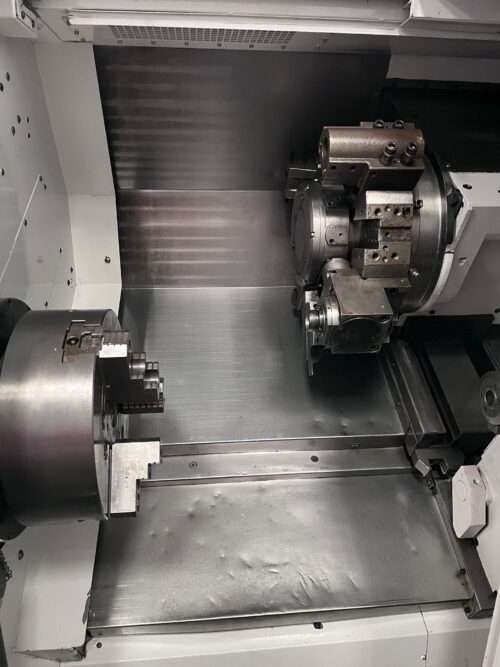

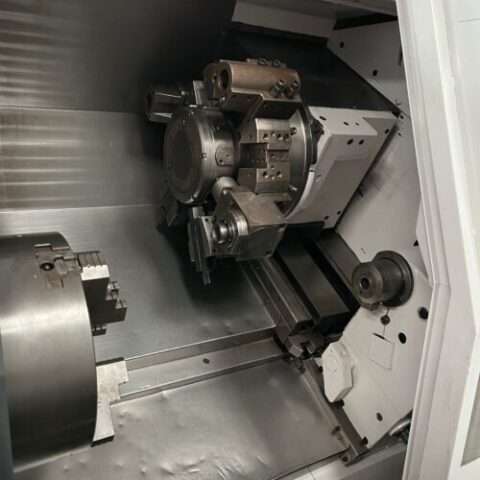

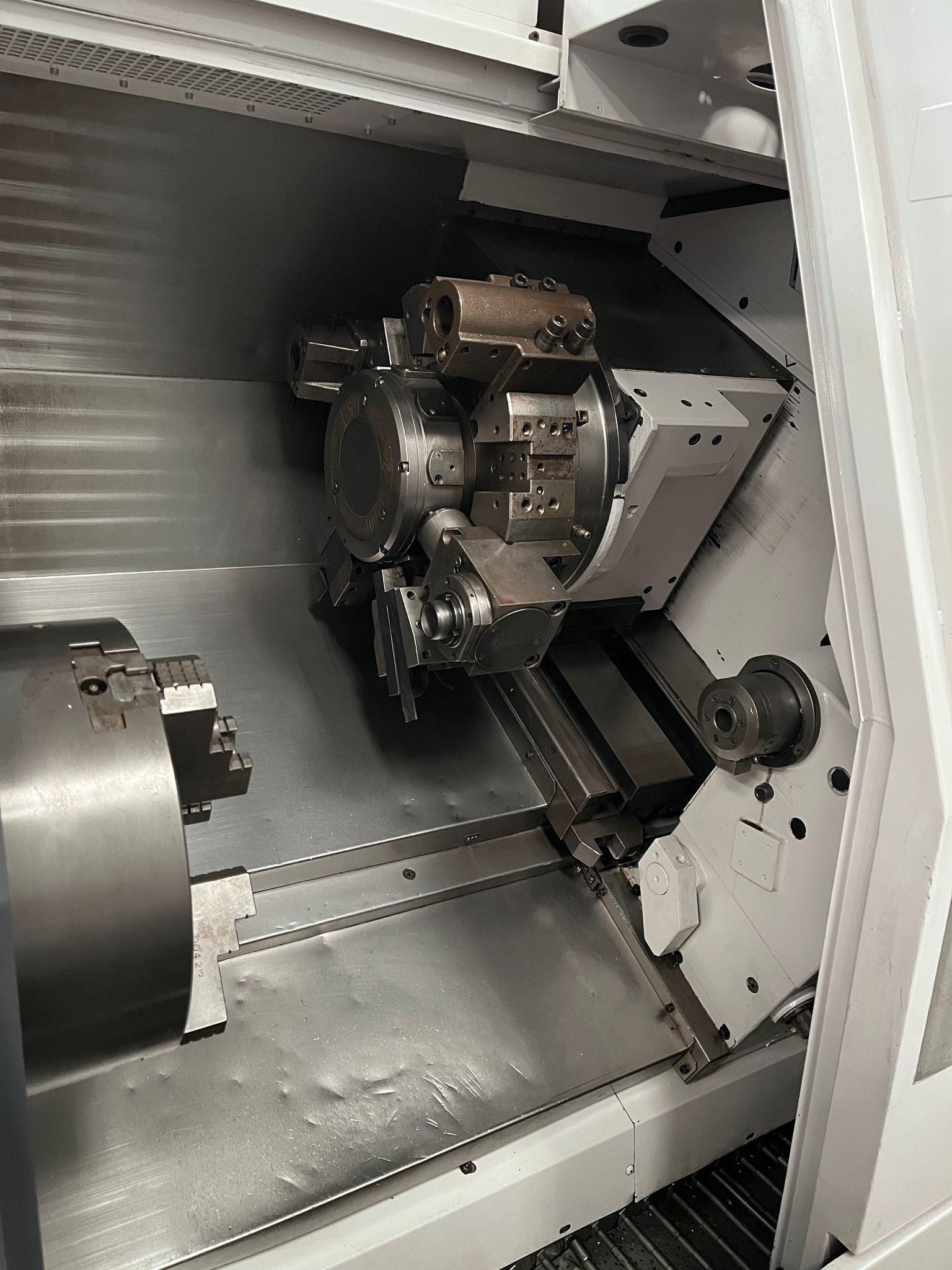

| 10 Station Live Tool Turret with Tool Holders |

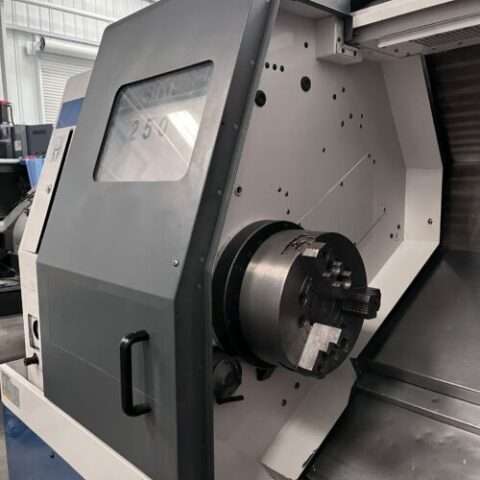

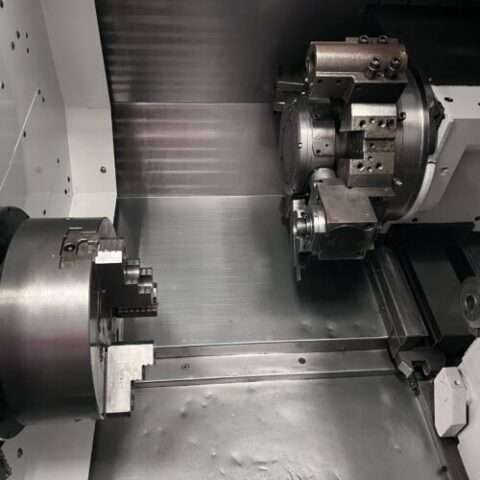

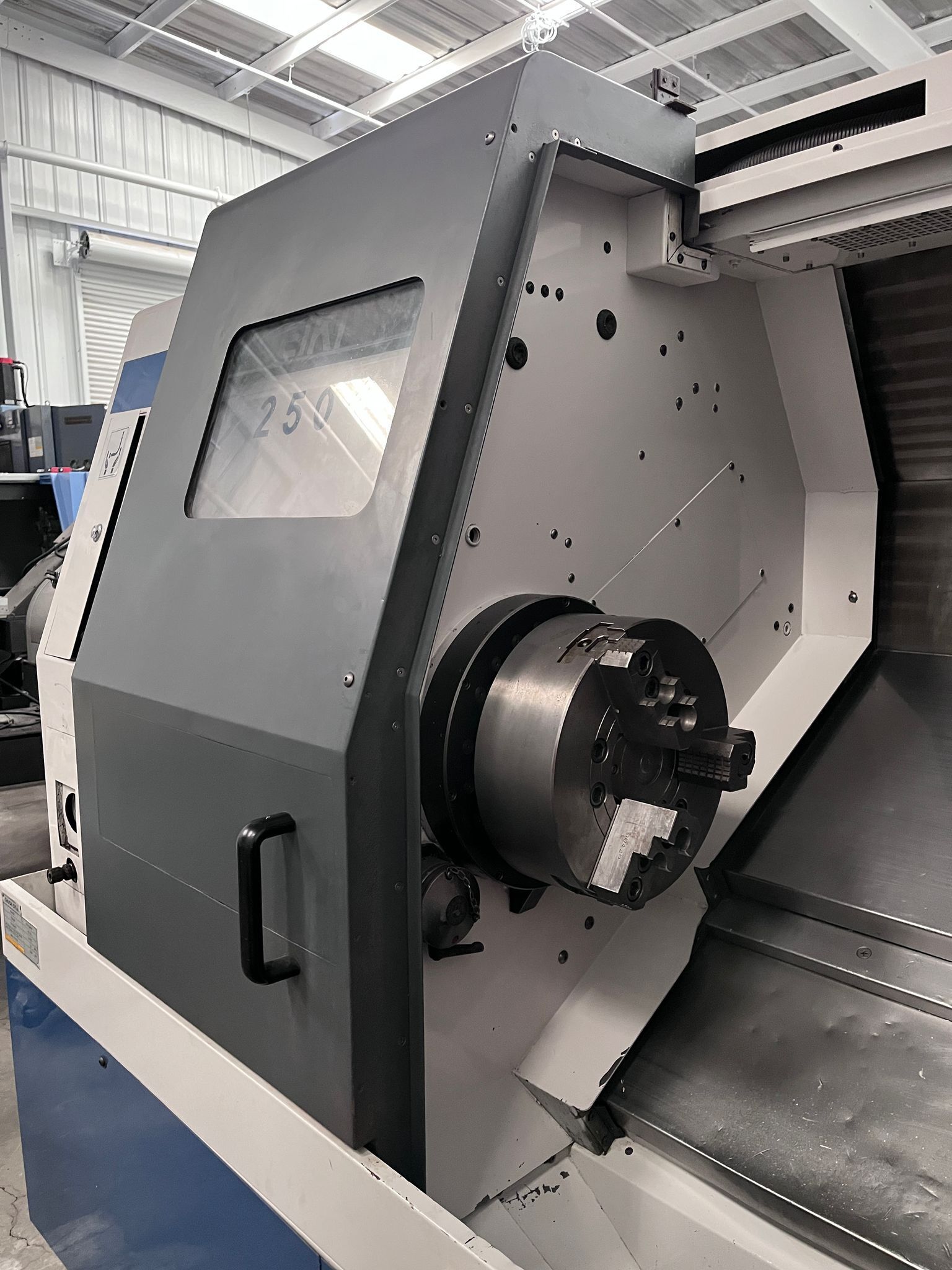

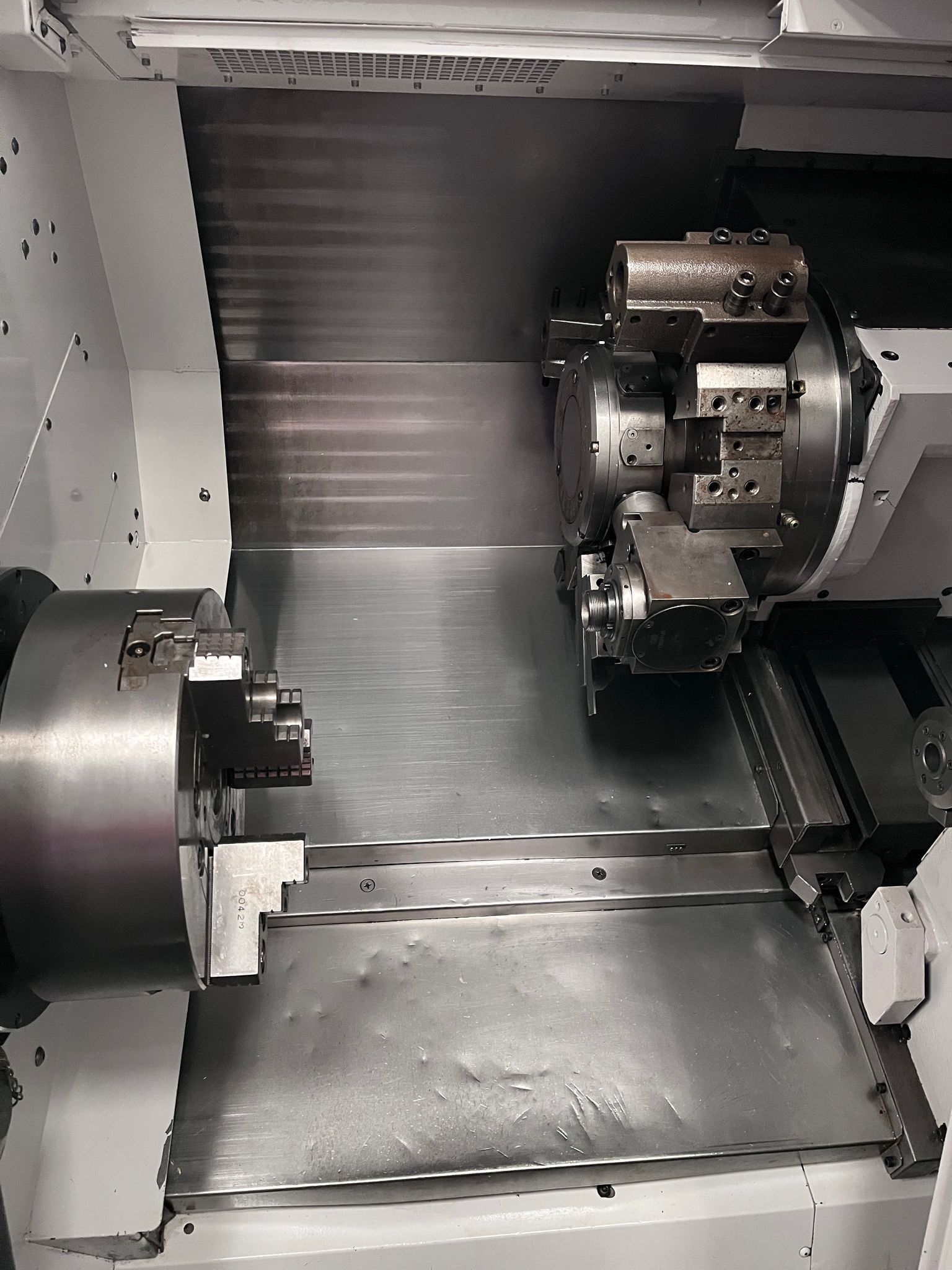

| 10″ 3-Jaw Hydraulic Chuck |
| C Axis on Spindle |
| 2 Step Gear Spindle for Powerful Torque |
| Bar Feeder |

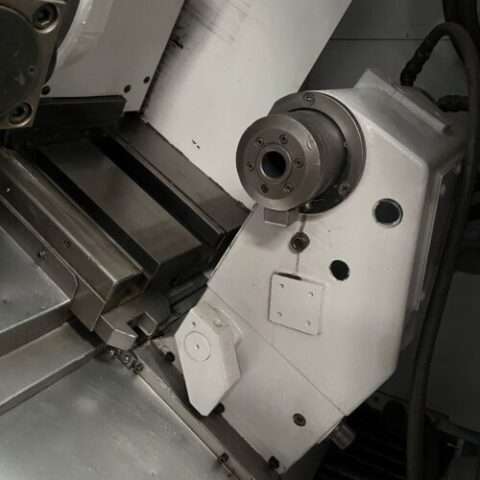

| Tailstock |
| Automatic Lubrication System |
| Coolant System |
| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 15.35″ |
| Max Turning Length: 19.09″ |
| Max Bar Capacity: 2.87″ |
| Swing Over Cross Slide: 20.08″ |
| Swing Over Bed: 26.77″ |
| Distance Between Centers: 22.64″ |
| Travels: |
|---|
| X Axis Travel: 9.25″ |
| Z Axis Travel: 20.47″ |
| C Axis: 0.001° |
| Rapid Traverse X Axis: 709 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.38″ |
| Spindle Speed: 35-3500 RPM |
| Spindle Motor: 20 HP |

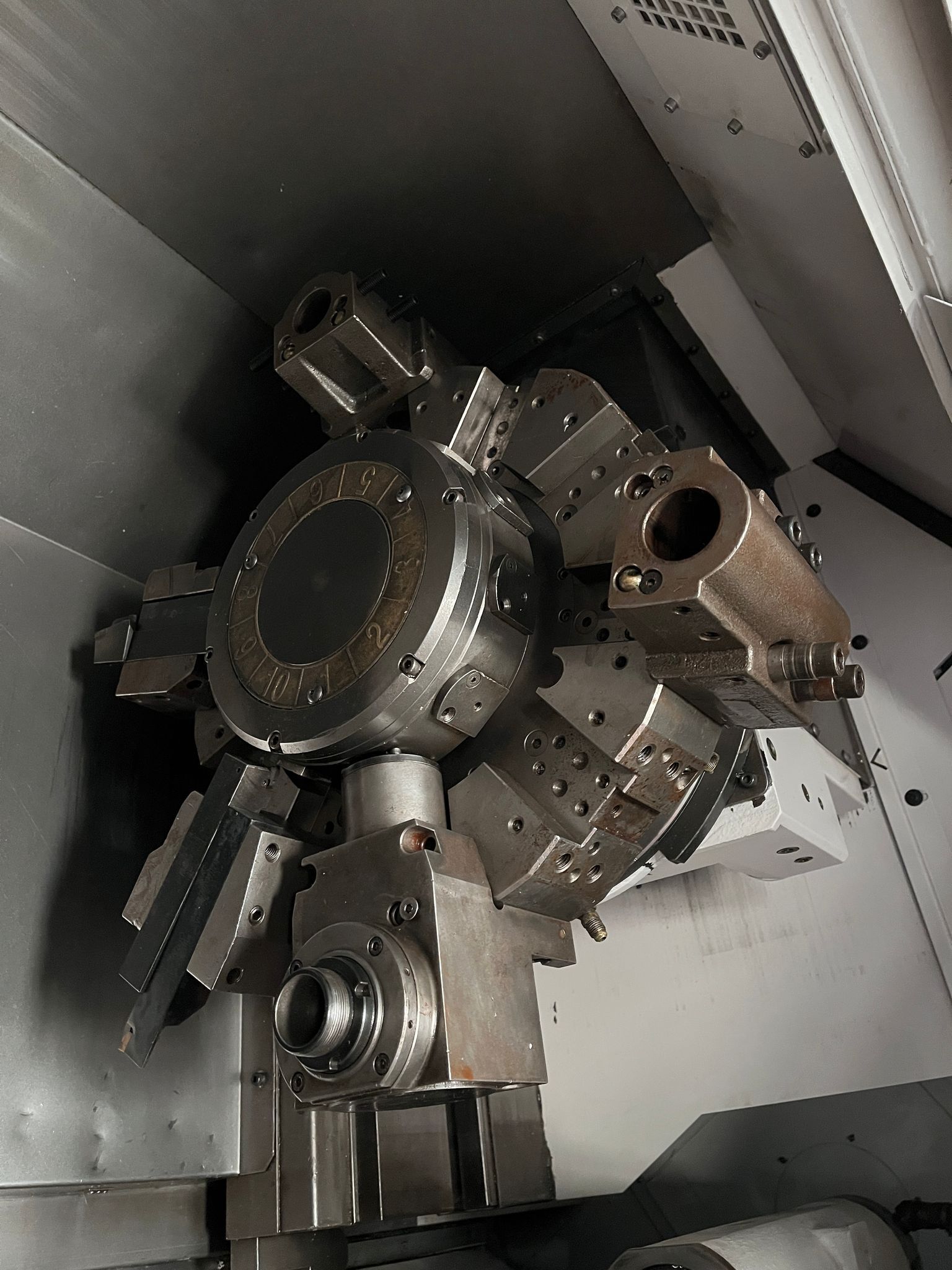

| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Live Tool Spindle Speed: 3000 RPM |
| Live Tool Spindle Motor: 3.5 HP |
| Turret Index Time: 0.5 Second |

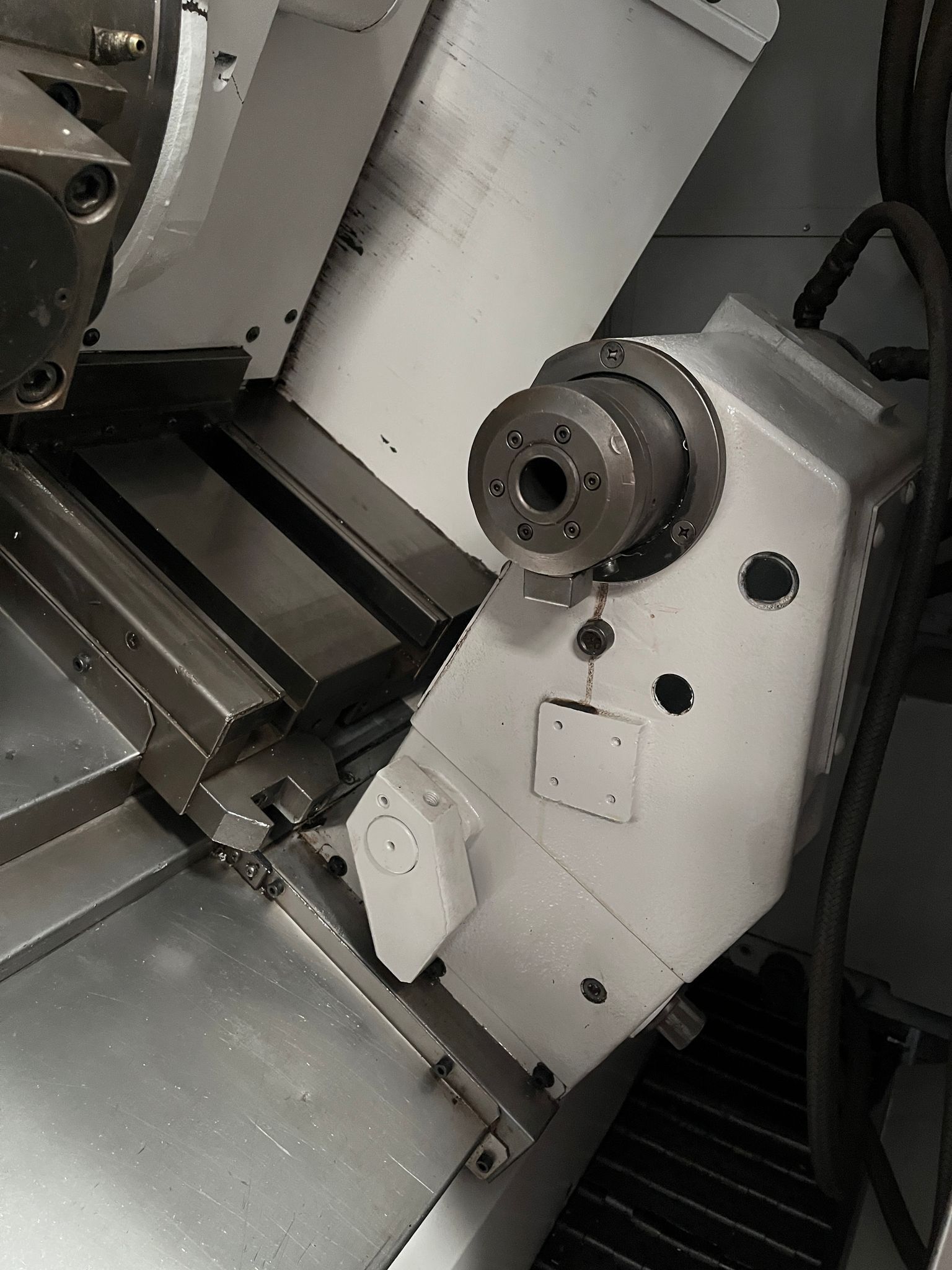

| Tailstock: |
|---|
| Tailstock Quill Dia: 3.34″ |
| Tailstock Quill Stroke: 4.72″ |
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 19.29″ |

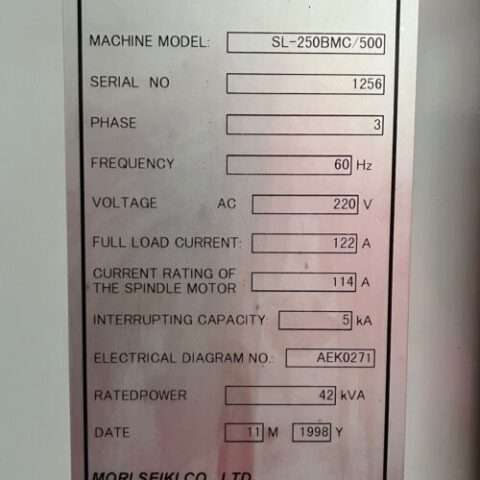

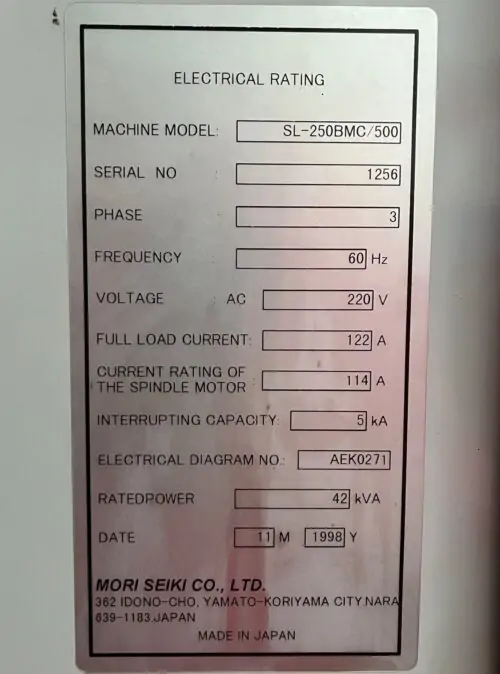

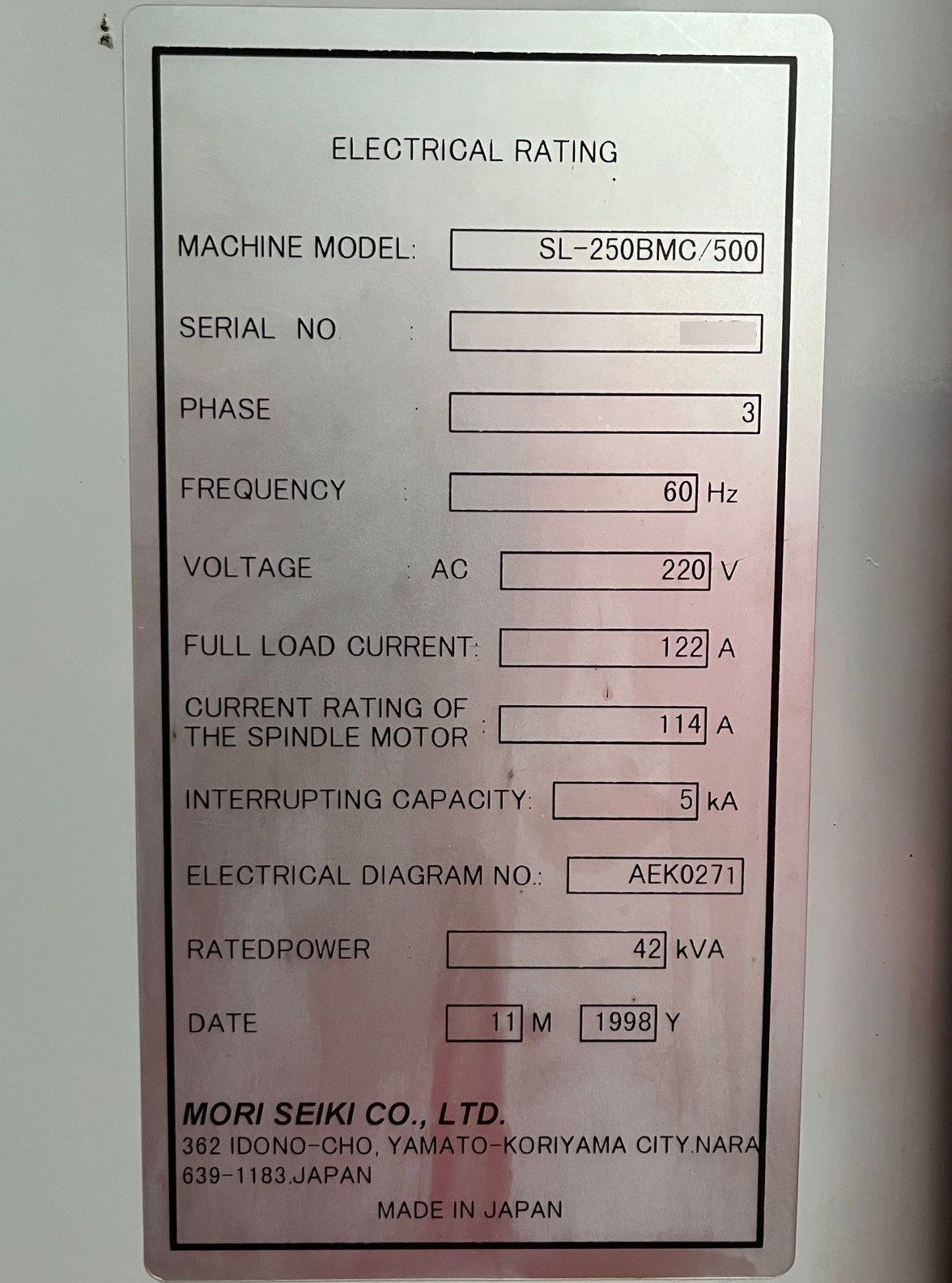

| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 35 kva |
| Overall Dimensions: 94.69″ x 69.29″ x 74.21″ High |
| Weight : 9900 lbs Approx. |
