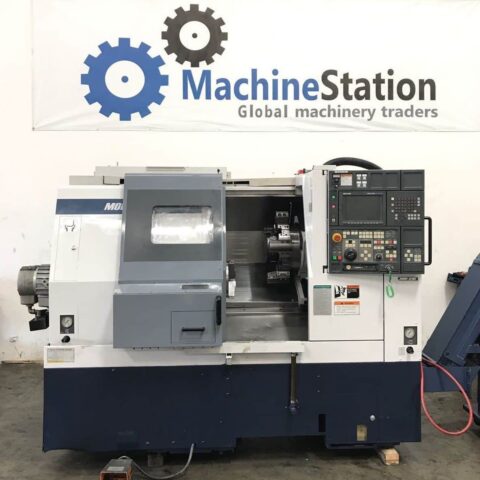

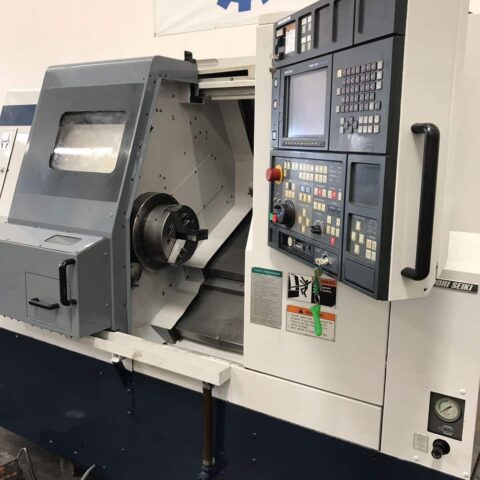

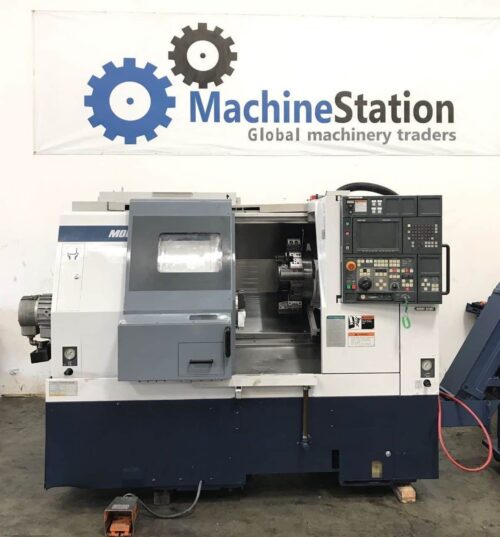

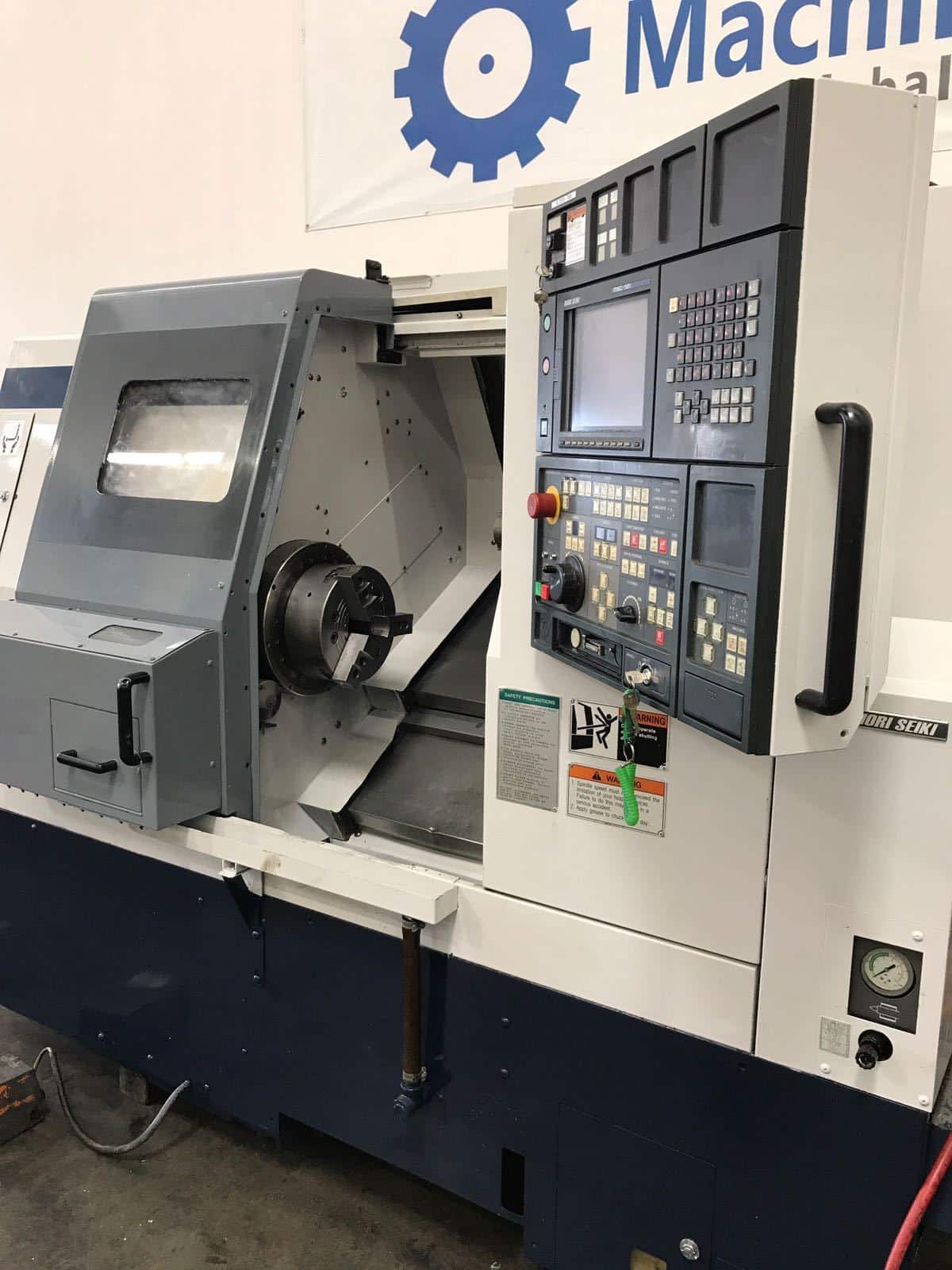

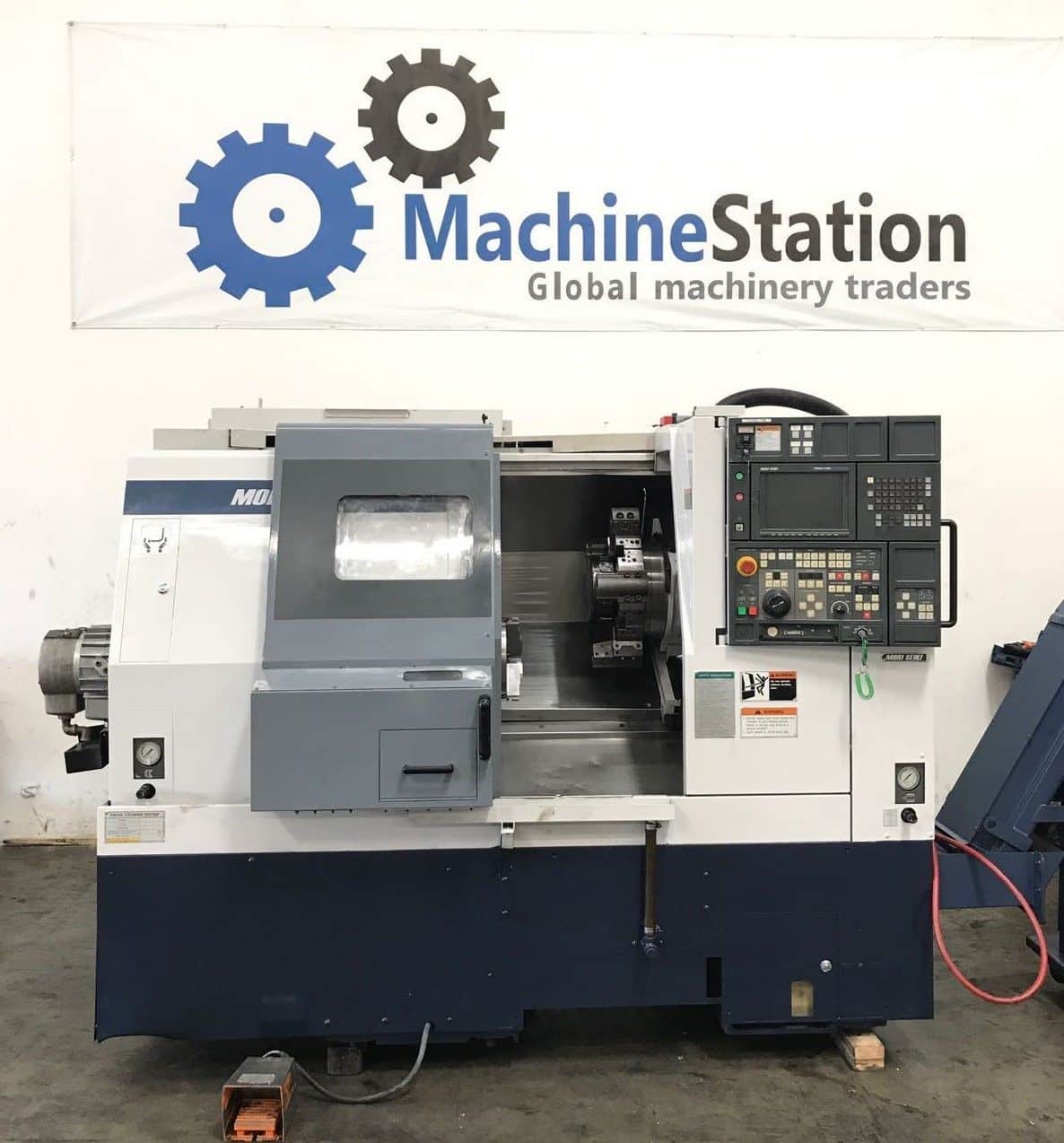

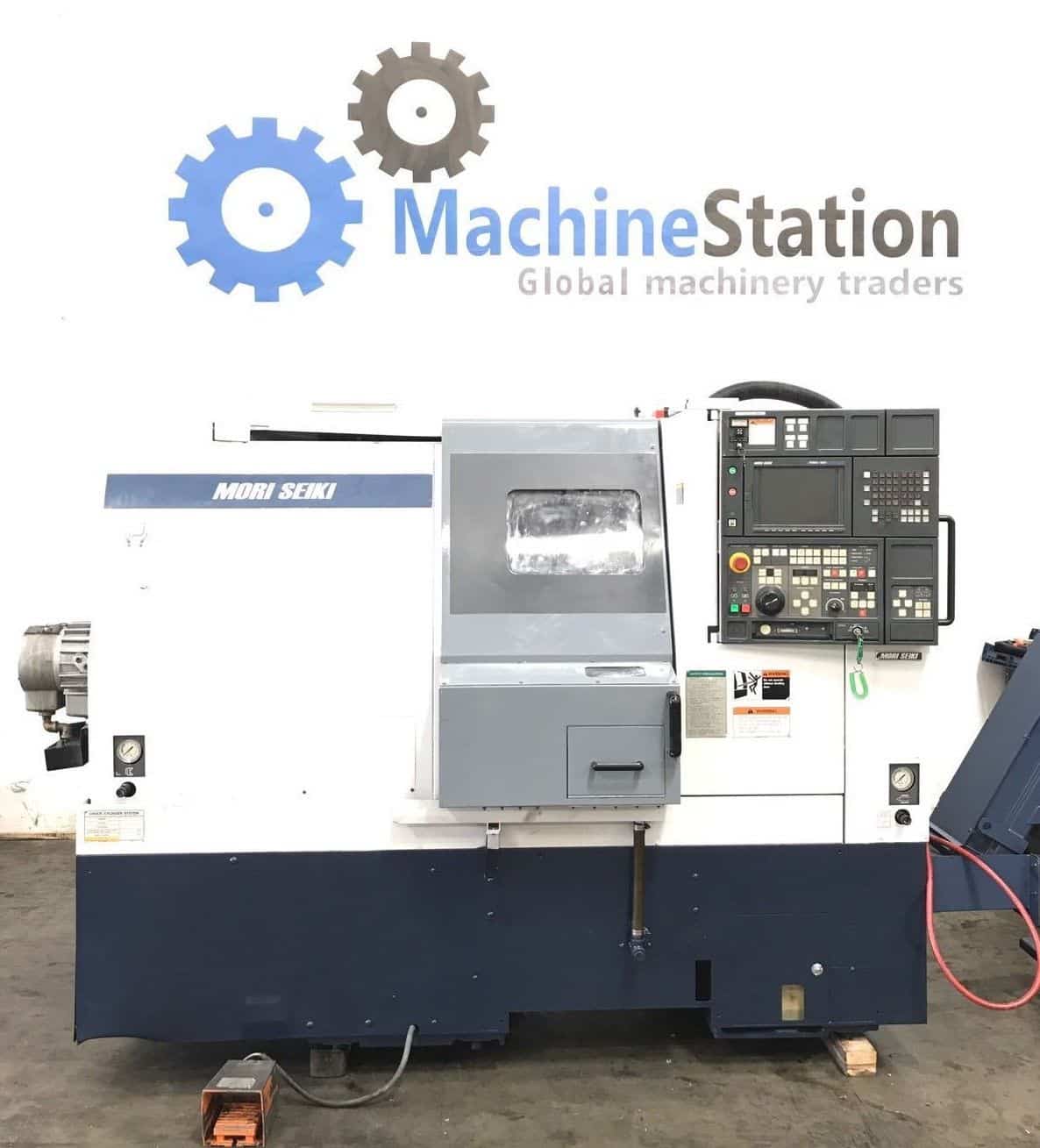

MORI SEIKI SL-250BMC CNC TURN MILL CENTER | |
---|---|
Make | Mori Seiki |
Model No. | SL-250BMC |
Year Of Manufacture: | 06-1998 |
Serial # | 798 |
Condition | Very Good |
Country of Origin: | Japan |
All specifications are approximations and are subject to verification.
“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 10″ Chuck, Full C Axis, Milling. Comes with Tool holders, Chip Conveyor, Chuck.”
- MORI SEIKI SL-250BMC Equipped With:

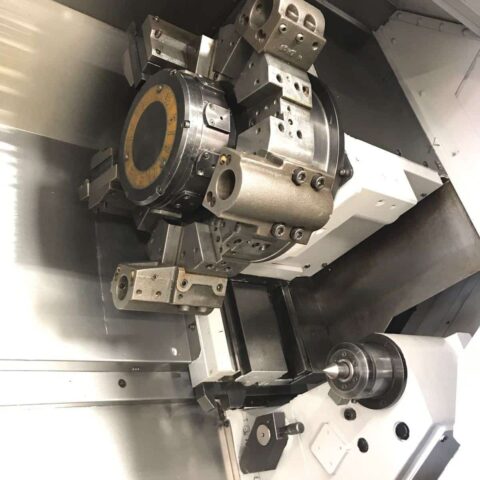

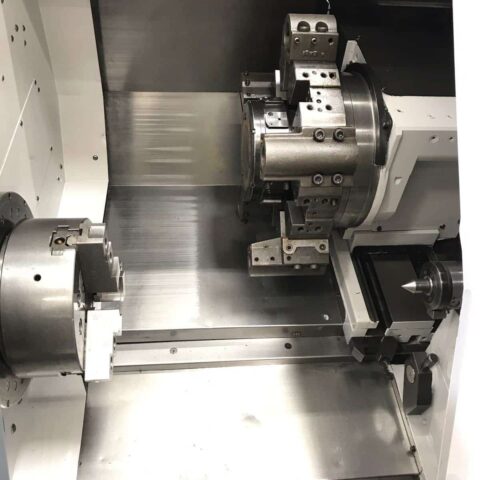

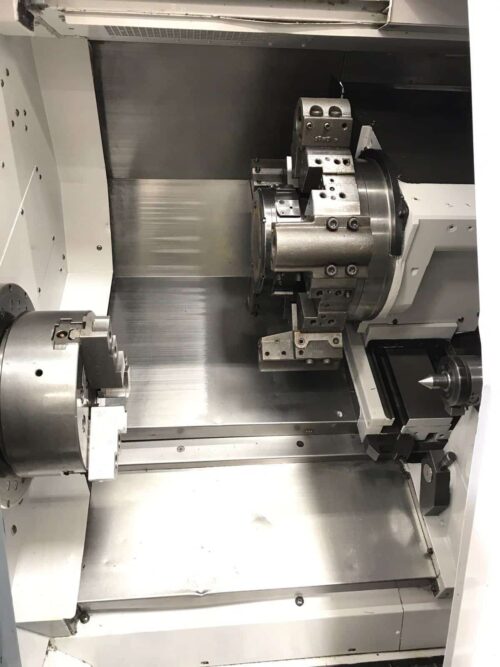

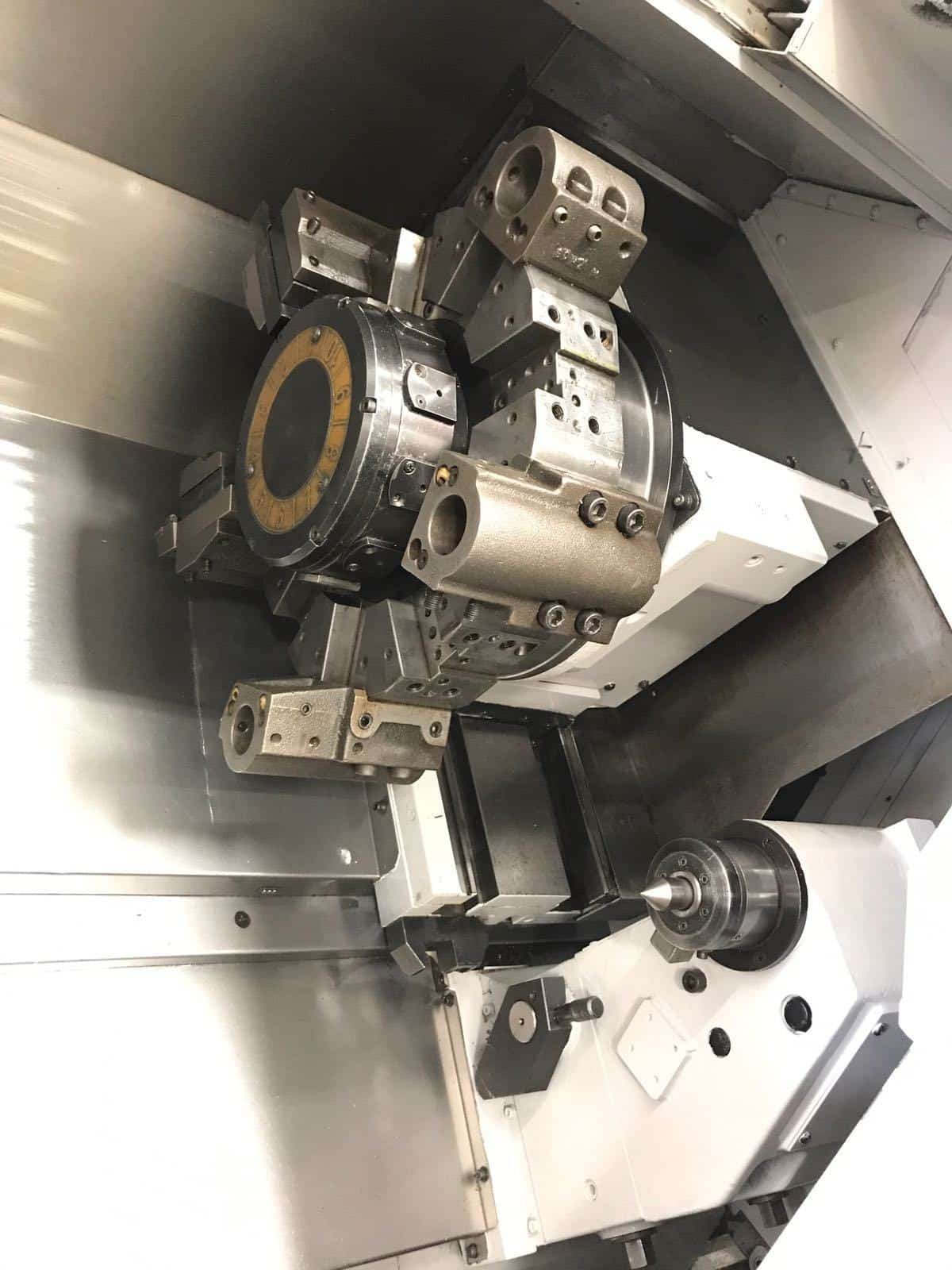

- 10-Station Turret with Live Tools/ Milling
- Renishaw Tool Presetter

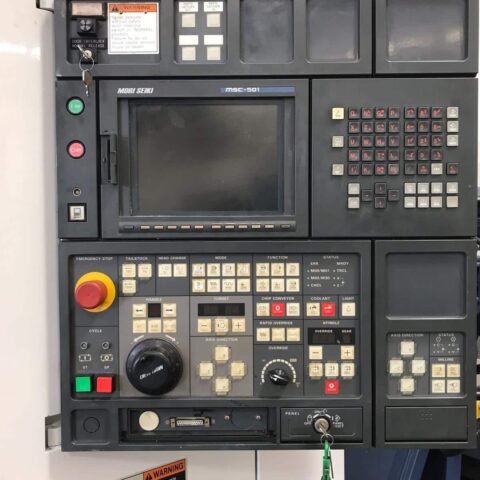

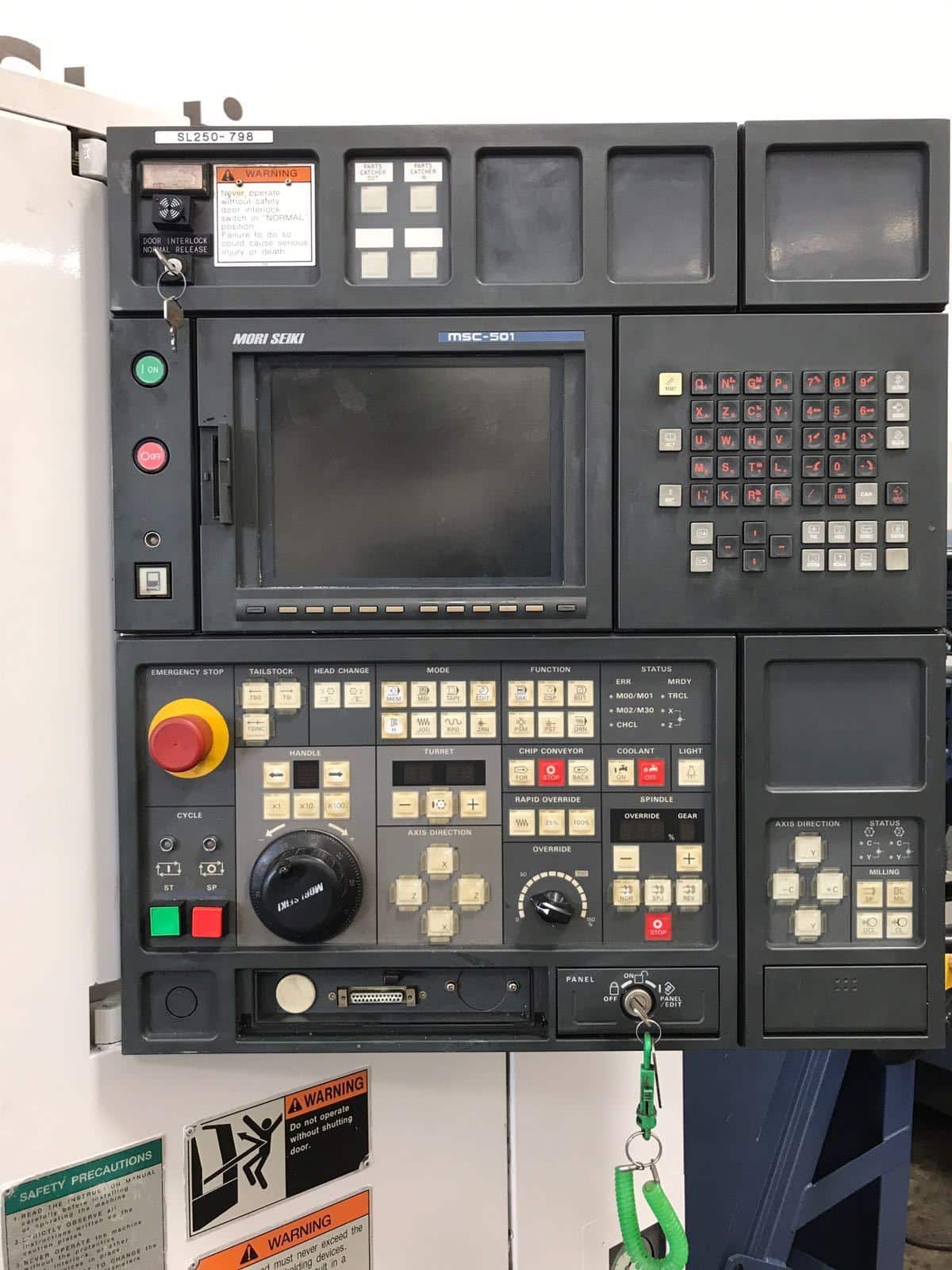

- MSC-501 ( Fanuc) CNC Control with Color LCD

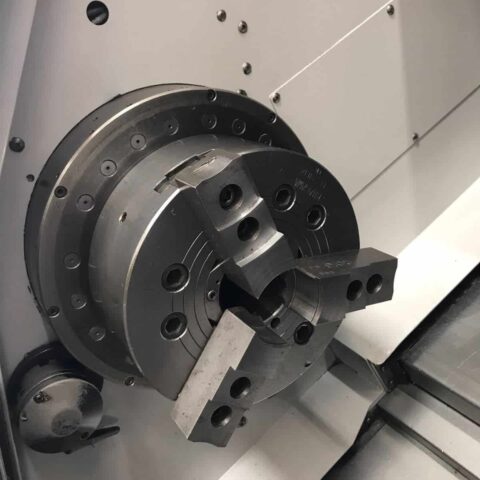

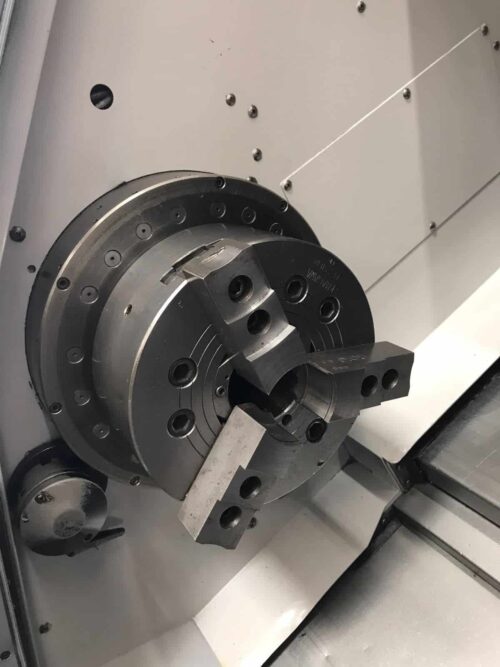

- 10″ 3-Jaw Kitagawa Hydraulic Chuck
- 2 Step gear spindle for powerful torque
- Hydraulic Tailstock with Programmable Quill
- PCMCIA Card Slot

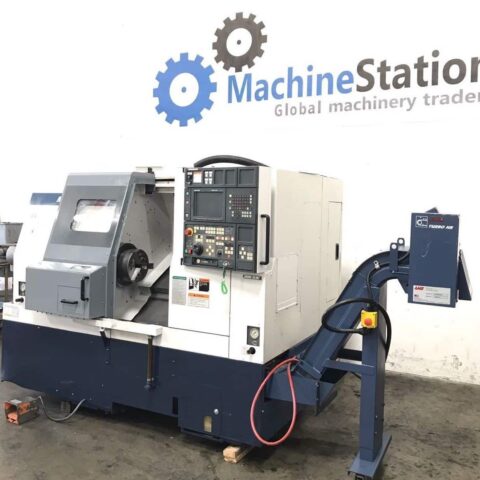

- Chip Pan and Chip Conveyor

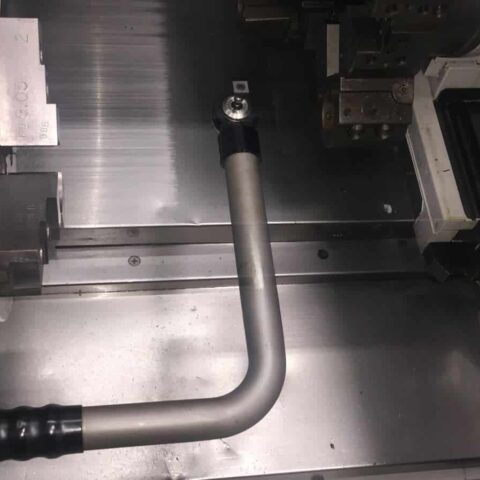

- Coolant System.
- Automatic Lubrication system
- One Live Tool Holder
- Foot Operated Control for Chuck
- General:

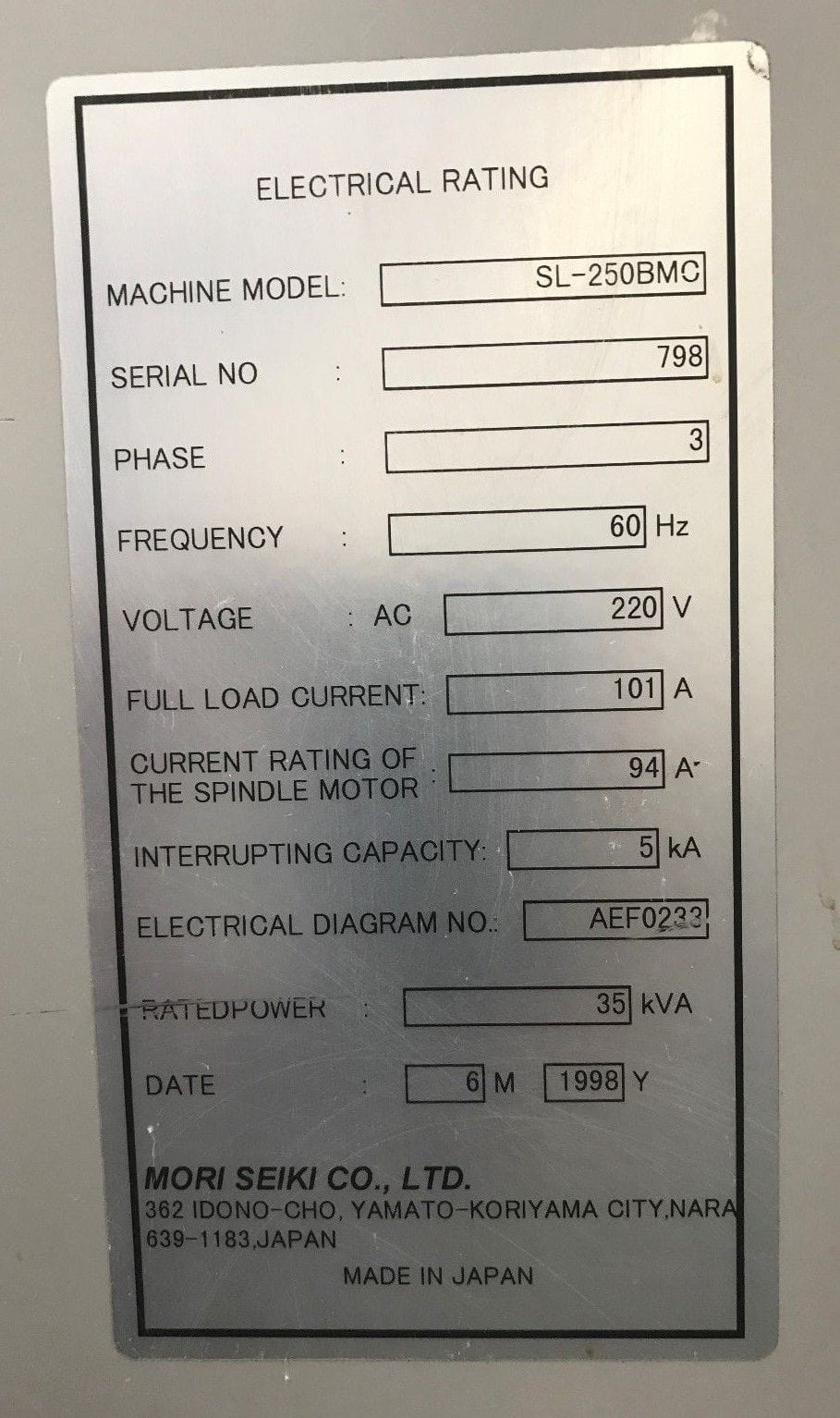

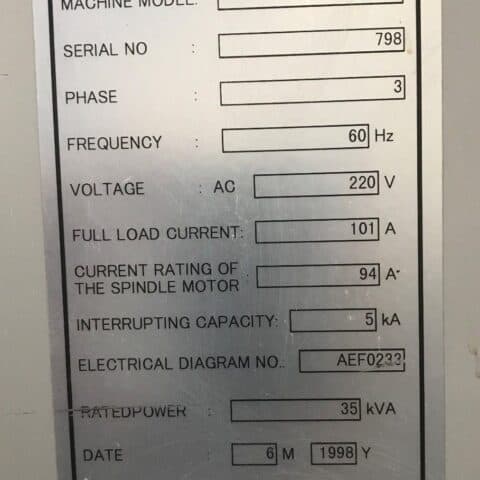

- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 68 Amps
- Overall Dimensions: 110″ x 68″ x 80″ High
- Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
- Weight : 13000 lbs Approx.
- MORI SEIKI SL-250BMC Specifications:
- Max Turning Diameter: 15.53″
- Max Turning Length: 22.64″
- Max Bar Capacity: 2.87″
- Swing Over Carriage: 20.08″
- Swing Over Bed: 26.77″
- X Axis Travel: 9.25″
- Z Axis Travel: 22.64″
- C Axis: 0.001°
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.38″
- Spindle Speed: 3500 RPM
- Spindle Motor: 20 HP
- Live Tooling Motor: 5.75 HP
- Live Tool Speed: 3,000 RPM
- Turret Capacity: 10 Stations
- Turret Index Time: 0.5 Second
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-4

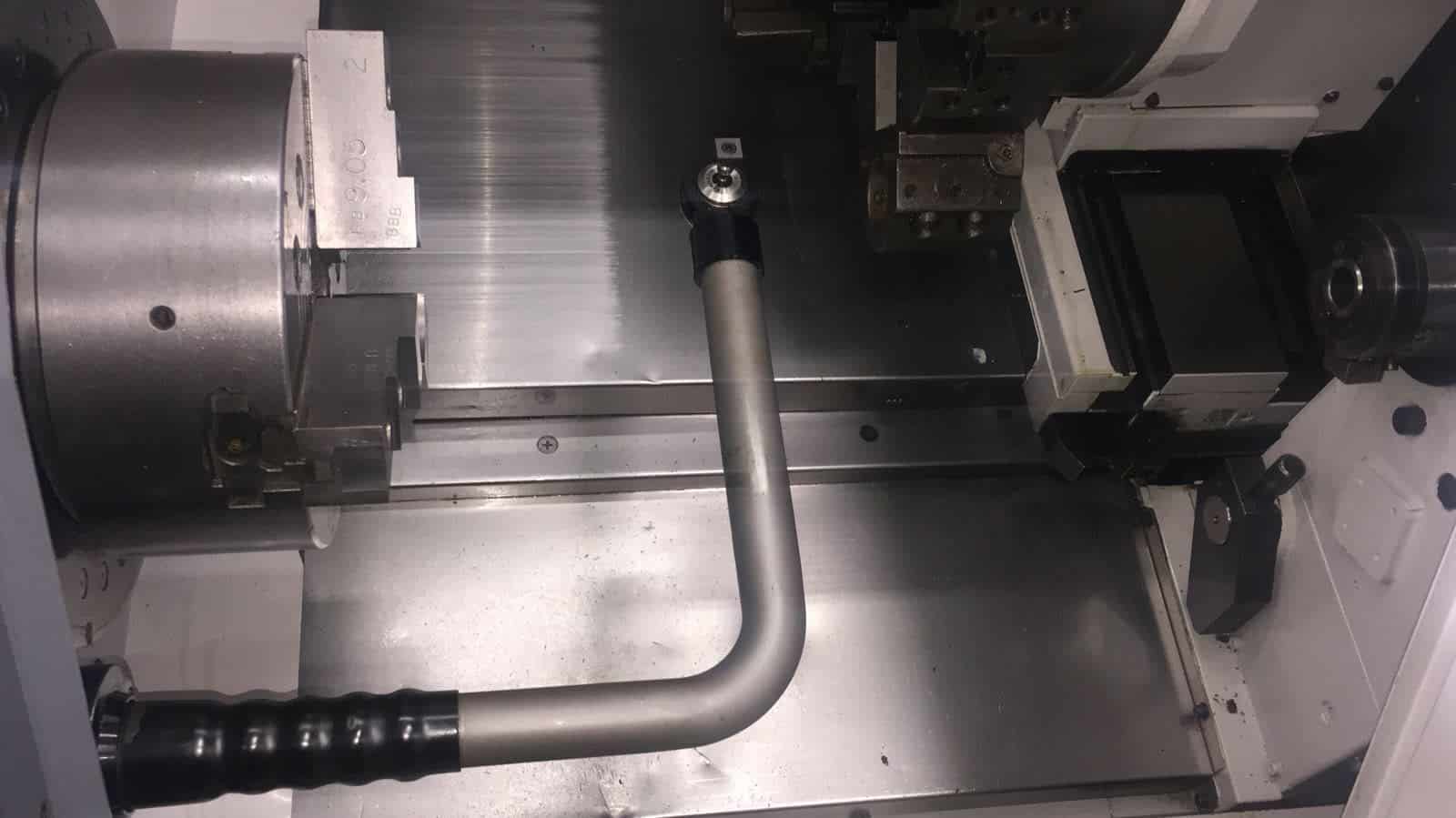

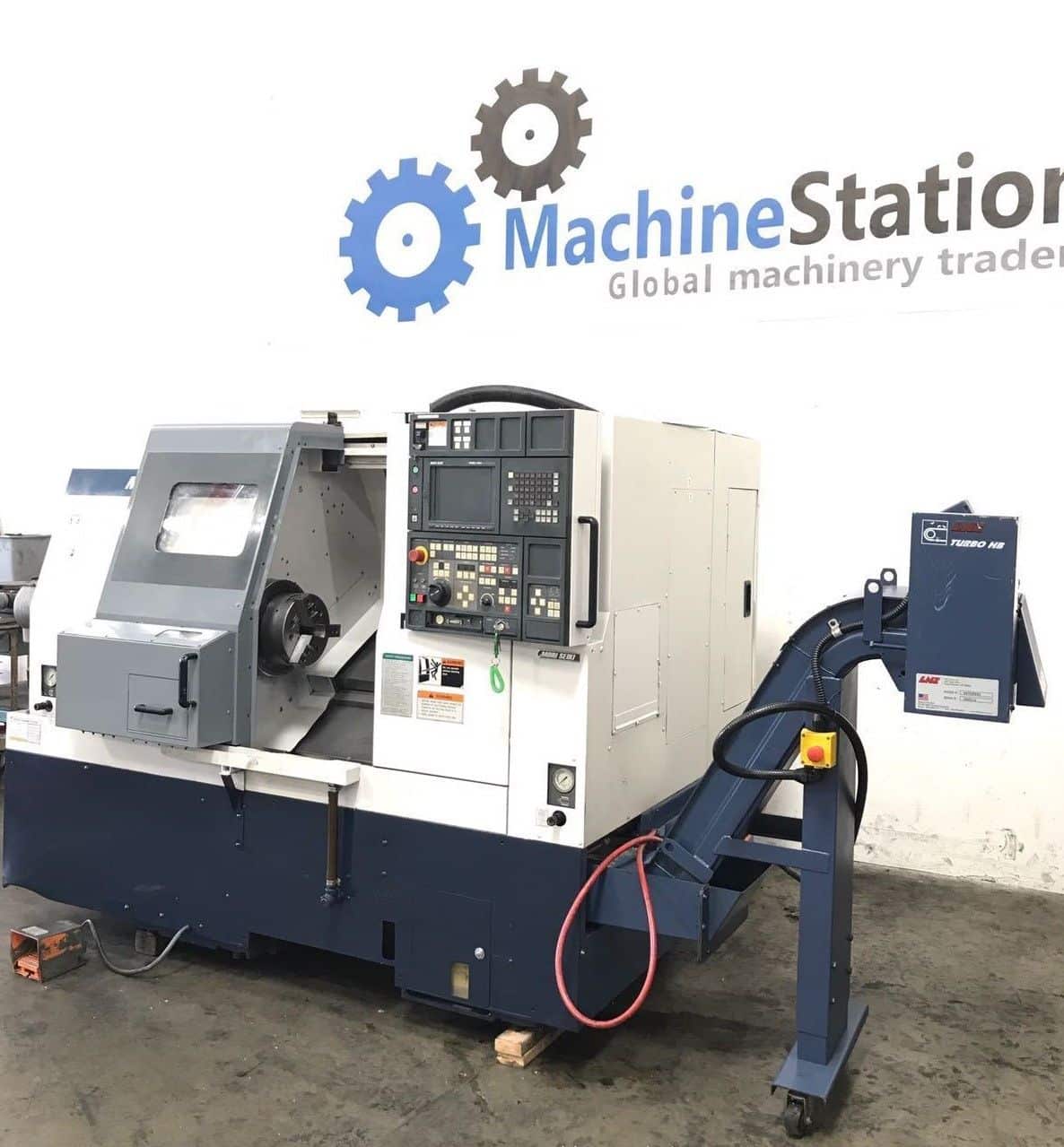

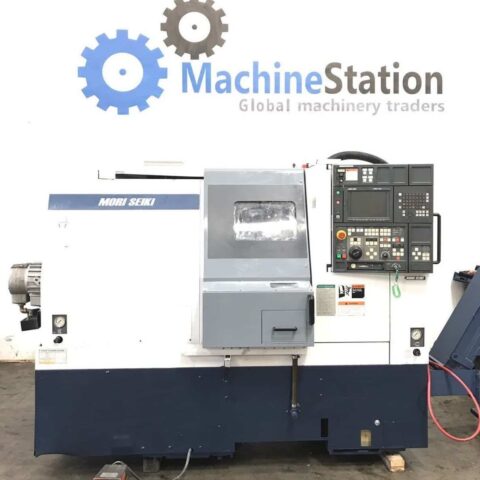

MORI SEIKI SL-250BMC Comes as shown in pictures.
