Mori Seiki SL-25B/500 CNC Turning Center

Out of stock
SKU: 1509
Make/Model: Mori Seiki SL-25B/500
Video: [fusion_button link=”https://www.youtube.com/watch?v=XtKOr0a_F6Y” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1509

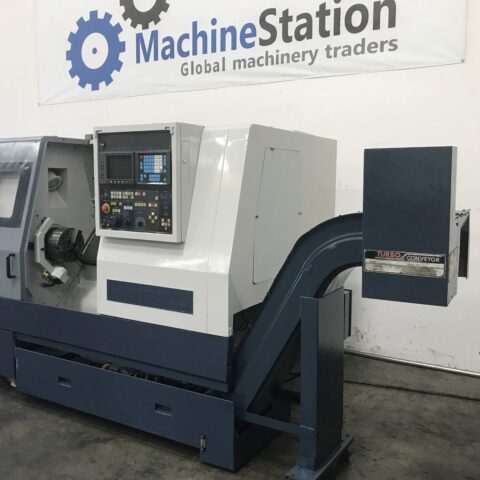

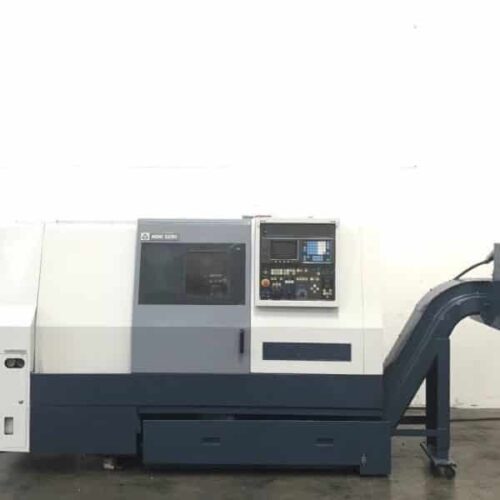

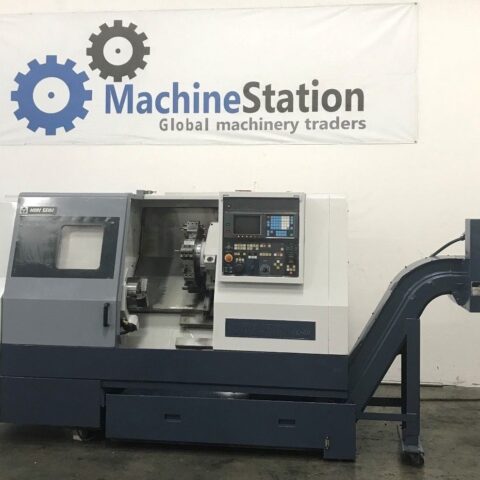

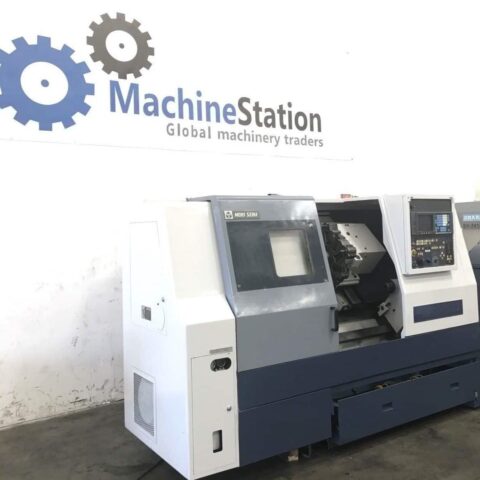

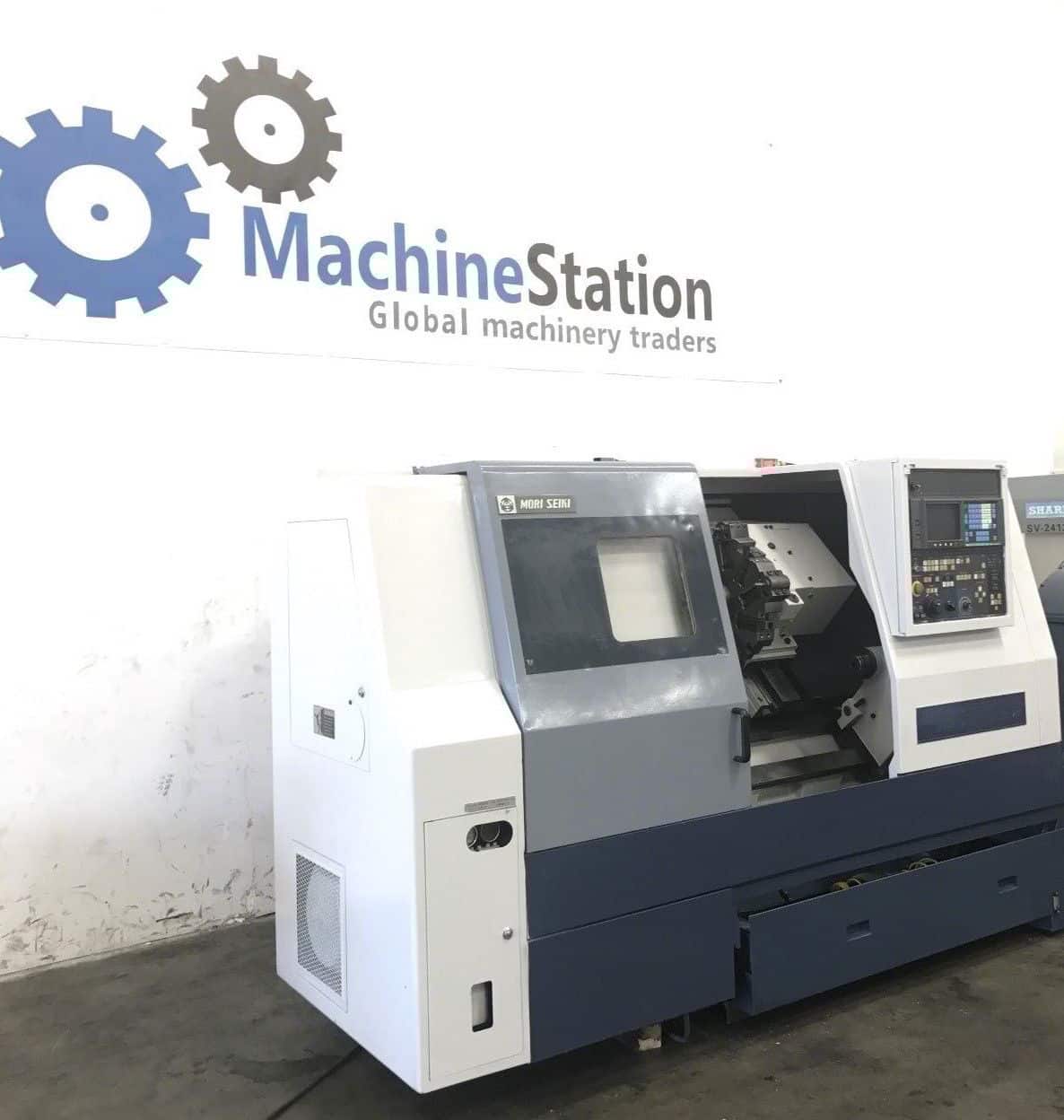

MORI SEIKI SL-25B/500 CNC TURNING CENTER LATHE
Make Mori Seiki
Model No. SL-25B/500
Country of Origin: Japan
Serial # 5102
Condition Very Good
  • MORI SEIKI SL-25B/500 Equipped With:

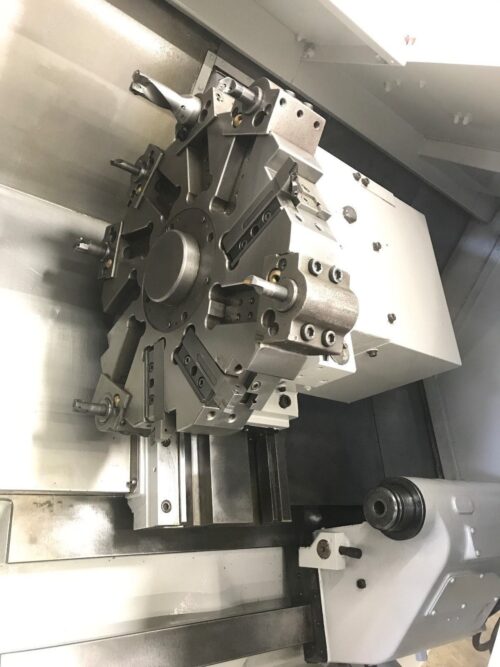

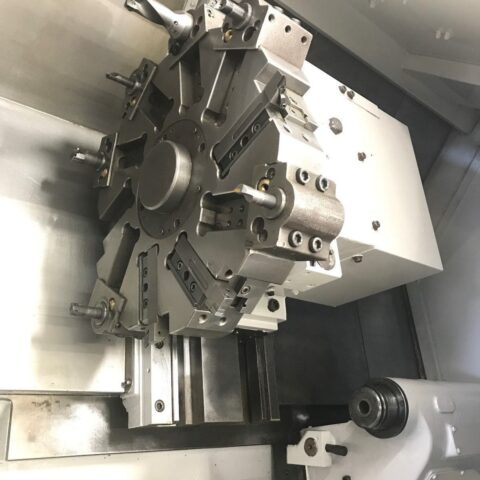

  • 10-Station Turret with Tools
  • Fanuc 0T-C CNC Control

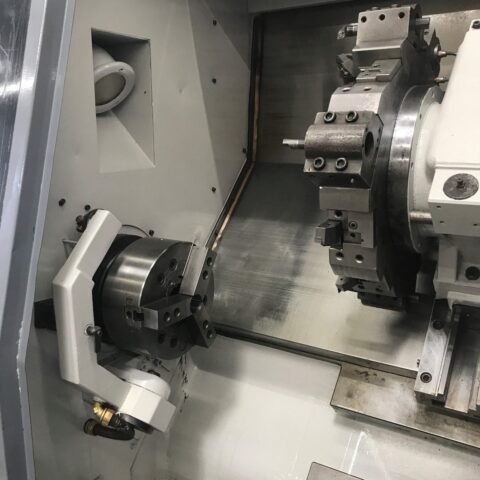

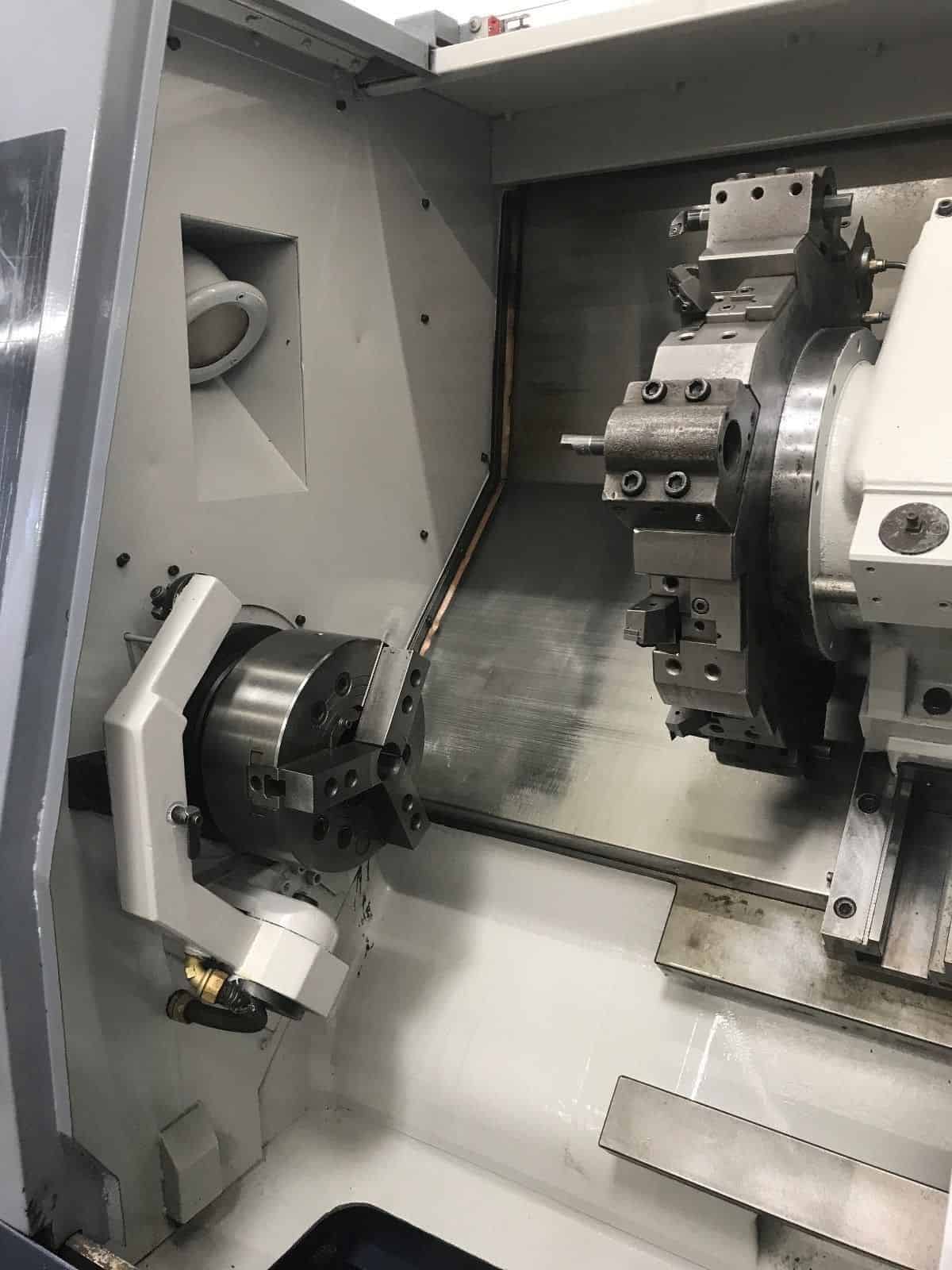

  • 10″ 3-Jaw Kitagawa Hydraulic Chuck
  • 2 Step gear spindle for powerful torque
  • Hydraulic Tailstock with Power Quill

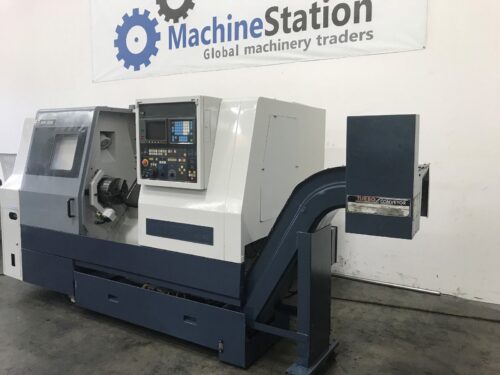

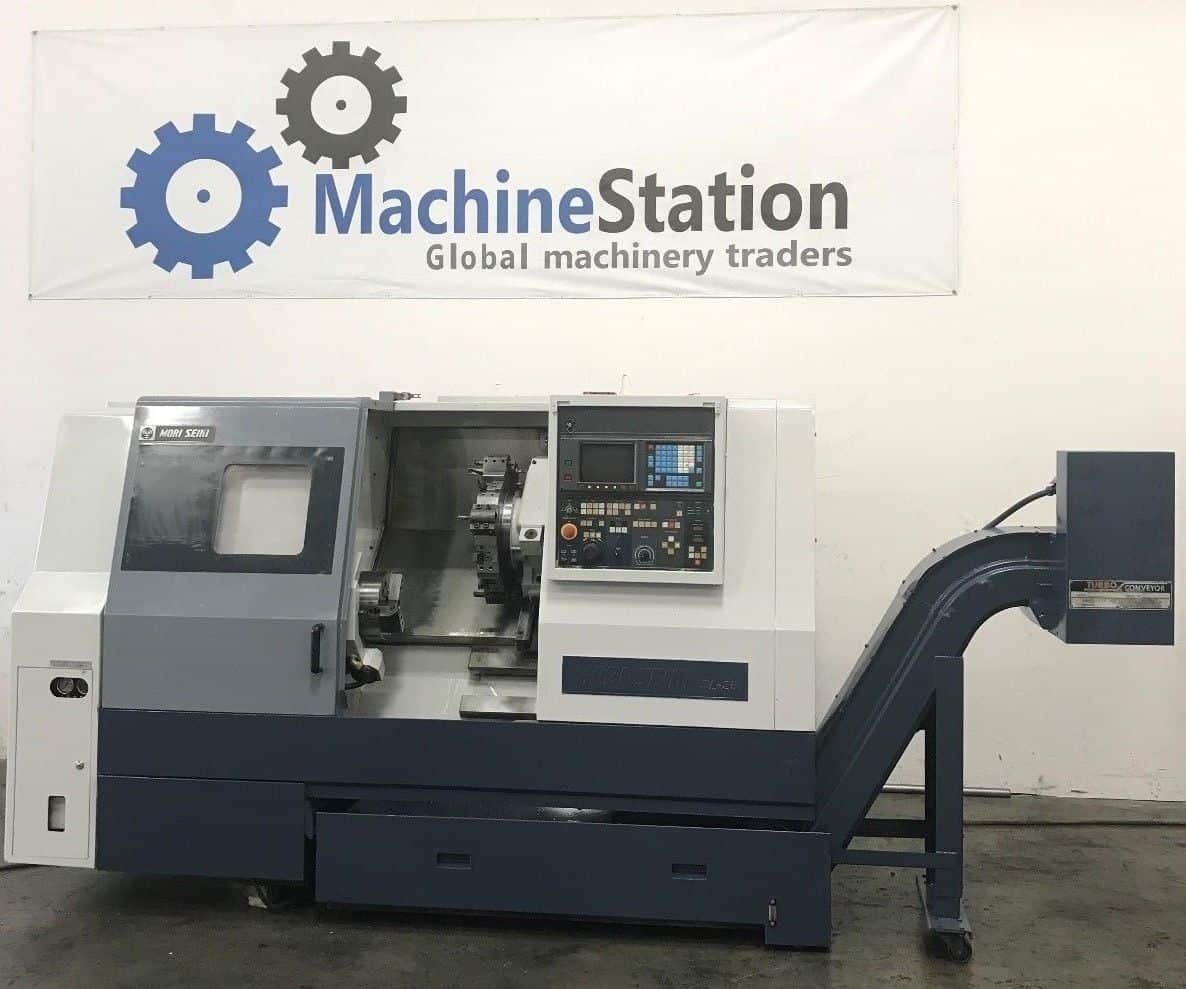

  • Chip Pan and Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck
  • General:

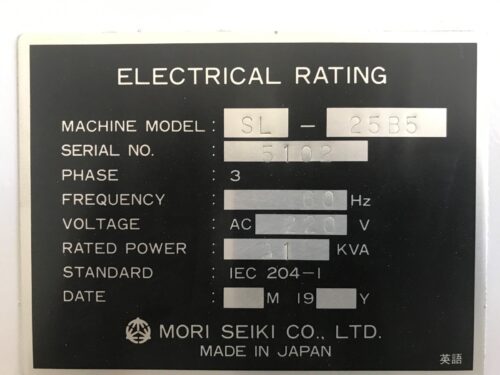

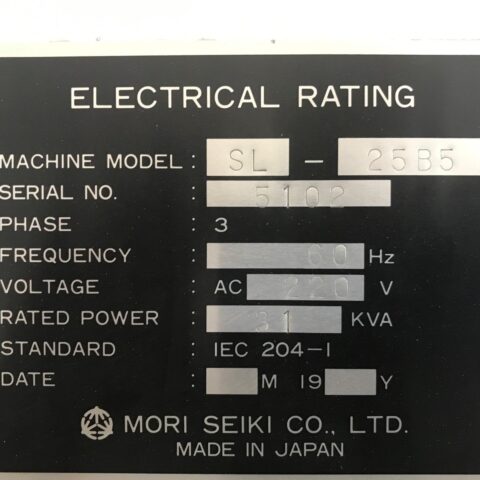

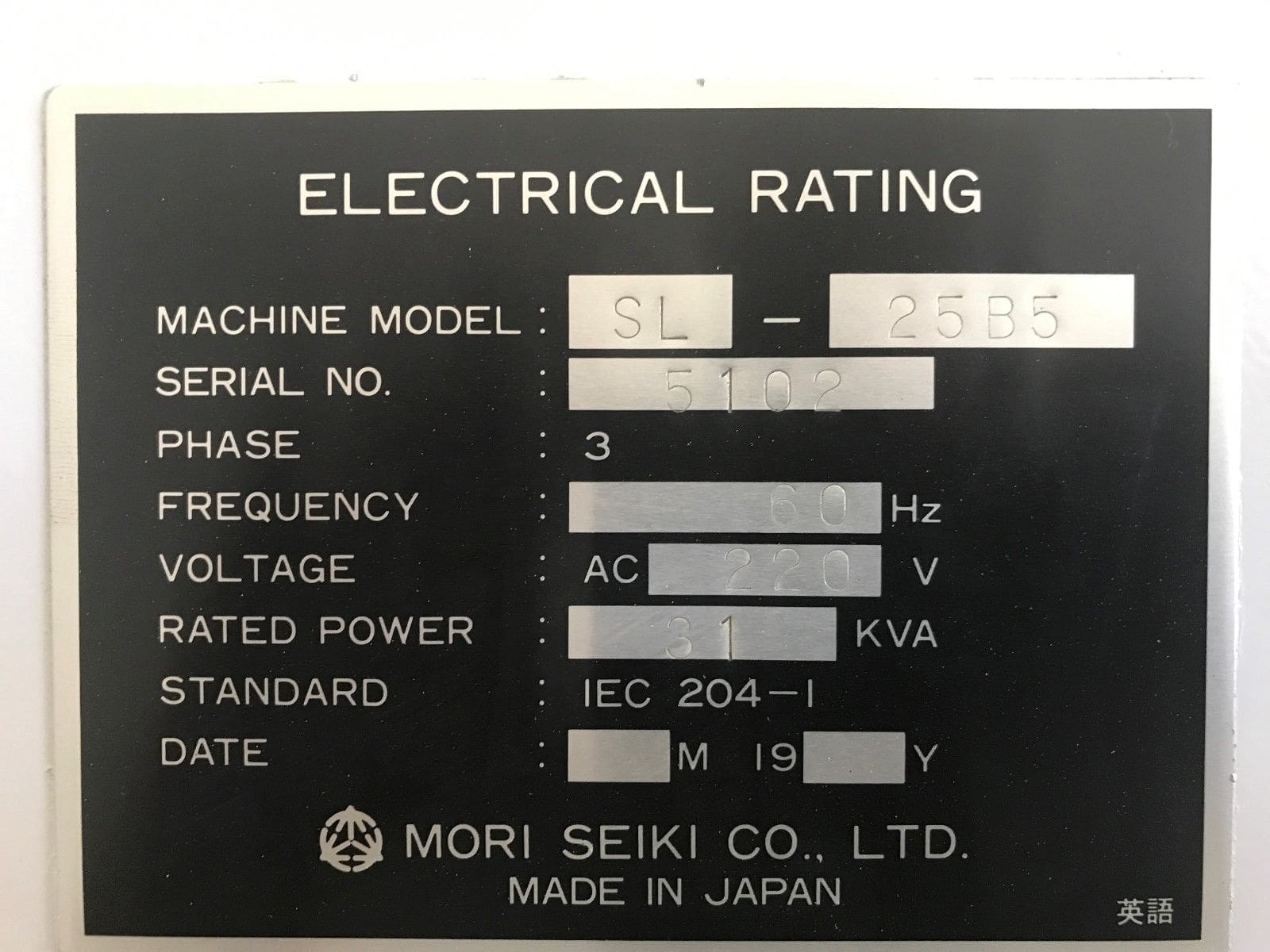

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 68 Amps
  • Overall Dimensions: 110″ x 68″ x 80″ High
  • Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
  • Weight : 12000 lbs Approx.
  • MORI SEIKI SL-25B/500 Specifications:
  • Max Turning Diameter: 10.2″
  • Max Turning Length: 20.9″
  • Max Bar Capacity: 2.65″
  • Swing Over Slide: 13.8″
  • Swing Over Bed: 22.4″
  • Distance Between Centers: 24.6″
  • X Axis Travel: 6.3″
  • Z Axis Travel: 23.2″
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 3.1″
  • Spindle Speed: 3500 RPM
  • Spindle Motor: 20 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock Body Travel: 19.3″
  • Tailstock Quill Dia.: 4.33″
  • Tailstock Quill Stroke: 3.93″
  • Tailstock Taper: MT-4
