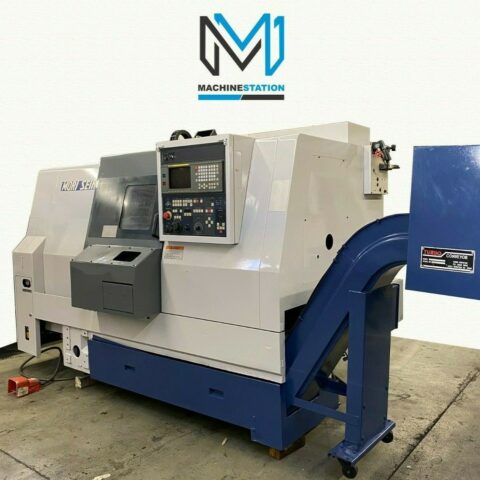

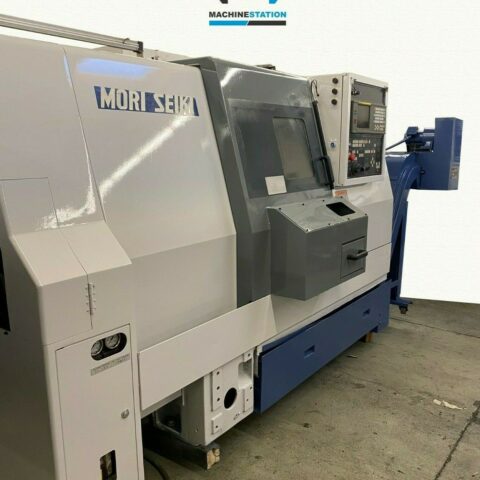

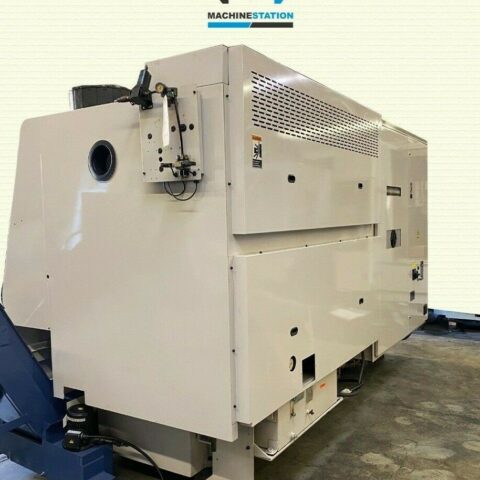

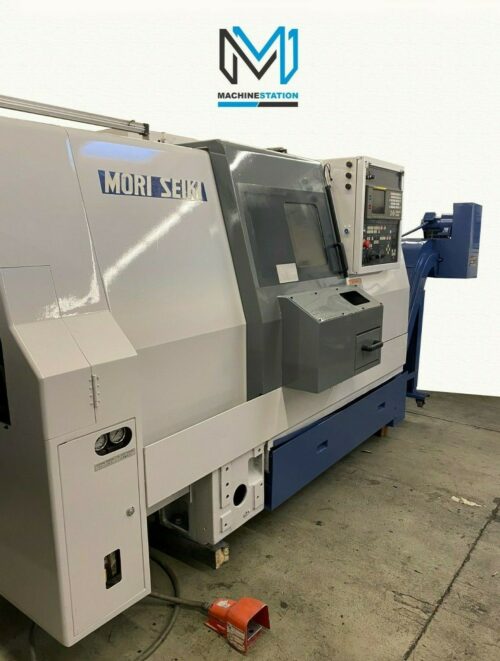

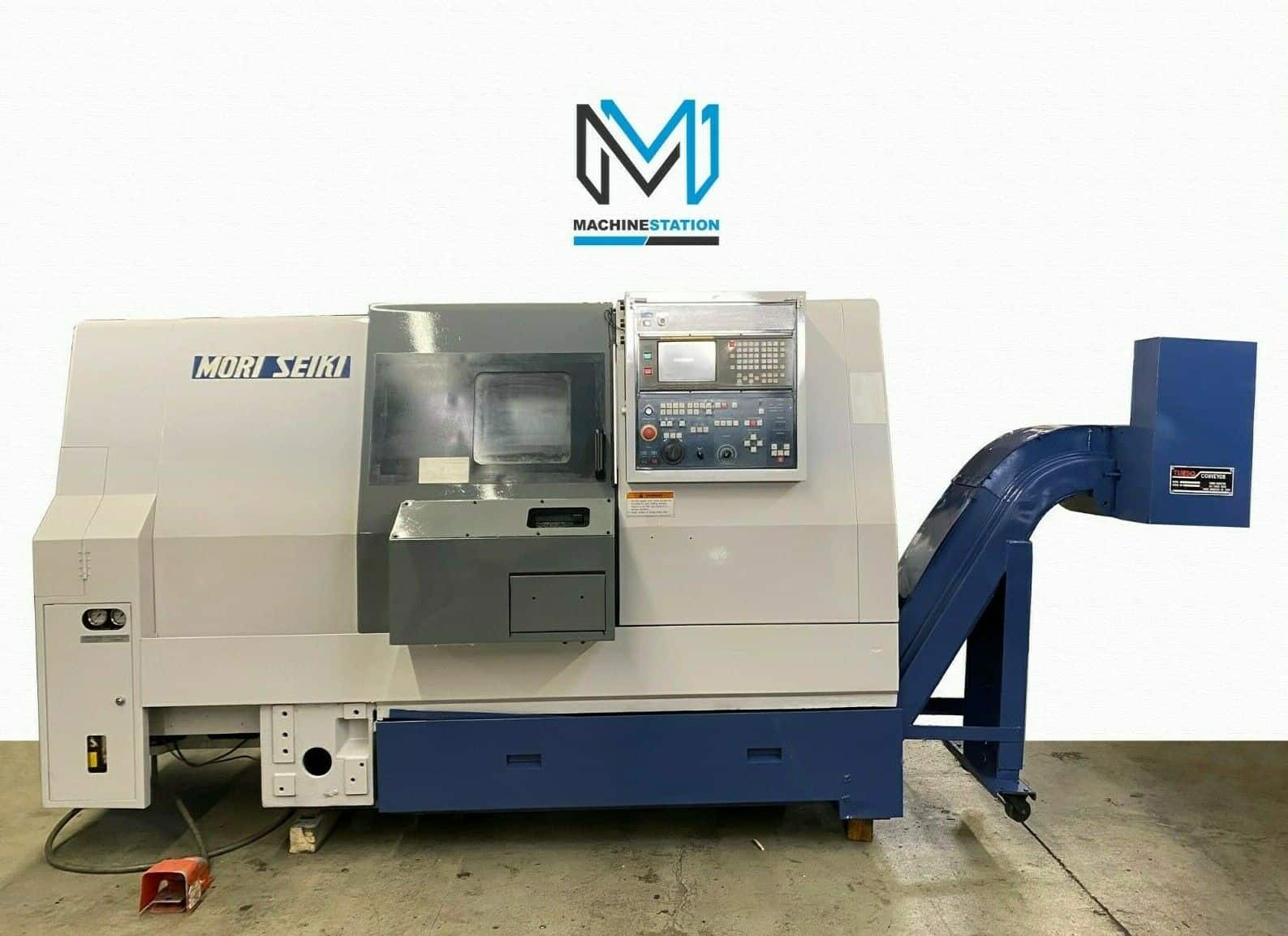

Mori Seiki SL-25B/500 CNC Turning Center
Out of stock
| MORI SEIKI SL-25B/500 CNC TURNING CENTER |
| SKU |
2047 |
| Make |
Mori Seiki |
| Model No. |
SL-25B/500 |
| Serial # |
6217 |
| Condition |
Very Good |
- Mori Seiki SL-25B/500 Equipped With:

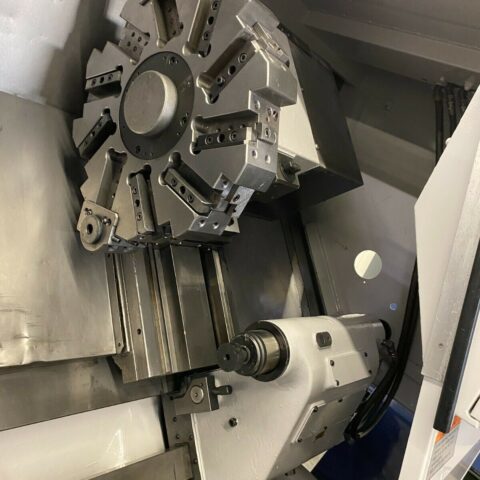

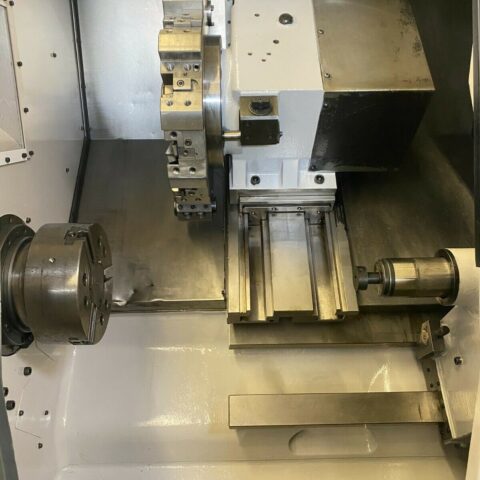

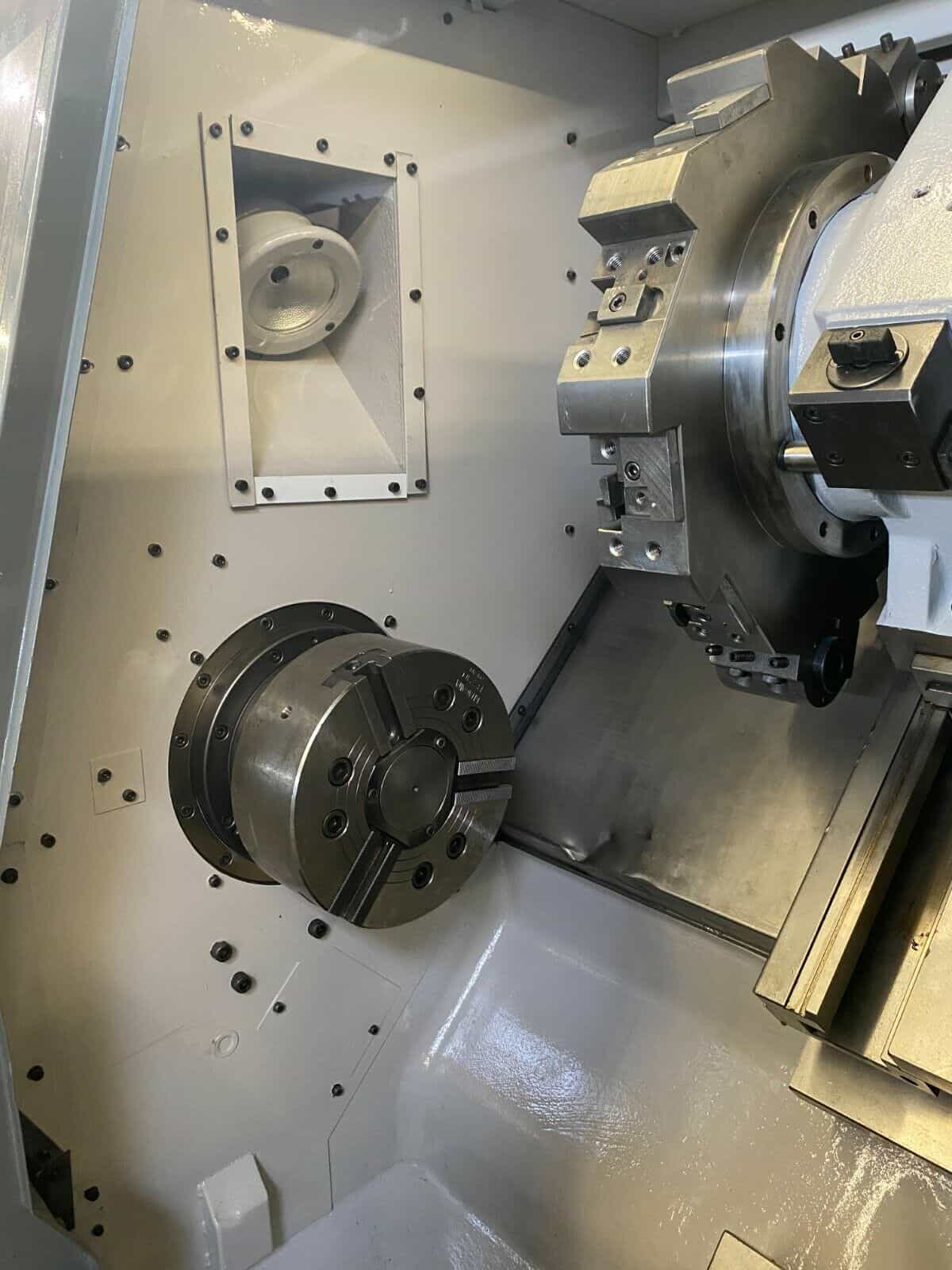

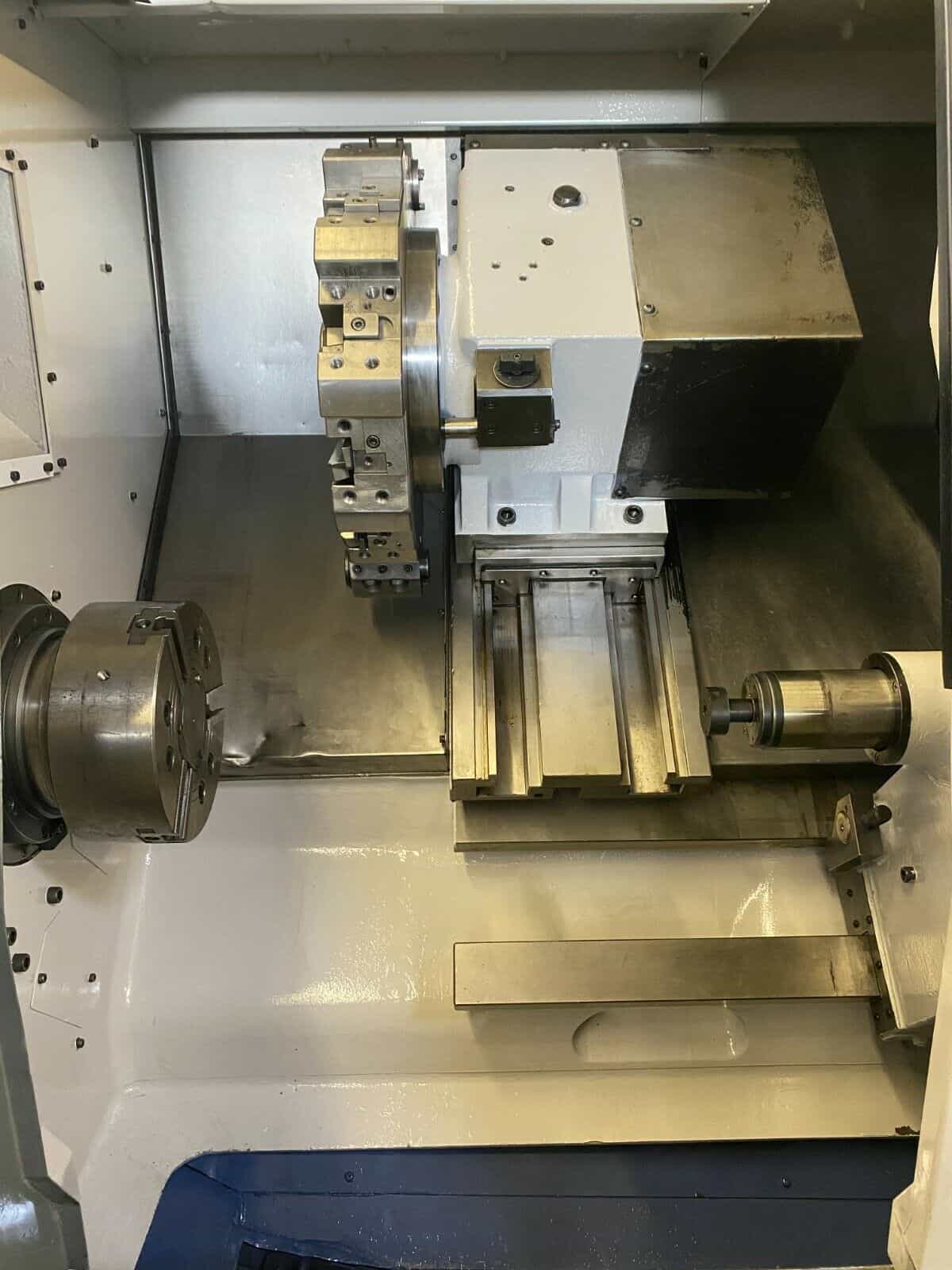

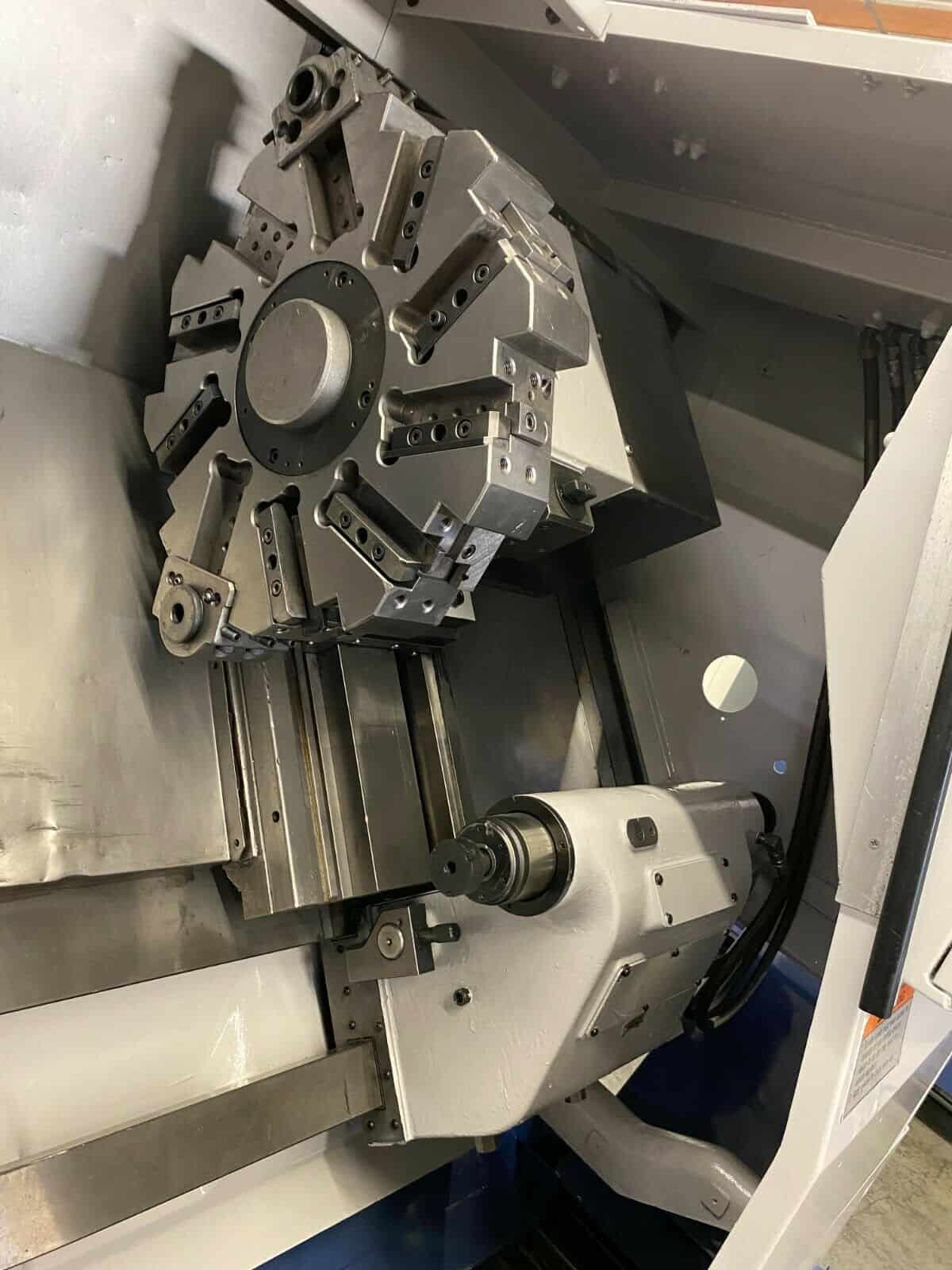

- 10 -Station Turret with Tool Holders

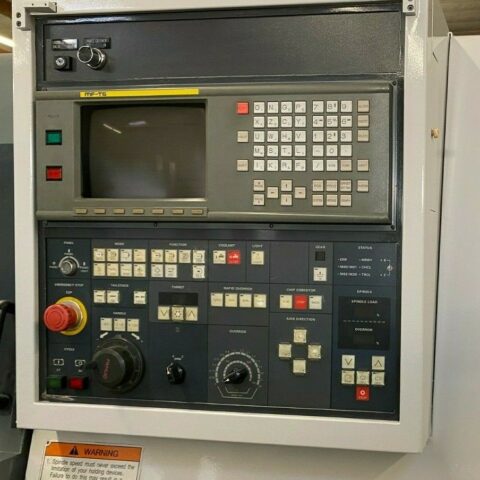

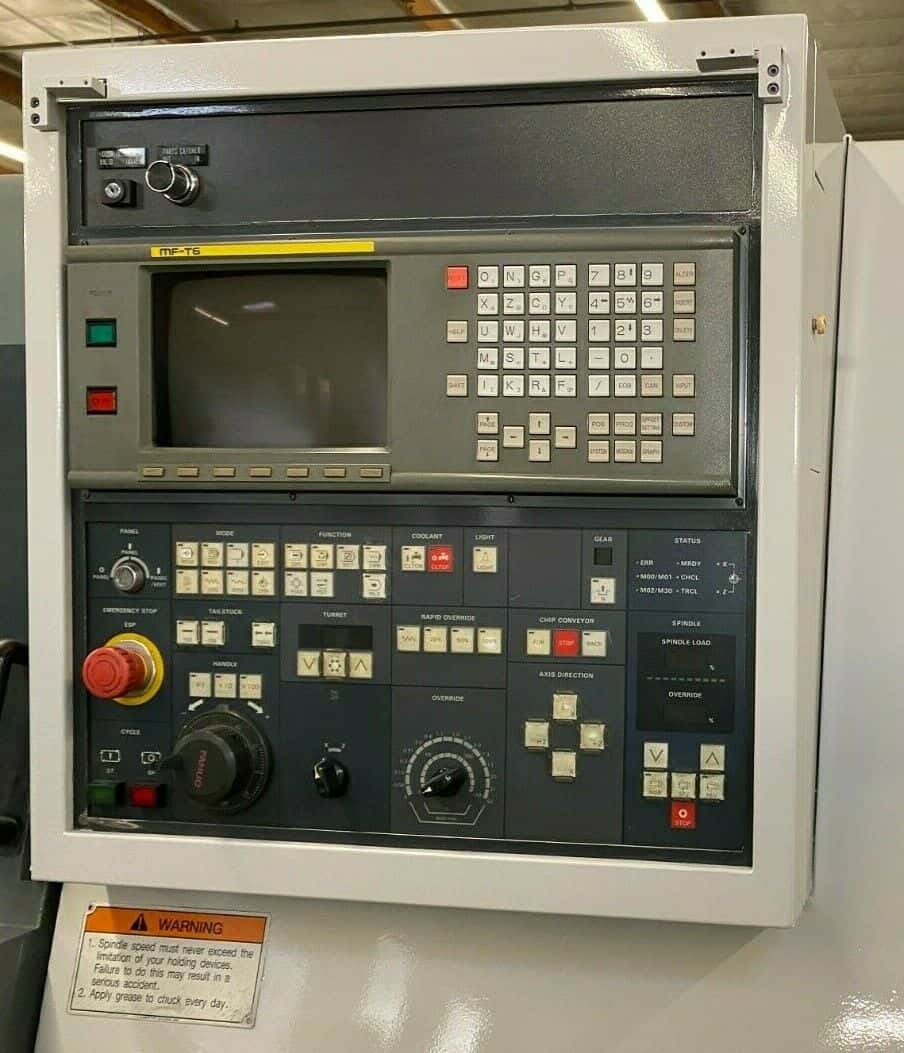

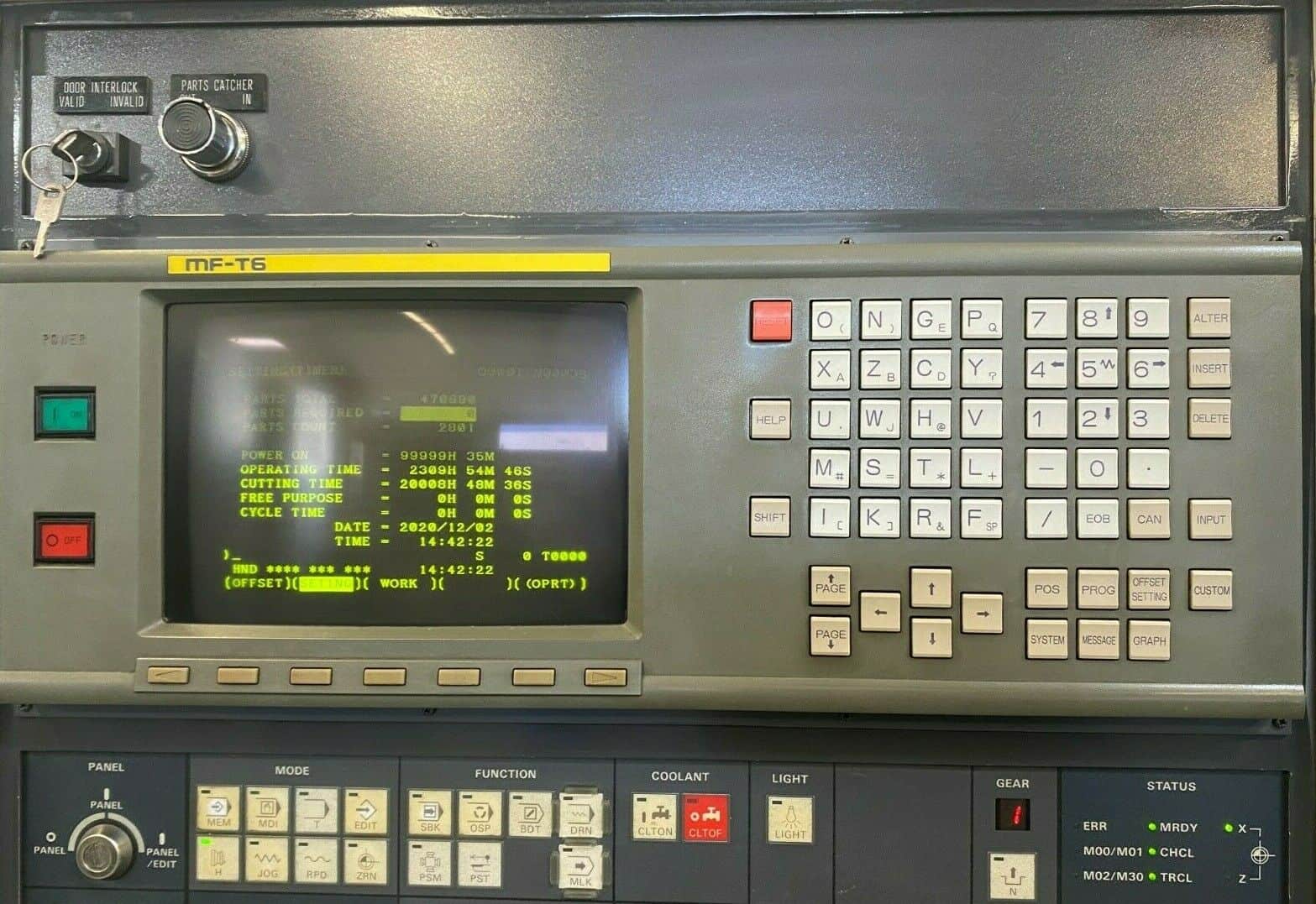

- MF-T6 (Fanuc 16T) CNC Control

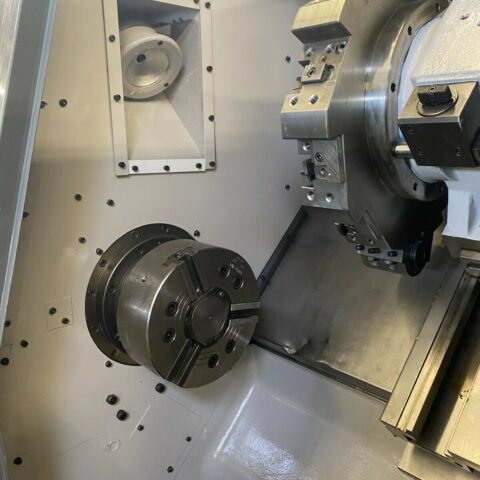

- 3 Jaw Kitagawa 10″ Hydraulic Chuck
- Collet Chuck
- 2 Step gear spindle for powerful torque

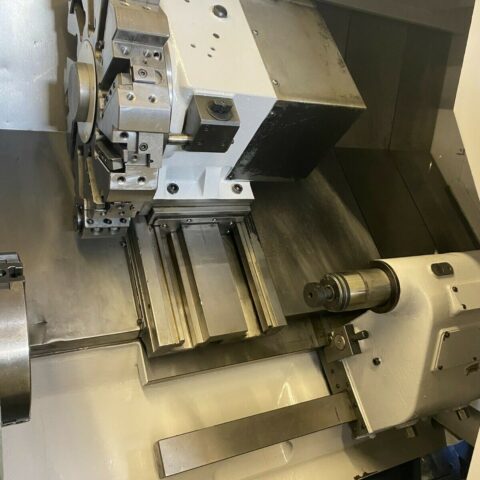

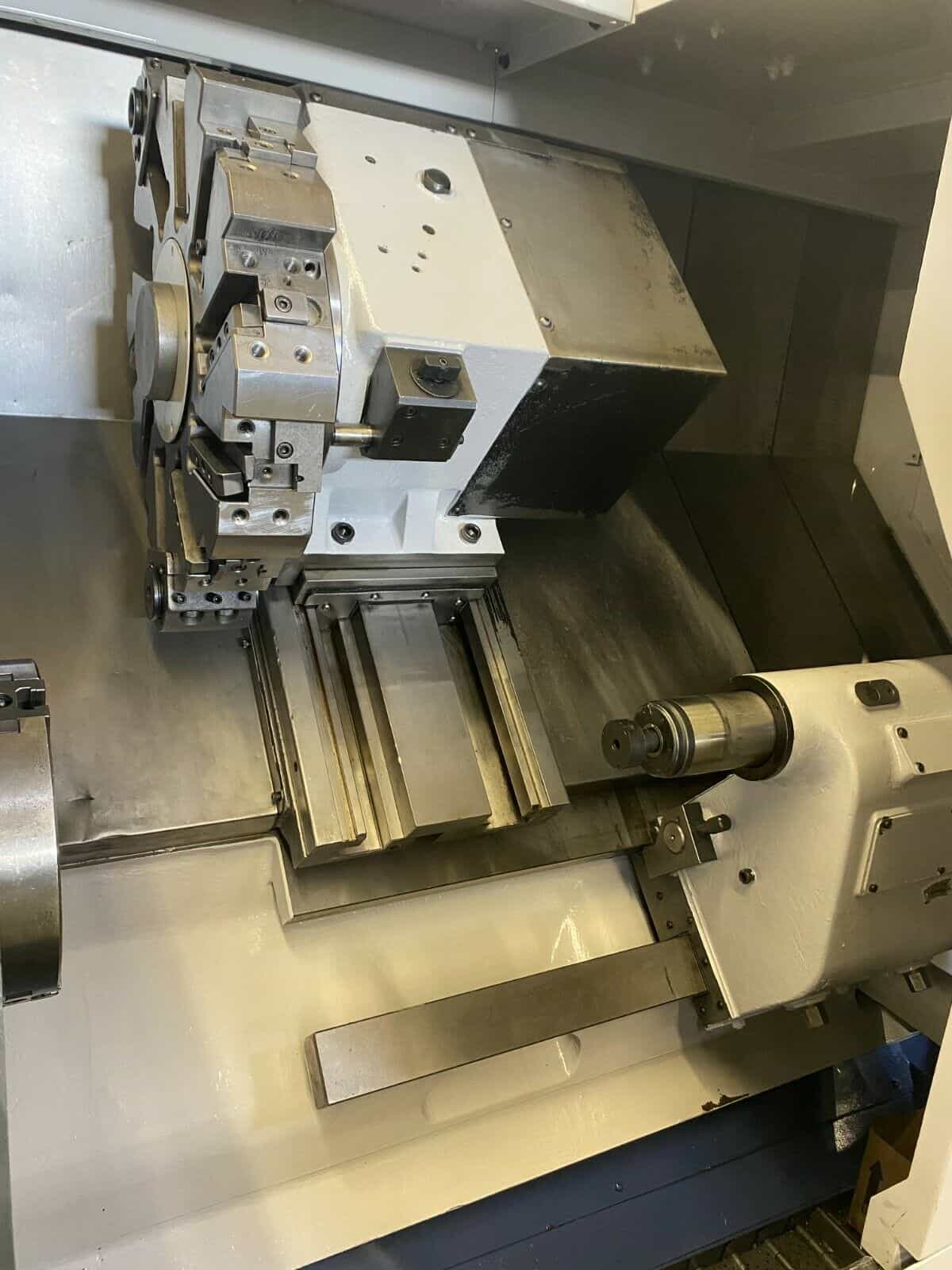

- Hydraulic Tailstock with Power Quill
- Foot Switch

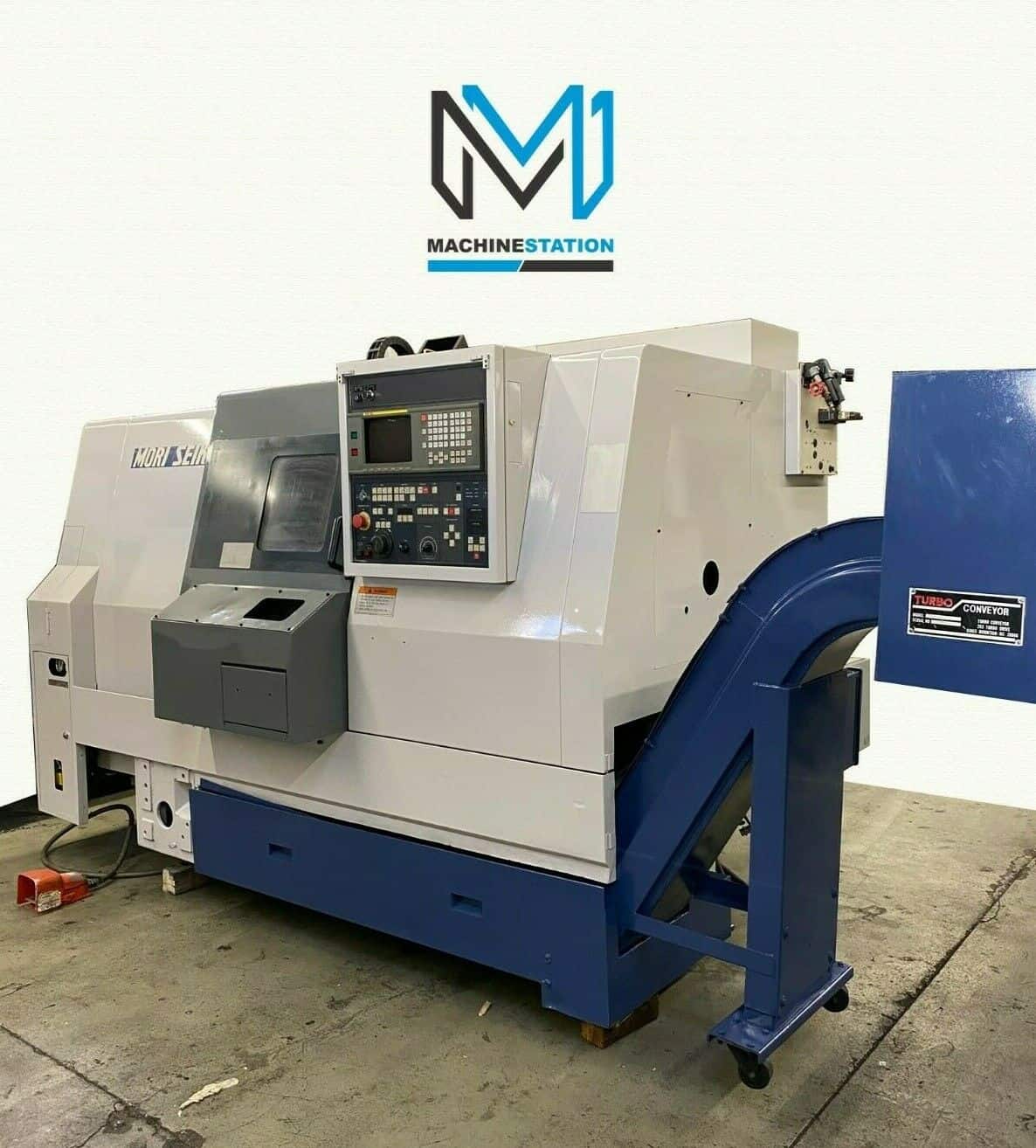

- Chip Pan and Chip Conveyor
- Coolant System
- Automatic Lubrication system
- Manuals
- Mori Seiki SL-25B/500 Specifications:
- Capacity:
- Max Turning Diameter: 10.2″
- Max Turning Length: 20.9″
- Max Bar Capacity: 2.65″
- Swing Over Slide: 13.8″
- Swing Over Bed: 22.4″
- Distance Between Centers: 24.6″
- Travel:
- X Axis Travel: 6.3″
- Z Axis Travel: 23.2″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 3.1″
- Spindle Speed: 3500 RPM
- Spindle Motor: 20 HP
- Turret:
- Turret Capacity: 10 Stations
- Turret Index Time: 1 Second
- Tailstock:
- Tailstock Body Travel: 19.3″
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-4
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 110″ x 70″ x 80″ High
- Overall Dimensions: 130″ x 70″ x 80″ High with Chip Conveyor
- Weight : 12,000 lbs Approx.
