All specifications are approximations and are subject to verification.

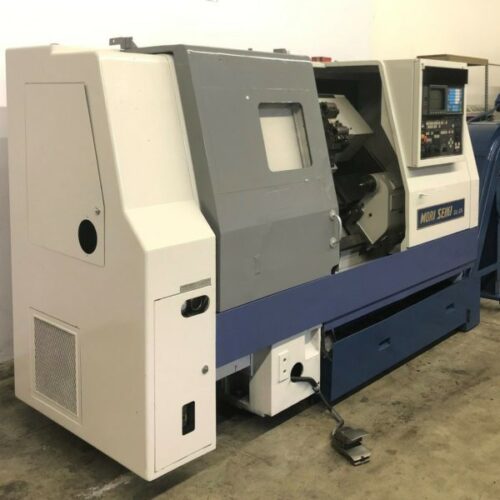

“This machine is in very Good running condition. It is equipped with 10″ Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”
-

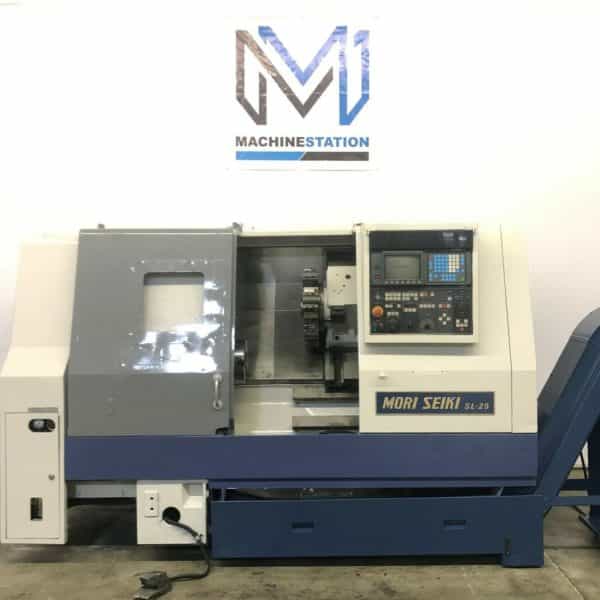

MORI SEIKI SL25B Equipped With:

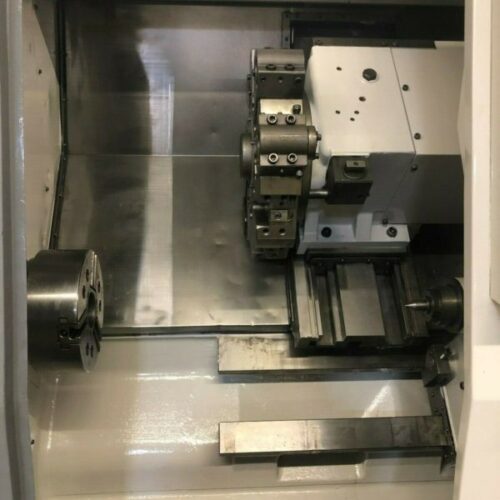

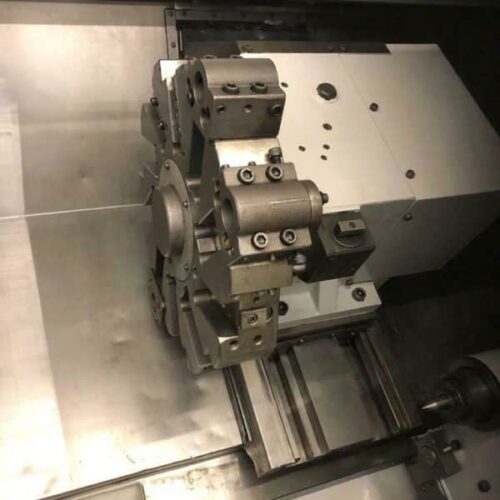

- 10-Station Turret with Tools

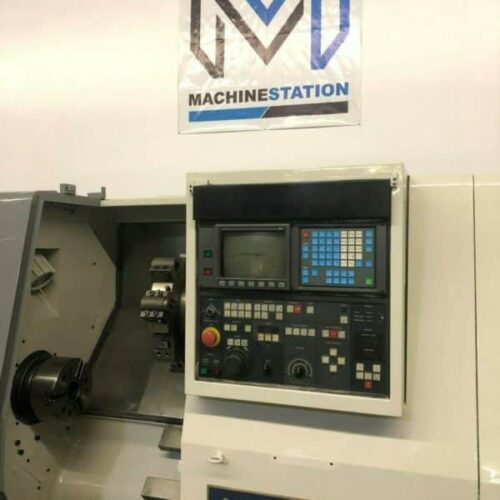

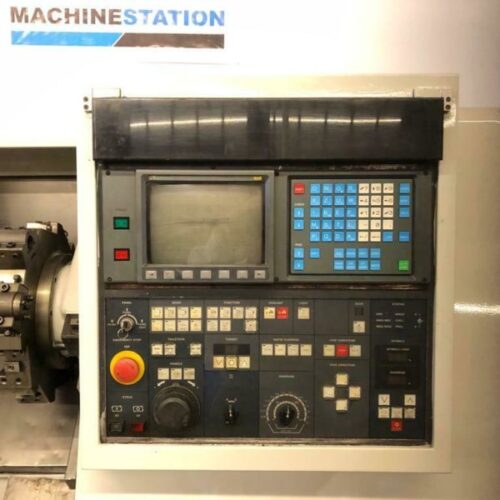

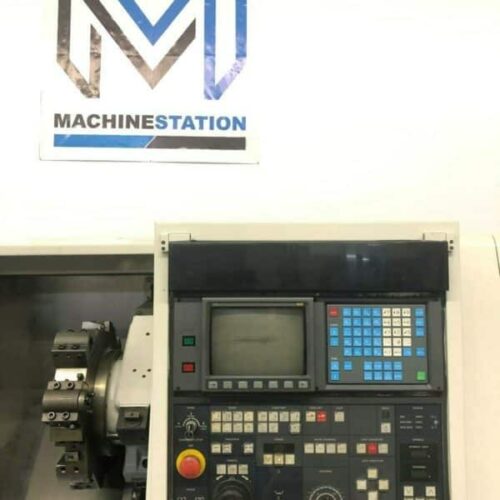

- Fanuc 0T CNC Control

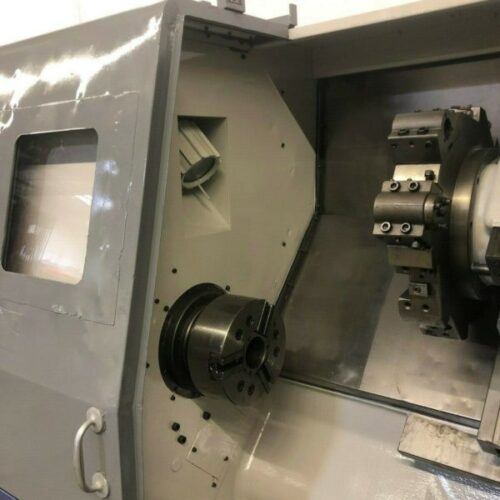

- 10″ 3-Jaw Kitagawa Hydraulic Chuck
- 2 Step gear spindle for powerful torque

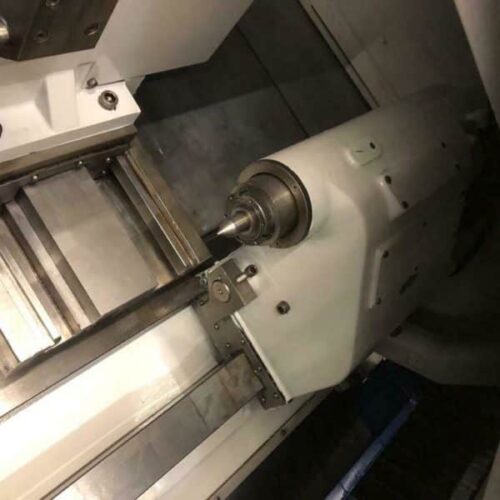

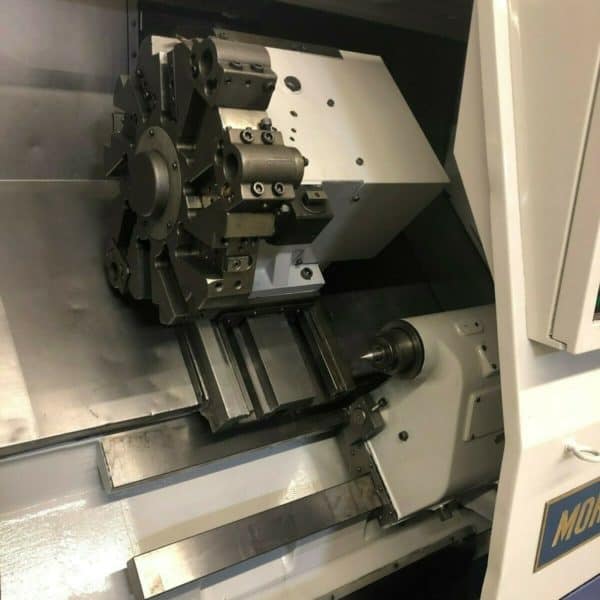

- Hydraulic Tailstock with Power Quill

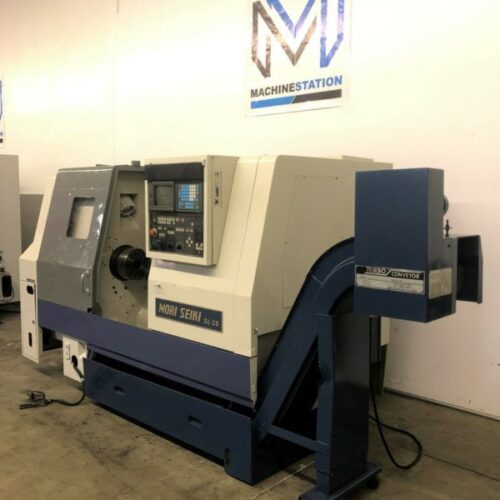

- Chip Pan and Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
-
MORI SEIKI SL-25B CNC Specifications:
- Max Turning Diameter: 10.2″
- Max Turning Length: 20.9″
- Max Bar Capacity: 2.65″
- Swing Over Slide: 13.8″
- Swing Over Bed: 22.4″
- Distance Between Centers: 24.6″
- X Axis Travel: 6.3″
- Z Axis Travel: 23.2″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 3.1″
- Spindle Speed: 3500 RPM
- Spindle Motor: 20 HP
- Turret Capacity: 10 Stations
- Turret Index Time: 0.5 Second
- Tailstock Body Travel: 19.3″
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-4
-
General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 68 Amps
- Overall Dimensions: 110″ x 68″ x 80″ High
- Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
- Weight : 12000 lbs Approx.
