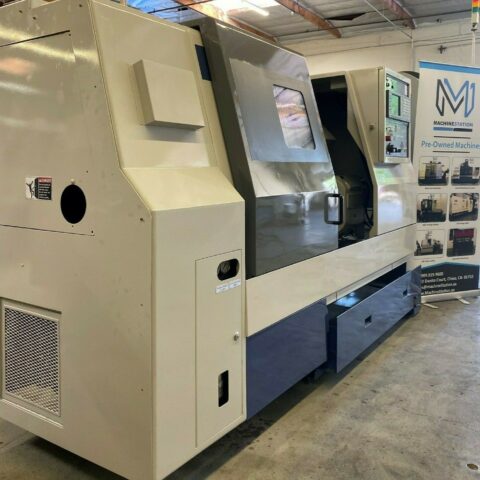

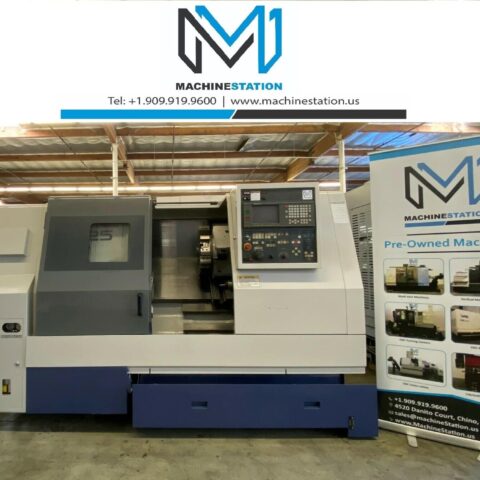

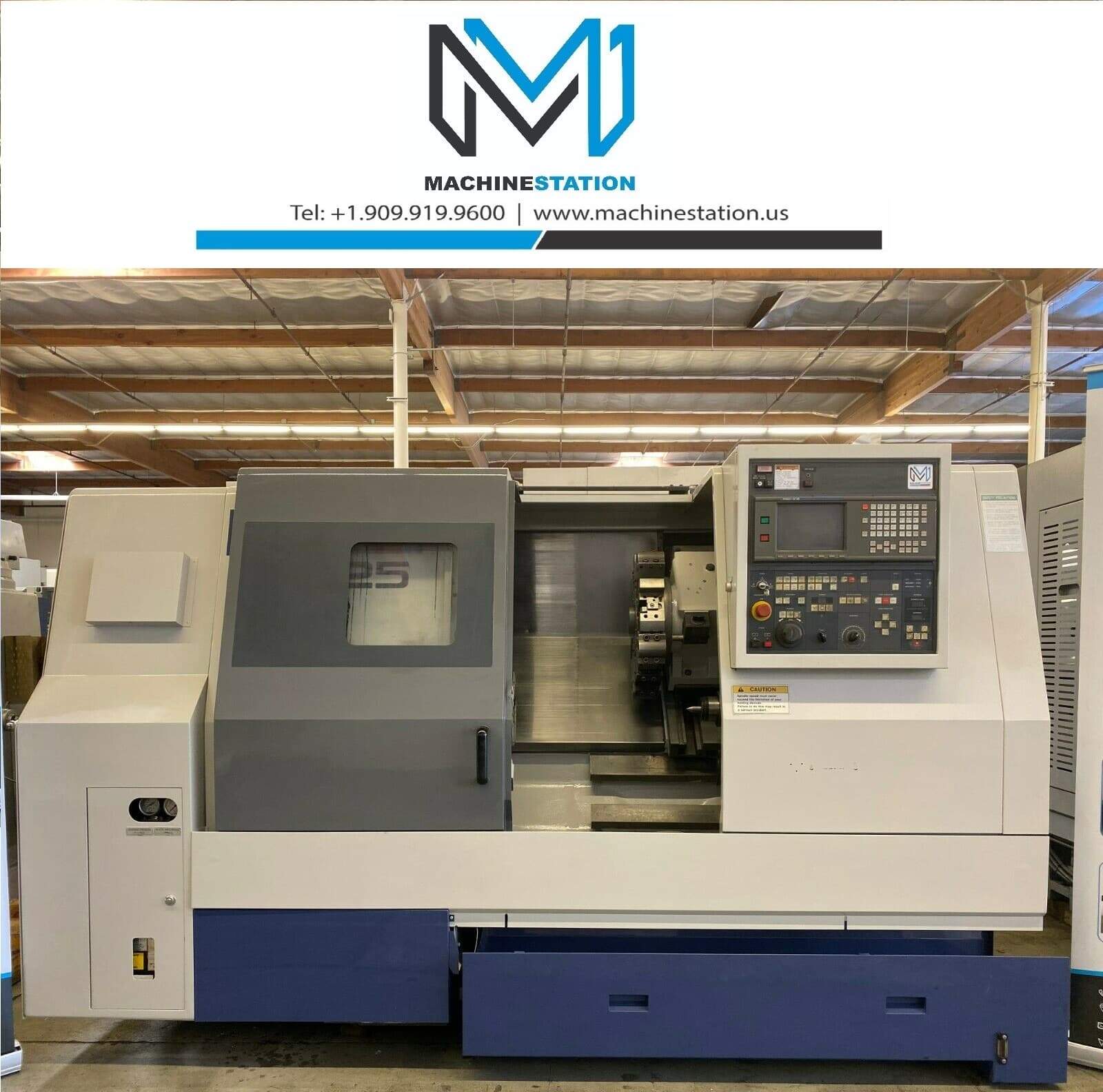

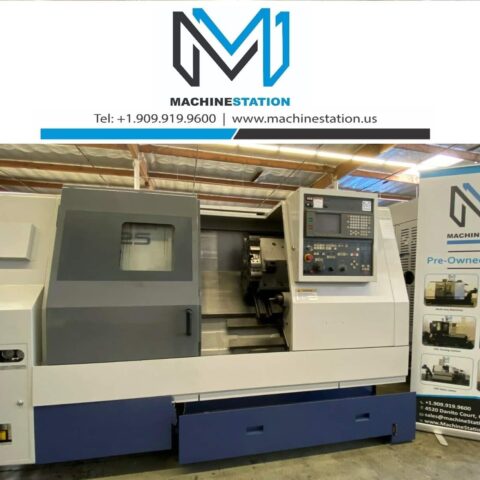

Mori Seiki SL-25B CNC Turning Center

Out of stock

“This machine is in very Good running condition. It is equipped with 10″ Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”

SKU:	1851
Make/Model:	Mori Seiki/SL-25B
Video:	[fusion_button link=”https://www.youtube.com/watch?v=VfQl-XncdqE” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1851

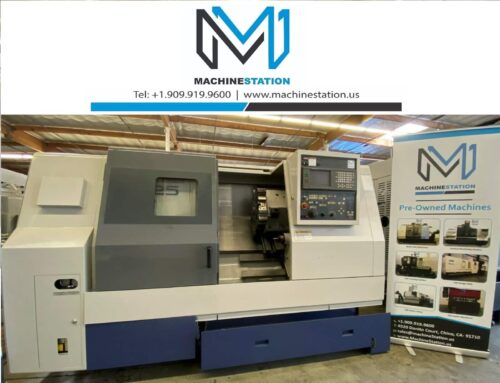

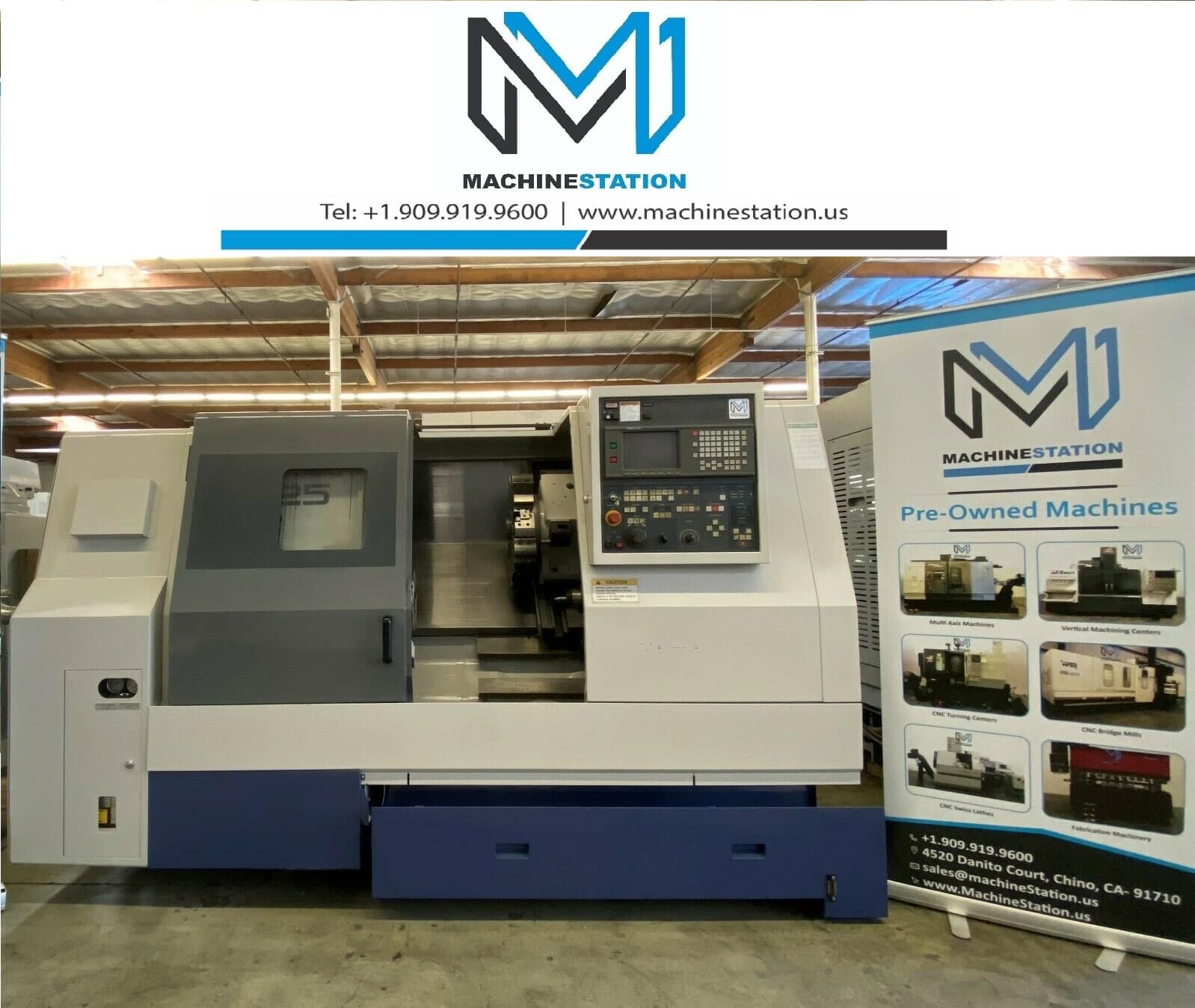

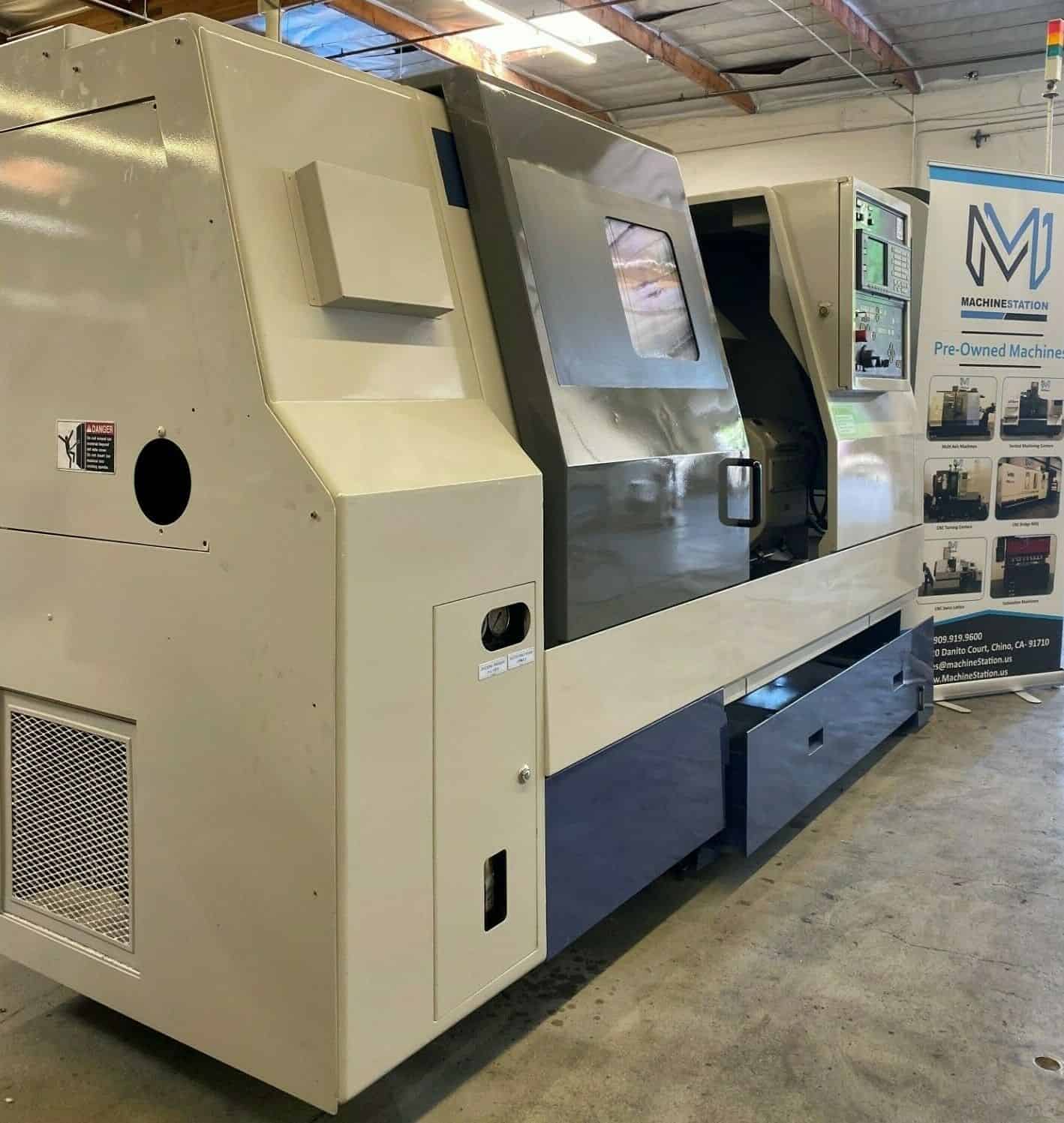

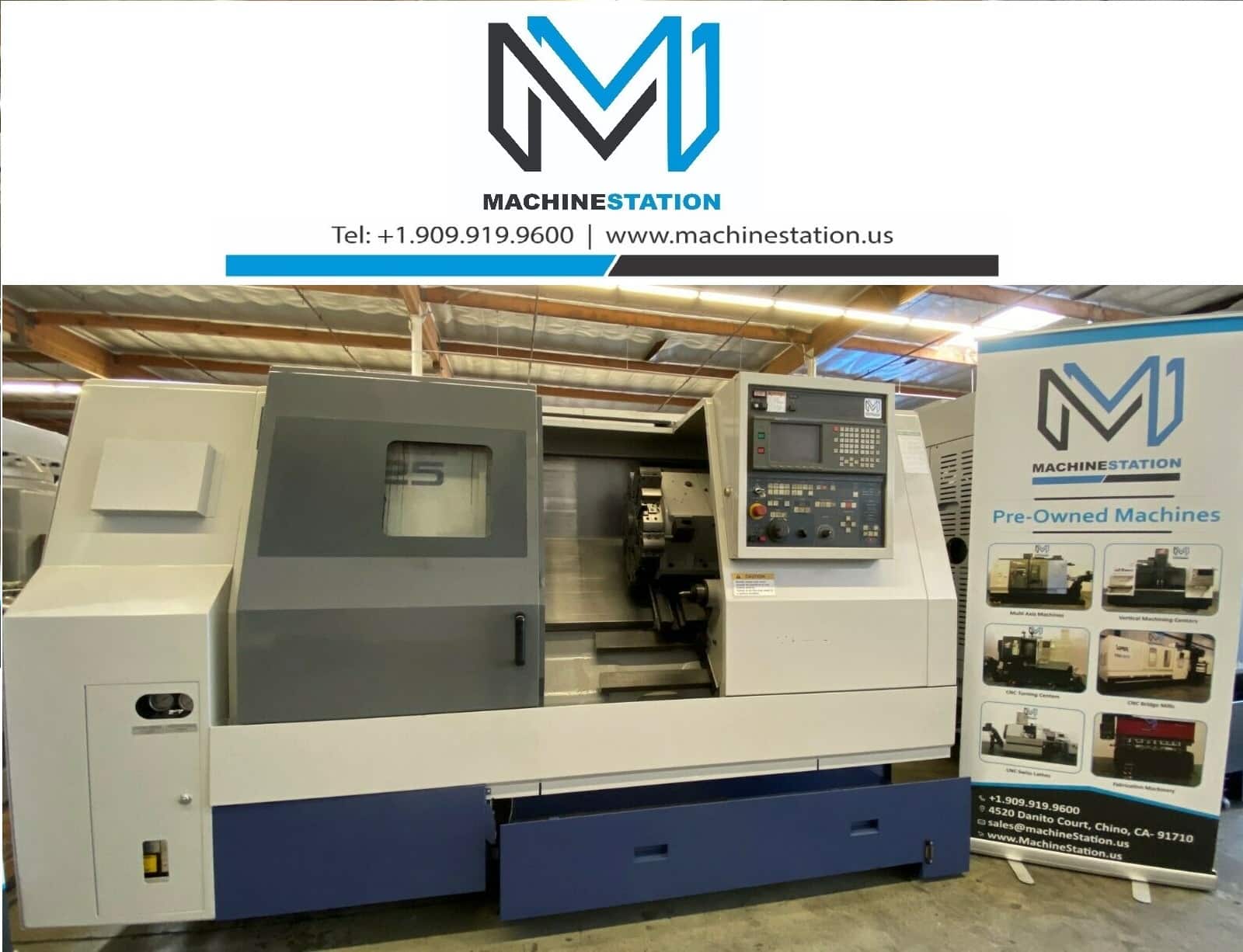

MORI SEIKI SL-25B CNC LATHE TURNING CENTER
Make	Mori Seiki
Model No.	SL-25B
Serial #	7199
Condition	Very Good

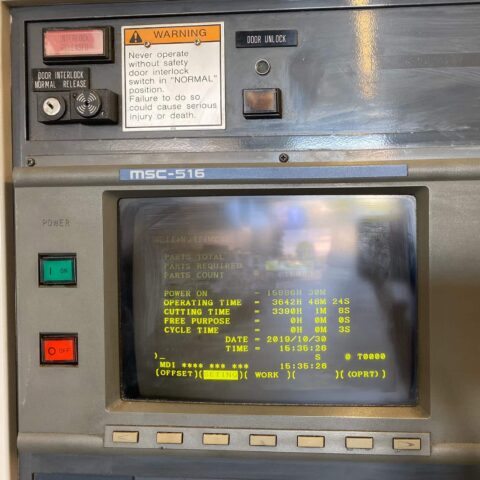

Cutting Hours:	3390

All specifications are approximations and are subject to verification.

“This machine is in very Good running condition. It is equipped with 10″ Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”

MORI SEIKI SL-25B Equipped With:

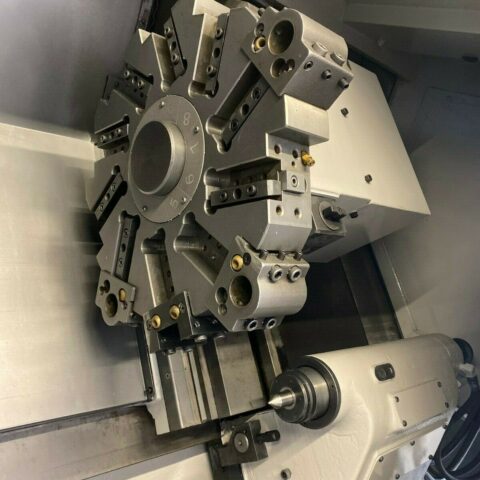

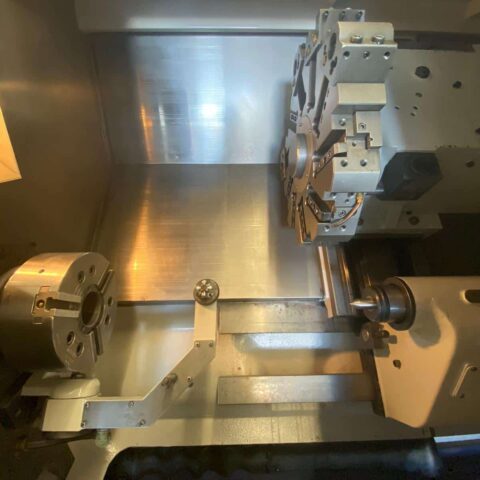

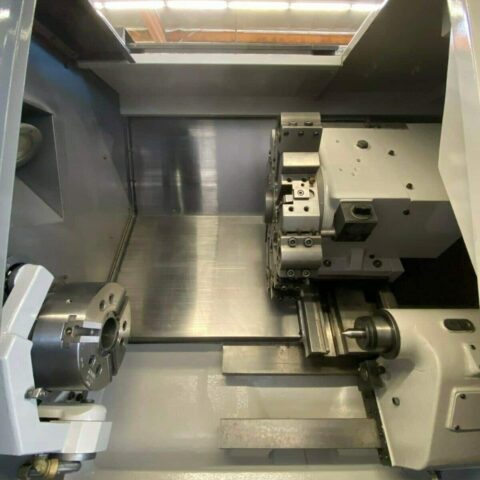

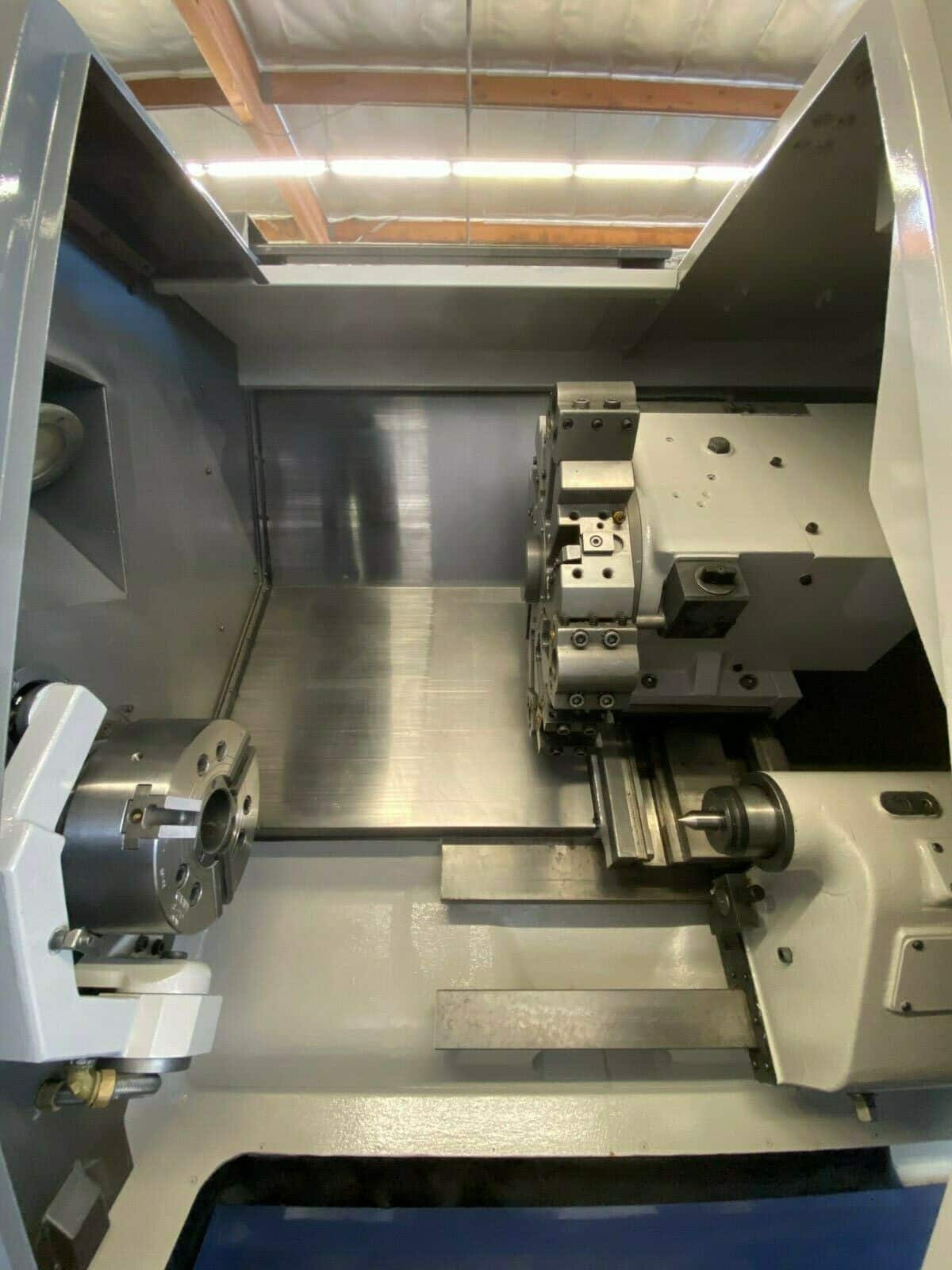

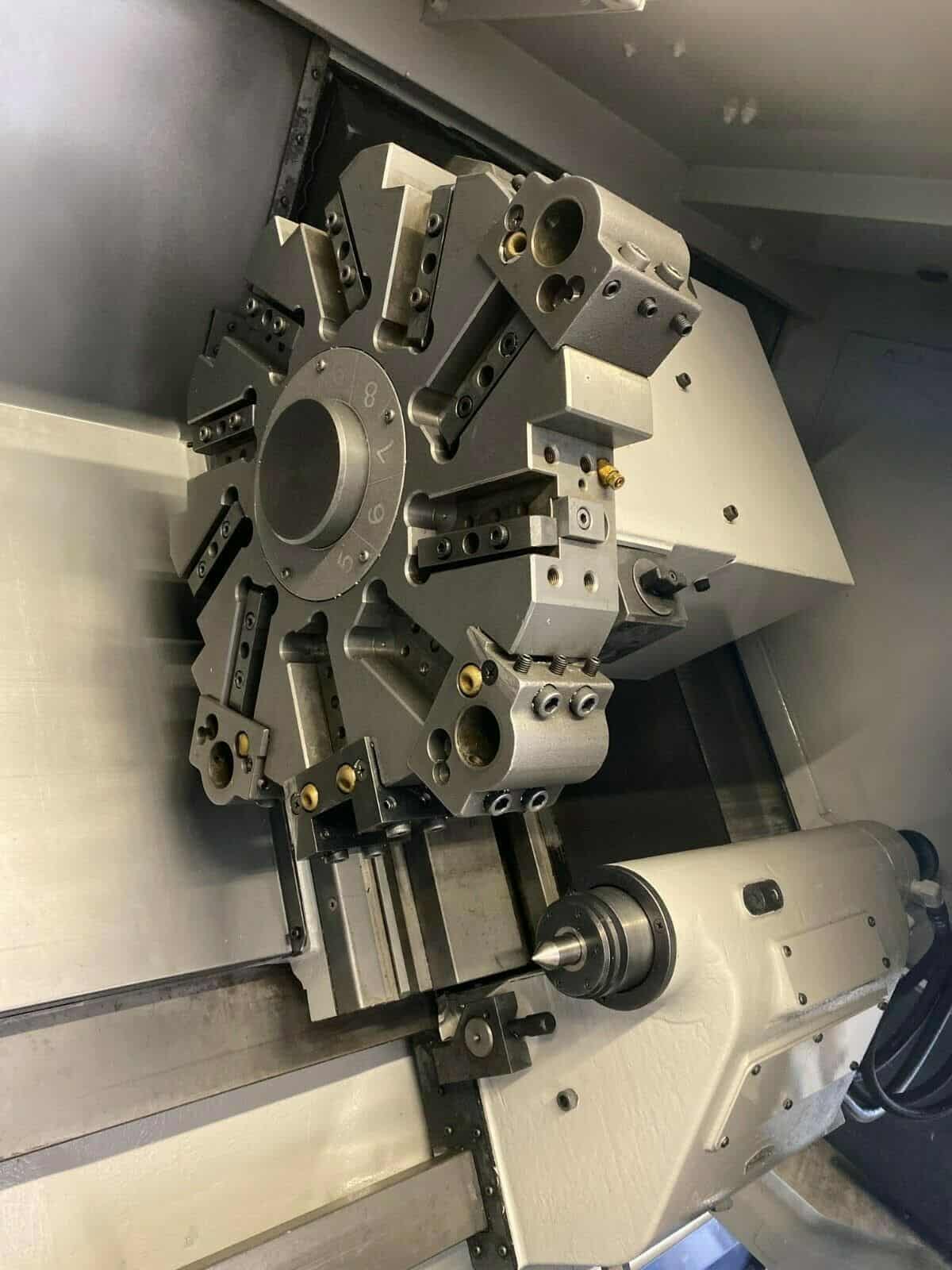

10-Station Turret with Tools

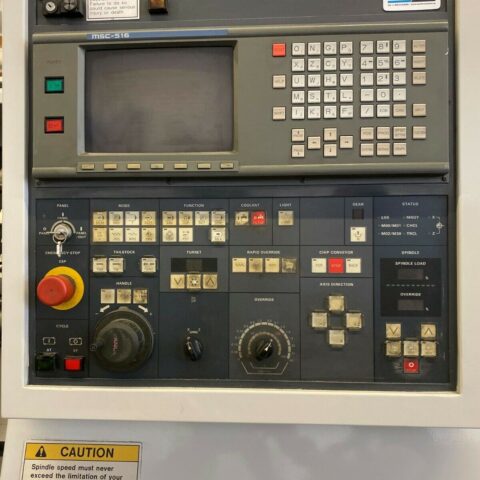

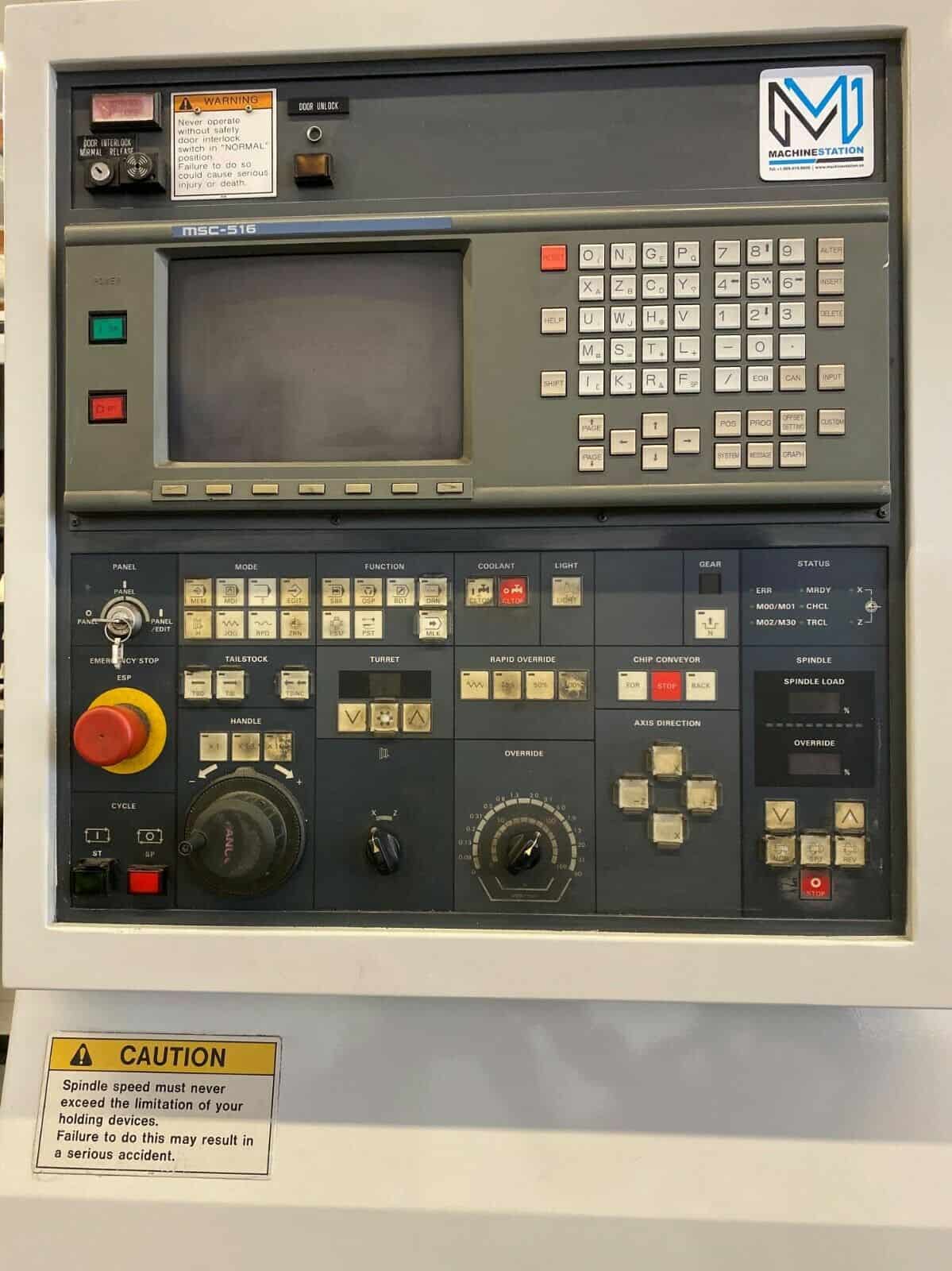

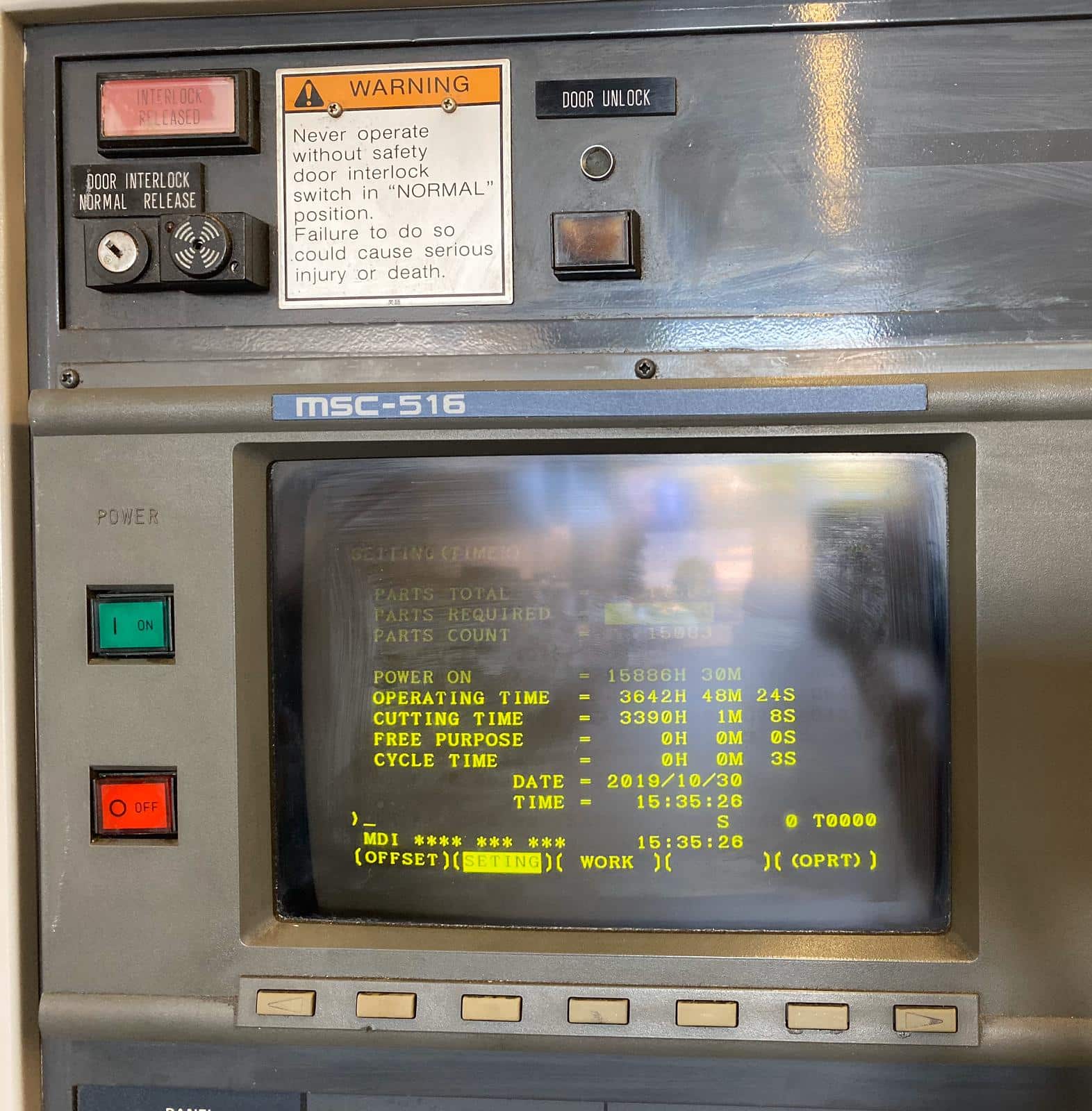

Fanuc MSC-516 CNC Control

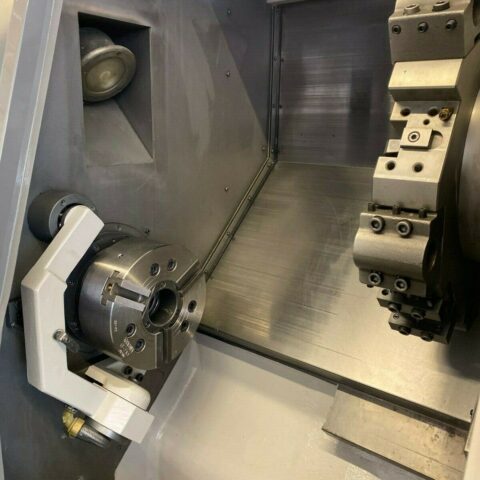

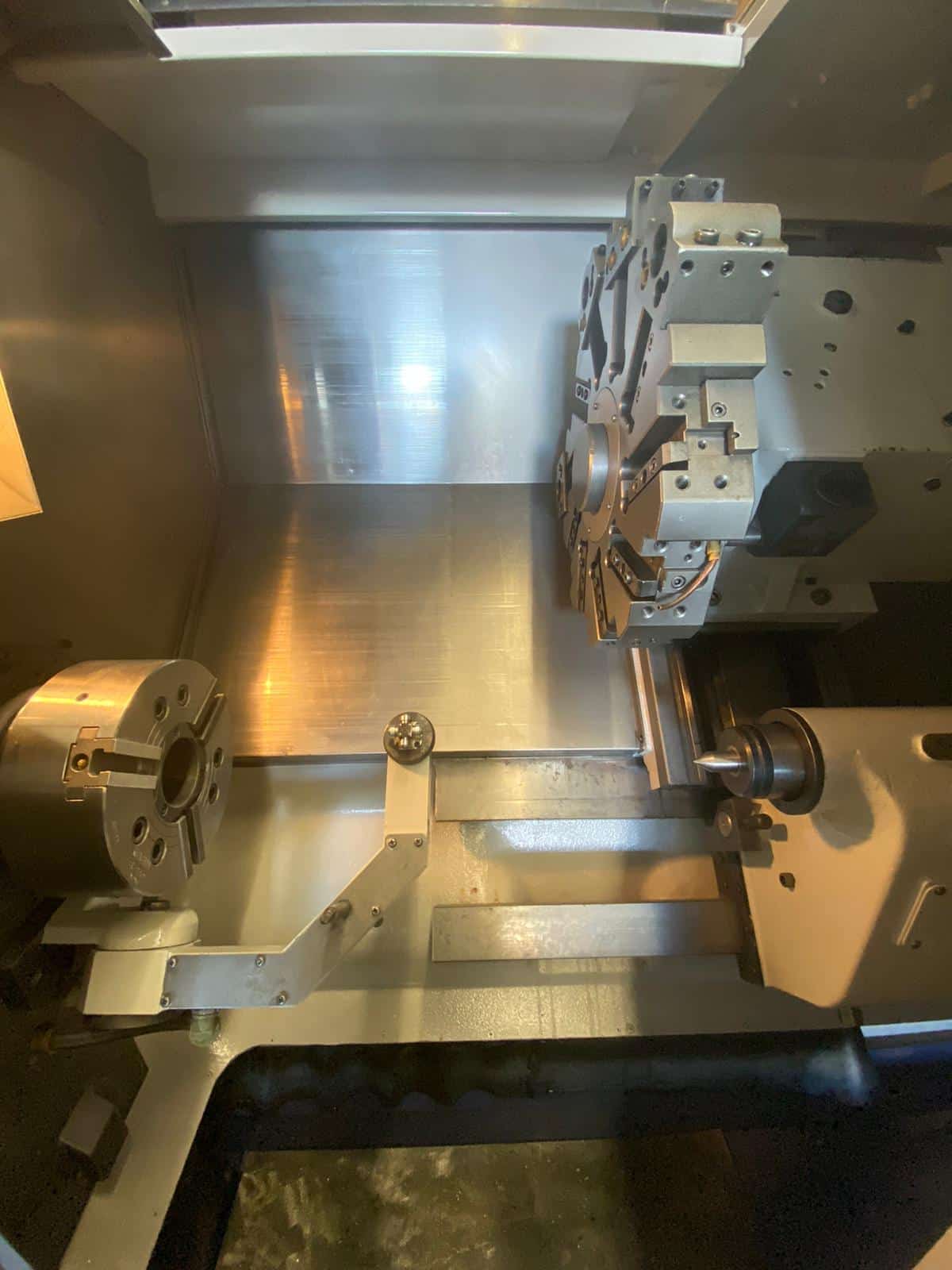

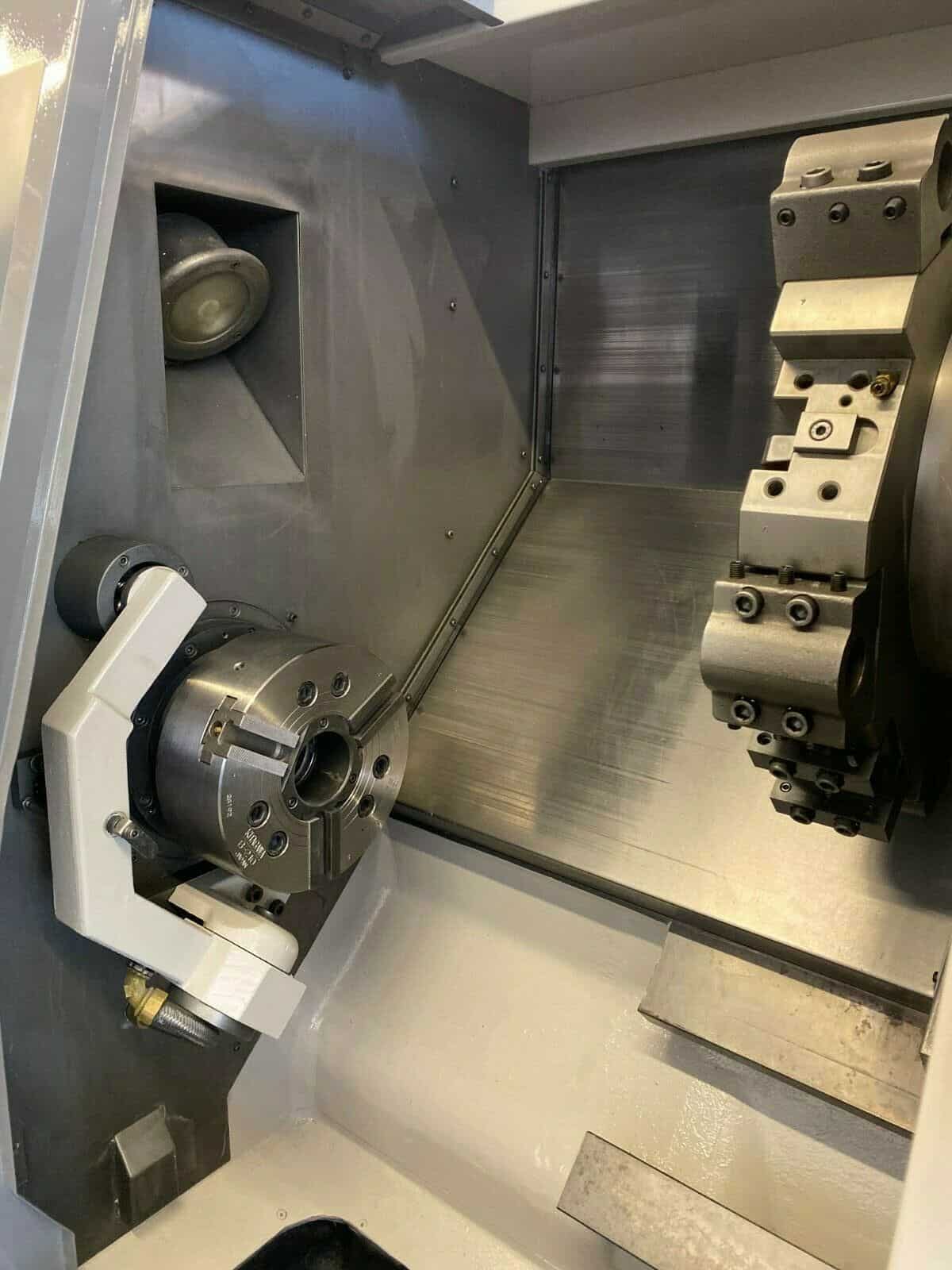

10″ 3-Jaw Kitagawa Hydraulic Chuck
Tool Presetter
2 Step gear spindle for powerful torque
Hydraulic Tailstock with Power Quill
Chip Pan
Coolant System
Automatic Lubrication system
Foot Operated Control

General:

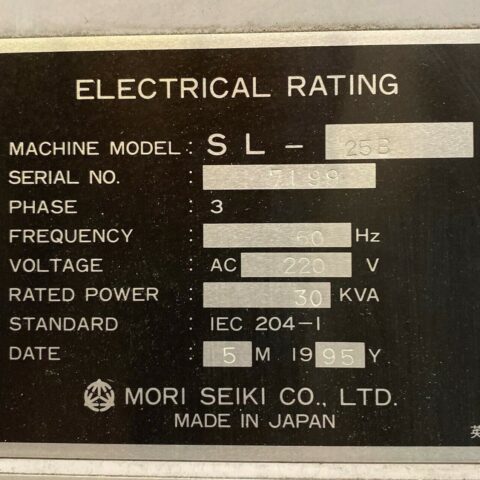

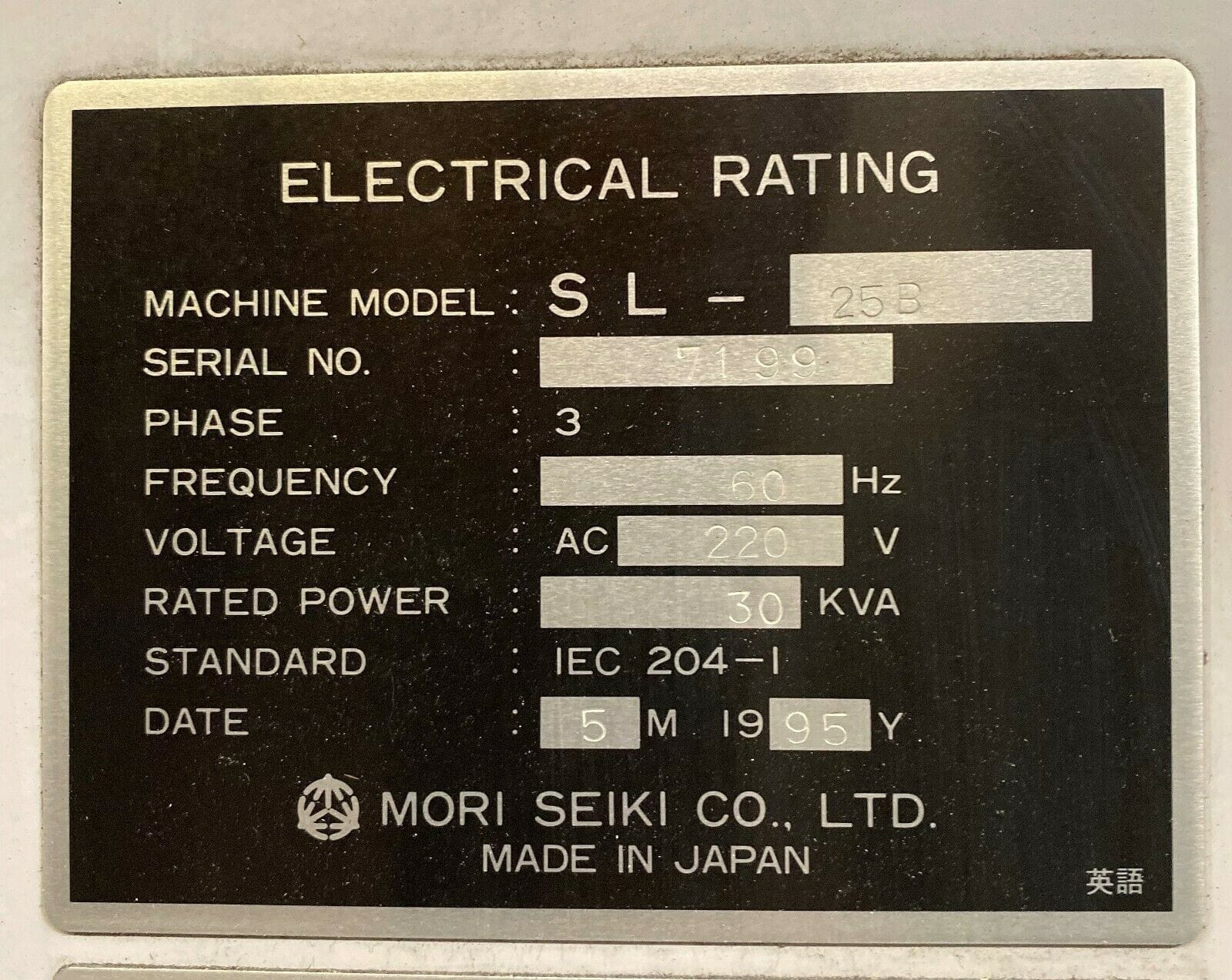

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
Overall Dimensions: 110″ x 68″ x 80″ High
Weight : 12000 lbs Approx.

MORI SEIKI SL-25B CNC Specifications:
Max Turning Diameter: 10.2″
Max Turning Length: 20.9″
Max Bar Capacity: 2.65″
Swing Over Slide: 13.8″
Swing Over Bed: 22.4″
Distance Between Centers: 24.6″
X Axis Travel: 6.3″
Z Axis Travel: 23.2″
Rapid Traverse X Axis: 790 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 3.1″
Spindle Speed: 3500 RPM
Spindle Motor: 20 HP
Turret Capacity: 10 Stations
Turret Index Time: 0.5 Second
Tailstock Body Travel: 19.3″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4

MORI SEIKI SL-25B Comes as shown in pictures..
