*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
-
Features:

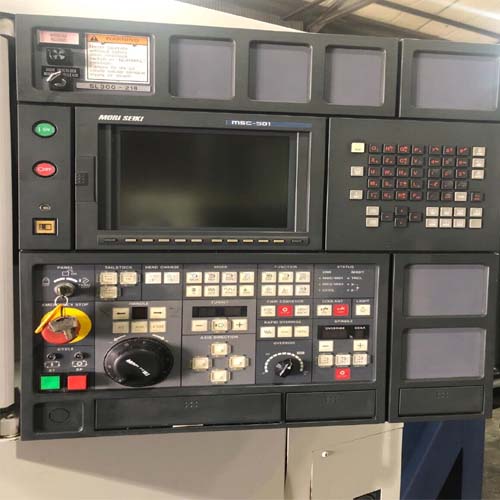

- Fanuc MSC-518 CNC Control
- 12 -Station Turret with Tools

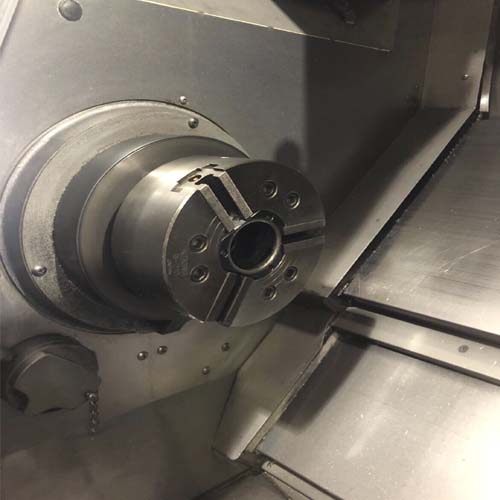

- 10″ 3-Jaw Kitagawa Hydraulic Chuck (12″ Capable)
- 12 Station Lower Turret & Upper Turret
- 2 Step gear spindle for powerful torque
- Hydraulic Tailstock with Power Quill
- Tool Presetter
- Chip Conveyor
- Coolant System
- Automatic Lubrication System
- Foot Operated Control
-
Specifications:
- Capacity:
- Max Turning Diameter: 16.5″
- Max Turning Length: 27.9″
- Max Bar Capacity: 2.9″
- Swing Over Bed: 28″
- Distance Between Centers: 31.5″
-
Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
-
Travels:
- X Axis Travel: 9.84″
- Z Axis Travel: 31.49″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 940 IPM
-
Spindle:
- Spindle Nose: A2-8
- Spindle Bore: 3.1″
- Spindle Speed: 35-3500 RPM
- Spindle Motor: 20 HP
-
Tailstock:
- Tailstock Body Travel: 29.29″
- Tailstock Quill Dia.: 3.34″
- Tailstock Quill Stroke: 4.72″
- Tailstock Taper: MT-5
-
General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 41 kva
- Overall Dimensions: 137″ x 84″ x 94″ High
- Weight : 15,000 lbs Approx.
“No Charges for loading at list Price”
