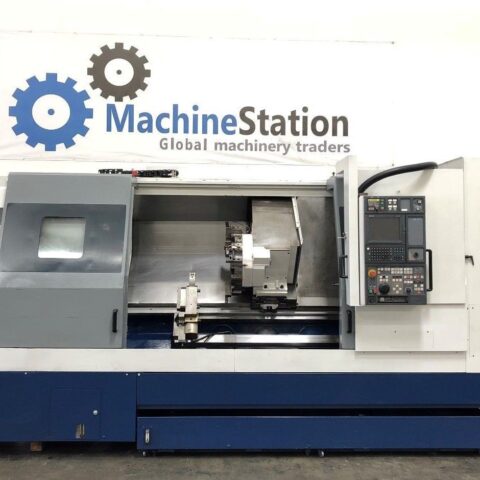

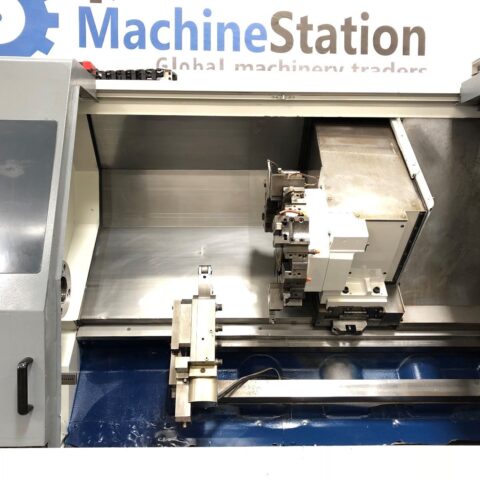

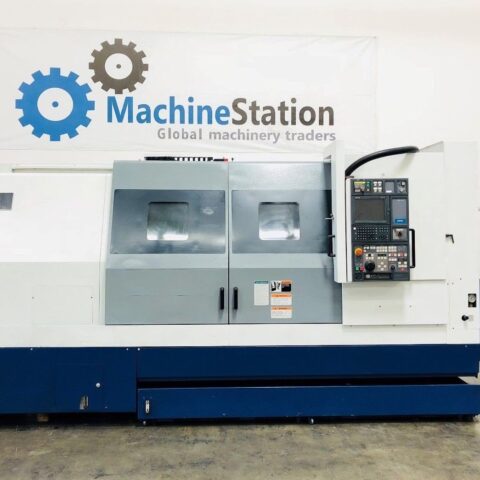

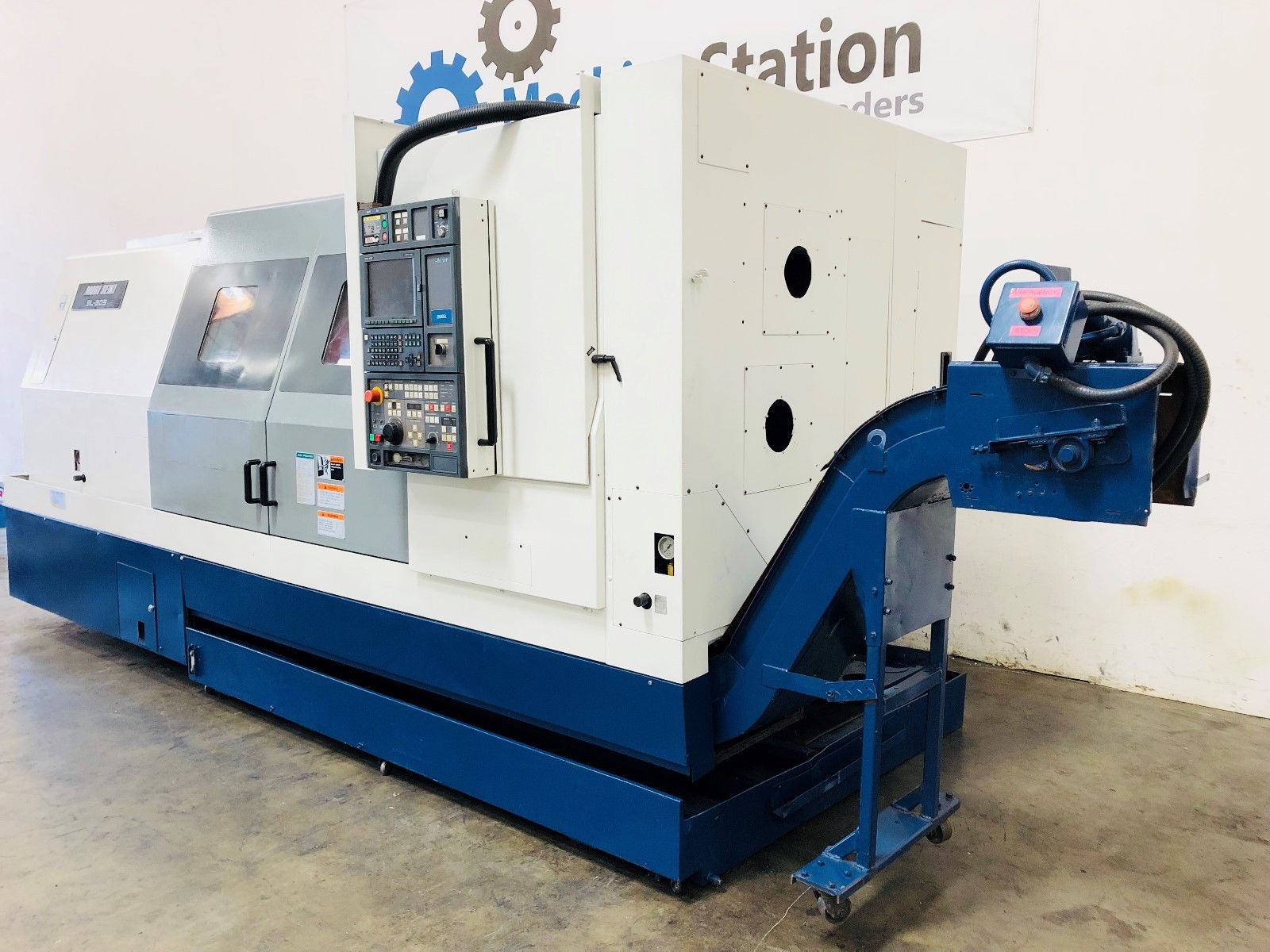

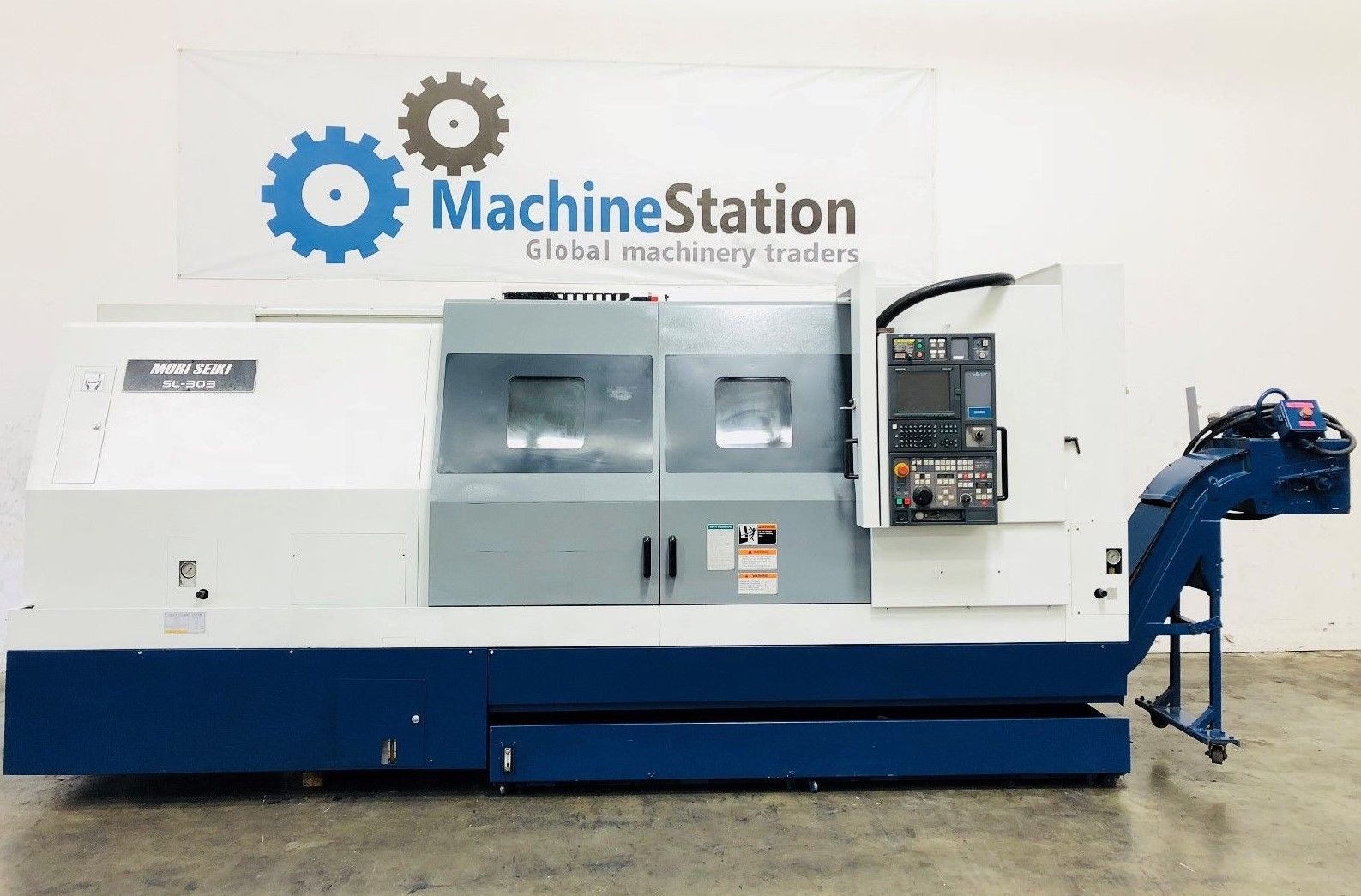

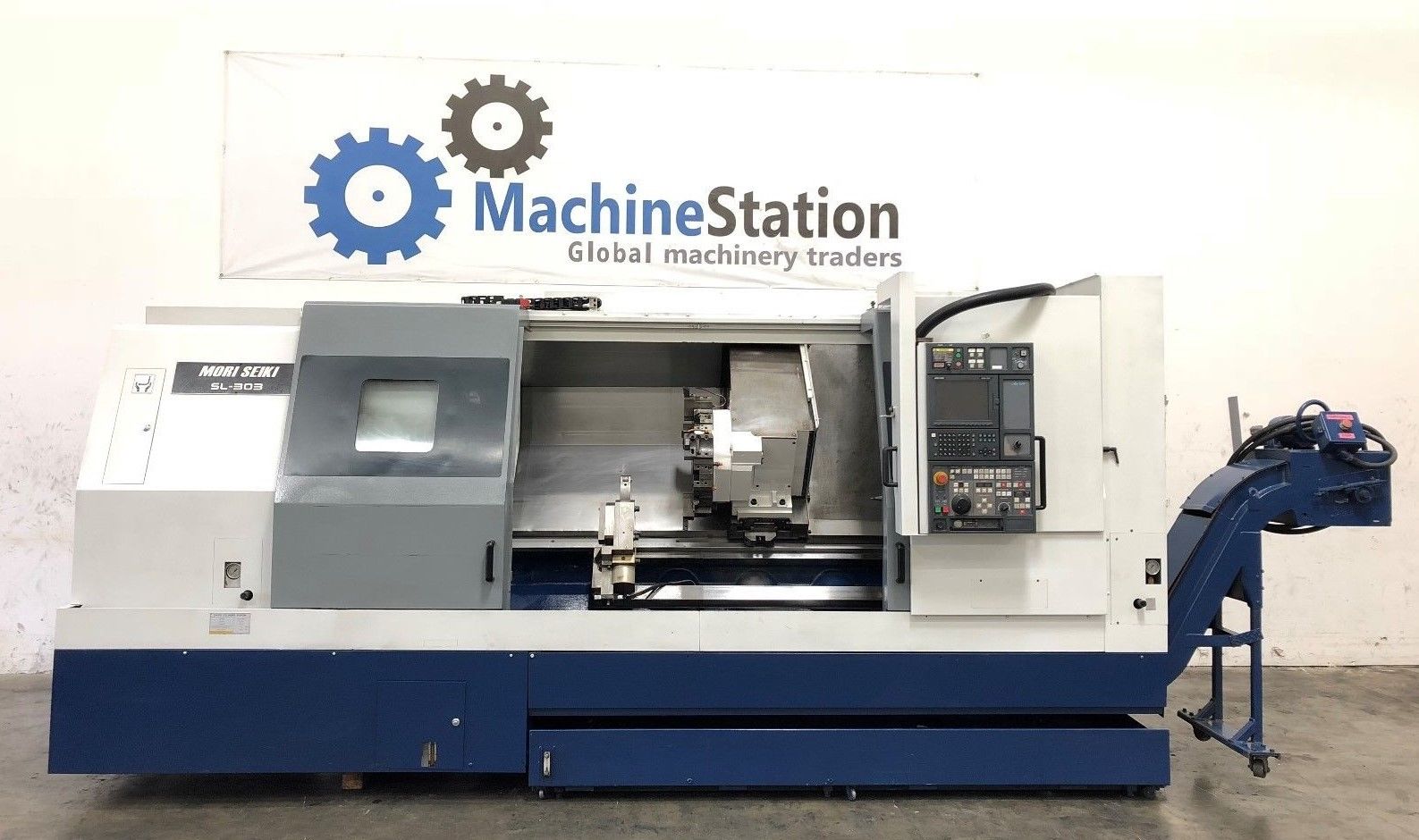

MORI SEIKI SL-303A/1500 CNC TURNING LONG BED LATHE | |
---|---|
Make | Mori Seiki |
Model No. | SL-303A/1500 |
Condition | Very Good |
Comes with 15″ Chuck, Steady Rest, Tailstock & Chip Conveyor
All specifications are approximations and are subject to verification.
“This machine is in very Good running condition. It is equipped with 15″ Chuck, Steady Rest, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”
- MORI SEIKI SL-303A/1500 Equipped With:
- MSC-501 ( Fanuc i-series ) CNC Control
- Box way construction
- Hydraulic Steady Rest ( Option )
- 15″ 3 Jaw Hydraulic Chuck
- A2-8 Spindle Nose
- Auto Tool Presetter
- Hydraulic Programmable Tailstock and Quill
- PCMCIA Card Slot
- Coolant System
- Barfeed Interface

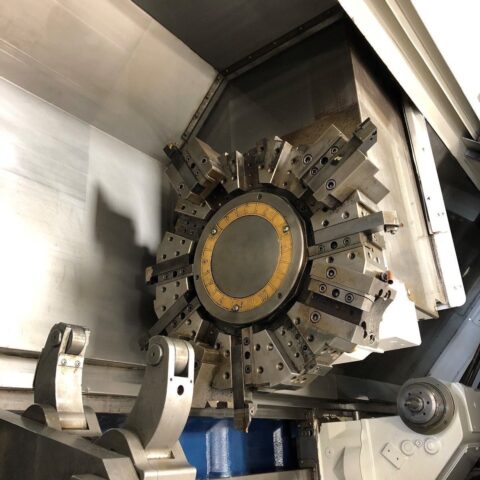

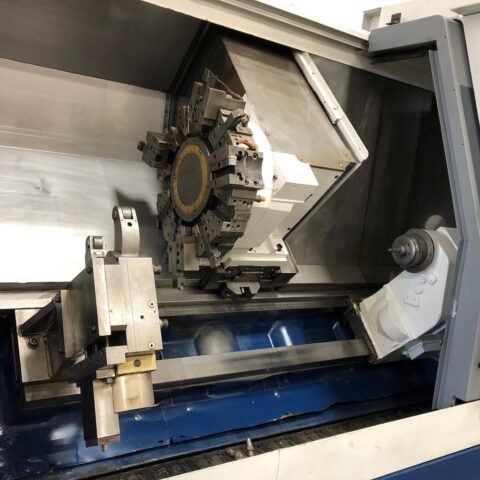

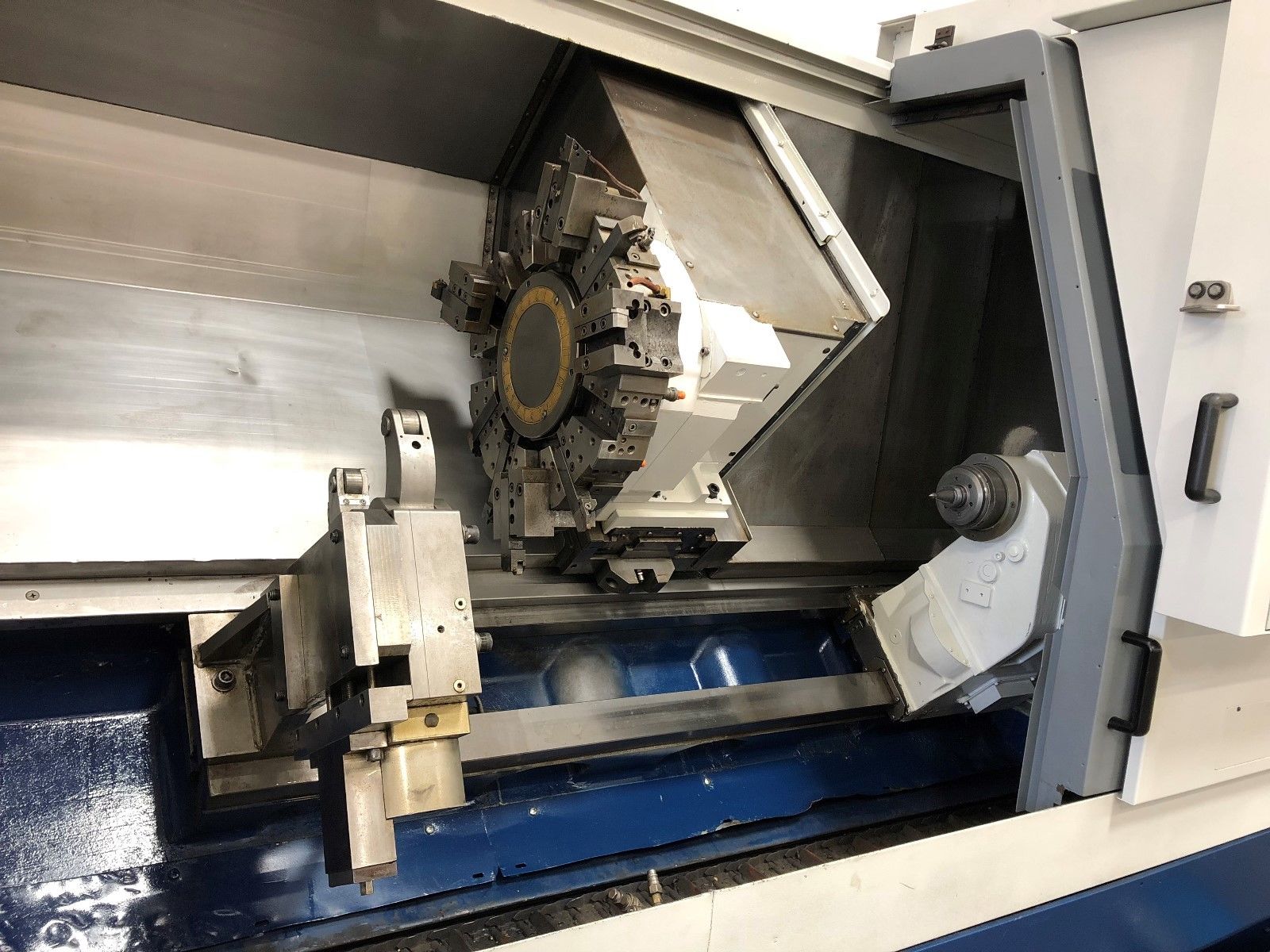

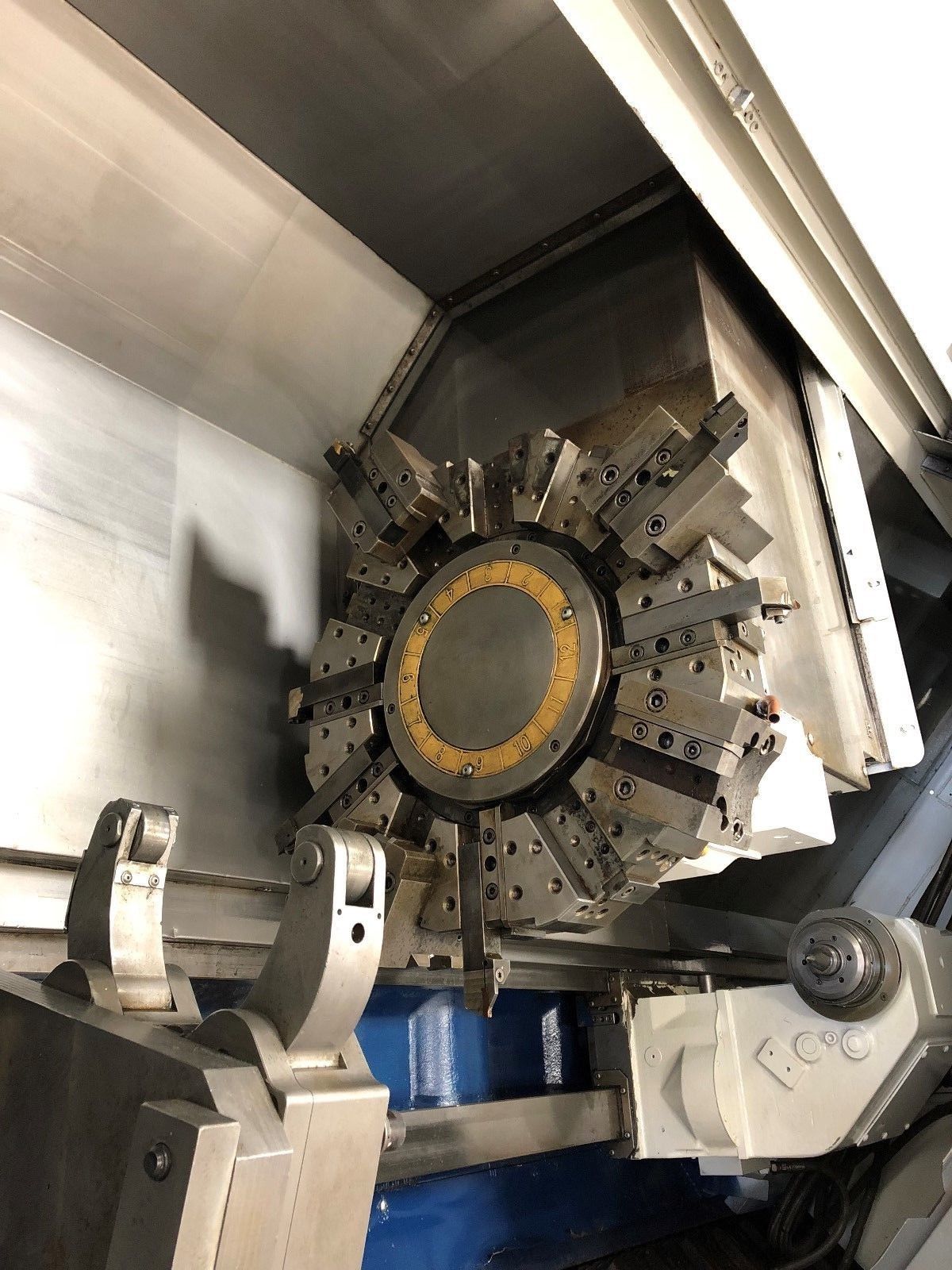

- 12 Station Automatic Turret
- Foot Switch

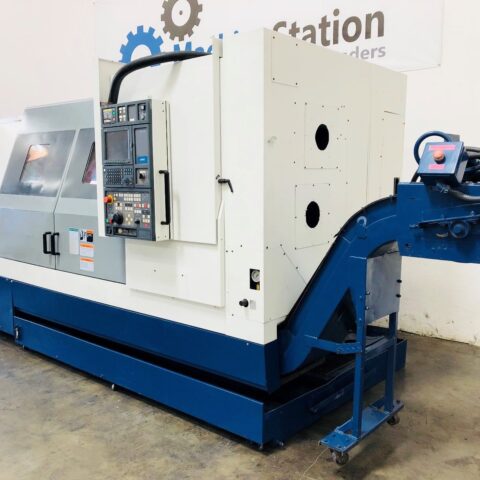

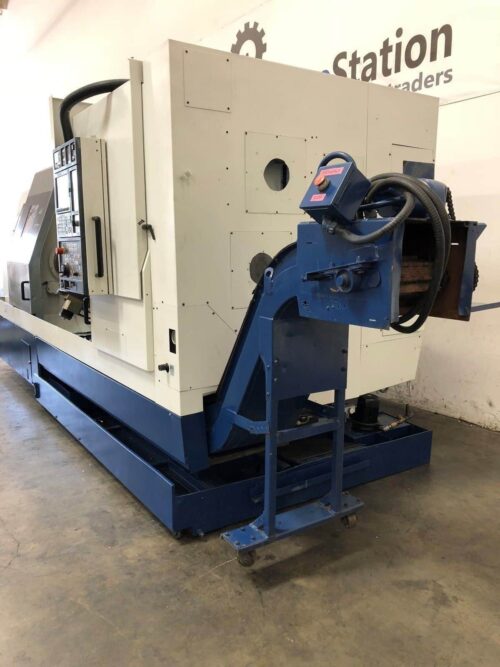

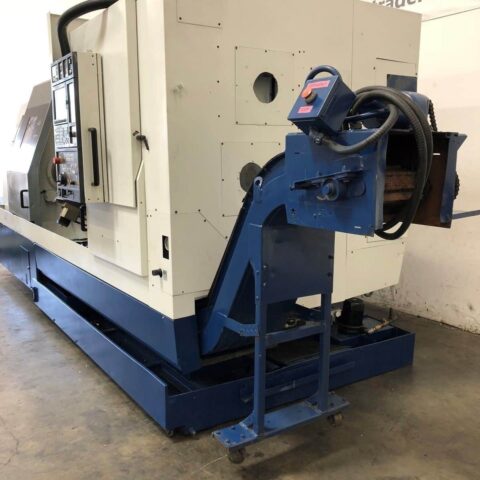

- Turbo Chip Conveyor
- General:
- Power Source: AC 220 V, 45kva, Three Phase, 60 Hz
- Overall Dimensions: 186″ x 66″ x 84″ High
- Overall Dimensions: 228″ x 66″ x 84″ High with Chip Conveyor
- Weight : 19800 lbs Approx.
- MORI SEIKI SL-303A/1500 Specifications:
- Capacity:
- Max Turning Diameter: 16.8″
- Max Turning Length: 61.42″
- Max Bar Capacity: 3.5″
- Swing Over Slide: 19.7″
- Swing Over Bed: 23.6″
- Distance Between Centers: 64.57″
- X Axis Travel: 9.45″
- Z Axis Travel: 63.19″
- Rapid Traverse X Axis: 472 IPM
- Rapid Traverse Z Axis: 590 IPM
- Spindle Nose: A2-8
- Spindle Bore: 4.13″
- Spindle Speed: 35-2500 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
- Tailstock Body Travel: 58.86″
- Tailstock Quill Dia.: 5.12″
- Tailstock Quill Stroke: 4.72″
- Tailstock Taper: MT-5

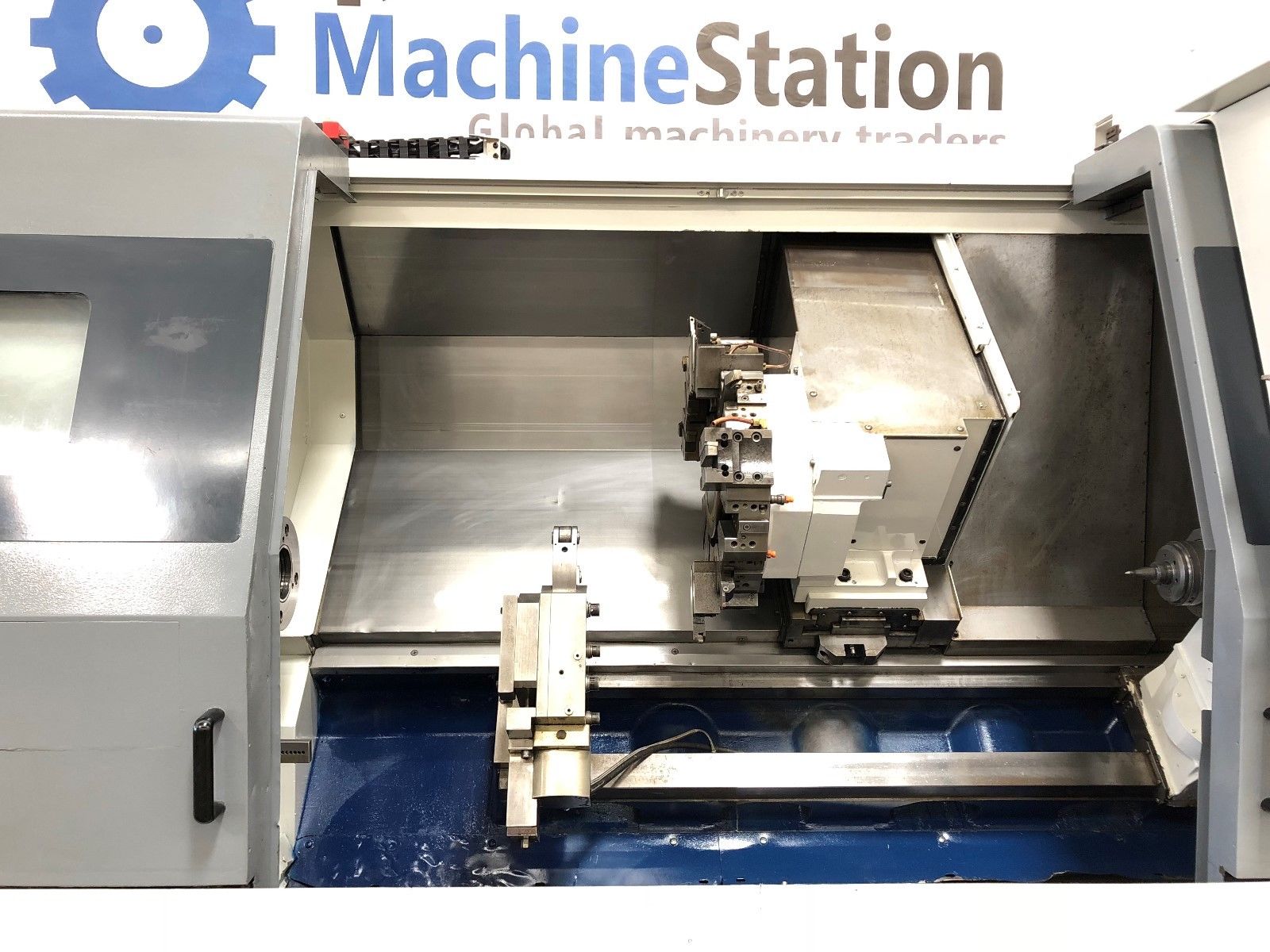

MORI SEIKI SL-303A/1500 Comes as shown in pictures..
