Mori Seiki SL-35 CNC Lathe

Out of stock

SKU:	1825
Make/Model:	Mori Seiki SL-35A
Video:	[fusion_button link=”https://www.youtube.com/watch?v=KdncDl10MoI” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1825

MORI SEIKI SL-35 CNC LATHE TURNING
Make	Mori Seiki
Model No.	SL-35A

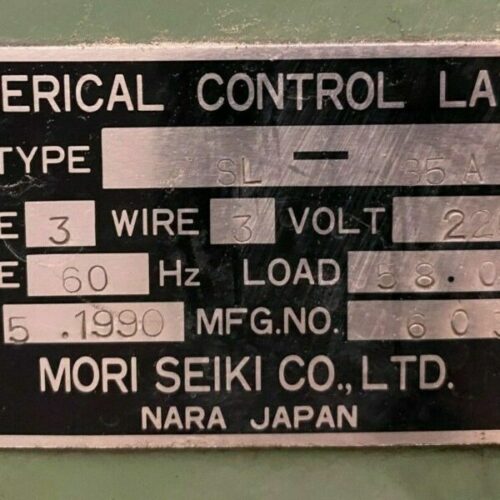

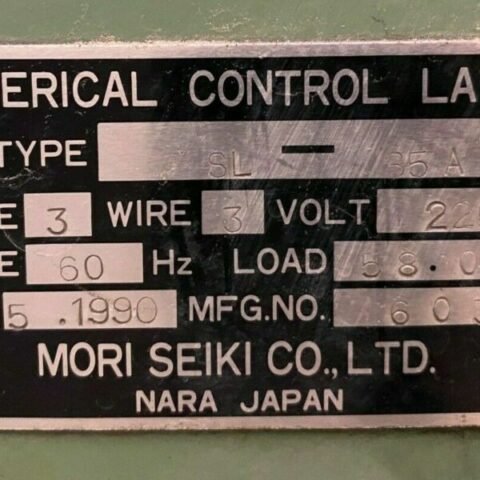

Serial #	603
Condition	Very Good

All specifications are approximations and are subject to verification.

MORI SEIKI SL-35 Equipped With:

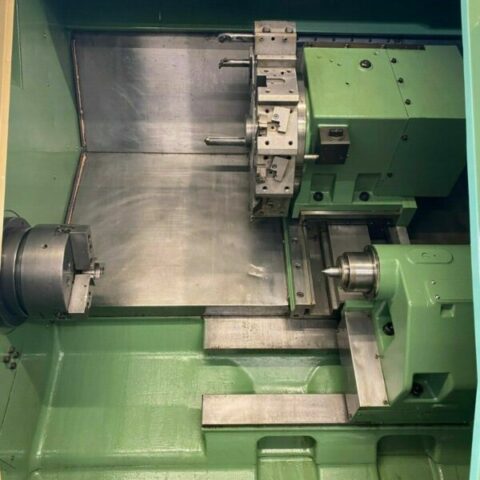

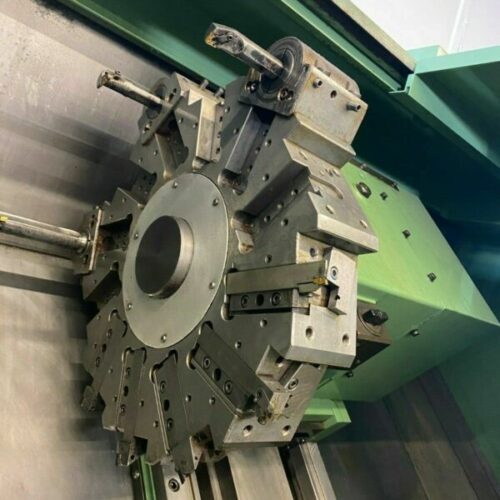

12-Station Turret with Tools

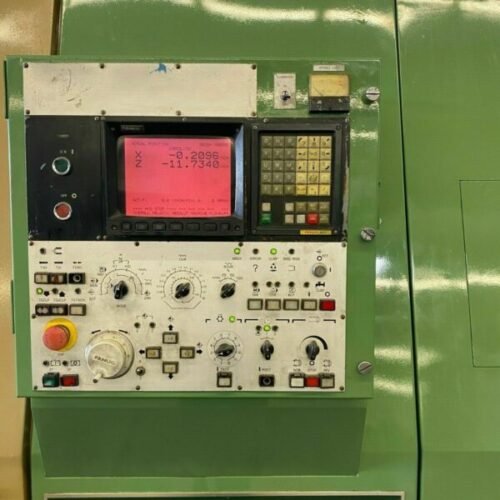

Fanuc 10T CNC Control

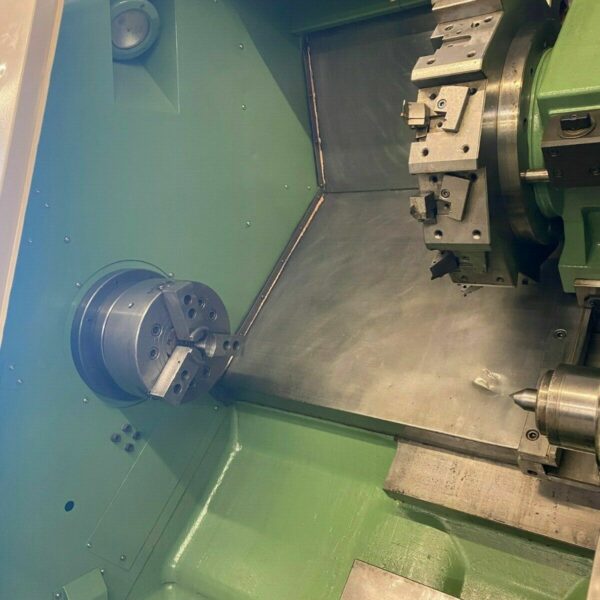

10″ 3-Jaw Kitagawa Hydraulic Chuck
2 Step gear spindle for powerful torque

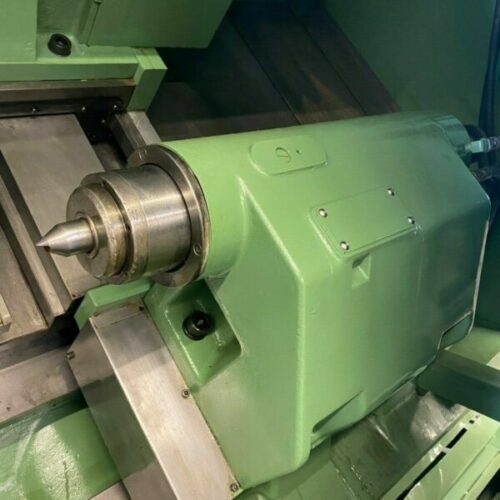

Hydraulic Tailstock with Power Quill
Chip Pan
Coolant System
Automatic Lubrication system
Foot Operated Control

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
Overall Dimensions: 140″ x 74″ x 80″ High
Weight : 18000 lbs Approx.

Mori Seiki SL-35 Specifications:
Max Turning Diameter: 16.5″
Max Turning Length: 30.7″
Max Bar Capacity: 2.65″
Swing Over Slide: 16.7″
Swing Over Bed: 23.6″
Distance Between Centers: 34.6″
X Axis Travel: 9.45″
Z Axis Travel: 33.7″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 590 IPM
Spindle Nose: A2-6
Spindle Bore: 3.1″
Spindle Speed: 3500 RPM
Spindle Motor: 30 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock Body Travel: 27.8″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4

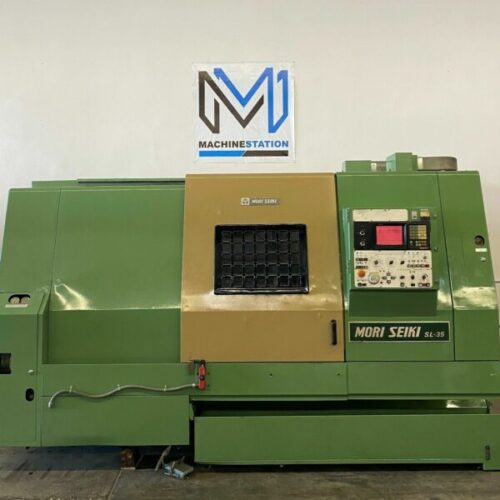

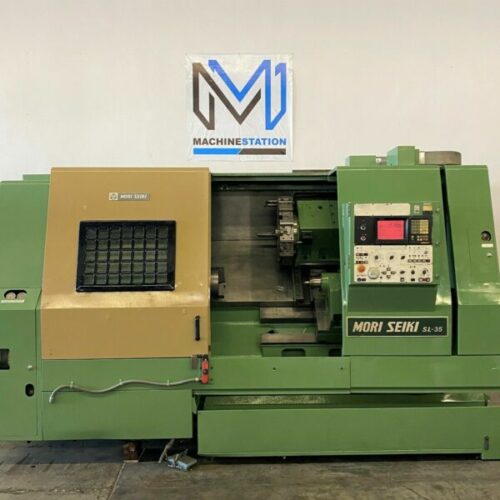

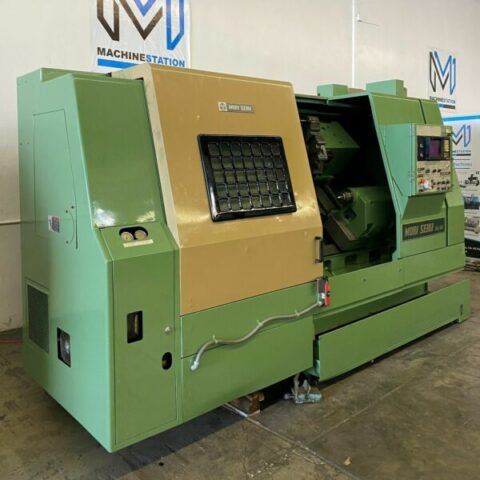

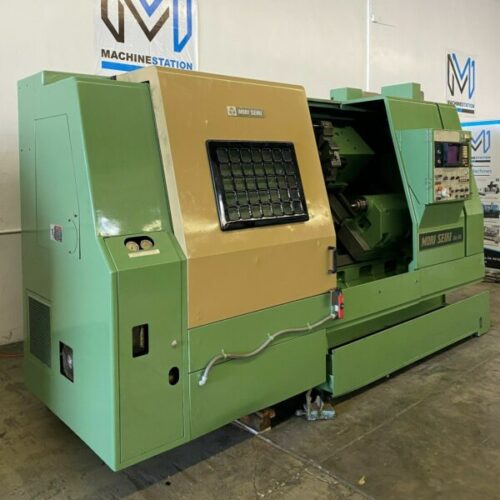

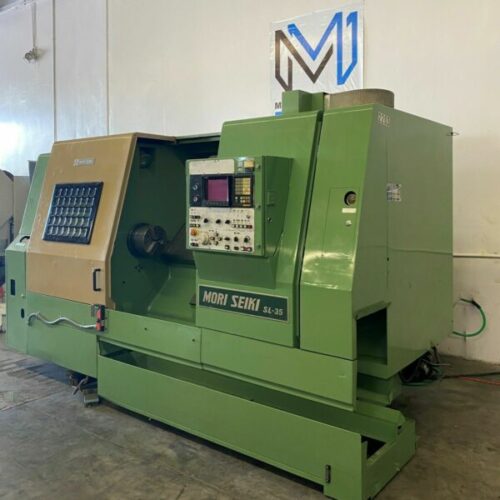

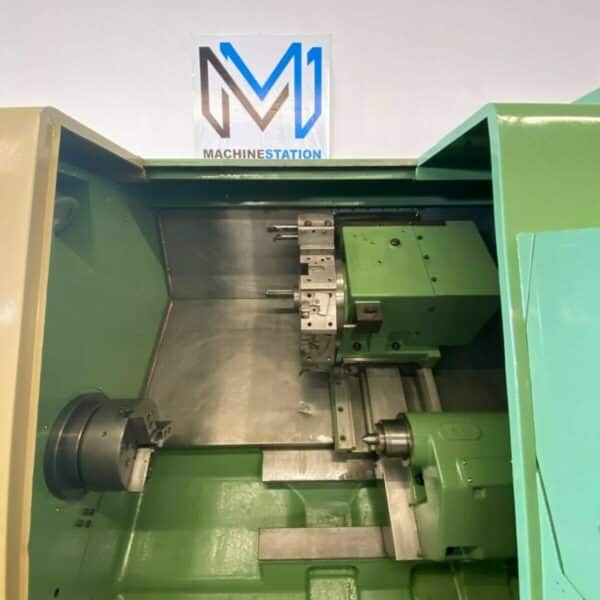

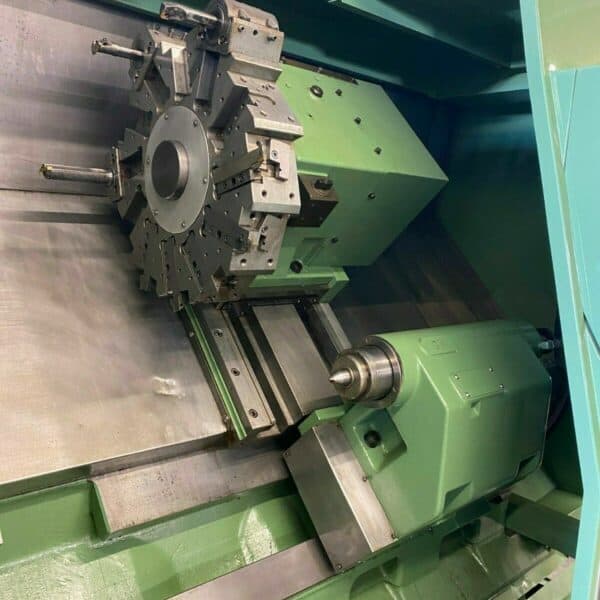

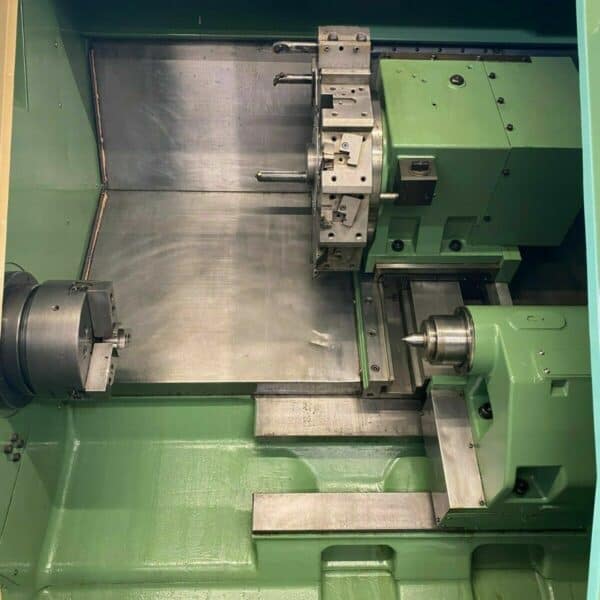

Mori Seiki SL-35 Comes as shown in Pictures….
