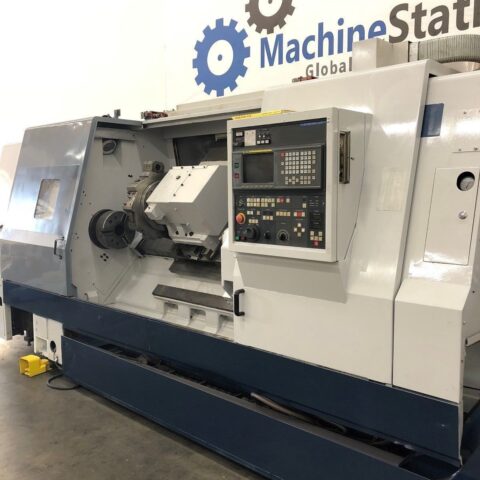

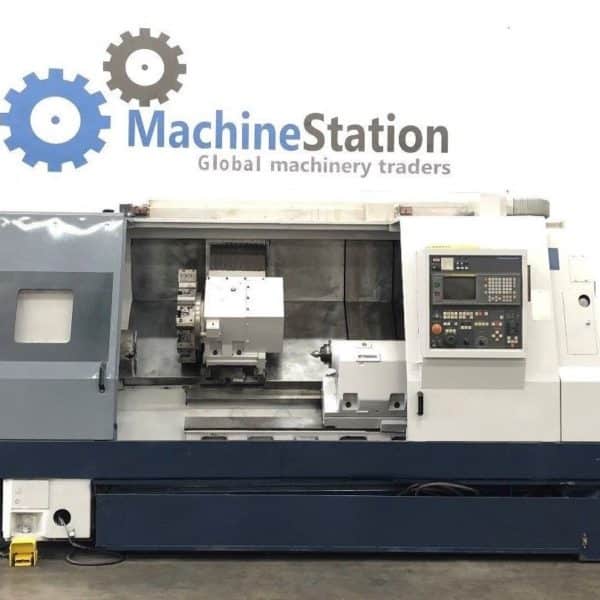

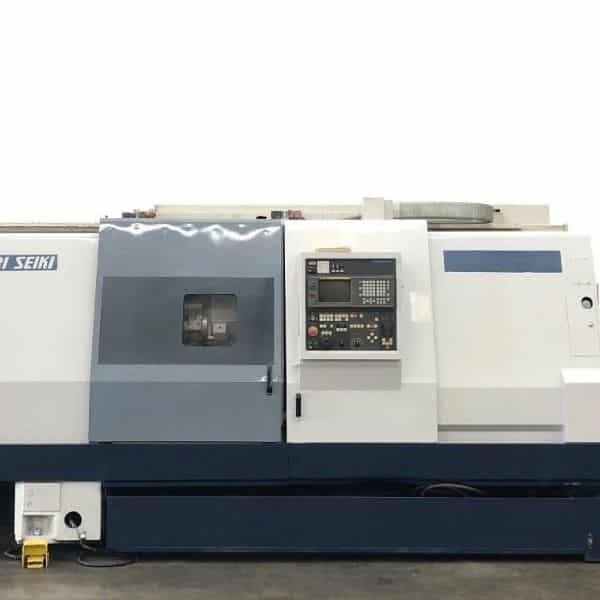

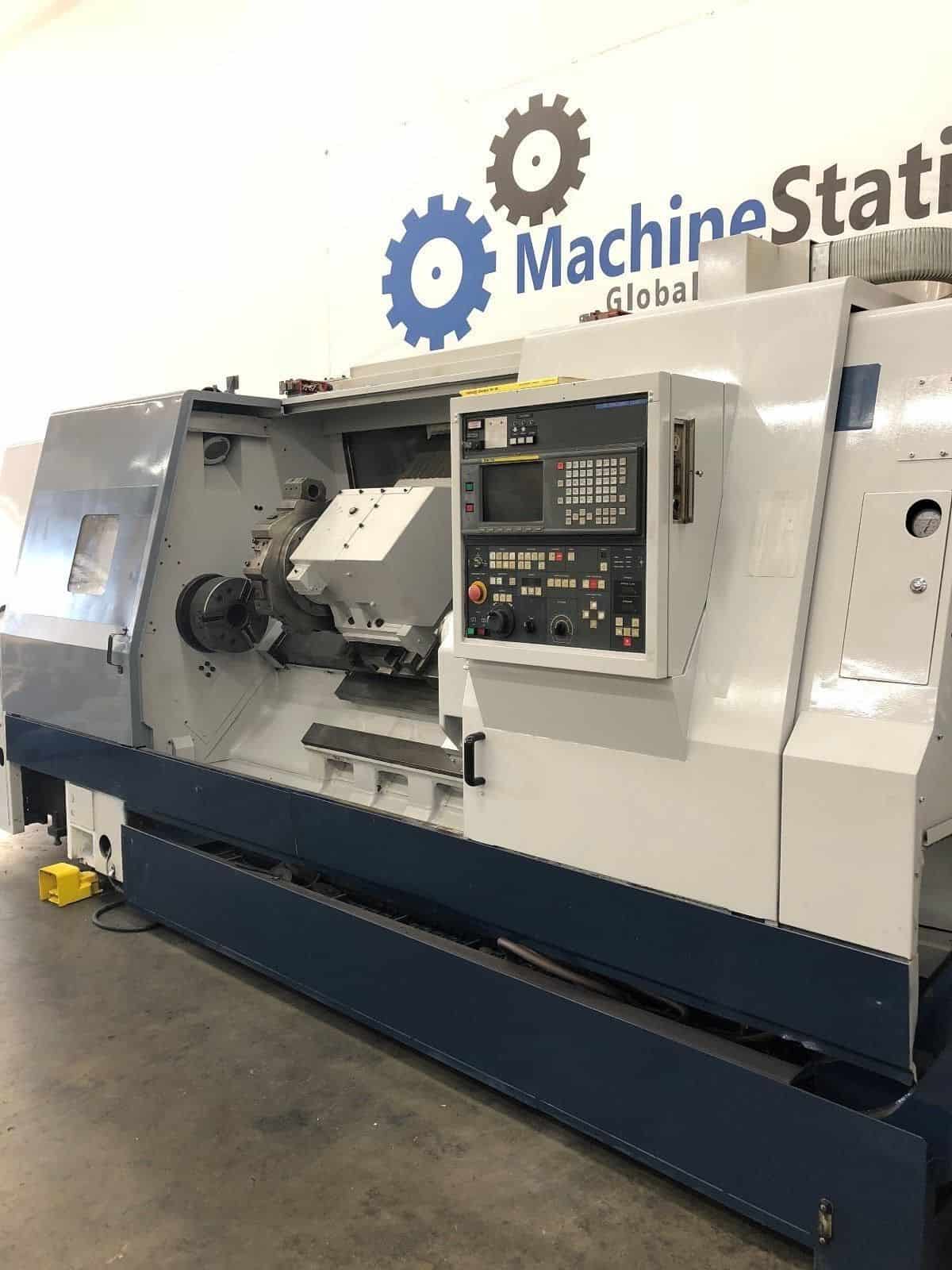

MORI SEIKI SL-35B/1500Β CNC TURNING CENTER | |
---|---|
Make | Mori Seiki |
Model No. | SL-35B/1500 |
Country of Origin: | Japan |
Serial # | 1222 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
βOne Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 12β³ Chuck, Tool holders, Chip Conveyor, Chuck and Manuals.β
- MORI SEIKI SL-35B/1500 Equipped With:

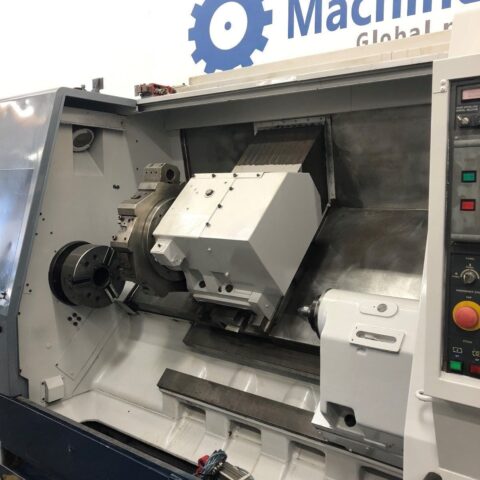

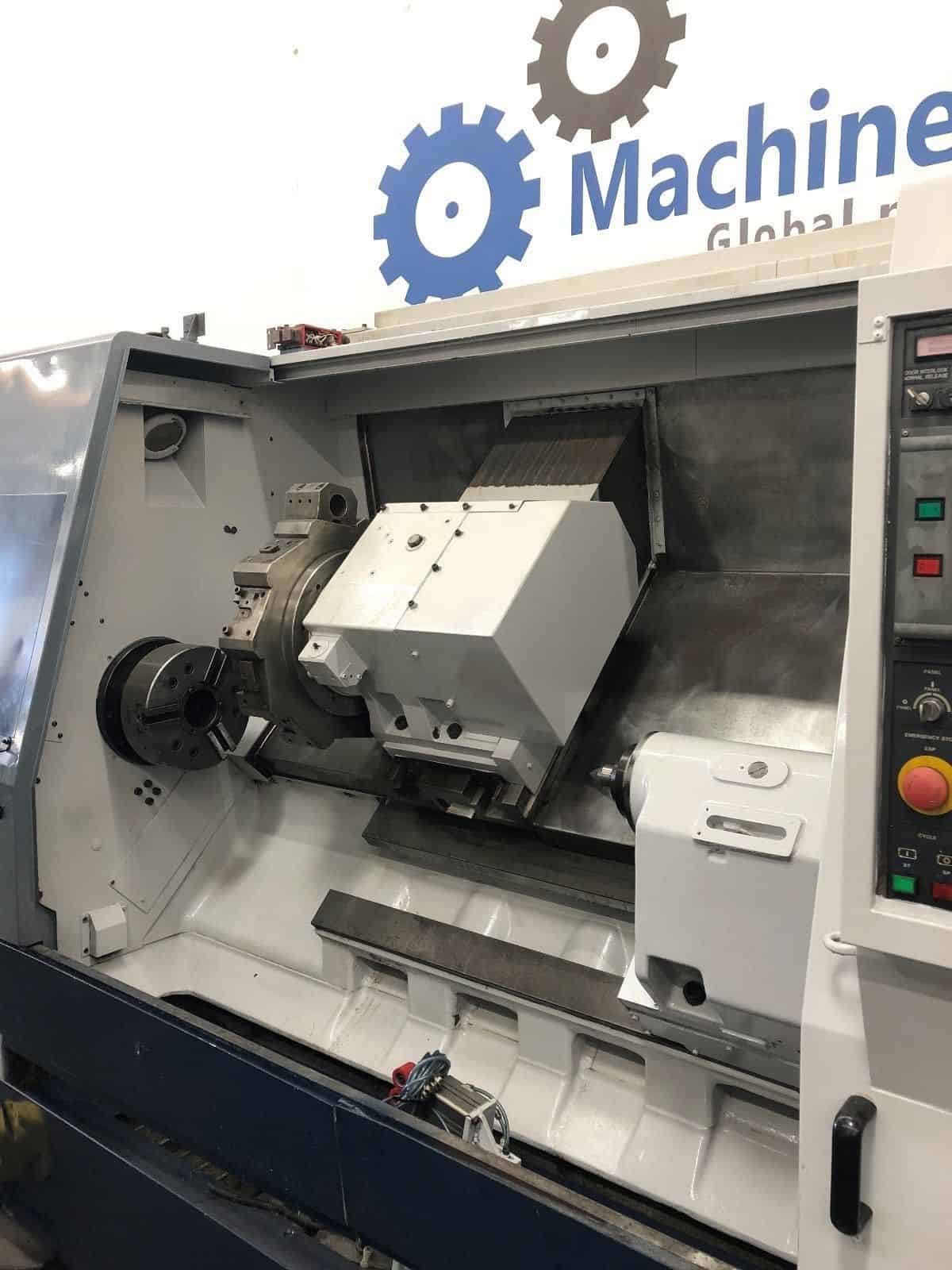

- 10-Station Turret with Tools

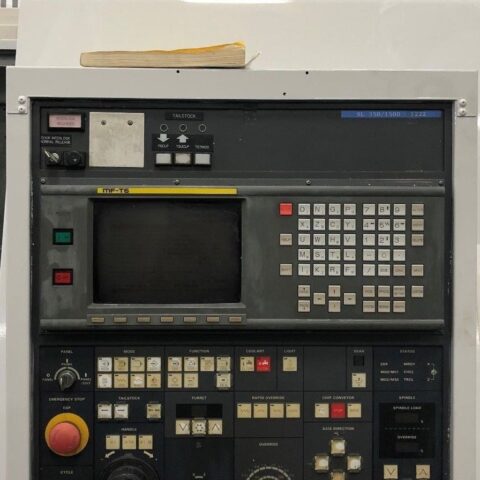

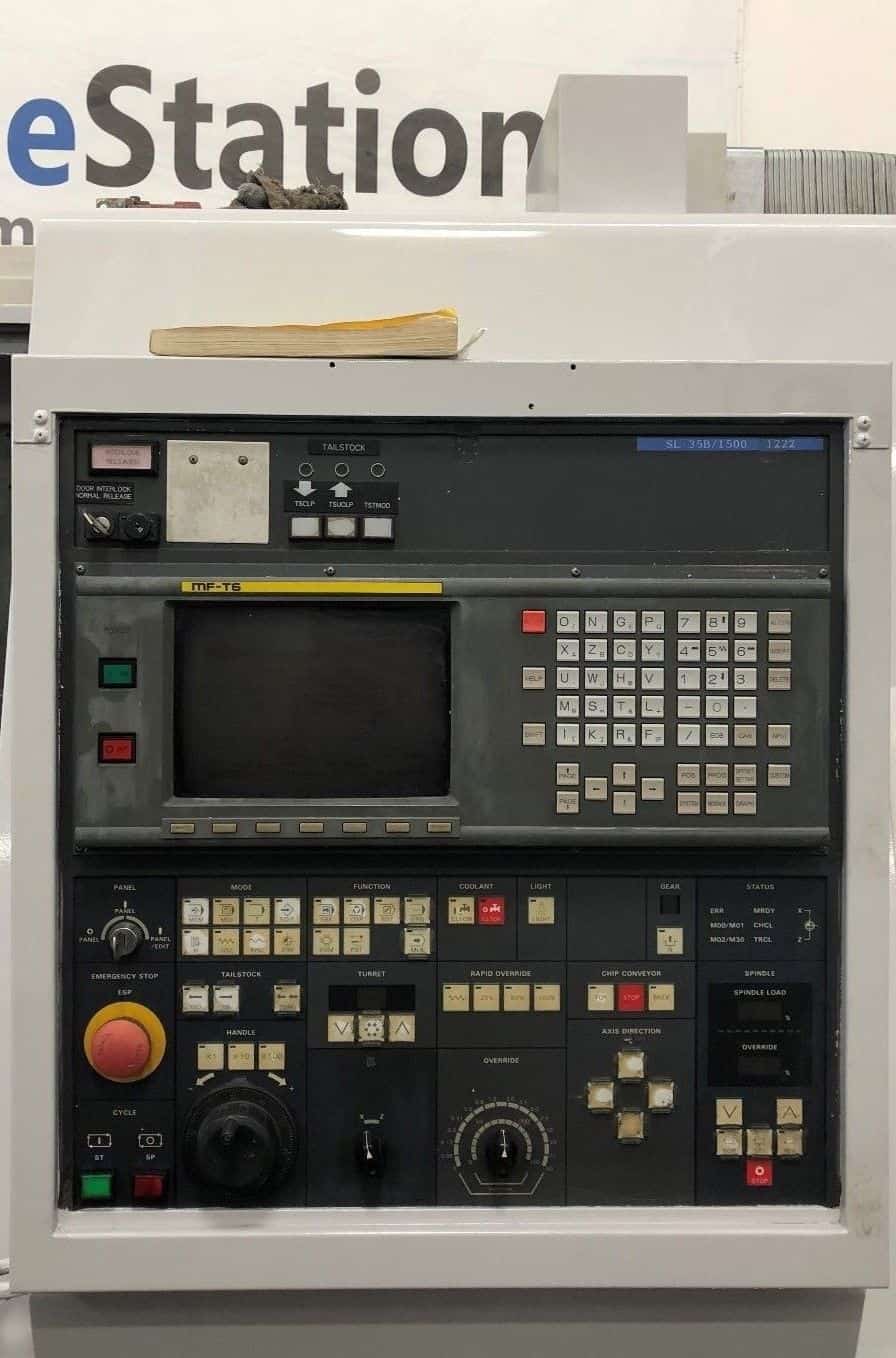

- MF-T6 (Fanuc 16T)Β CNC Control

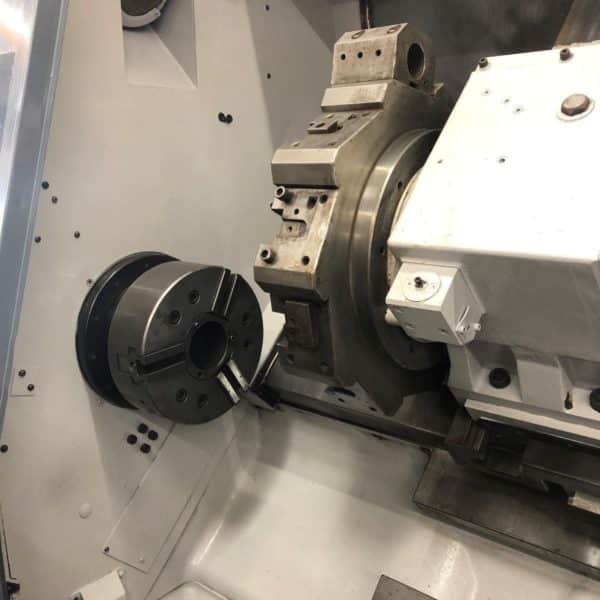

- 12β³ 3-JawΒ Hydraulic Chuck
- 2 Step gear spindle for powerful torque
- Programmable HydraulicΒ Tailstock with PowerΒ Quill

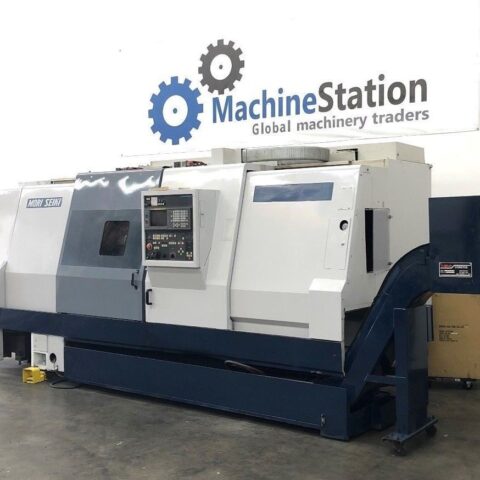

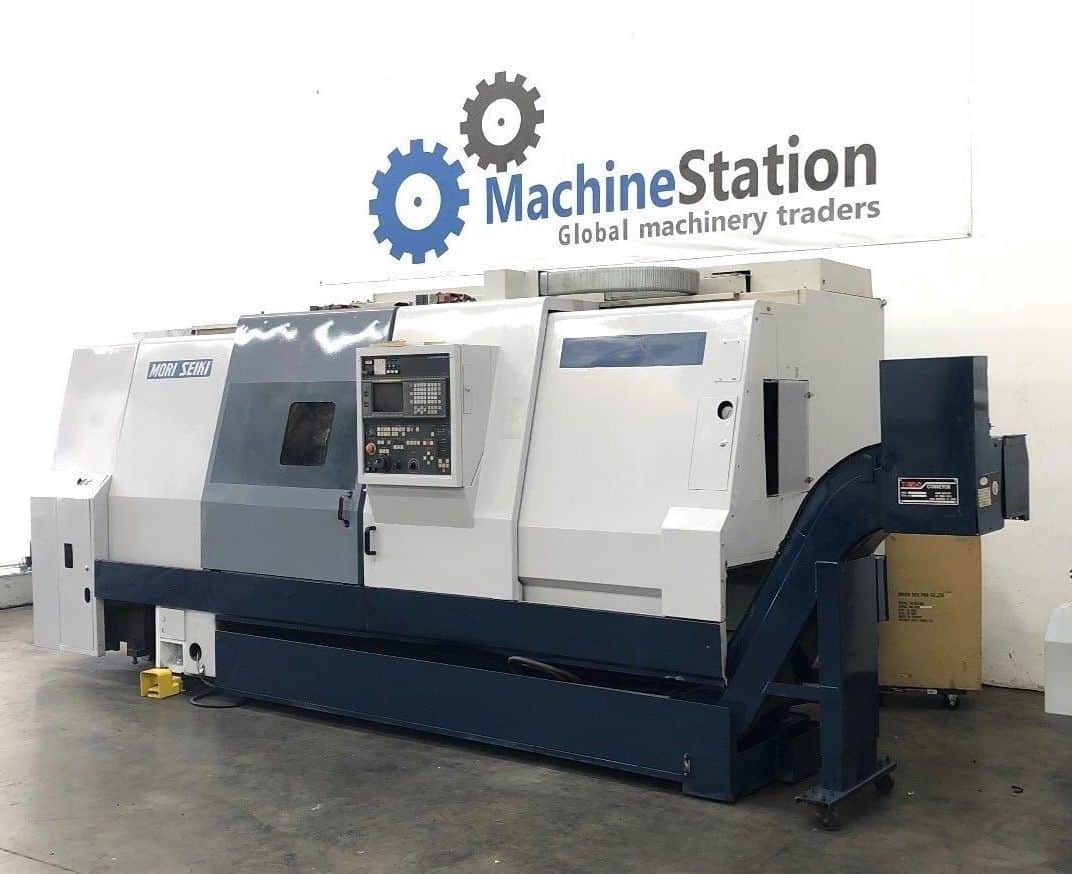

- Chip Pan and Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Original Books and Manuals
- General:

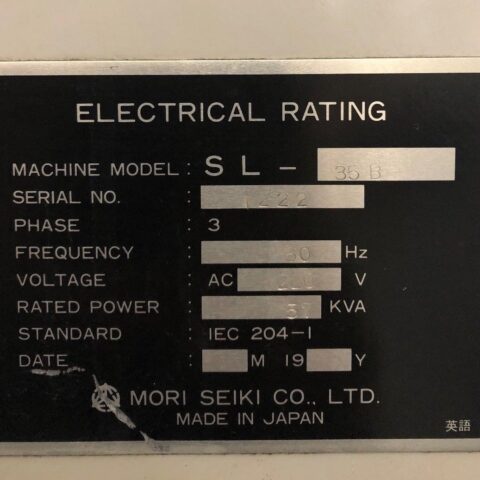

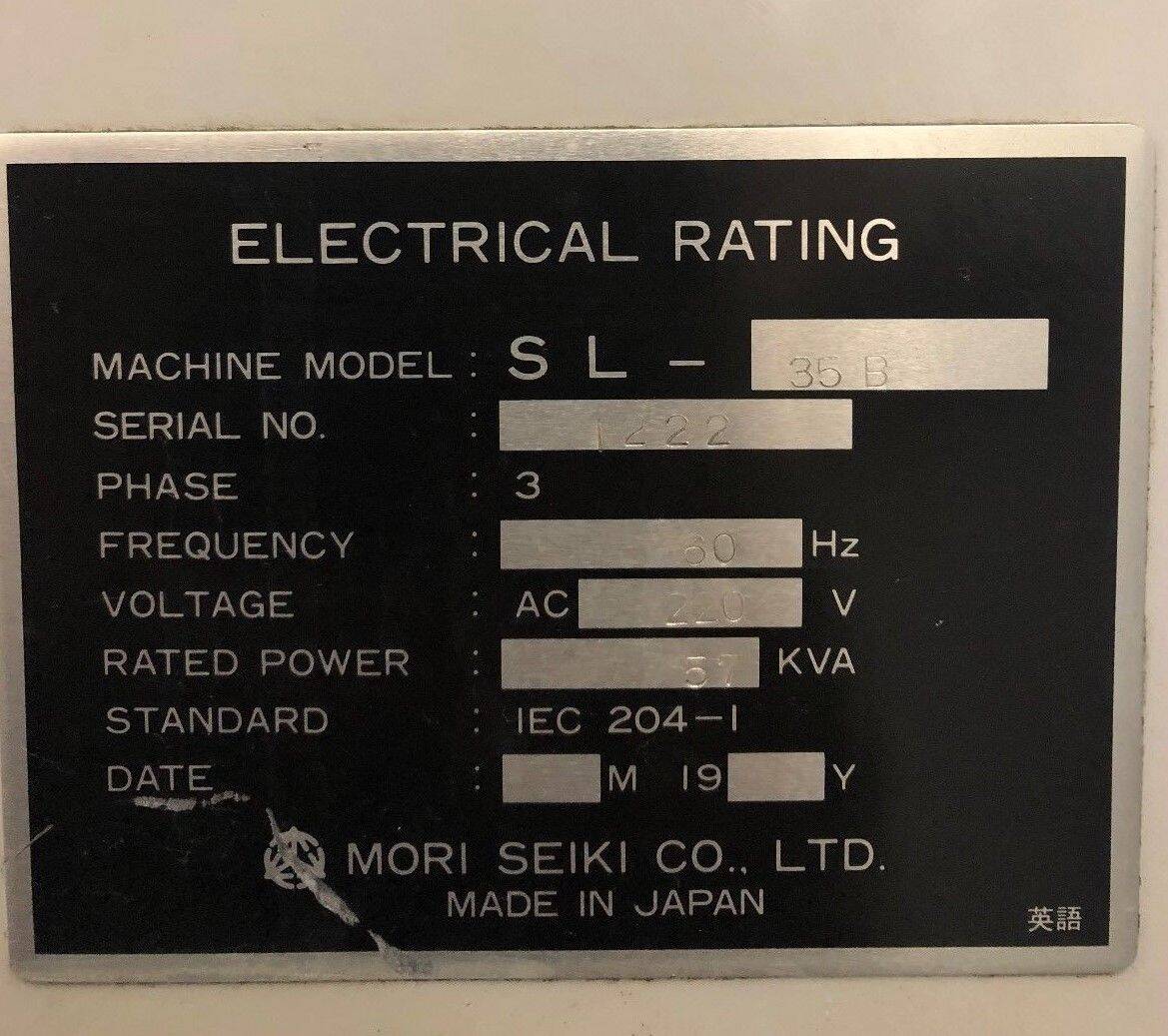

- Power Source: AC 220 V, 45kva, Three Phase, 60 Hz
- Overall Dimensions: 186β³ x 66β³ x 84β³ High
- Overall Dimensions: 228β³ x 66β³ x 84β³ High with Chip Conveyor
- Weight : 19800 lbs Approx.
- MORI SEIKI SL-35B/1500 Specifications:
- Max Turning Diameter: 16.8β³
- Max Turning Length: 60.24β³
- Max Bar Capacity: 4.13β³
- Swing Over Slide: 16.7β³
- Swing Over Bed: 23.6β³
- Distance Between Centers: 64.57β³
- X Axis Travel: 9.45β³
- Z Axis Travel:Β 63.19β³
- Rapid TraverseΒ X Axis:Β 472 IPM
- Rapid Traverse Z Axis:Β 590 IPM
- Spindle Nose:Β A2-8
- Spindle Bore:Β 4.13β³
- Spindle Speed:Β 9-2500 RPM
- Spindle Motor:Β 30 HP
- Turret Capacity:Β 10 Stations
- Turret Index Time:Β 0.5 Second
- Tailstock Body Travel: 58.86β³
- Tailstock Quill Dia.: 5.12β³
- Tailstock Quill Stroke: 4.72β³
- Tailstock Taper: MT-4
Comes as shown in picturesβ¦.
