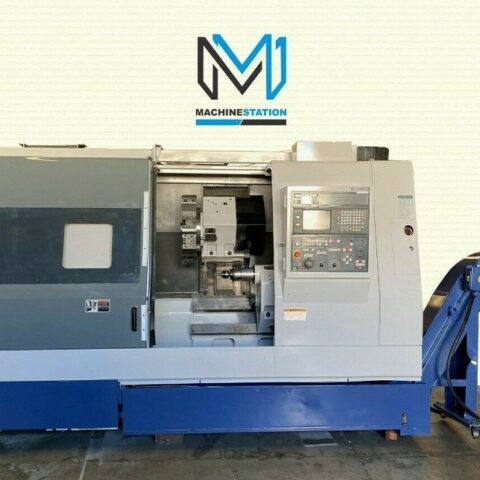

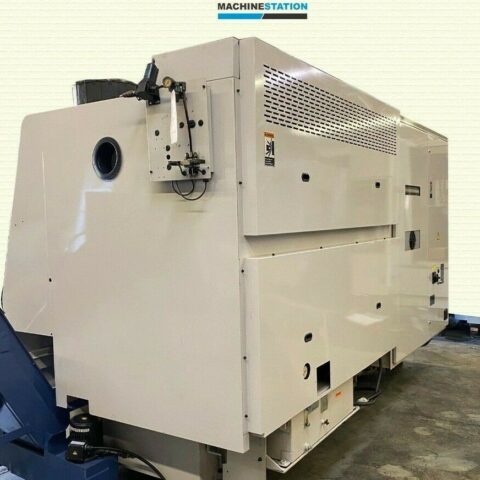

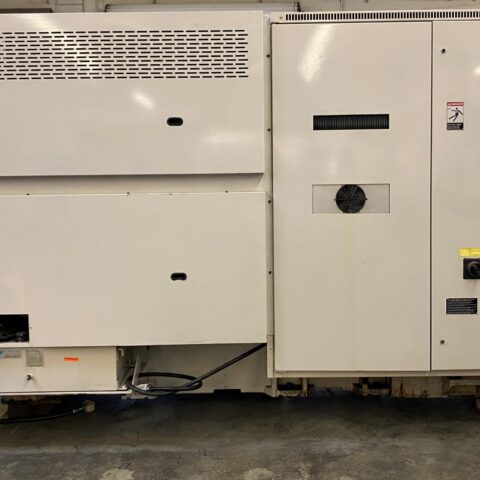

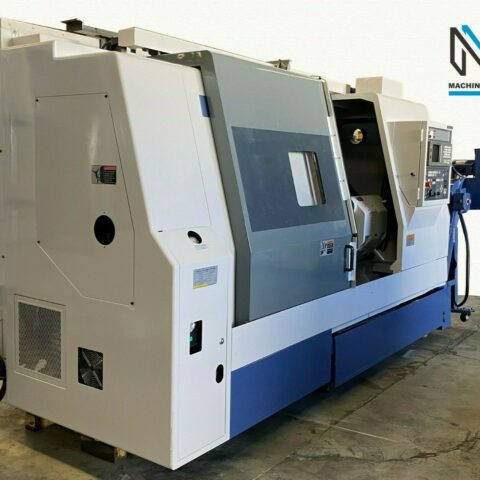

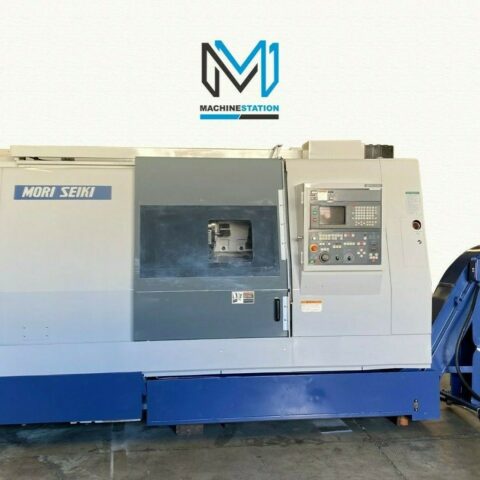

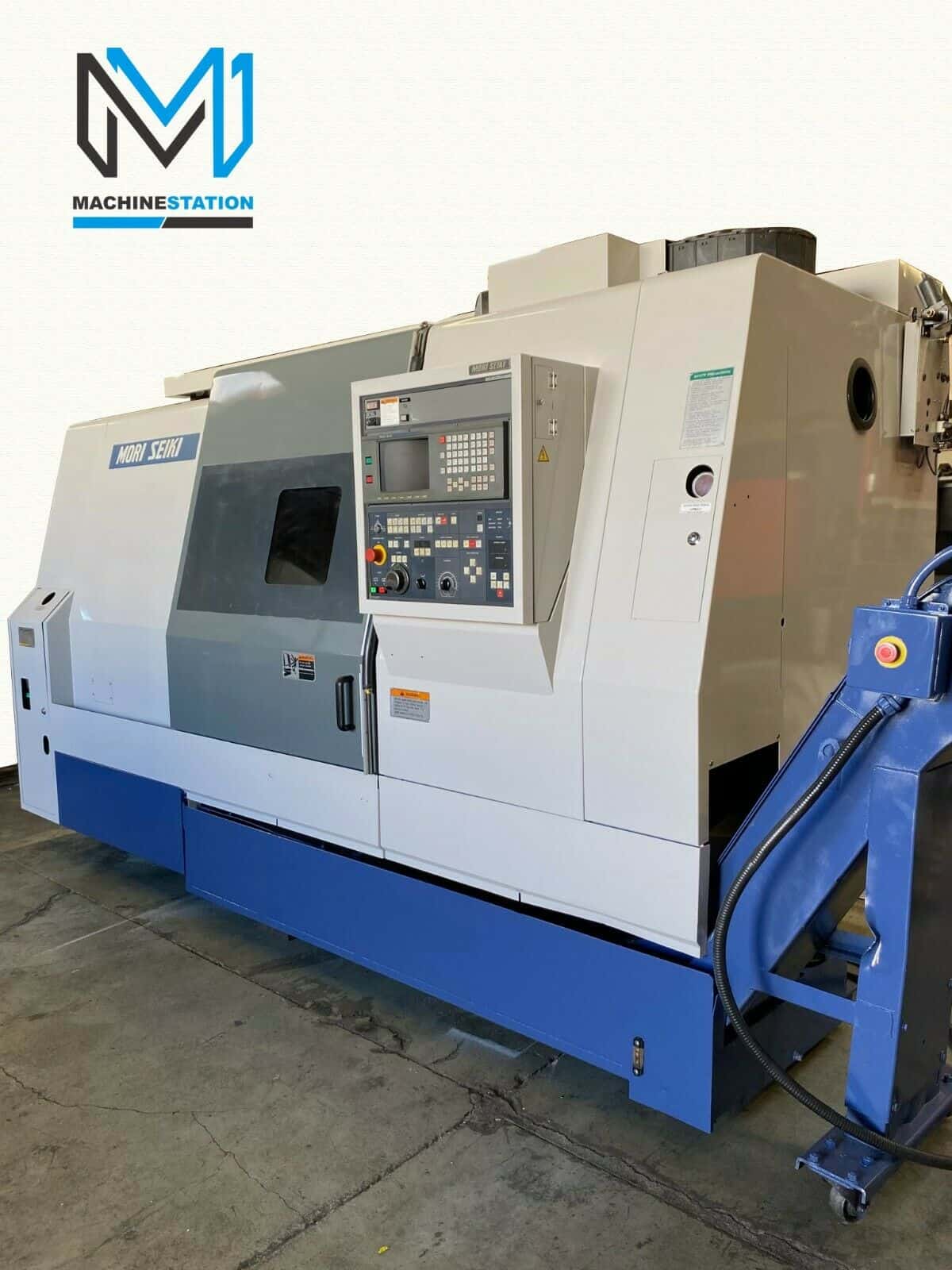

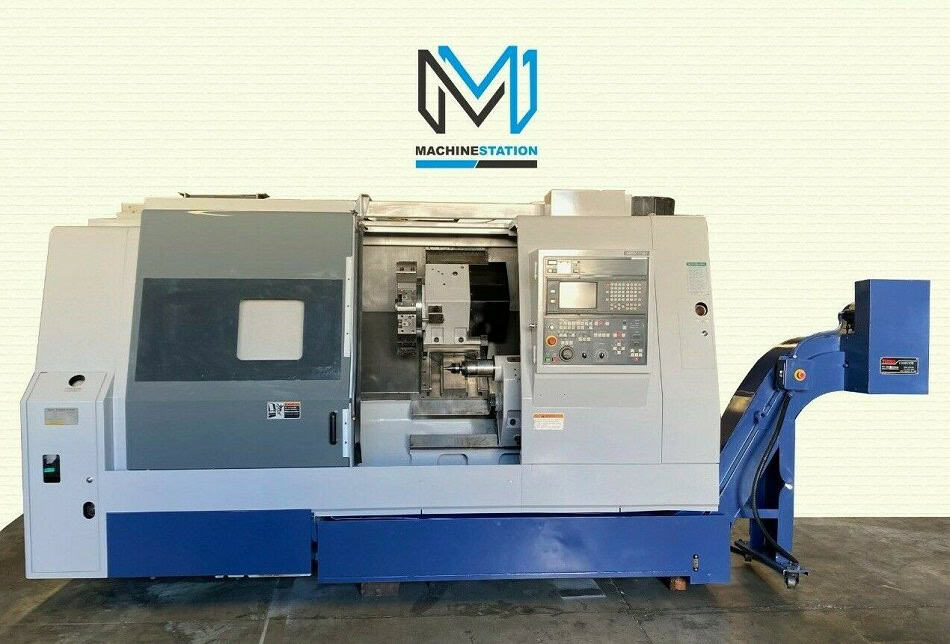

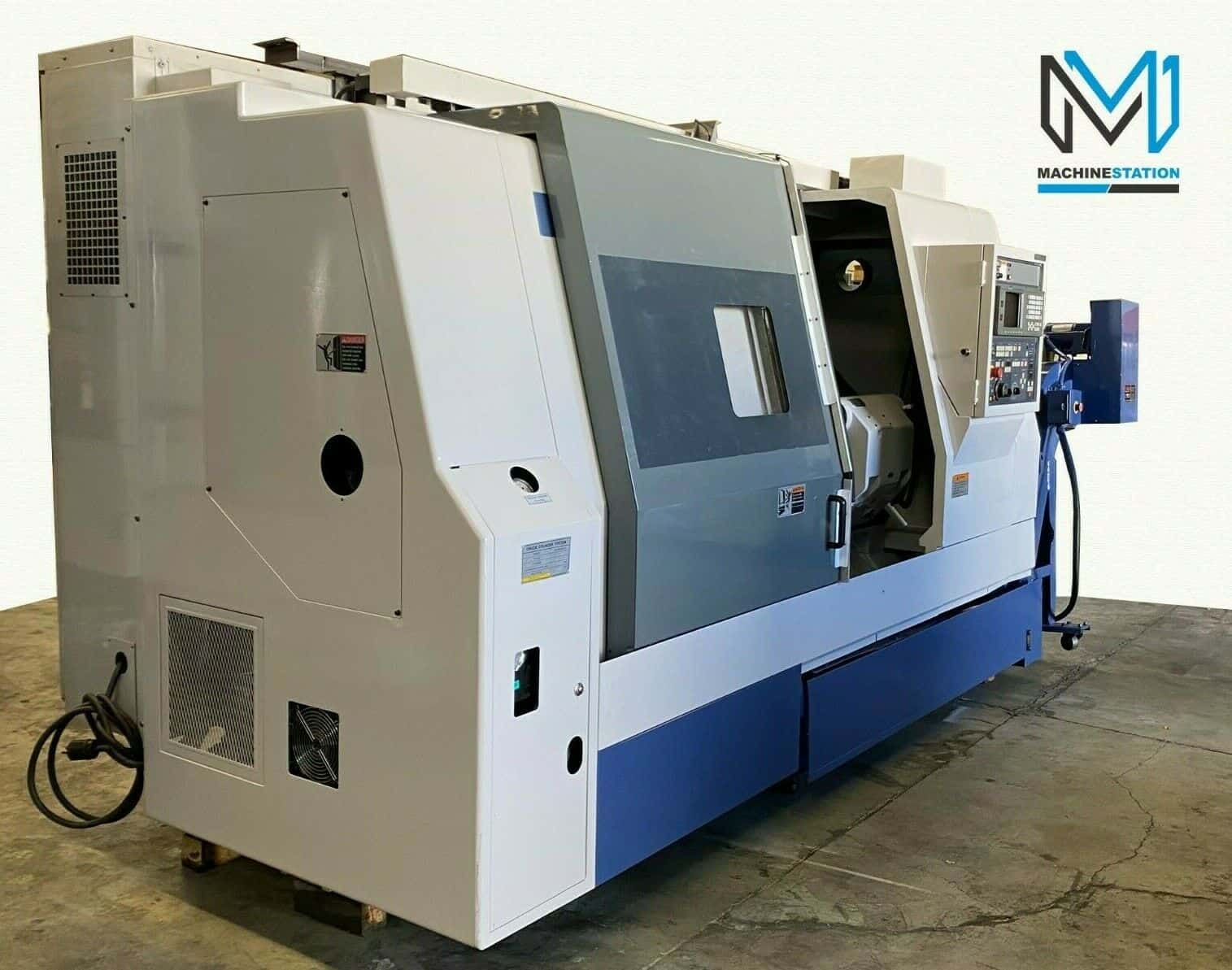

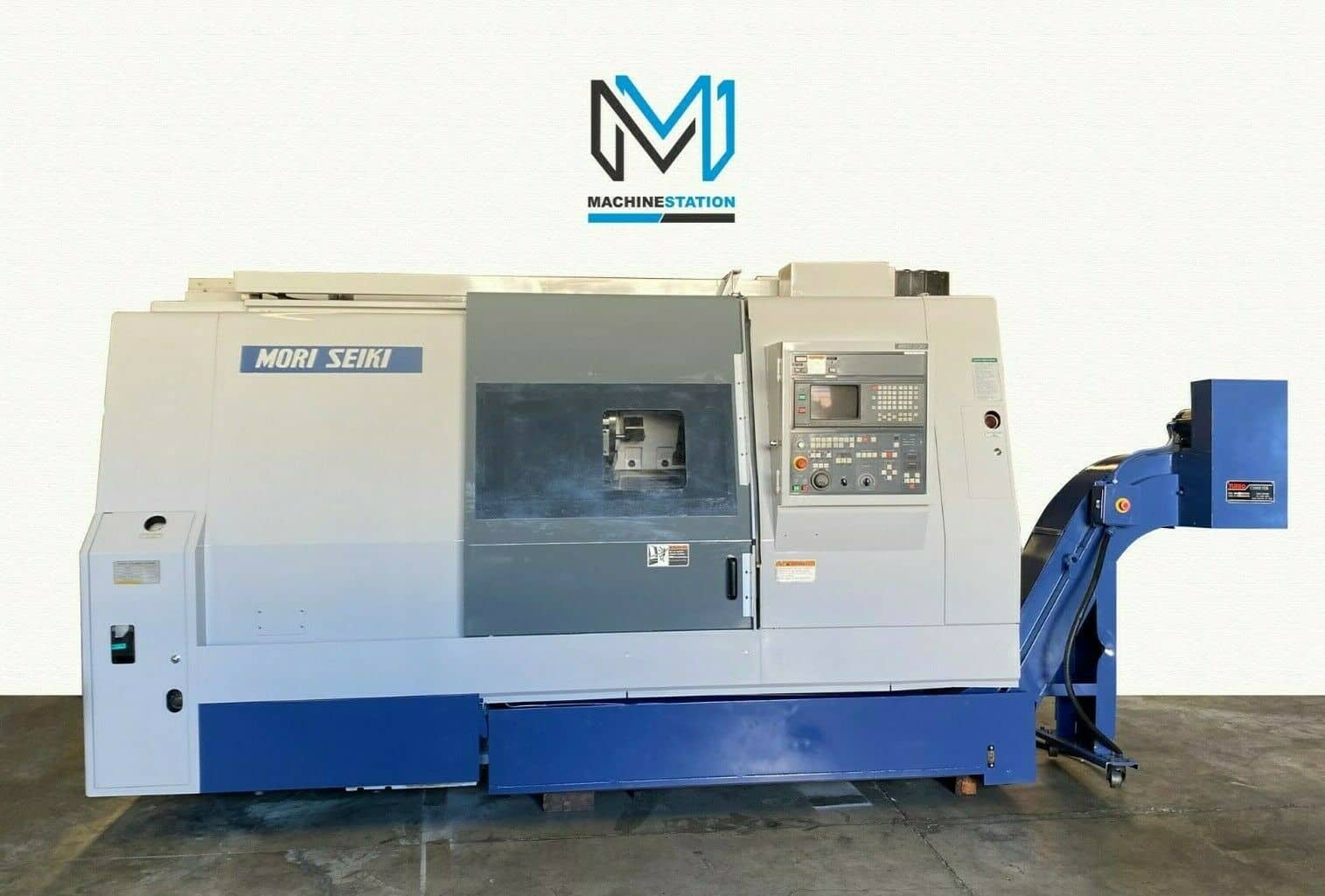

Mori Seiki SL-35B/750 CNC Turning Center
Out of stock
| MORI SEIKI SL-35B/750 CNC TURNING CENTER |
| SKU |
2046 |
| Make |
Mori Seiki |
| Model No. |
SL-35B/750 |
| Serial # |
1711 |
| Condition |
Very Good |
- Mori Seiki SL-35B/750 Equipped With:

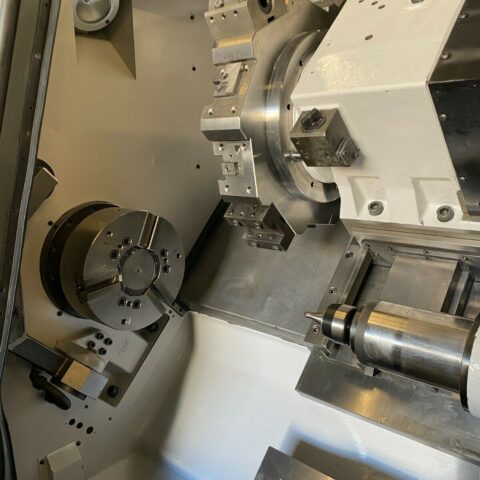

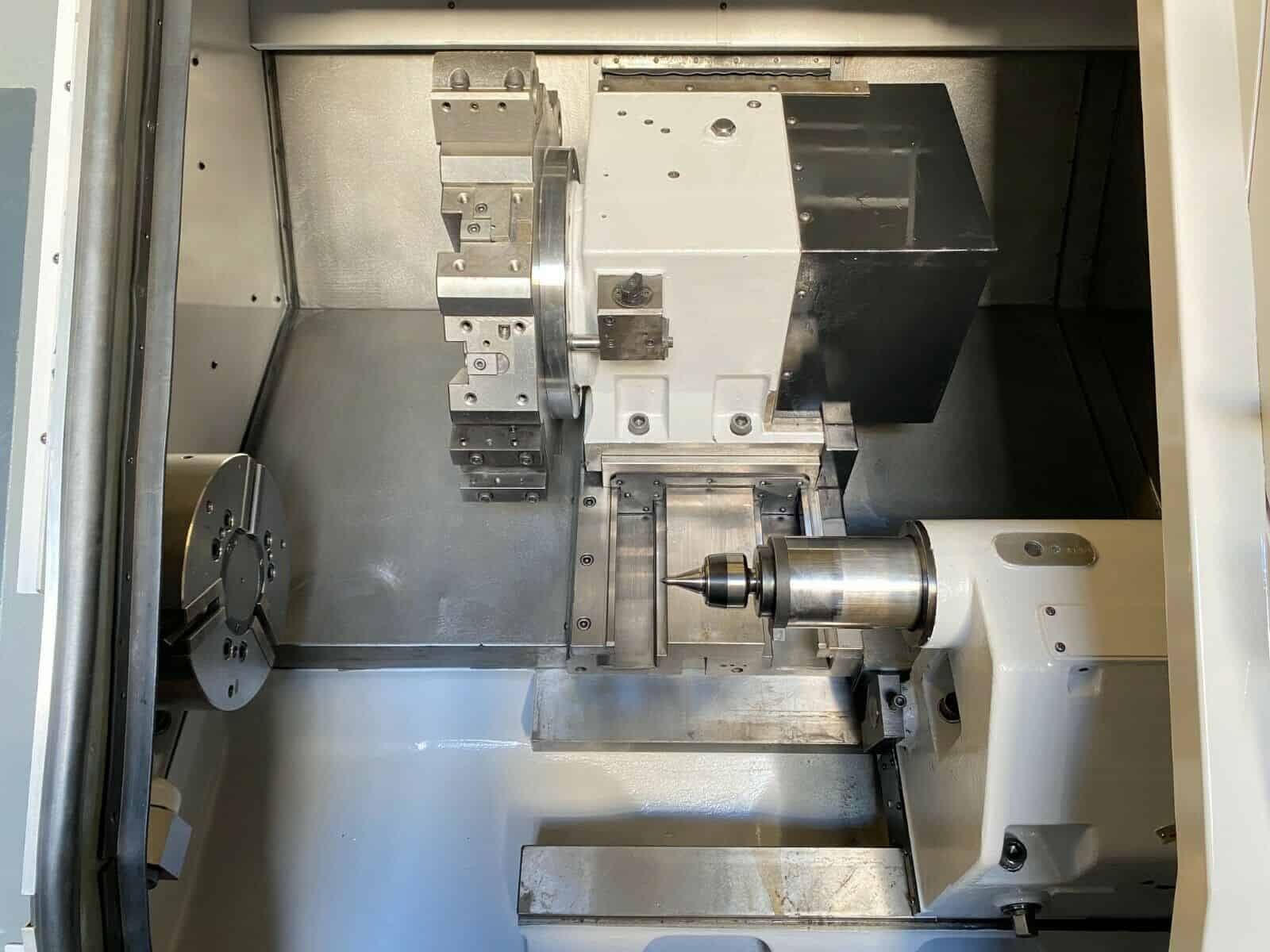

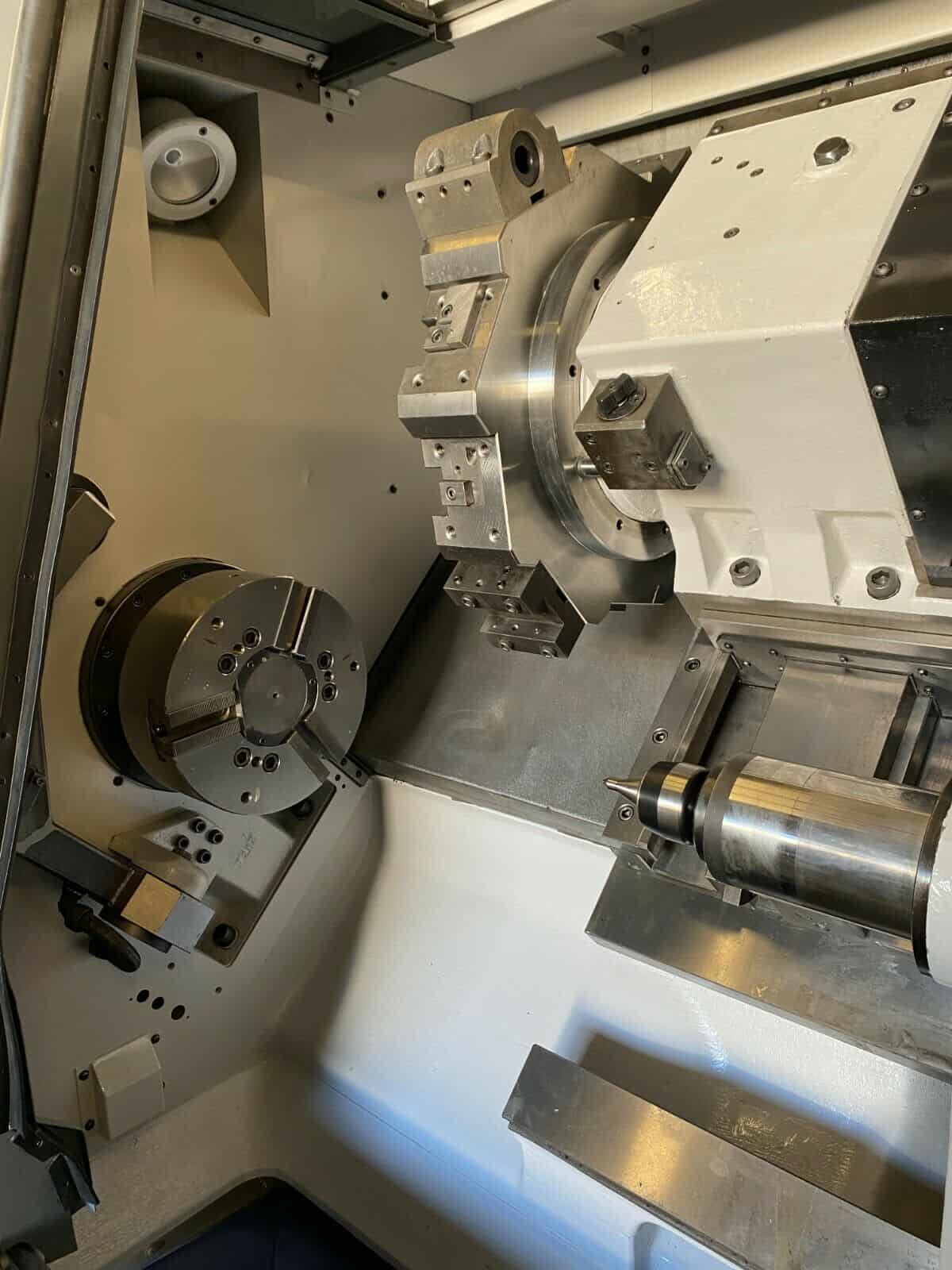

- 10 -Station Turret with Tool Holders

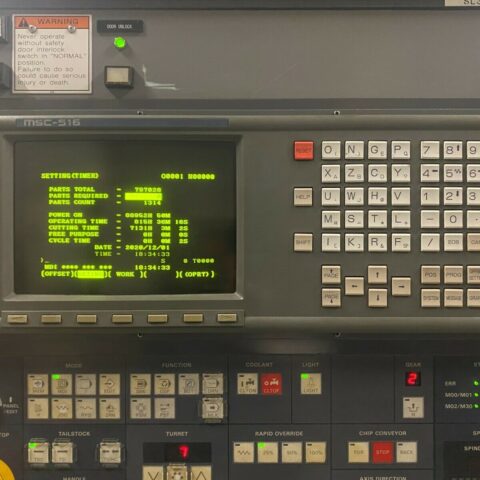

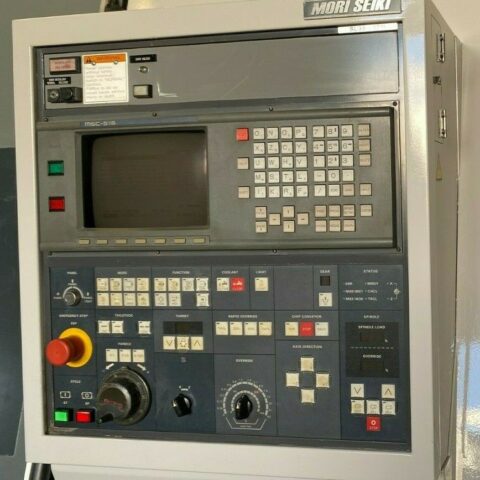

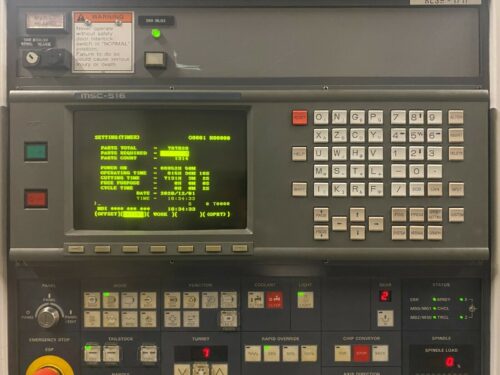

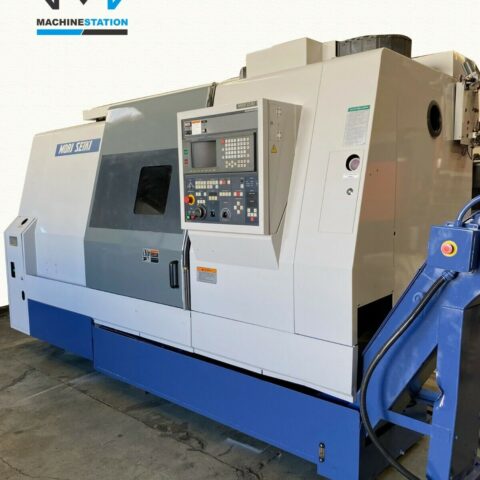

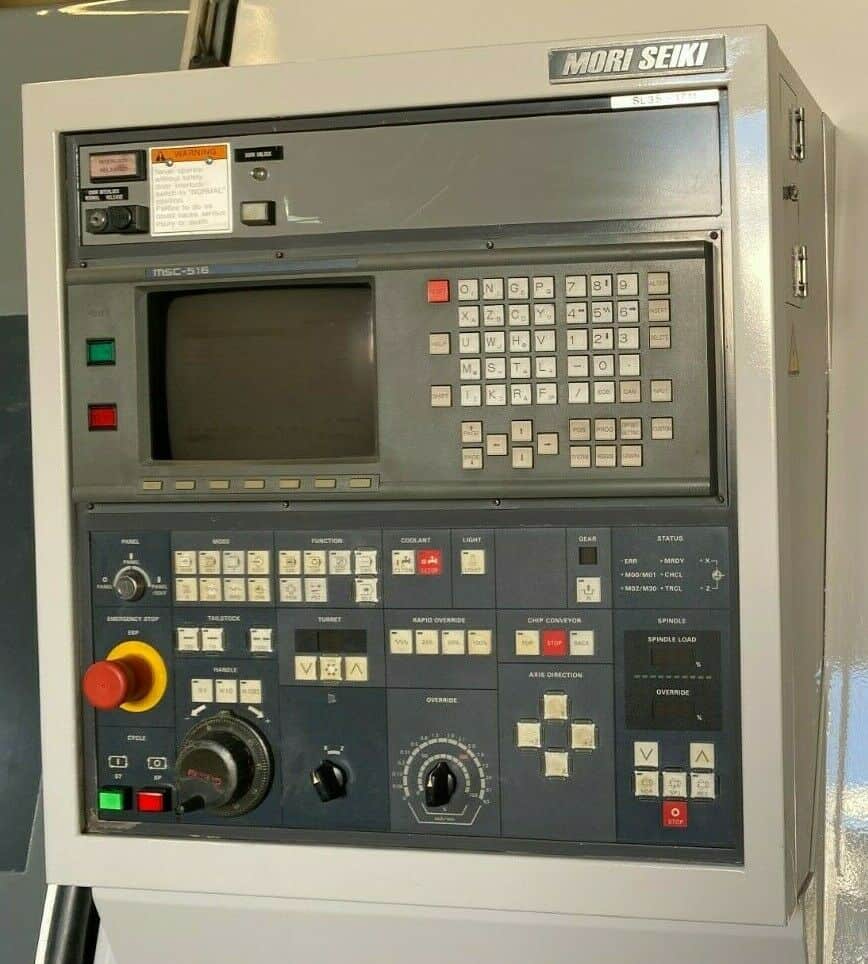

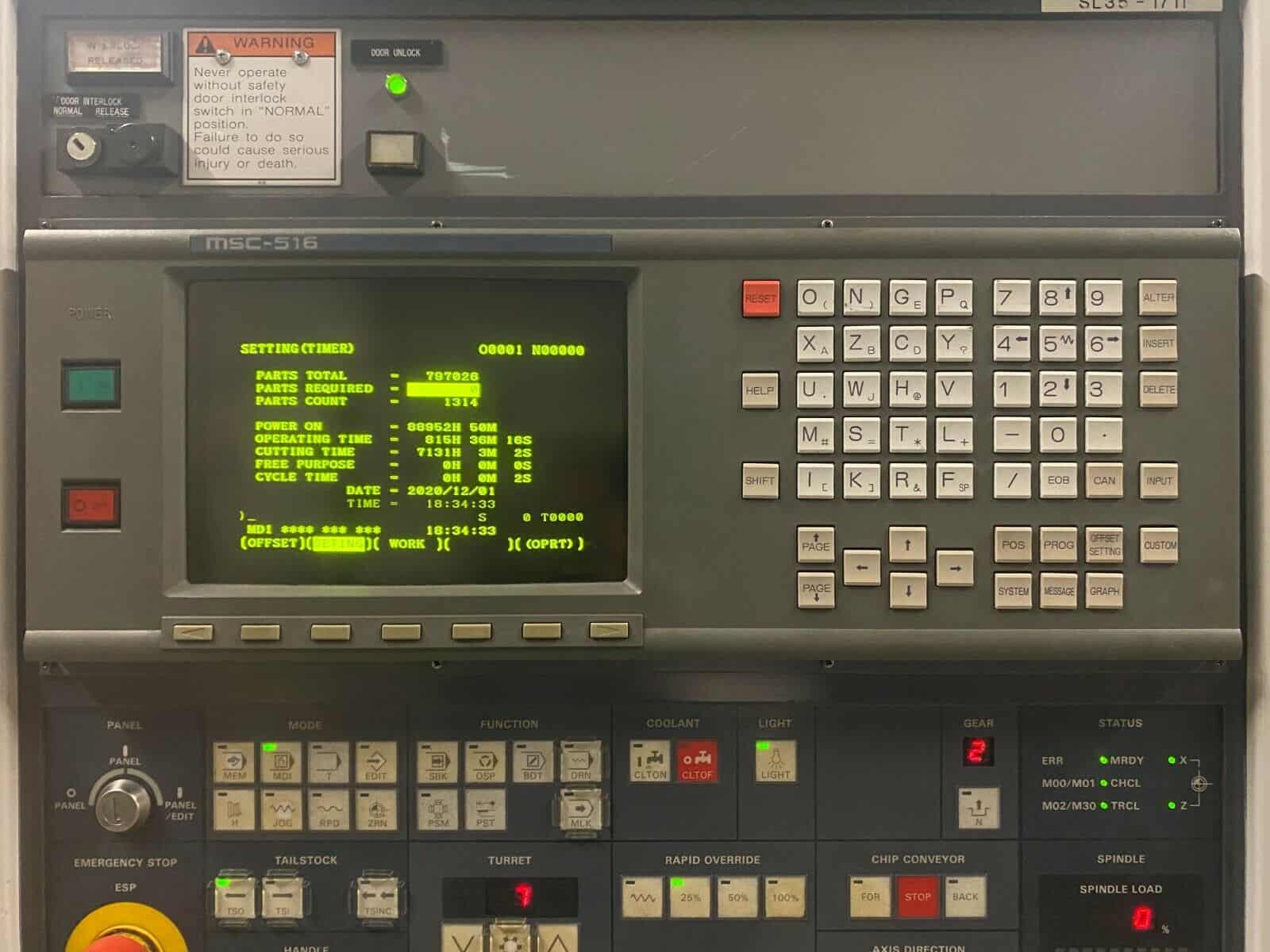

- MF-T6 (Fanuc 16T) CNC Control

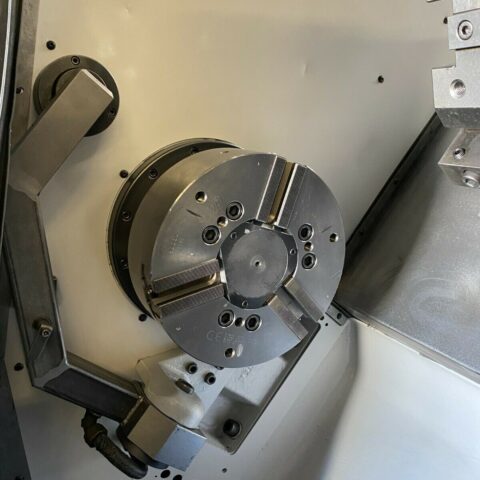

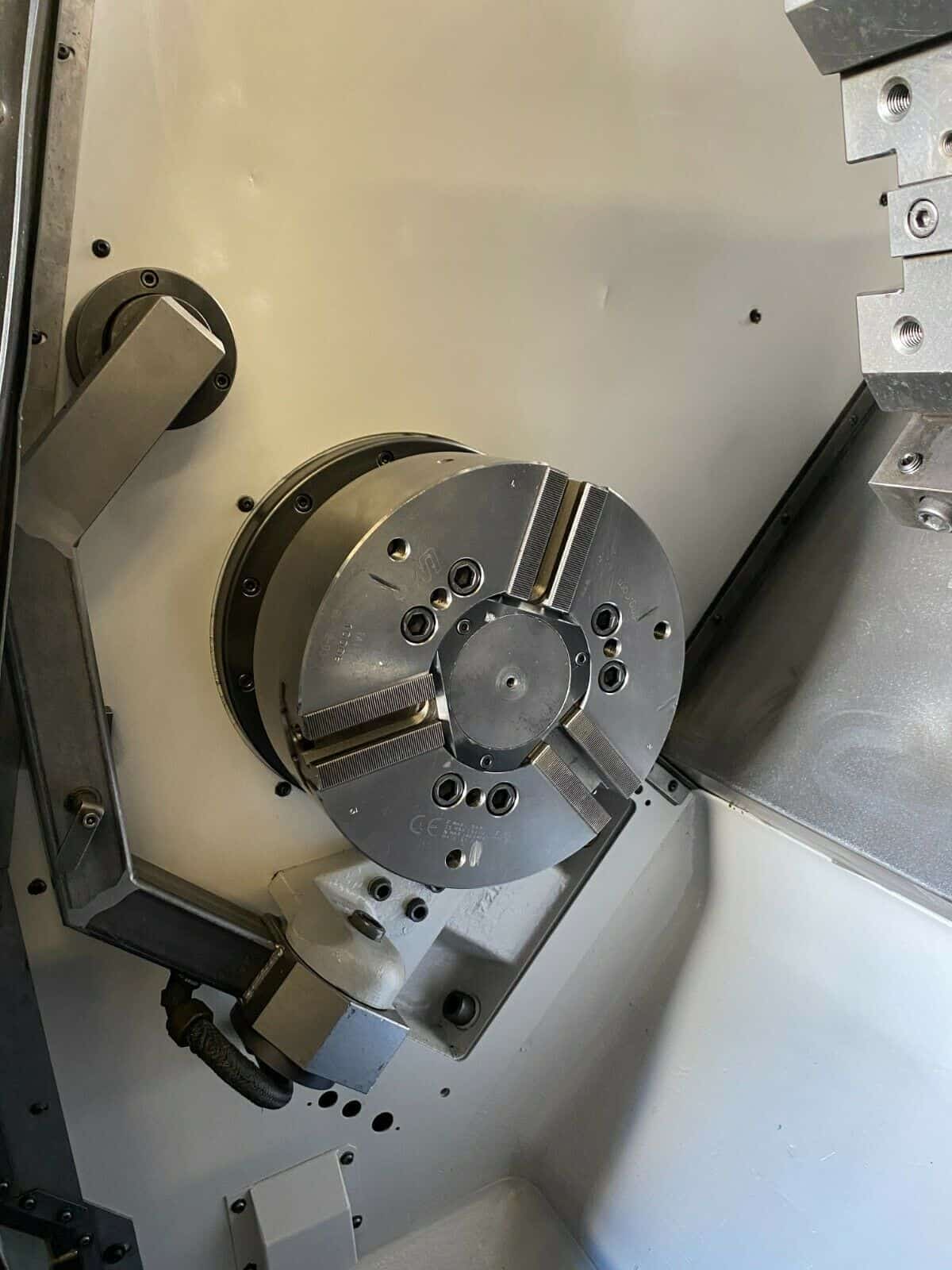

- 3 Jaw Kitagawa 12″ Hydraulic Chuck
- 2 Step gear spindle for powerful torque

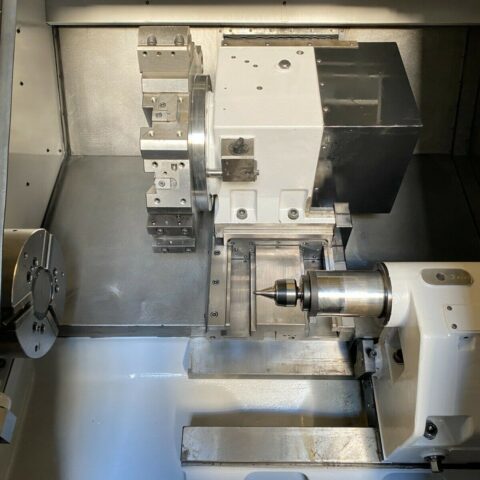

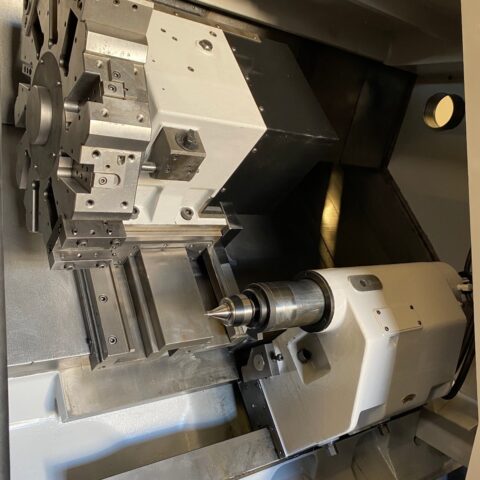

- Hydraulic Tailstock with Power Quill
- Foot Switch
- Chip Pan and Chip Conveyor
- Coolant System
- Automatic Lubrication system
- Manuals
- Mori Seiki SL-35B/750 Specifications:
- Capacity:
- Max Turning Diameter: 16.5″
- Max Turning Length: 30.7″
- Max Bar Capacity: 3.65″
- Swing Over Slide: 16.7″
- Swing Over Bed: 23.6″
- Distance Between Centers: 35.6″
- Travel:
- X Axis Travel: 9.45″
- Z Axis Travel: 33.7″
- Rapid Traverse X Axis: 472 IPM
- Rapid Traverse Z Axis: 590 IPM
- Spindle:
- Spindle Nose: A2-8
- Spindle Bore: 4.13″
- Spindle Speed: 2500 RPM
- Spindle Motor: 30 HP
- Turret:
- Turret Capacity: 10 Stations
- Turret Index Time: 1 Second

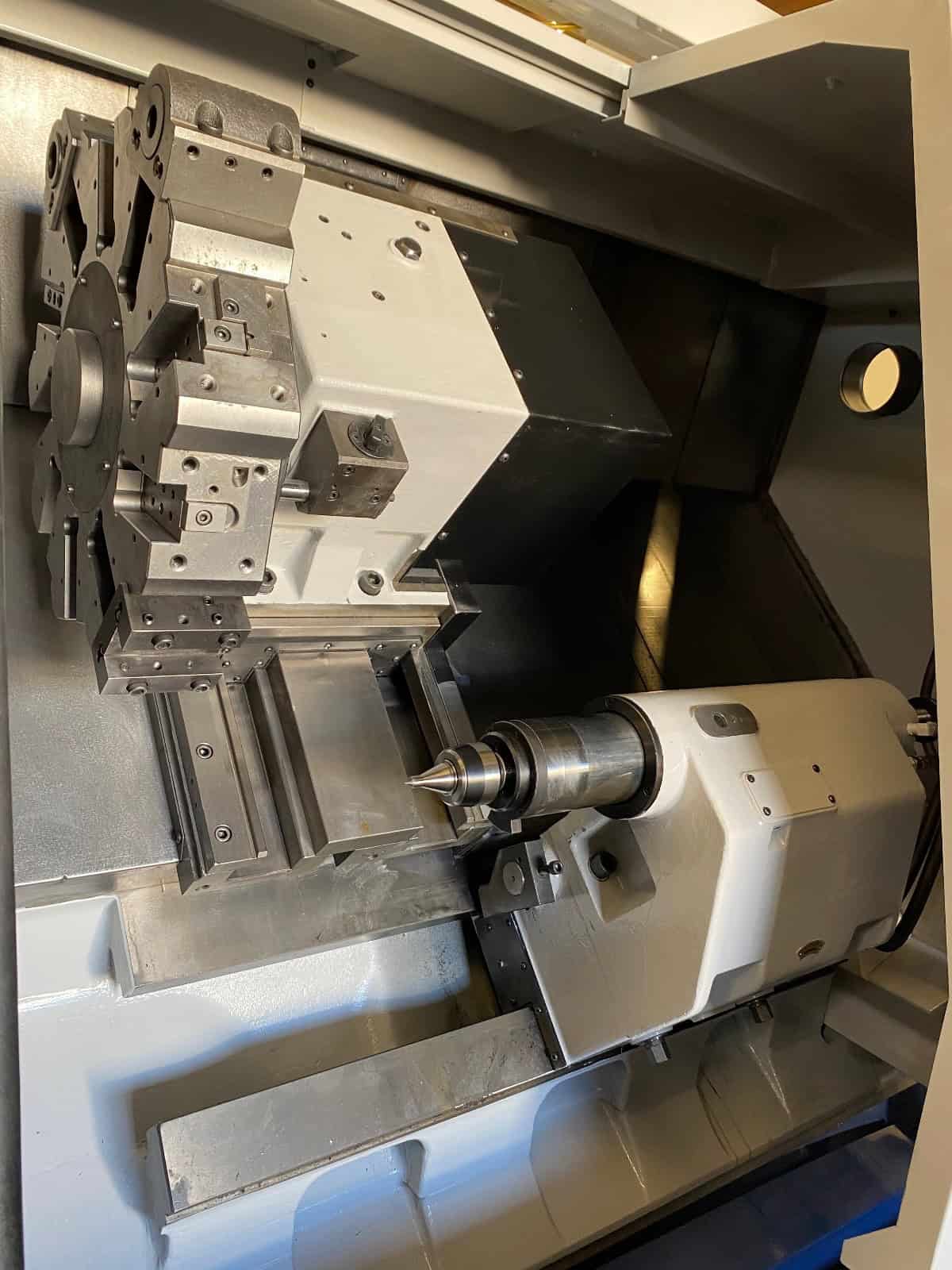

- Tailstock:
- Tailstock Body Travel: 27.8″
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-4
- General:

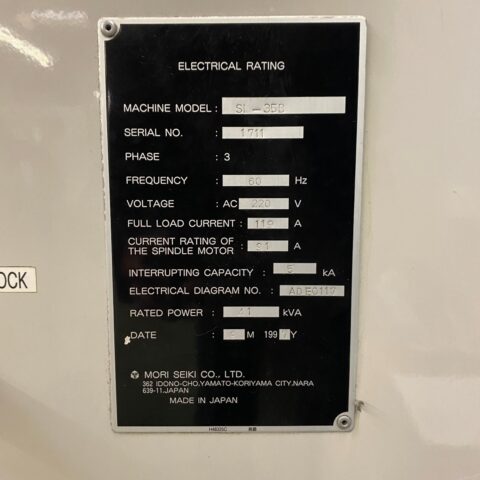

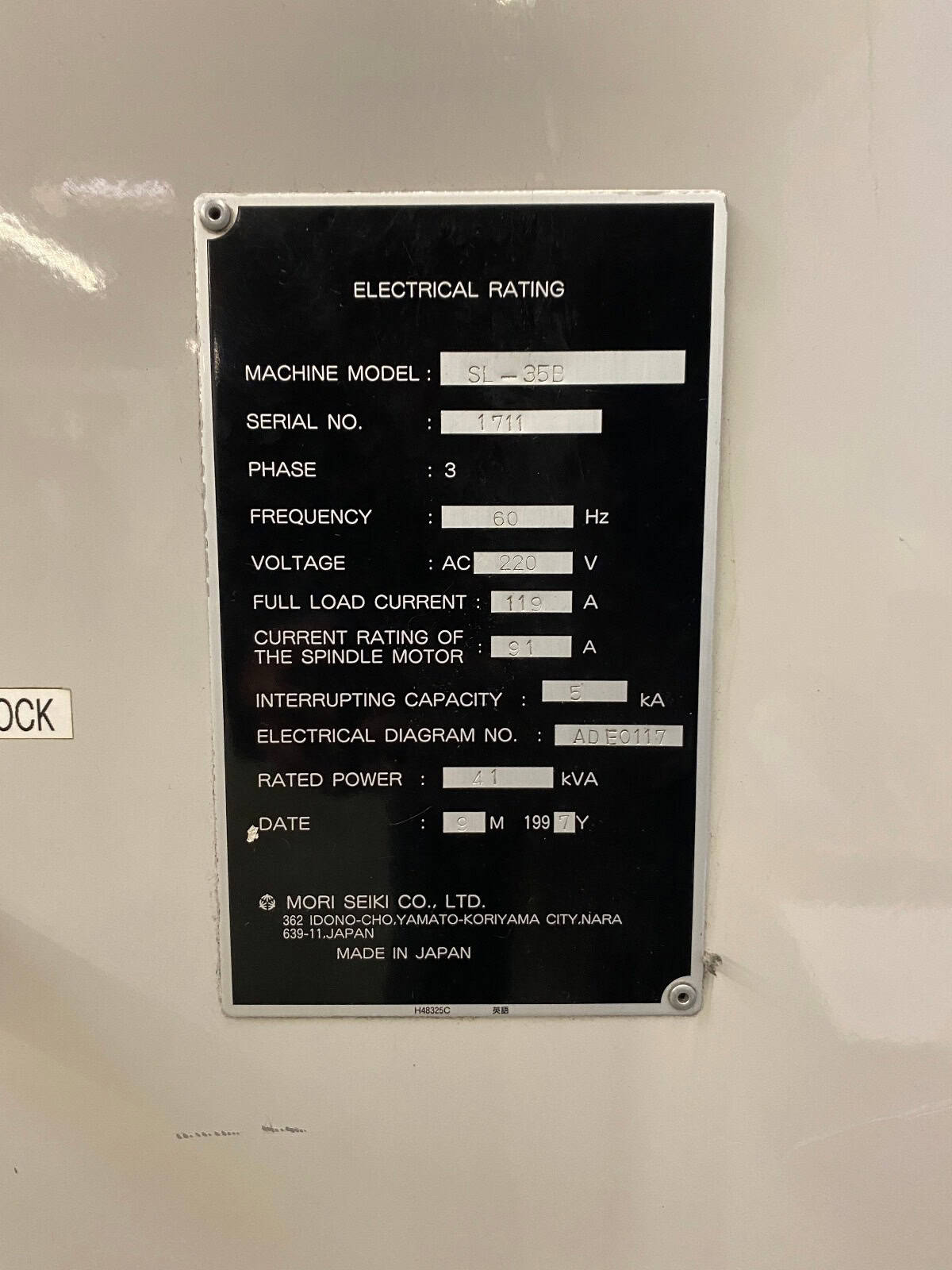

- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 140″ x 70″ x 80″ High
- Overall Dimensions: 175″ x 70″ x 80″ High with Chip Conveyor
- Weight : 18,000 lbs Approx.
