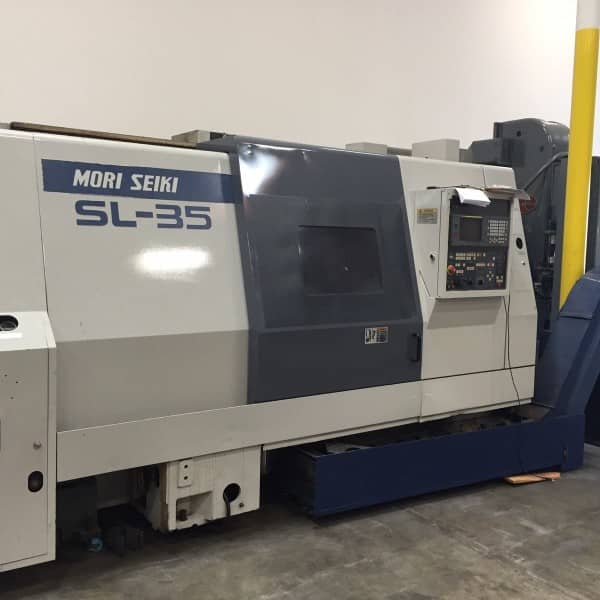

| MORI SEIKI SL 35B CNC TURNING CENTER w/ MF-T6 | |
|---|---|
| Make | Mori Seiki |
| Model No. | SL 35B |
| Country of Origin: | Japan |
| Serial # | 1106 |
| Condition | Very Good |
- MORI SEIKI SL 35B Features:
- Box Way Design

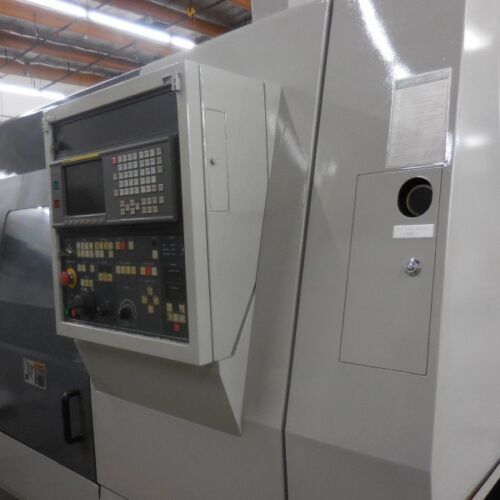

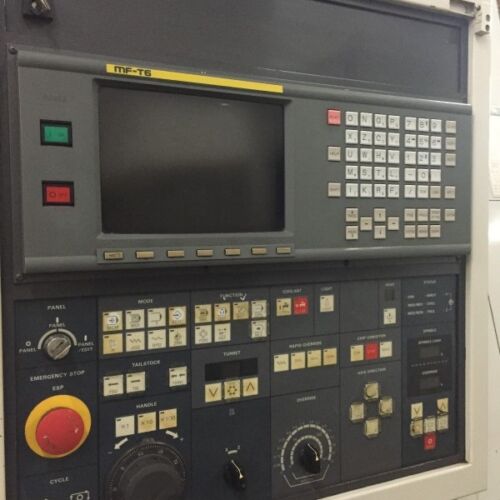

- MF-T6 (Fanuc 16T) CNC Control

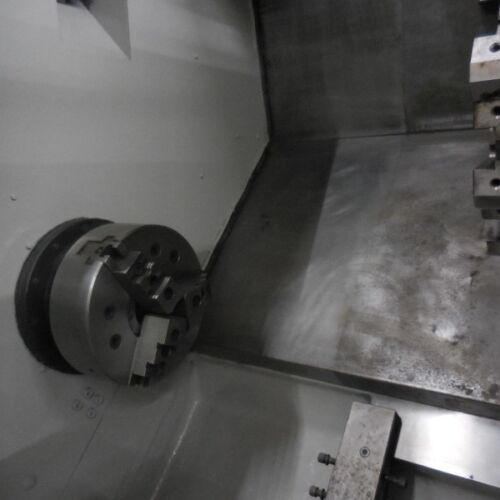

- 12″ 3-Jaw Big Bore Hydraulic Chuck

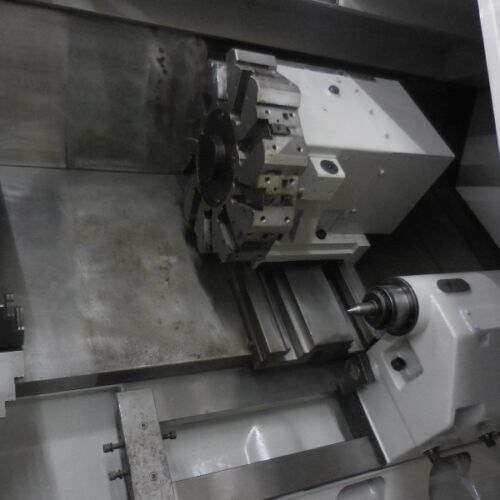

- 10 Position Turret with Tool Holders (9)
- Tailstock with Live Spindle Center
- Chip Conveyor
- RS-232 Port.
- High Pressure Coolant System.
- Foot Operated Control for Chuck.
- Coolant Tank.
- General:
- Power Source: AC 200/220 V, Three Phase, 50/60 Hz
- Weight : 18000 lbs Approx.
- Overall Dimensions: 180″ x 76″ x 82″ tall
- MORI SEIKI SL 35B Specifications:
- Max. Turning Diameter: 16.5″
- Max. Swing over Bed: 23.6″
- Max. Turning Length: 30.7″
- Distance between Centers: 35.0″
- Max Bar Capacity: 3.6″
- X-Axis Travel: 9.4″
- Z-Axis Travel: 33.7″
- Spindle Bore: 4.1″
- Spindle Nose: A2-8
- Spindle Speed: 25 – 2500 RPM
- Spindle Motor: 30/40 hp
- Turret Capacity: 10 Stations
- Turret Index Time: 1.2 Second
- Tailstock Quill Taper: MT #4
- Tailstock Quill Travel: 4.0″
- Tailstock Quill Thrust: 225 – 900 LB

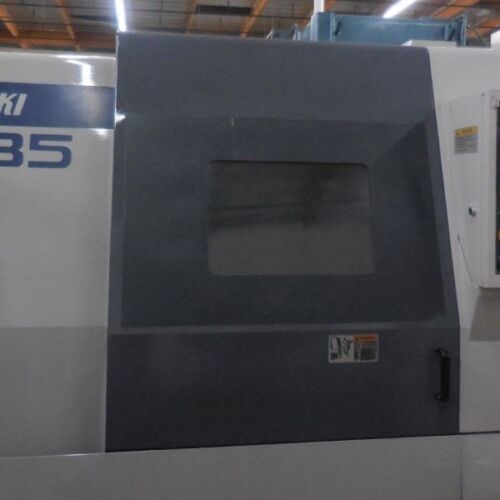

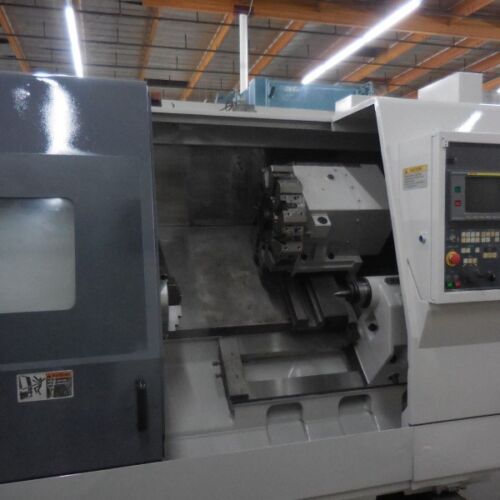

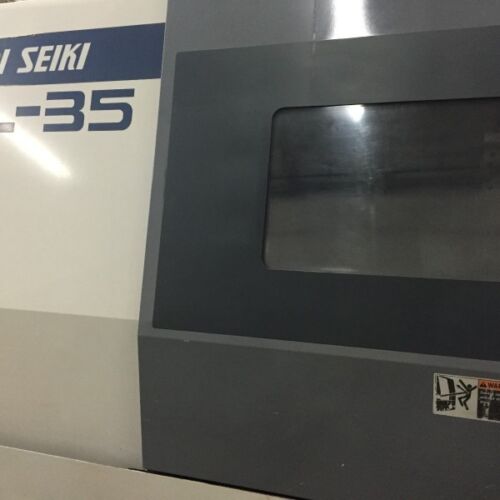

MORI SEIKI SL 35B Comes as shown in pictures.
