*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2056 |

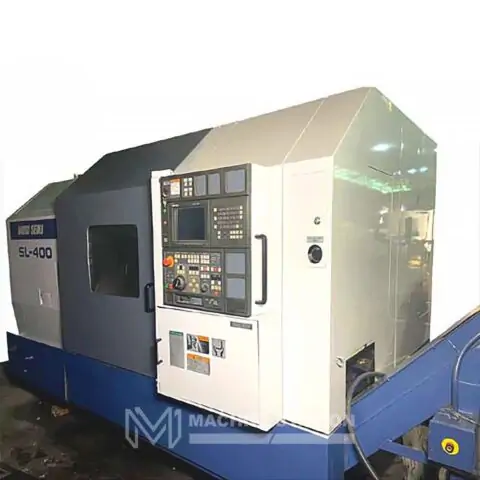

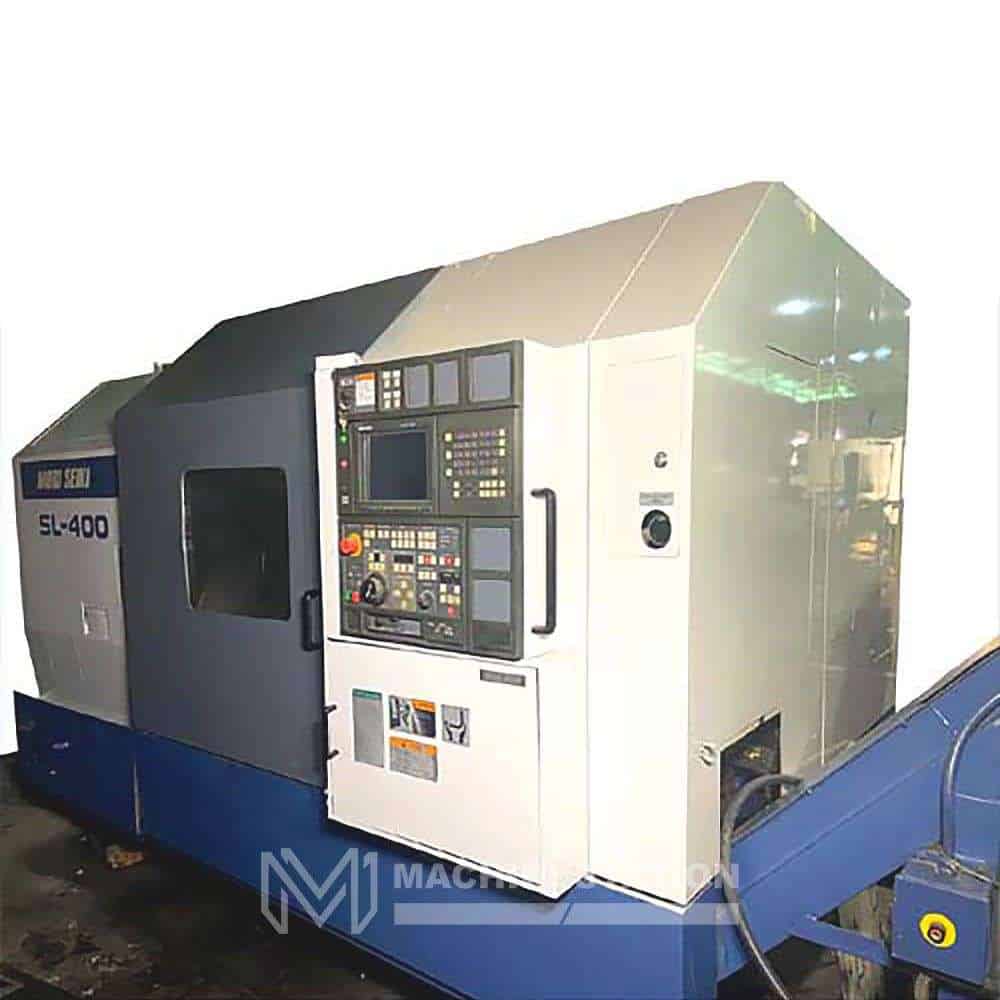

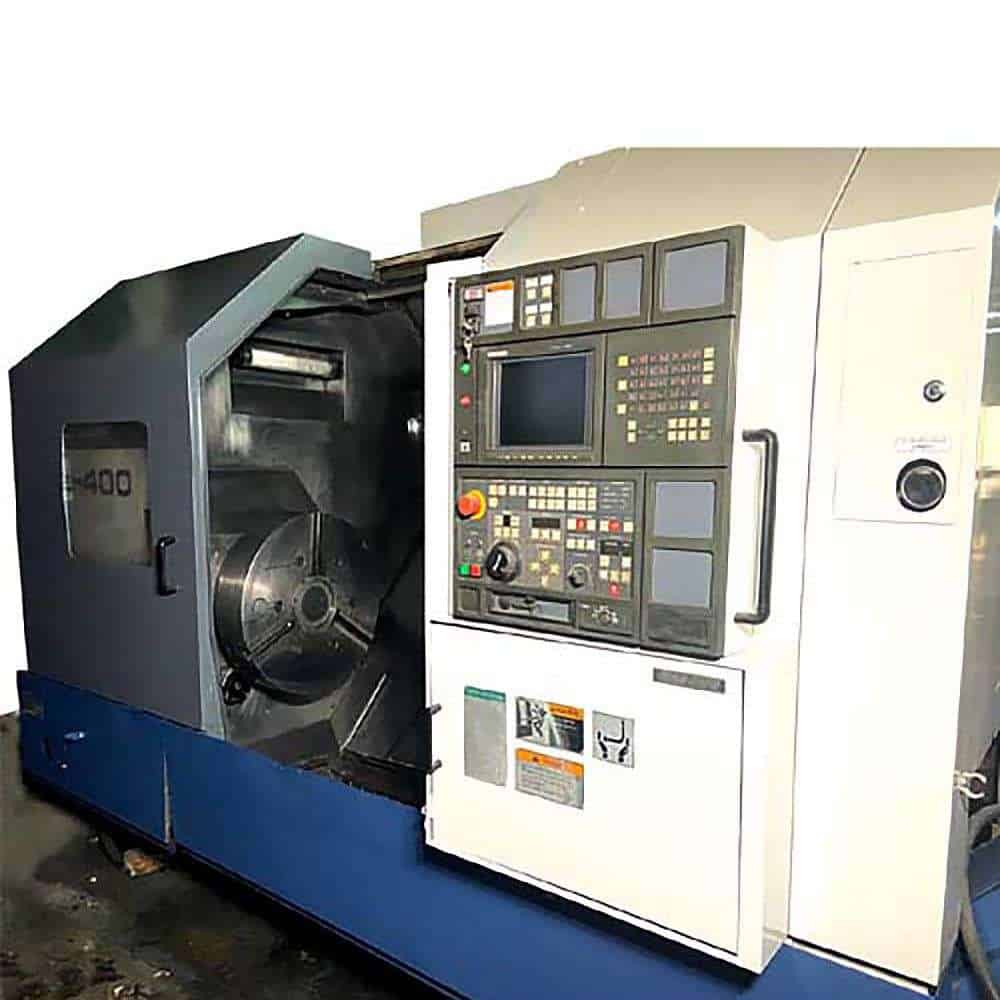

| Make: | Mori Seiki |
| Model: | SL-400B/800 |
| Serial: | 133 |
| Year: | 1999 |
| Condition: | Very Good |
| Cutting Hours: | 4970 |
| Equipped With: |
|---|

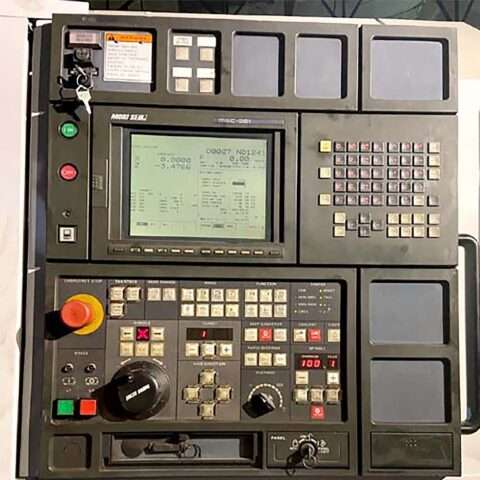

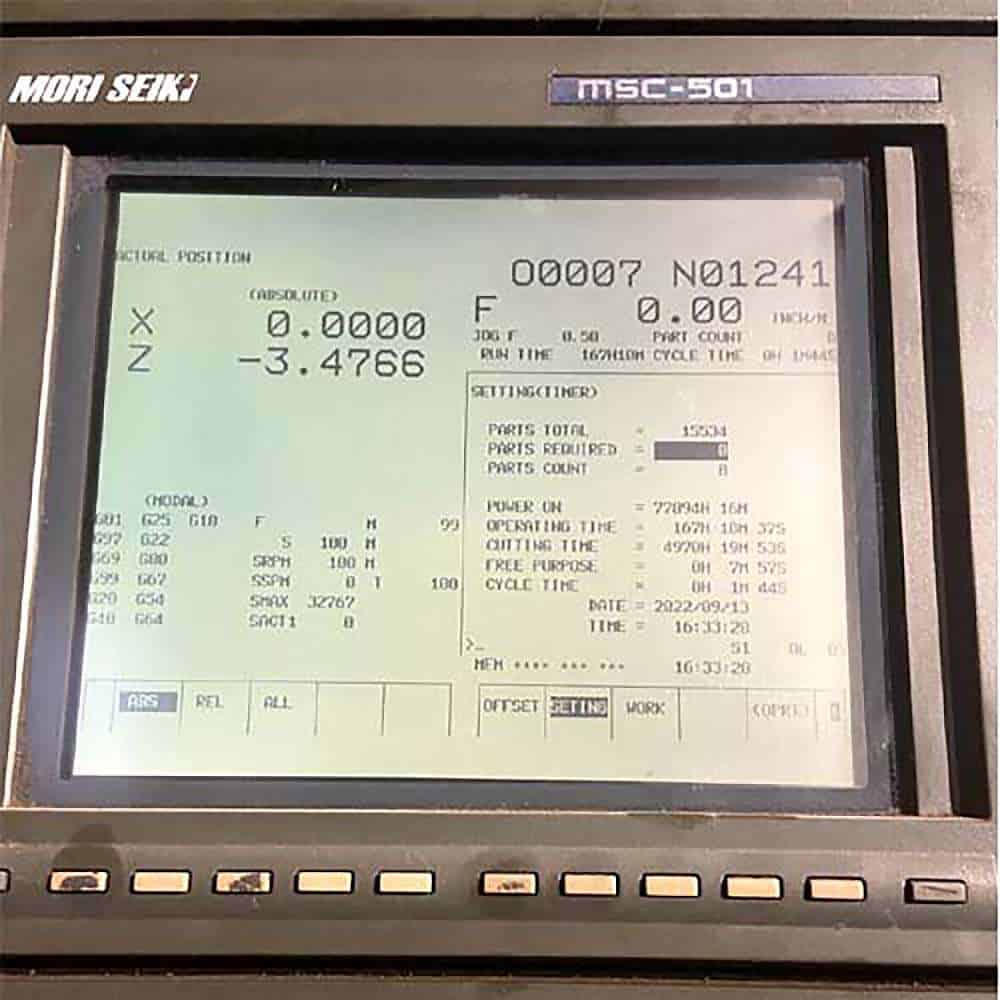

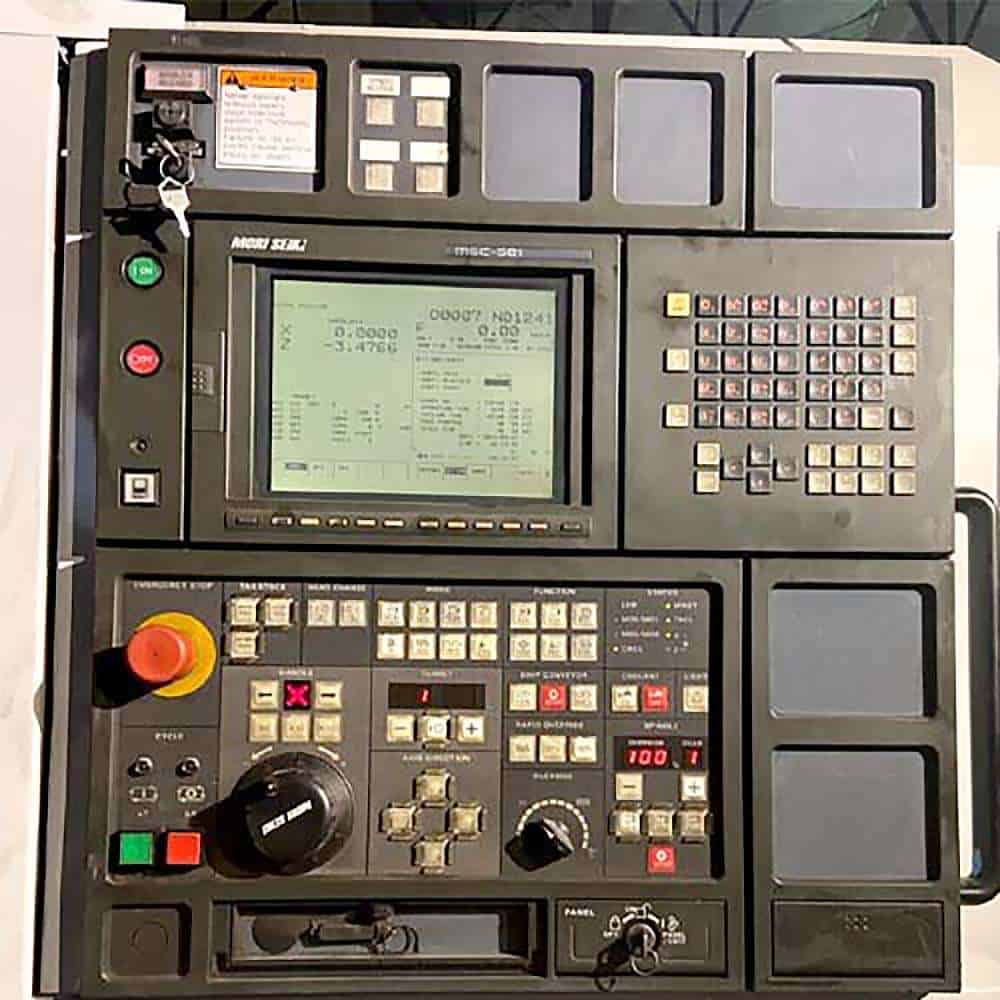

| Mori Seiki MSC-501 (Fanuc) CNC Control |
| 12 Station Tool Turret |

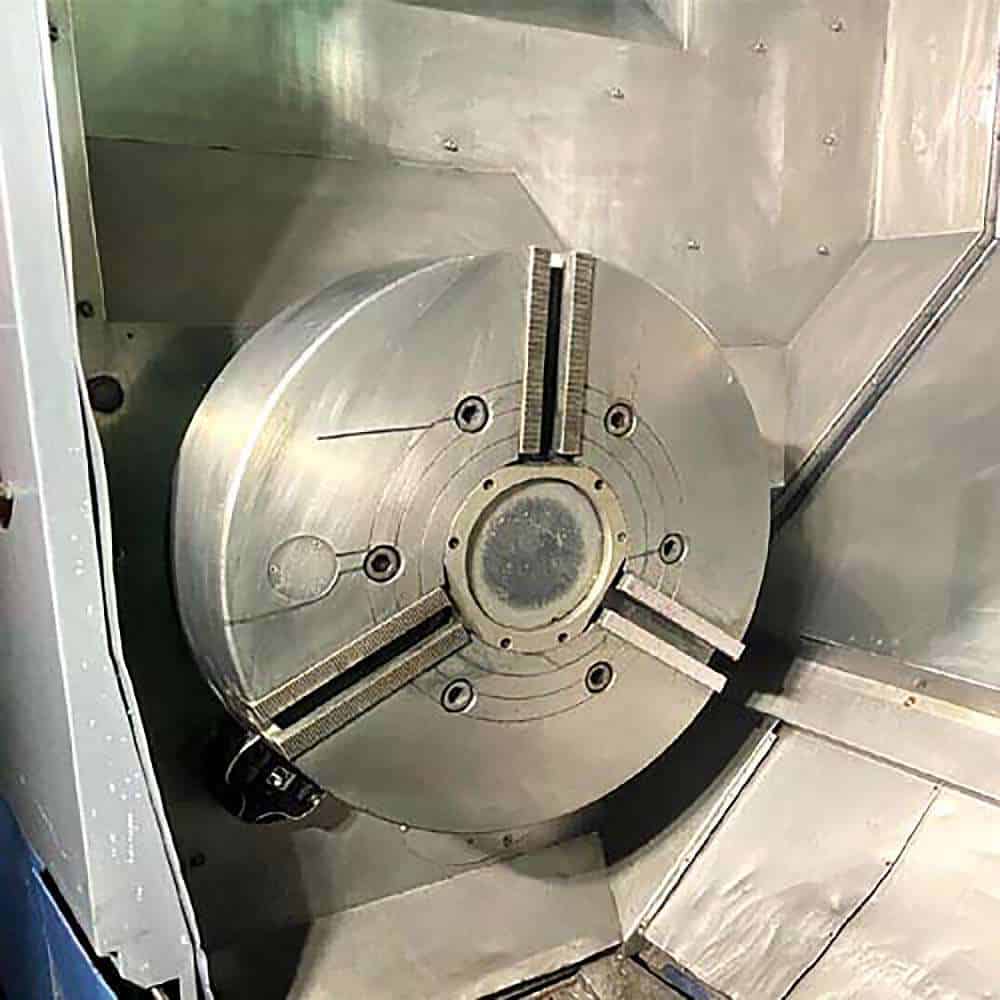

| 24″ Kitagawa Hydraulic Chuck |
| 5″ Bore A2-11 Spindle |
| 40 HP 2 Speed Gear Head Spindle |
| Programmable Hydraulic Tailstock |
| RS-232 Port |
| Foot Switch |
| Coolant System with pump |

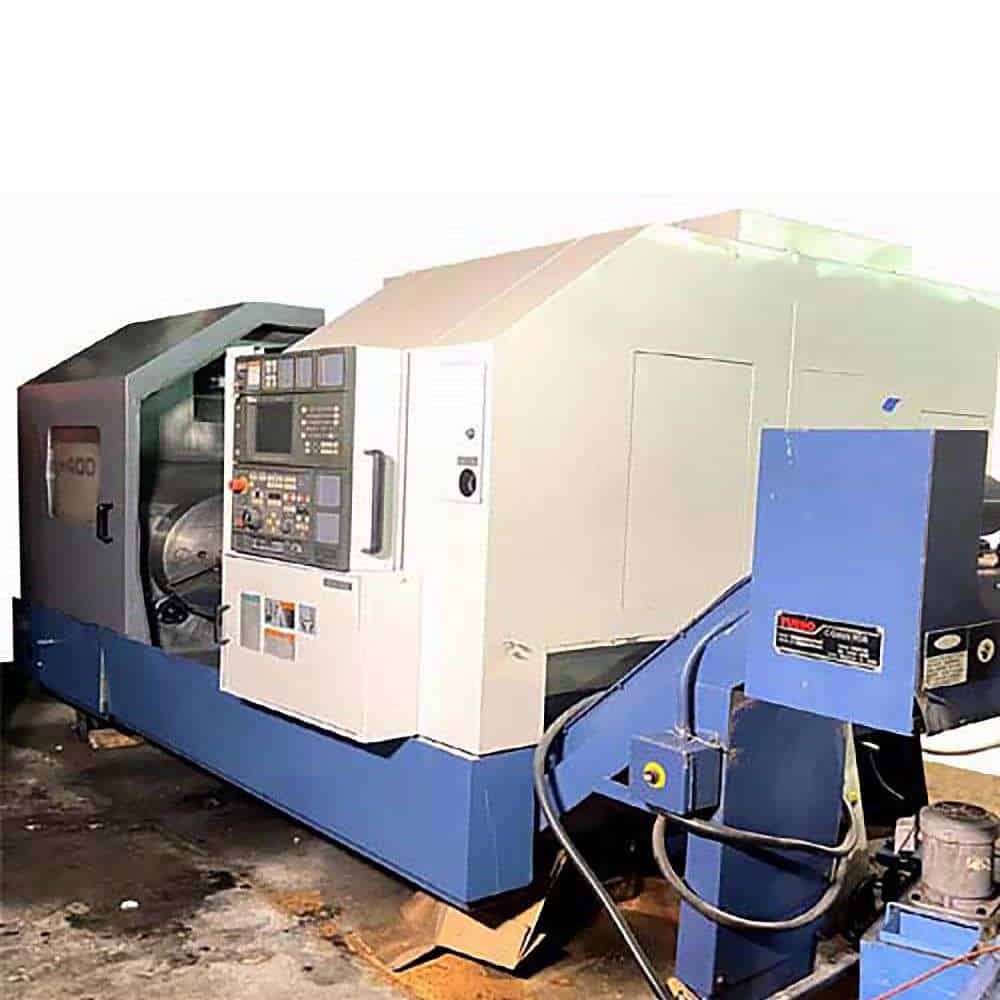

| Chip Conveyor |
| Specifications: |
|---|
| Capacity: |
| Max Turning Diameter: 24.4″ |
| Max Turning Length: 37.7″ |
| Max Bar Capacity: 4.8″ |
| Swing Over Bed: 27.9″ |
| Distance Between Centers: 50″ |
| Travel: |
|---|
| X Axis Travel: 13.5″ |
| Z Axis Travel: 40″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 944 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 5″ |
| Spindle Speed: 20-2400 RPM |
| Spindle Motor: 40 hp |

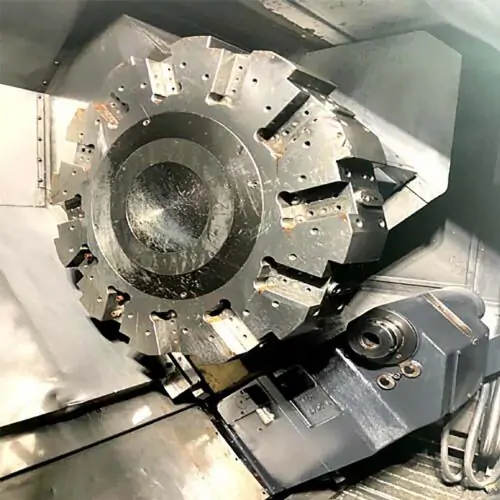

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |

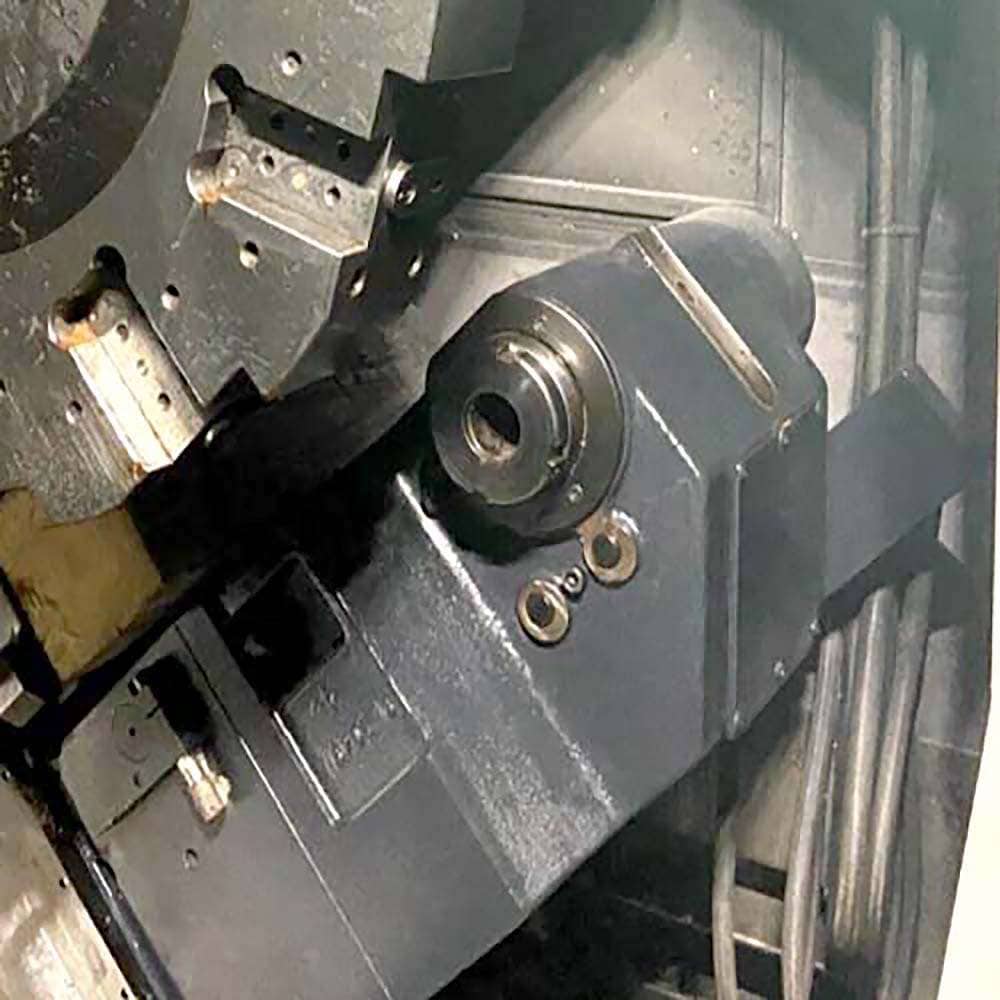

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 33.4″ |
| Tailstock Quill Dia.: 5.9″ |
| Tailstock Quill Travel: 5.9″ |
| General: |
|---|

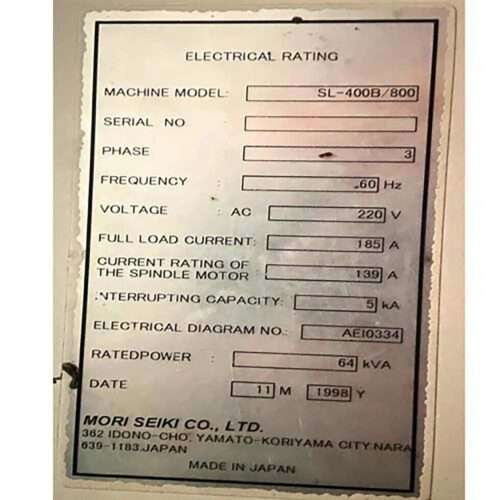

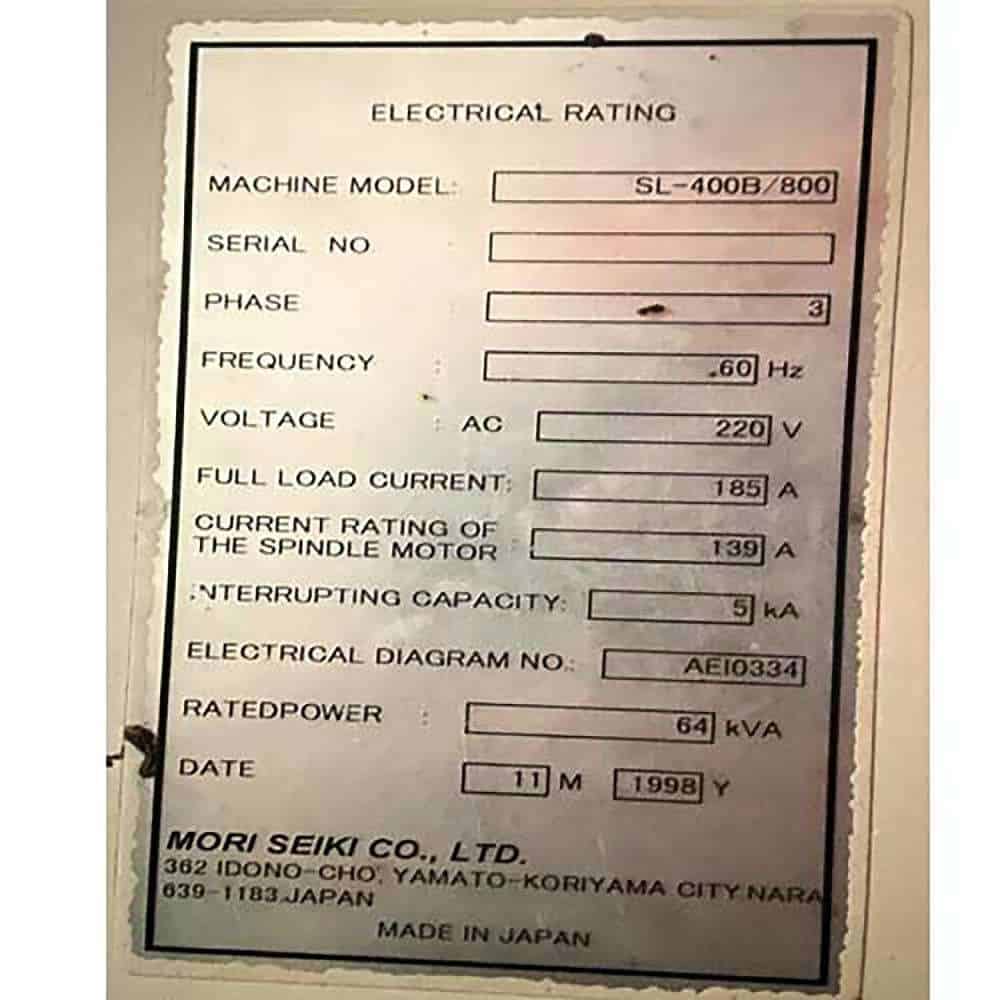

| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: 147″ x 91″ x 102″ High |
| Weight: 24200 lbs |
