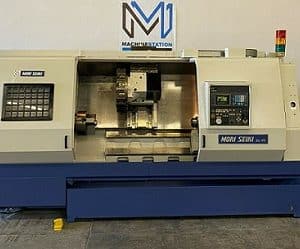

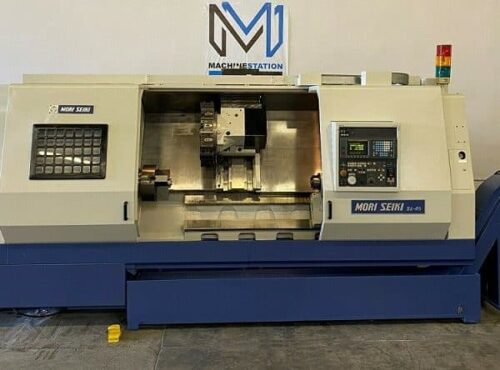

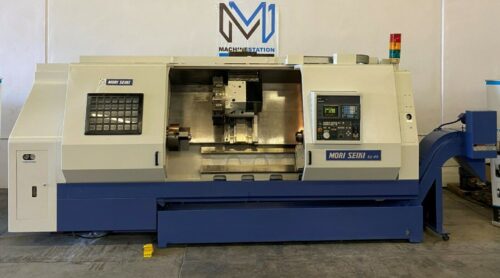

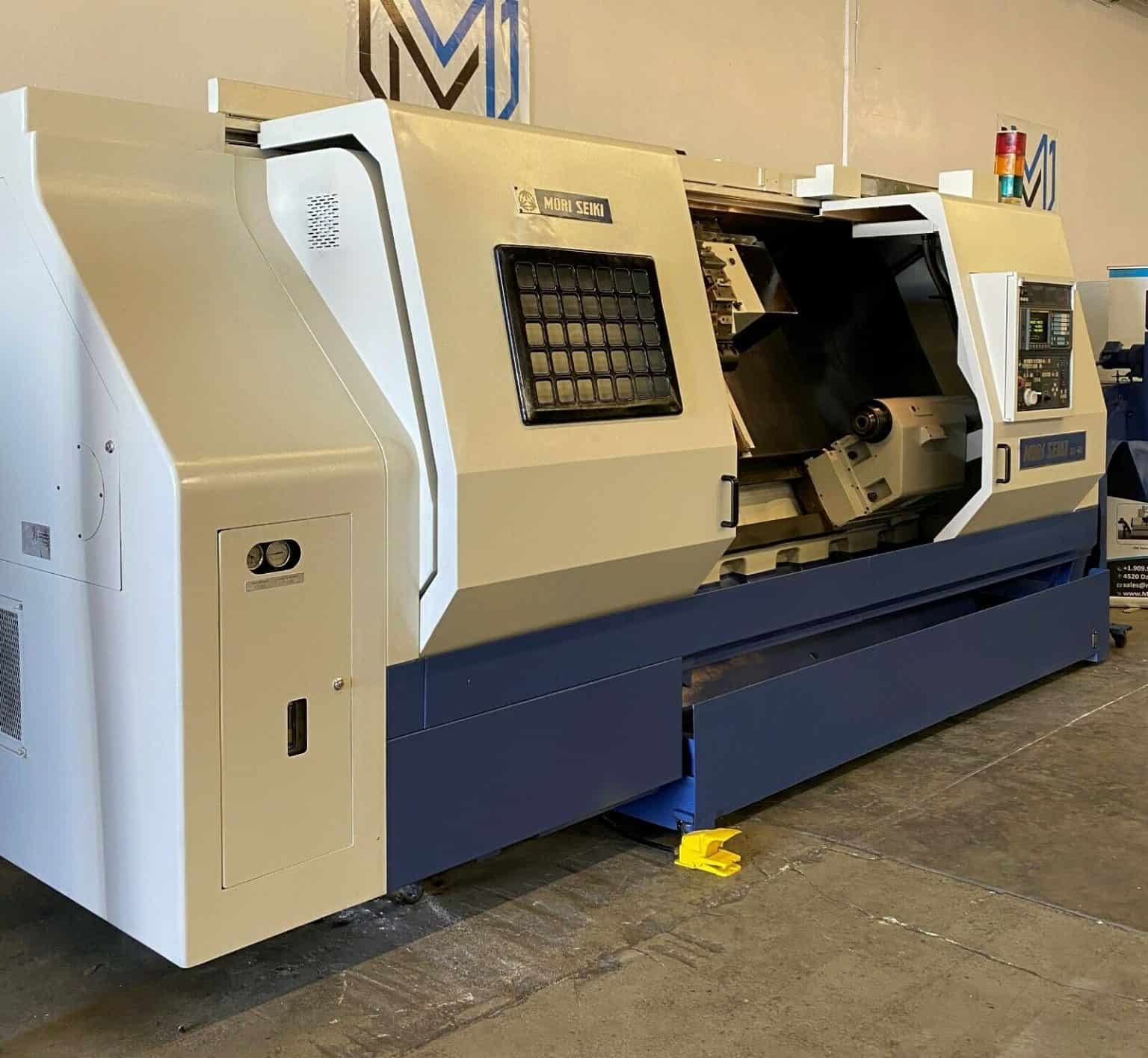

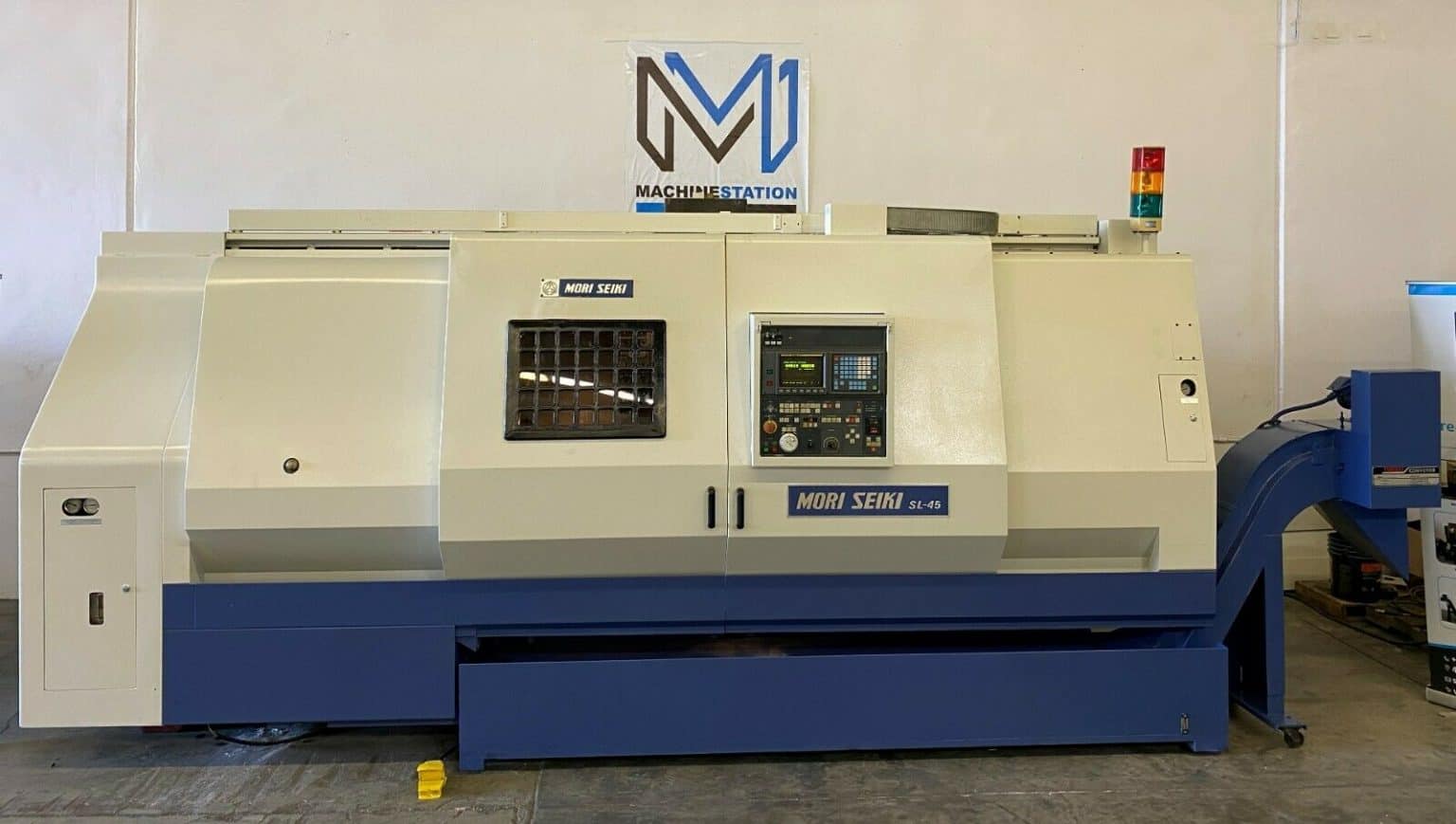

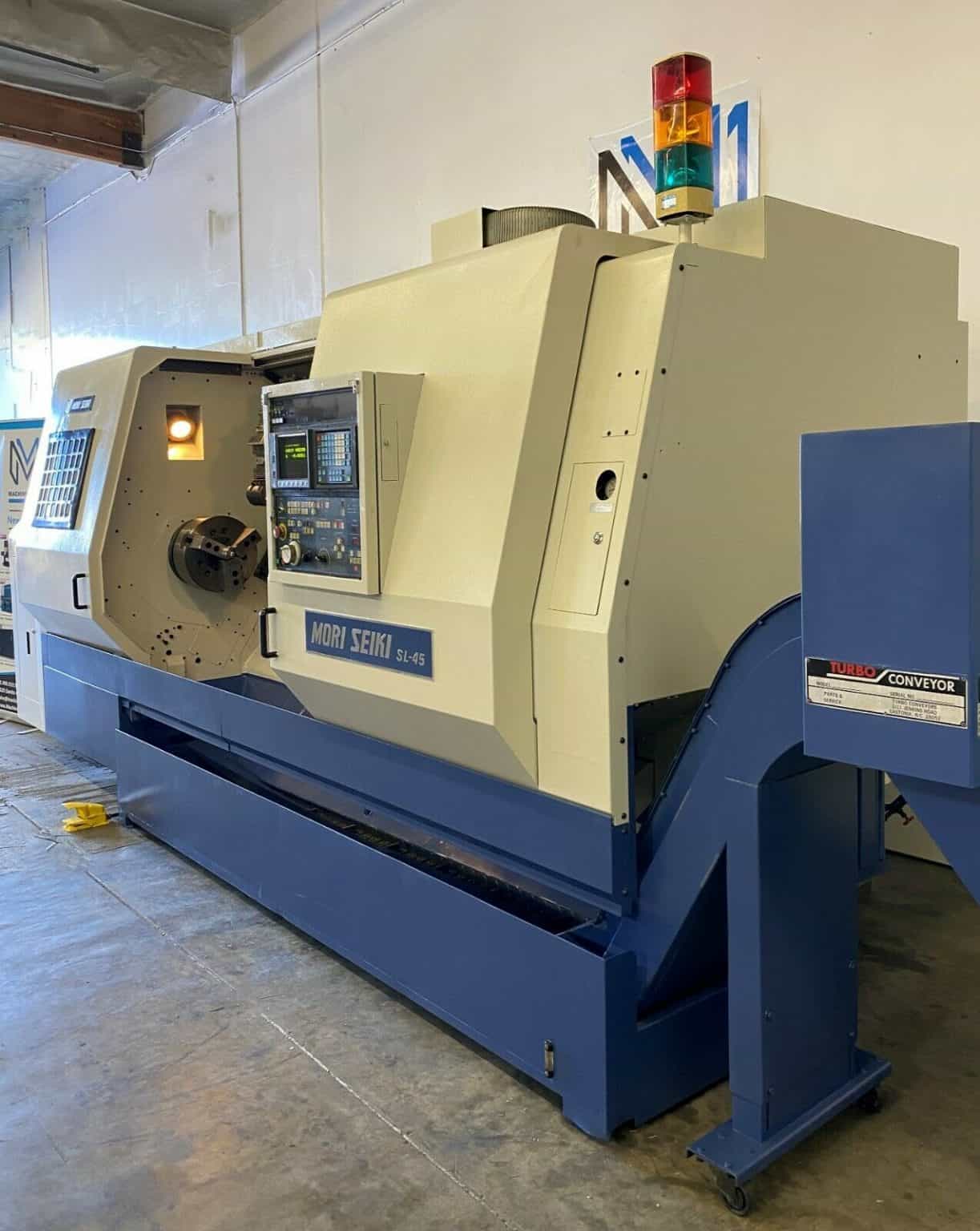

Mori Seiki SL-45/1500 CNC Turning Center

Out of stock

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

SKU:	1960
Make/Model:	MORI SEIKI/SL-45B/1500
Video:	[fusion_button link=”https://www.youtube.com/watch?v=IIvVcCWa6-0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1960

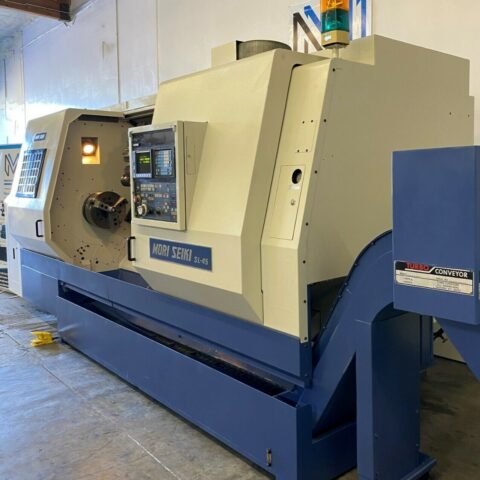

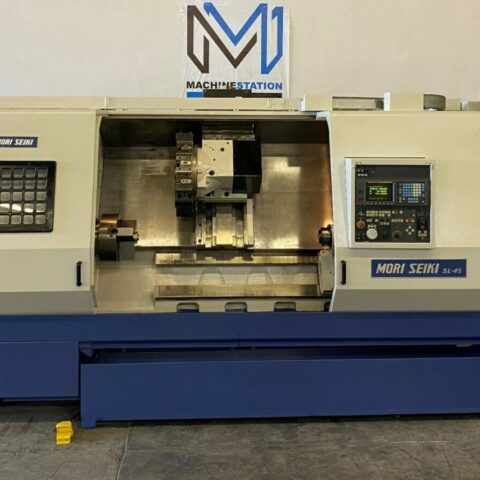

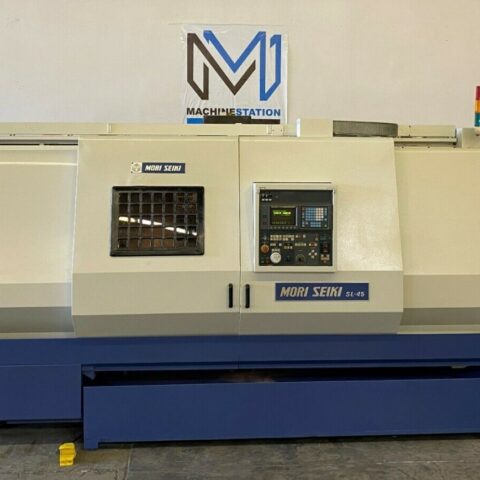

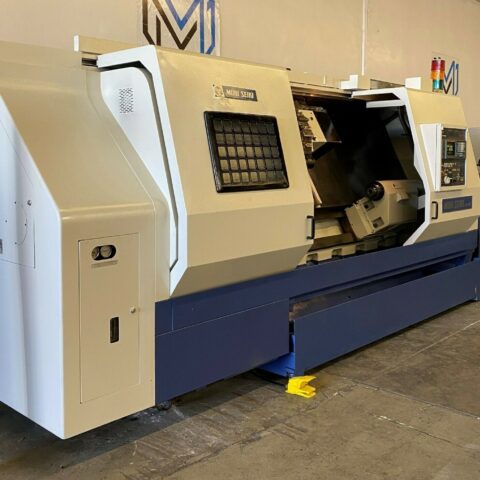

MORI SEIKI SL-45/1500 CNC TURNING CENTER
Make	MORI SEIKI
Model No.	SL-45B/1500
Serial #	125
Condition	Very Good

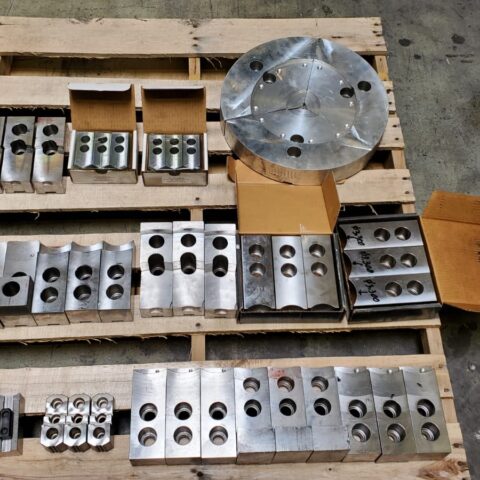

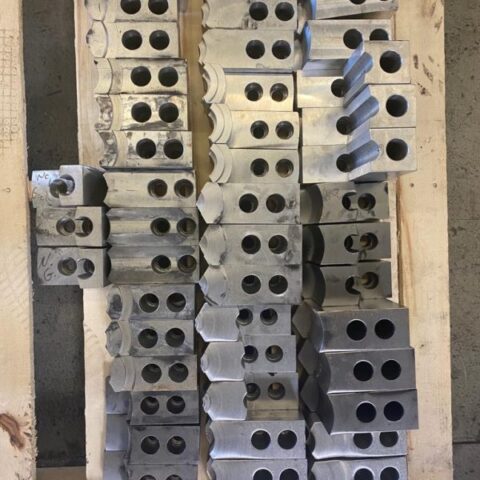

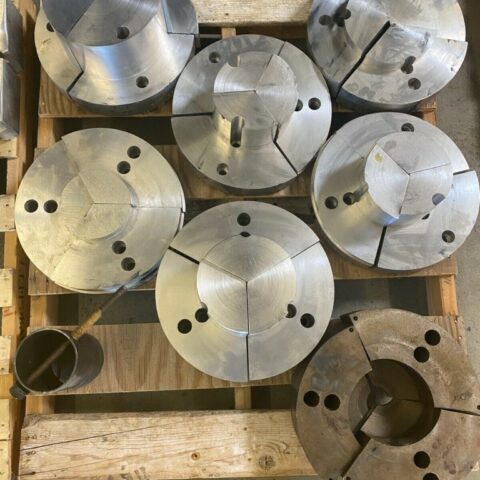

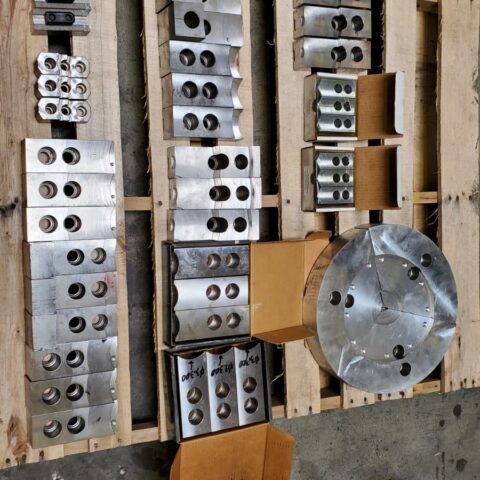

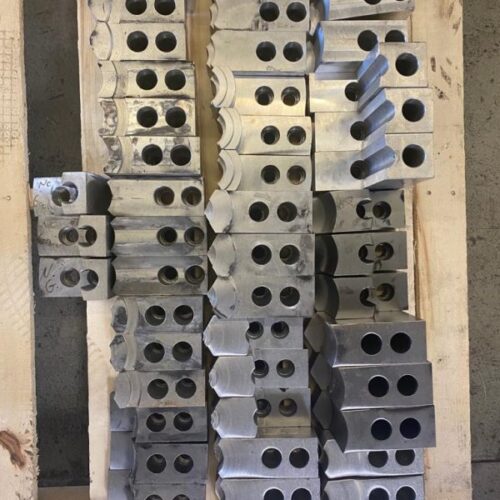

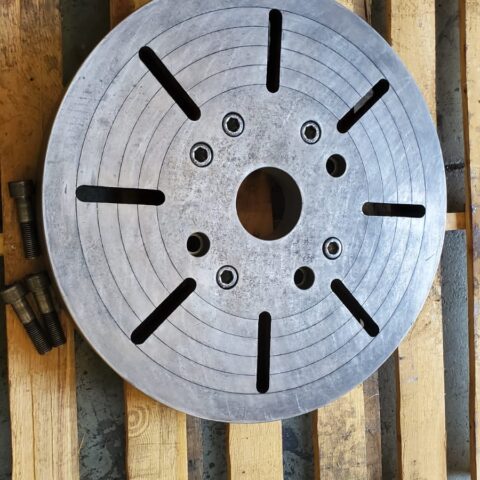

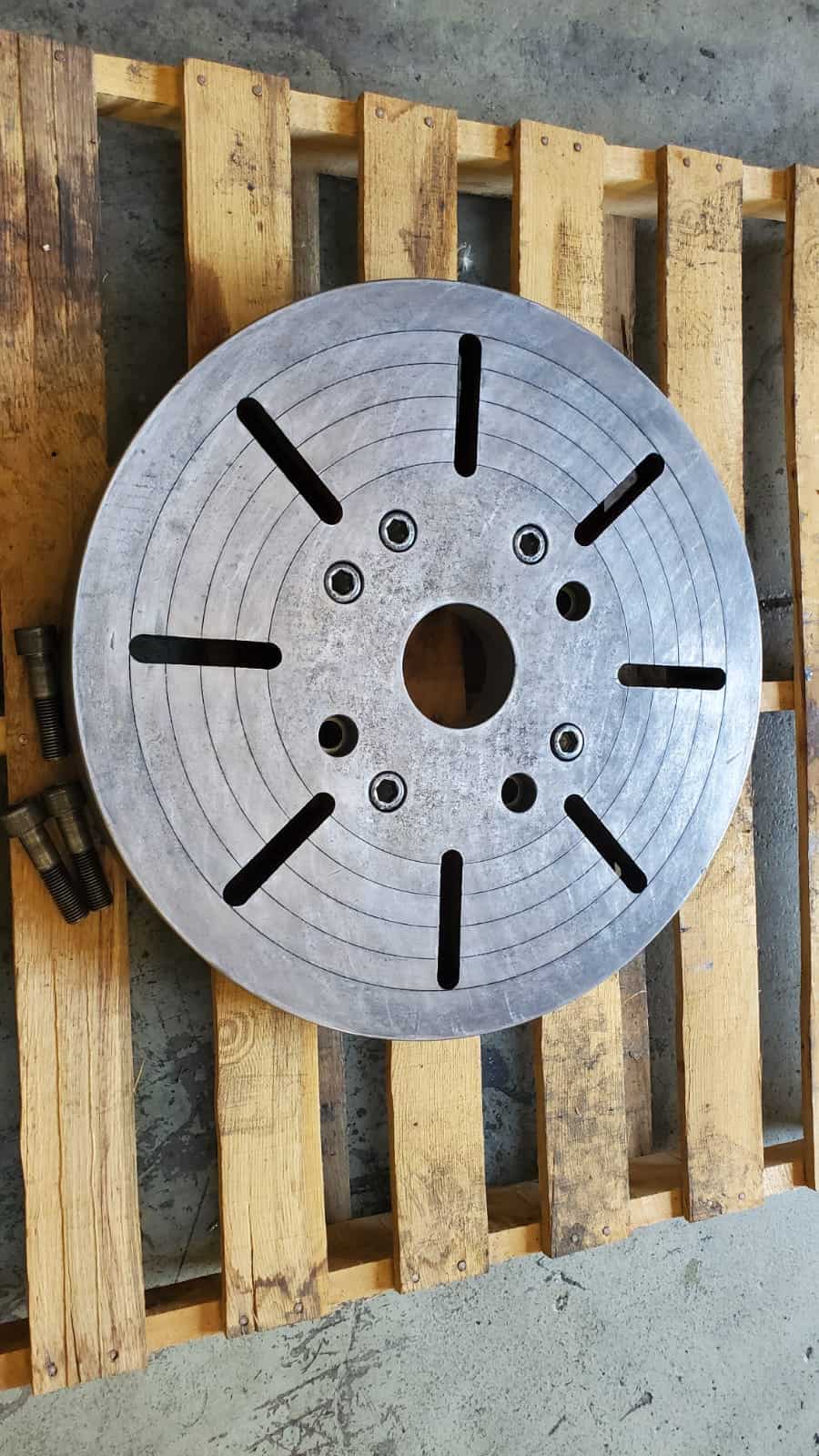

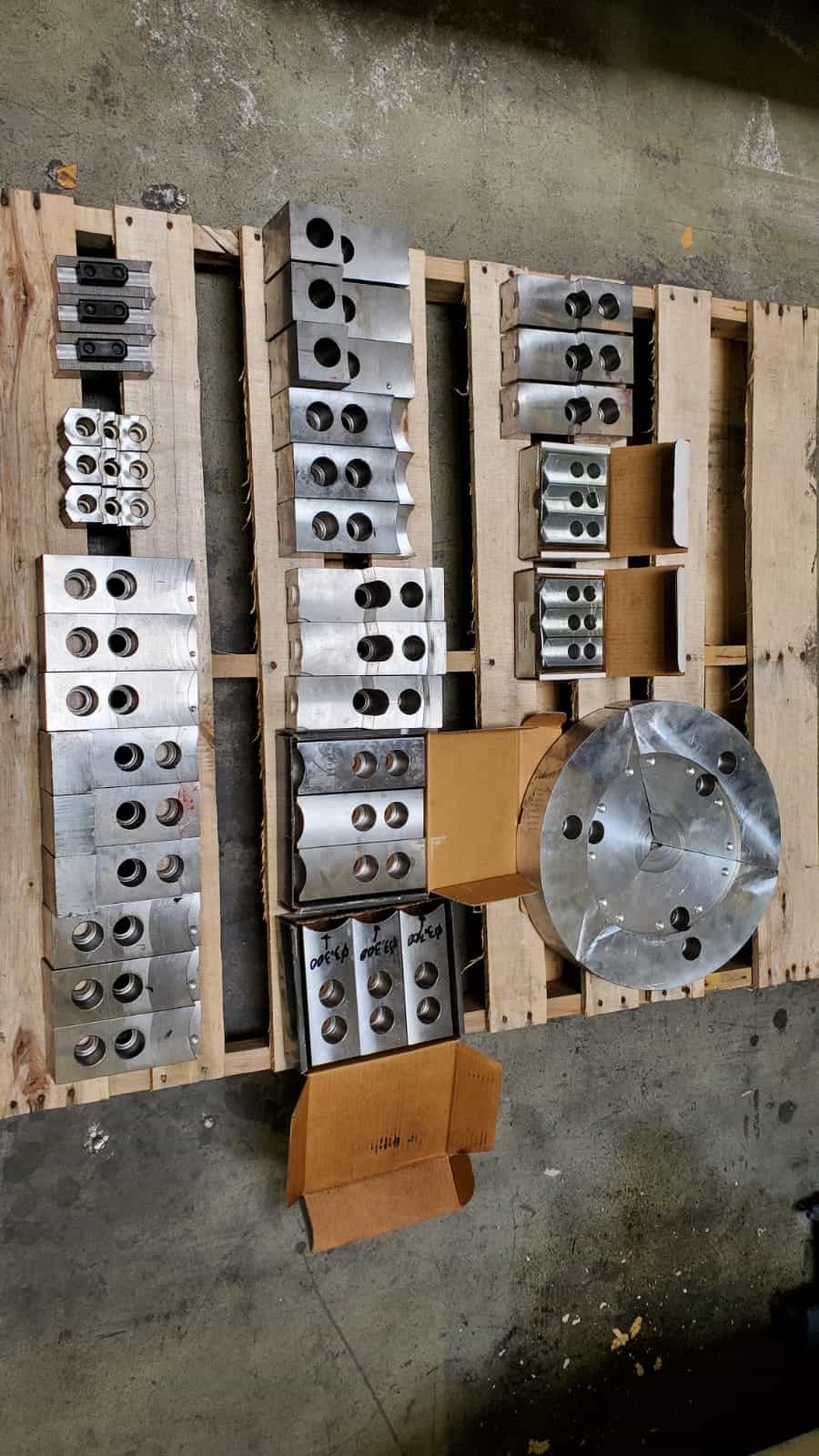

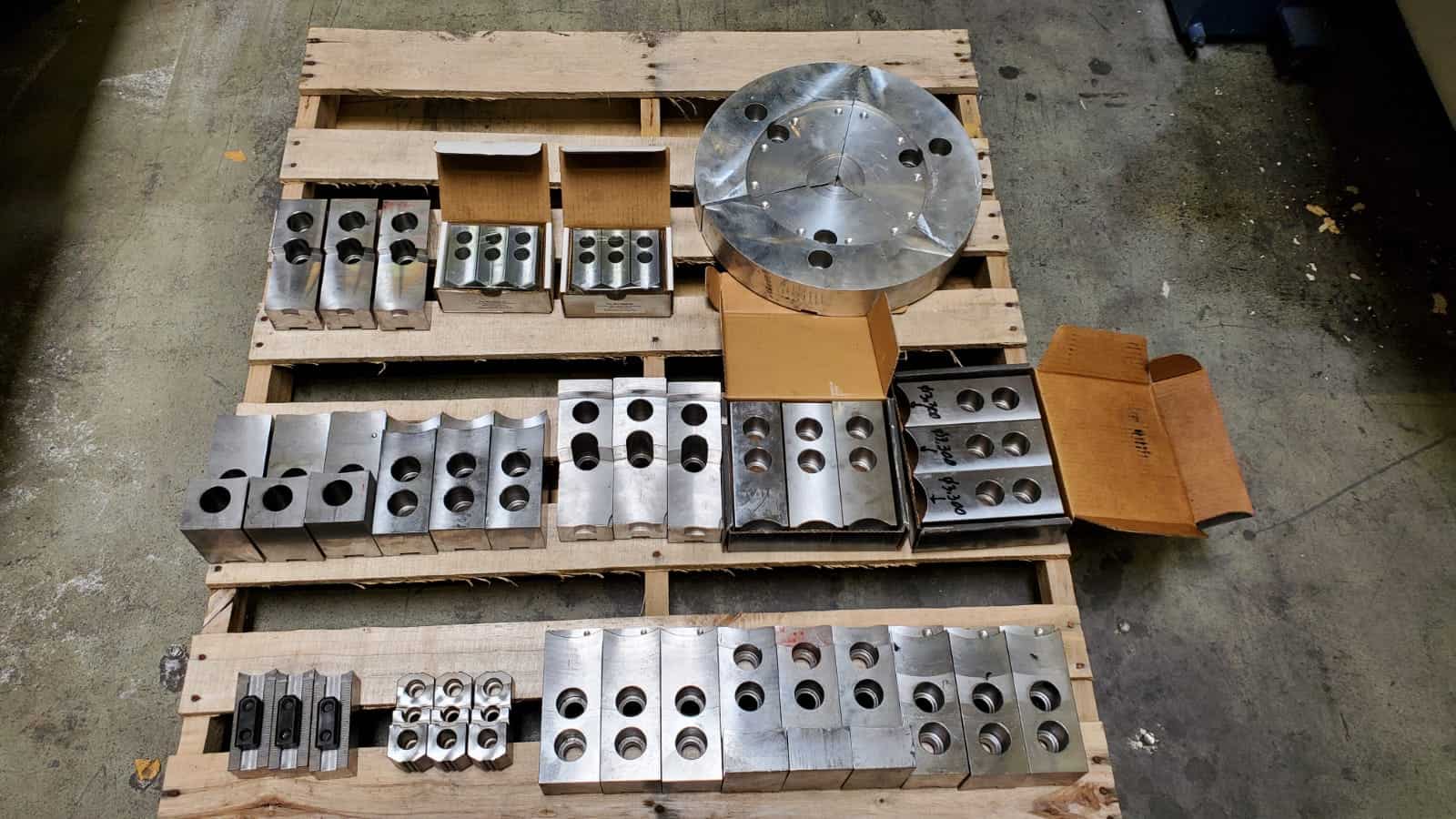

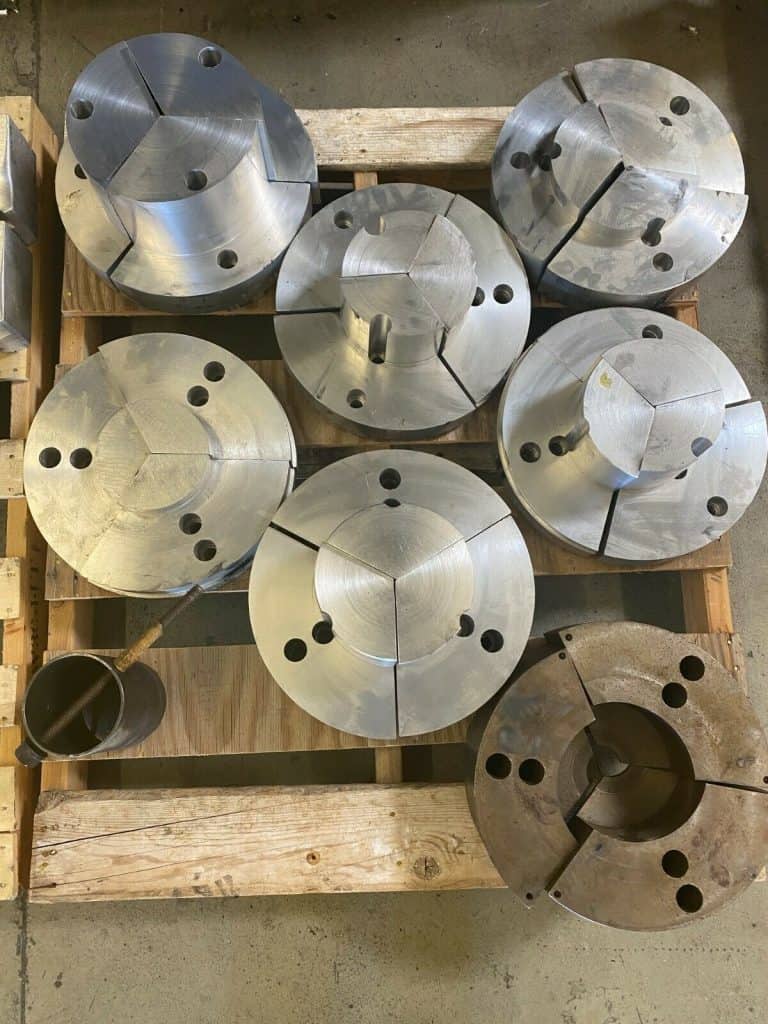

Comes with 15″ Chuck, 24″ Face Plate, Tool holders, Tailstock & Chip conveyor. Assortment of Soft Jaws.

All specifications are approximations and are subject to verification.

Mori Seiki SL-45/1500 CNC Equipped With:
Fanuc OT CNC Control
A1-11 Spindle with ” Bore

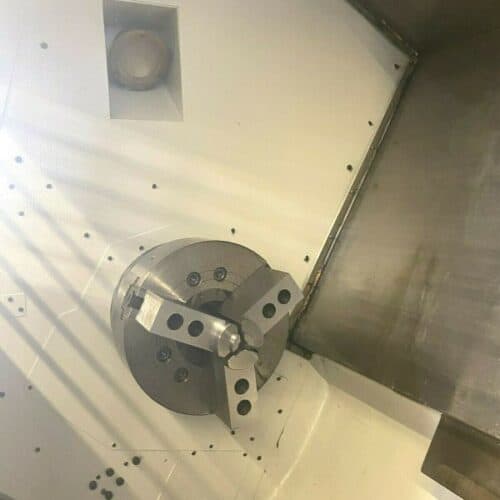

15″ 3 Jaw Chuck (24″ Capable )
45 HP Gearbox Spindle
Hydraulic Tailstock
Spindle Chiller Unit
Coolant System
Foot Switch
Chip Conveyor

Mori Seiki SL-45/1500 CNC Specifications:
Capacity:
Max Turning Diameter: 19.3″
Max Turning Length: 63.7″
Max Bar Capacity: “
Swing Over Bed: 26.4″
Swing Over Cross slide: 18.1″
Distance Between Centers: 66.6″

Travels:
X Axis Travel: 10.6″
Z Axis Travel: 62.7 “
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 590 IPM

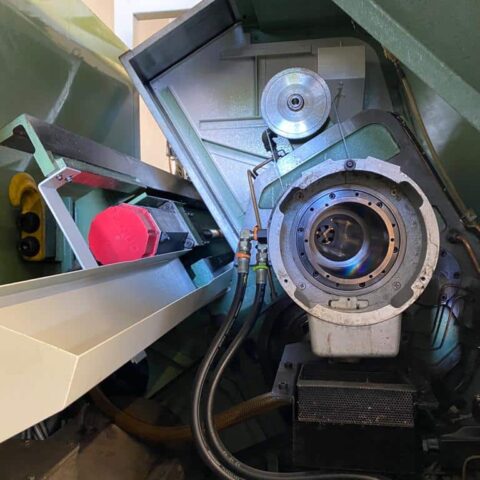

Spindle:
Spindle Nose: A1-11
Spindle Bore: 4″
Spindle Speed: 10 – 1000 RPM
Spindle Motor: 45 HP

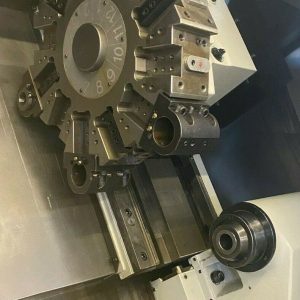

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.4 Second

Tailstock:
Tailstock Taper: MT-5
Quill Diameter: 5.9″
Quill Travel: 5.9″
Tailstock Body Travel: 52.7″

General:
Power: 50kva, 220v / 3-Phase Overall
Dimensions: 242x82x99” (Machine w/ Conveyor)
206x82x99” (Machine)
Weight: 24900 lbs

“No Charges for loading at list Price”

Mori Seiki SL-45/1500 CNC Comes as shown in Pictures….
