*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

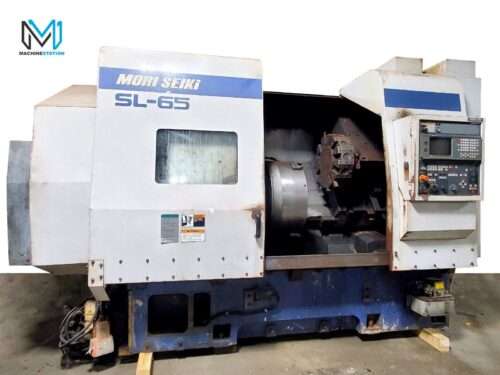

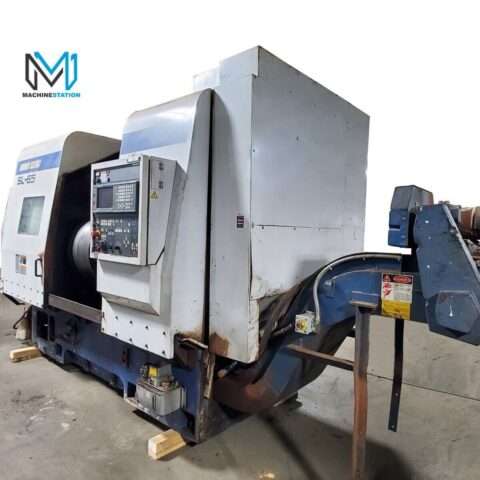

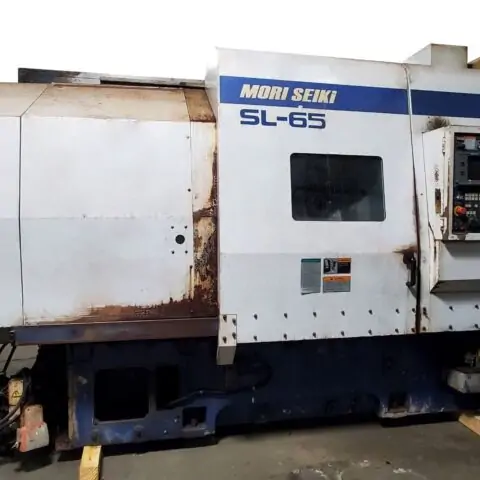

| Make: | Mori Seiki |
| Model No.: | Sl-65C |
| Cutting Time: | Only |
| Equipped With: |
|---|

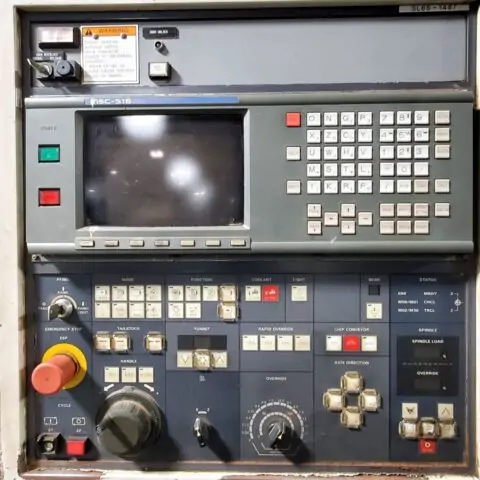

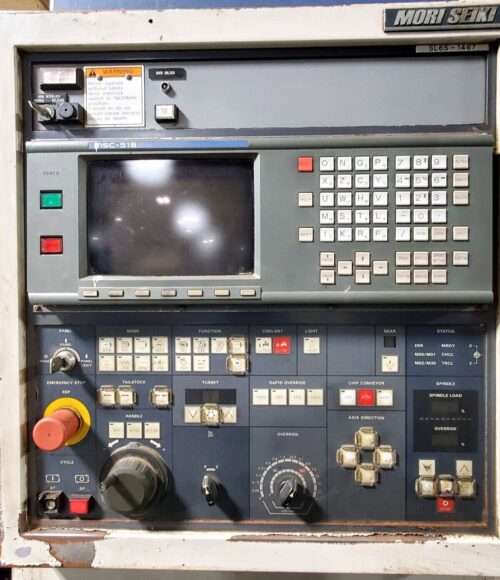

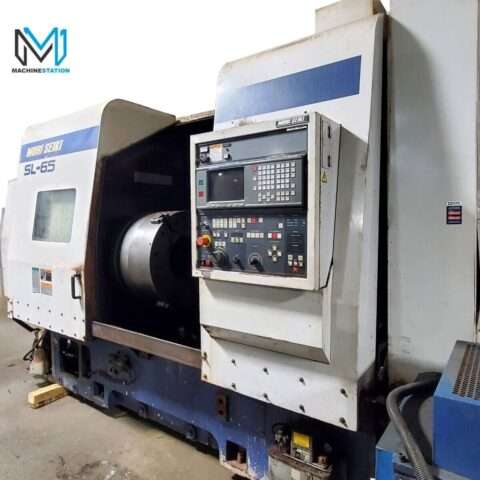

| MSC-516 (Fanuc 18T) CNC Control |

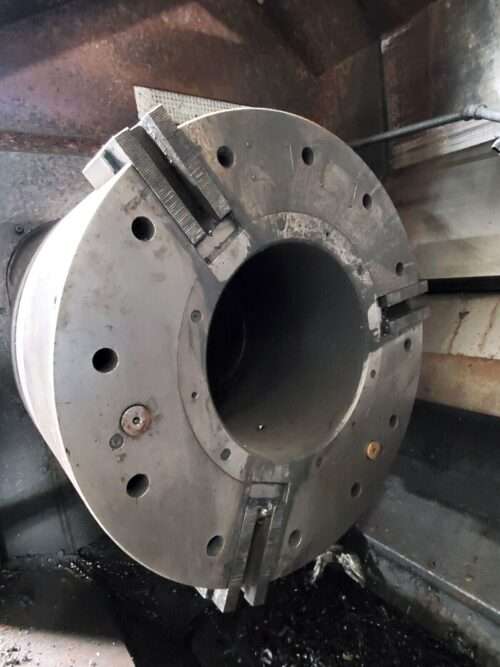

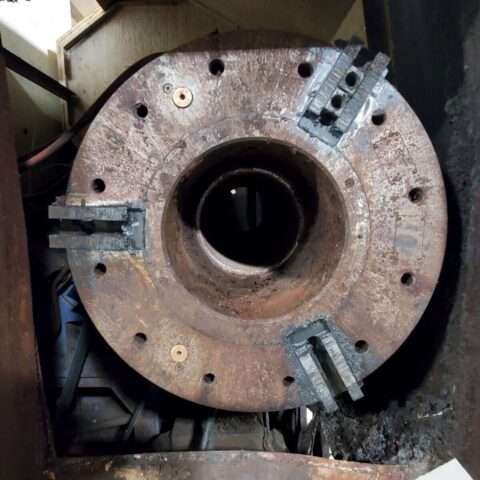

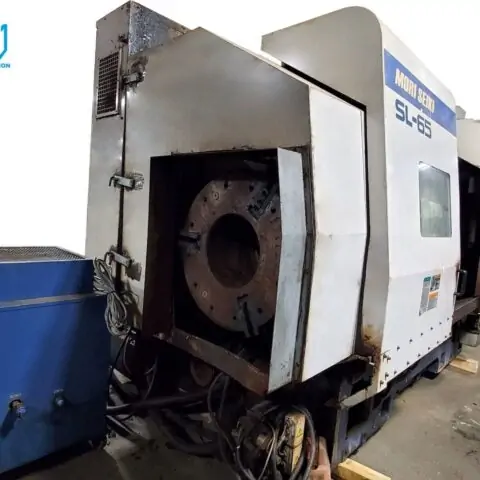

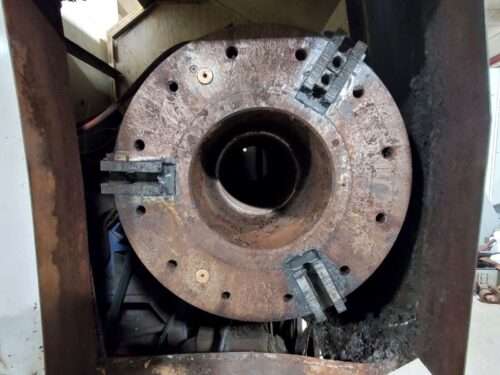

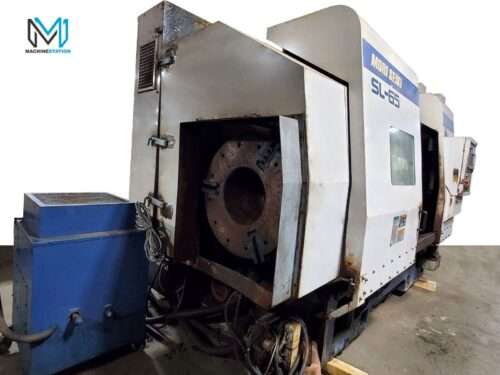

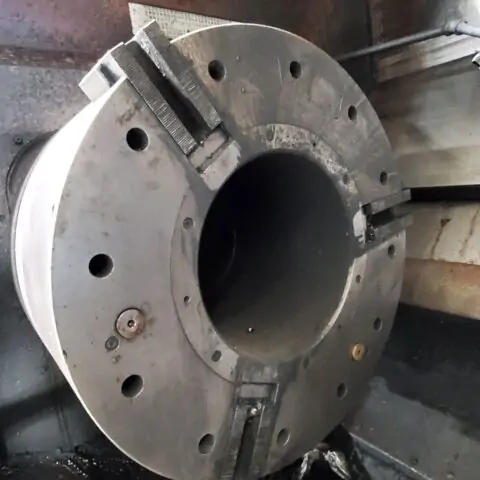

| 24″ Main chucks and Rear Chuck |
| 10.2″ Big Bore Spindle |

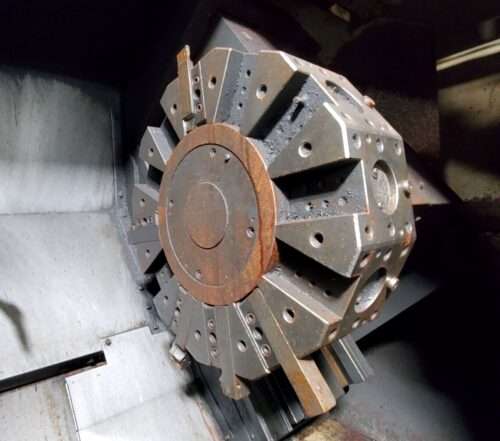

| 12 -Station Turret |
| 2 Step gear spindle for powerful torque |
| Coolant System |

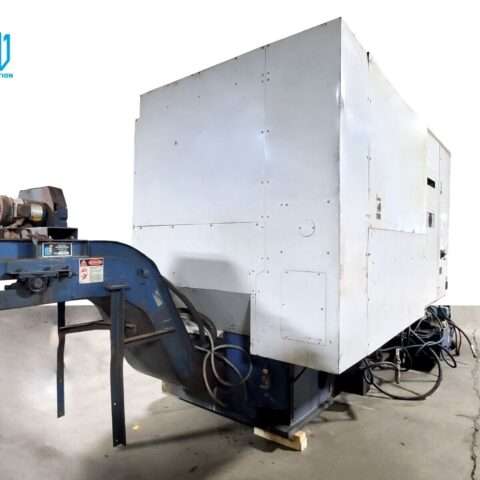

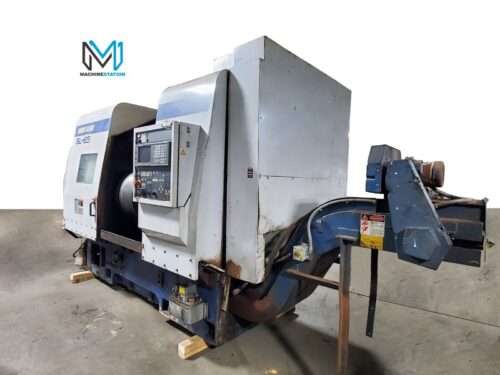

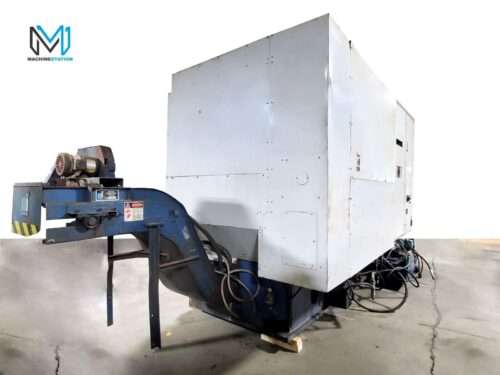

| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 26.8″ |
| Max Turning Length: 24.6″ |
| Max Bar Capacity: 10.2″ |
| Swing Over Slide: 26.8″ |
| Swing Over Bed: 31.5″ |
| Travel: |
|---|
| X Axis Travel: 13.8″ |
| Z Axis Travel: 30.3″ |
| Rapid Traverse X Axis: 197 IPM |
| Rapid Traverse Z Axis: 315 IPM |
| Spindle: |
|---|
| Spindle Nose: A1-20 |
| Spindle Bore: 10.2″ |
| Spindle Speed: 7-660 RPM |
| Spindle Motor: 50 HP |

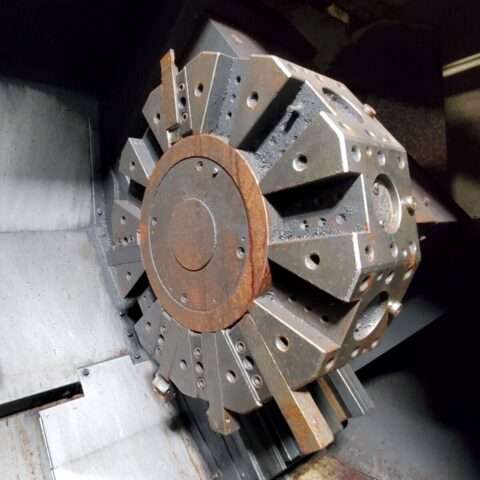

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |

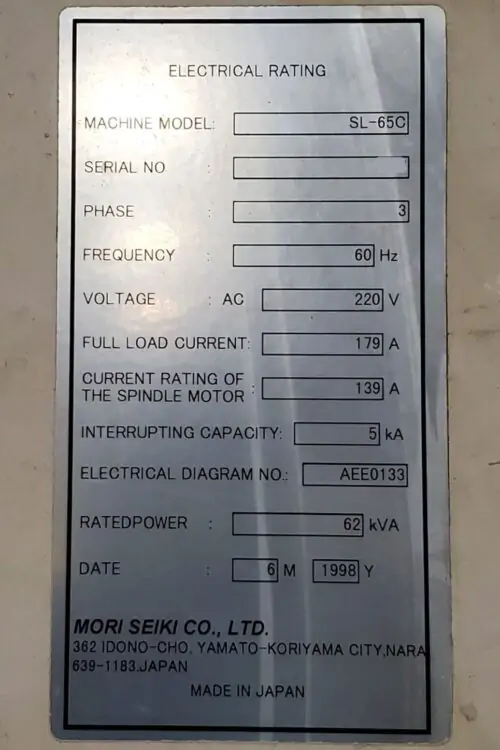

| General: |
|---|

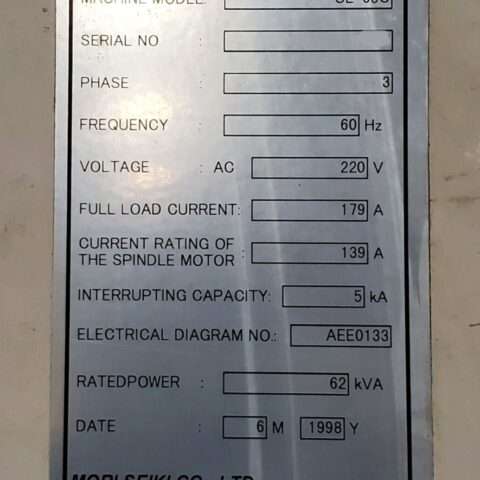

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 62 kva |
| Overall Dimensions: ″ x ″ x ″ High with Chip Conveyor |
| Weight : 20,000 lbs Approx. |
“No Charges for loading at list Price”
Comes as shown in pictures..
